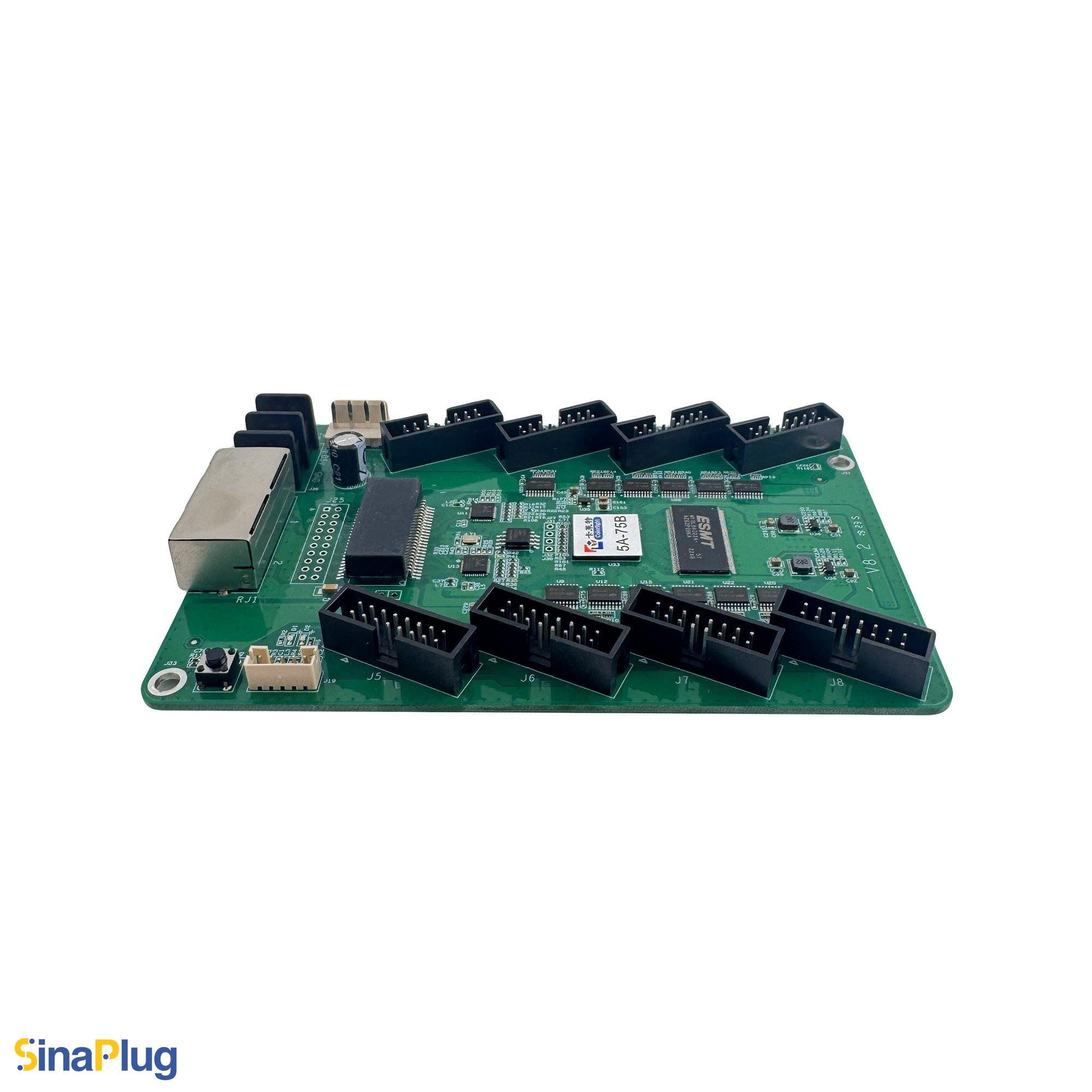

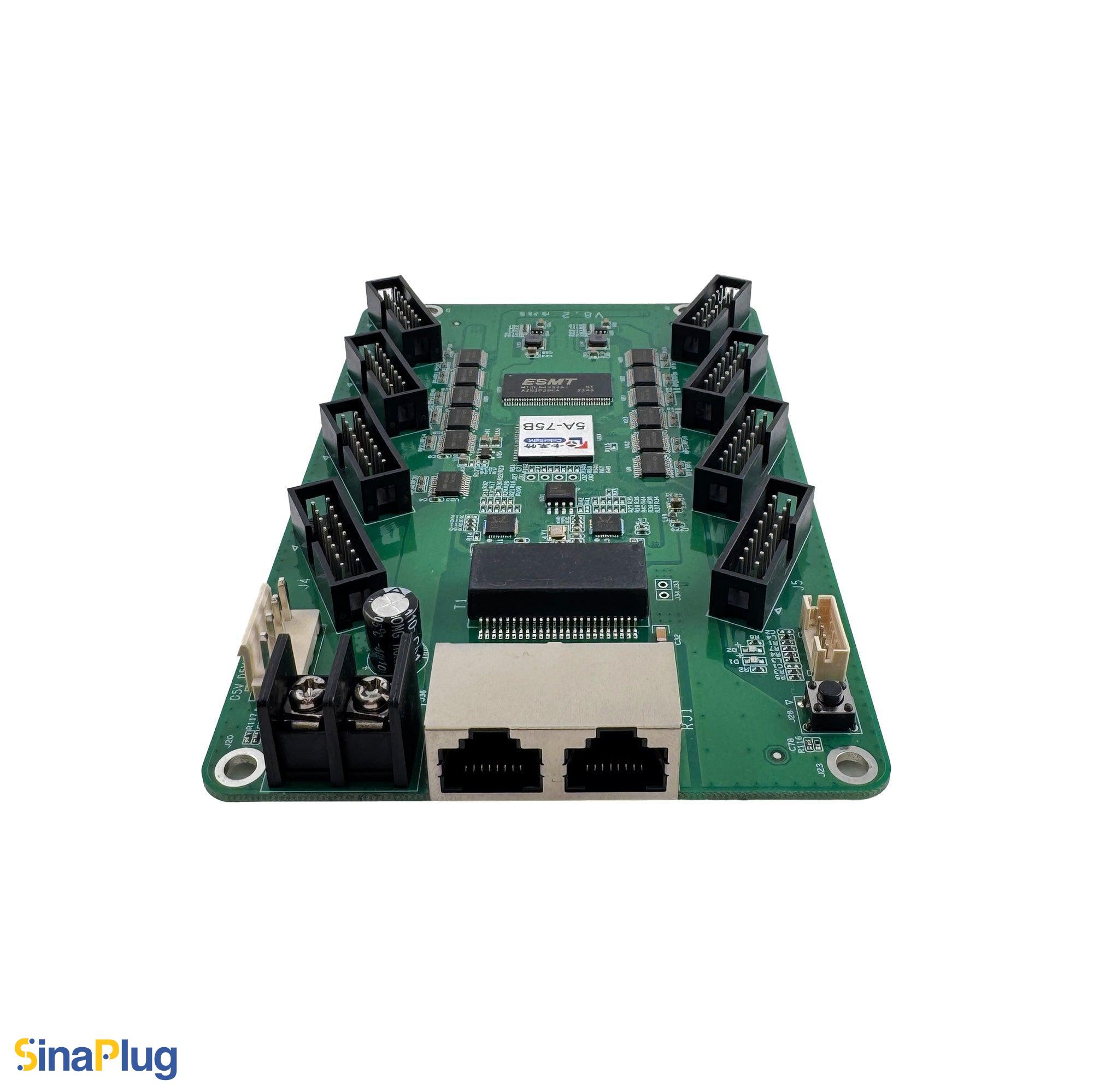

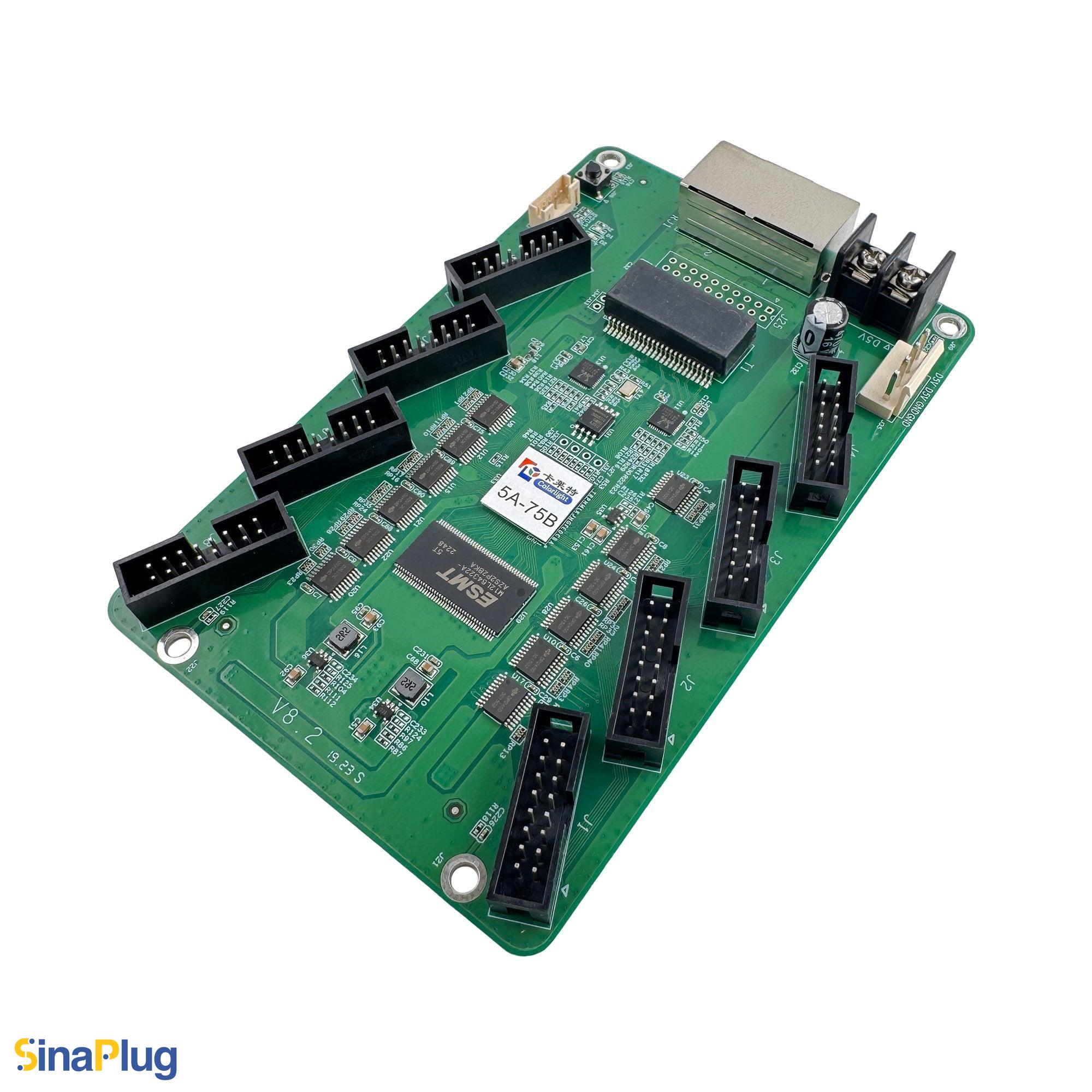

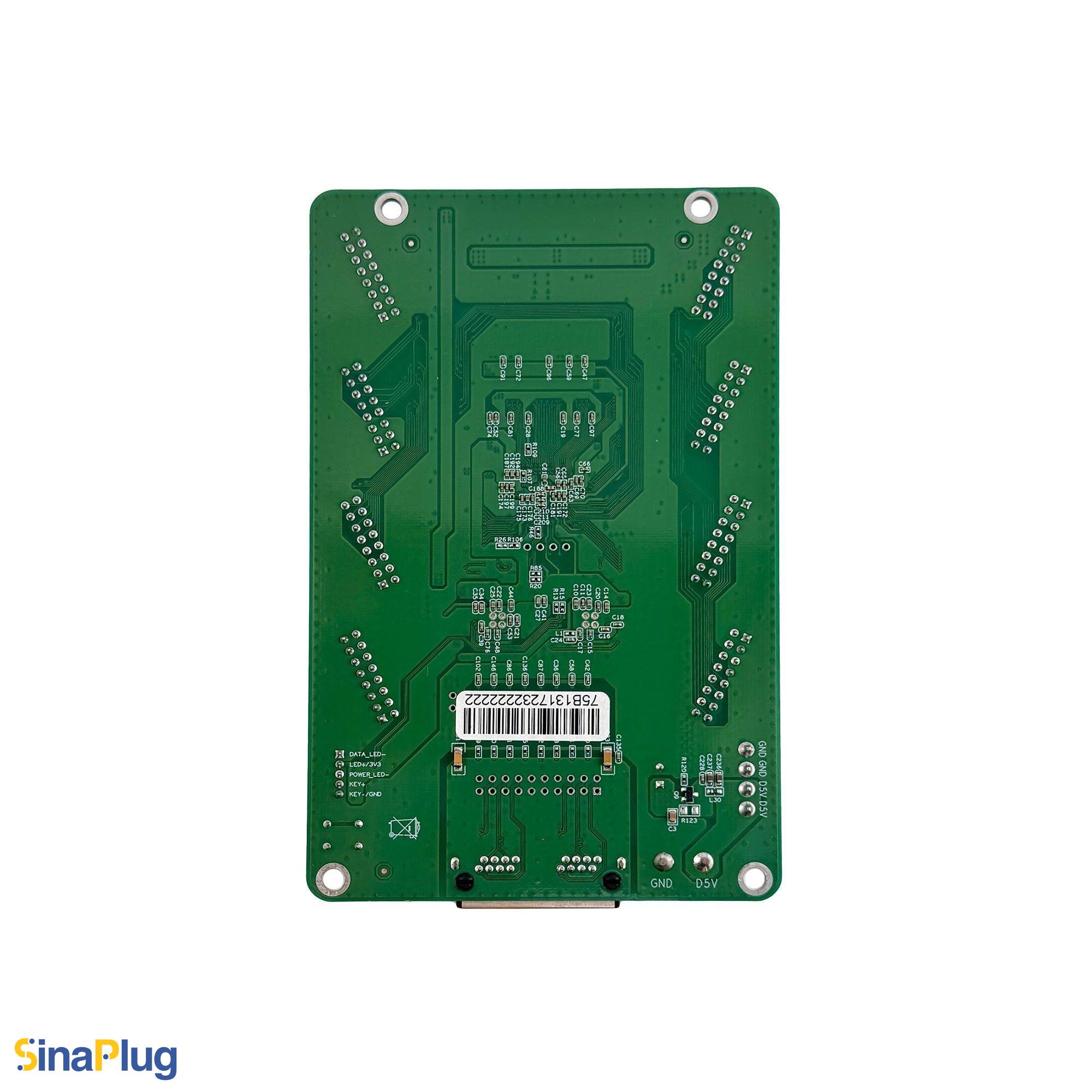

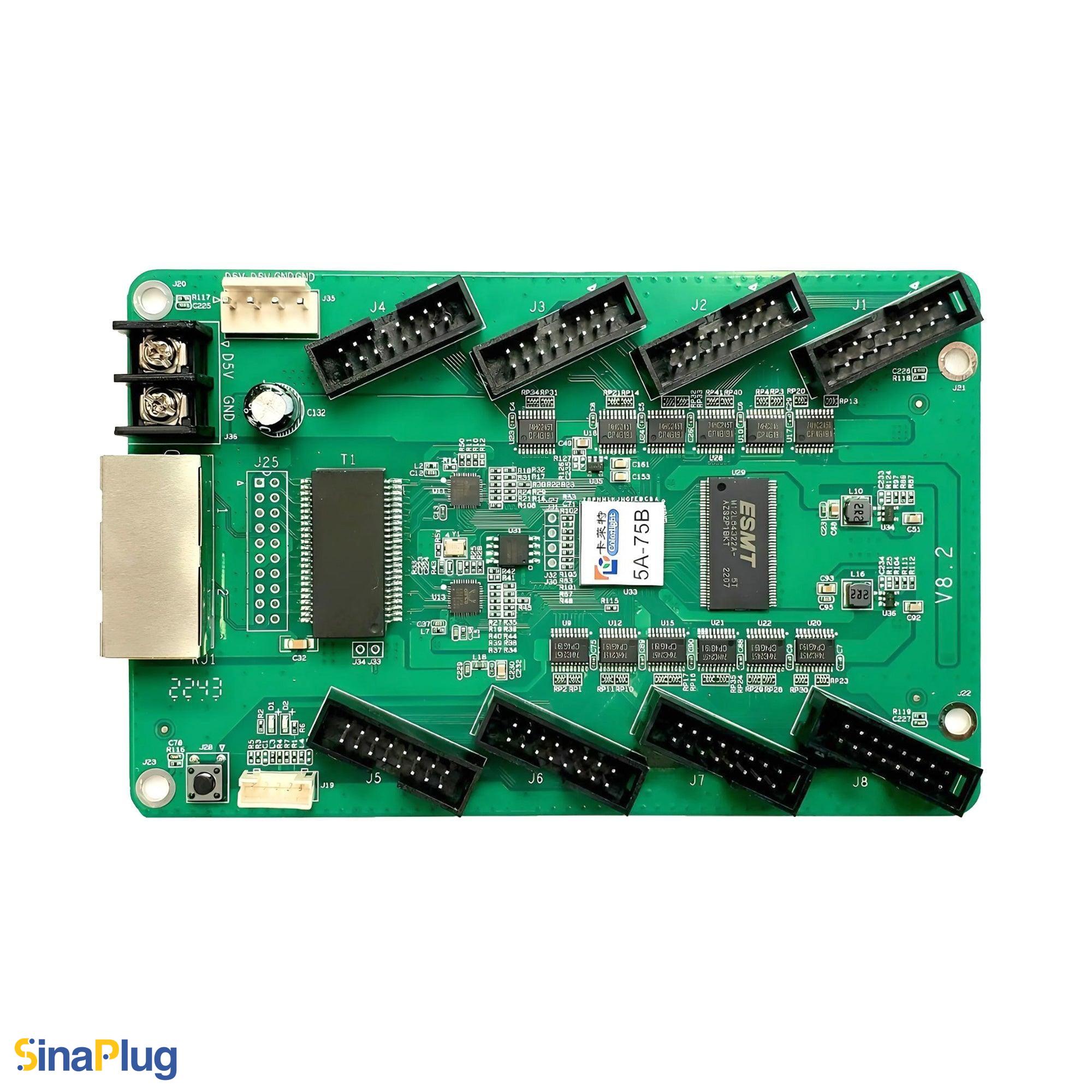

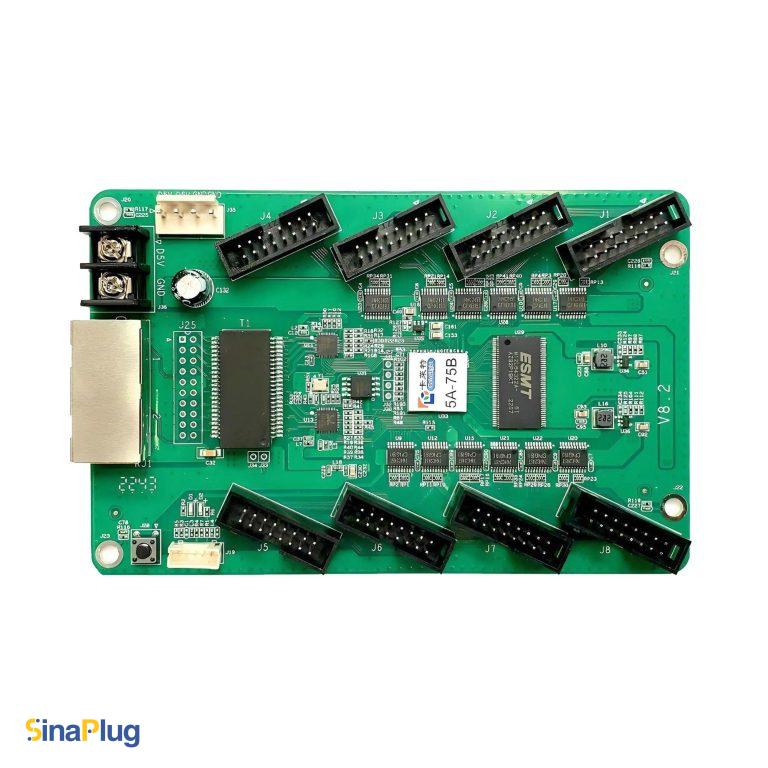

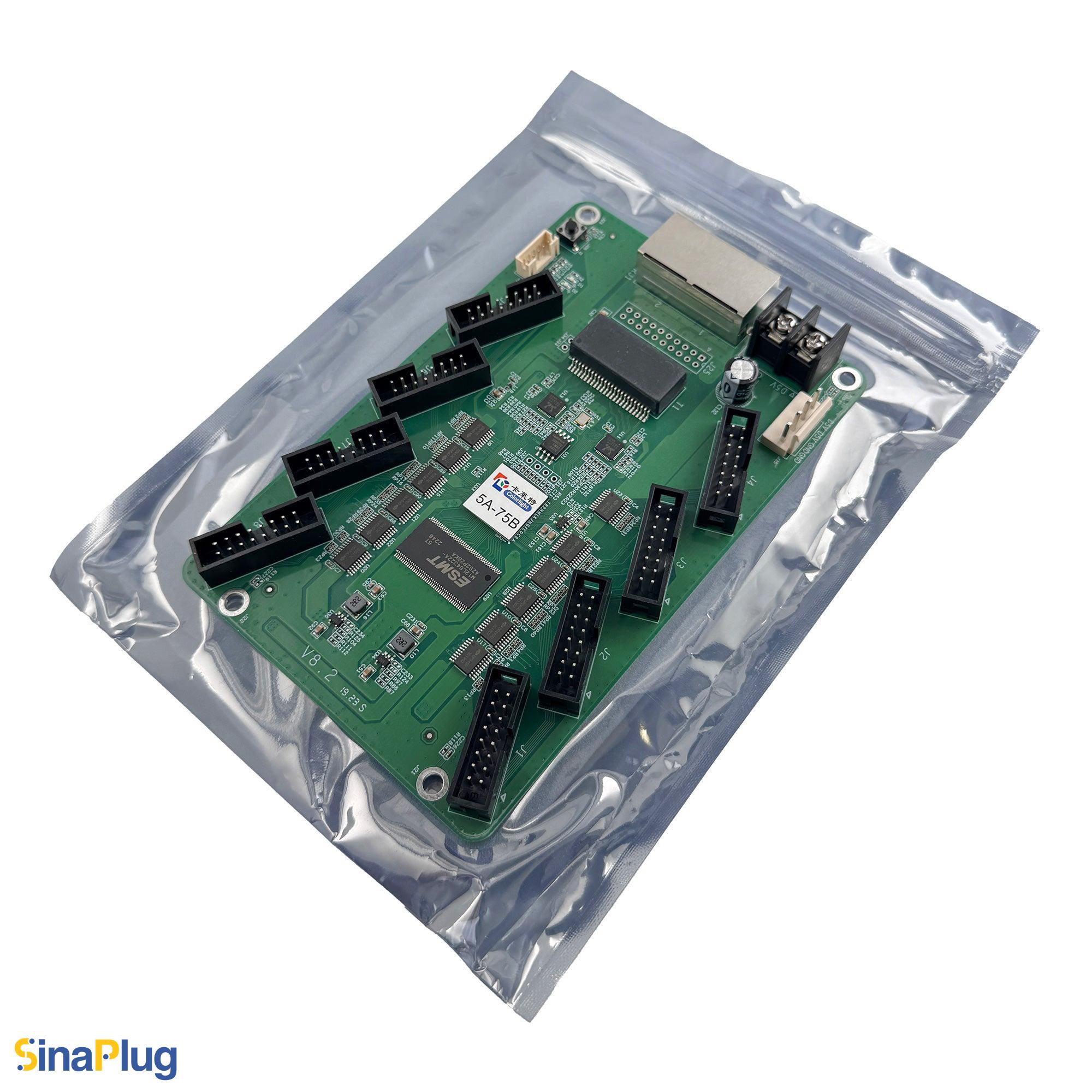

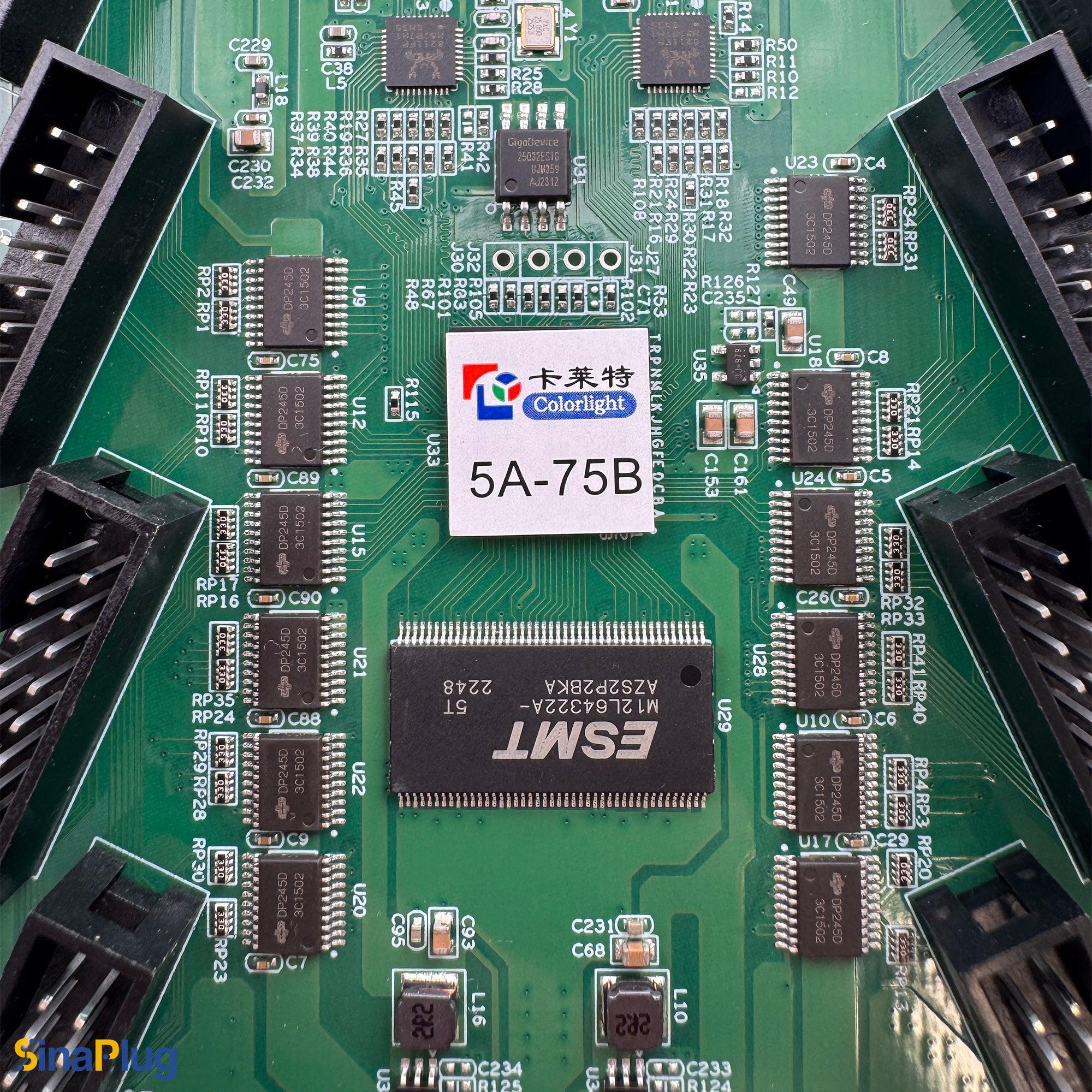

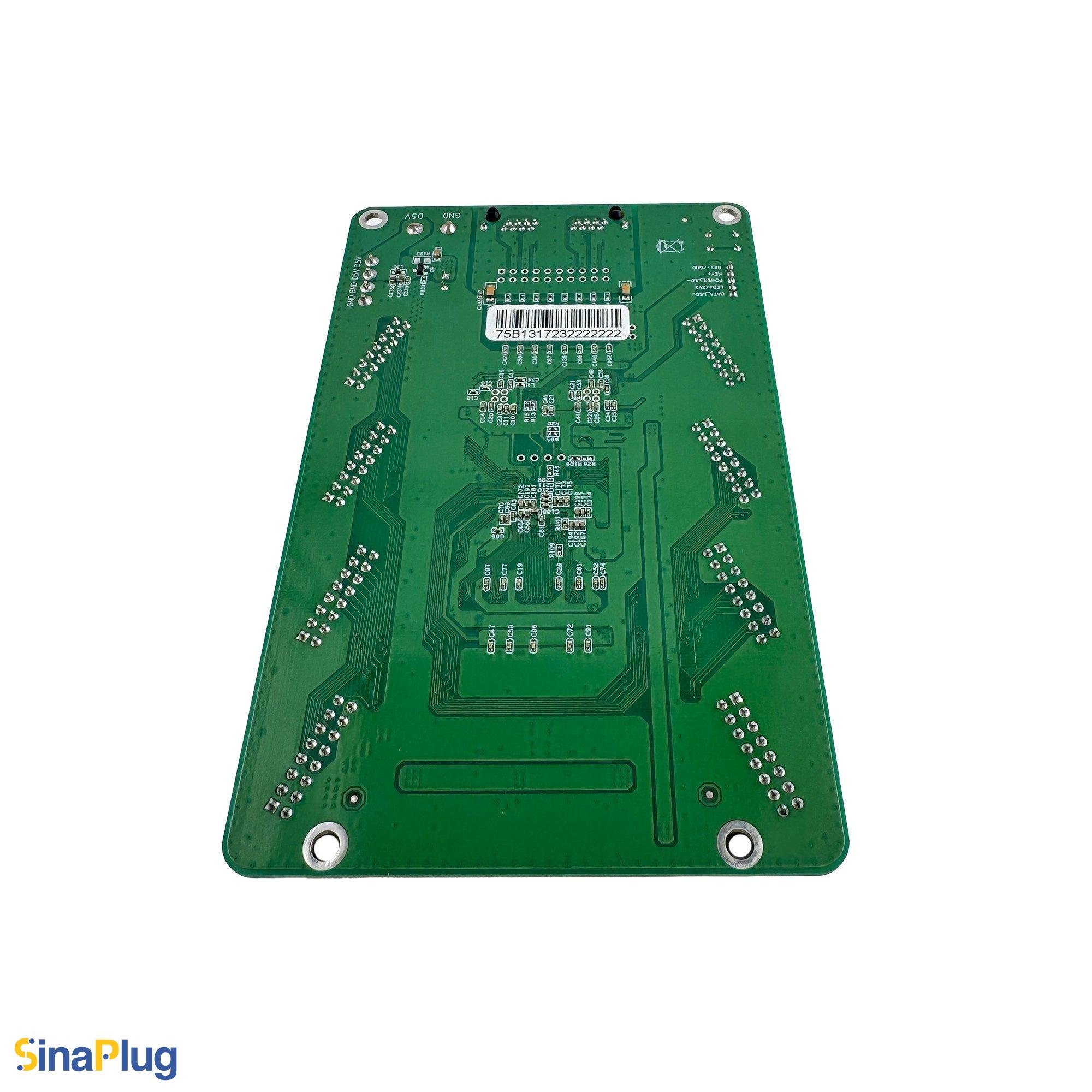

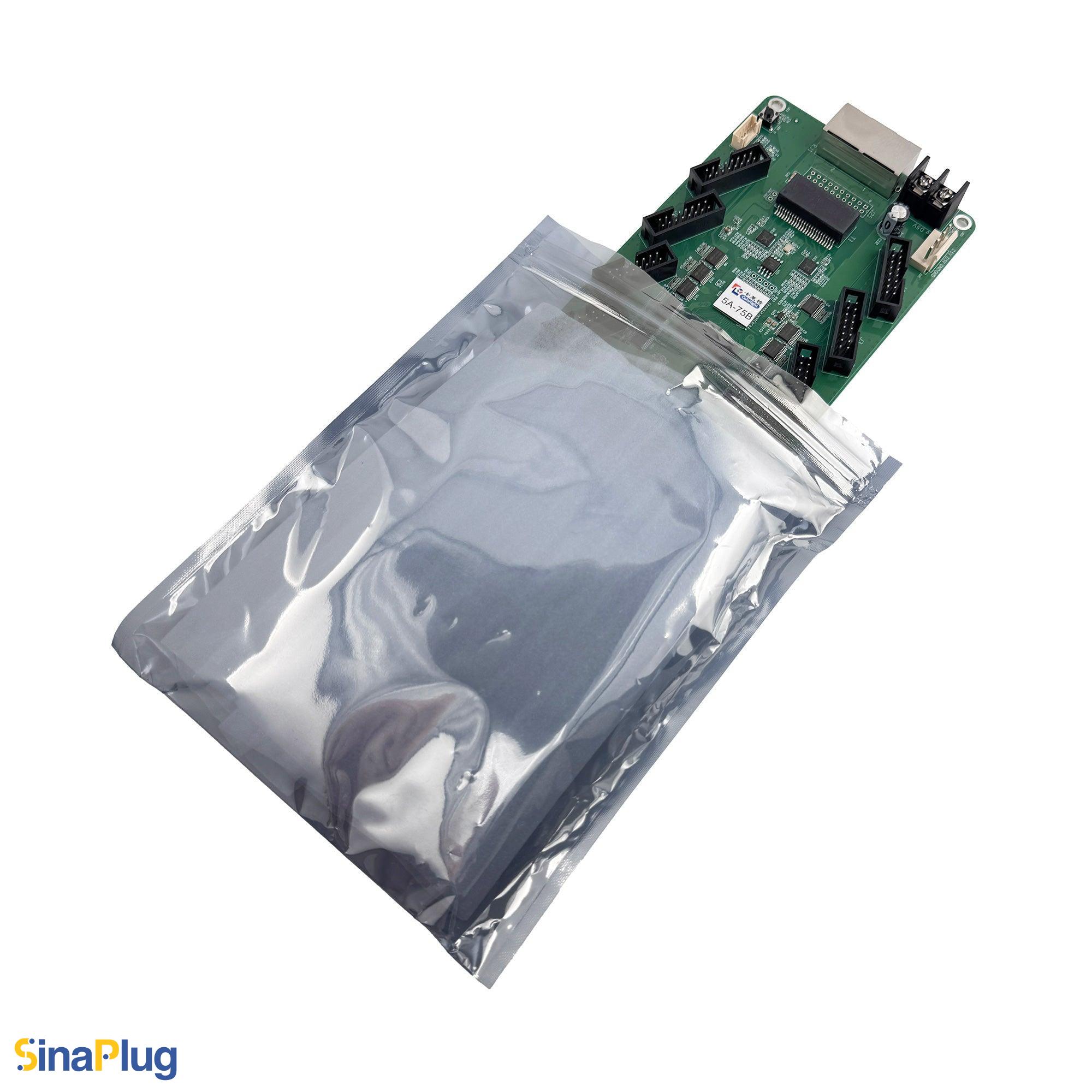

Colorlight 5A-75B Receiving Card
$26.70
17 in stock
| Minimum Qty | Discount |
|---|---|
| 5 - 10 | 3% |
| 11 - 20 | 6% |
| 20 - 99 | 9% |
| 100 + | 10% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
AzarPixel has sourced the economical, reliable Colorlight 5A-75B Receiving Card (in addition to the advanced 5A-75E card receiving card which is designed to provide high-quality LED display performance while reducing potential failure points.
This receiving card features 8 standard HUB75 interfaces, supports a maximum loading capacity of 192×1024 pixels (for modules with PWM ICs) and handles up to 16 groups of parallel data or 32 groups of serial data, these features make it a versatile choice for various LED display applications seeking stable and cost-effective solutions.
With an input voltage range of 3.8 V to 5.5 V DC and a rated power consumption of 3.0 W, operating efficiently in temperatures from -25°C to +75°C. It is compatible with gigabit switches, fiber converters, and fiber switches that enhance network performance of signage setups by ensuring high-speed data transmission. The card is RoHS certified, ensuring compliance with environmental regulations.
This remarkable card enhances image quality with 8-bit video input supporting 256 grayscale levels and 16.7 million kinds of mixed colors. It offers color temperature adjustment to improve image expressiveness and adaptive frame rate technology that supports standard and high frame rates up to 240Hz. Its optimized gamma algorithm ensures excellent grayscale performance even at low brightness.
Loop redundancy and Ethernet cable status monitoring improve system reliability by minimizing breakdowns through seamless backup mechanisms, while firmware backup and readback functions ensure safe and uninterrupted updates.
We are an independent reseller of genuine Colorlight products. We are not affiliated with, endorsed by, or sponsored by Colorlight Cloud Tech Ltd. The Colorlight name and logo are trademarks of their respective owner and are used solely to identify the genuine products offered for sale.
Key Features of Colorlight 5A-75B Receiving Card
Loading Capacity
- 192×1024 pixels (modules with PWM chips)
- 162×1024 pixels (modules with Shixin chips)
- 128×1024 pixels (modules with Normal chips)
Input
- 1x Gigabit Ethernet Port (Board-to-Hub)
Output
- 8x standard HUB75 interfaces (connecting to the display modules)
- 16x groups of RGB parallel data or 32x groups of serial data (which can be expanded to 128 groups of serial data)
- 1x Gigabit Ethernet Port (Board-to-Hub)
Performance
- Supports adaptive frame rates
- Supports up to 240Hz frame rates
- 8bit color depth video source input and output
Other Features
- Maintainability: Image rotation in 90° increments
- Quick firmware upgrade and quick release of correction coefficients
- Data group offset (suitable for simple special-shaped screens)
- Reliability: Firmware program redundancy and readback
- Bit error detection
- Ethernet cable status monitoring
- Loop redundancy and firmware redundancy
Dimensions (L*W*H)
- 145.2mm * 91.7mm * 18.4mm
| Weight | 0.19 lbs |
|---|---|
| Dimensions | 7.87 × 5.91 × 0.79 in |
| Max PWM IC Pixel Capacity | 192×1024 |
| Max Common IC Pixel Capacity | 128×1024 |
| Max Shixin IC Capacity | 162×1024 |
| Scan Type | 1/128 |
| Output Interface (QTY) | 8 |
| Max Parallel RGB Data Groups | 16 |
| Max Serial RGB Data Groups | 32 |
| Expandable Up To | 128 |
| Ethernet Port | 2 |
| Supported Video Source Bit | 8bit |
| Brightness and Chroma Calibration | Supported |
| 90° Image Rotation | Supported |
| Bit Error Detection | Supported |
| Loop Backup | Supported |
| Firmware Redundancy and Readback | Supported |
| Input Voltage Range | 3.8-5.5VDC |
| Max Power Consumption | 3W |
| Working Temperature Range | -25 to +75 °C |
| Standard Certification | RoHS |
| Others | 8bit color depth video source input and output, Cabinet Highlight and OSD Function, Data group offset (suitable for simple special-shaped screens), Ethernet cable status monitoring, Supports up to 240Hz frame rates |
