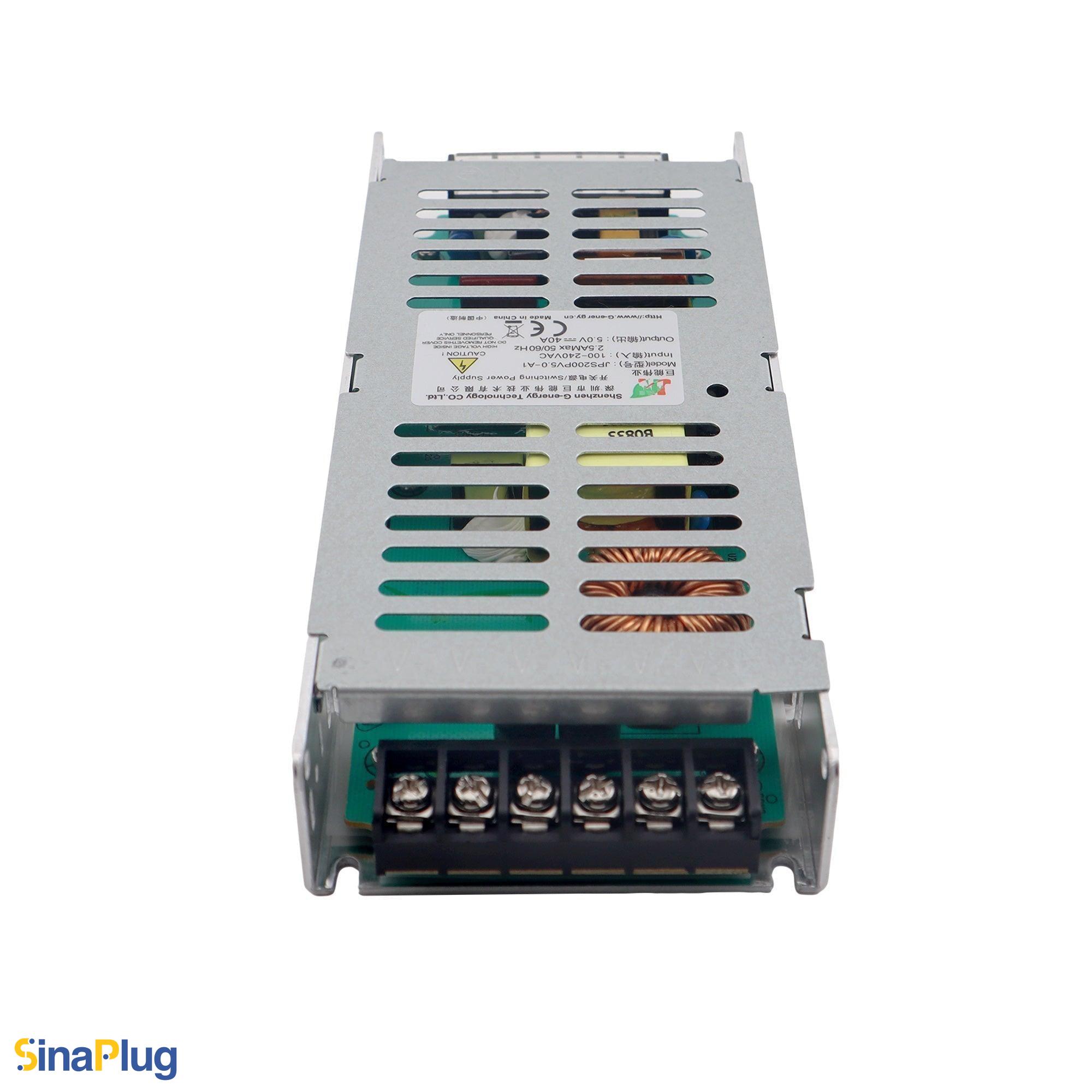

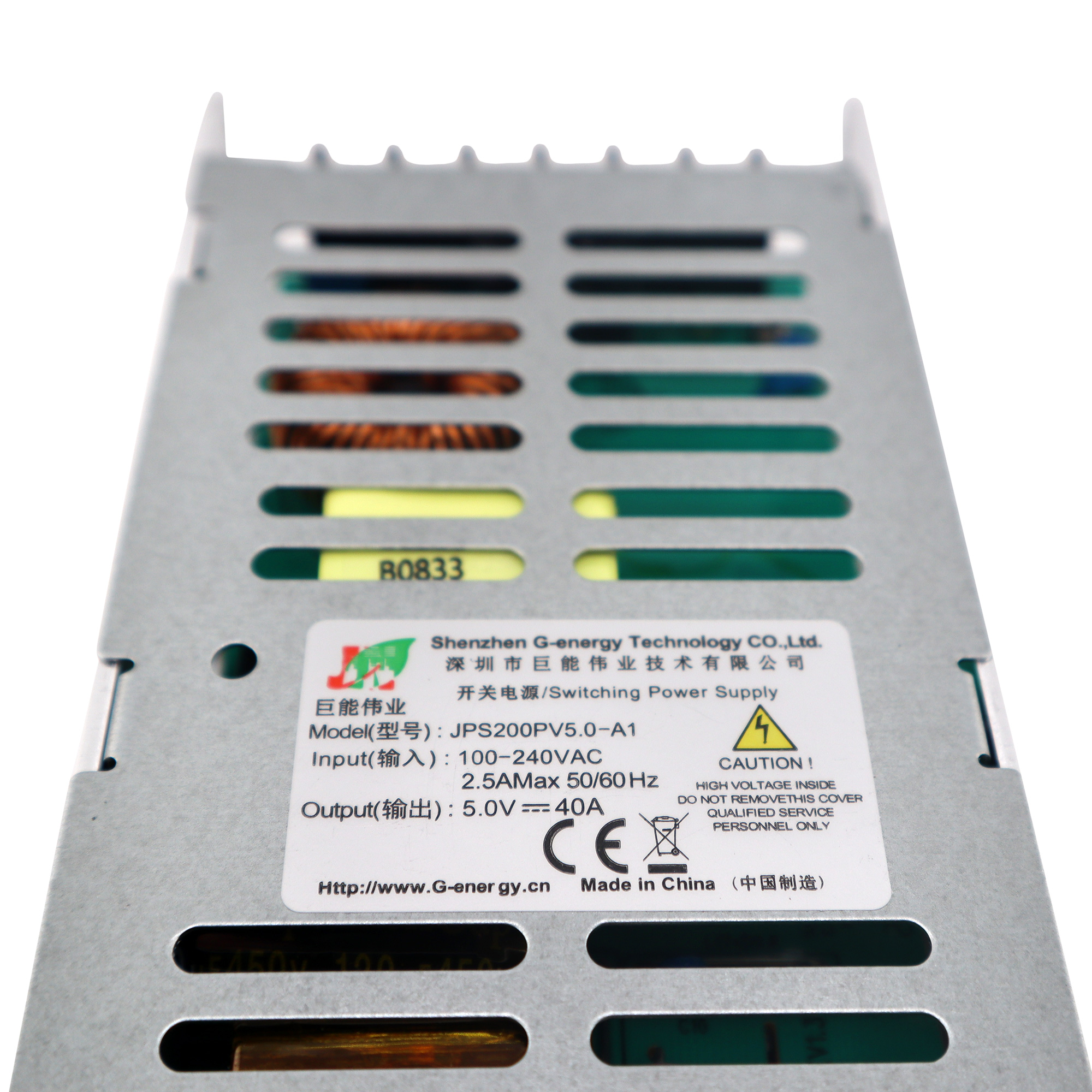

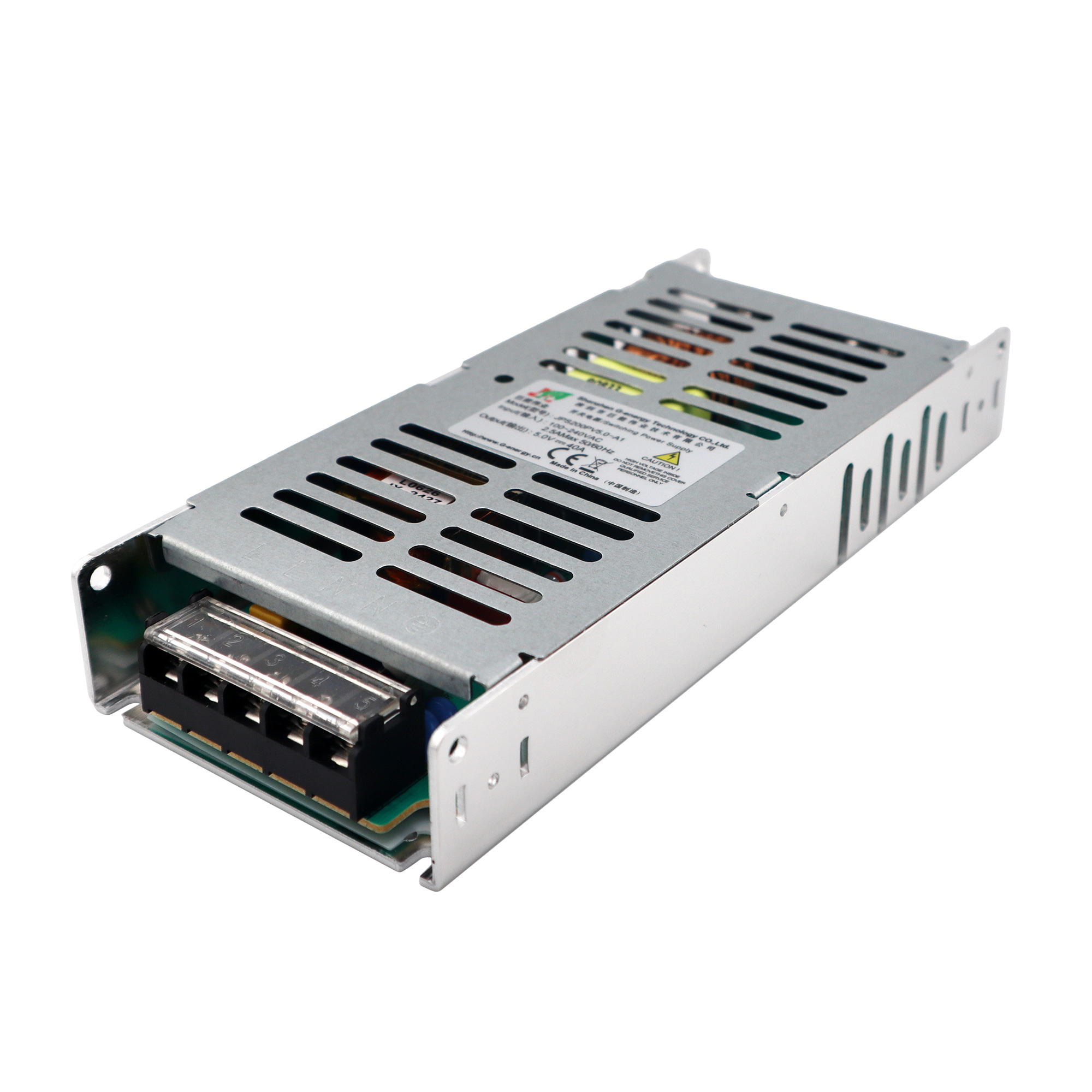

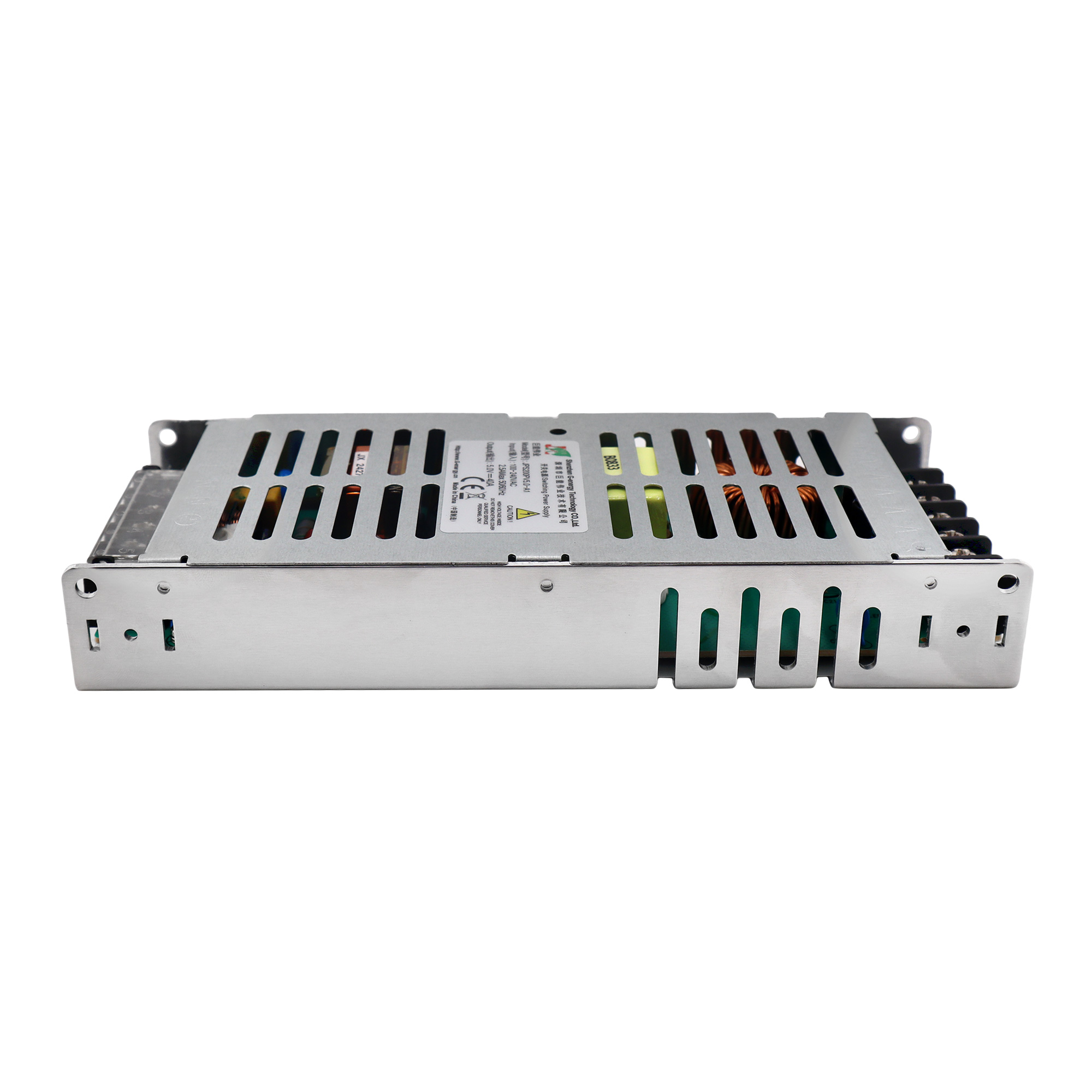

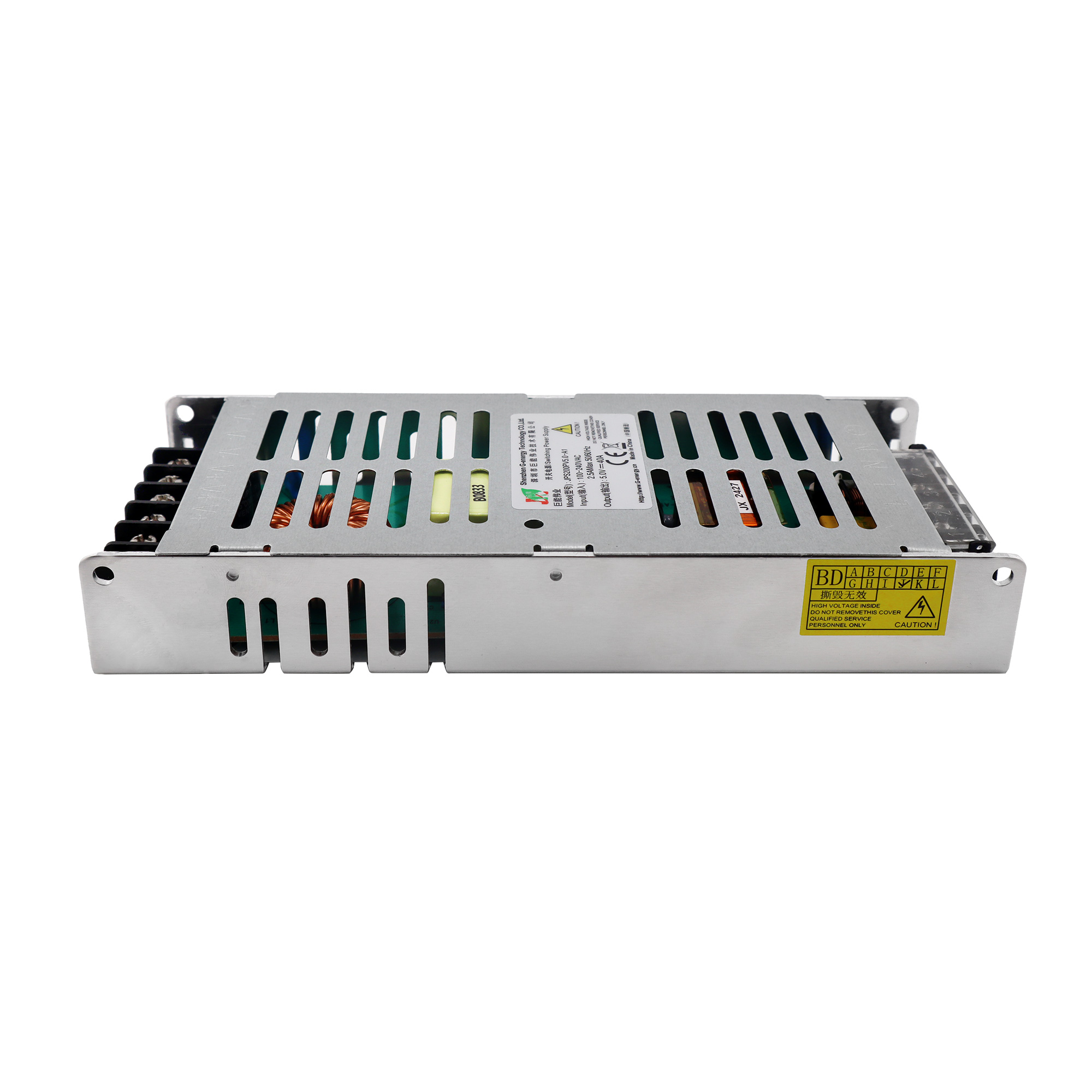

G-ENERGY JPS200PV5.0-A1 Switching Power Supply (5V, 40A)
$42.00
5 in stock
| Minimum Qty | Discount |
|---|---|
| 15 + | 3% |
| 30 + | 5% |
| 45 + | 7% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance

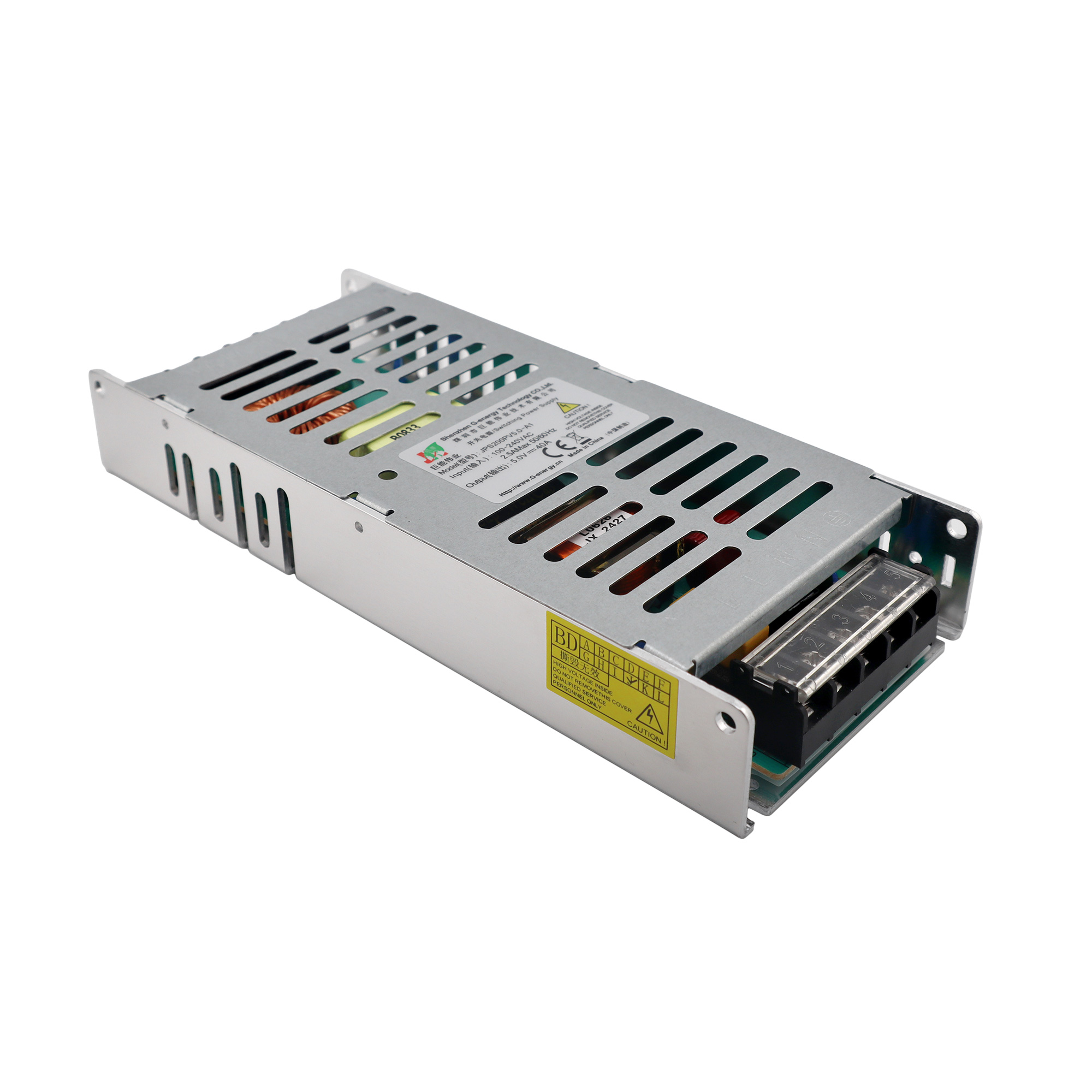

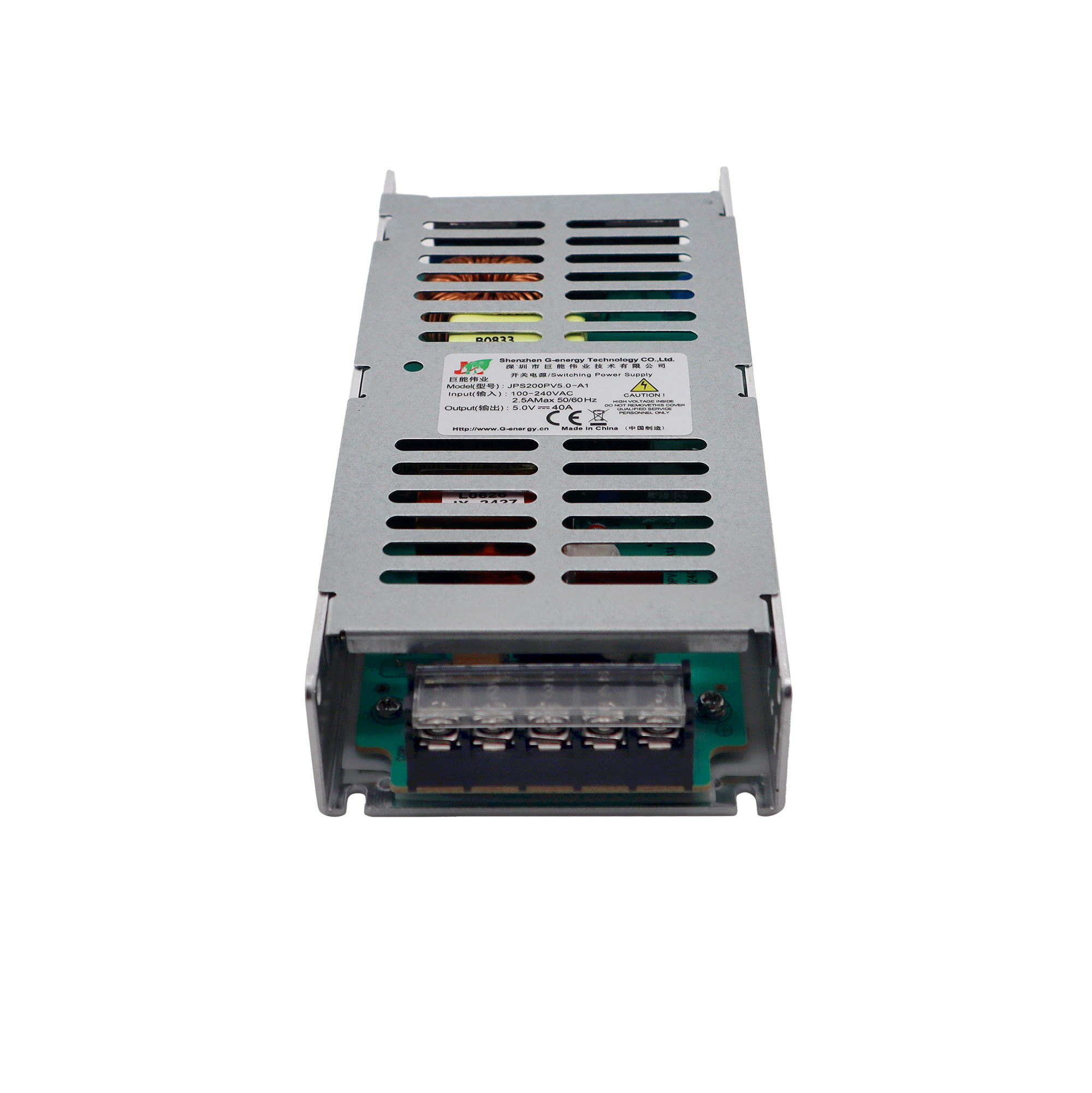

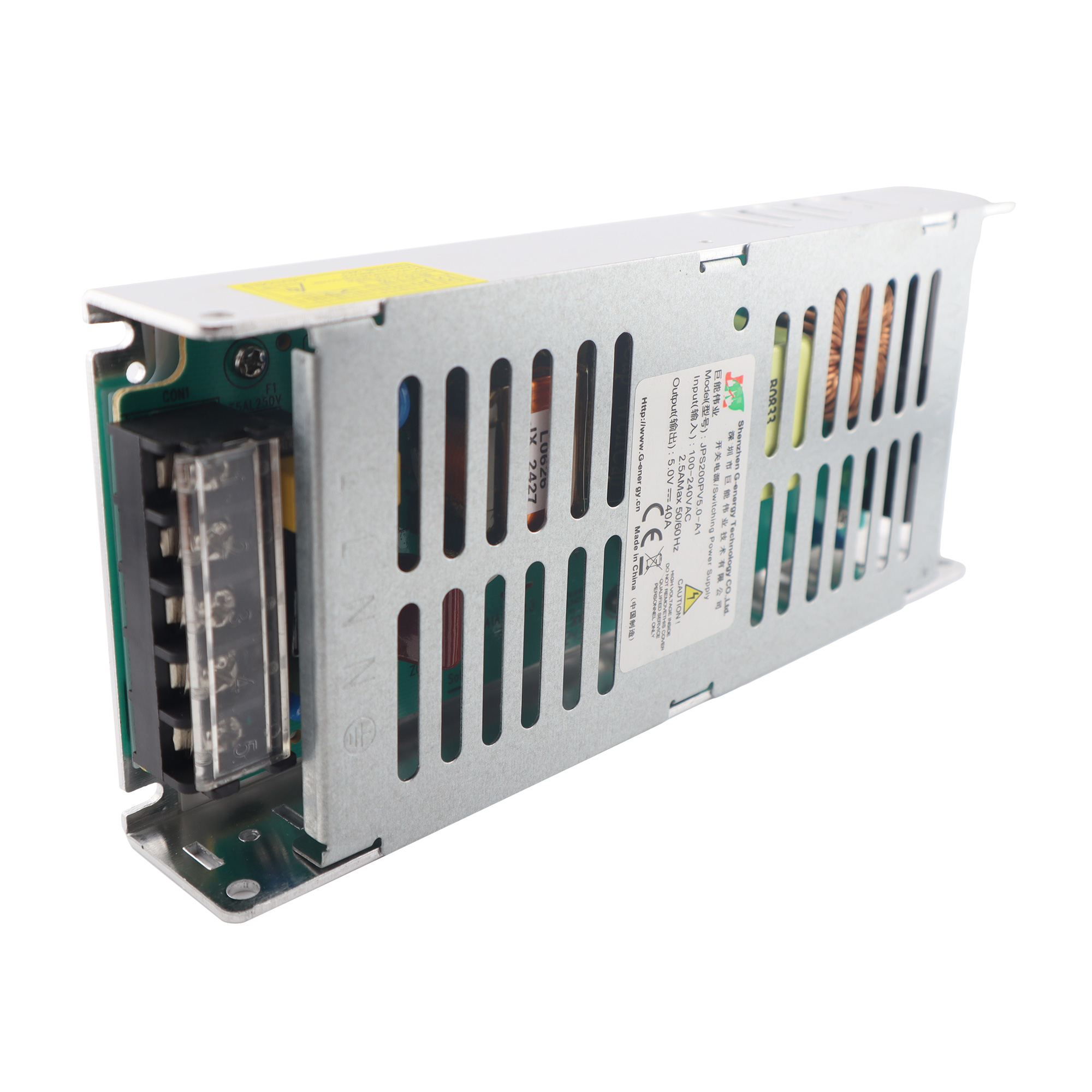

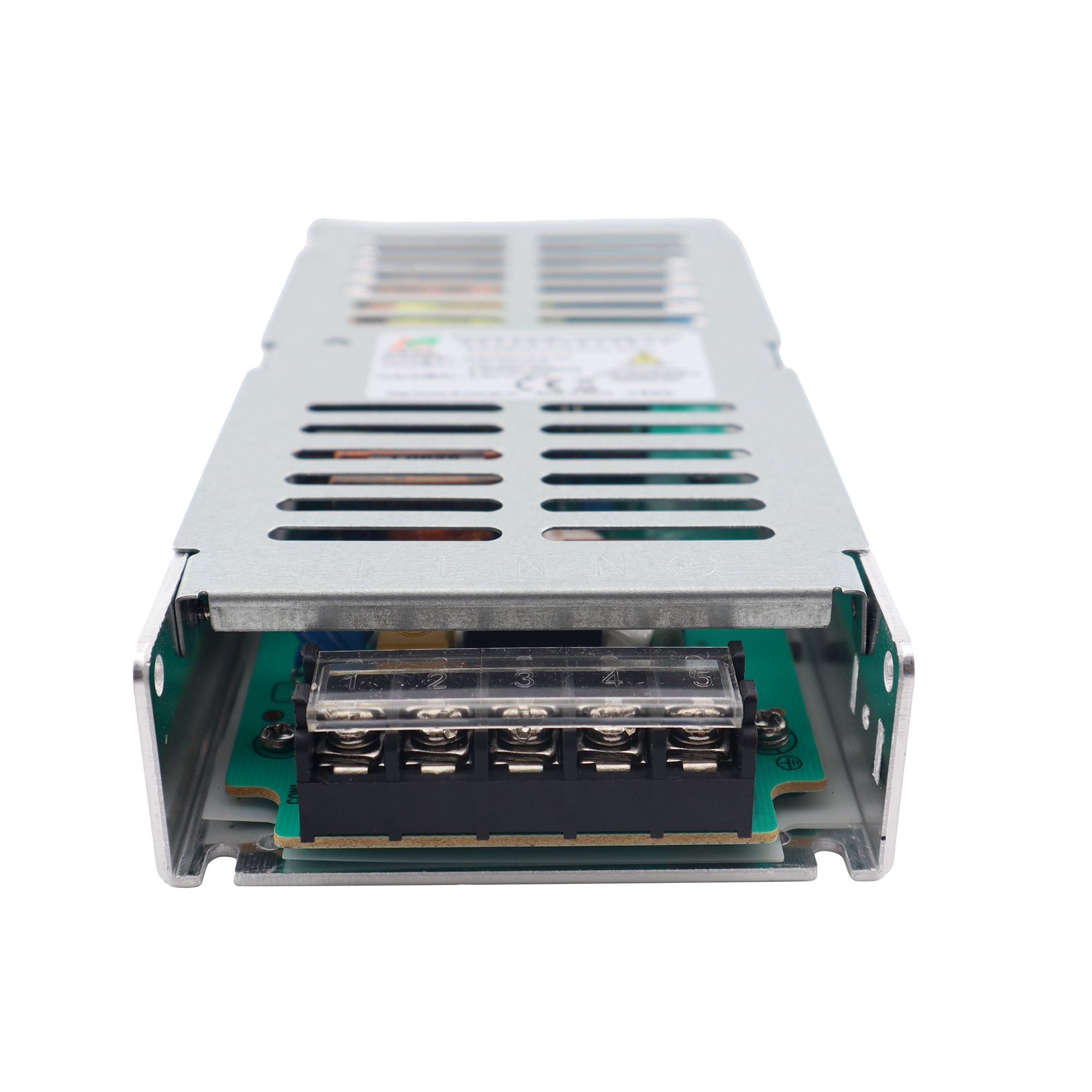

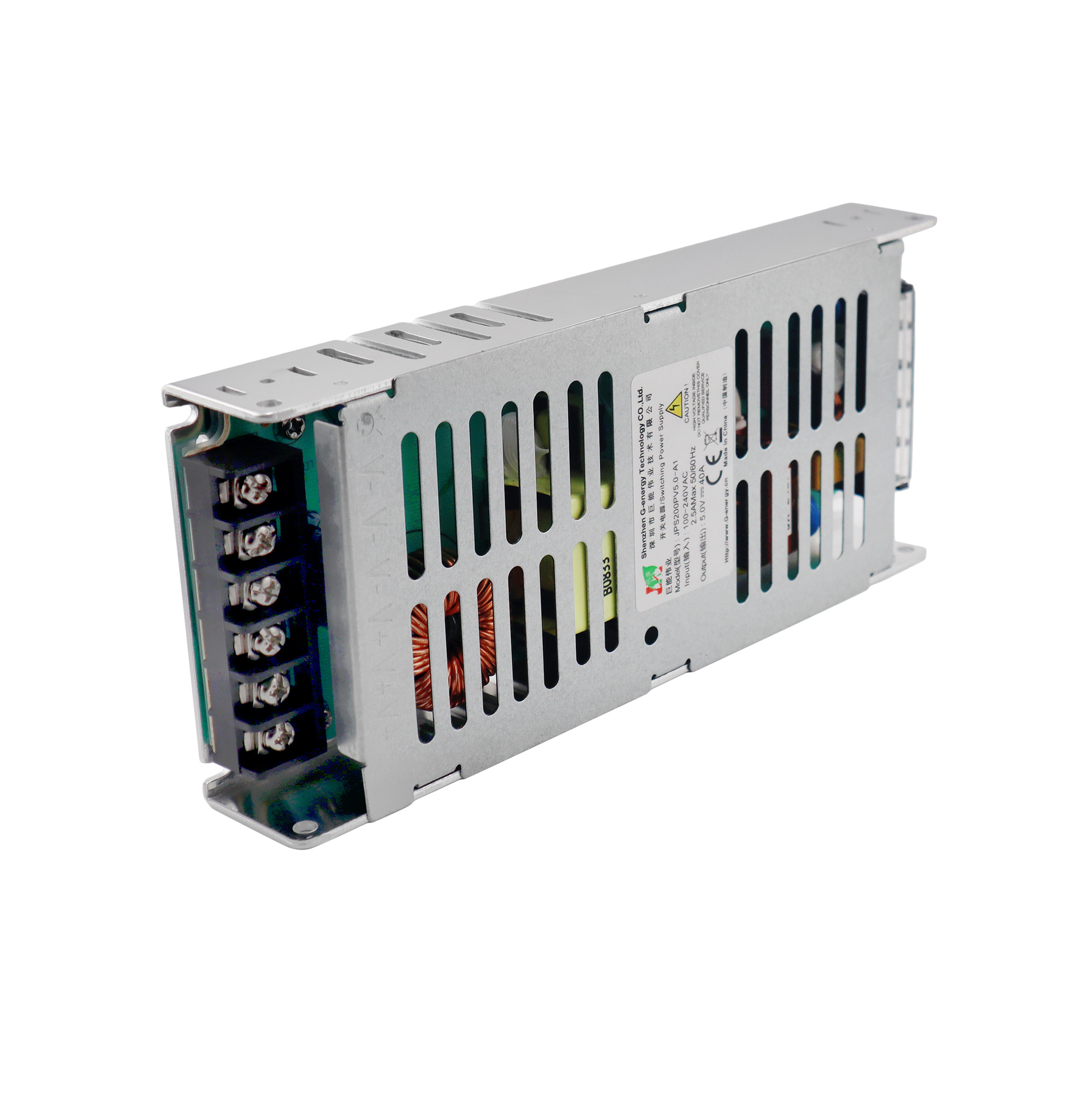

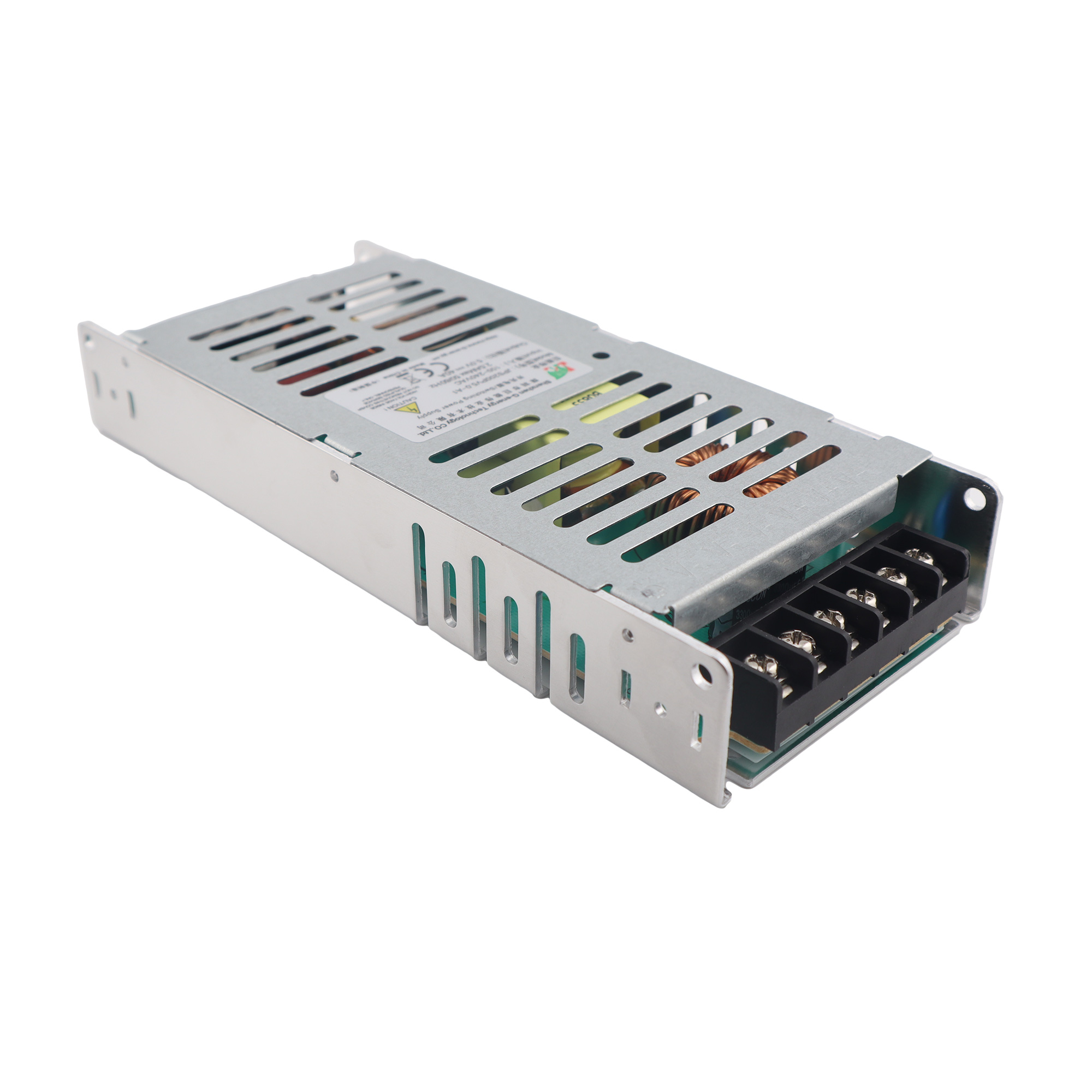

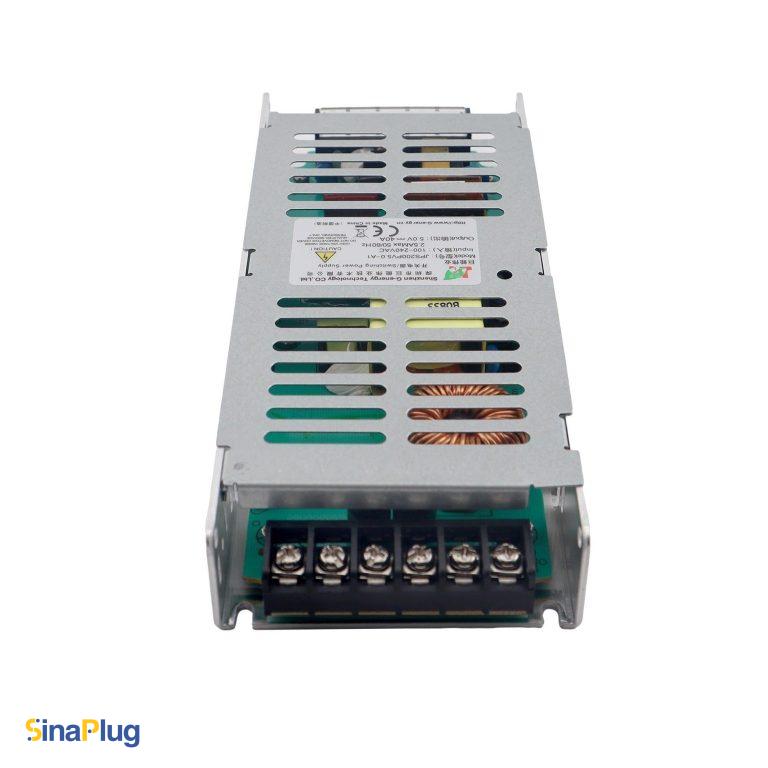

The G-energy JPS200PV5.0-A1 from JPS series (like JPS200P(5V), JPS300V and JPS200PV5.0A33) is a well-known, enclosed power supply that converts universal 100-240 VAC inputs, to consistent three output channels at 5V, delivering up to 32A for 90-175VAC (0-40A at 176-264VAC). It provides a rated 200W output power with 84% efficiency for optimal performance.
The compact g-energy JPS200PV5.0-A1 can be utilized in A/V and LED equipment, and industrial applications that require constant and reliable performance. It ensures long-term operation by natural air convection (recommended to be mounted on a heatsink) and performs smoothly in demanding ambient temperatures ranging from -30°C to +50°C.
In addition to the advanced protections such as overload, short circuit (with auto recovery), and under-voltage protections, it is certified by GB4943, GB8898, and EN60950 allows the equipment to meet the worldwide energy requirement
Key Features of G-ENERGY JPS200PV5.0-A1 Power Supply
- Type of Power Supply: AC to DC
- Packaging: Enclosed
- Input Voltage Range: 100 – 240VAC
- Adjustable Output Voltage: No
- Output Voltage: 5V
- Output Rated Current: 32A (at 90-175VAC) / 40A (at 176-264VAC)
- Output Rated Power: 200W
- Protections: Under Voltage Protection, Over Current Protection, Short Circuit Protection
- Dimensions (L*W*H): 190mm * 82mm * 30mm
| Weight | 0.93 lbs |
|---|---|
| Dimensions | 7.48 × 3.23 × 1.18 in |
| Input Voltage Range | 100-240V |
| Input Frequency Range | 47-63Hz |
| Input Current | ≤2.5A |
| Efficiency | 84% |
| Output Voltage | 5V |
| Adjustable Output Voltage | No |
| Output Rated Current | 32A(90-175V)/40A(176-264V) |
| Max Ripple And Noise | 200 mVp-p |
| Output Voltage Tolerance | 2% |
| Short Circuit Protection | Yes |
| Over Temperature Protection | No |
| Over Current Protection | Yes |
| Over Voltage Protection | No |
| Under Voltage Protection | Yes |
| Working Temperature Range | -30 to +50 °C |
| Working Humidity Range | 10-90% |
| Storage Temperature Range | -40 to +80 °C |
| Standard Certification | EN60950, GB4943, GB8898 |
