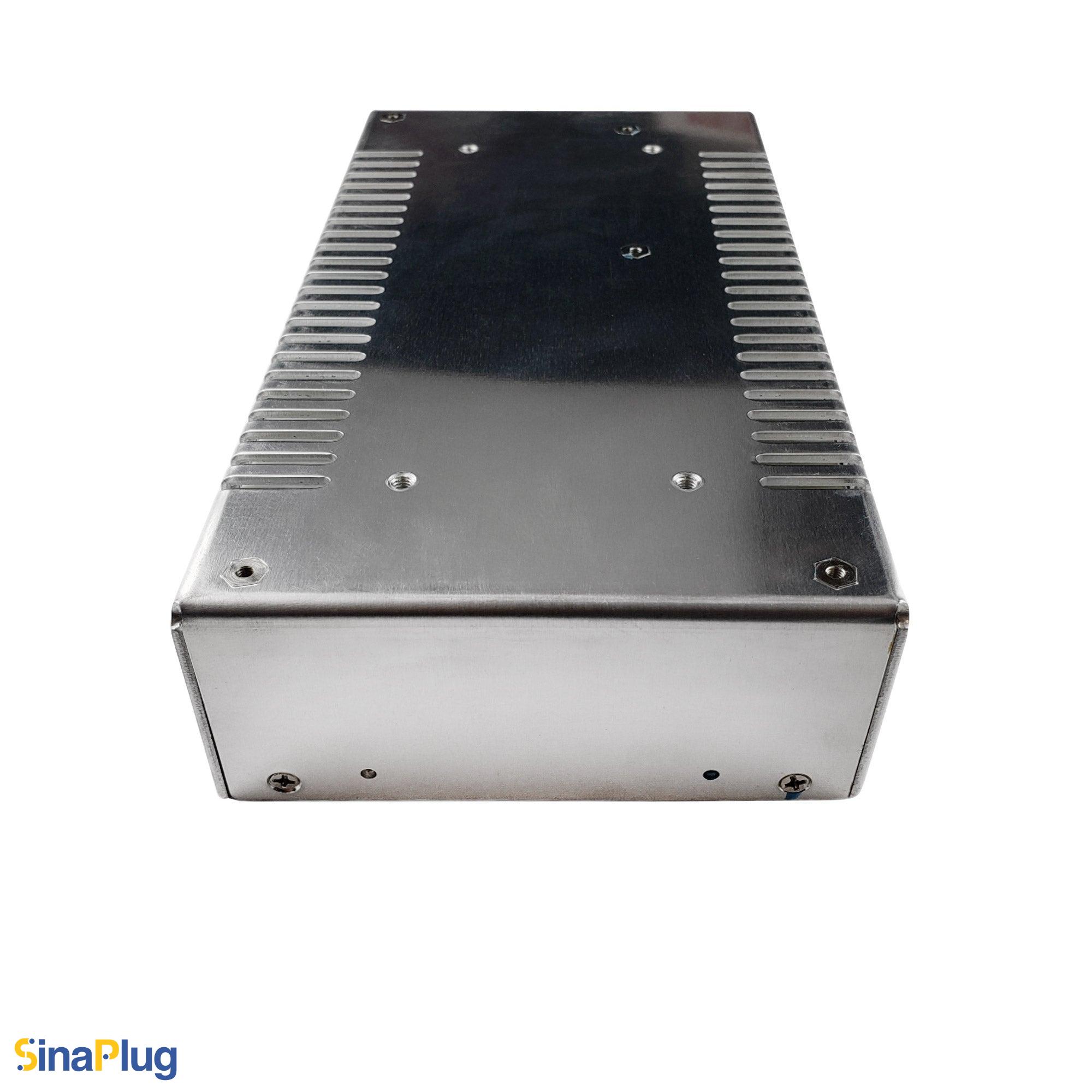

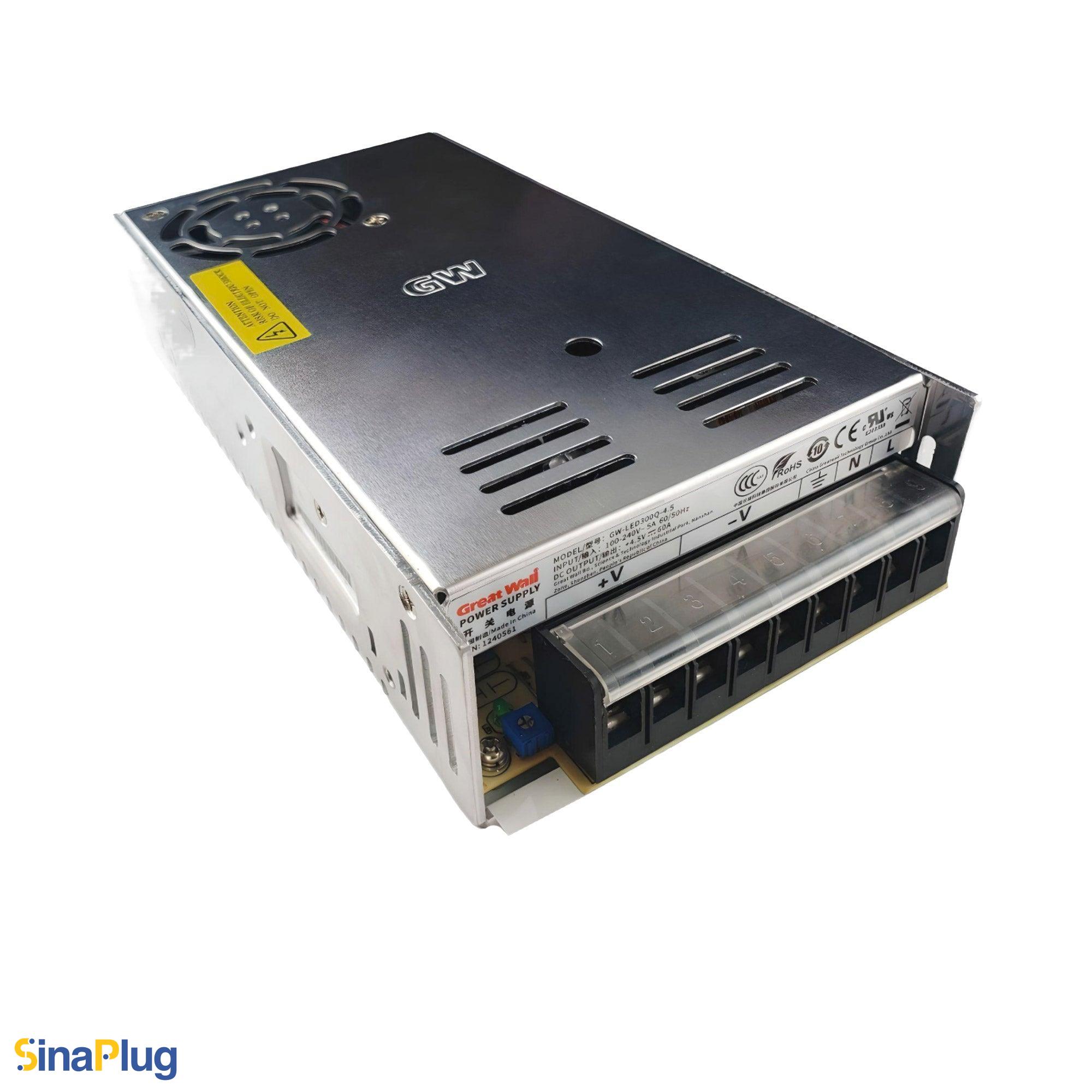

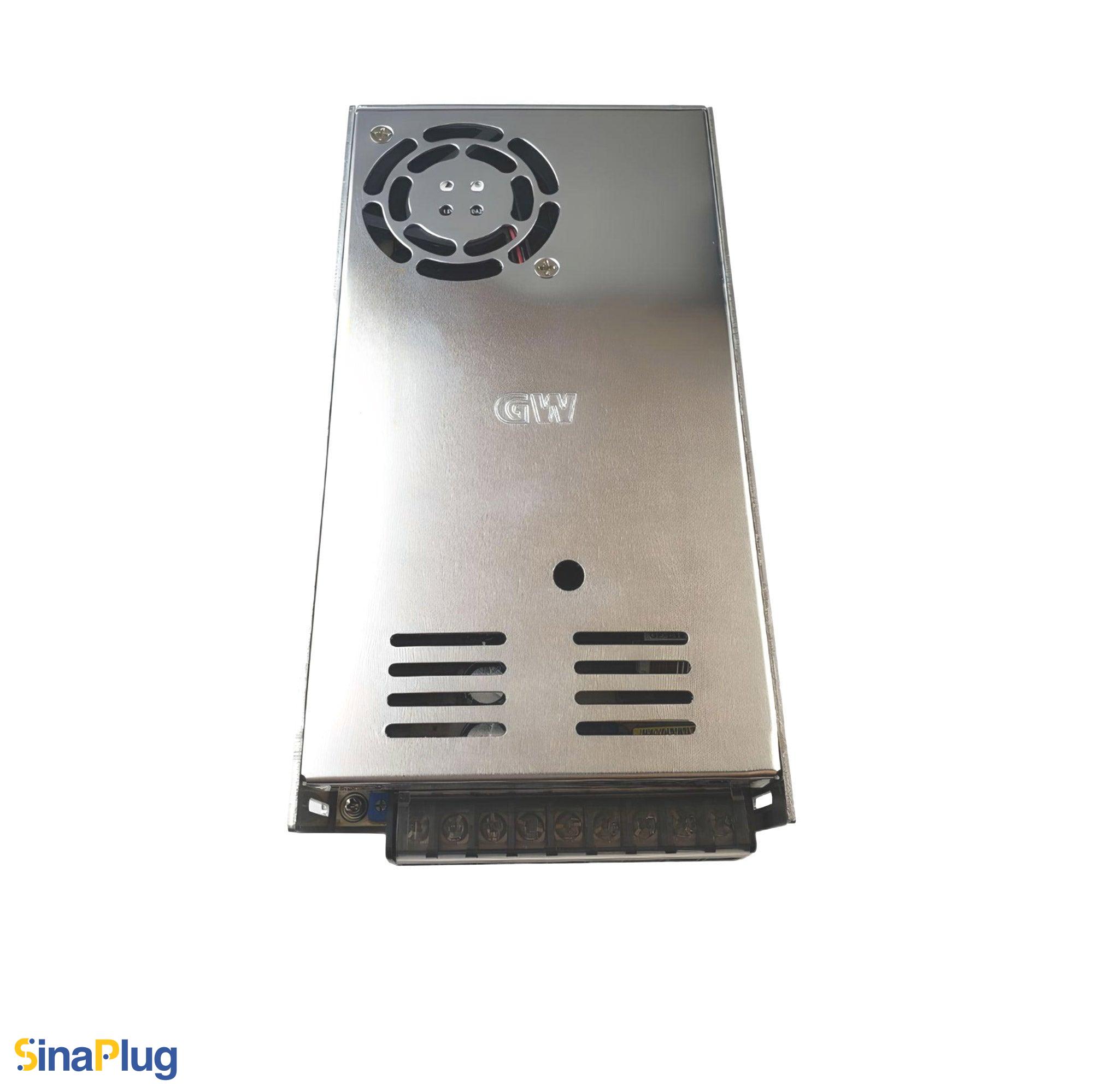

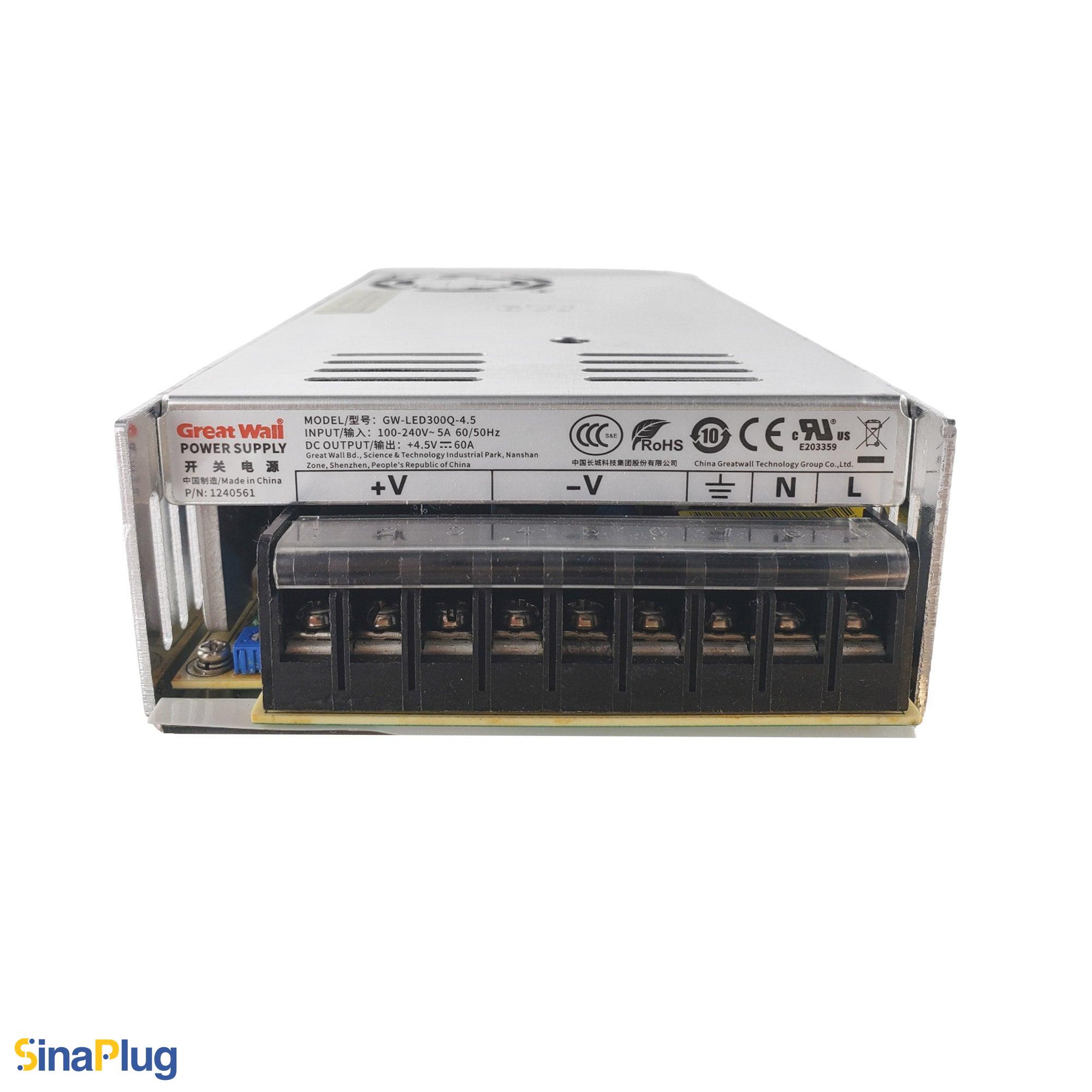

GreatWall GW-LED300Q-4.5 Power Supply (4.5, 60A)
$79.90
10 in stock
| Minimum Qty | Discount |
|---|---|
| 15 + | 3% |
| 30 + | 5% |
| 45 + | 7% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
The GreatWall GW-LED300Q-4.5 (GW-LED300Q series like GW-LED300Q-4.2 and GW-LED300Q-5) is a highly qualified, enclosed power supply ideal for LED equipment, and industrial applications that require consistent processes.
This AC/DC, compact power supply provides a 4.5V with an adjustable 4.27-4.72V range, delivering up to 60A, in three output channels, and provides 270W output power from wide-range 100-240 VAC inputs with a 0.95 power factor that minimizes harmonic distortion. (If this product is out of stock, you can also check GW-LED300Q-4.2 here on SinaPlug).
The standard-sized GW-LED300Q-4.5 includes key characteristics such as 2G anti-vibration and complete protection. Its built-in fan ensures long-term operation in demanding temperatures ranging from -20°C to +70°C.
In addition to comprehensive protection such as over-temperature, over-power, over-voltage, and short circuit protections, it is certified by UL 60950-1, EN 55022, EN55024, and EN61000-3-2 allowing it to meet worldwide energy requirements.
Key Features of GW-LED300Q-4.5
- Type of Power Supply: AC to DC
- Packaging: Enclosed
- Input Voltage Range: 100 – 240VAC
- Adjustable Output Voltage: Yes (4.27-4.72V)
- Output Voltage: 4.5V
- Output Rated Current: 60A
- Output Rated Power: 270W
- Protections: Short circuit protection, Over Voltage Protection, overpower protection, over temperature Protection
- Dimensions (L*W*H): 215mm * 115.5mm * 50mm
| Weight | 2.07 lbs |
|---|---|
| Dimensions | 8.46 × 4.53 × 1.97 in |
| Input Voltage Range | 100-240V |
| Input Frequency Range | 47-63Hz |
| Input Current | ≤5A |
| Efficiency | 79% |
| Output Voltage | 4.5V |
| Adjustable Output Voltage | Yes |
| Output Rated Current | 60A |
| Output Rated Power | 270W |
| Max Ripple And Noise | 150 mVp-p |
| Output Voltage Tolerance | 5% |
| Short Circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Under Voltage Protection | No |
| Working Temperature Range | -20 to +70 °C |
| Working Humidity Range | 5-85% |
| Storage Temperature Range | -25 to +70 °C |
| Standard Certification | EN 55022, EN55024, EN61000-3-2, UL 60950-1 |
| Others | Over Power Protection |
