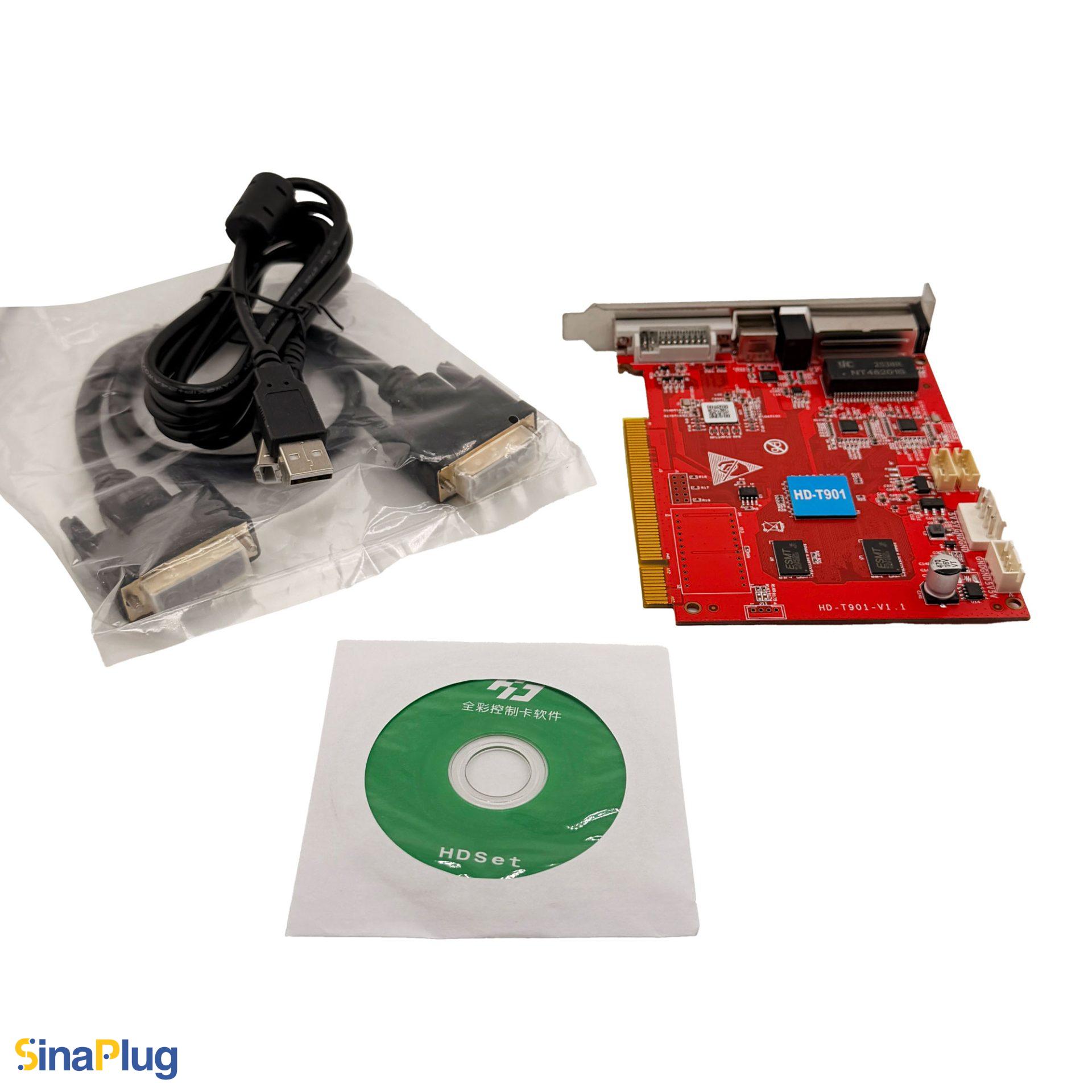

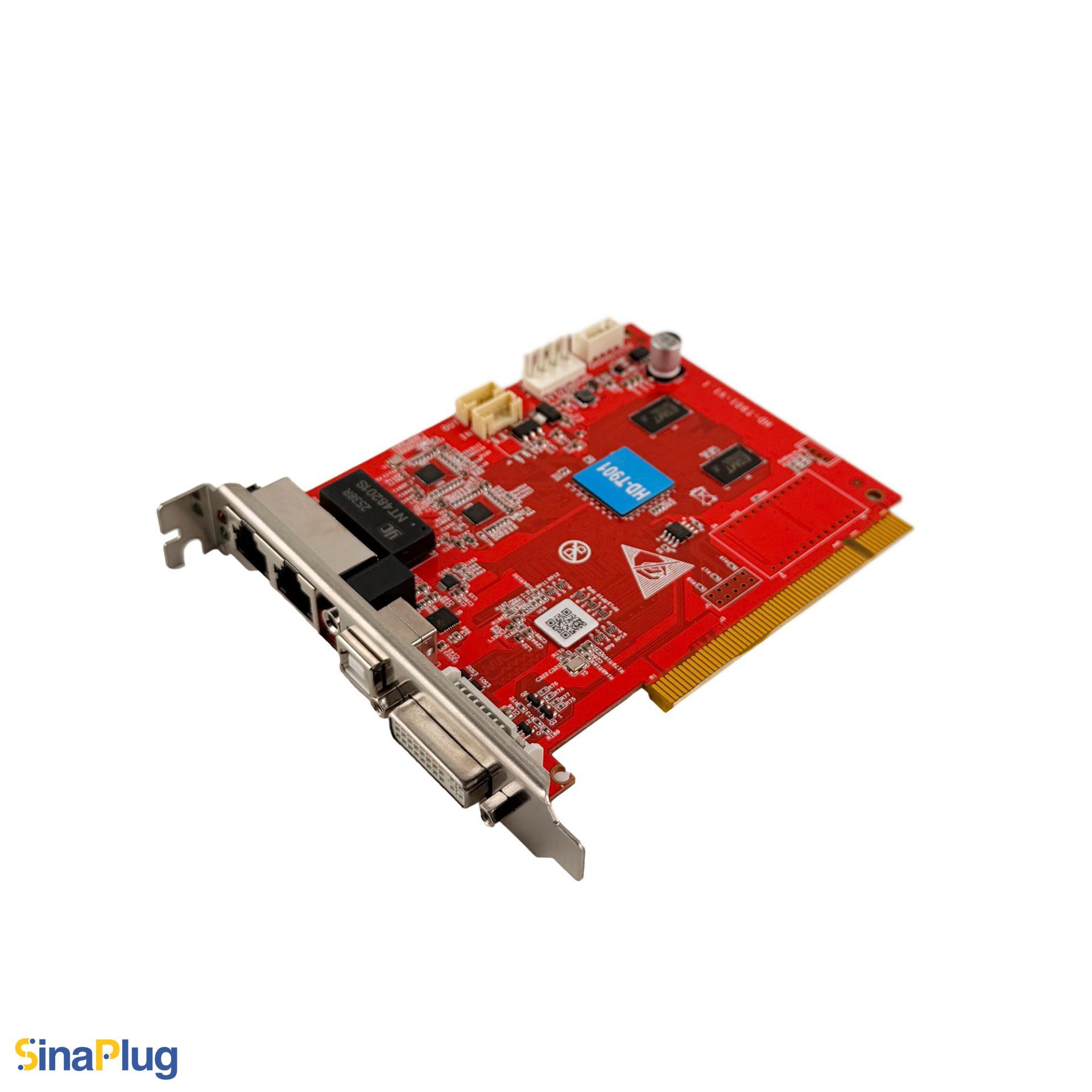

Huidu HD-T901 Sending Card

AzarPixel is proud to present the Huidu HD-T901 synchronous sending card, a reliable and high-performance controller designed for consistent performance and excellent image transmission for a range of LED screens, from indoor displays to outdoor multimedia projects.

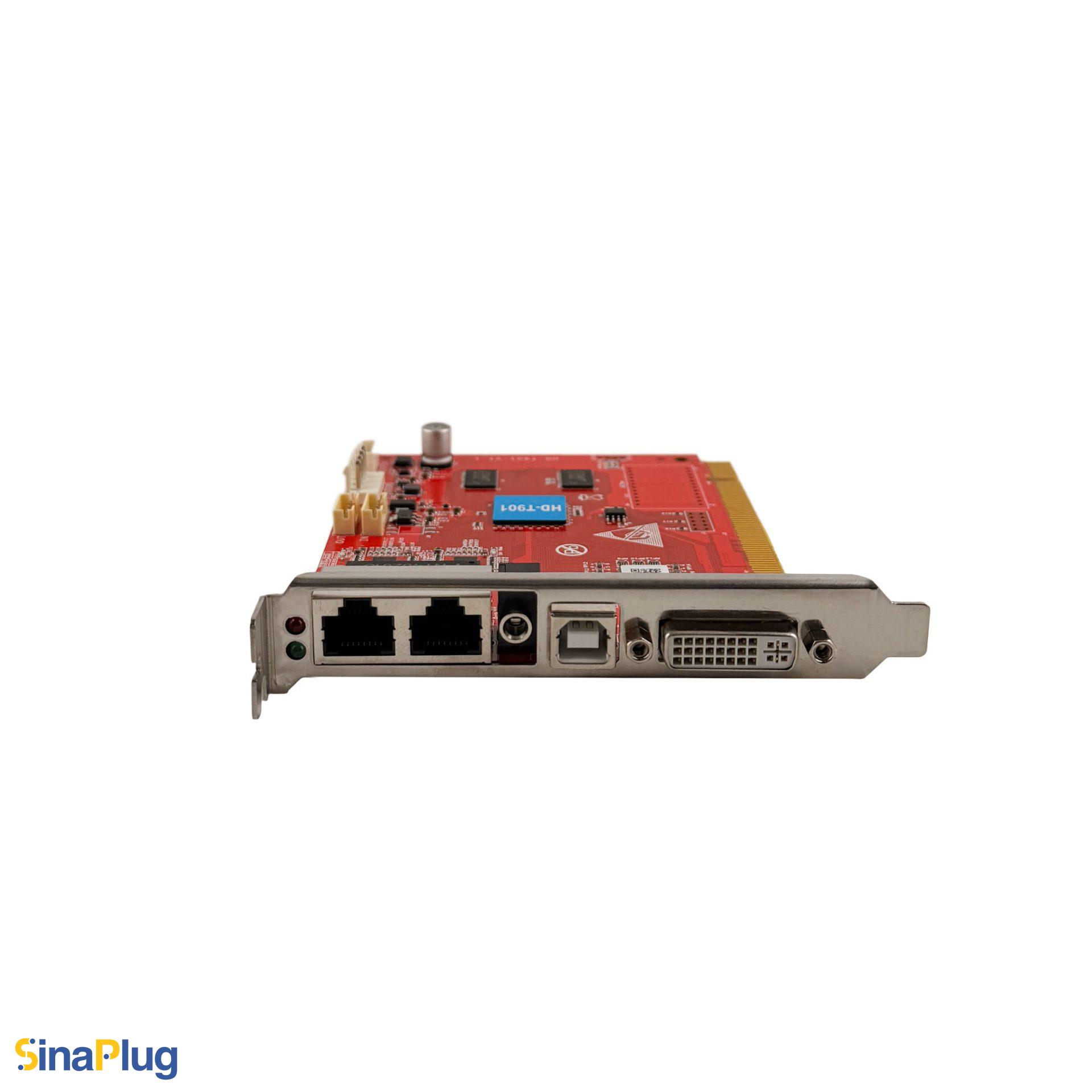

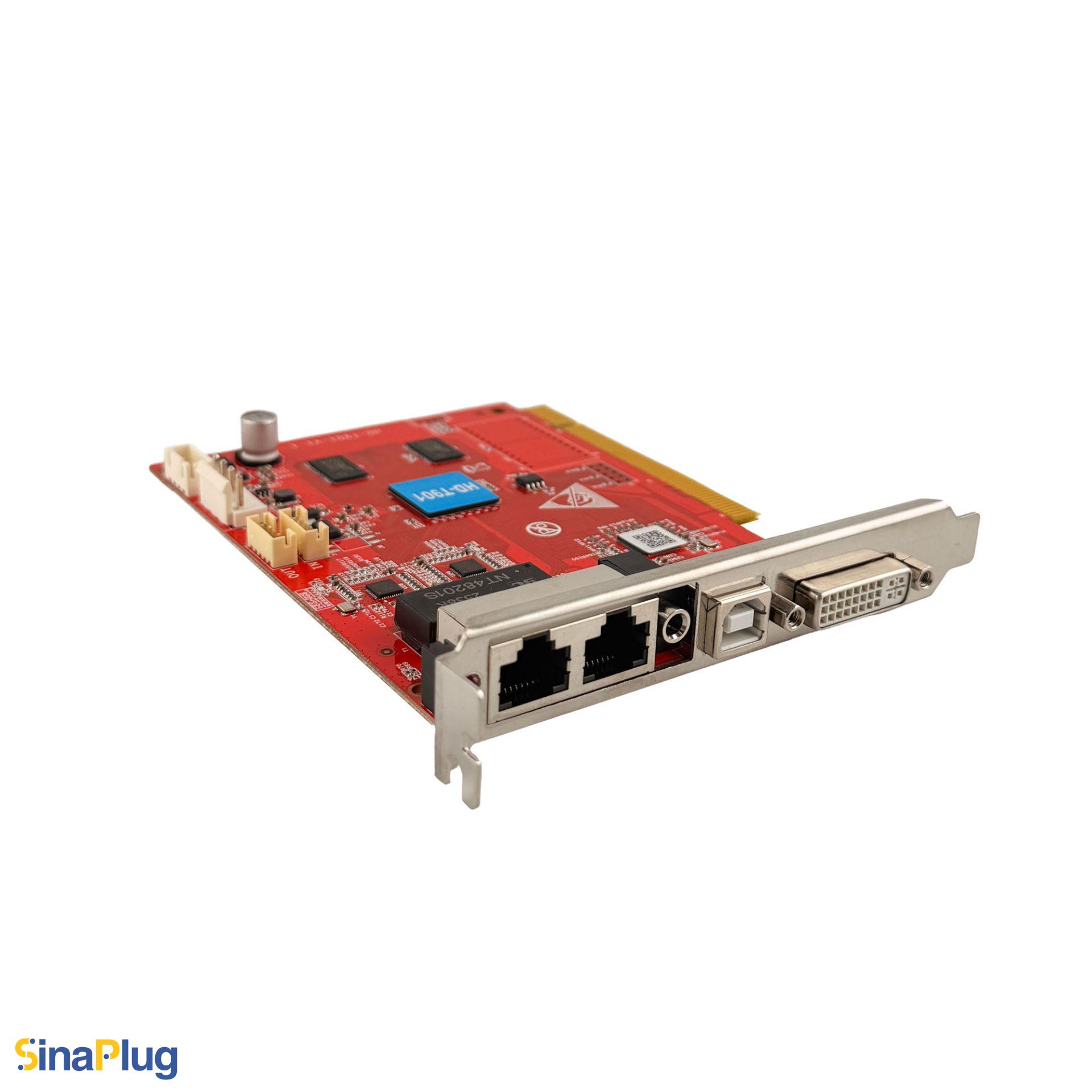

In addition to 2 Gigabit Ethernet output ports, which support custom resolutions up to 3840 pixels wide and 2048 pixels high, the HD-T901 accepts high-definition video input via DVI and provides a high loading capacity of up to 1.3 million pixels for seamless integration into your LED display systems.

It supports large-scale LED display arrangements and can be cascaded via serial port to configure multiple sending cards for high-resolution screens. To ensure reliable operation in various applications, the card operates within a temperature range of –20°C to +80°C and uses an input voltage of DC 5V, with rated power consumption below 5W.

The device is certified with CCC, CE, FCC, and RoHS certifications, ensuring compliance with international safety and environmental standards. The card works well in many professional situations, providing calibrated color and brightness on all panels with grayscale adjustable up to 65536 levels.

The HD-T901 supports any scanning method from static to 1/64 scan and is compatible with indoor and outdoor full color and single-color modules, such as PWM chips. Coupled with its test functions and intelligent settings, these features make the HD-T901 a reliable and efficient solution for various LED display applications.
