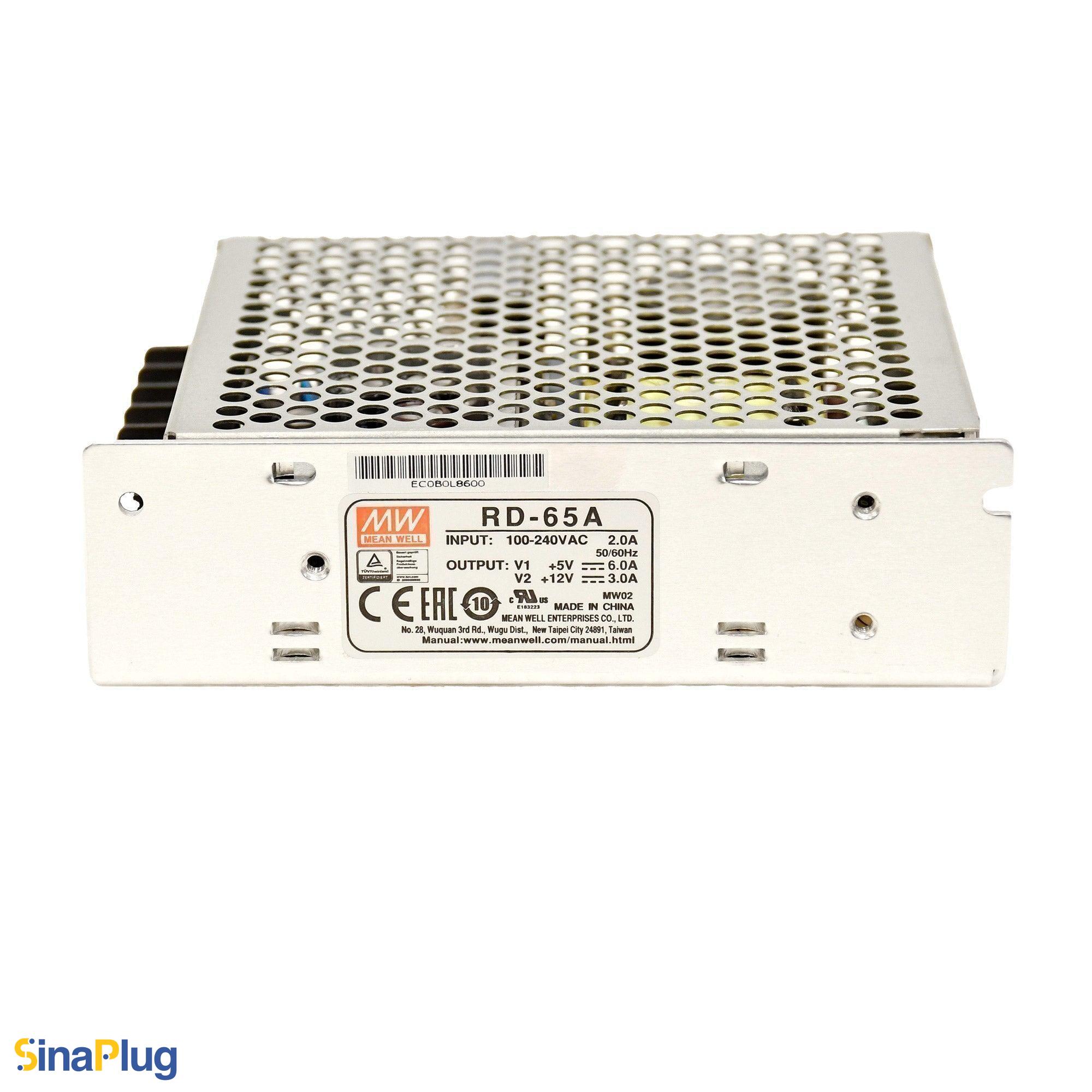

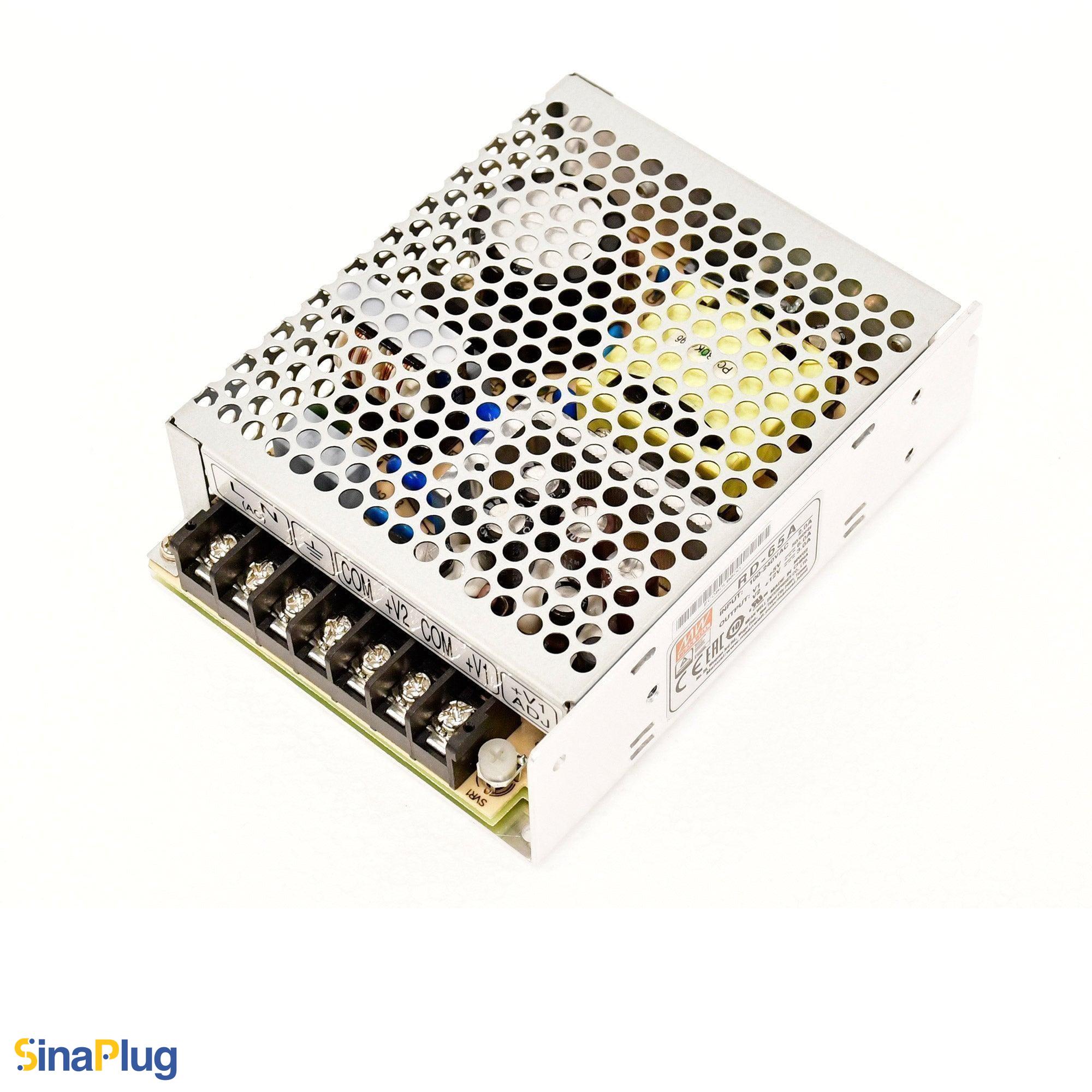

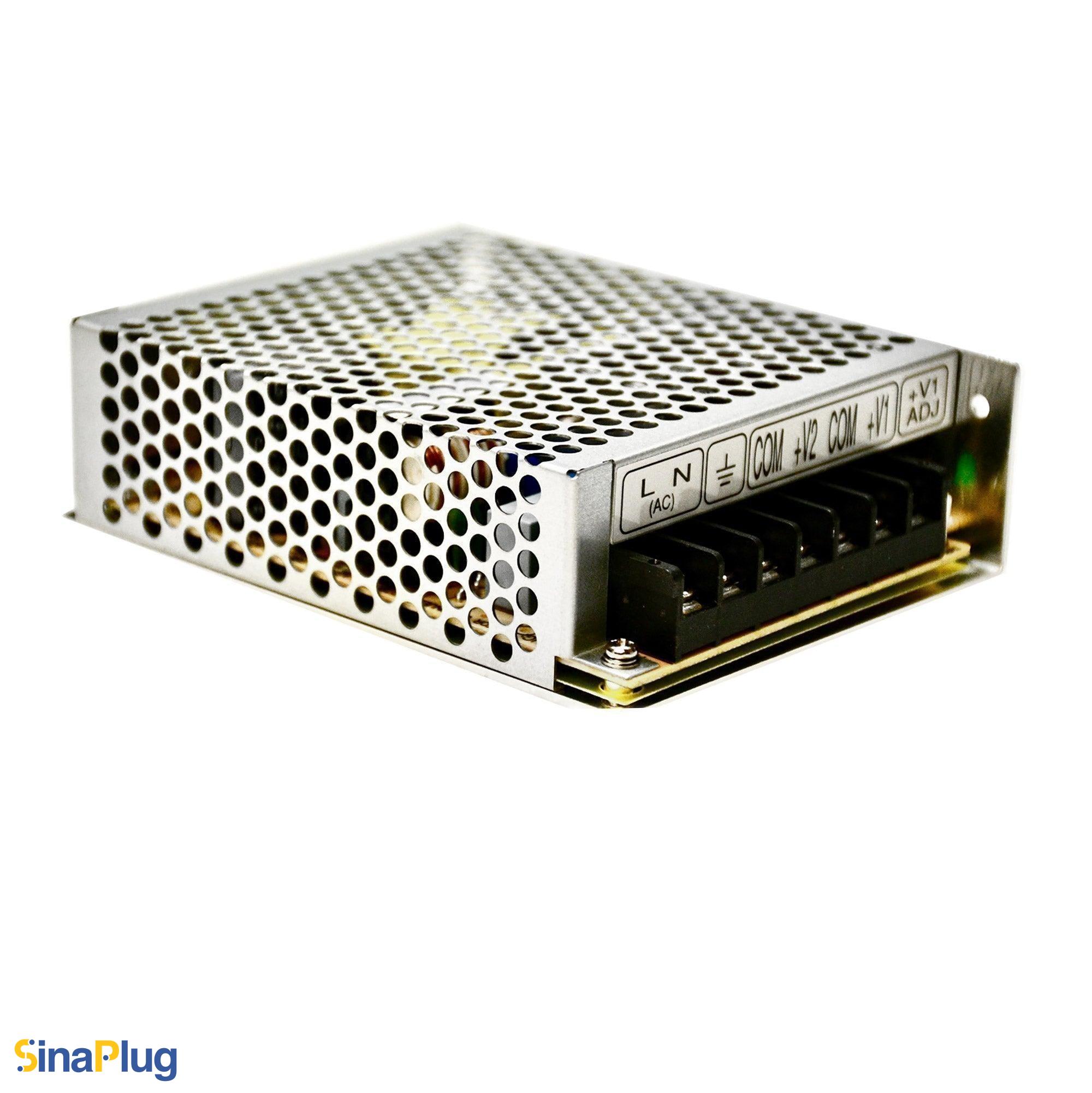

MEAN WELL RD-65A Switching LED Power Supply (5V, 6A / 12V, 3A)
$18.99
15 in stock
| Minimum Qty | Discount |
|---|---|
| 15 + | 3% |
| 30 + | 5% |
| 45 + | 7% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
The MEAN WELL RD-65A Switching LED Power Supply is a well-known, low-profile, dual-output switching power supply that offers two output channels: 5V 6A with an adjustable range of 4.75-5.5V, and 12V 3A for the other channel, from a full-range 100-240VAC input.
The MEAN WELL RD-65A delivers 66W output power in total for both channels, maintains a constant duty cycle to regulate the output voltage, and reduces load regulation to ±0.5% (for channel1). This unique power supply is an excellent choice for LED, particularly A/V devices.
Meanwell’s AC/DC power supplies are superior in their reliability and stability due to their long lifespan, low profile, and space-saving design, and 5G anti-vibration capability (range of 10-500Hz) along all three axes, ensuring compatible performance in expected conditions, all at a reasonable price.
In addition to the overload and over-voltage protections (with automatic recovery), and short circuit protection, it is certified by UL62368-1, IEC 60950-1, EN55032, EN61000-3-2, EN61000-4-2, EN55035, and EN61000-6-2 standards that allow it to meet the standard certifications.

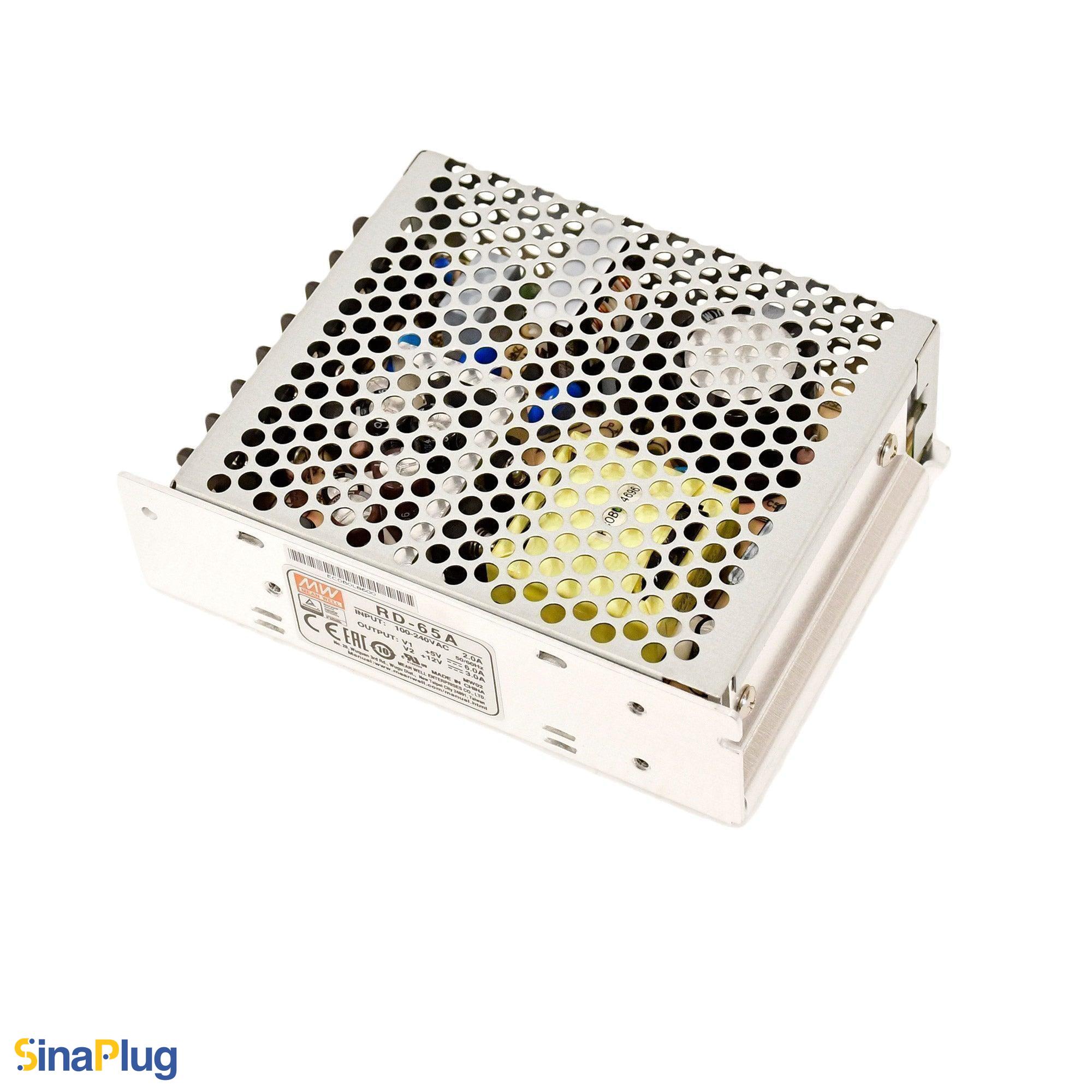

The low-profile RD-65 series is designed for long-term operation in demanding environments, featuring a metallic mesh housing that enhances heat dissipation and operates reliably in temperatures ranging from -25°C to +70°C.
Key Features of MEAN WELL RD-65A
- Type of Power Supply: AC to DC
- Packaging: Enclosed
- Input Voltage Range: 100 – 240VAC

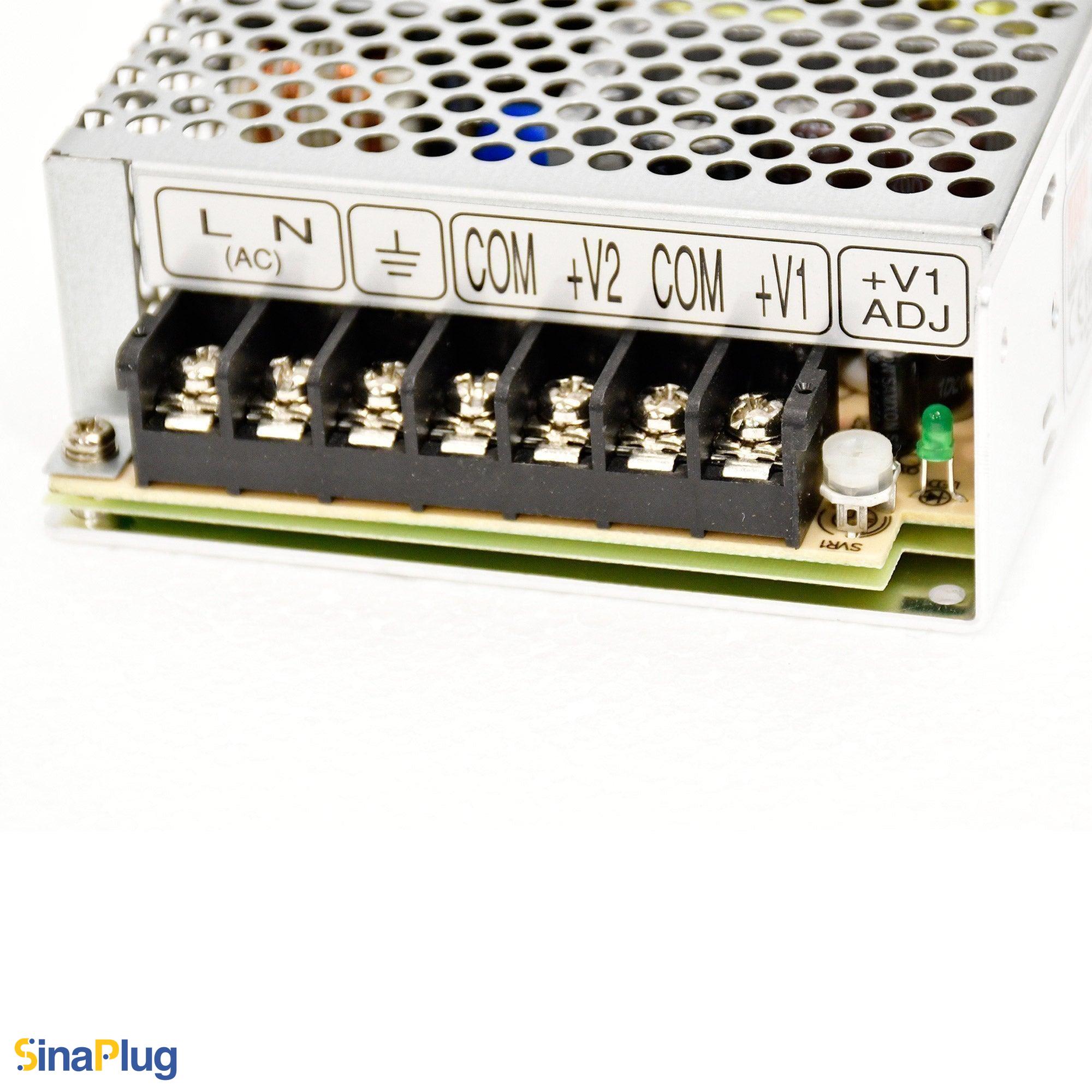

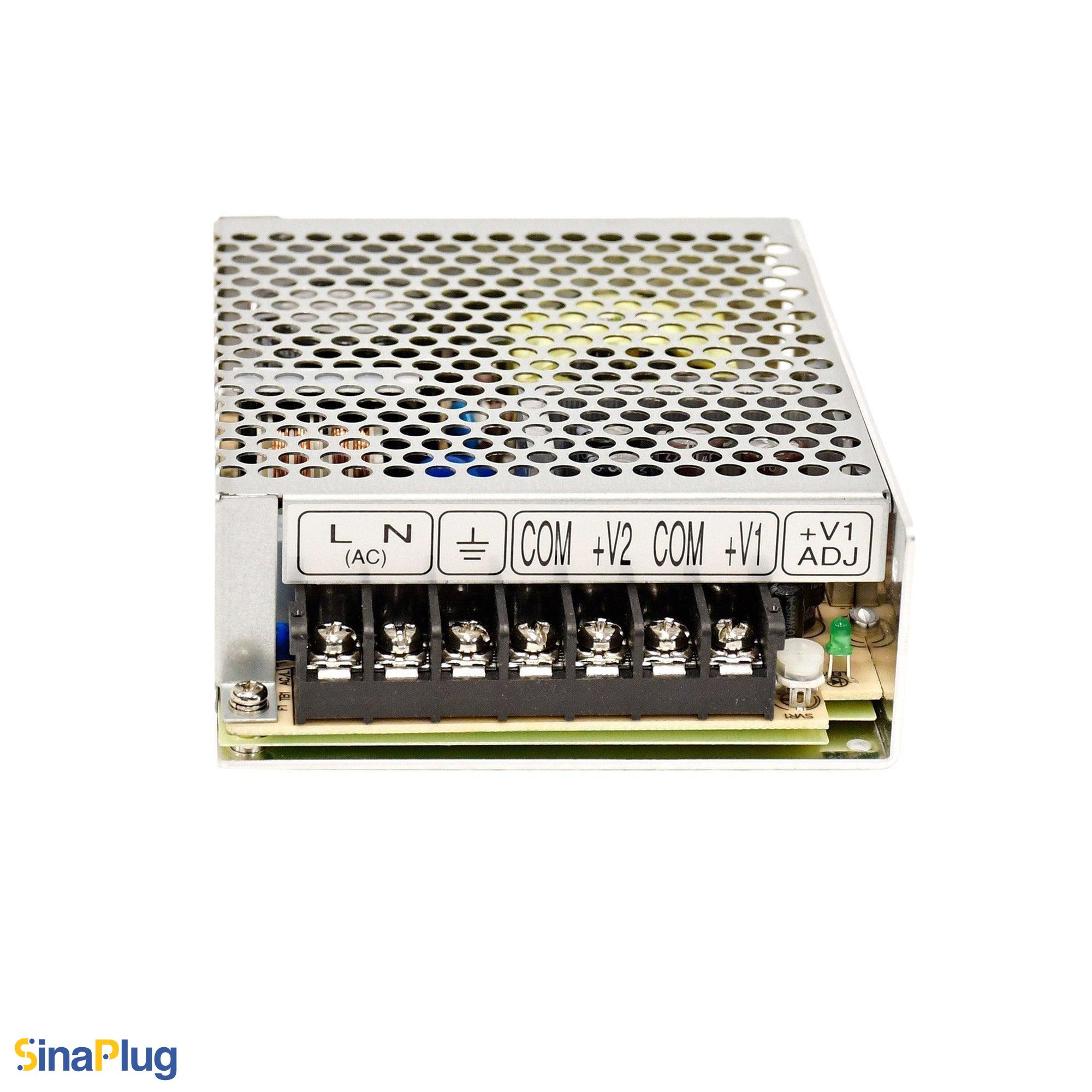

- Adjustable Output Voltage: Yes (for ch1 4.75 – 5.5V)
- Output Voltage: 5V / 12V
- Output Rated Current: 6A / 3A
- Output Rated Power: 66W
- Protections: Over Voltage Protection, Over Current Protection, Short Circuit Protection
- Dimensions (L*W*H): 129mm * 98mm * 38mm
| Weight | 0.97 lbs |
|---|---|
| Dimensions | 5.08 × 3.86 × 1.5 in |
| Input Voltage Range | 100-240V |
| Input Frequency Range | 47-63Hz |
| Input Current | ≤2A |
| Efficiency | 78% |
| Output Voltage | 5V/12V |
| Adjustable Output Voltage | Yes |
| Output Rated Current | 6A/3A |
| Output Rated Power | 66W |
| Max Ripple And Noise | 80 mVp-p/120 mVp-p |
| Output Voltage Tolerance | 2%/6% |
| Short Circuit Protection | Yes |
| Over Temperature Protection | No |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Under Voltage Protection | No |
| Working Temperature Range | -25 to +70 °C |
| Working Humidity Range | 20-90% |
| Storage Temperature Range | -40 to +85 °C |
| Standard Certification | EN 61000-3-2, EN 61000-4-2, EN 61000-6-2, EN55032, EN55035, IEC 60950-1, UL62368-1 |
