MEANWELL HDR-60-24 Switching Power Supply (24V, 2.5A)
$17.40
| Minimum Qty | Discount |
|---|---|
| 15 + | 3% |
| 30 + | 5% |
| 45 + | 7% |
Can't find what you need or is it out of stock? Contact us!
We'll source whatever you need according to your timeline and provide our most competitive offer.
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance

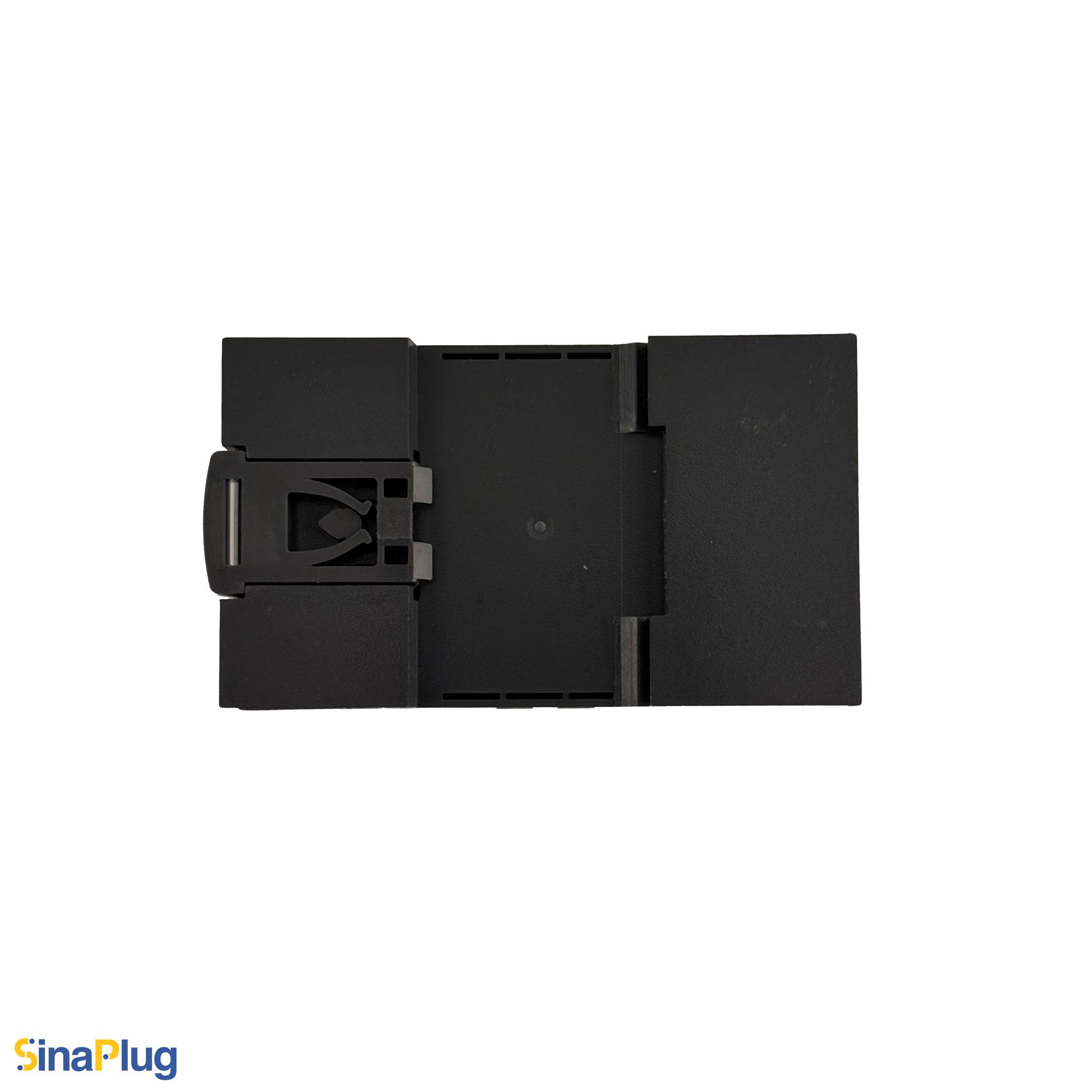

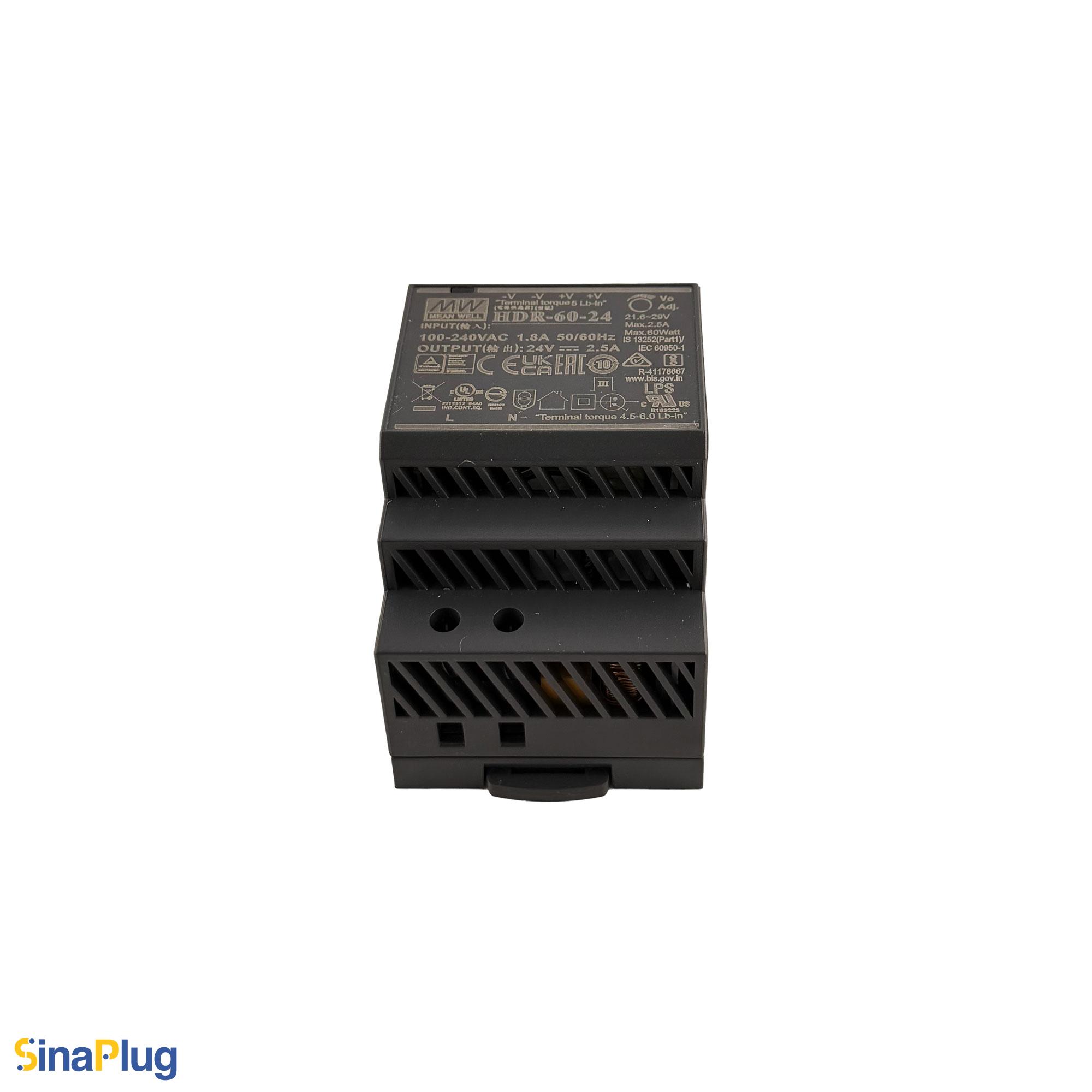

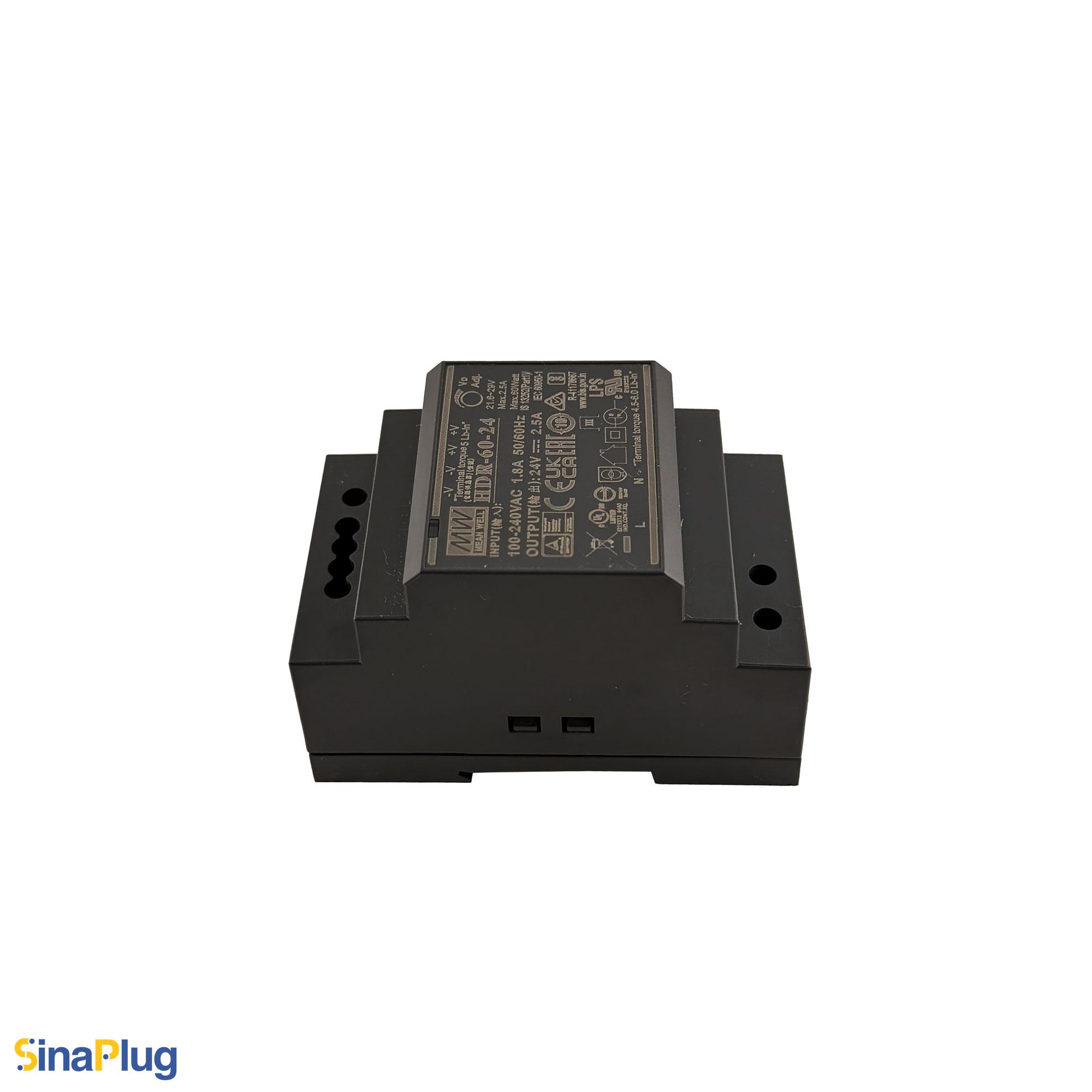

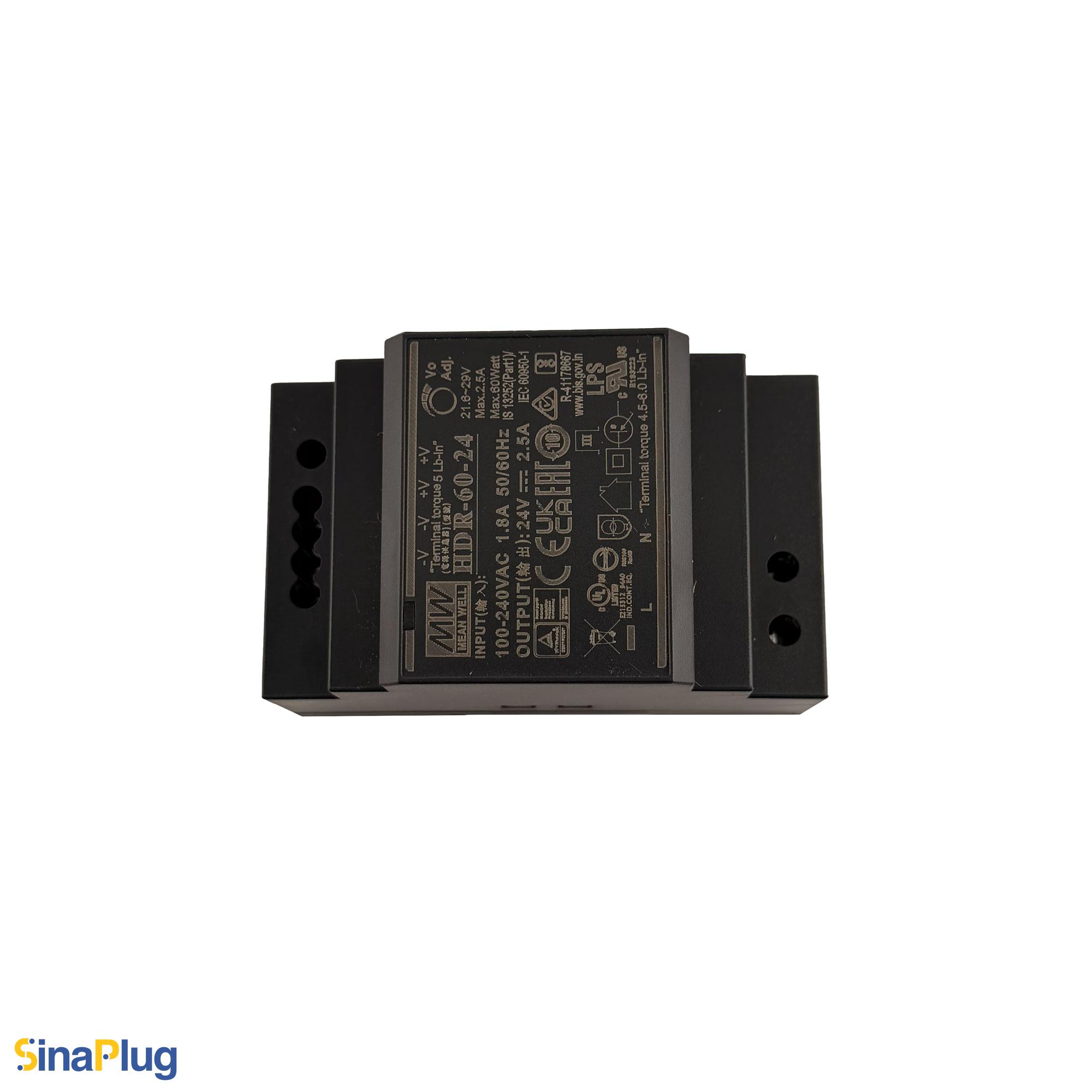

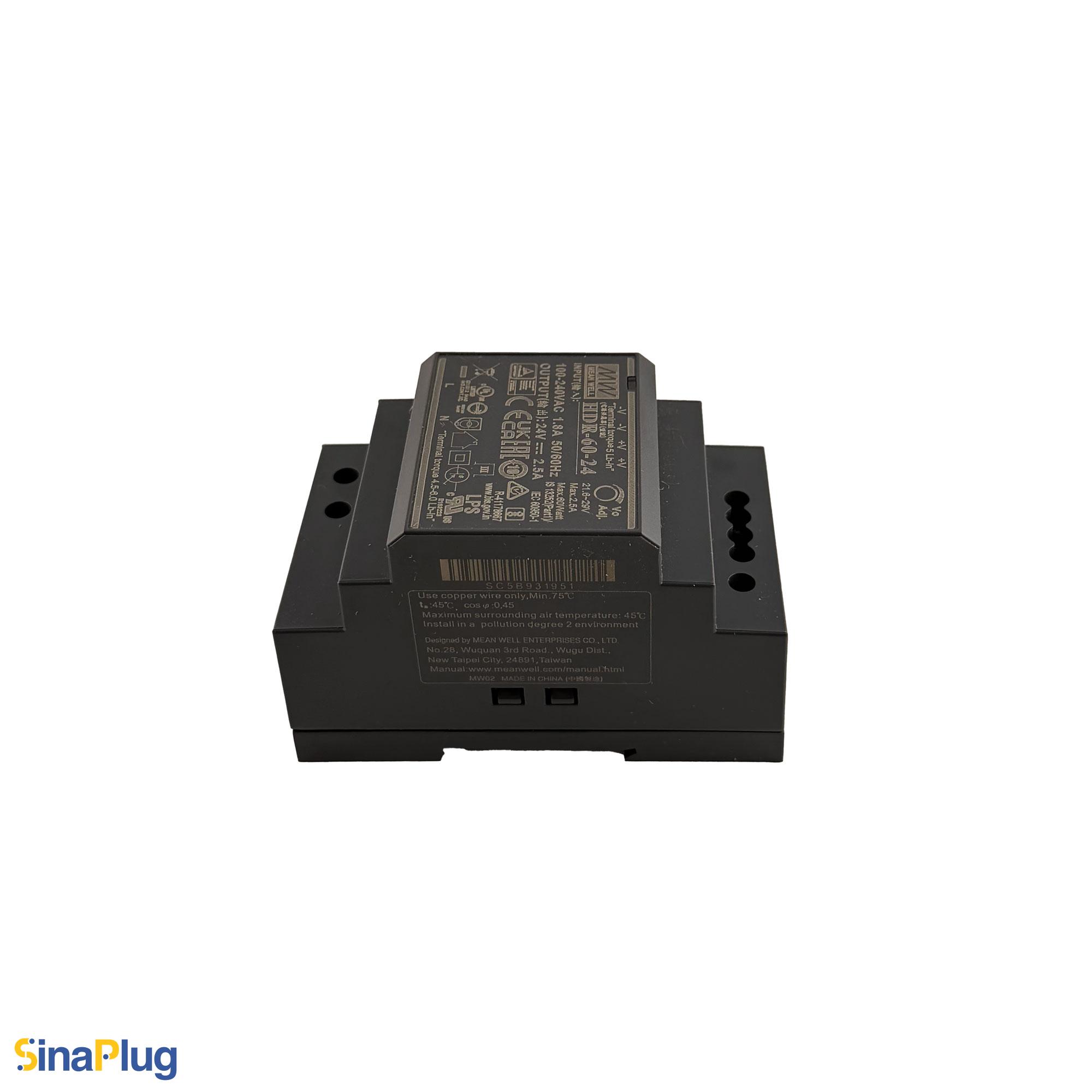

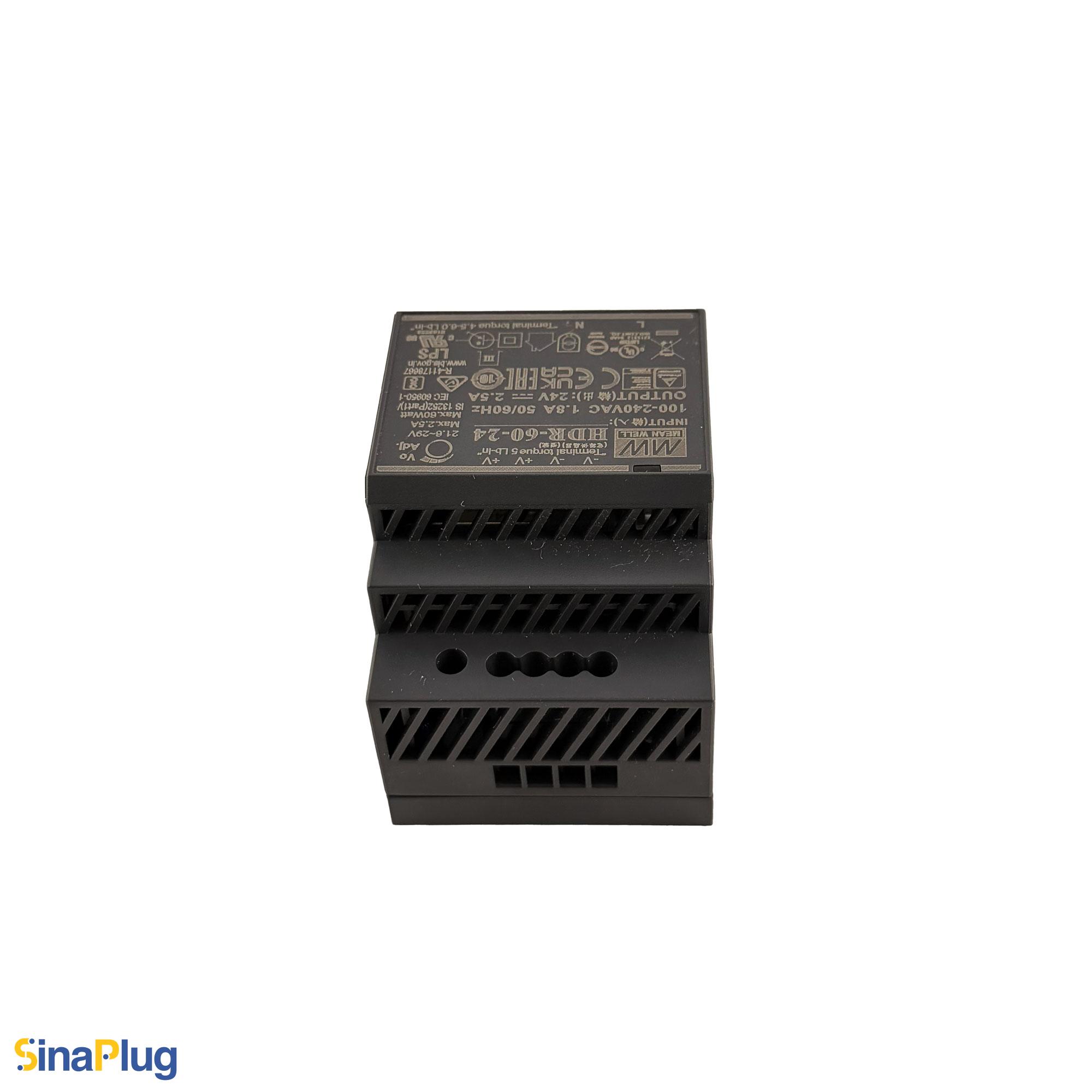

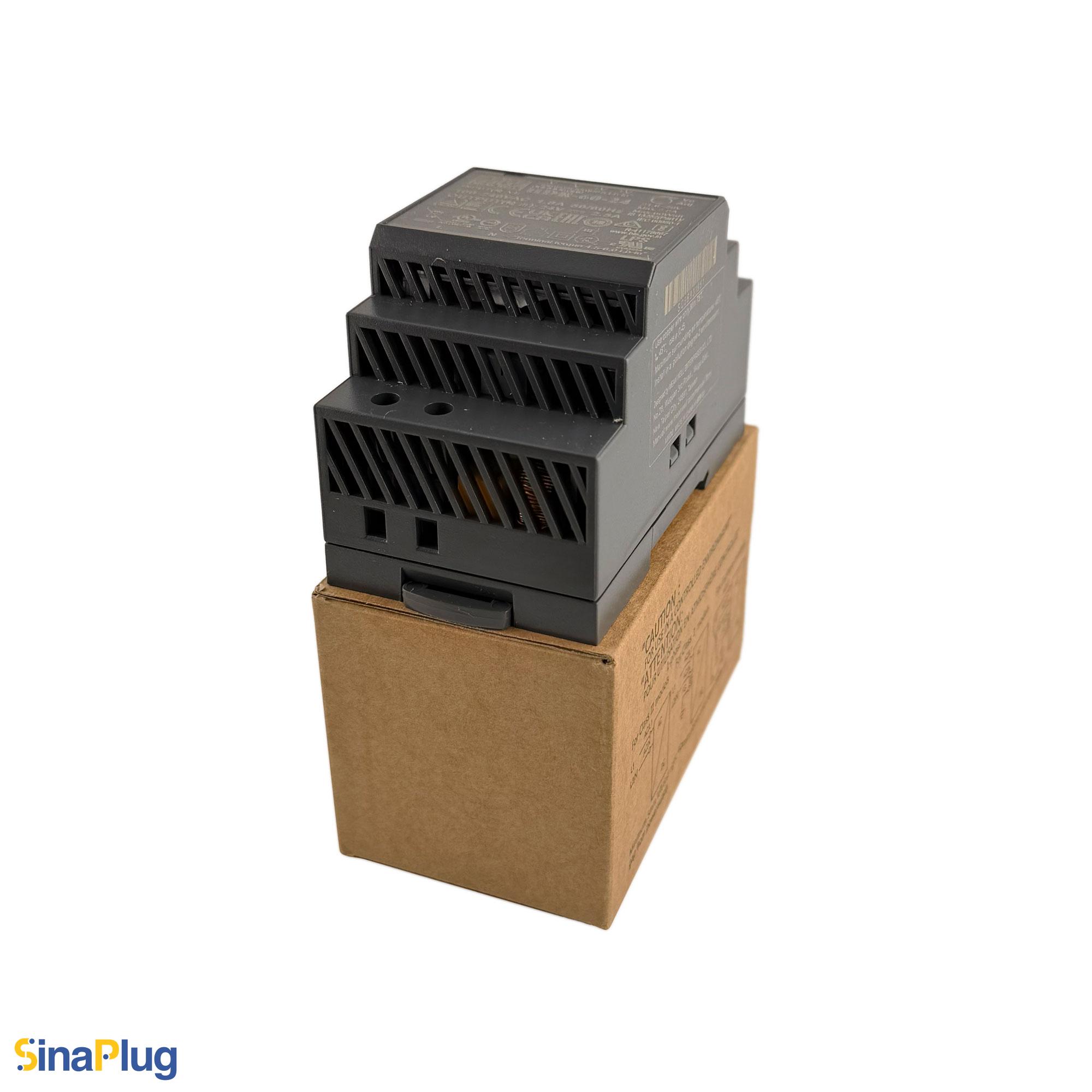

AzarPixel is happy to introduce the ultra slim MEAN WELL HDR-60-24 power supply. This reliable unit can be easily mounted on TS-35/7.5 or TS-35/15 DIN rails, which makes it perfect for controlling cabinets and industrial panels. It is mostly used in factory automation, control and LED systems and other industrial projects.
The HDR-60-24 is only 52.5mm wide and covered with plastic housing to avoid any unexpected electrical shocks which is great for crowded electrical panels.
The HDR-60-24 uses 100-240 VAC and delivers 60W of output power. It provides a stable 24V DC output at 2.5A, and the voltage can be adjusted. This DIN rail enclosed unit ensures constant and precise outputs thanks to its outstanding ±1% load regulation.
It cools by natural air flow and can work in temperatures from -30°C to +70°C silently that makes it perfect for household and industrial environments.
The HDR-60 series offers advanced protections including short circuit, overload and over voltage (category III) protection. It meets safety standards, including UL62368-1, UL508, EN61558-1, EN61558-2, EN61000-3, EN61000-4, EN55032, IEC60950-1. It features an isolation class II and is a remarkable, cost-effective power solution, for professional applications.
Key Features of HDR-60-24
- Type of Power Supply: AC to DC
- Packaging: Enclosed
- Input Voltage Range: 100 – 240VAC
- Adjustable Output Voltage: Yes (21.6 – 29V)
- Output Voltage: 24V
- Output Rated Current: 2.5A
- Output Rated Power: 60W
- Protections: Short Circuit Protection, Overload Protection, Over Voltage Protection
- Dimensions (L*W*H): 90mm * 58mm * 53mm
| Weight | 0.44 lbs |
|---|---|
| Dimensions | 3.94 × 2.56 × 2.36 in |
| Input Current | ≤1.8A |
| Efficiency | 90% |
| Output Voltage | 24V |
| Adjustable Output Voltage | Yes |
| Output Rated Current | 2.5A |
| Output Rated Power | 60W |
| Max Ripple And Noise | 150 mVp-p |
| Output Voltage Tolerance | 1% |
| Short Circuit Protection | Yes |
| Over Voltage Protection | Yes |
| Under Voltage Protection | No |
| Working Humidity Range | 20-90% |
| Standard Certification | CNS15598-1, CNS15936, EN 61000-3-3, EN 61000-6-2, EN 61204-3, EN 61558-2-16, EN55032, EN61000-3-2, EN61000-4-11, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61558-1, IEC 62368-1, IEC60950-1, UL508, UL62368-1 |
| Others | Overload Protection |
