A10s Plus-N LED Receiving Card
$51.10
44 in stock
| Minimum Qty | Discount |
|---|---|
| 5 - 10 | 3% |
| 11 - 20 | 6% |
| 20 - 99 | 9% |
| 100 + | 10% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance

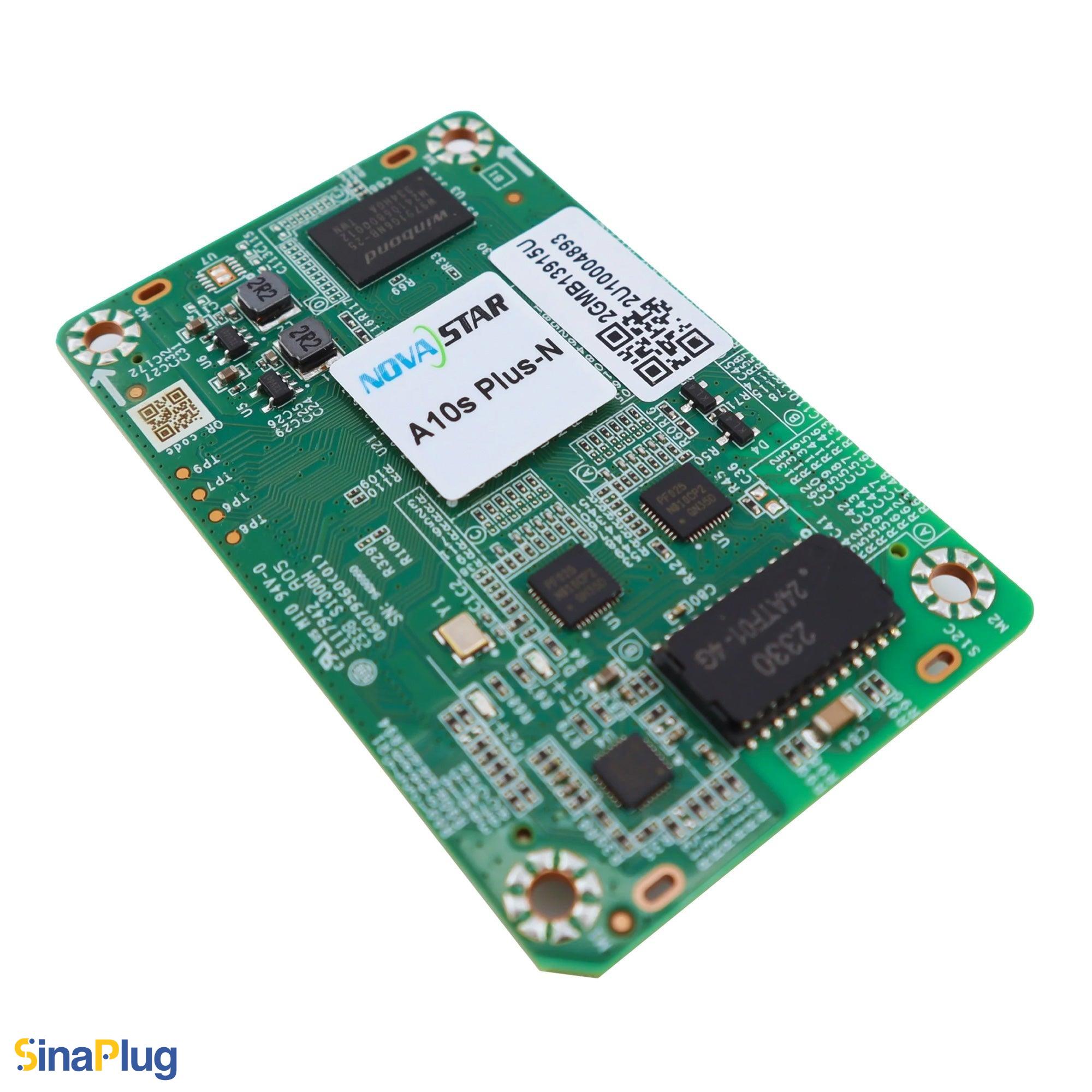

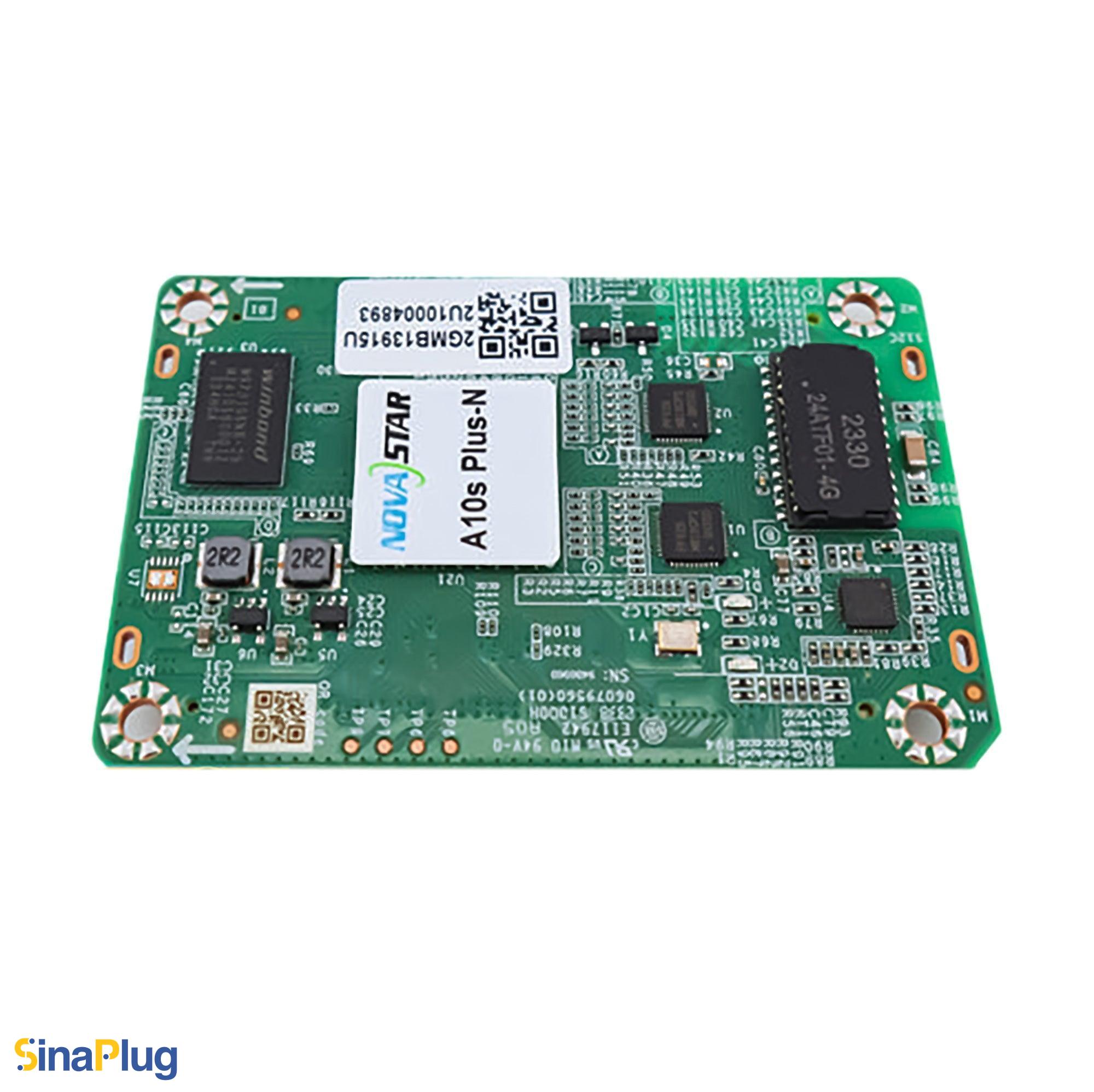

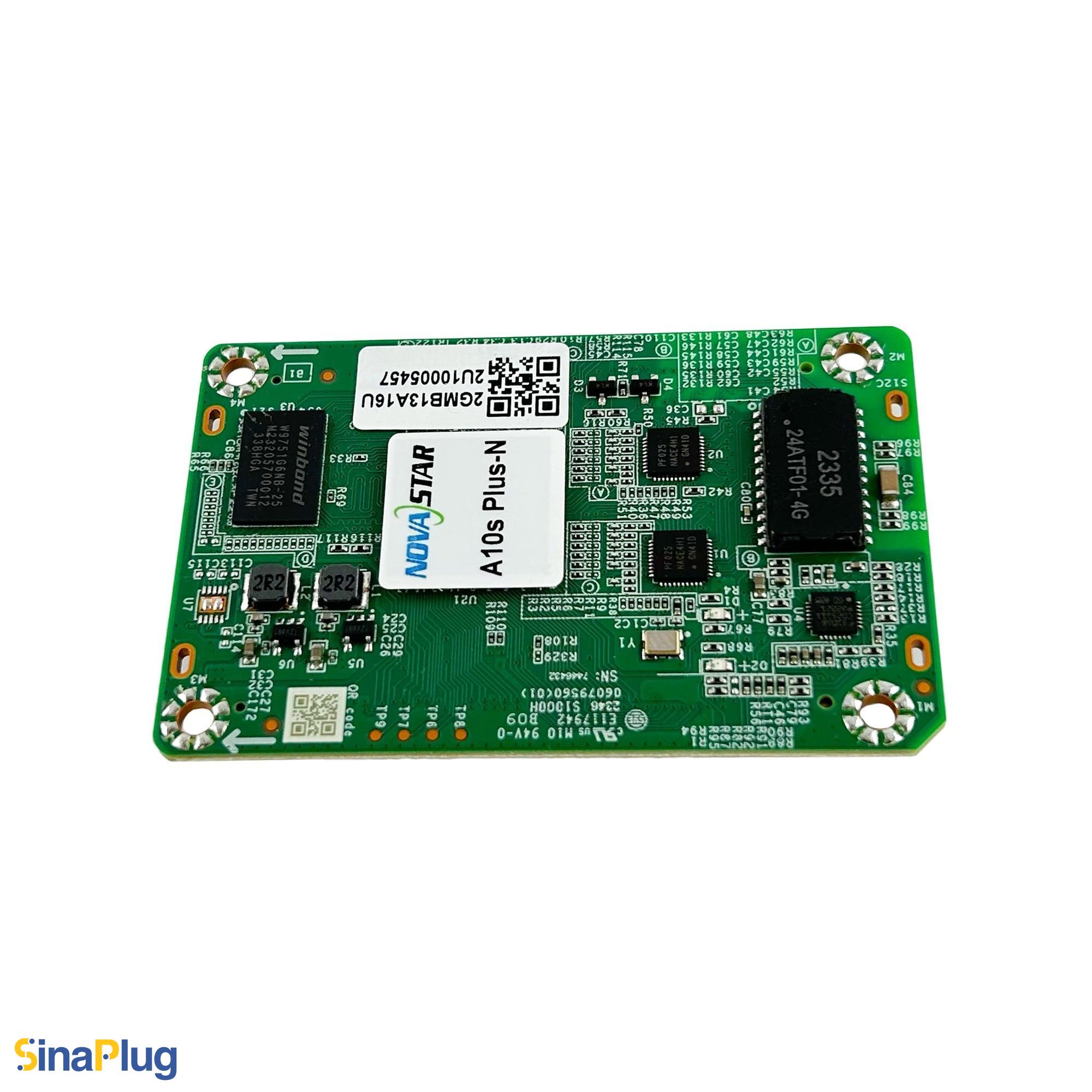

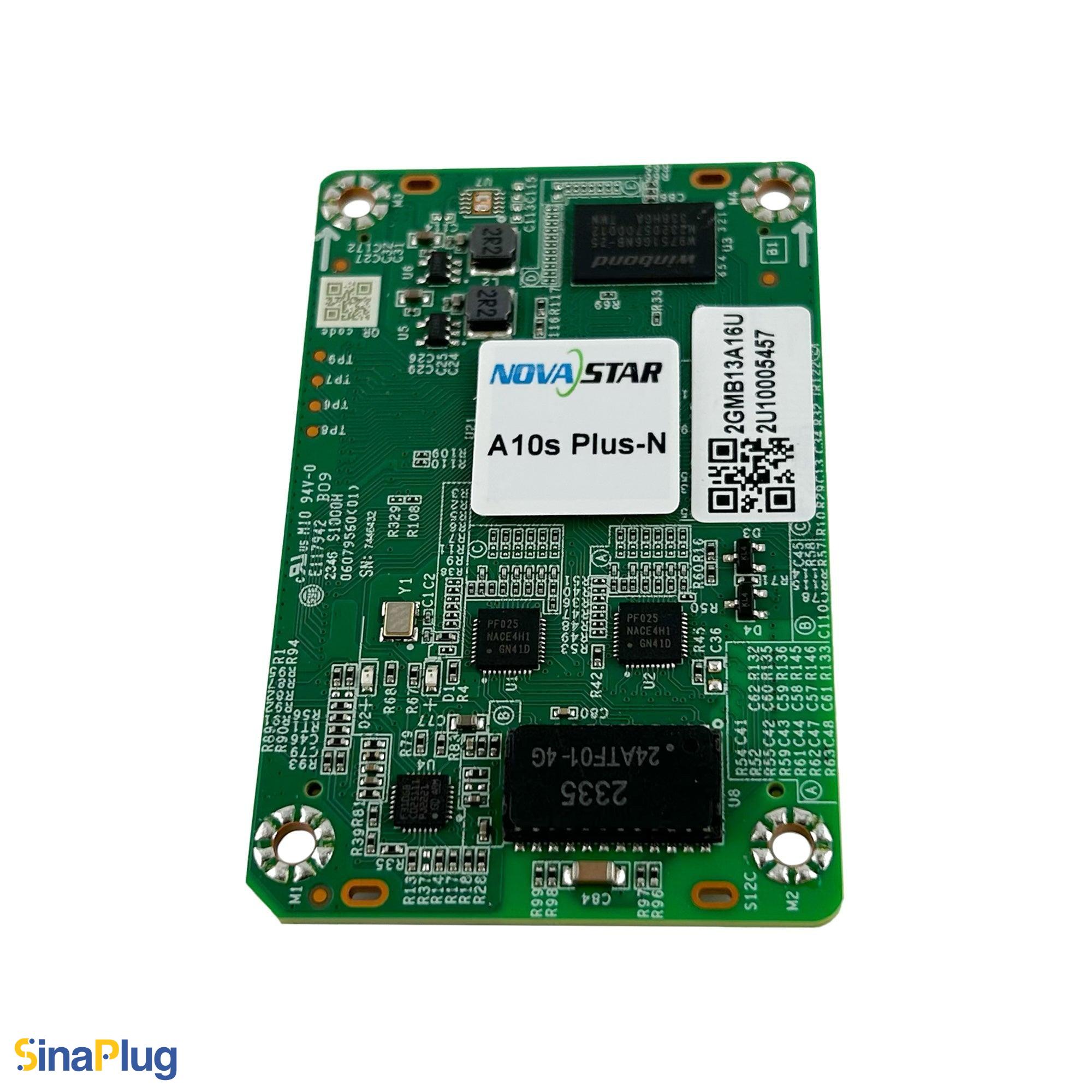

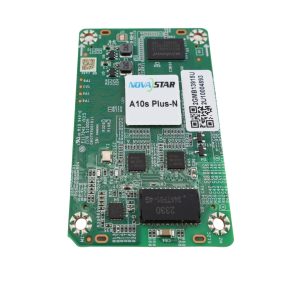

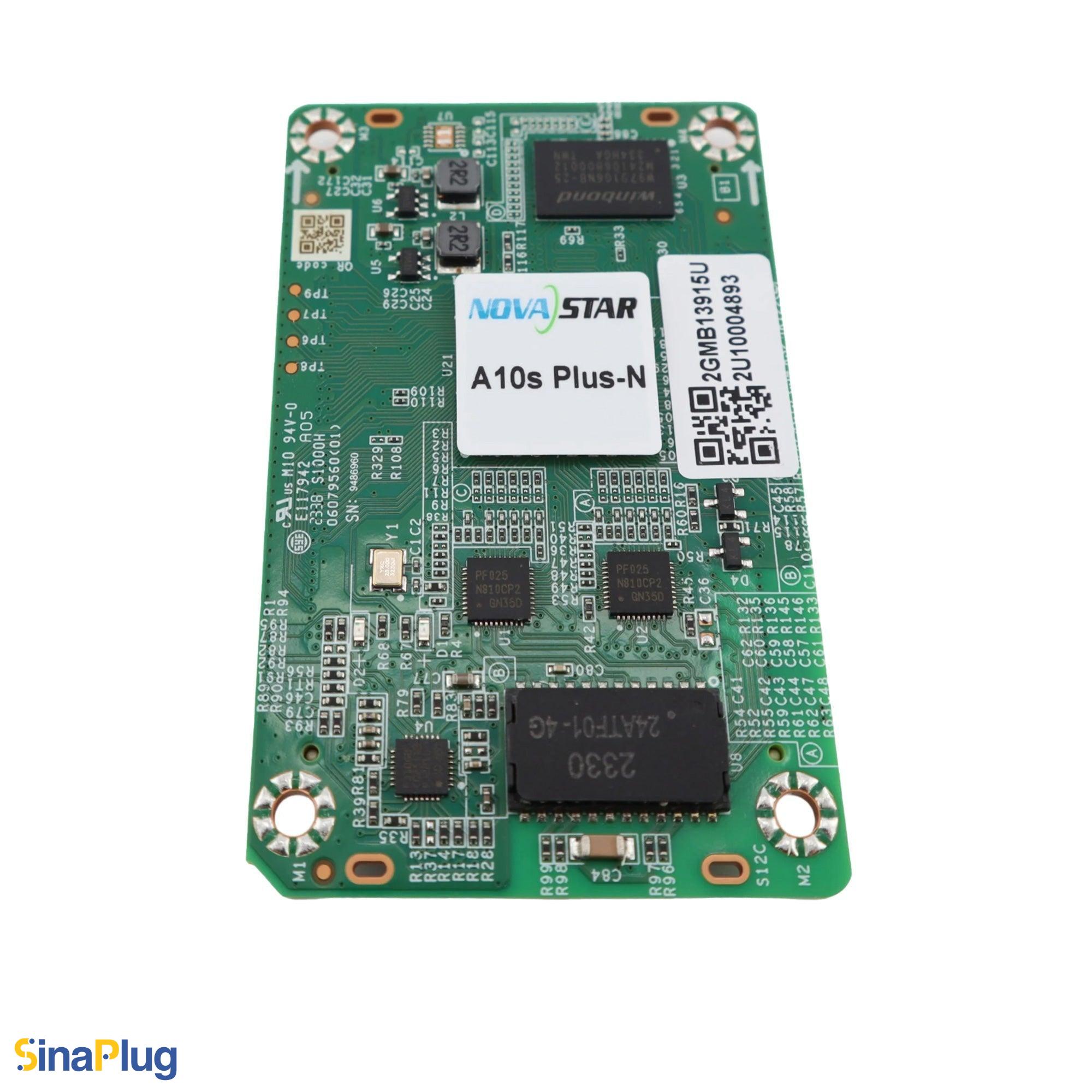

The NovaStar A10s Plus-N is a receiving card built for LED displays that demand sharp, crisp imaging and HDR support — an upgraded version of the A10s Plus, positioned close to the A10s Pro in capability. Its sturdy design and high-density board-to-board connectors improve signal transmission by eliminating loose data wiring and reducing sensitivity to dust and vibration, and it’s EMC Class B compliant for reliable use across a range of field installations.
Rated at only 3.0W of power consumption, it operates across a temperature range of -20°C to +70°C with an input voltage range of 3.8V to 5.5VDC, supports a maximum resolution of 512×512@60Hz for PWM driver ICs, and is RoHS certified.
The A10s Plus-N includes low latency performance, quick adjustment for dark or bright lines, RGB individual gamma adjustment, pixel-level brightness and chroma calibration, and 90° image rotation. It also supports HDR10 and HLG video sources — a feature shared only with the A8s and A8s-N in NovaStar’s lineup — and works seamlessly with HDR-capable controllers like the MCTRL4K and MX30.
Designed for installation in demanding field environments, it accepts up to 64 groups of serial data (expandable to 128) or 32 groups of parallel RGB data, giving integrators flexibility for larger setups.
Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
Key Features of NovaStar A10s Plus-N
Loading Capacity
- Resolutions up to 512×512@60Hz
Input

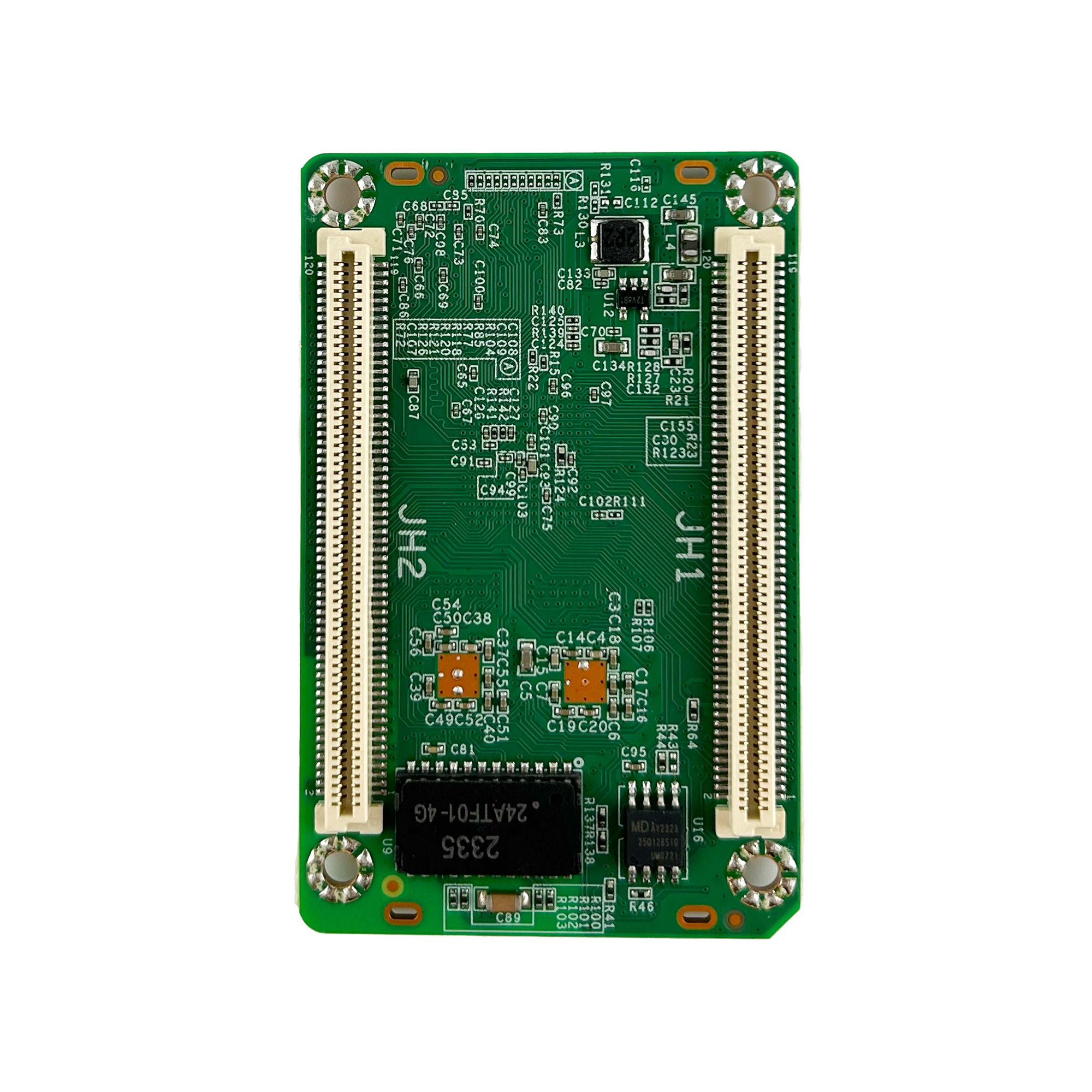

- 1x 11pin Input Gigabit Ethernet Board-to-Board connector (to Hub/Adapter board)
Output
- 1x 11pin Output Gigabit Ethernet Board-to-Board connector (to Hub/Adapter board)
- 32x groups of parallel RGB data or 64x groups of serial data (expandable to 128 groups of serial data)
Performance
- Image Booster Engine
- Color Management: provides more precise colors on the screen
- 16bit (65,536 levels) grayscale Individual correction
- Supporting 22bit+: Improve the LED display grayscale by 64 times
- HDR: Supports HLG and HDR10
- Pixel-to-Pixel brightness and chroma calibration
- RGB Individual gamma adjustment
- Quick and easy adjustment of dark or bright lines
- Low latency (down to 1 frame for PWM driver ICs)
- Supports 3D image output
- Image rotation in 90° increments (0°/90°/180°/270°)
Maintainability
- Smart module
- Mapping 1.0 (locations and connection topology)
- Bit error detection
- Automatic uploading of module calibration coefficients
- Fast uploading of calibration coefficients
- Module Flash management
- A pre-stored image (while start-up, disconnections, signal loss)
- Dual power supplies status detection
- Firmware program and configuration parameter readback
- Temperature and voltage monitoring
- Cabinet LCD supported
Reliability
- Dual card backup (card redundancy) and status monitoring
- Loop backup (primary / back-up connection lines supported)
- Dual backup of configuration parameters
- Dual backup of firmware program
- Dual backup of calibration coefficients
Dimensions (L*W*H)
- 70mm * 45mm * 8.2mm
| Weight | 0.05 lbs |
|---|---|
| Dimensions | 5.12 × 3.54 × 0.39 in |
| Max PWM IC Pixel Capacity | 512×512 |
| Scan Type | 1/64 |
| Output Interface (QTY) | 1 |
| Max Parallel RGB Data Groups | 32 |
| Max Serial RGB Data Groups | 64 |
| Expandable Up To | 128 |
| HDR Function | Supported |
| Brightness and Chroma Calibration | Supported |
| 90° Image Rotation | Supported |
| Mapping | Supported |
| Bit Error Detection | Supported |
| Loop Backup | Supported |
| Dual Configuration Parameters Backup | Supported |
| Firmware Redundancy and Readback | Supported |
| Input Voltage Range | 3.8-5.5VDC |
| Max Power Consumption | 3W |
| Working Temperature Range | -20 °C to +70 °C |
| Standard Certification | EMC Class B, RoHS |
| Others | 16bit (65,536 levels) grayscale Individual correction (Improve the 22bit+ LED displays grayscale by 64 times), A pre-stored image (while start-up, disconnections, signal loss), Automatic module calibration uploading of module calibration coefficients, Dual card backup (card redundancy) and status monitoring, Low Latency, Module Flash management, Supporting 22bit+: Improve the LED display grayscale by 64 times, Supports temperature, voltage, and cabinet LCD monitoring |
