MRV328 Receiving Card
$30.80
42 in stock
| Minimum Qty | Discount |
|---|---|
| 5 - 10 | 3% |
| 11 - 20 | 6% |
| 20 - 99 | 9% |
| 100 + | 10% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance

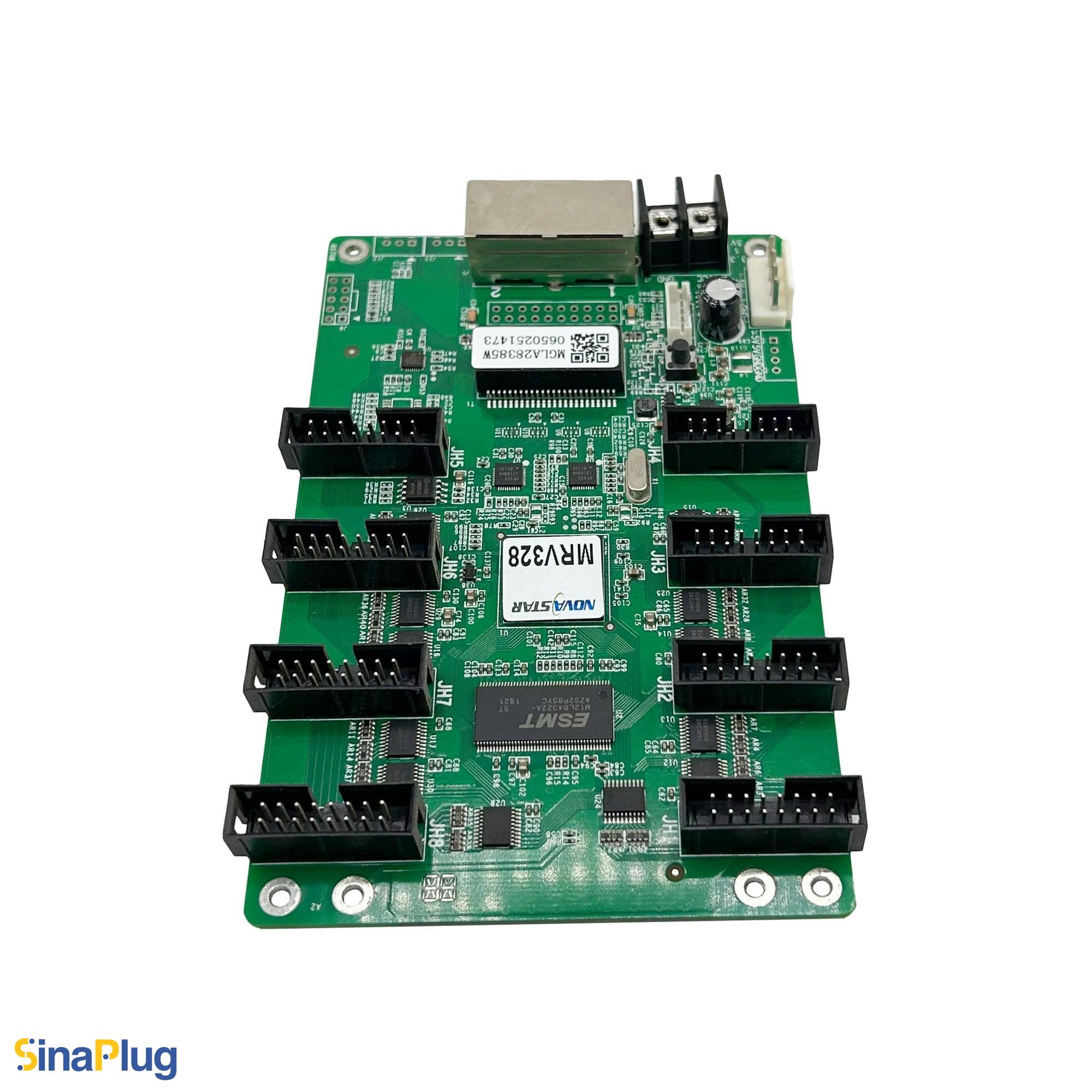

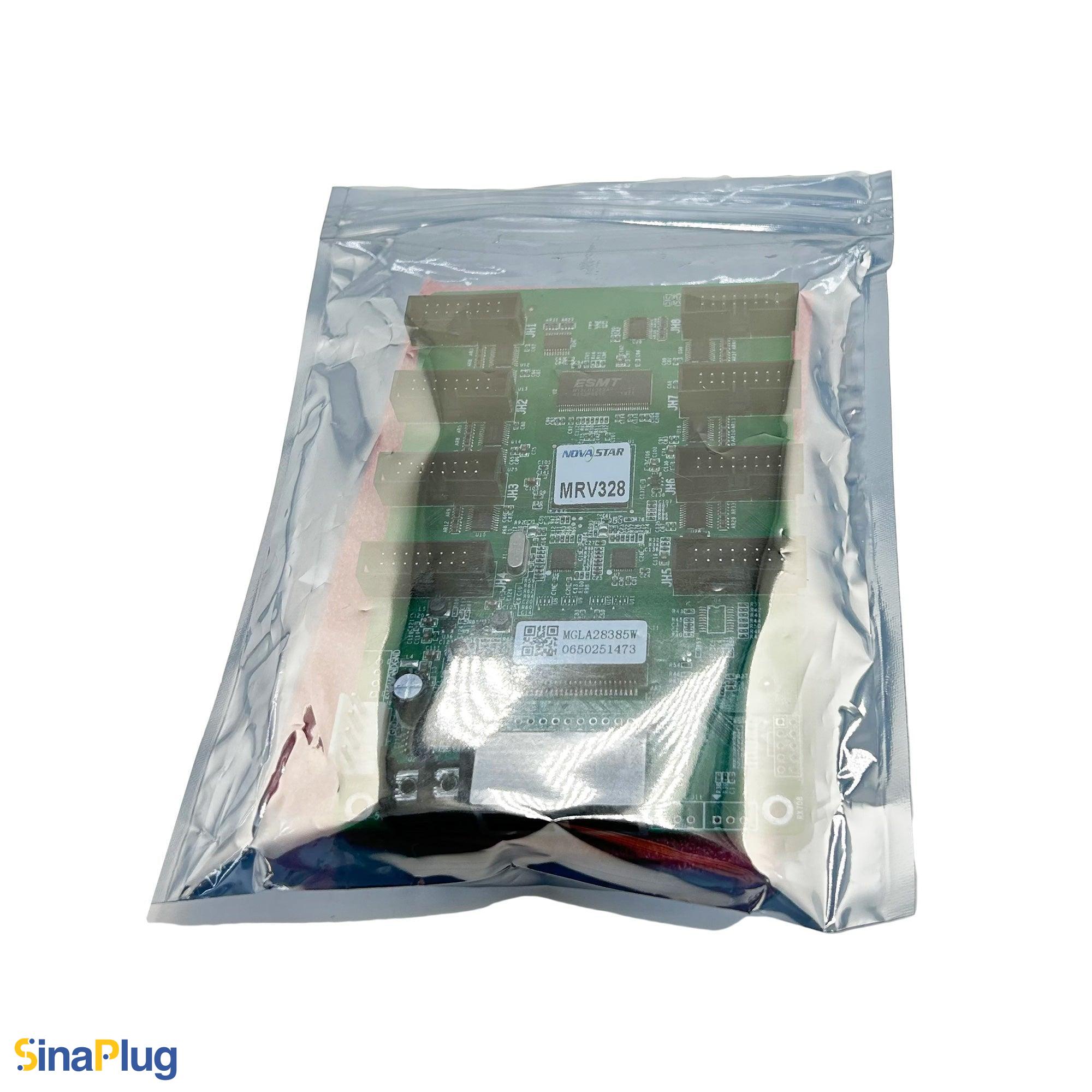

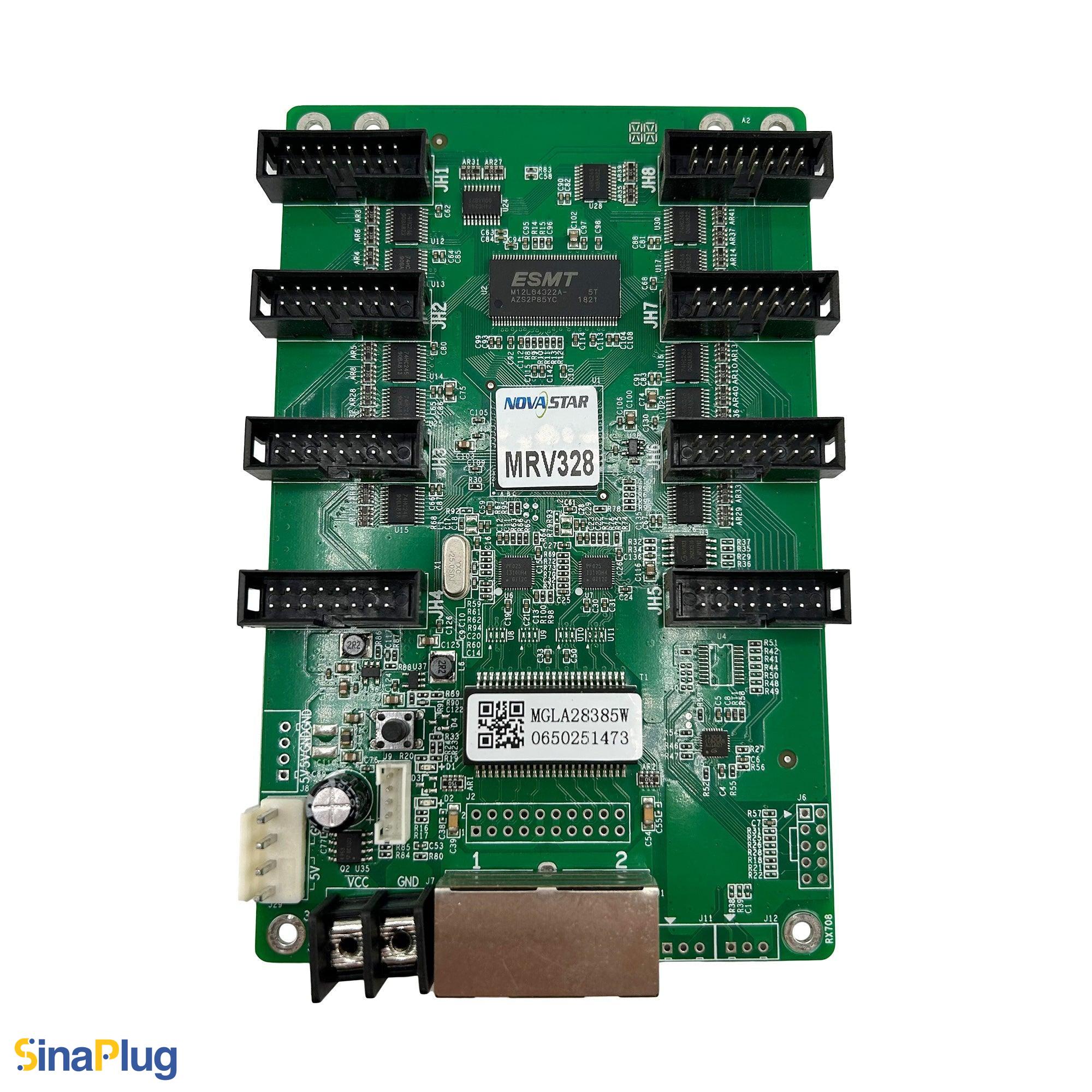

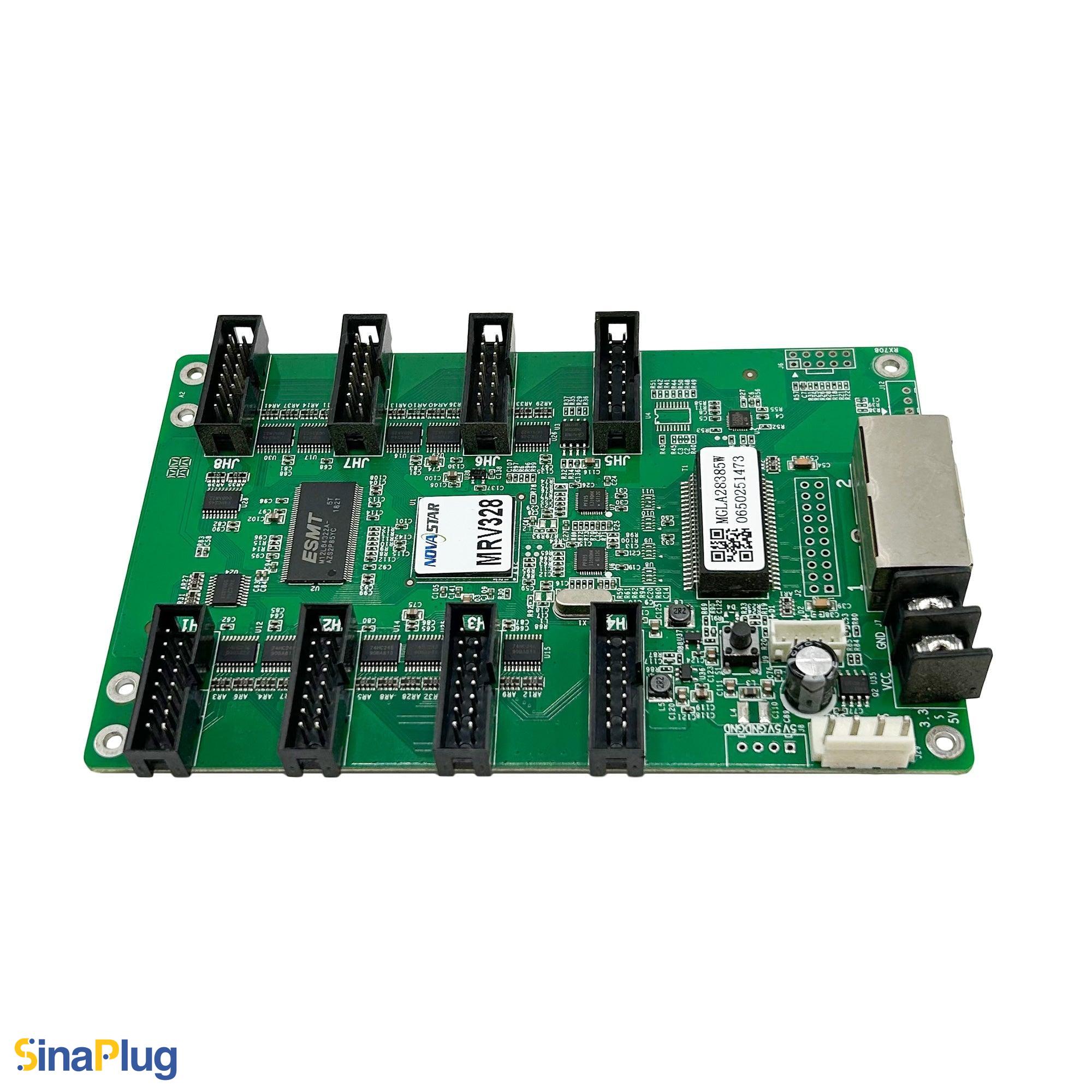

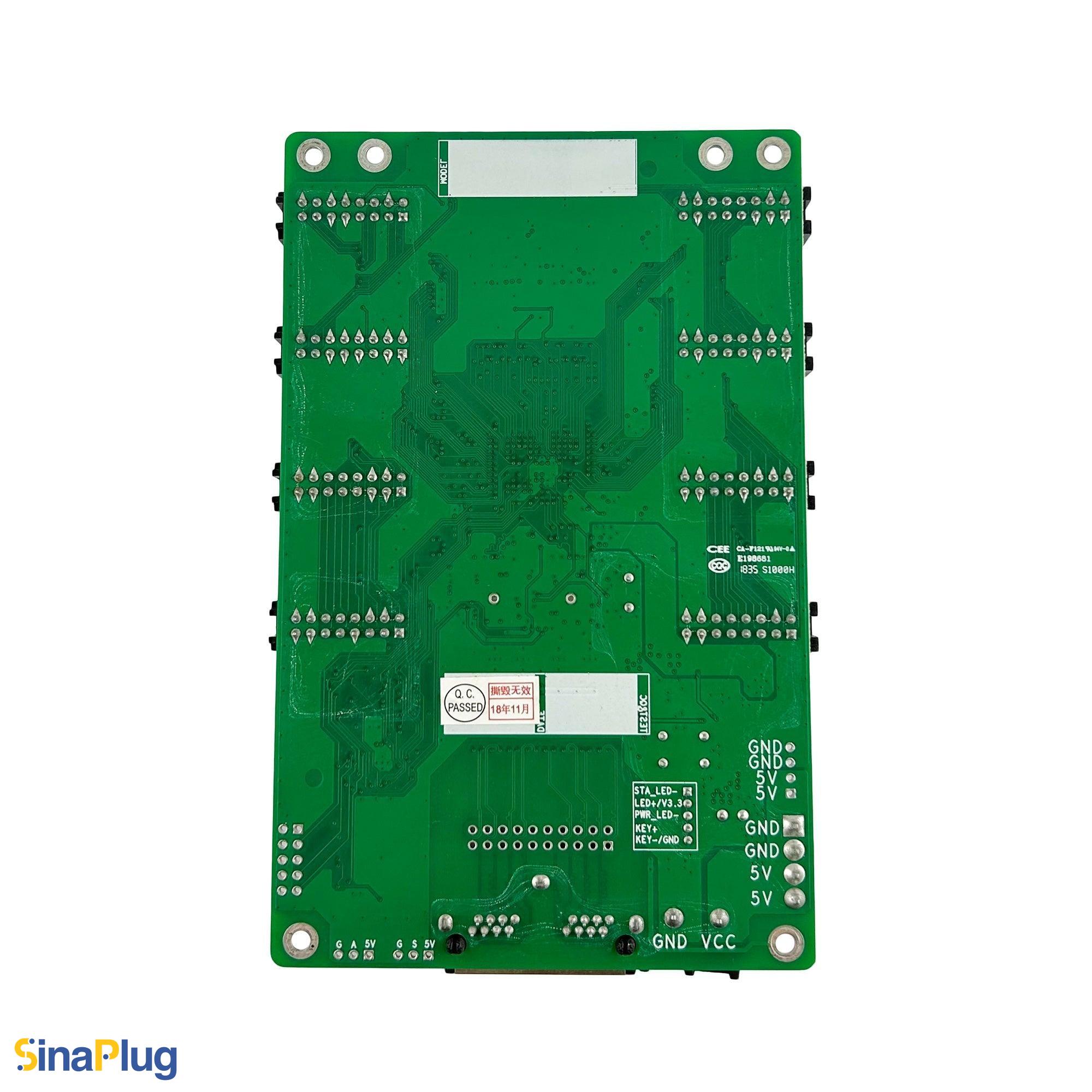

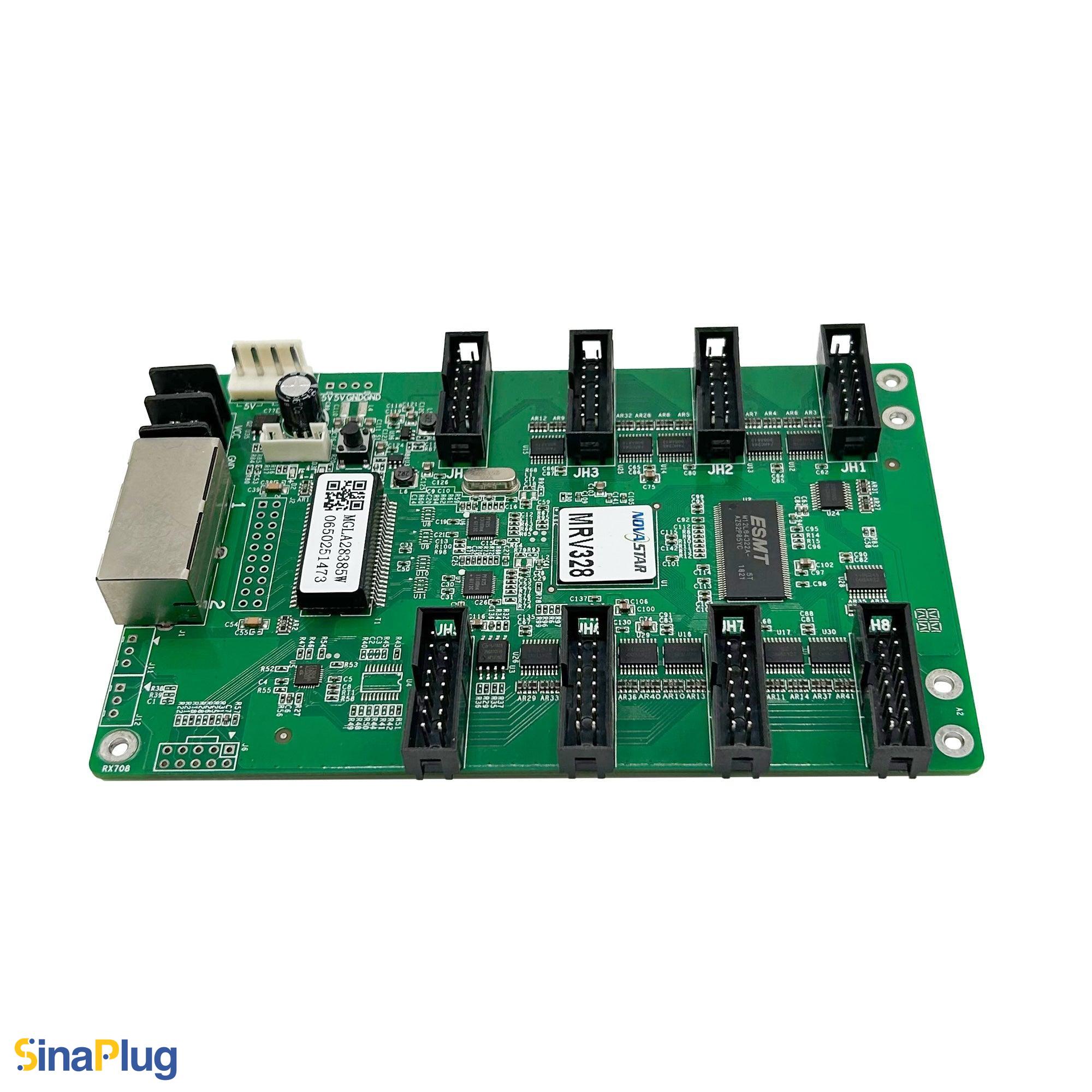

The NovaStar MRV328 Receiving Card, offered by Azar Pixel, is a compact and dependable receiving card that handles maximum resolutions of up to 256×256@60Hz for PWM driver ICs up to 1/32 scan. This cost-effective card also supports 3D function, temperature and voltage monitoring, and enhances image quality through precise pixel-level brightness and color calibration.
Operating on a 3.8–5.5V DC power supply with a consumption of 2.5W, this card delivers consistent performance across a temperature range of -20°C to +70°C. It meets RoHS and EMC Class B standards, ensuring compliance with environmental and electromagnetic regulations.

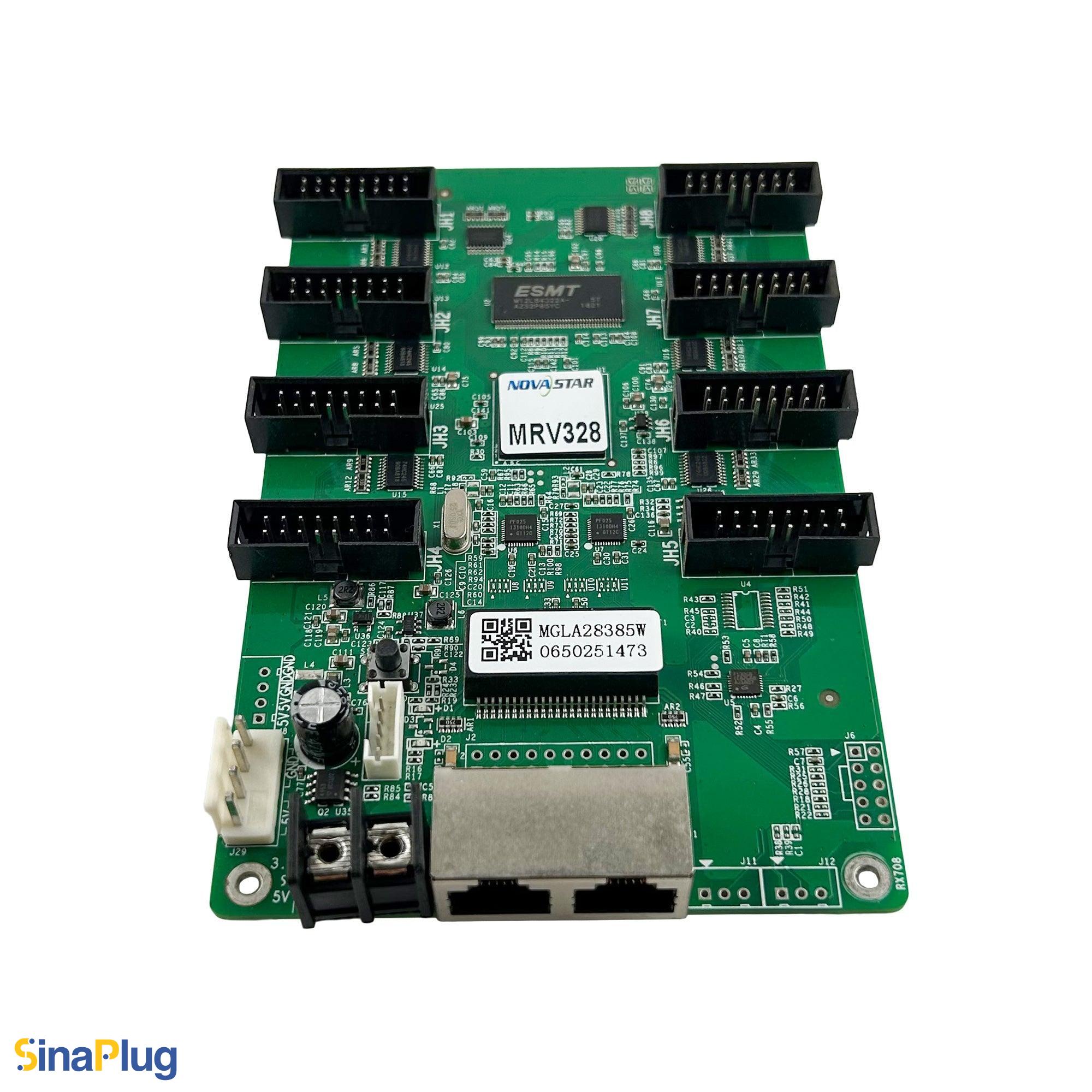

The receiving card equipped with eight standard HUB75E interfaces (supports up to 16 sets of RGB parallel data) and also two Gigabit Ethernet ports (one as Input & one as Output) for simple cascading of multiple units that guarantees reliable data transmission.
The Novastar MRV328 is perfect for commercial LED applications including outdoor advertising and public information displays. Its loop backup and dual program backup ensure steady and dependable performance in a variety of situations.
Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
Key Features of NovaStar MRV328 Receiving Card
Input
- 1x Gigabit Ethernet Port
Output
- 8x standard HUB75E interfaces (16x groups of parallel RGB data)
- 1x Gigabit Ethernet Port
Performance
- Maximum resolution: 256×256 pixels @ 60Hz (PWM driver IC’s)
- Supports 3D function
- Pixel level brightness and chroma calibration
- Visual Adjustment: dark or bright splicing lines adjustment
- Support for 1/32 scan
Maintainability
- Quick upload of calibration coefficients
- Customized pre-saved image on screen
- Temperature and voltage monitoring
- Cabinet LCD display for real-time status monitoring
- Voltage and temperature monitoring
- Bit error detection
- Firmware program readback
- Configuration parameter readback
Reliability
- Loop backup (ensures uninterrupted operation in case of line faults)
- Dual backup of application program (two copies of firmware stored at the factory)
Dimensions (L*W*H)
- 146mm * 96mm * 18mm
| Weight | 0.203 lbs |
|---|---|
| Dimensions | 8.07 × 6.1 × 0.98 in |
| Max PWM IC Pixel Capacity | 256×256 |
| Output Interface (QTY) | 8 |
| Max Parallel RGB Data Groups | 16 |
| Brightness and Chroma Calibration | Supported |
| 3D Function | Supported |
| Bit Error Detection | Supported |
| Loop Backup | Supported |
| Dual Configuration Parameters Backup | No |
| Firmware Redundancy and Readback | Supported |
| Input Voltage Range | 3.8-5.5VDC |
| Max Power Consumption | 2.5W |
| Working Temperature Range | -20 °C to +70 °C |
| Standard Certification | EMC Class A, RoHS |
| Others | Cabinet LCD display for real-time status monitoring, Customized pre-saved image on screen, Quick upload of calibration coefficients, Supports temperature, voltage, and cabinet LCD monitoring |
