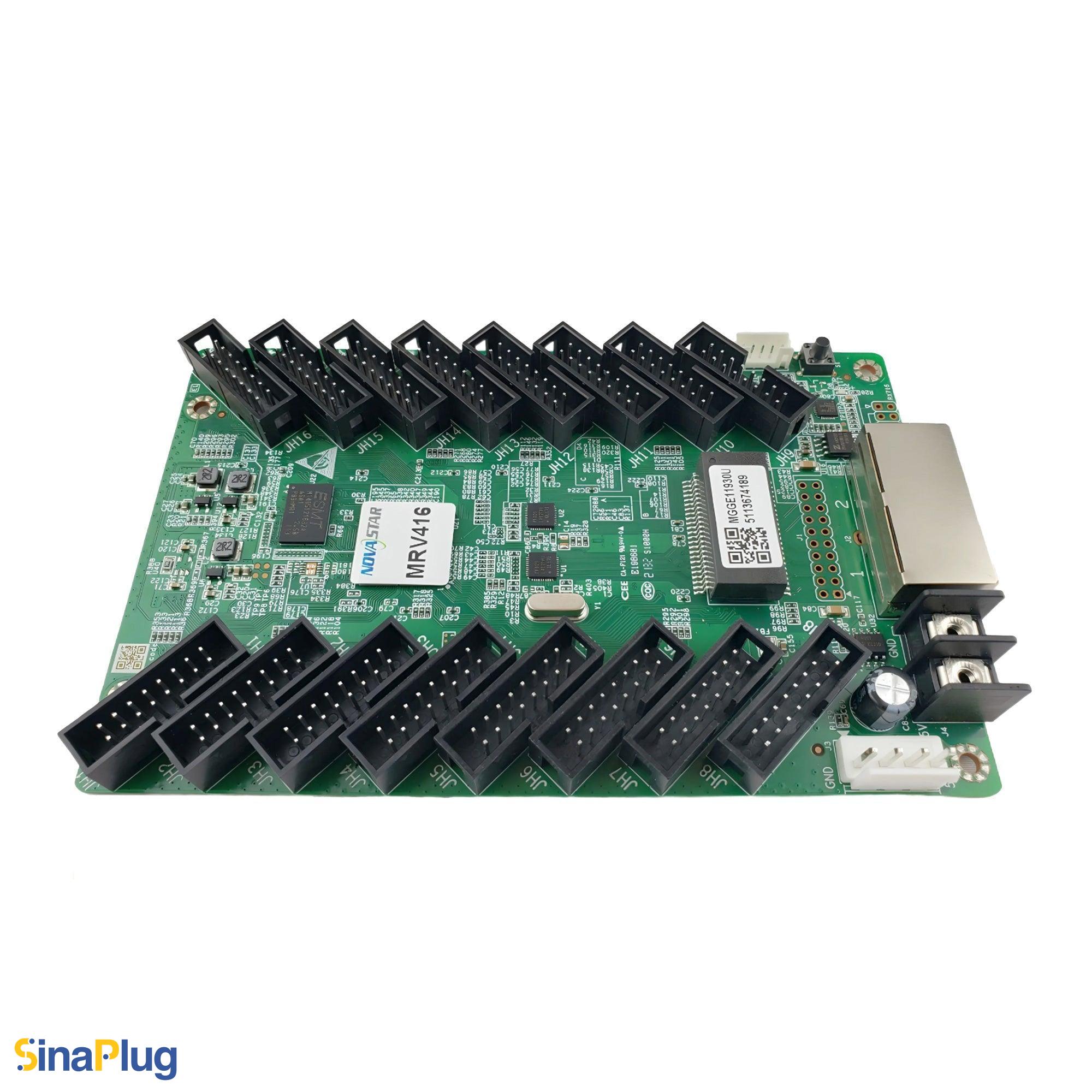

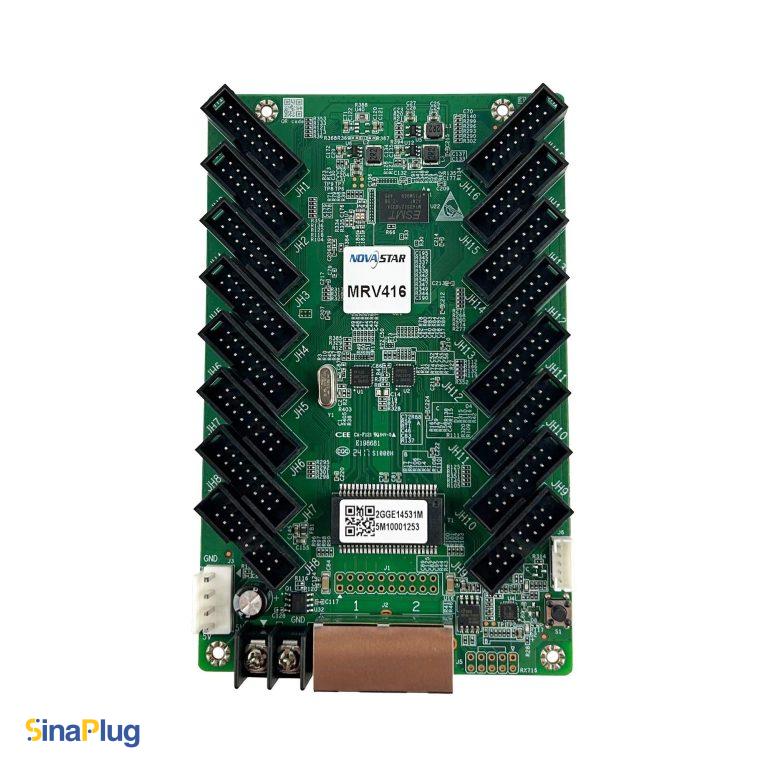

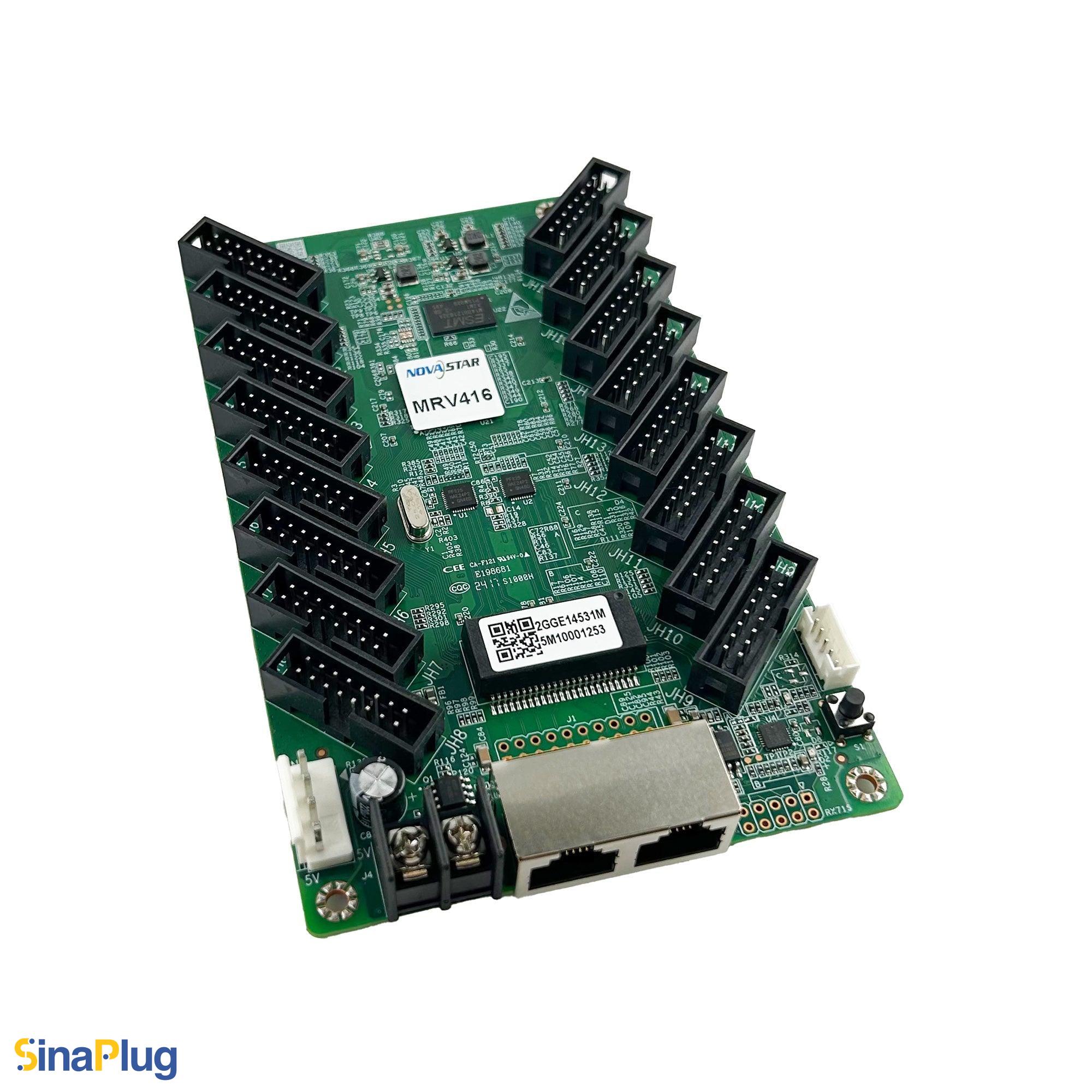

MRV416 Receiving Card
$29.34
16 in stock
| Minimum Qty | Discount |
|---|---|
| 5 - 10 | 3% |
| 11 - 20 | 6% |
| 20 - 99 | 9% |
| 100 + | 10% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance

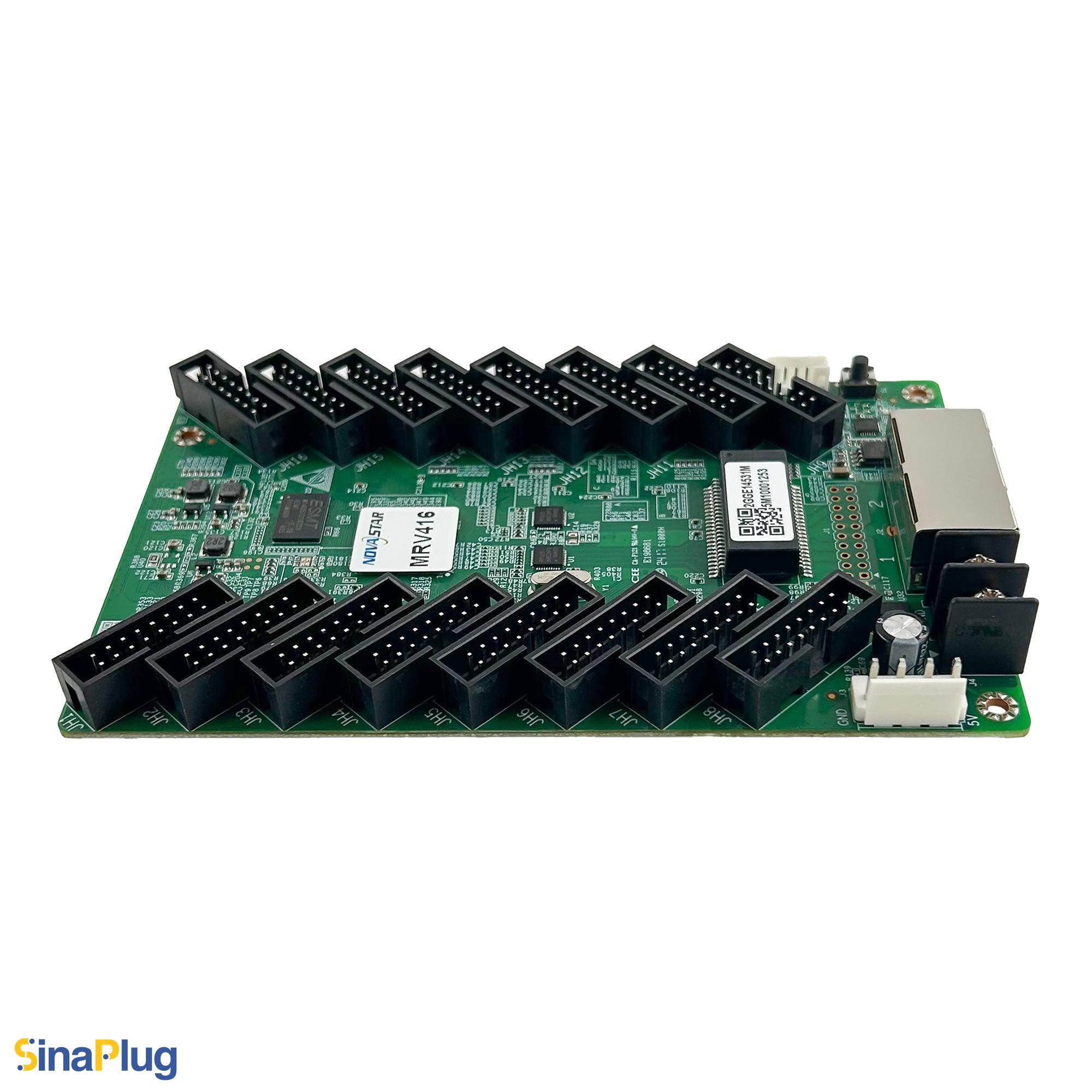

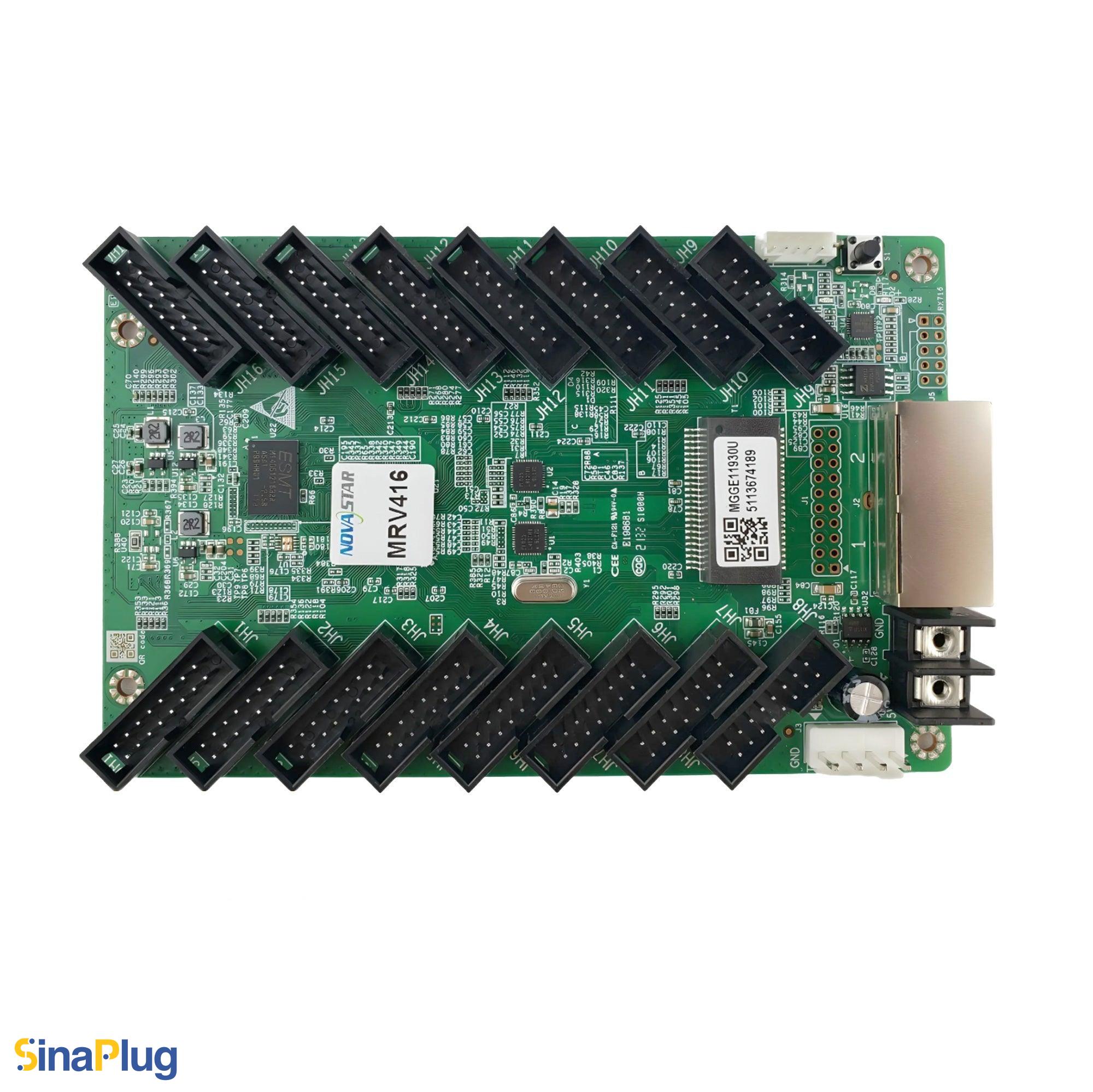

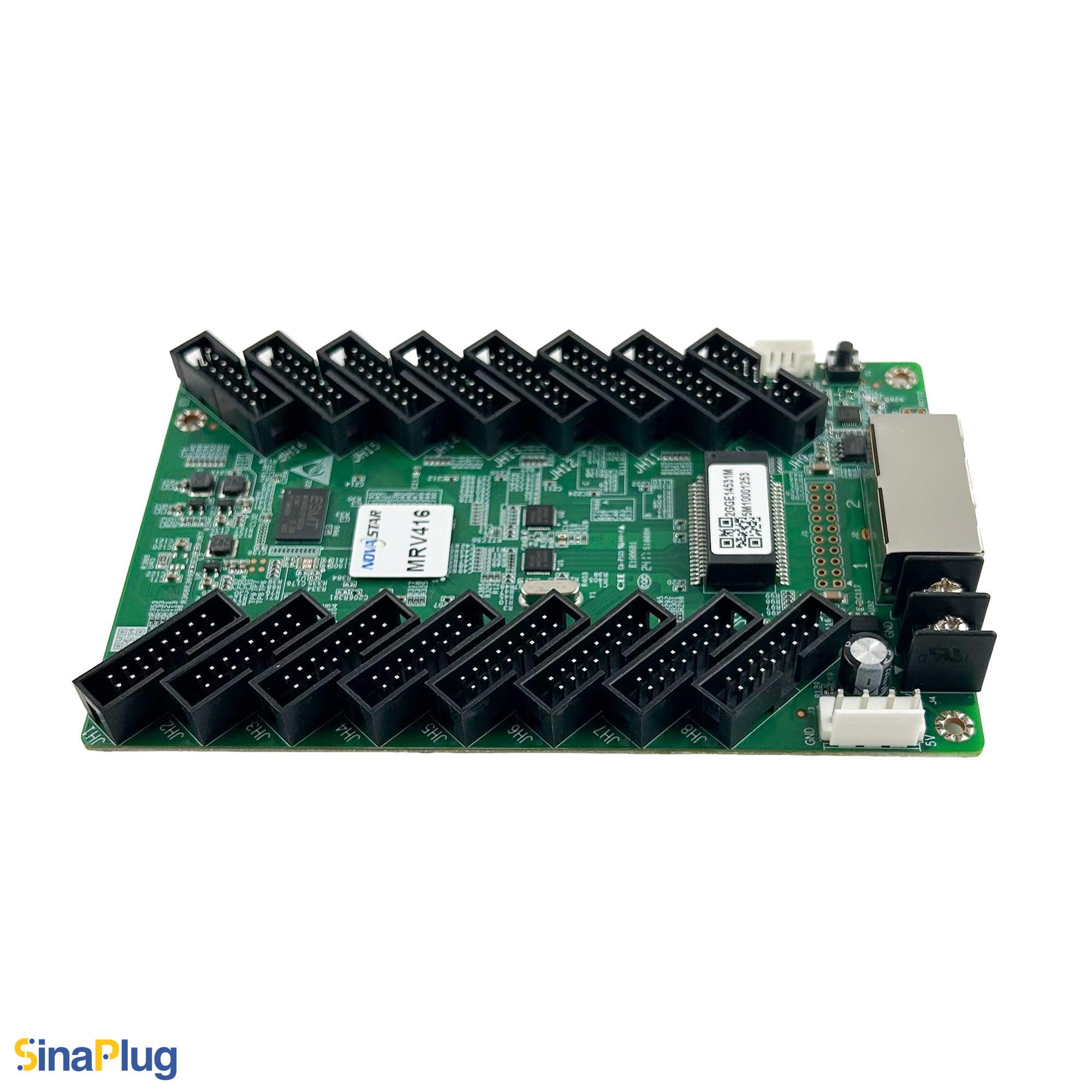

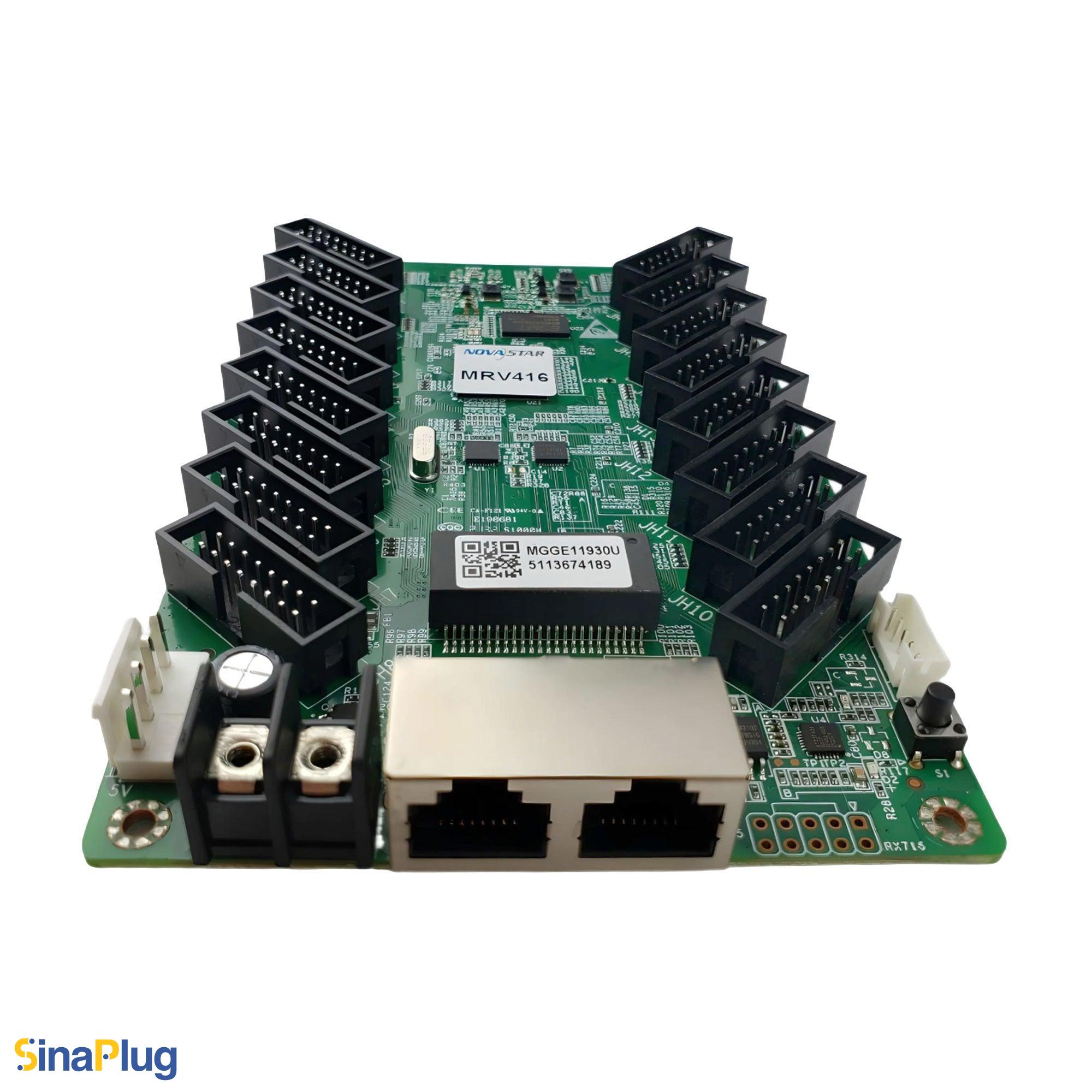

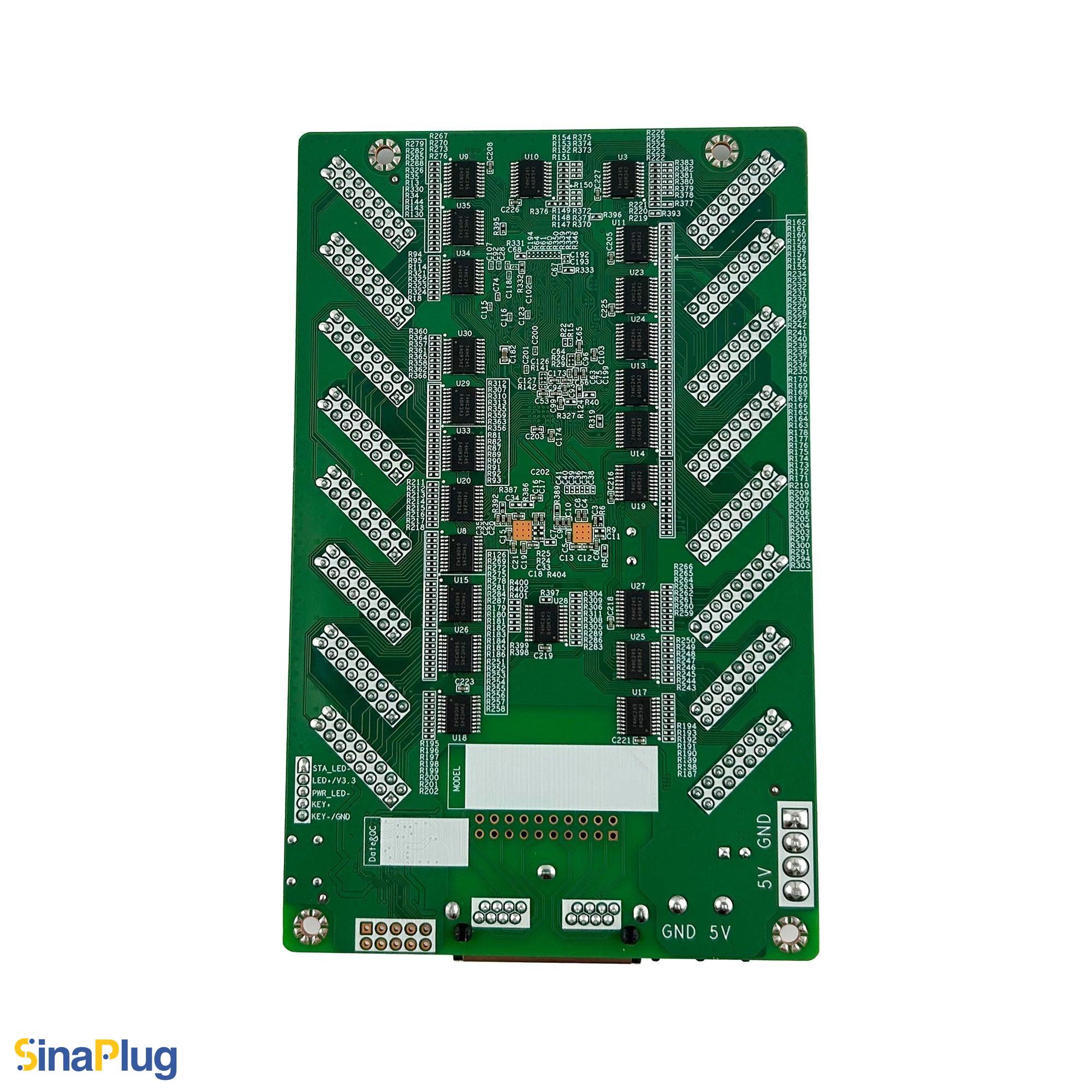

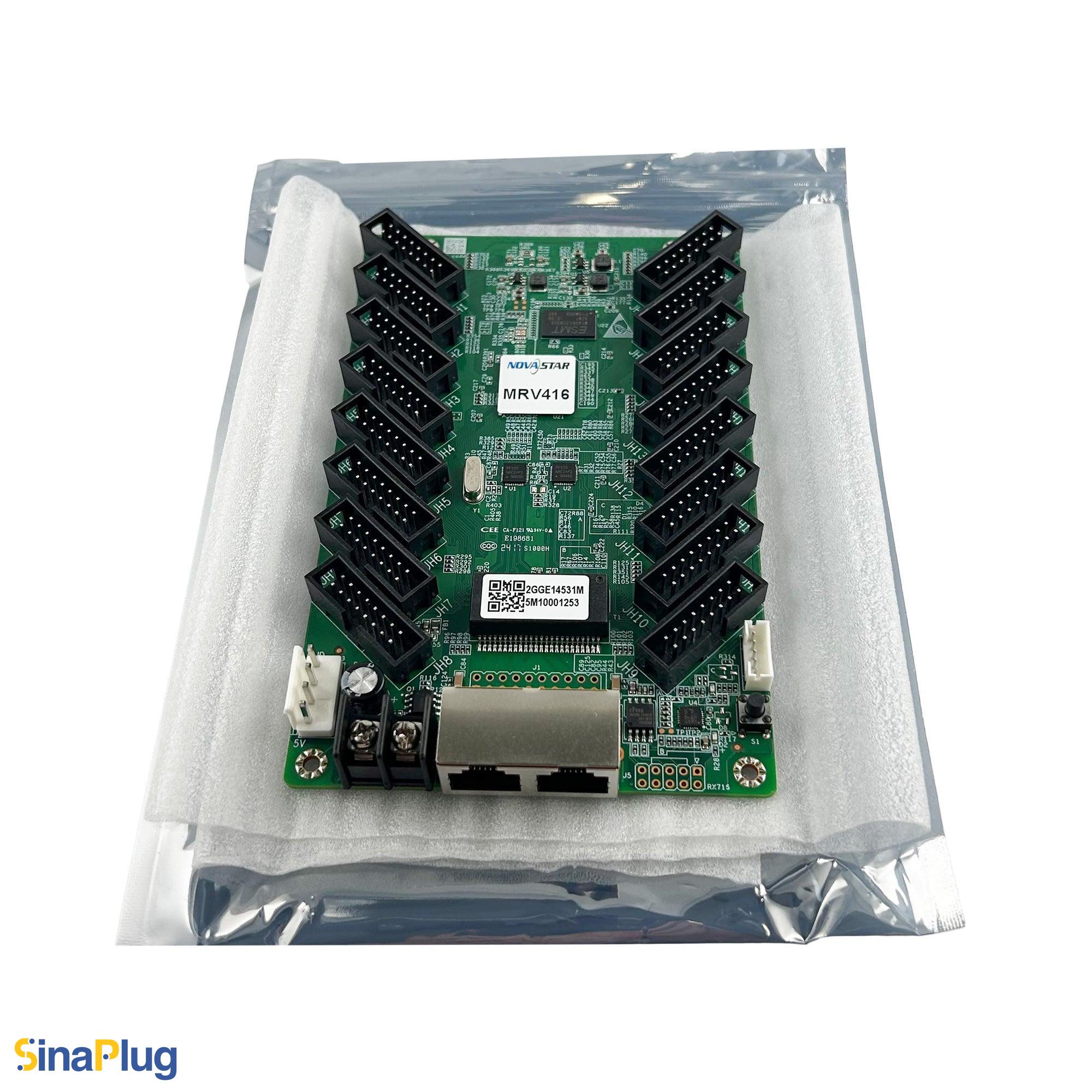

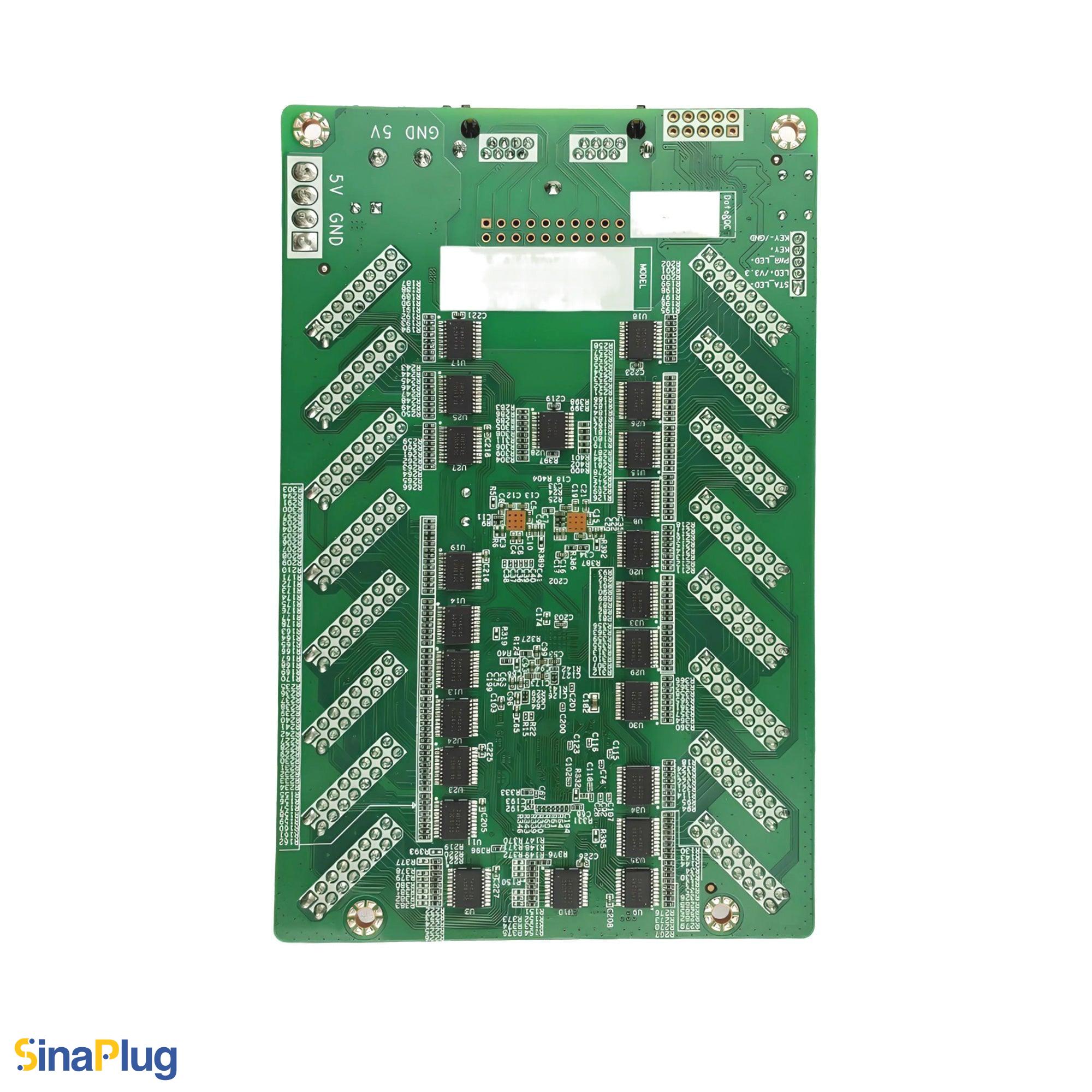

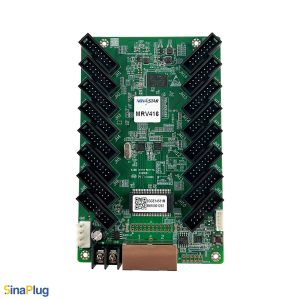

AzarPixel is delighted to offer MRV416 receiving card, designed to deliver excellent performance and stability to your LED screens. The compact receiving card supports a maximum resolution of 512×384 pixels for PWM driver ICs and brings sharp and bright images supporting a variety of usages. It supports up to 32 groups of parallel RGB data with 16 standard HUB75E connectors.
The card has pixel-level brightness and chromaticity calibration and offers accurate gamma correction on every one of the RGB channels. In addition, extra flexibility through the 3D and image rotation (up to 90 degrees) functionalities, and fast correction of light and dark lines on module edges enhances uniformity.
The MRV416 is engineered to withstand temperatures ranging from -20°C to +70°C, as well as dust and vibration. The system is capable of real-time detection of module temperature and voltage when using the MRV416. It also has simultaneous loop backup protection and dual power supply status detection that ensures smooth system operation.
It includes bit error, Ethernet link status, and firmware readback monitoring. The card also quadruples grayscale depth via 18-bit+ processing, minimizing image quality at low brightness for a smoother viewing experience. Additionally, the multi-batch brightness adjustment tool aids in balancing the brightness variations of different cabinets/modules during production, ensuring uniformity.
The MRV416 is ideal for indoor LED installations like retail displays, public boards, and commercial signage. The device also boasts RoHS and EMC Class A certificates.
Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
Key Features of NovaStar MRV416
Loading Capacity
- 512×384 pixels @60Hz (for PWM driver ICs)
- 384×384 pixels @60Hz (for common driver ICs)
Input
- 1x Gigabit Ethernet Port
Output
- 16x standard HUB75E interfaces (up to 32 groups of RGB parallel data)
- 1x Gigabit Ethernet Port
Performance
- Pixel Level brightness and chroma calibration
- Individual gamma adjustment for RGB
- Multi-batch brightness adjustment
- 3D function support (with applicable controller)
- Image rotation in 90° increments
- Quick adjustment of dark and bright lines at module/cabinet joins
Maintainability
- Mapping 1.1 function
- Quick uploading of calibration coefficients
- User-settable pre-stored image for no signal or startup scenarios
- Real-time temperature and voltage monitoring without extra peripherals
- Cabinet LCD support
- Bit error detection and Ethernet cable communication status monitoring
- Configuration parameter and firmware readback support
Reliability
- Loop backup for secure communications and redundancy
- Dual backup of program
Dimensions (L*W*H)
- 146mm * 92mm * 18mm
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 7.87 × 5.91 × 0.79 in |
| Max PWM IC Pixel Capacity | 512×384 |
| Output Interface (QTY) | 16 |
| Max Parallel RGB Data Groups | 32 |
| Brightness and Chroma Calibration | No |
| 90° Image Rotation | Supported |
| Loop Backup | Supported |
| Bit Error Detection | Supported |
| Firmware Redundancy and Readback | Supported |
| Input Voltage Range | 3.8-5.5VDC |
| Max Power Consumption | 2.5W |
| Working Temperature Range | -20 °C to +70 °C |
| Standard Certification | EMC Class A, RoHS |
| Others | Independent gamma adjustment for RGB, Pixel level brightness calibration, Quick adjustment of dark and bright lines at module/cabinet joins, Quick uploading of calibration coefficients, Supports temperature, voltage, and cabinet LCD monitoring, User-settable pre-stored image for no signal or startup scenarios |
