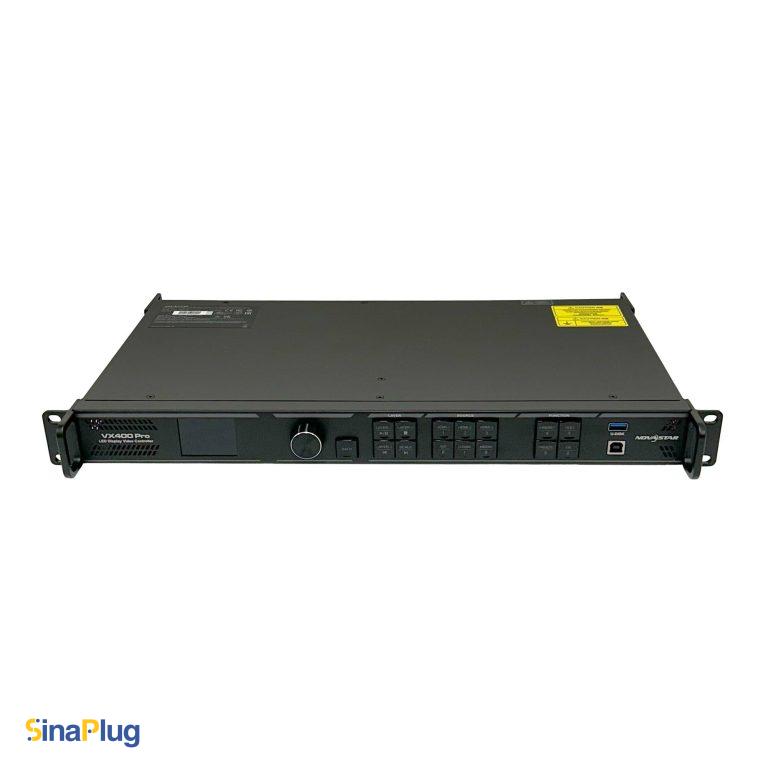

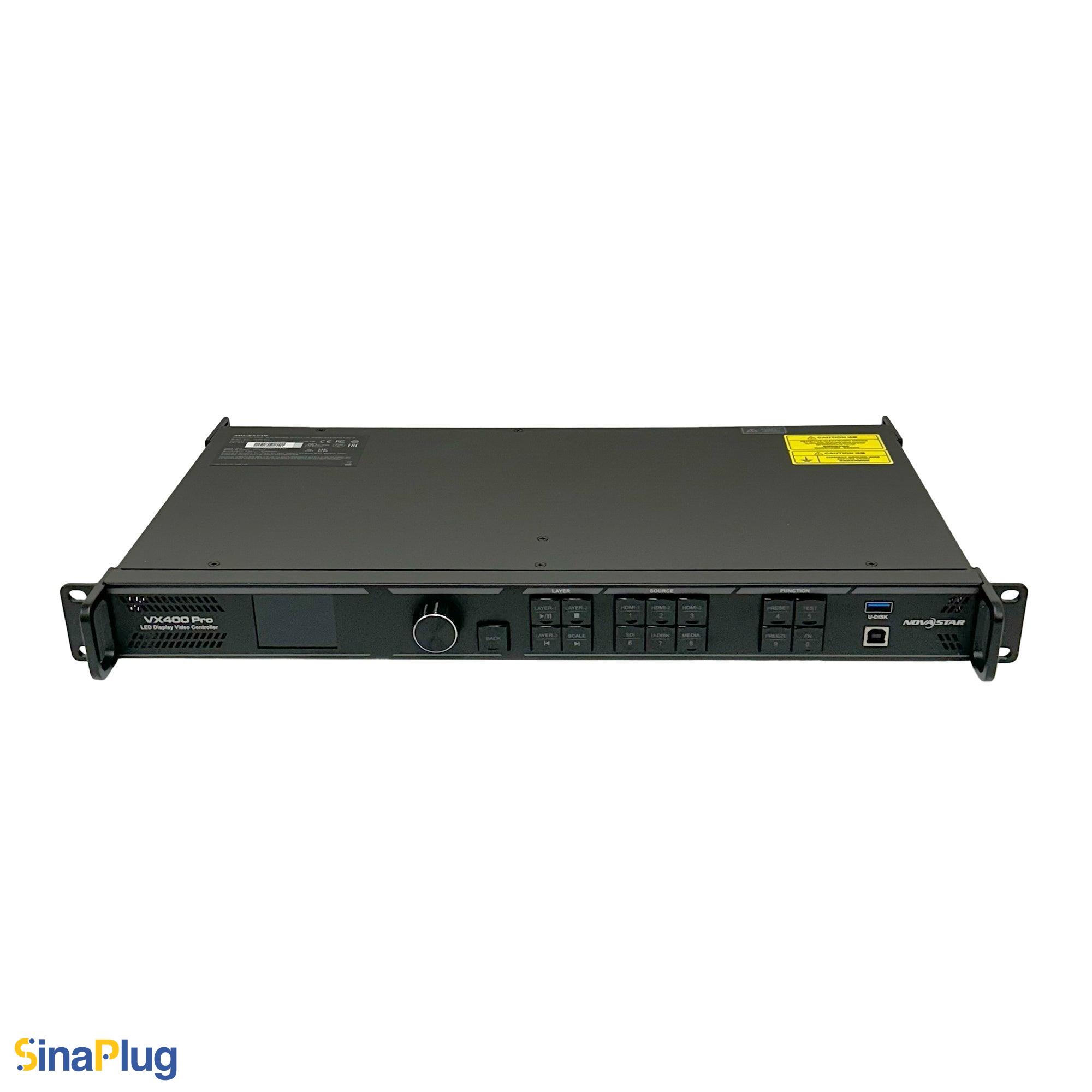

VX400 Pro All-in-One LED Display Controller

Azar Pixel is honored to offer the NovaStar VX400 Pro all-in-one LED controller for the US market (as an enhanced/updated version of the popular NovaStar VX400 and trusted replacement for VX4s processor).

Like its primary version, VX400 Pro is a multifunctional video controller that combines both video processing and control functions. Thanks to its 4xGigabit ethernet ports, it can drive up to 2.6 million pixels. Compared with the older, proven version, the new device brings several major enhancements in input capacity, performance, and reliability.

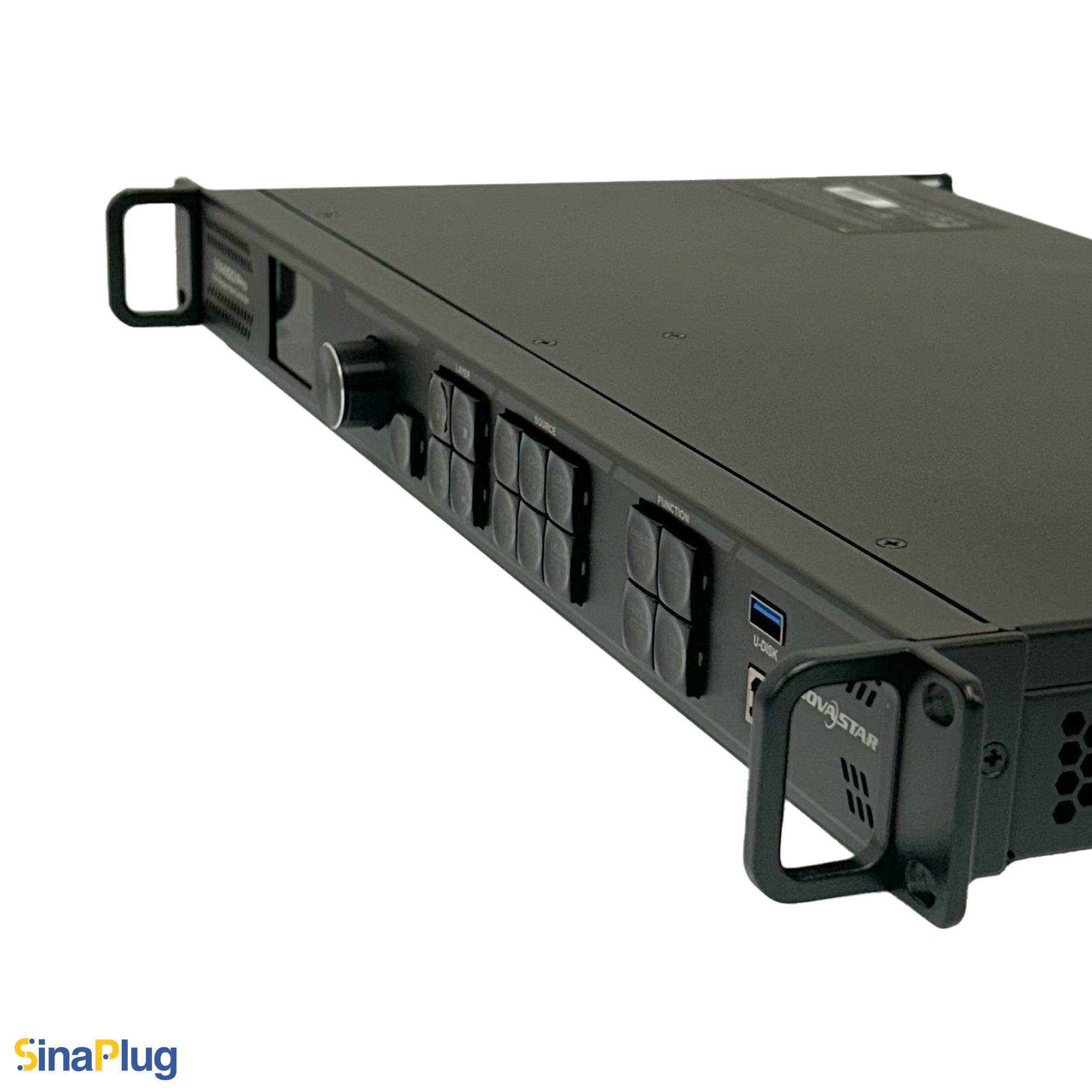

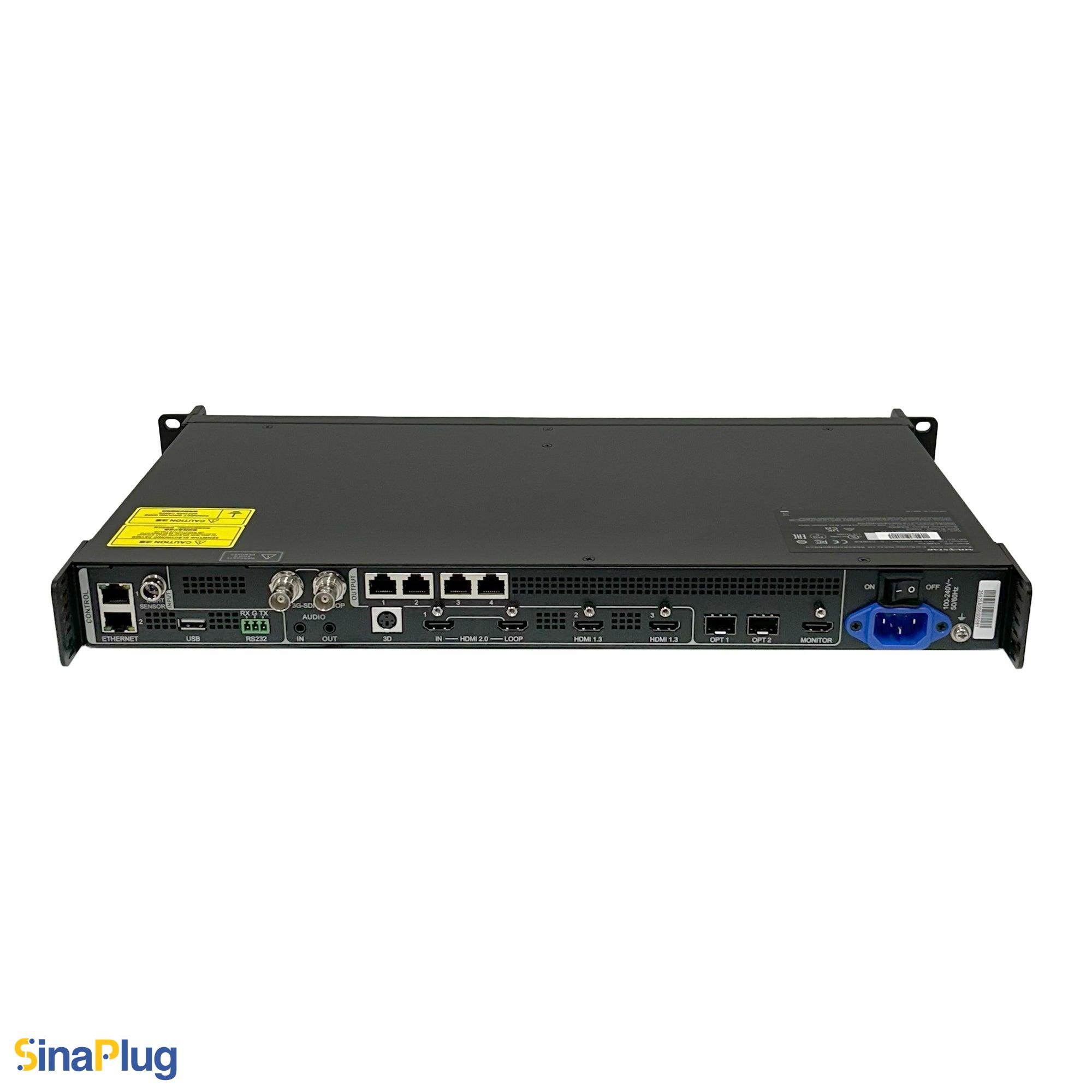

Not only does it provide the 2xHDMI 1.3 ports of the VX400, the VX400 Pro, is also equipped with an additional and super-functional HDMI 2.0 connector, increasing supported input resolution up to 4096×2160@60Hz (8-bit/10-bit/12-bit) and increasing its Loop support to 6 units. The Pro version also includes a USB 3.0 port on the front panel, allowing direct playback of images and videos, a feature not available on the VX400.

In terms of audio support, the primary version handles audio only through HDMI input, while this Pro model adds a 3.5 mm independent audio input and output for broader connectivity. It also features additional functions such as a 3D connector for third-party 3D emitters and On-Screen-Display (OSD) capability that supports text and image overlays.

In terms of display flexibility, the VX400 Pro All-in-One LED Display Controller allows up to six (4 more) layers for complex screen layouts. It also offers 256 presets, offering greater flexibility for scene switching whereas the older version could only provide 10 user-defined presents.

Both models support low latency in Bypass mode, but the VX400 reduces delay to 20 lines, whereas the Pro version achieves an even lower delay of zero frames when low-latency and Bypass modes are enabled (1-2 frames in video controller working mode).

When it comes to control, reliability and operation, in addition to NovaLCT, or its front panel, this promoted product extends options to include control through Unico, the VICP app, and an optional remote control.

It provides comprehensive end-to-end backup, covering devices, input sources, Ethernet and OPT ports, and dual receiving card backups. Additionally, this newer model automatically saves data after a power failure, ensuring even more operational security. It is a preferred choice for demanding environments, thanks to its robust design and compliance with CE, FCC, IC, PSE, RCM, EAC, UL, CB, KC, and RoHs certifications.

Overall, the VX400 Pro stands out with enhanced connectivity, superior processing capabilities, and advanced redundancy features, making it the preferred choice for more demanding professional display applications.

Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
