Youyi YY-D-200-5 V-G 200-240V Power Supply (5V, 40A)
$25.00
40 in stock
| Minimum Qty | Discount |
|---|---|
| 15 + | 3% |
| 30 + | 5% |
| 45 + | 7% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance

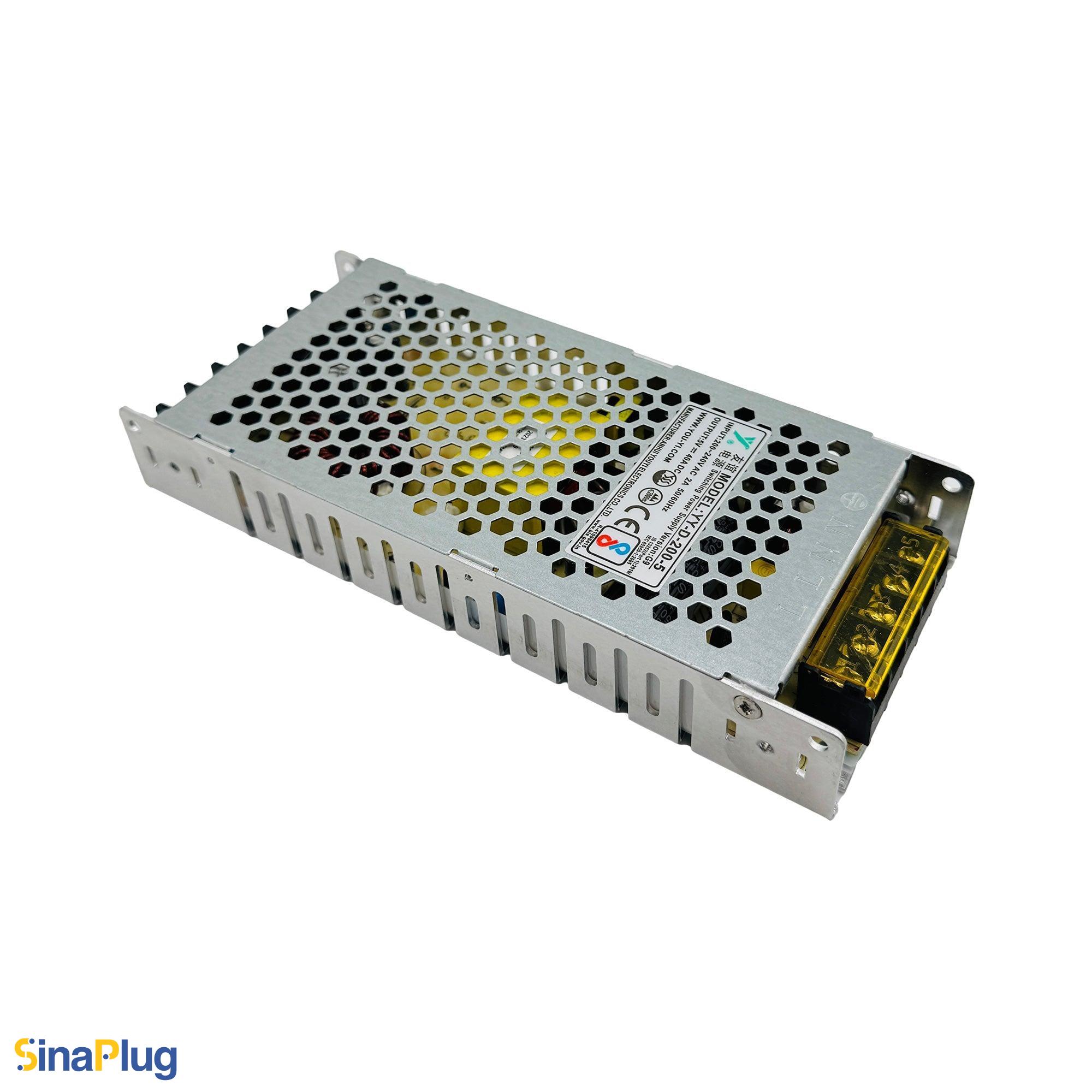

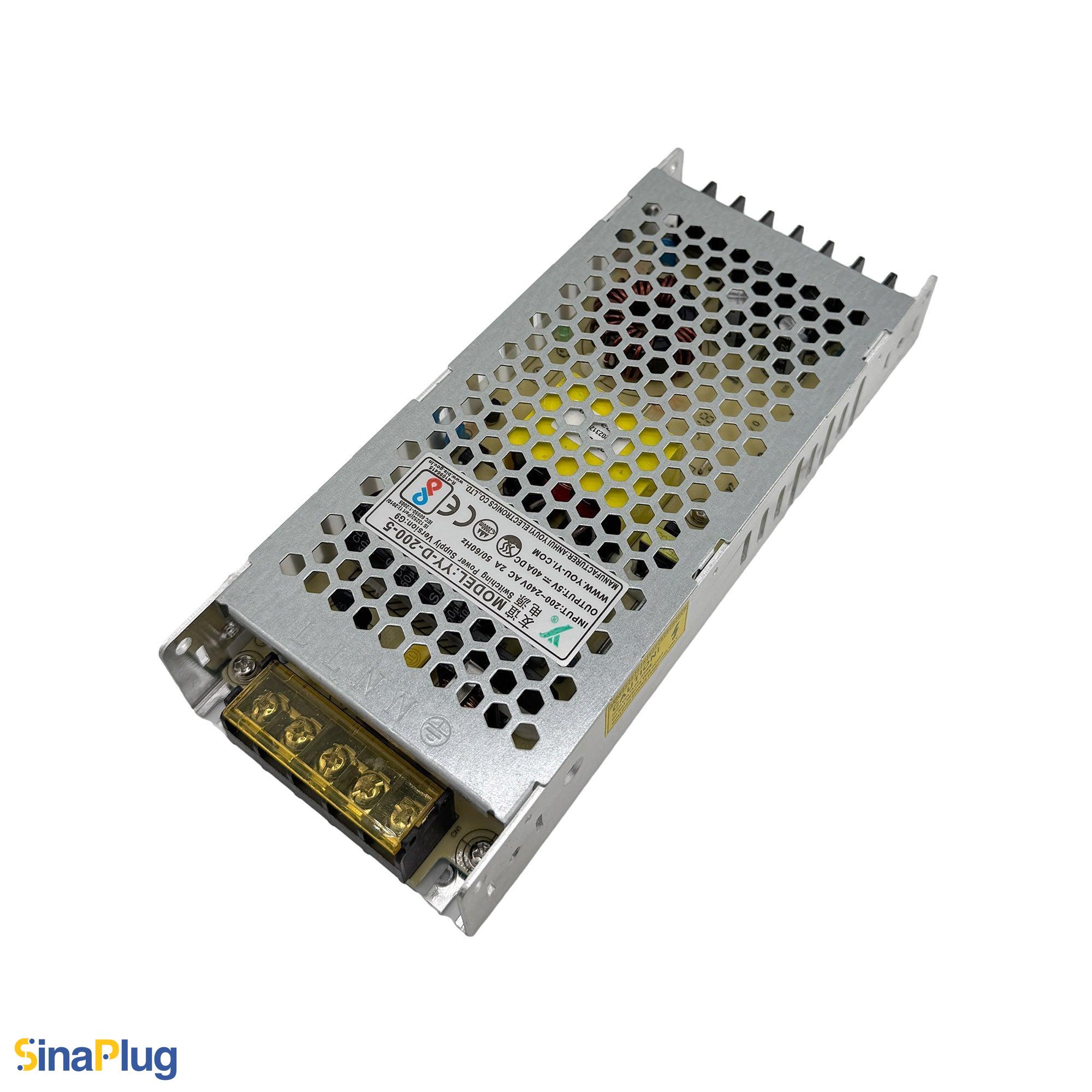

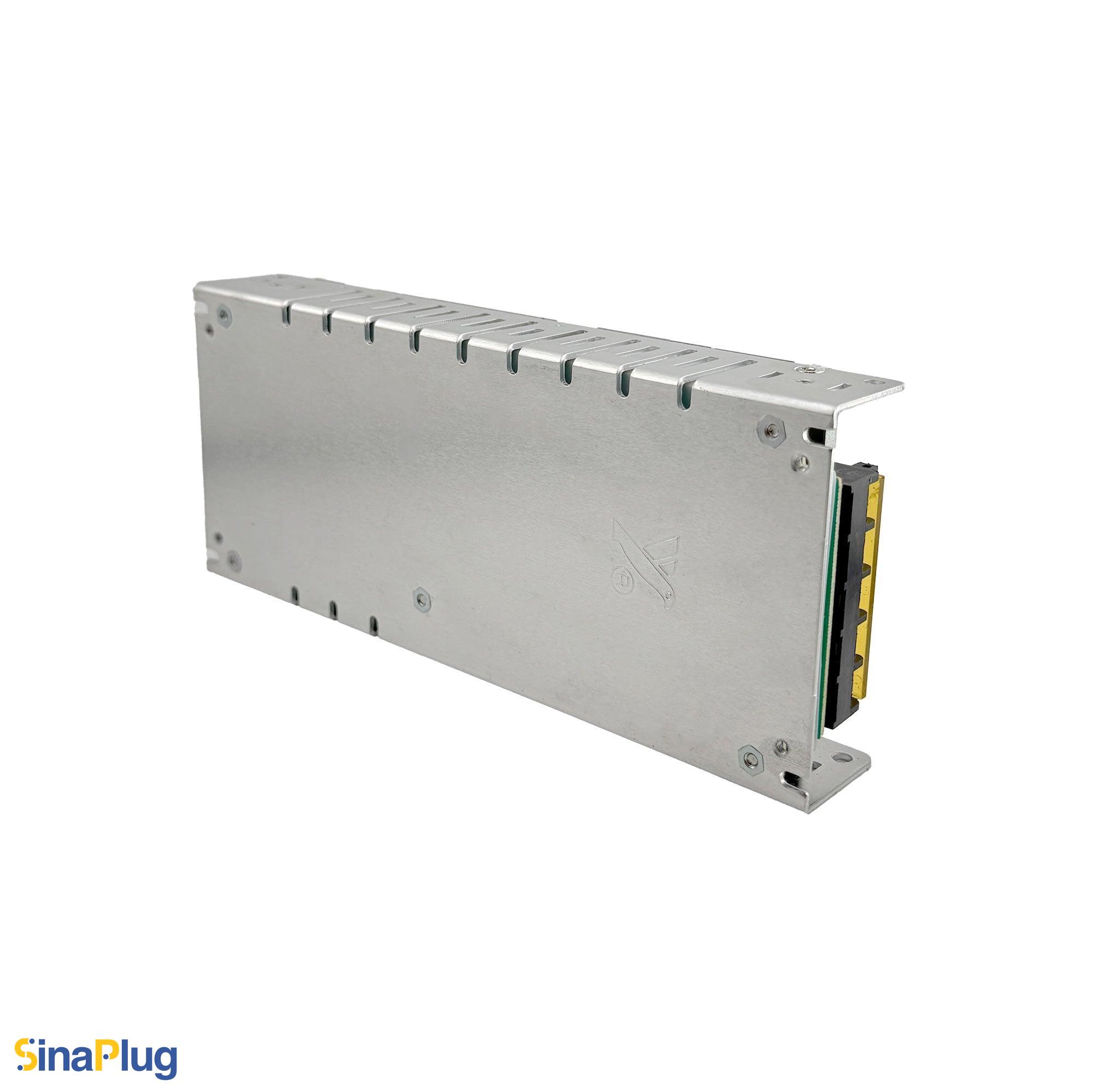

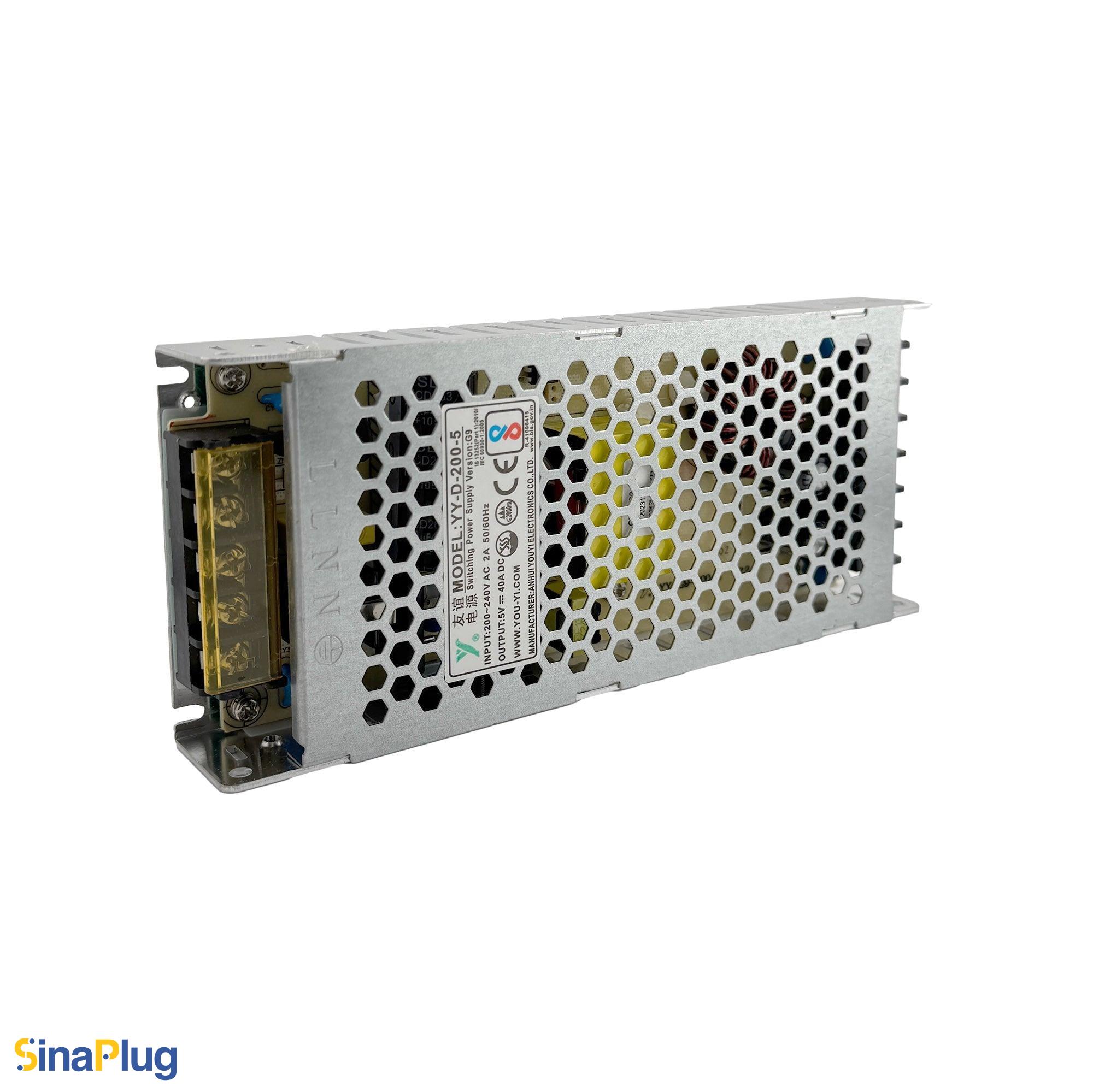

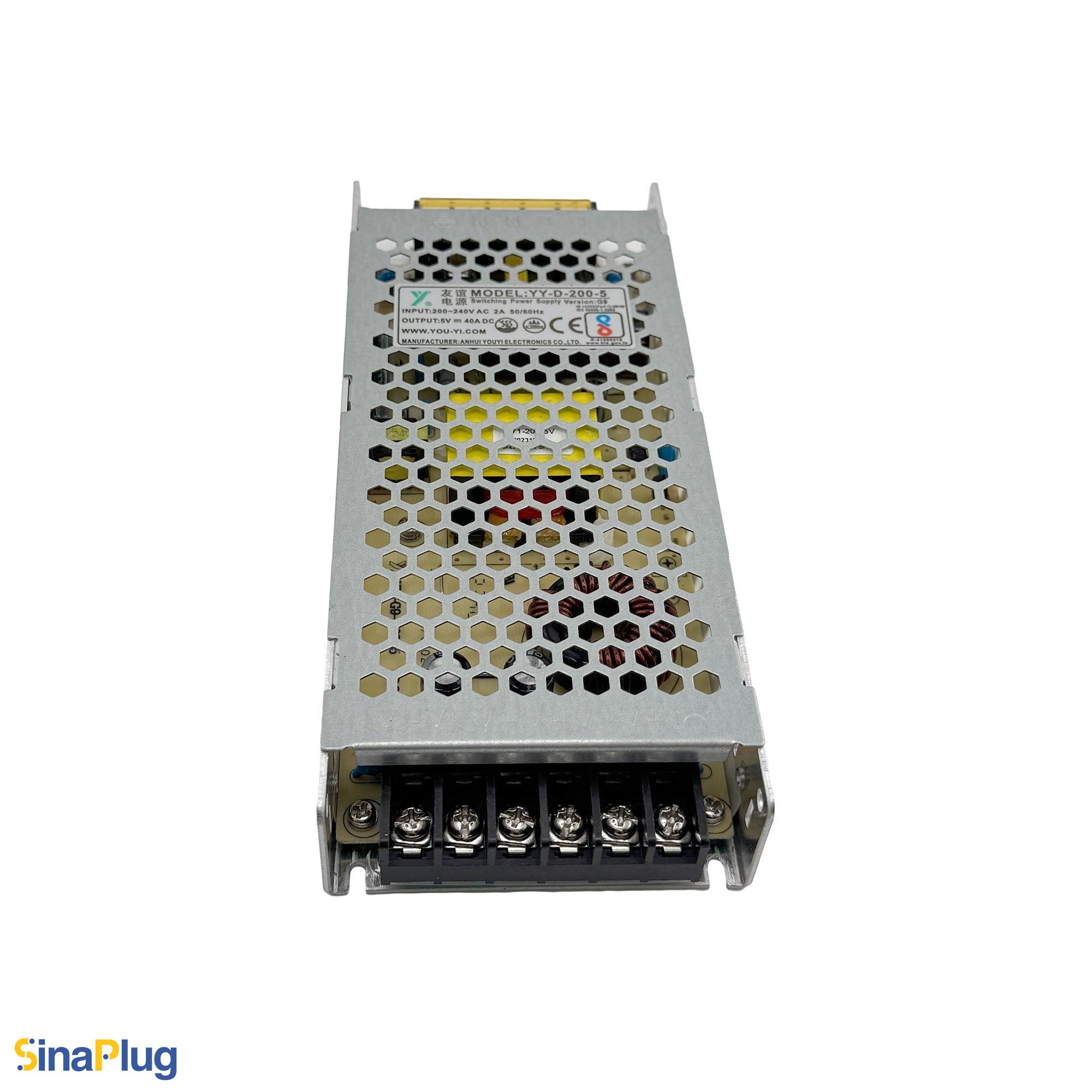

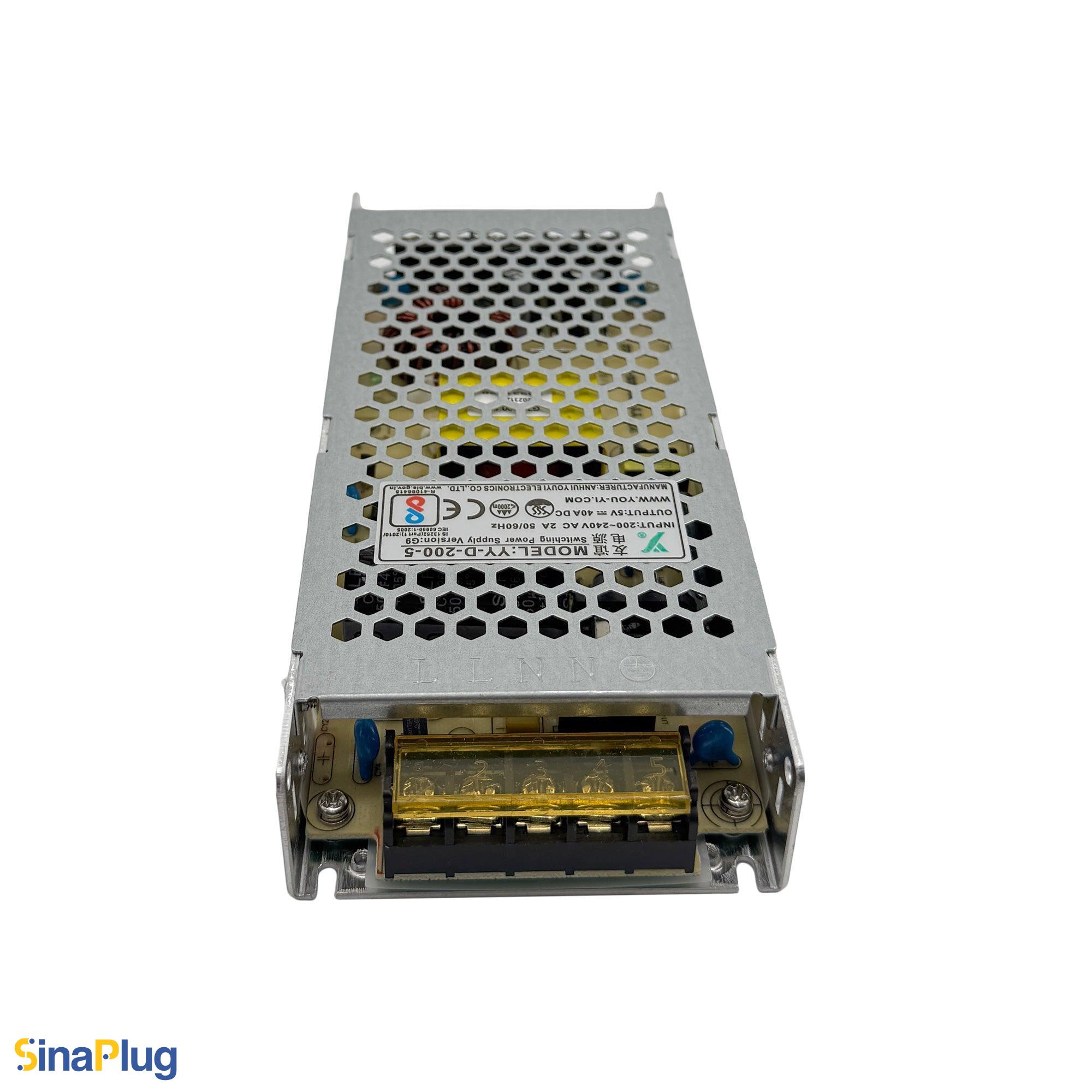

The Youyi YY-D-200-5 Version G (also known as: You-Yi 5V40A) is a well-known, enclosed power supply ideal for A/V and LED equipment and industrial applications that require constant and reliable performance.
This AC/DC, compact YY-D-200-5 converts 200-240 VAC inputs into three steady output channels at 5V, delivering up to 40A. It provides a rated 200W output power with 88% efficiency for optimal operation.
In addition to the advanced protections such as over temperature, short circuit, and overload (all with automatic recovery), it is certified by EN55022, EC61000-4-2//5/11, and GB17626.2//5/11 allowing it to meet worldwide energy requirements.
The small-sized Youyi YY-D-200-5 guarantees continuous functionality in challenging conditions by natural air convection (it is advised to install it on a heatsink while maintaining a minimum space of 5cm around it), operating effectively throughout a wide temperature range of -25°C to +60°C. (based on the official datasheet it can even work at lower temperatures down to -40°C)
Key Features of Youyi YY-D-200-5 V-G
- Type of Power Supply: AC to DC
- Packaging: Enclosed
- Input Voltage Range: 200 – 240VAC
- Adjustable Output Voltage: No
- Output Voltage: 5V
- Output Rated Current: 40A
- Output Rated Power: 200W
- Protections: Over temperature protection, Short circuit protection, Over Current Protection
- Dimensions (L*W*H): 190mm * 87mm * 30mm
| Weight | 0.99 lbs |
|---|---|
| Dimensions | 7.48 × 3.43 × 1.18 in |
| Input Voltage Range | 200-240V |
| Input Frequency Range | 47-63Hz |
| Input Current | ≤3A |
| Efficiency | 88% |
| Output Voltage | 5V |
| Adjustable Output Voltage | No |
| Output Rated Current | 40A |
| Output Rated Power | 200W |
| Max Ripple And Noise | 140 mVp-p |
| Output Voltage Tolerance | 3% |
| Short Circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Over Current Protection | Yes |
| Over Voltage Protection | No |
| Under Voltage Protection | No |
| Working Temperature Range | -25 to +60 °C |
| Working Humidity Range | 15-90% |
| Storage Temperature Range | -40 to +70 °C |
| Standard Certification | EC61000-4-11, EC61000-4-2, EC61000-4-5, EN 55022, GB17626.11, GB17626.2, GB17626.5 |
