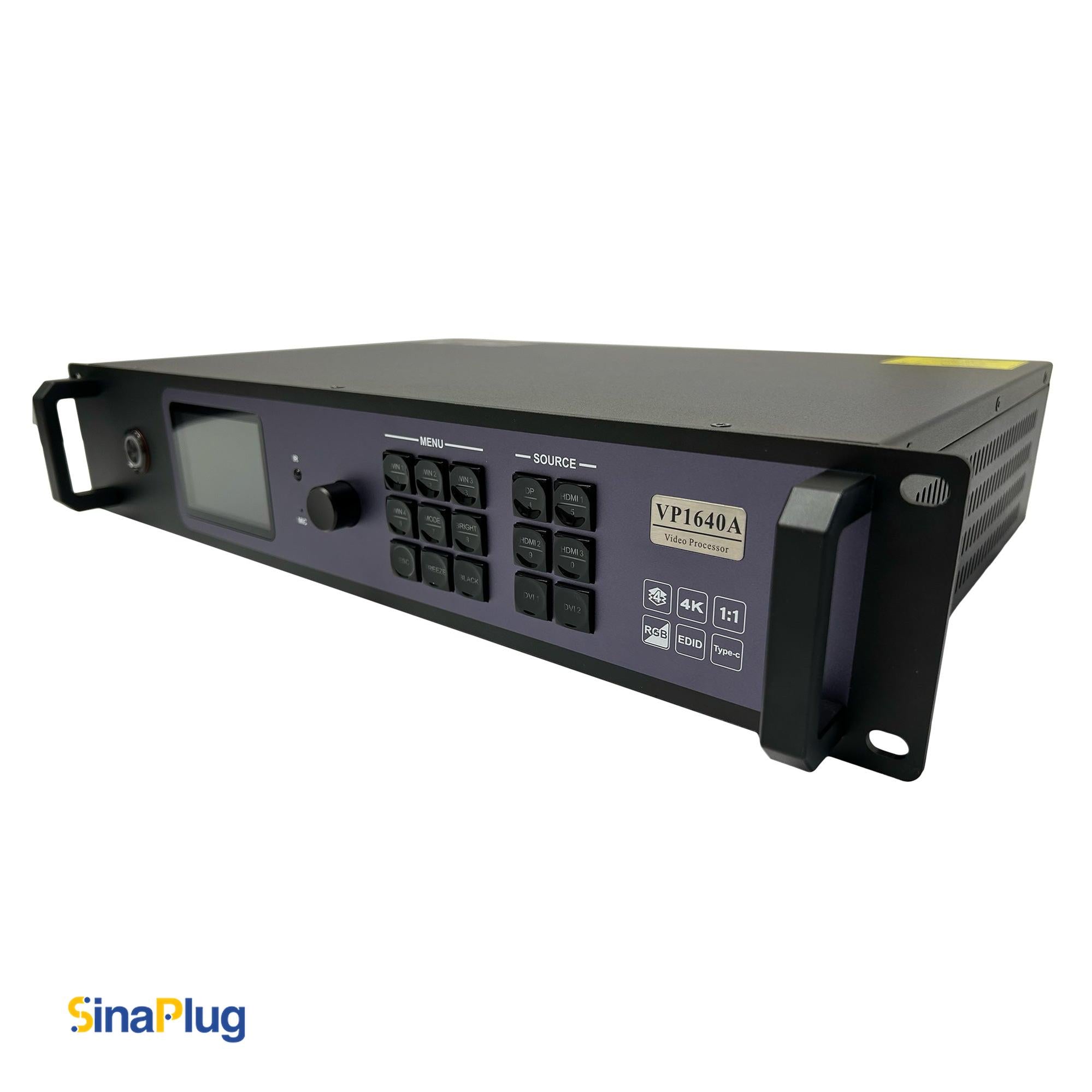

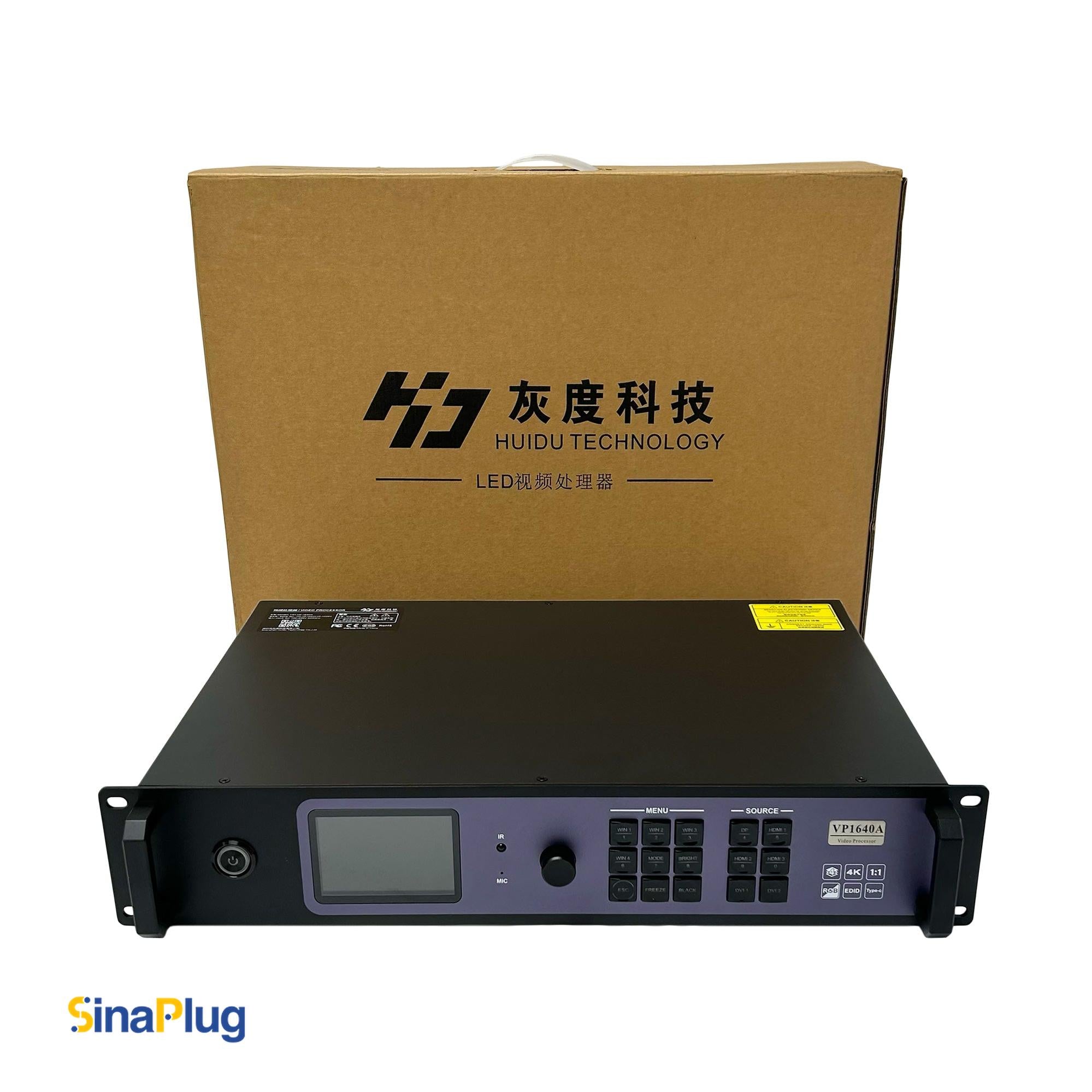

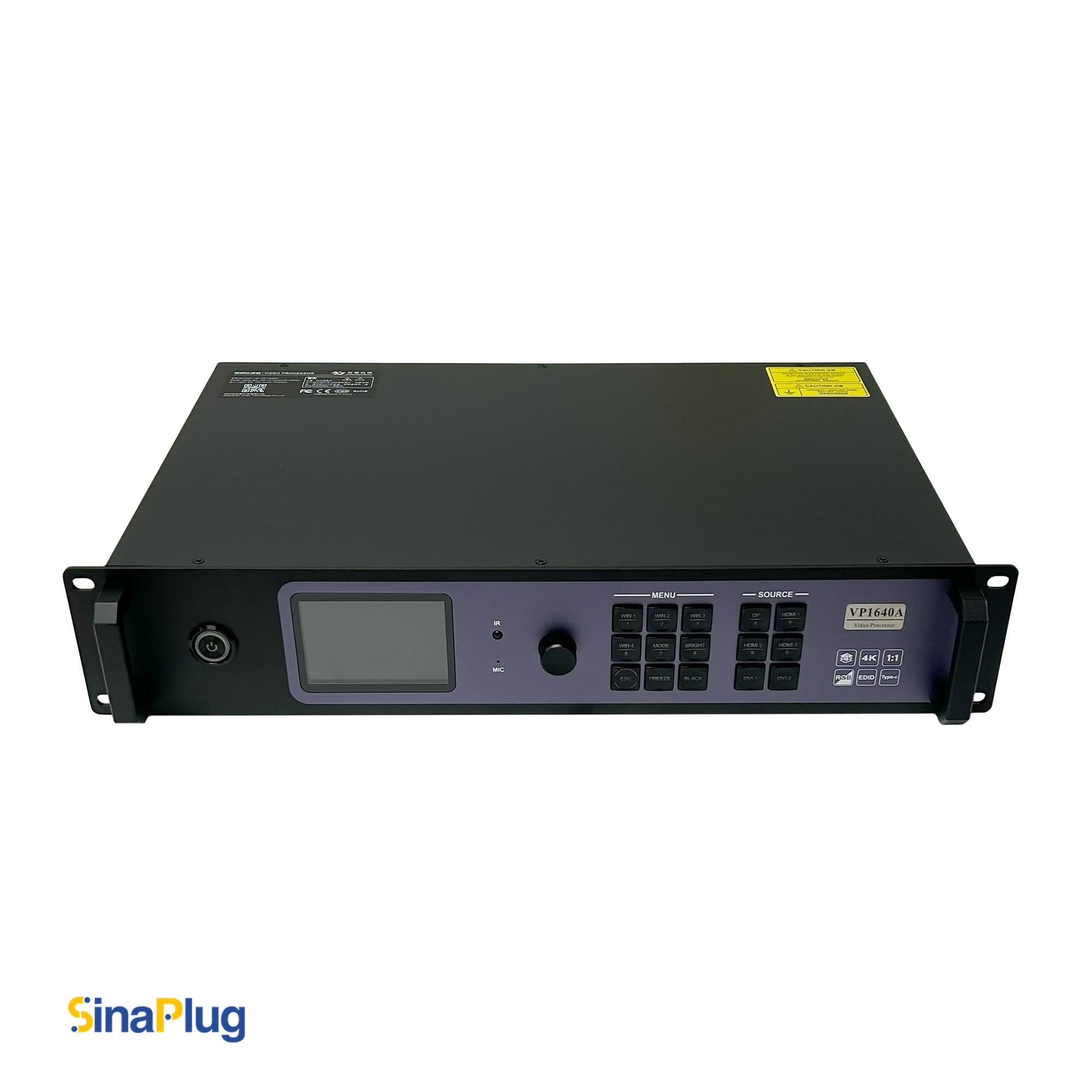

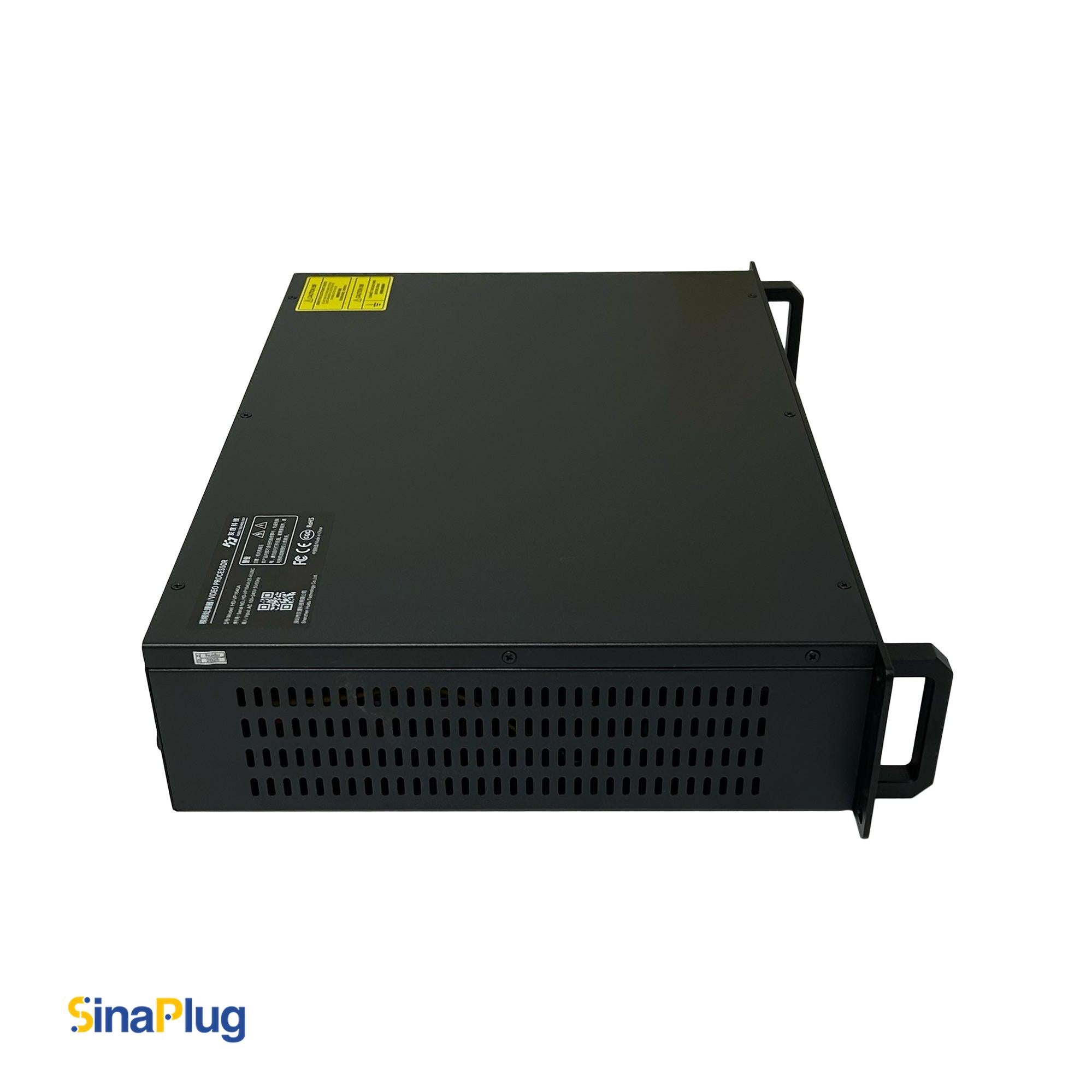

Huidu HD-VP1640A 2-in-1 LED Display Controller

Azar Pixel introduces the Huidu HD-VP1640A, a new remarkable LED controller that supports Wi-Fi and mobile app wireless control, allowing users to effortlessly deliver sharp and detailed content on high-end LED displays used in hotels, shopping malls, conference rooms, and studios. The HD-VP1640A is the definitive economical alternative to the Novastar VC16 controller on the market for professional applications requiring the same high-performance standards

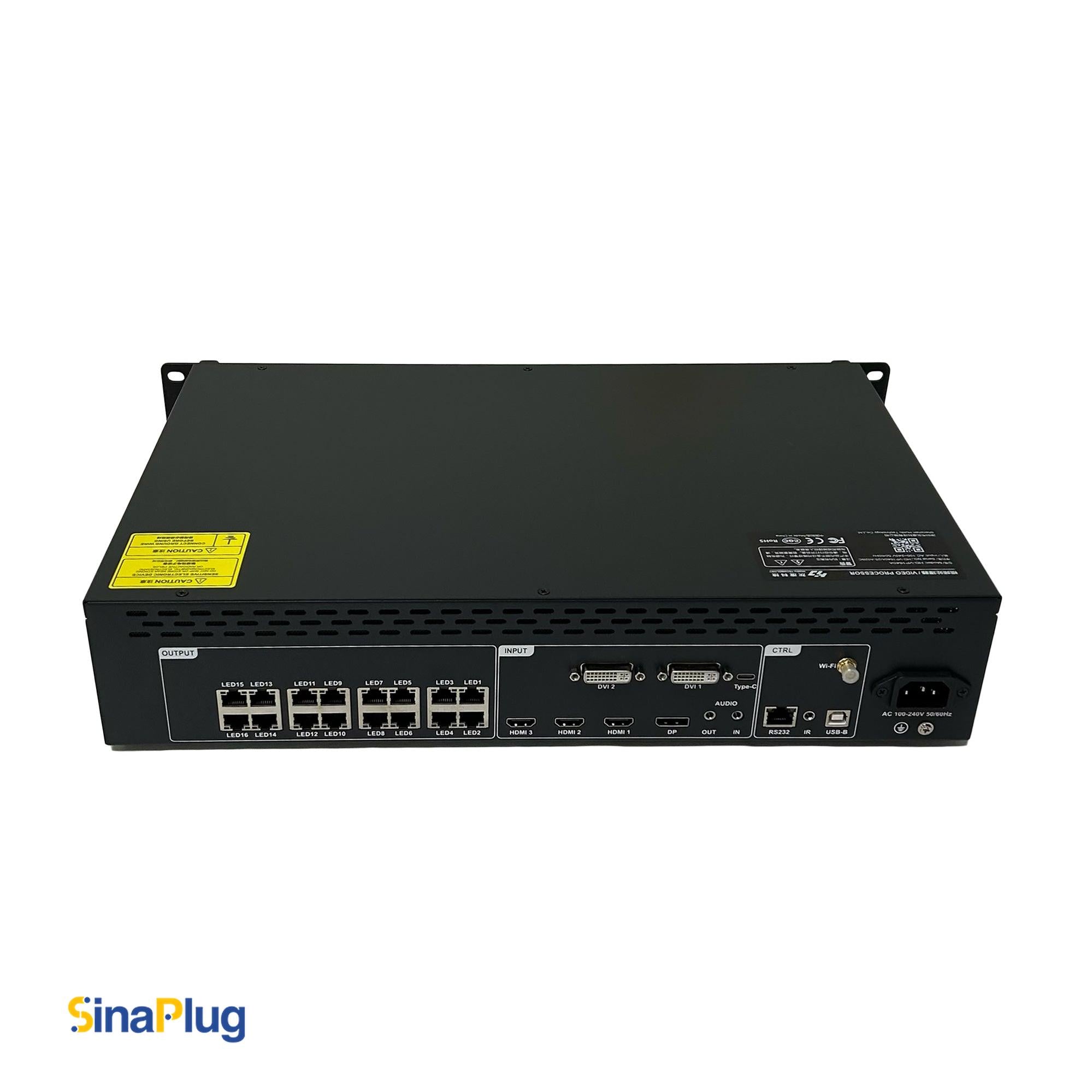

This controller is equipped with a comprehensive suite of input ports to handle diverse multimedia resources including, one DP and one HDMI 2.0 (both supporting up to 3840×2160@60Hz), two HDMI1.3, two DVI (up to 1920×1080@60Hz), and one USB port for media playback. Among these standard interfaces, the HD-VP1640A ensures that every media source is covered which makes it the single, versatile solution you need for all your high-end display requirements.

In addition to a wireless screen casting feature which supports wireless projection of up to 1920x1200@30Hz (optional), it features a dedicated USB Type-C input interface that supports resolutions up to 3840×2160@60Hz from new modern devices such as MacBooks, laptops (via DisplayPort Alt Mode), and smartphones or tablets with wired USB-C video output projection capability.

The device is equipped with a 3.5mm audio output for connecting to an audio amplifier or high-power audio output device, and its 3.5mm audio input supports HDMI/DP audio, allowing the controller to connect to external audio sources directly, which ensures that audio and video signals are synchronized and transmitted together seamlessly.

The controller delivers up to 10.4 million pixels across its 16 Gigabit Ethernet ports with a maximum width of 16,000 pixels and a maximum height of 4,000 pixels and features RS232, and USB Type-B interfaces for seamless communication with PCs, and central control systems. It consumes a maximum of only 50W and ensures outstanding performance in demanding signage and professional display applications within a temperature range of -10°C to 60°C.
