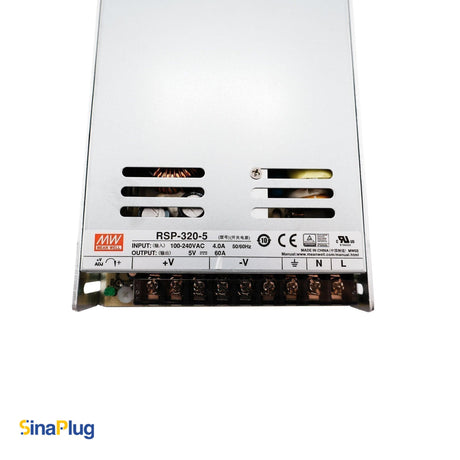

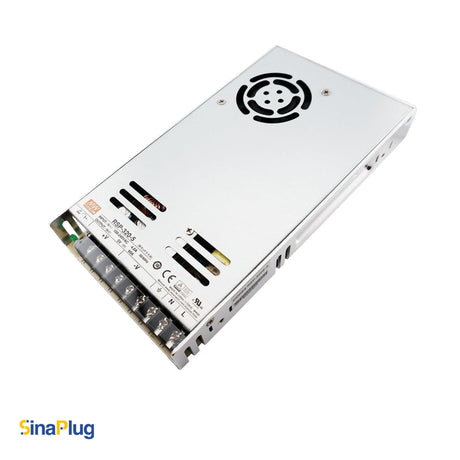

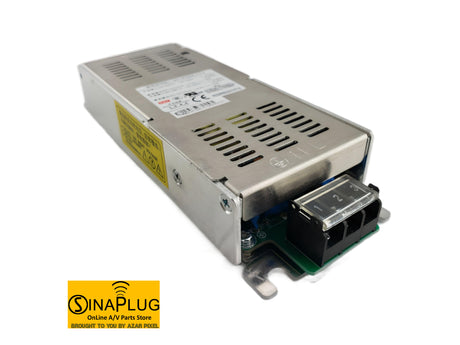

Features

-Universal AC input / Full range

-Built-in active PFC function, PF>0.95

-Protections: Short circuit / Overload / Over voltage / Over temperature

-Forced air cooling by built-in DC Fan

-1U low profile 30mm

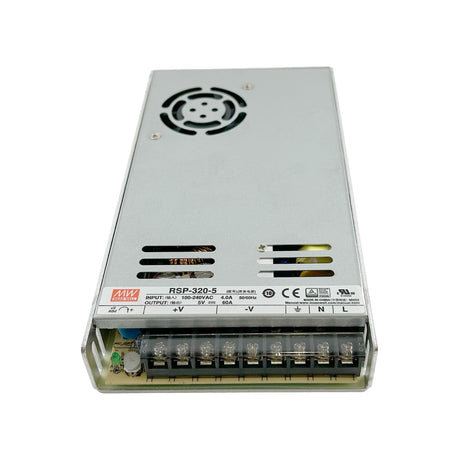

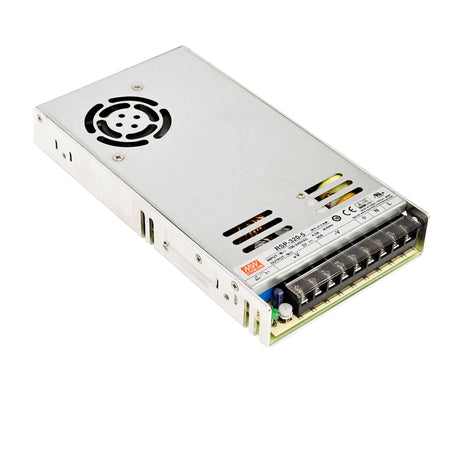

-Optional conformal coating (RSP-320- CC)

-Built-in fan speed control

-LED indicator for power on

-3 years warranty

Specifications

Output

-DC voltage : 5V

-Rated current : 60A

-Current range:  0 ~ 60A

-Rated power : 300W

-Ripple and noise (max.) Note.2 :  150mVp-p

-Voltage Adj. Range : 4.5 ~ 5.5V

-Voltage Tolerance Note.3:  ± 2.0%

-Line regulation : ± 0.5%

-Load regulation:  ±1.0%

-Setup, Rise Time : 1500ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load

-Hold up Time (Typ.) : 8ms at full load 230VAC /115VAC

Input

-Voltage range (Note 5.) : 88 ~ 264VAC 124 ~ 370VDC

-Frequency range : 47 ~ 63Hz

-POWER FACTOR (Typ.) : PF>0.95/230VAC PF>0.98/115VAC at full load

-Efficiency(Typ.) : 86%

-Ac current (Typ.) : 5A/115VAC

- Inrush Current (Typ.): 20A/115VAC 40A/230VAC

-Leakage Current : <1mA / 240VAC

Protection

Overload: 105 ~ 135% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed.

Over voltage : 5.75 ~ 6.75V

Protection type : Shut down o/p voltage, re-power on to recover

Over temperature: 80 5 (TSW1) detect on heatsink of power transistor

Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

Environment

Working Temp. : -30 ~ +70¢J (Refer to "Derating Curve")

working humidity:  20 ~ 90% RH non-condensing

Storage Temp., Humidity:  -40 ~ +85 , 10 ~ 95% RH

Temp. Coefficient  : ±0.03%/°C (0~50 °C )

vibration :  10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

Safety and EMC (note 4 )

Safety Standards :   UL60950-1, TUV EN60950-1 approved

Withstand voltage :  I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

Isolation resistance : I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH

EMC Emission: Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

EMC Immunity : Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A



Others

MTBF : 206.5K hrs min. MIL-HDBK-217F (25 )

Dimension : 215*115*30mm (L*W*H)

packing : 0.9Kg; 15pcs/14.5Kg/0.81CUFT

Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

5. Derating may be needed under low input voltages. Please check the derating curve for more details. ¢J For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
