NovaStar  |  SKU: PRO-NOV-1XHDMI2INx-0

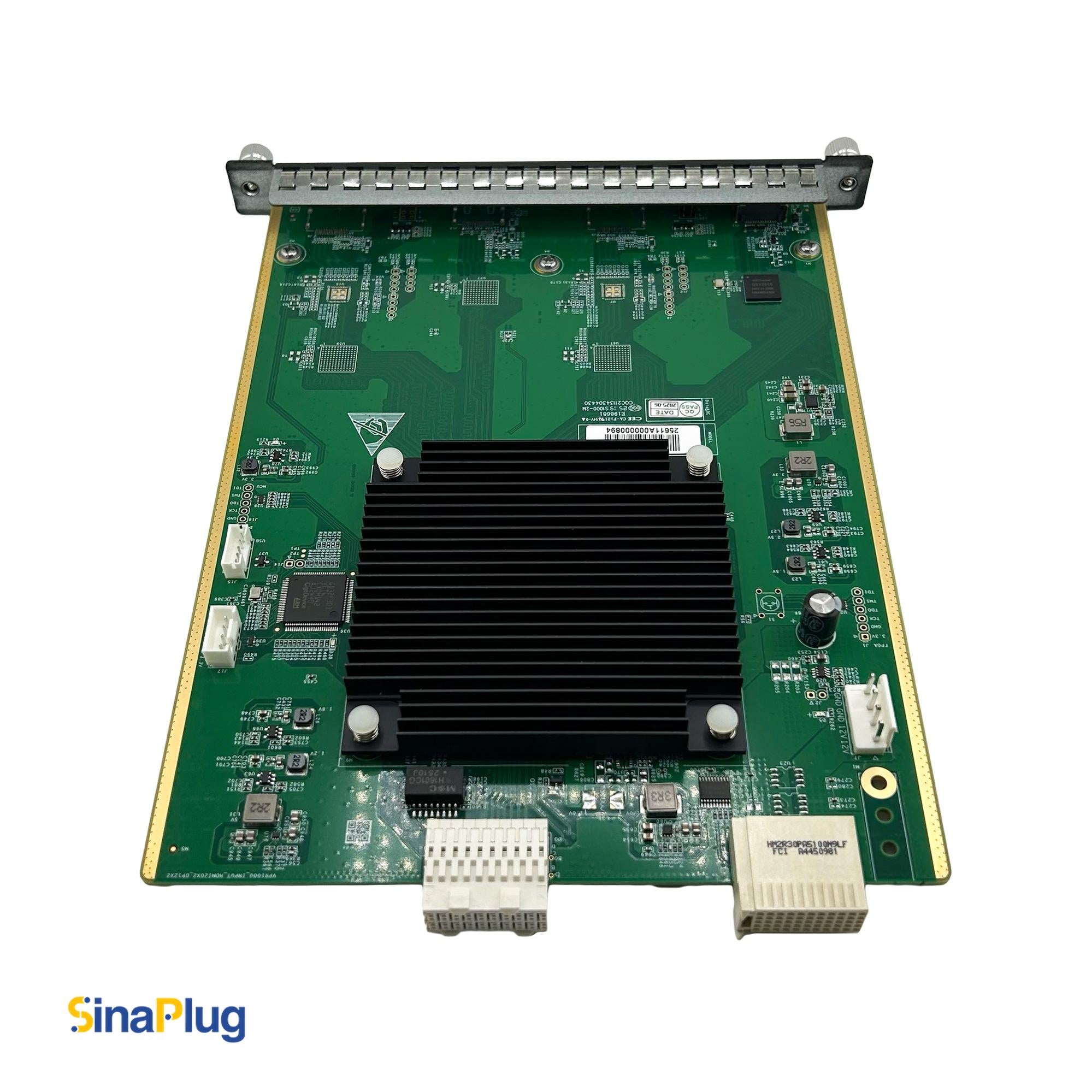

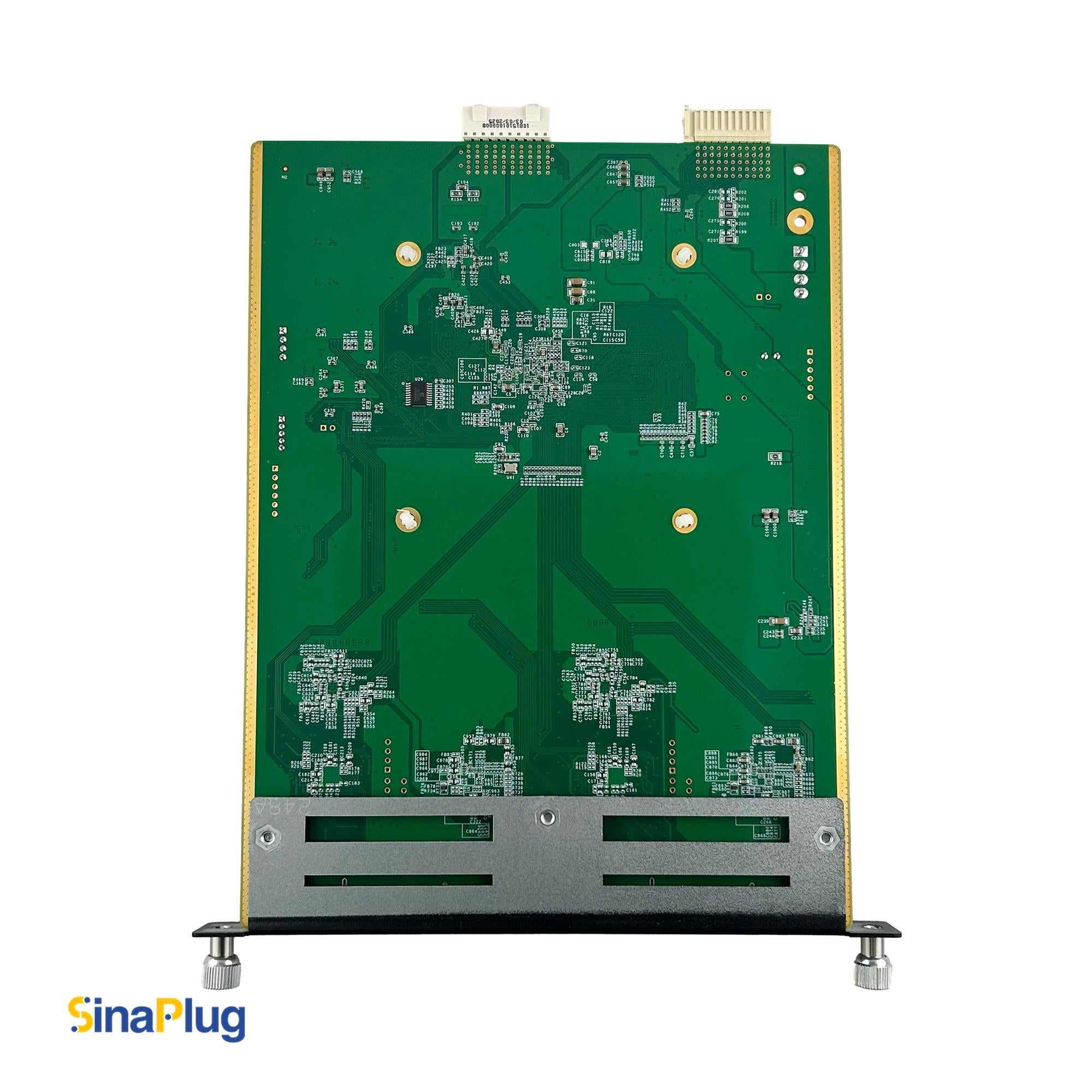

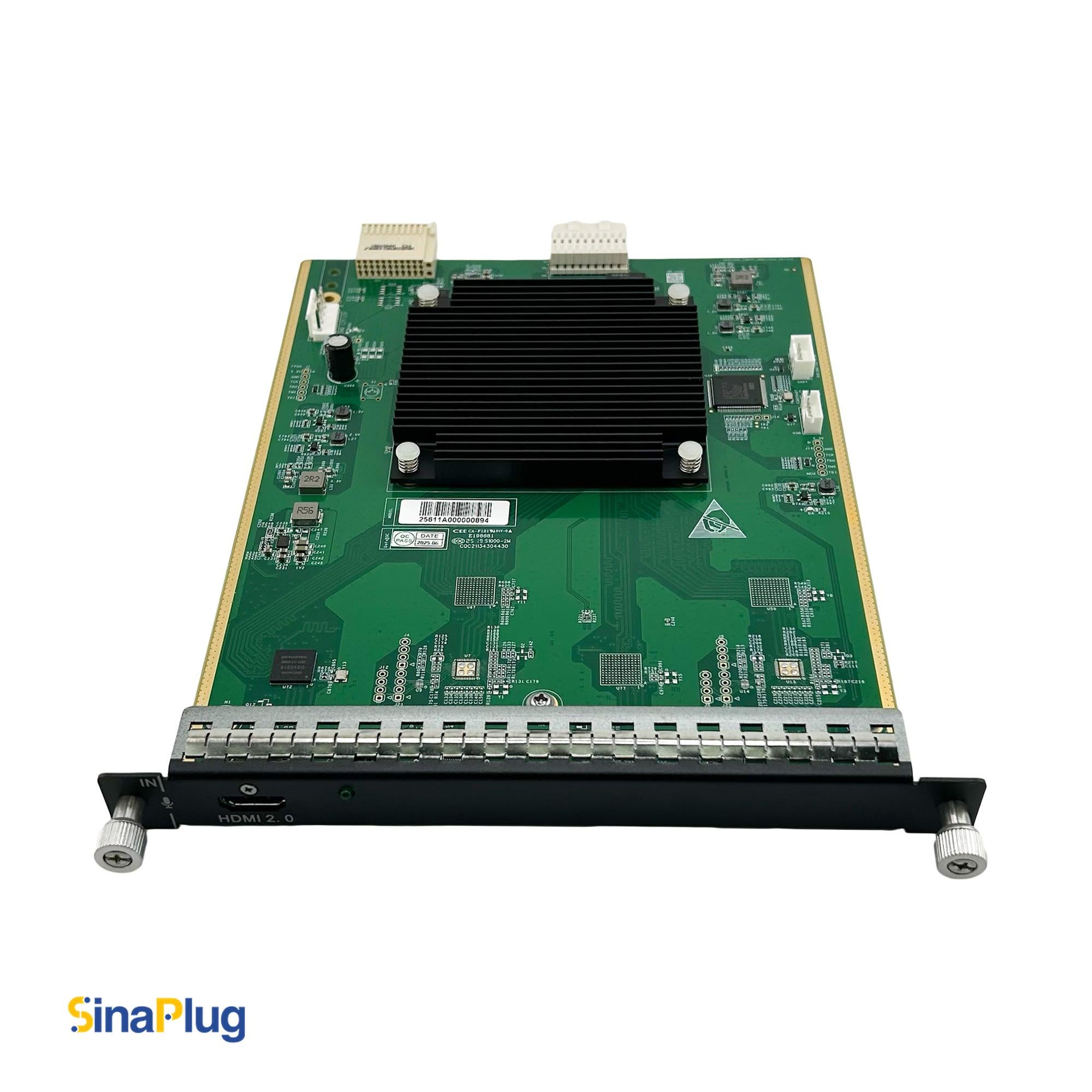

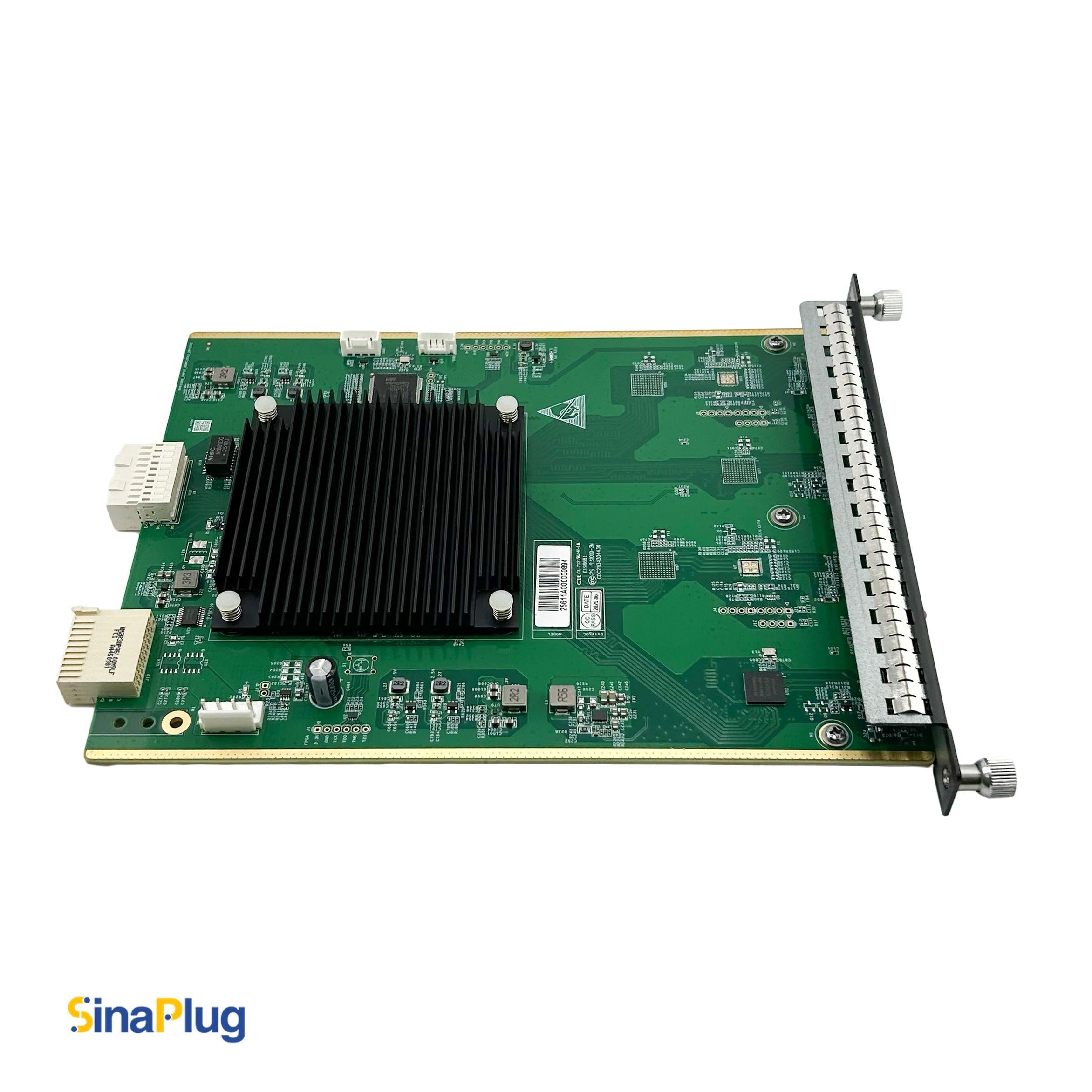

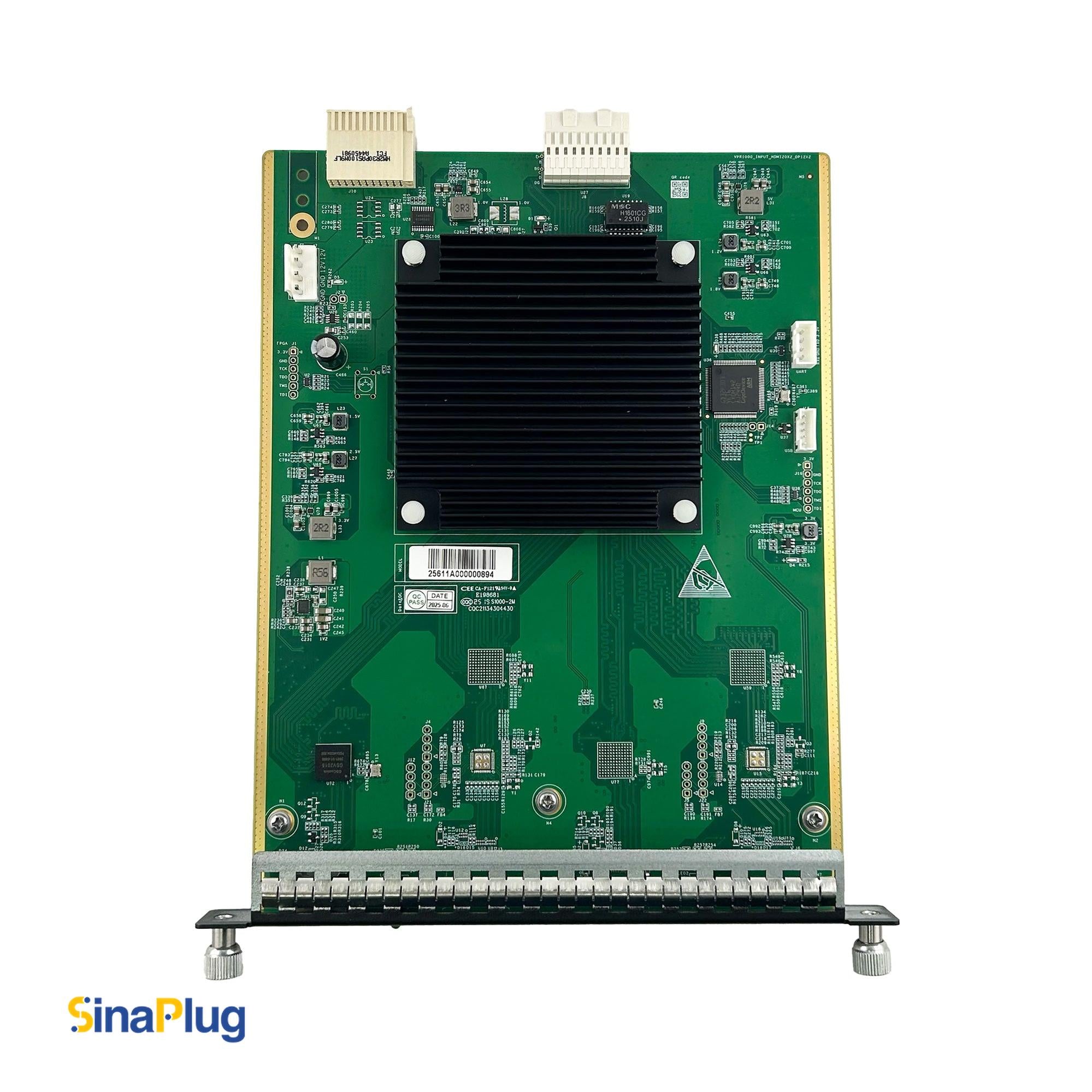

NovaStar H_1xHDMI2.0 Input Card for H2 Main Frame

$1,330.00
US Stock Same-day shipping or store pickup
Easy Returns 60-day no-questions-asked return
Tech Support Free online technical assistance

AzarPixel offers the NovaStar H_1xHDMI2.0 Input Card as a professional Input option that’s engineered to extend the capability of the H2 Video Wall Splicer (or H series video wall splicers). This input card supports an HDMI 2.0 connector for impressive and high-quality video input in LED projects. And it is backward compatible with HDMI 1.3 and 1.4.

The card’s maximum resolution is 3840×2160@60Hz. And supports custom resolutions with maximum. width of 4092 pixels (4092×2263@60Hz) and the maximum. height of 4095 pixels (2188×4095@60Hz). It complies with HDCP 2.2 and offers seamless video playback with a 144Hz refresh rate, ideal for applications requiring smooth motion and crystal-clear vision delivered via HDMI.

This input card is designed for trouble-free integration, simply dropping into the H2 chassis with hot-swappable convenience, allowing simple installation and straightforward maintenance in critical video wall applications. Status LEDs provide simple real-time access to connection status for problem-free operation.

Key Features of H_1xHDMI2.0 Input Card

Loading Capacity

  • Maximum input resolution: 3840×2160@60Hz
  • Up to 4,092 pixels in width (4092×2263@60Hz for custom resolutions)
  • Up to 4,095 pixels in height (2188×4095@60Hz for custom resolutions)

Input Interfaces

  • 1x HDMI 2.0 connector

Performance

  • Supports 144Hz refresh rate

Compatibility and Installation

  • Compatible with HDCP 2.2
  • Occupies one card slot in the H2 chassis (or main frame)
  • Hot-swappable card design for easy installation and maintenance
  • Compatible with NovaStar’s H2 Video Wall Splicer for seamless integration

Power consumption

  • 9.3W

Weight

  • 550 g

Dimensions (L*W*H)

  • 247mm × 193mm × 21mm
