NovaStar  |  SKU: PRO-NOV-4XHDMIOUTx-0

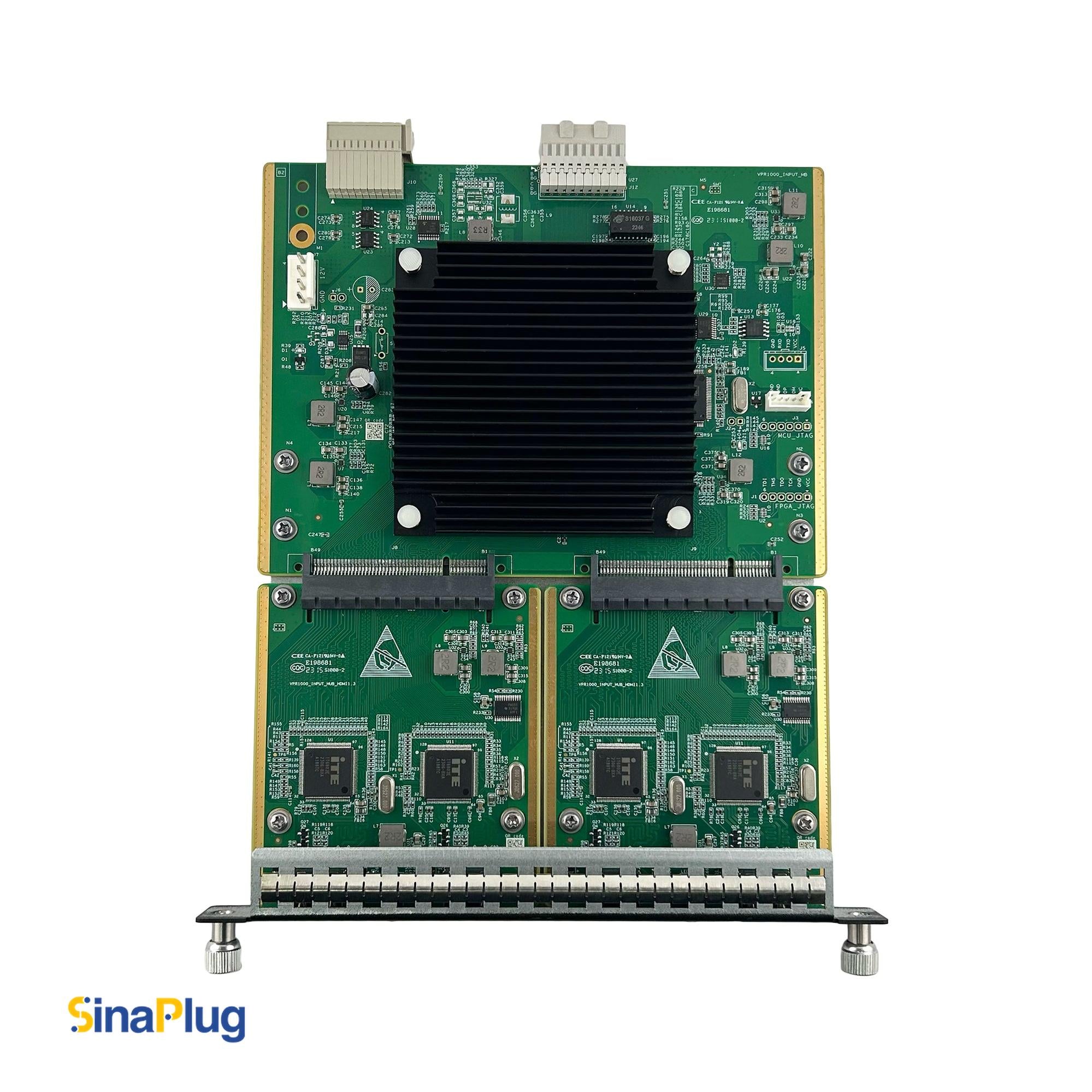

NovaStar H_4xHDMI Output Card for H2 Main Frame

$670.00
US Stock Same-day shipping or store pickup
Easy Returns 60-day no-questions-asked return
Tech Support Free online technical assistance

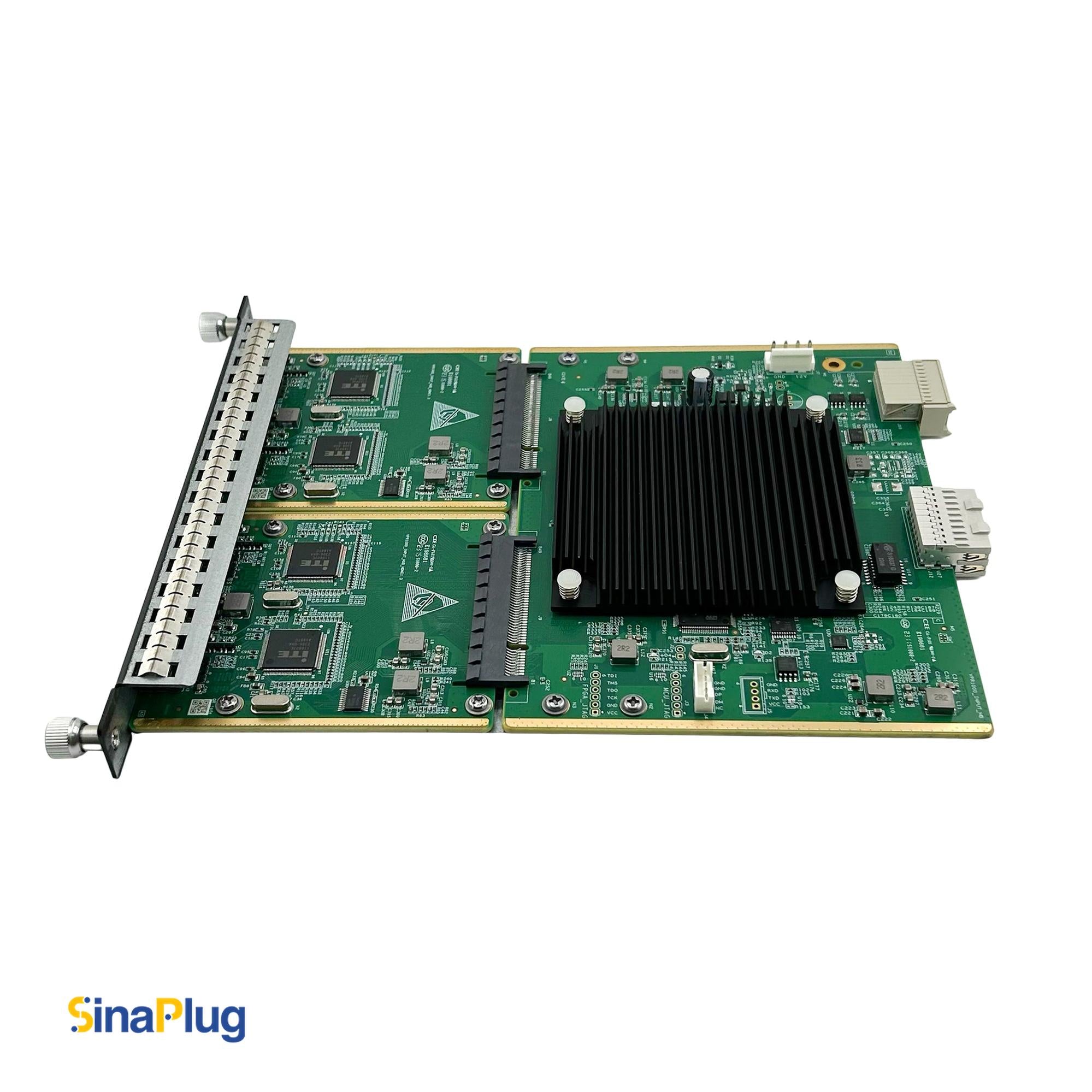

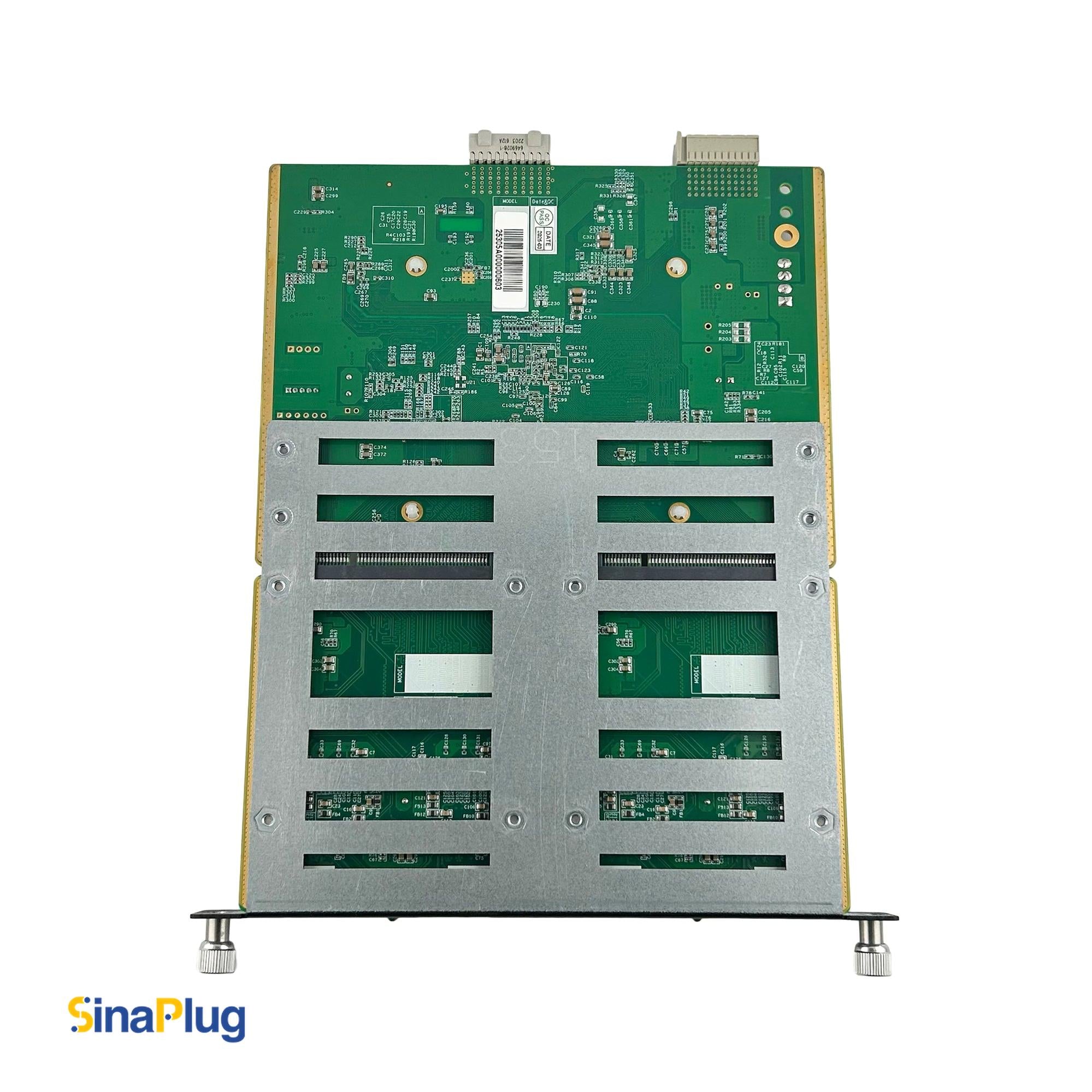

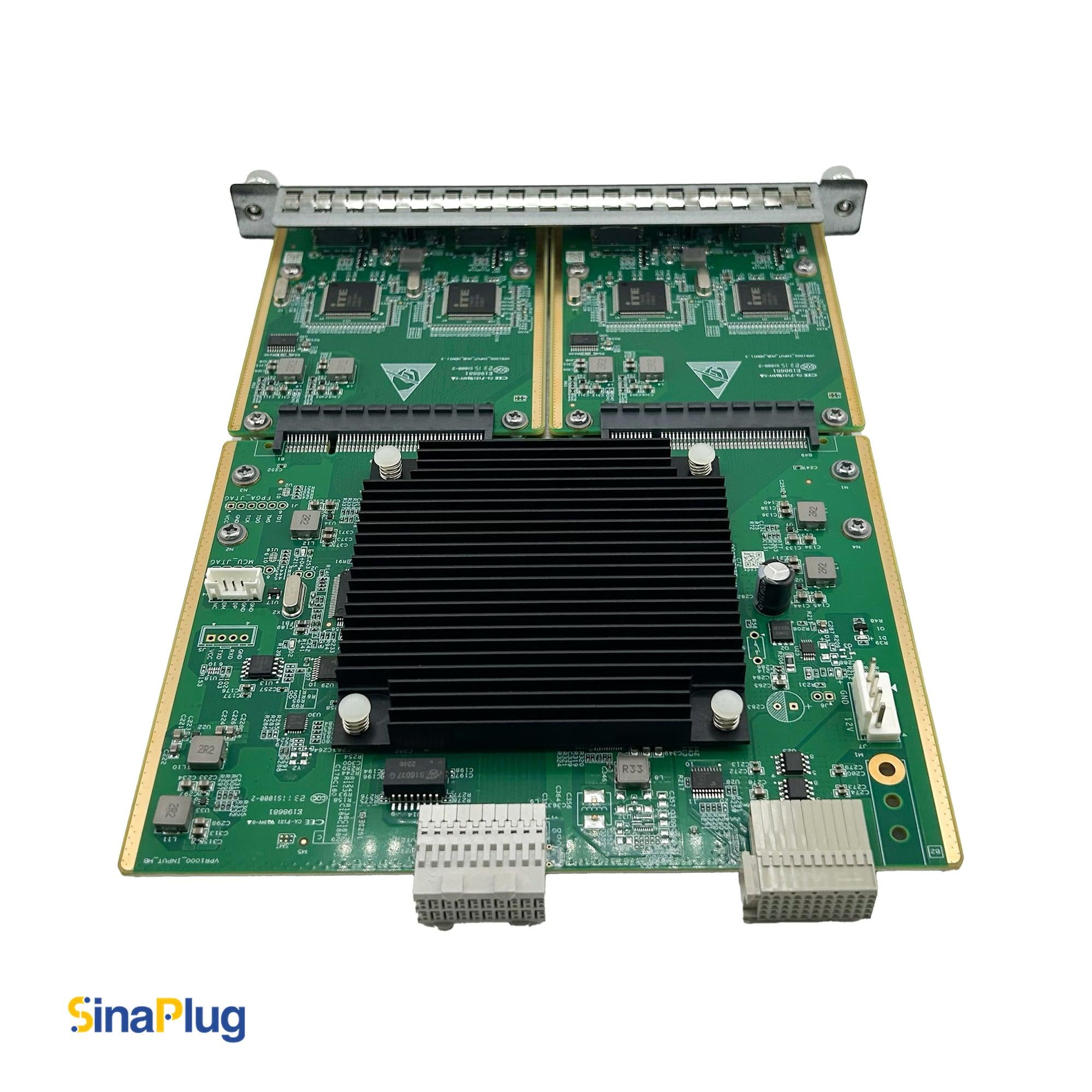

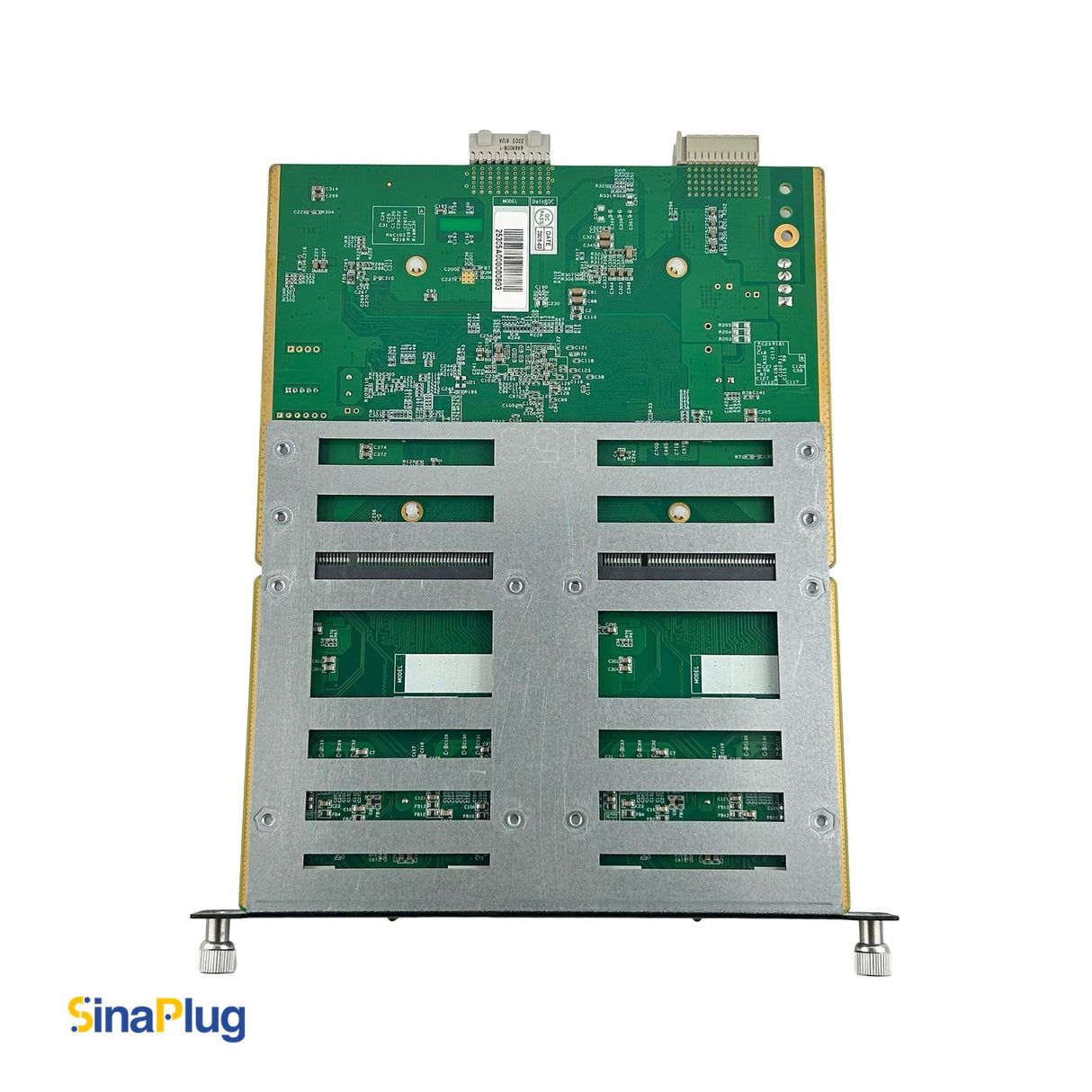

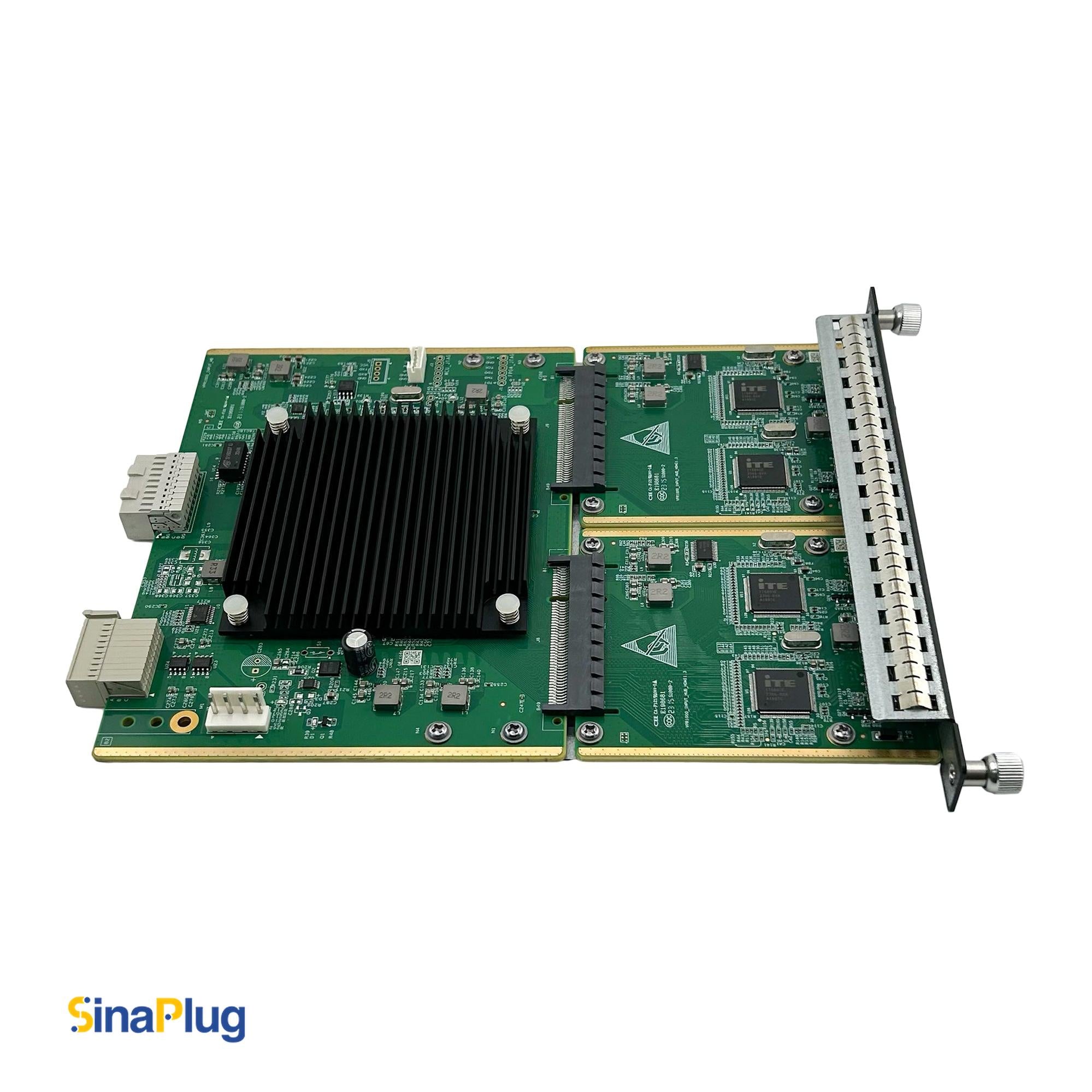

AzarPixel provides the NovaStar H_4xHDMI Output Card, a professional-level multi-port HDMI output solution for the professional use of the high-end H2 Video Wall Splicer system (or H series video wall splicers). The card has four HDMI 1.4 ports. This will do simultaneous multi-channel video output for LED display configurations that utilize two or more output streams.

The card is designed for high-definition output, featuring both 8-bit and 10-bit video output with RGB 4:4:4, YCbCr 4:4:4/4:2:2 color modes, therefore, the content will look sharp and accurate colors. This card supports dual-link outputs with resolutions of up to 4096×2160 at 30Hz or 3840×1080 at 60Hz for each of ports 2 and 4, and it can also support a maximum resolution of 2048×1152@60Hz through all four ports. The card supports refresh rates of up to 144Hz, ensuring smooth and flicker-free delivery of video content.

Easy to use, the H_4xHDMI Output Card simply mounts in the H2 chassis with hot-swappable convenience to provide instant maintenance and upgrade capabilities. Status LEDs provide convenient channel status indication for monitoring the device's performance in real time.

Key Features of H_4xHDMI Output Card

Loading Capacity

Single link output:

  • Supports All four HDMI 1.4 output ports
  • Each connector supports up to 2048×1152@60Hz resolution
  • Up to 2560 pixels in width (2560×972@60Hz for custom resolutions)
  • Up to 2560 pixels in height (884×2560@60Hz for custom resolutions)

Dual link output:

  • Only connectors number 2 and 4 are available among the four HDMI 1.4 output ports
  • Connector 1 copies the output on connector 2, and connector 3 copies the output on connector 4
  • Each connector supports up to 4096×2160@30Hz/3840×1080@60Hz resolution
  • Up to 4096 pixels in width (4096×1124@60Hz for custom resolutions)
  • Up to 4096 pixels in height (1014×4096@60Hz for custom resolutions)

Output Interfaces

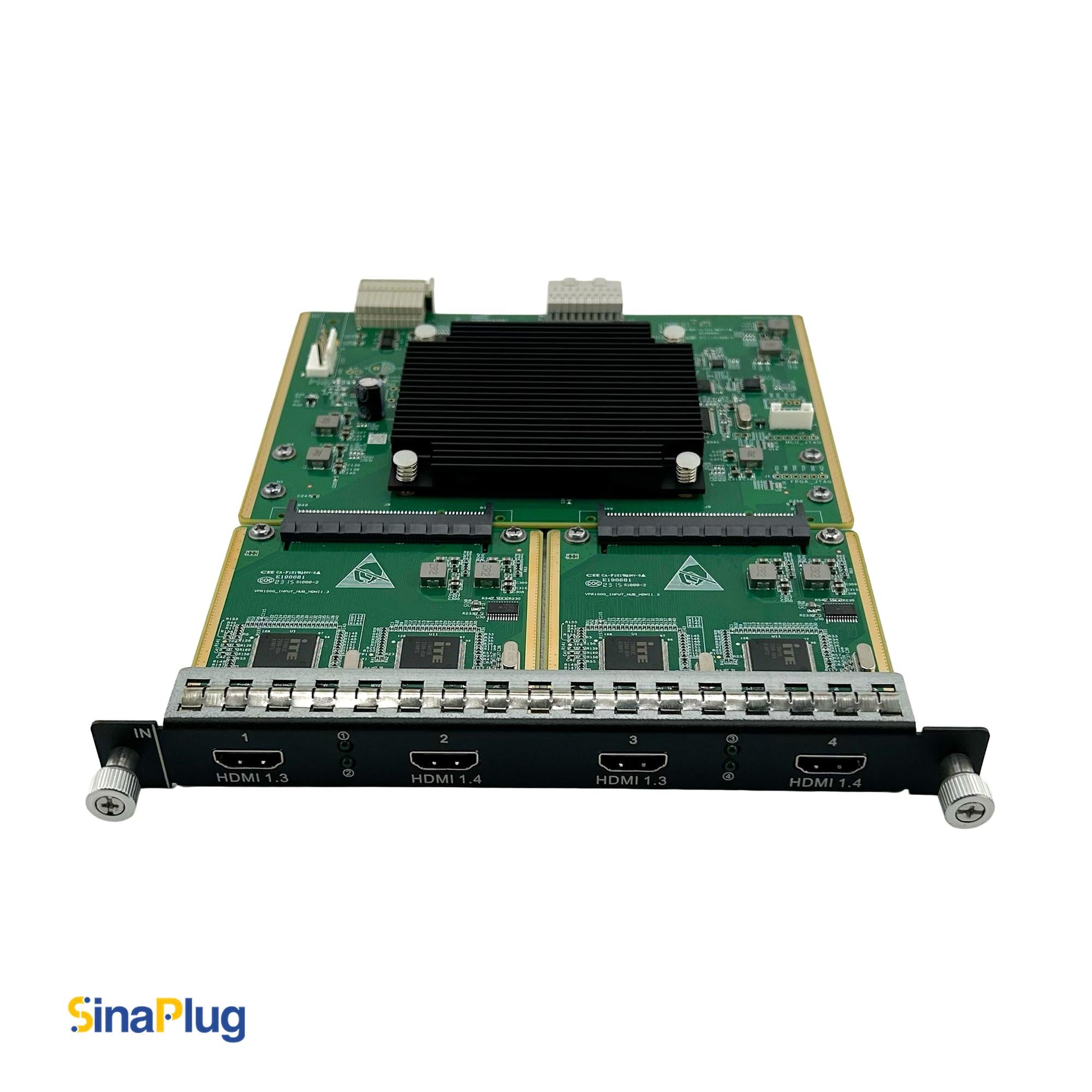

  • 4x HDMI 1.4 connectors (Supporting both single link & dual link outputs)

Performance

  • Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 For all four HDMI ports (both single link & dual link)
  • Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 For all four HDMI ports (both single link & dual link)
  • Compatible with 144Hz output refresh rate

Compatibility and Installation

  • Support single link, and dual link outputs
  • Occupies one card slot in the H2 chassis (or main frame)
  • Hot-swappable design for effortless installation and maintenance
  • Fully compatible with NovaStar’s H2 Video Wall Splicer system

Power consumption

  • 22.1W

Weight

  • 550 g

Dimensions (L*W*H)

  • 247mm × 193mm × 21mm
