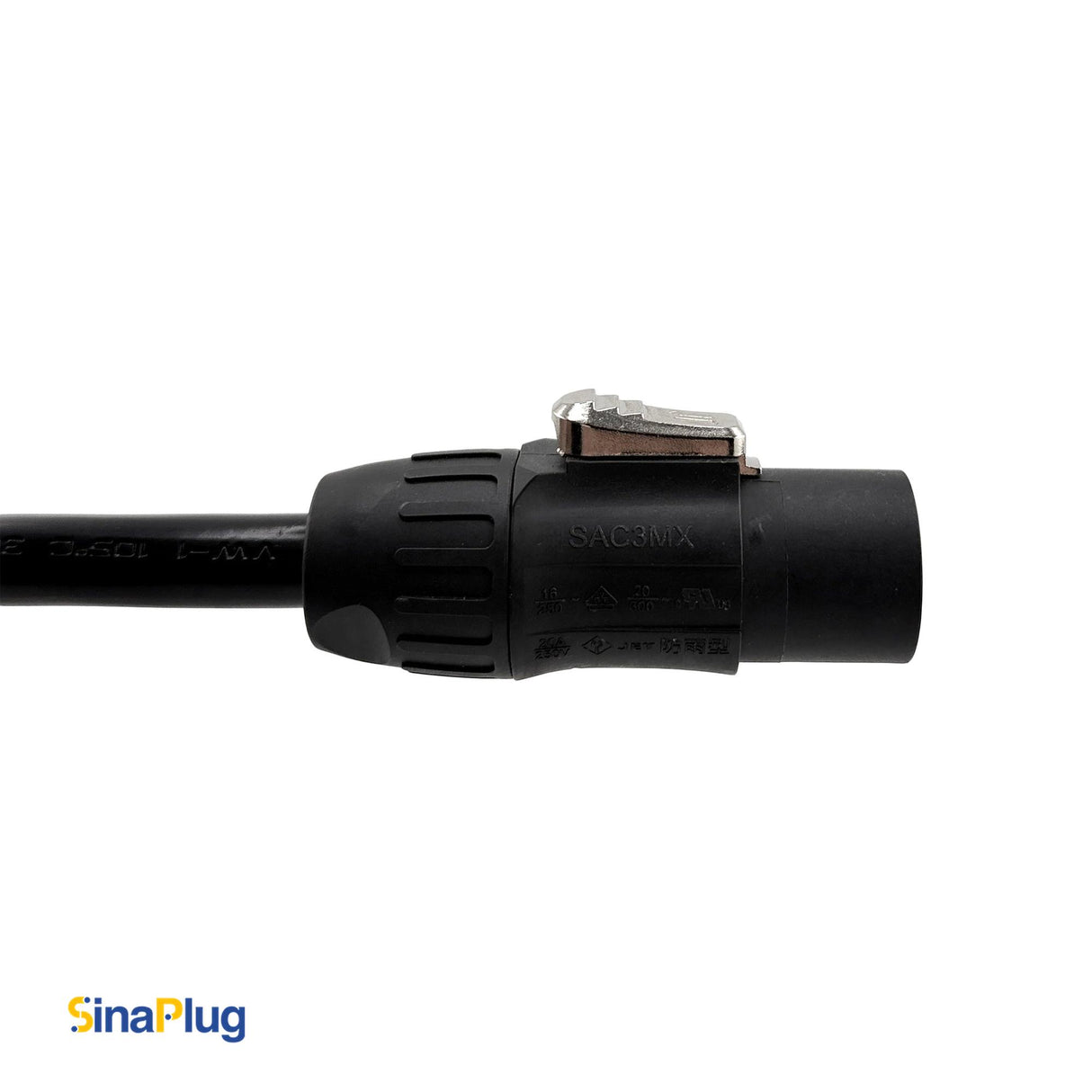

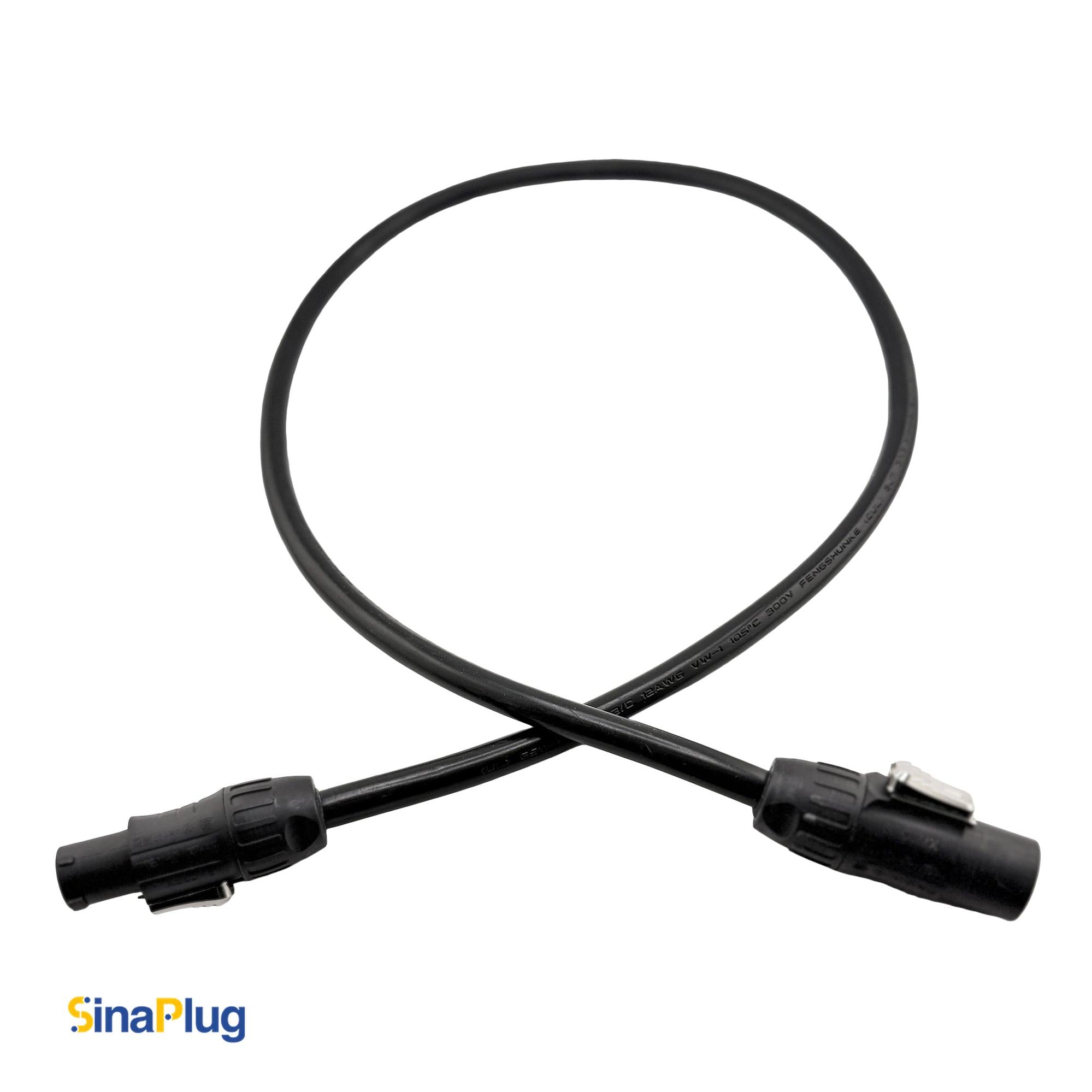

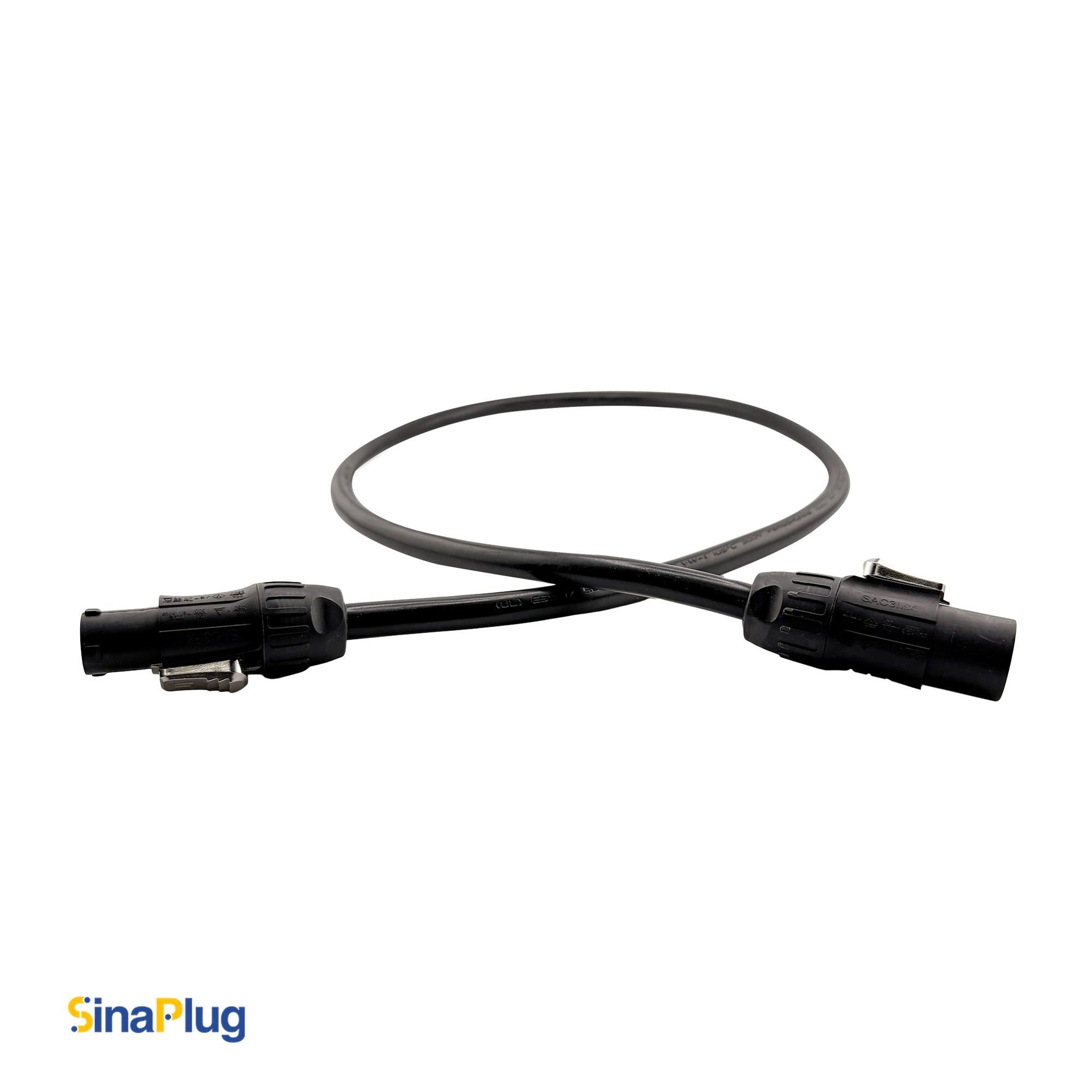

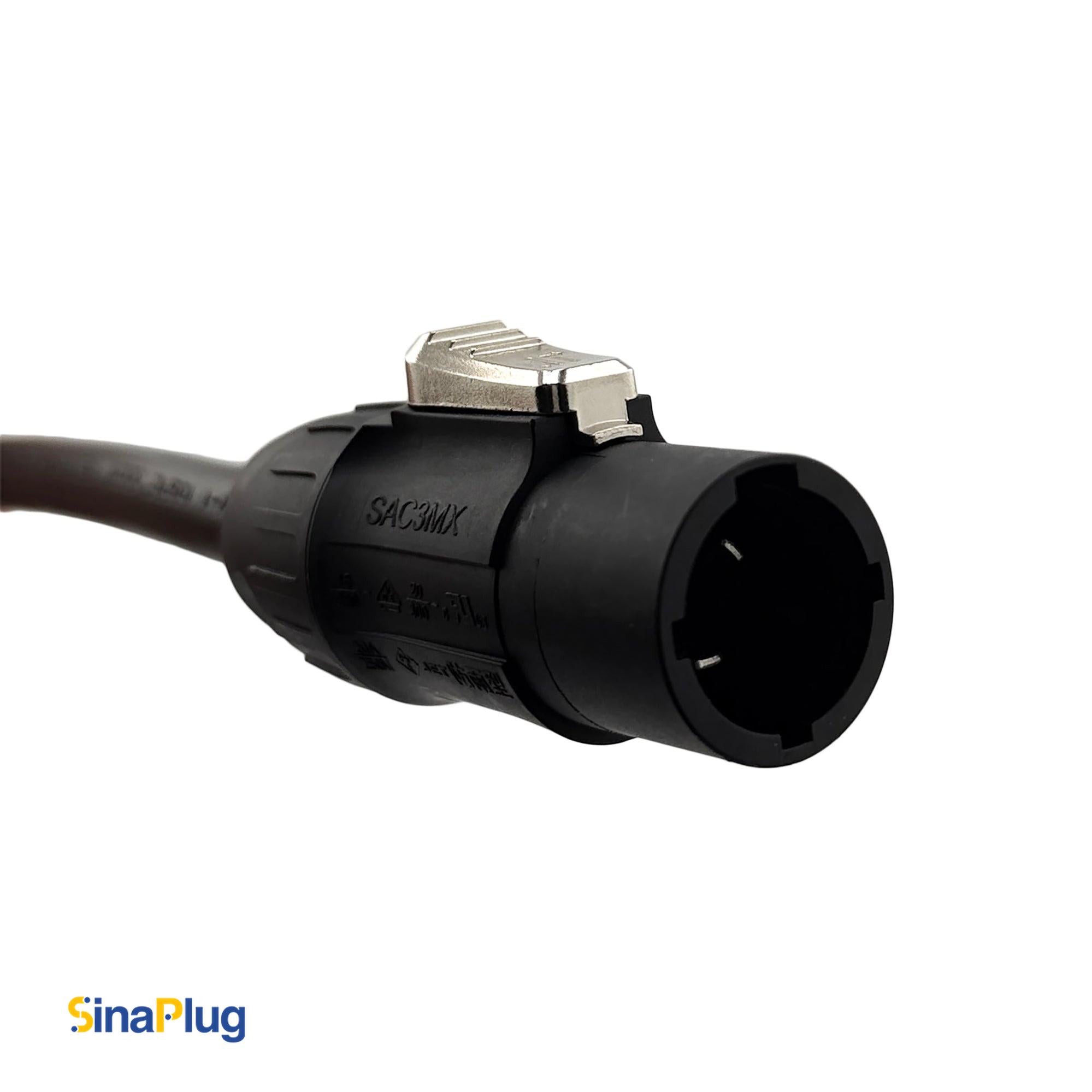

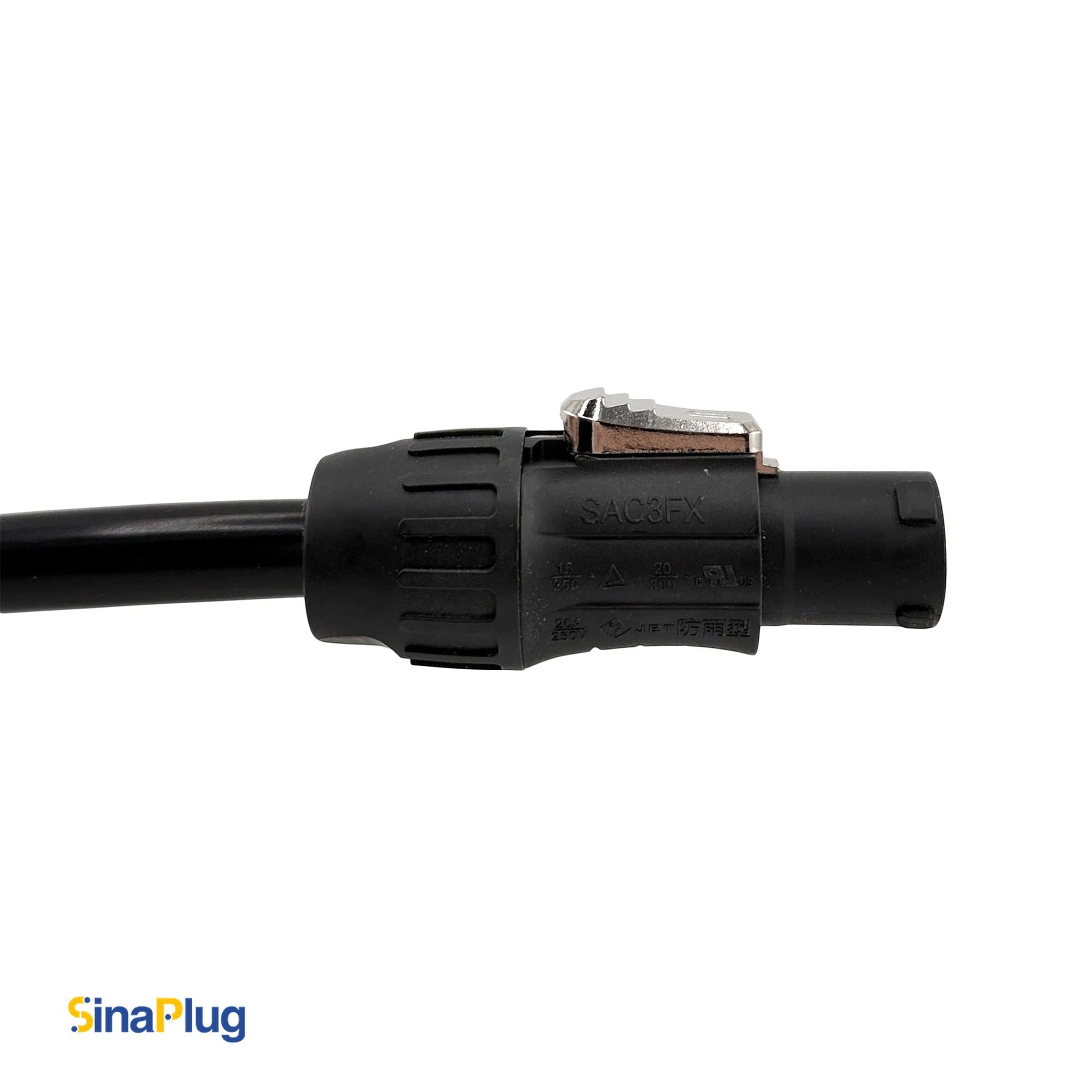

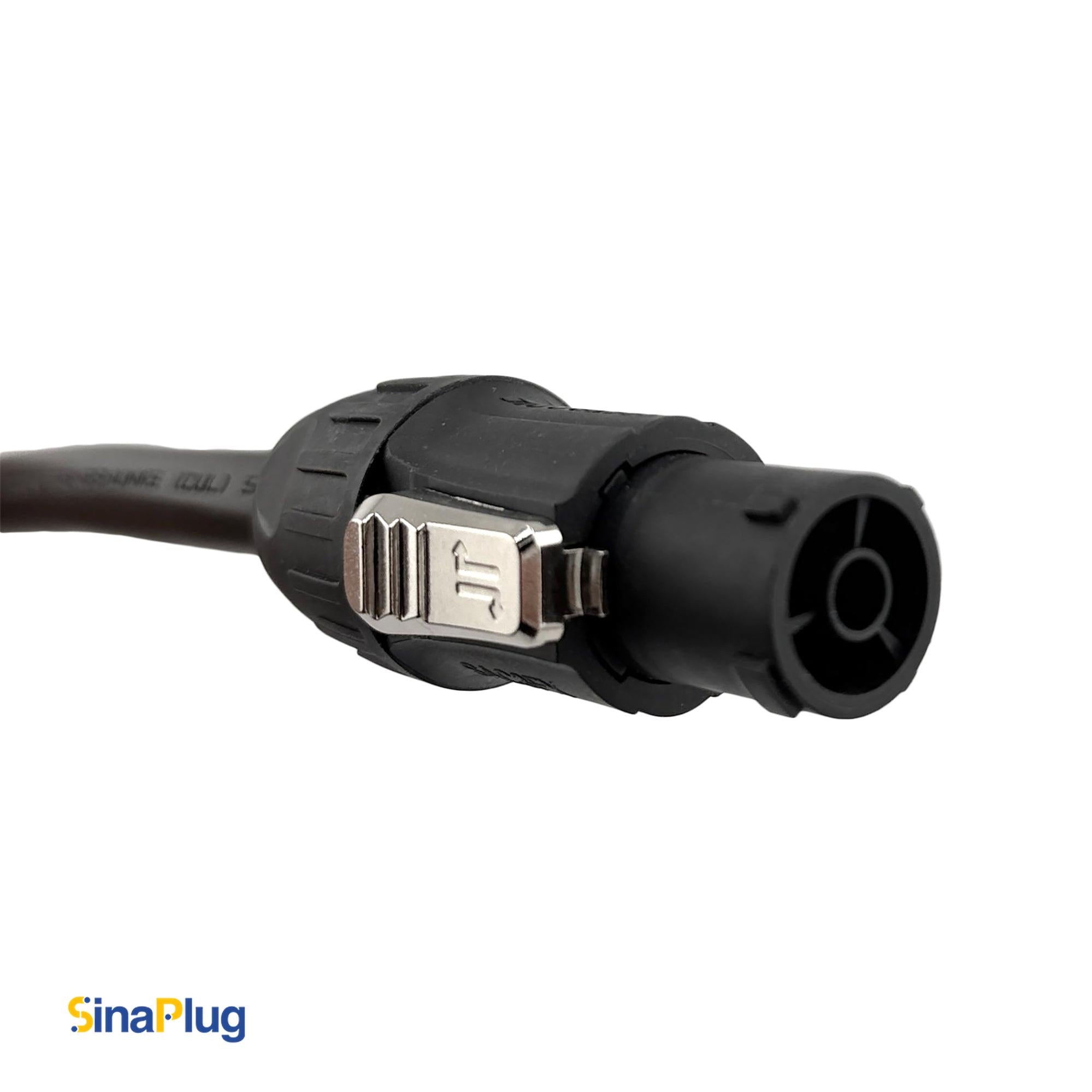

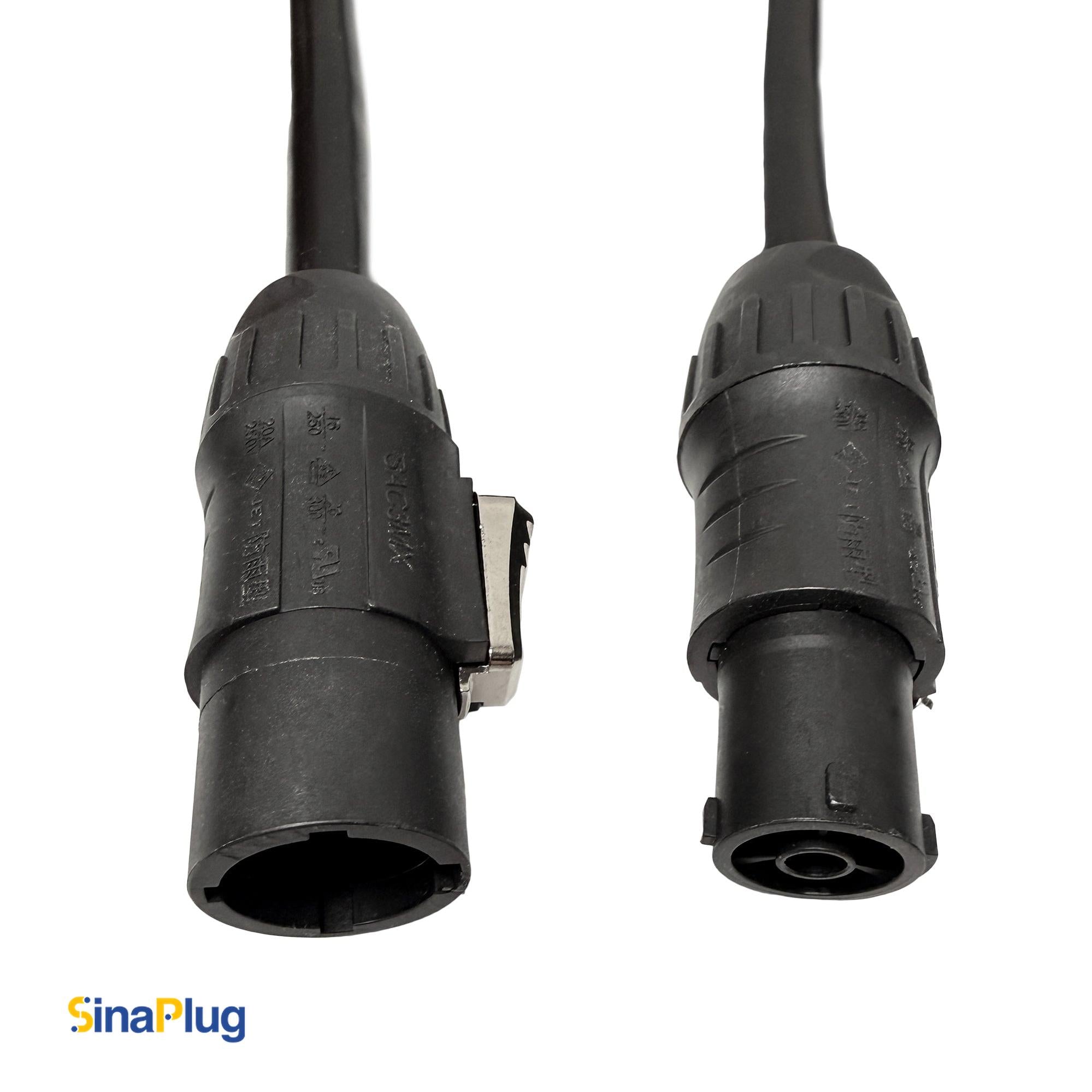

3 feet, Power Cable Seetronic SAC3FX Connector to Seetronic SAC3MX Connector

AzarPixel provides a heavy-duty 3‑conductor power jumper cable, with one end being a Seetronic SAC3FX waterproof female connector and the other a Seetronic SAC3MX waterproof male connector. The 3-foot (one meter), Specialized Power Locking Cables are designed to provide conversion between LED cabinets, LED Controllers, LED Fixtures and other professional A/V equipment terminals and making it more flexible.

These Power Connectors, SAC3FX and SAC3MX, meet the stringent certification (IP65) level needed for long service life in a wet/humid environment. Both Power Connectors have a 20A, at 300V, a polyamide housing, and silver-plated copper alloy Contacts for low resistance, high dielectric strength, and excellent insulation performance over the length of their service life.

In addition, both Power Connectors are certified to meet the UL498, UL50E, IEC61984, IEC60320-1, and GB/T 34989 standards for use in extreme temperatures (between -30°C and +80°C). Thus, this cable assembly can be used to connect power from and to many devices located outdoors on a stage or during a music or theatre touring event or for fixed installations.

A stable Line, Neutral and Protective Earth connection is provided between SAC3FX and SAC3MX by means of L, N and PE configurations; therefore, both are guaranteed to work in conjunction with one another. The design of the latch mechanism of both Connectors also ensures that the connection between the two Connectors will remain connected during transport, rigging or sharp vibrations.

Due to its compact design, this Power Locking Cable also makes it easy to daisy chain power from one LED cabinet or fixture to another Cabinet or fixture; therefore, it is used to reduce the amount of clutter in racks, trusses or support structures.
