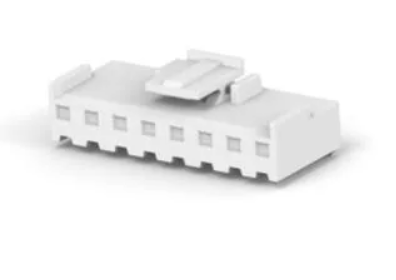

8‑Position 3.96 mm Pitch Plug Housing (Natural, Wire‑to‑Board)

Product Description

Product Overview
The high-quality 8-position plug housing is designed for wire-to-board connections in mid-power applications. With a 3.96 mm pitch and durable latch-locking mechanism, this connector provides a reliable and secure electrical interface for a variety of industrial and commercial uses.

Key Features

• 8-position, single-row plug housing

• 3.96 mm (0.156") pitch for compact yet sturdy connections

• Rated for 250 VAC and up to 8 A per contact

• Made from durable nylon (PA66), UL 94V-2 rated

• Compatible with wire sizes AWG 22–18 (0.34–0.75 mm²)

• Insulation diameter range: 1.7–3 mm

• Operating temperature range: -25°C to +105°C

• High insulation resistance (≥ 1 GΩ) for signal integrity

• Secure latch-lock retention to prevent accidental disconnection

Applications
Ideal for use in control panels, industrial equipment, automotive systems, and general electrical wiring where secure, mid-power connections are essential.

Note: Plug housing only — crimp contacts and mating receptacle housing sold separately.
