G-Energy  |  SKU: PSU-GEN-0200P45VFx-0

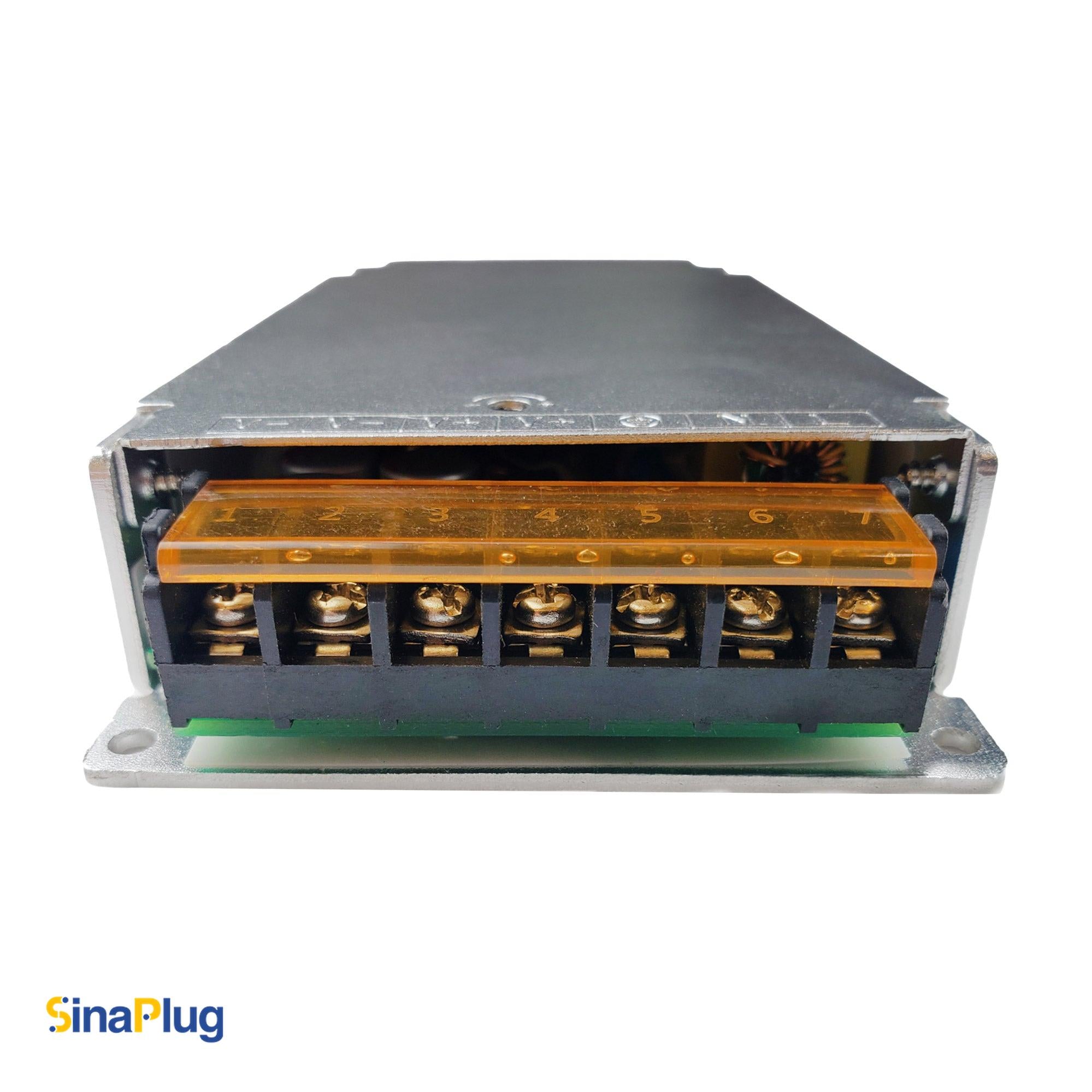

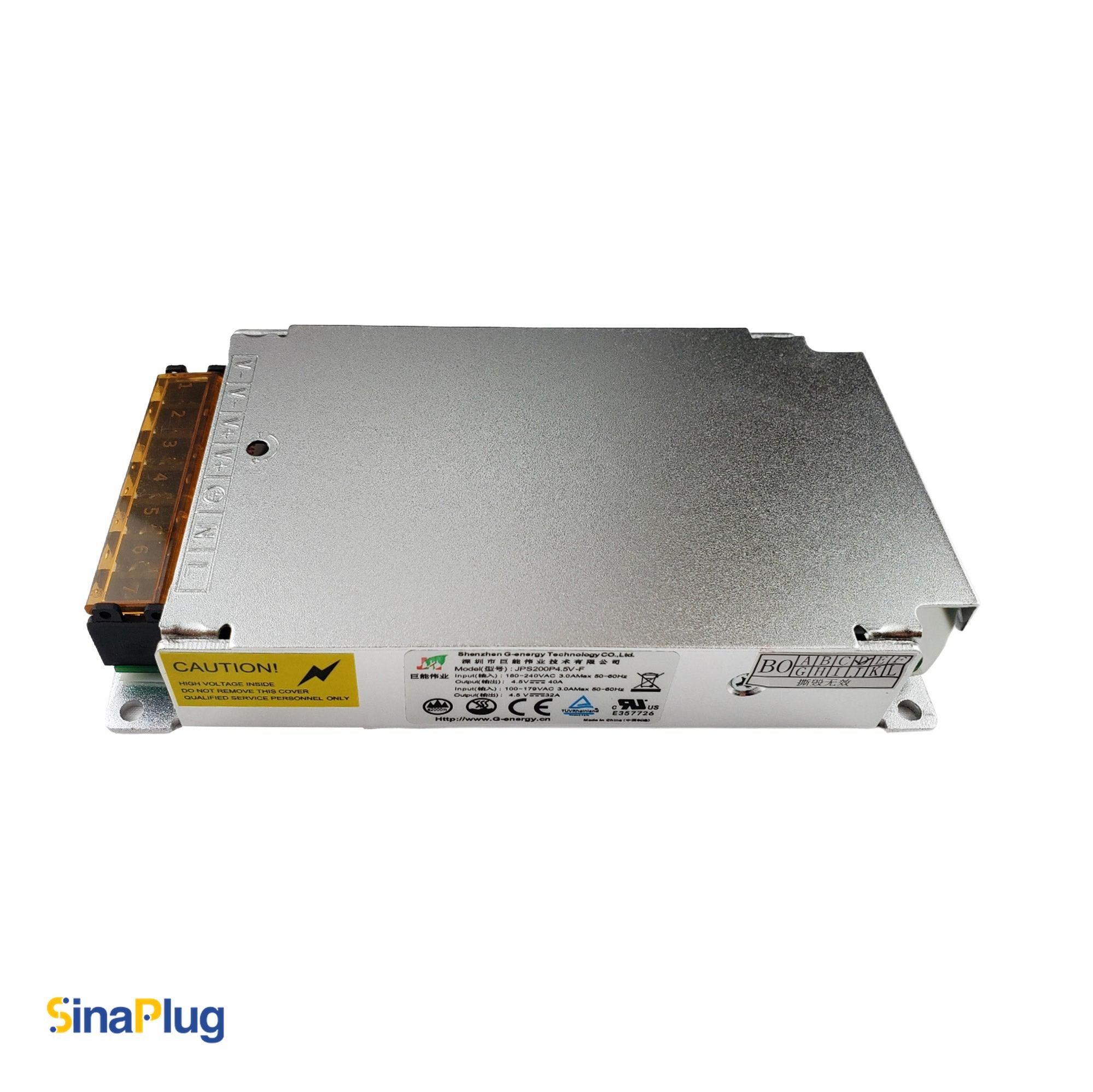

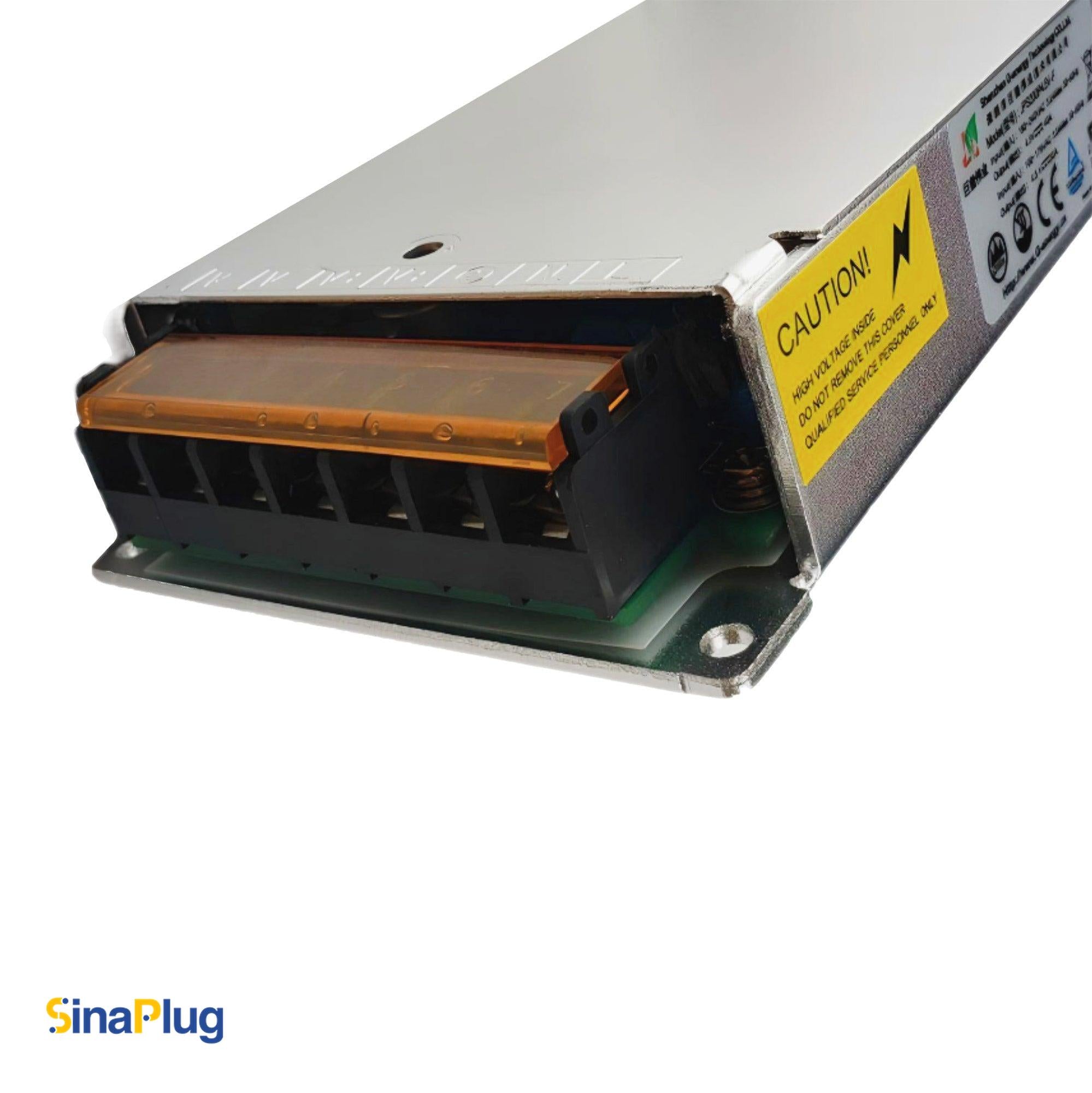

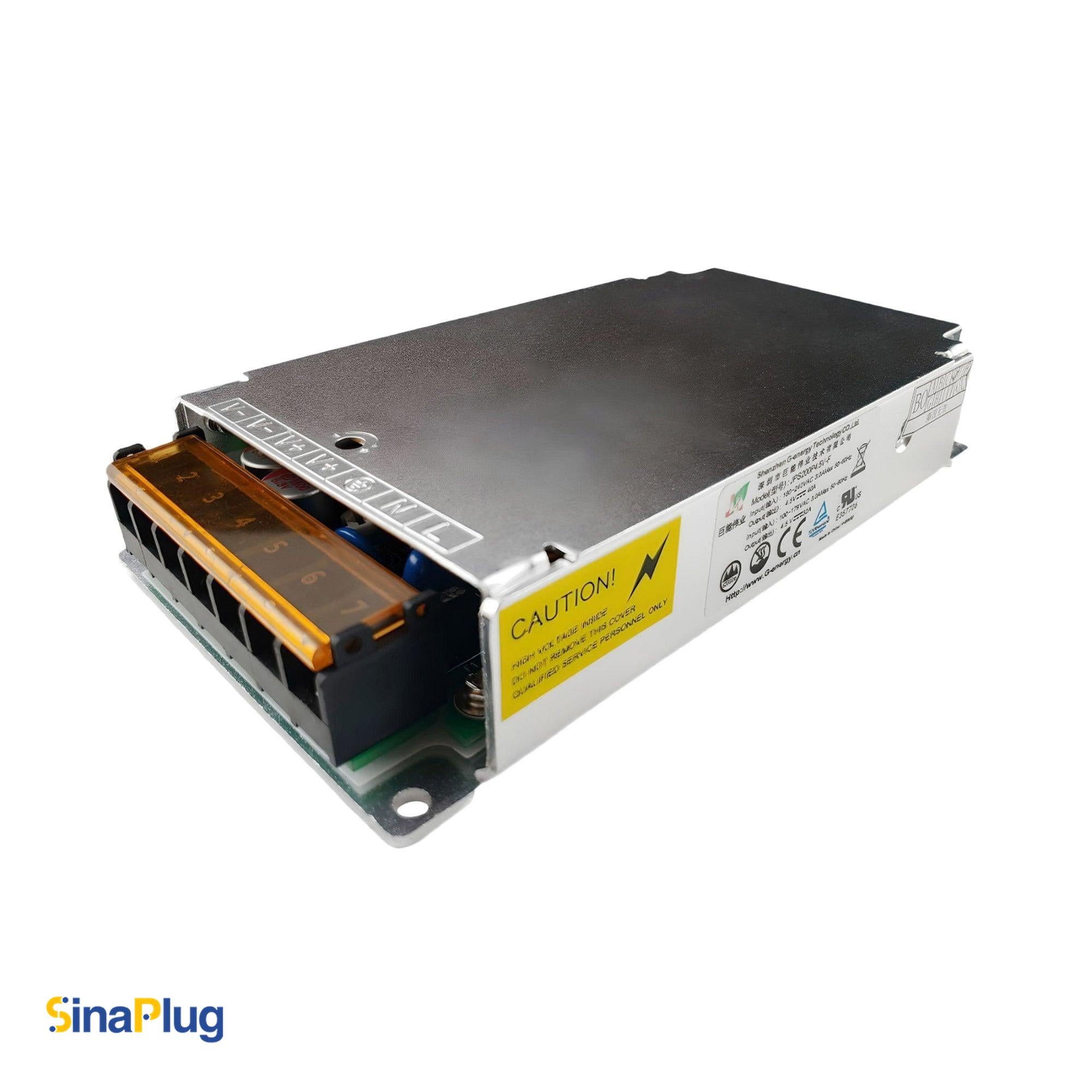

G-ENERGY JPS200P4.5V-F Switching Power Supply (4.5V, 32A)

$63.10 $72.12

Buy at discounted prices

Minimum Qty Discount
5 + 5% off
25 + 10% off
75 + 20% off
US Stock One day shipping or store pick up
Easy Returns No question 60 Days Return
Tech Support Free technical assistance

The G-energy JPS200P4.5V-F also known as JPS200P(4.5V)-F, from JPS series (which also includes JPS200P4.5V-LL and JPS200P4.5V-D) is a renowned, enclosed power supply ideal for industrial applications, LEDs, and audiovisual equipment that requires constant, reliable performance.

This AC/DC, compact JPS200P4.5V-F converts universal 100-240 VAC inputs, to consistent two output channels at 4.5V with an adjustable 4.4-4.6V range, delivering up to 32A for 100-179VAC (0-40A at 180-240VAC). It provides a rated 180W output power with an excellent 88% efficiency for optimal performance.

The JPS200P4.5V-F operates in challenging ambient temperatures between -30°C and +50°C and guarantees long-term operation through natural air convection (it is suggested to set it on a heatsink).

In addition to the completed protections such as overload, short circuit (self-recovery), and under-voltage protections, it is certified by GB4943, IEC6100, EN55022, and EN55022 allows the equipment to meet the worldwide energy requirement

Key Features of JPS200P4.5V-F

  • Type of Power Supply: AC to DC
  • Packaging: Enclosed
  • Input Voltage Range: 100 – 240VAC
  • Adjustable Output Voltage: Yes (4.4 - 4.6V)
  • Output Voltage: 4.5V
  • Output Rated Current: 32A (at 90-175VAC) / 40A (at 176-264VAC)
  • Output Rated Power: 180W
  • Protections: Under Voltage Protection, Over Current Protection, Short Circuit Protection
  • Dimensions (L*W*H): 145mm * 78mm * 26mm
