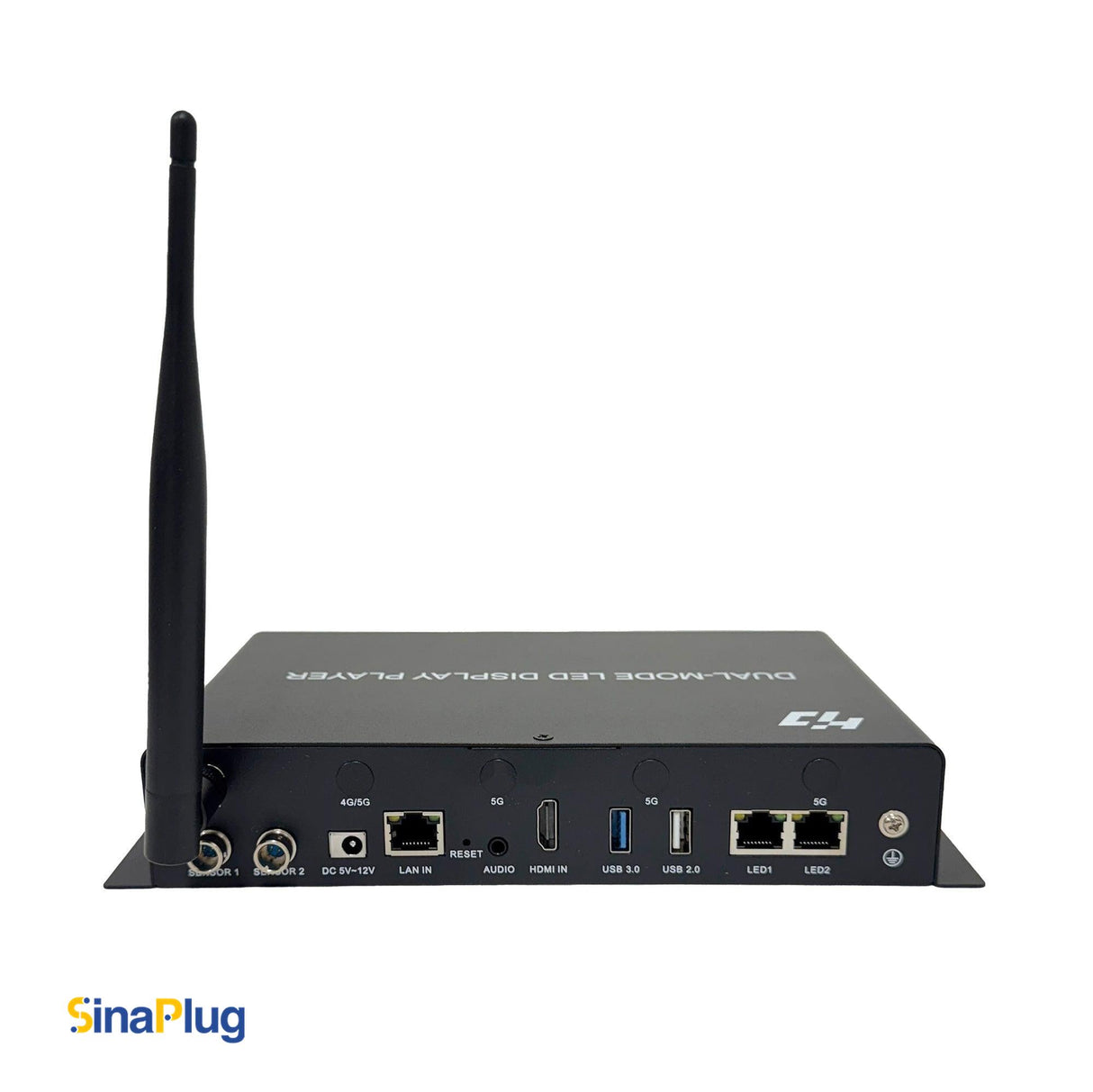

Huidu HD-A5L Multimedia Player (an enhanced version of HD-A4L)

Now available through Azar Pixel, The Huidu HD-A5L is versatile synchronous and asynchronous LED media player (an upgrade version of the HD-A4L) which excels in driving high-resolution LED displays. However, the key advancement lies in its significantly 1,300,000 pixels loading capacity (accessible through its 2xGigabit ethernet ports) with a maximum width of 16,384 pixels or a maximum height of 8,192 pixels, allowing for even large and intricate full-color LED display configurations to be effortlessly managed.

Furthermore, its advanced architecture supports multi-channel video playback, allowing for the simultaneous display of up to 2 channels in stunning 4K resolution, 6x 1080p, 10x 720p, or impressive 20 channels at 360p, offering exceptional versatility for diverse visual applications.

Equipped with a substantial 2 GB of RAM and 16 GB of onboard storage. this product is designed to be energy efficient and uses less than 18W of power while taking in DC inputs of 5V at 3A or 12V at 1.5A and presents itself as a dependable and robust solution for continuous digital signage operations.

Beyond performance, it also provides comprehensive environmental awareness through its dual external sensor interfaces, capable of monitoring crucial parameters such as temperature, humidity, brightness, wind speed, wind direction, noise, PM2.5, PM10, and CO₂.

This player features a 3.5mm audio interface and its capacity can be further increased through its USB 3.0 port, which also conveniently serves as an interface for program updates and loading. Additionally, a dedicated USB (OTG) port is provided for efficient debugging procedures and firmware upgrades.

For versatile network integration, the A5L offers a Gigabit Ethernet port alongside optional 4G/5G connectivity and a 2.4 GHz Wi-Fi band, supporting STA mode. Users may effortlessly upload content and operate the displays using local or remote (Internet-connected) devices.

Its durable design ensures reliable performance even in challenging ambient temperatures, ranging from -40°C to +70°C, making it ideally suited for a wide array of commercial displays, intelligent signage, and various other demanding environments.

Key Features of HD-A5L

Up to 1,300,000 pixels

(max of horizontal: 16384, max of vertical: 8192)

2x Gigabit Ethernet port

1x TRS 3.5mm audio interface (two-channel)

1x HDMI 1.4 interface

1x USB 3.0 port

1x USB 2.0 (OTG) port

2x Sensor port

1x Gigabit network port

Wi-Fi (wireless) + LAN (wired) + U-disk (USB)

2 GB RAM

16 GB internal storage

Flawless playback up to 2x 4K, 6x 1080p, 10x 720p, or 20x 360p videos

Image: JPEG, PNG, GIF, JPG, WEBP, BMP

Video: MP4, MKV, AVI, WMV, 3GP, ASF, MPG, FLV, MOV, DAT, VOB, TS, WEBM

Allows for dynamic scaling and image auto-zooming while playing synchronously

Enables picture-in-picture functionality in both synchronous and asynchronous modes

Allows screen control through mobile apps, STA wireless mode, and remote network clusters

environmental tracking: temperature, brightness, wind, particulates, and CO₂

U-disk expansion program (plug in broadcast)

Multiple connection solutions (wired and wireless)
