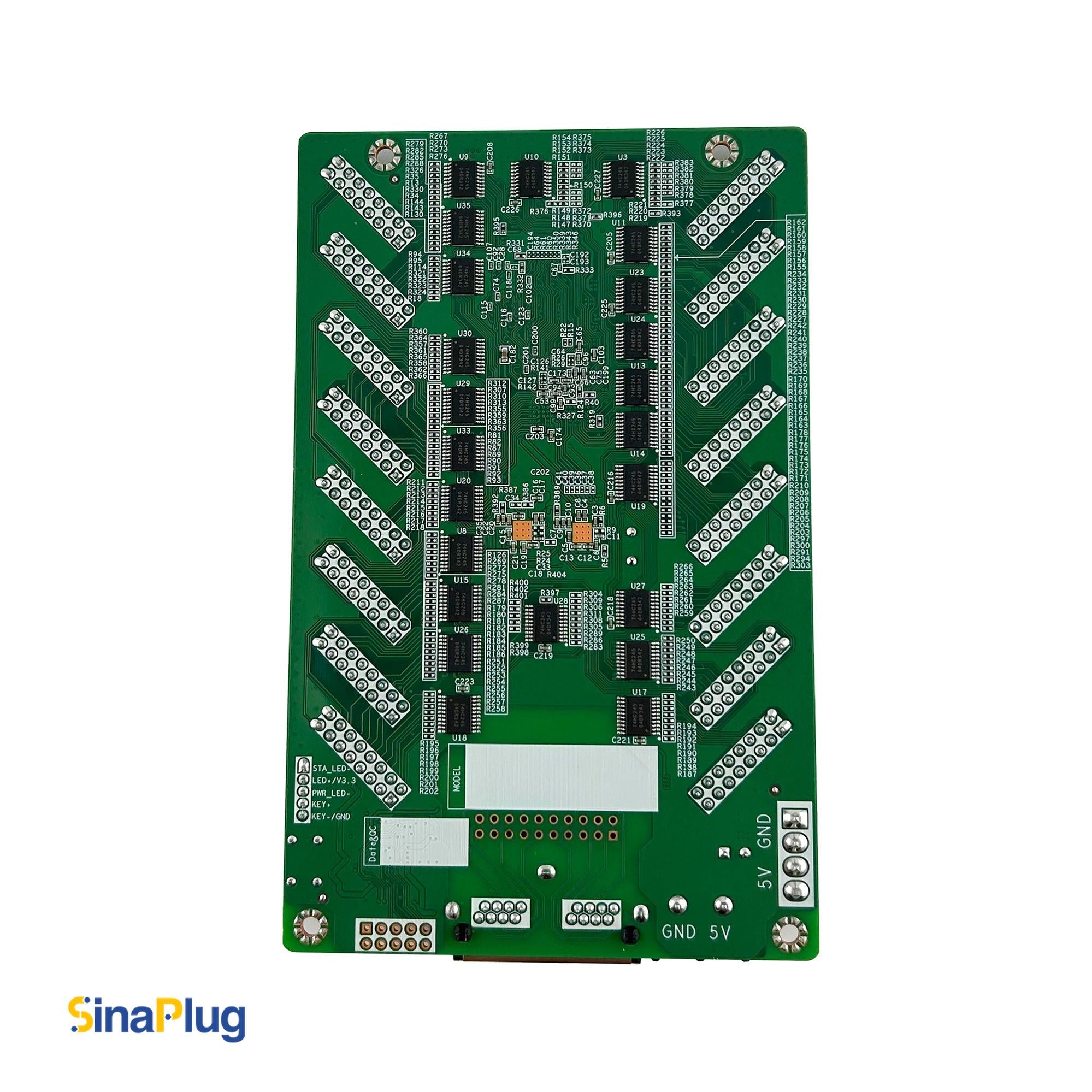

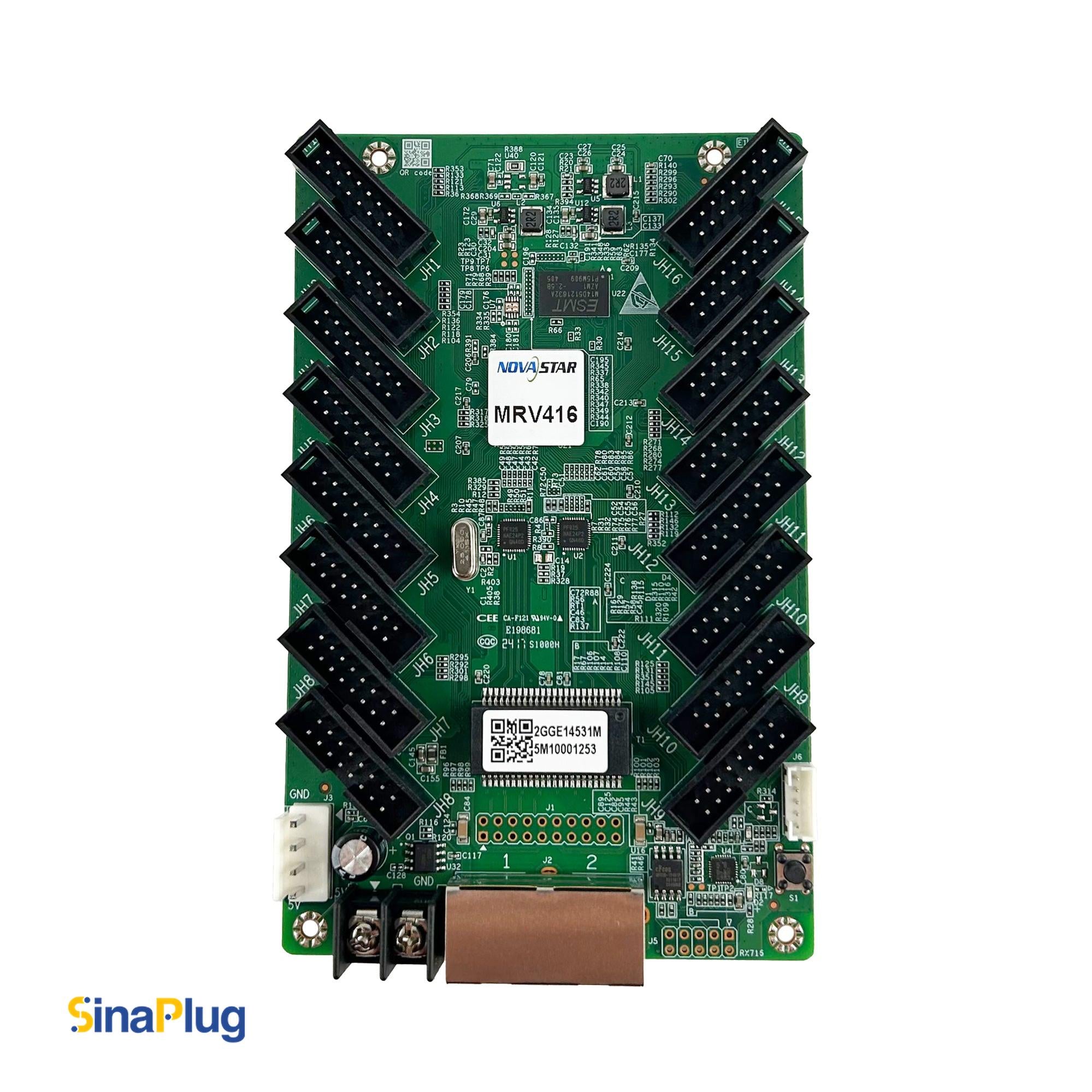

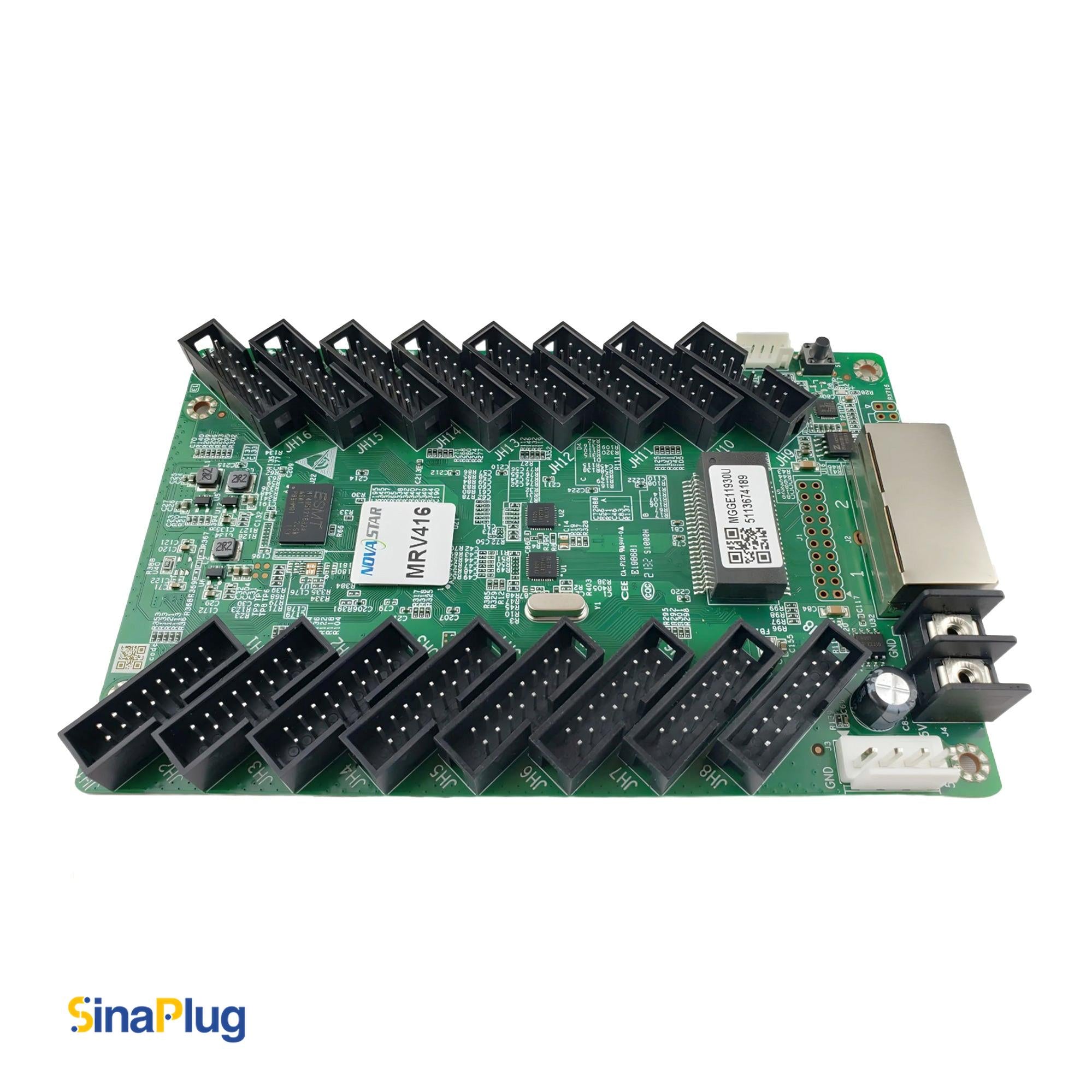

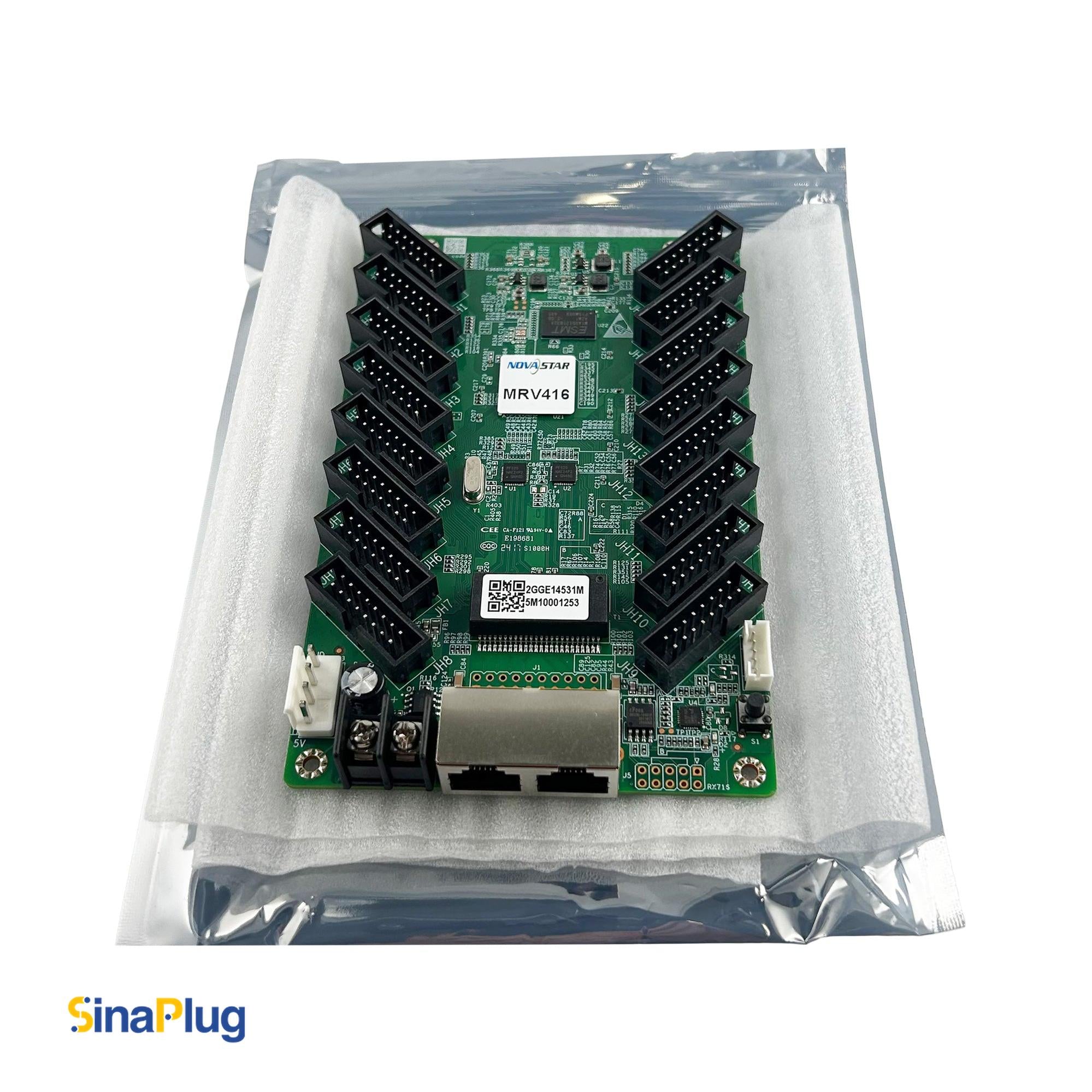

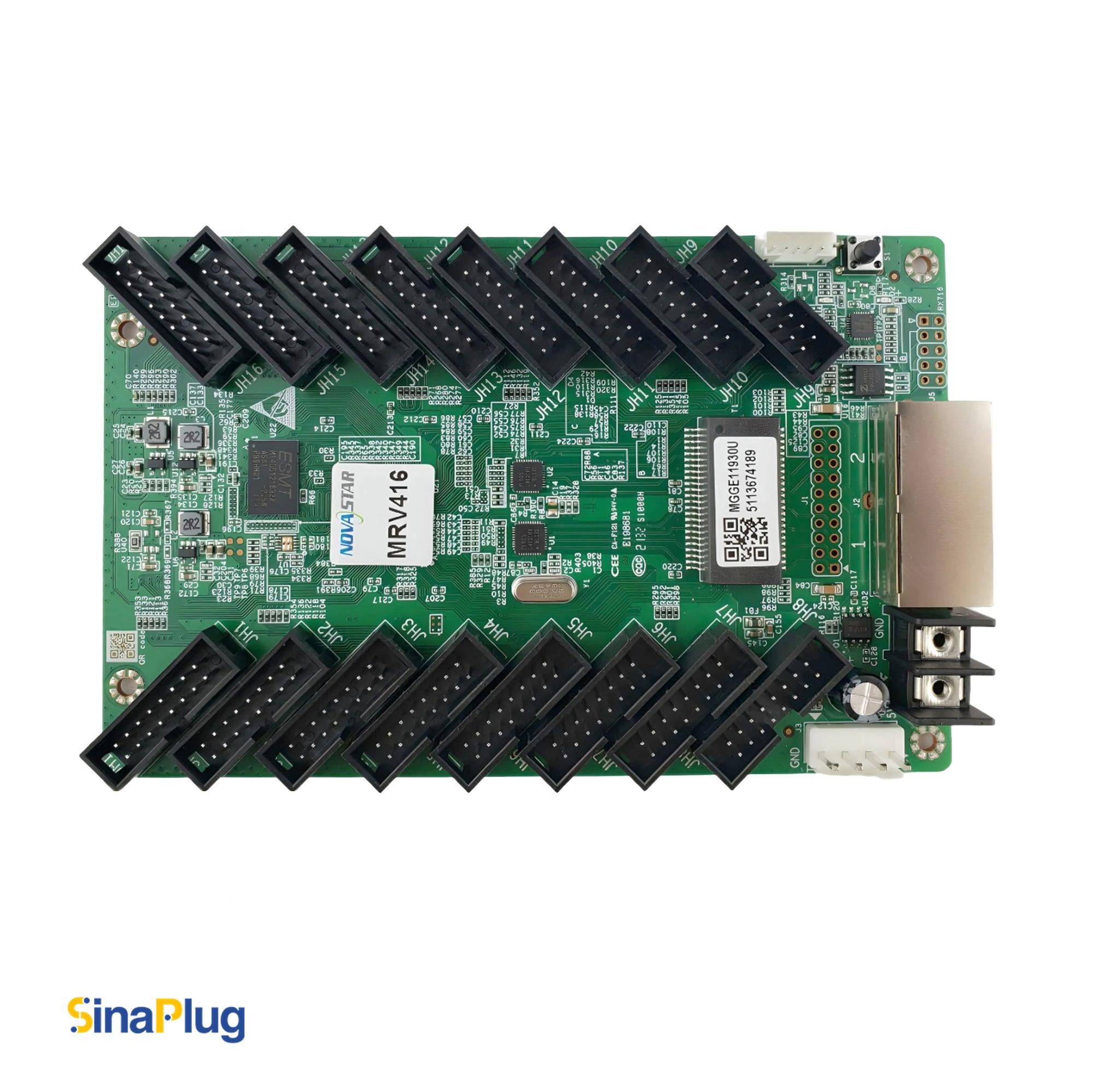

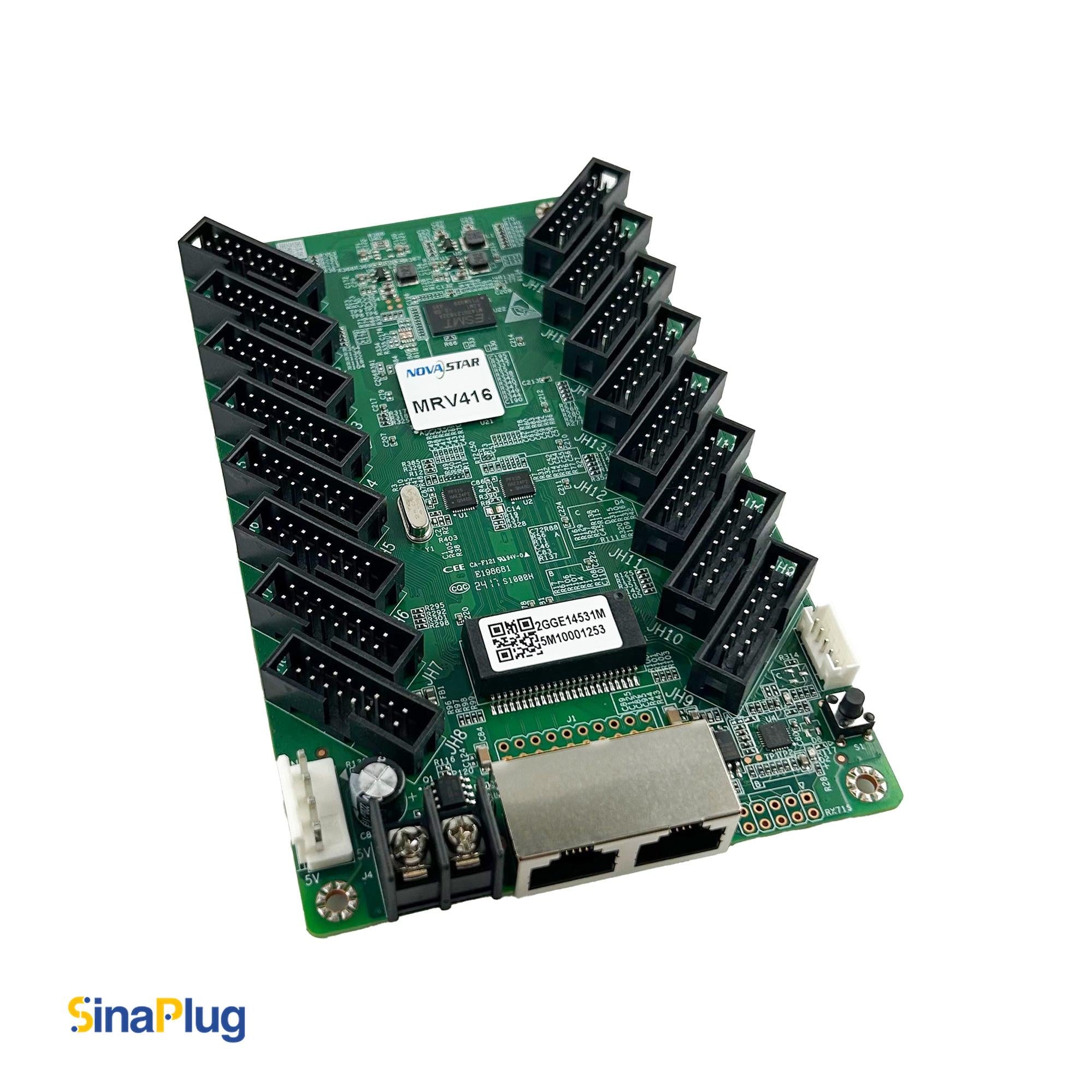

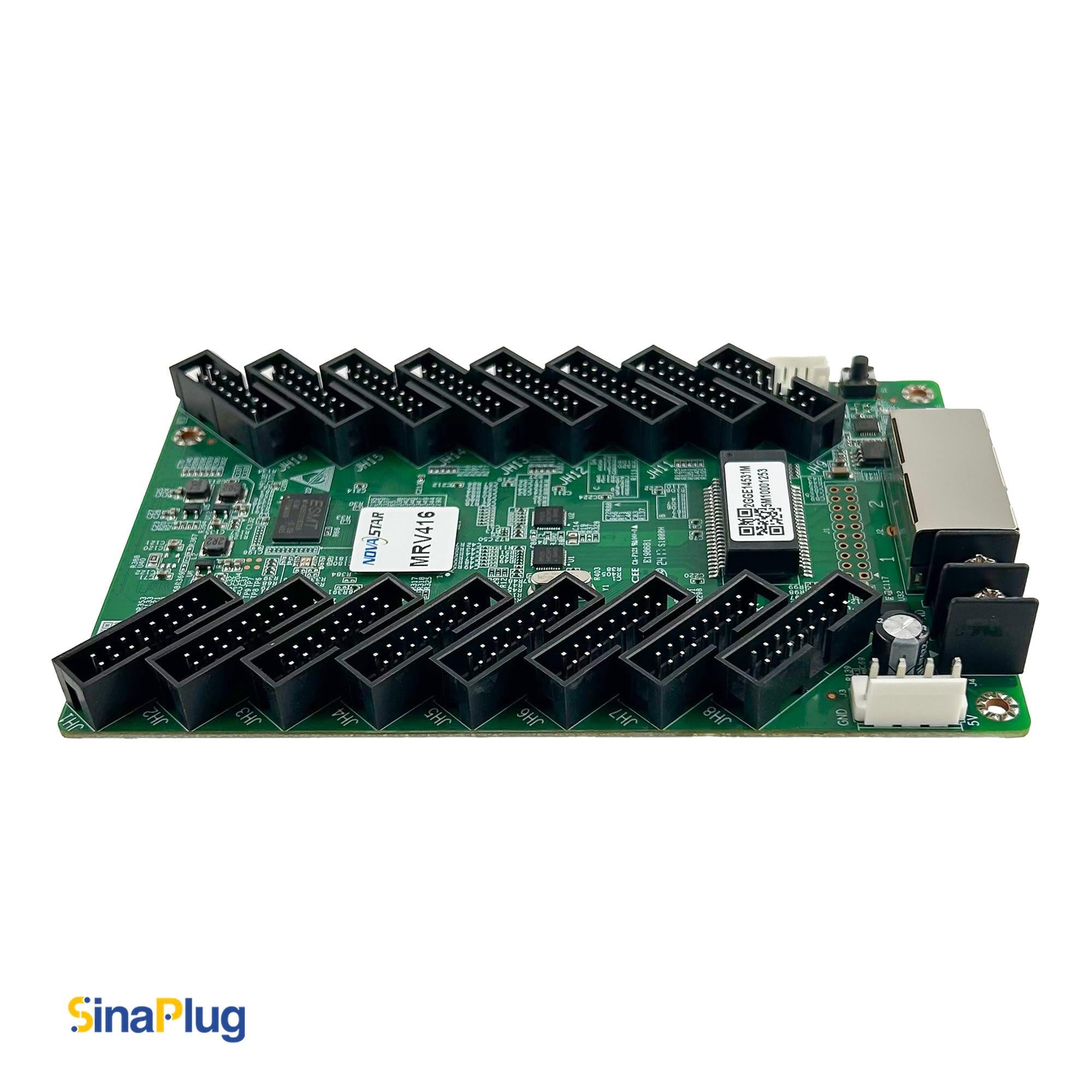

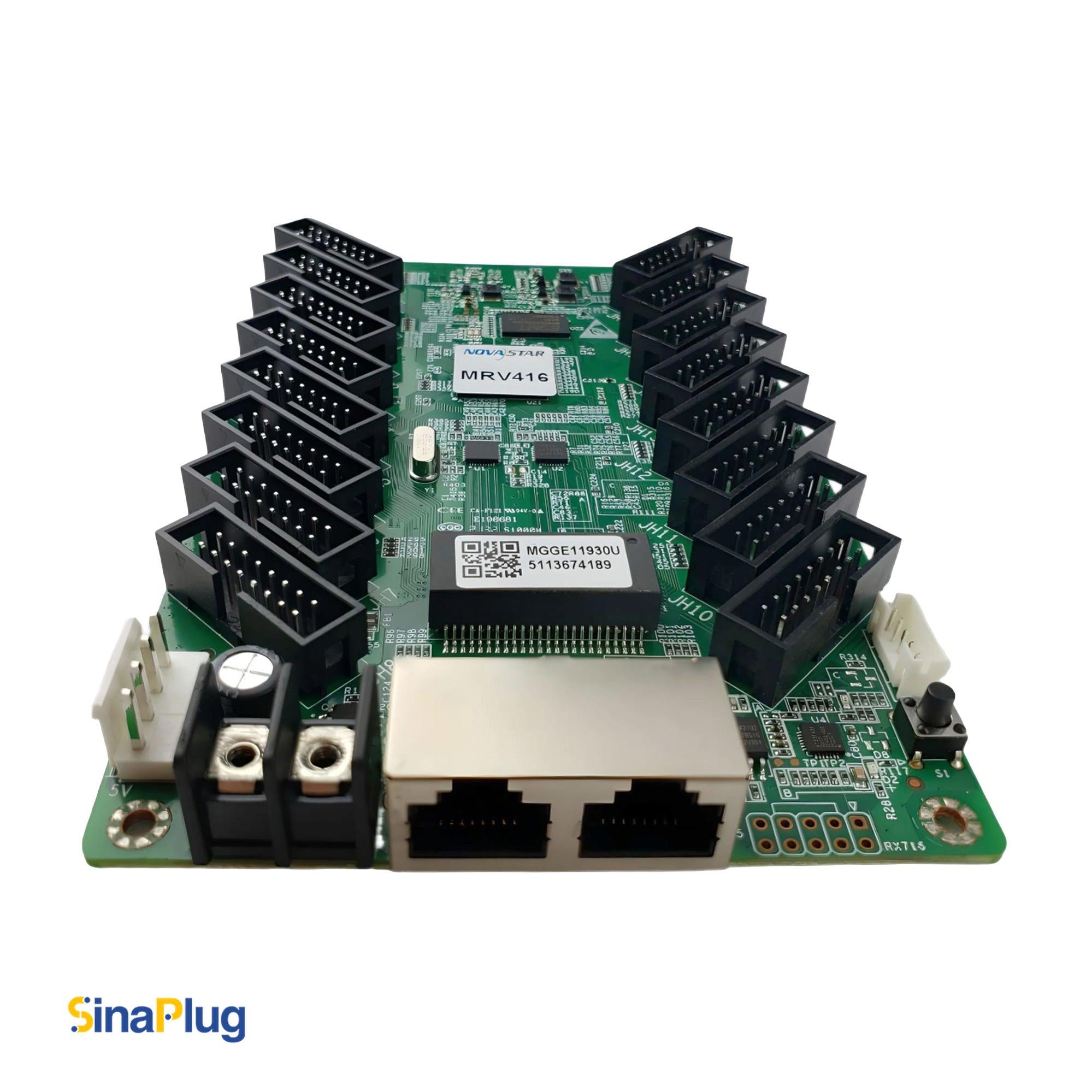

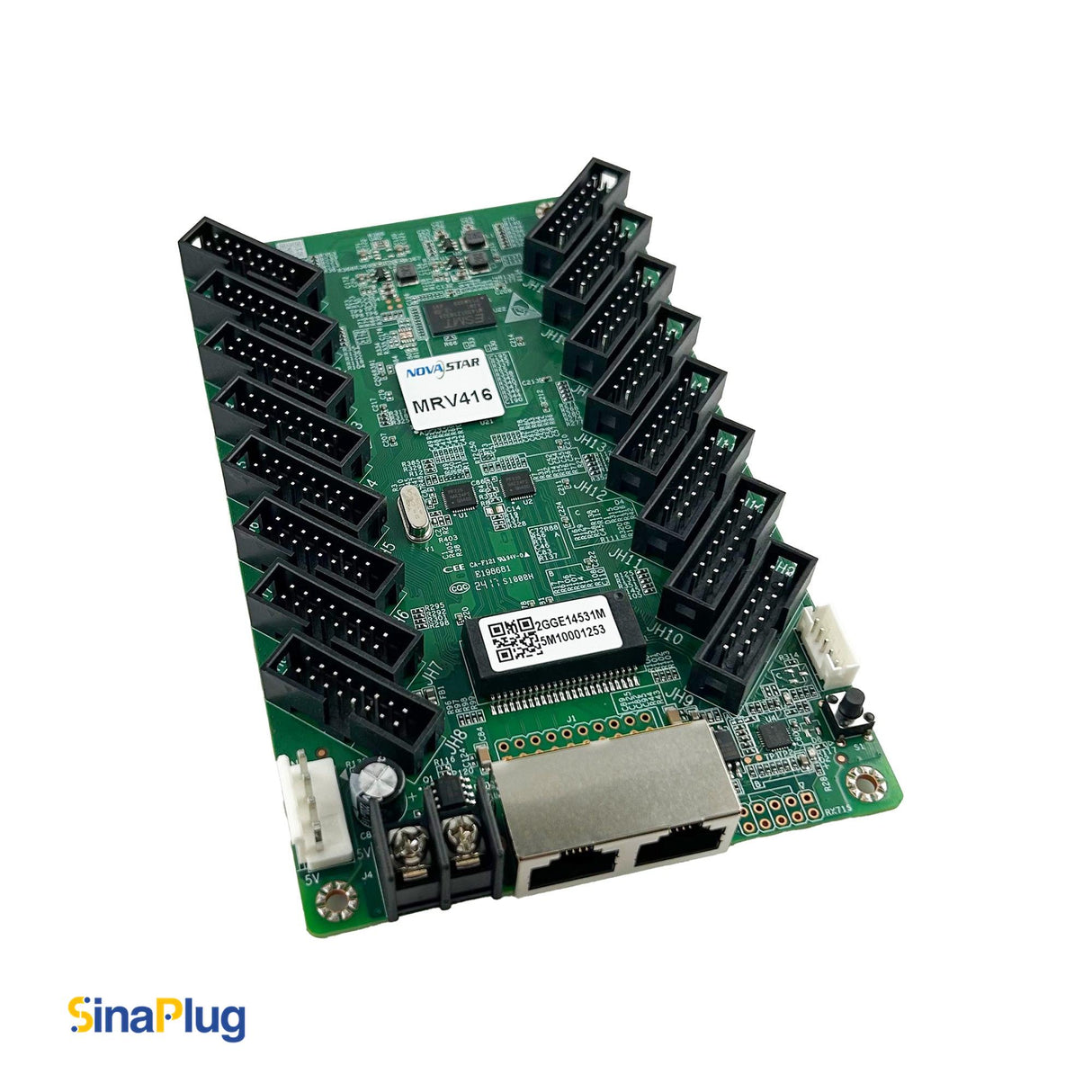

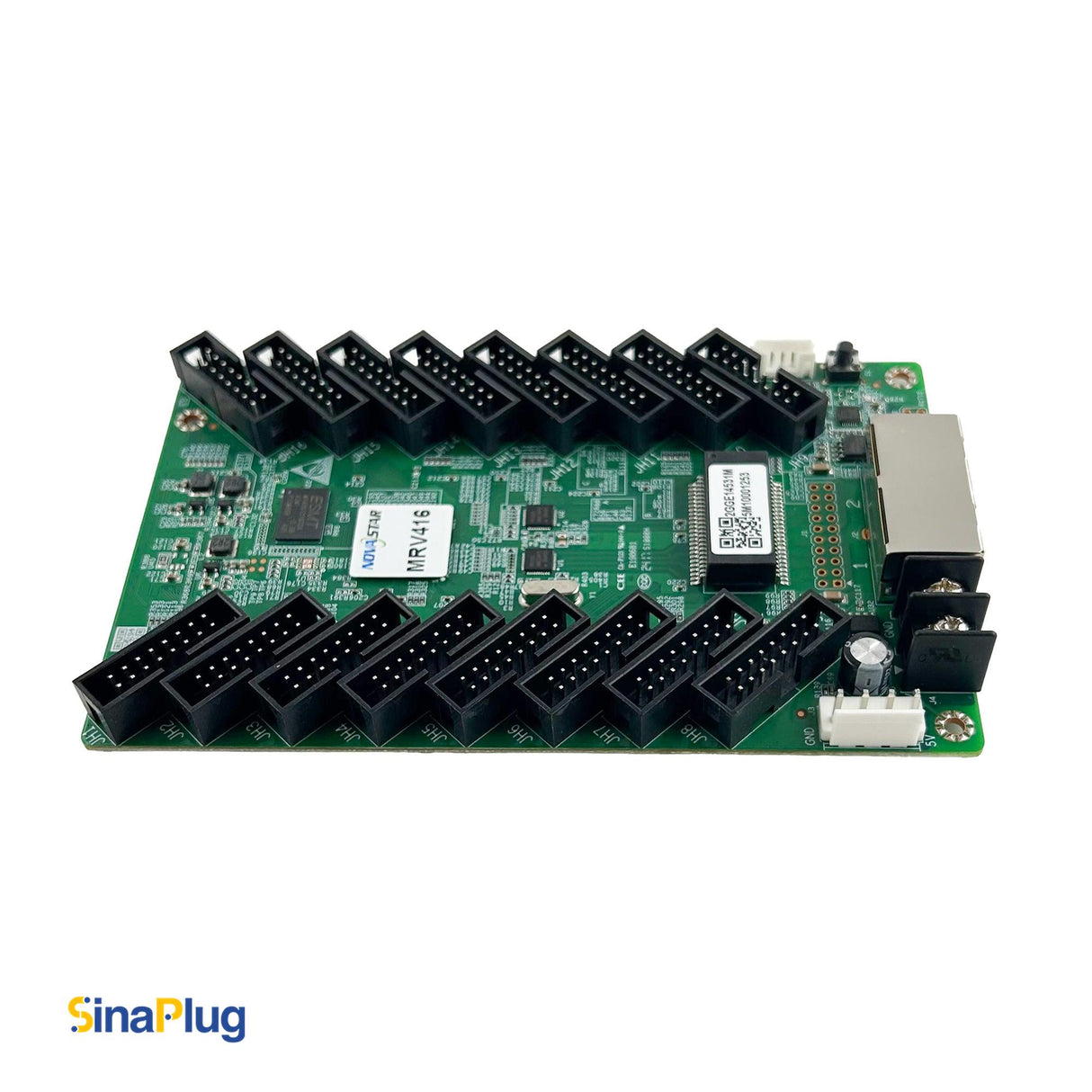

NovaStar MRV416 Receiving Card

AzarPixel is delighted to introduce the NovaStar MRV416 receiving card, designed to deliver excellent performance and stability to your LED screens. The compact receiving card supports a maximum resolution of 512×384 pixels for PWM driver ICs and brings sharp and bright images supporting a variety of usages. It supports up to 32 groups of parallel RGB data with 16 standard HUB75E connectors.

The card has pixel-level brightness and chromaticity calibration and offers accurate gamma correction on every one of the RGB channels. In addition, extra flexibility through the 3D and image rotation (up to 90 degrees) functionalities, and fast correction of light and dark lines on module edges enhances uniformity.

The MRV416 is engineered to withstand temperatures ranging from -20°C to +70°C, as well as dust and vibration. The system is capable of real-time detection of module temperature and voltage when using the MRV416. It also has simultaneous loop backup protection and dual power supply status detection that ensures smooth system operation.

It includes bit error, Ethernet link status, and firmware readback monitoring. The card also quadruples grayscale depth via 18-bit+ processing, minimizing image quality at low brightness for a smoother viewing experience. Additionally, the multi-batch brightness adjustment tool aids in balancing the brightness variations of different cabinets/modules during production, ensuring uniformity.

The MRV416 is ideal for indoor LED installations like retail displays, public boards, and commercial signage. The device also boasts RoHS and EMC Class A certificates.
