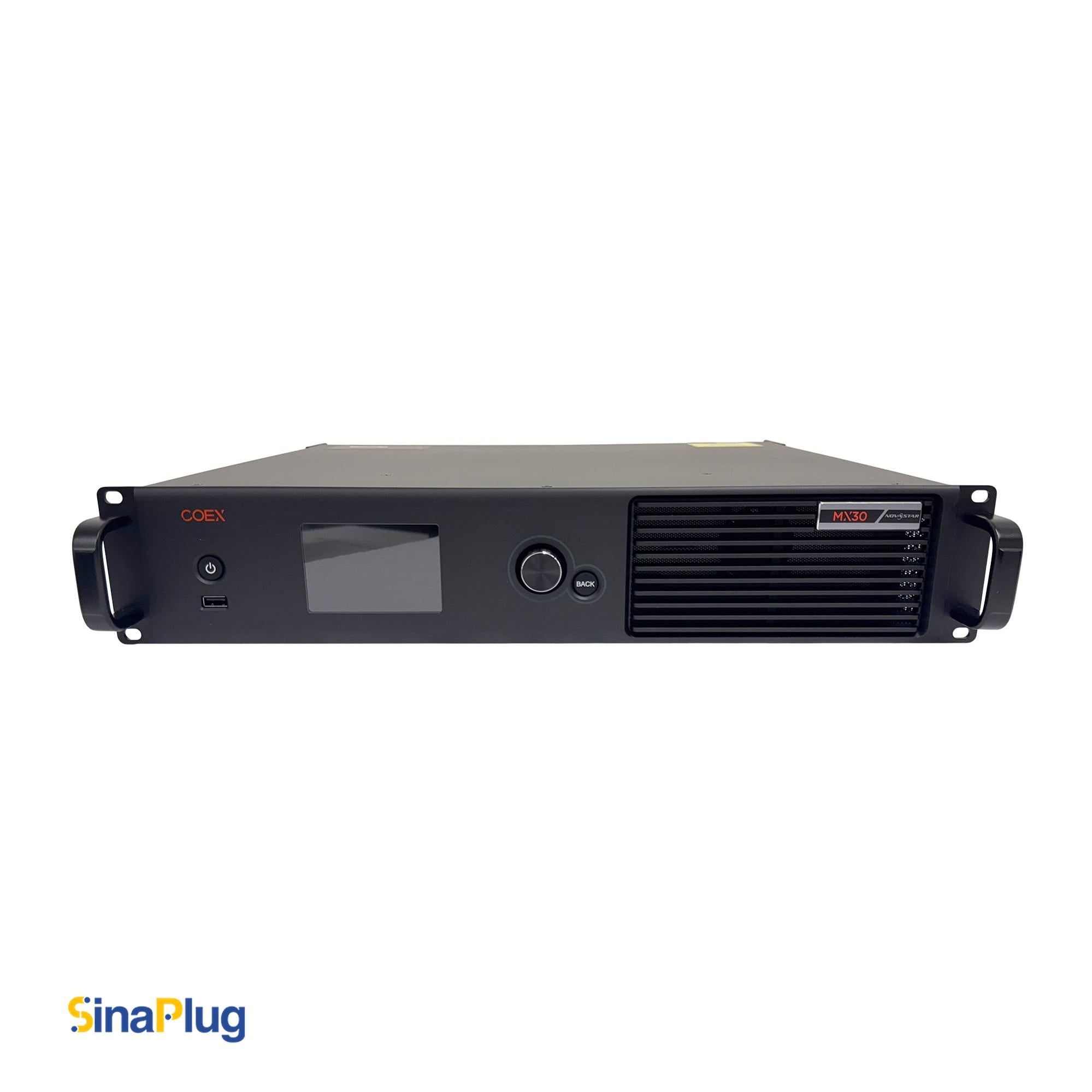

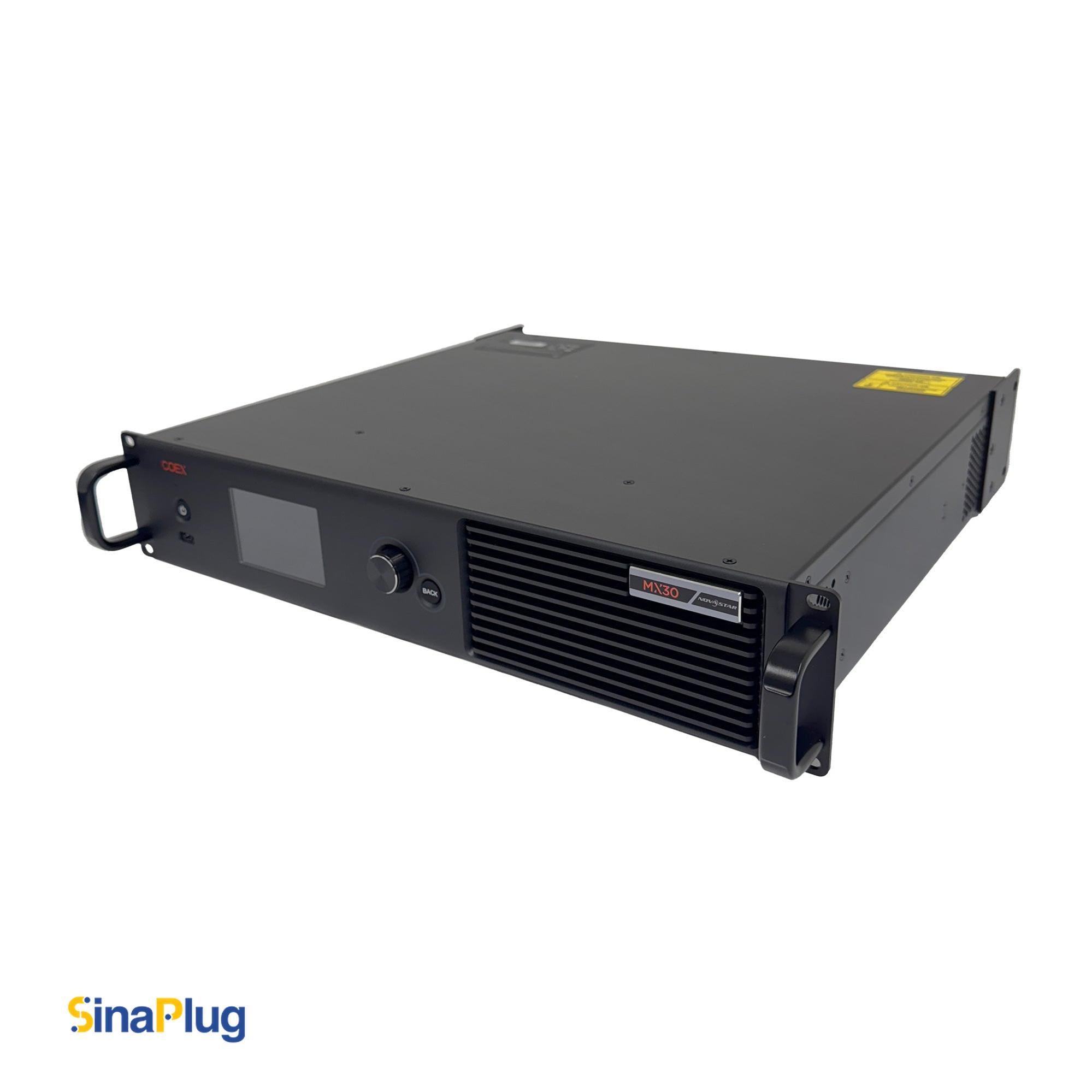

NovaStar MX30 All-in-one LED Display Processor

AzarPixel represents a powerful all-in-one controller within the COEX series, The MX30 combines both controller and processor functions. This combination allows it to handle both data management and video optimization, making it a versatile device for LED display setups.

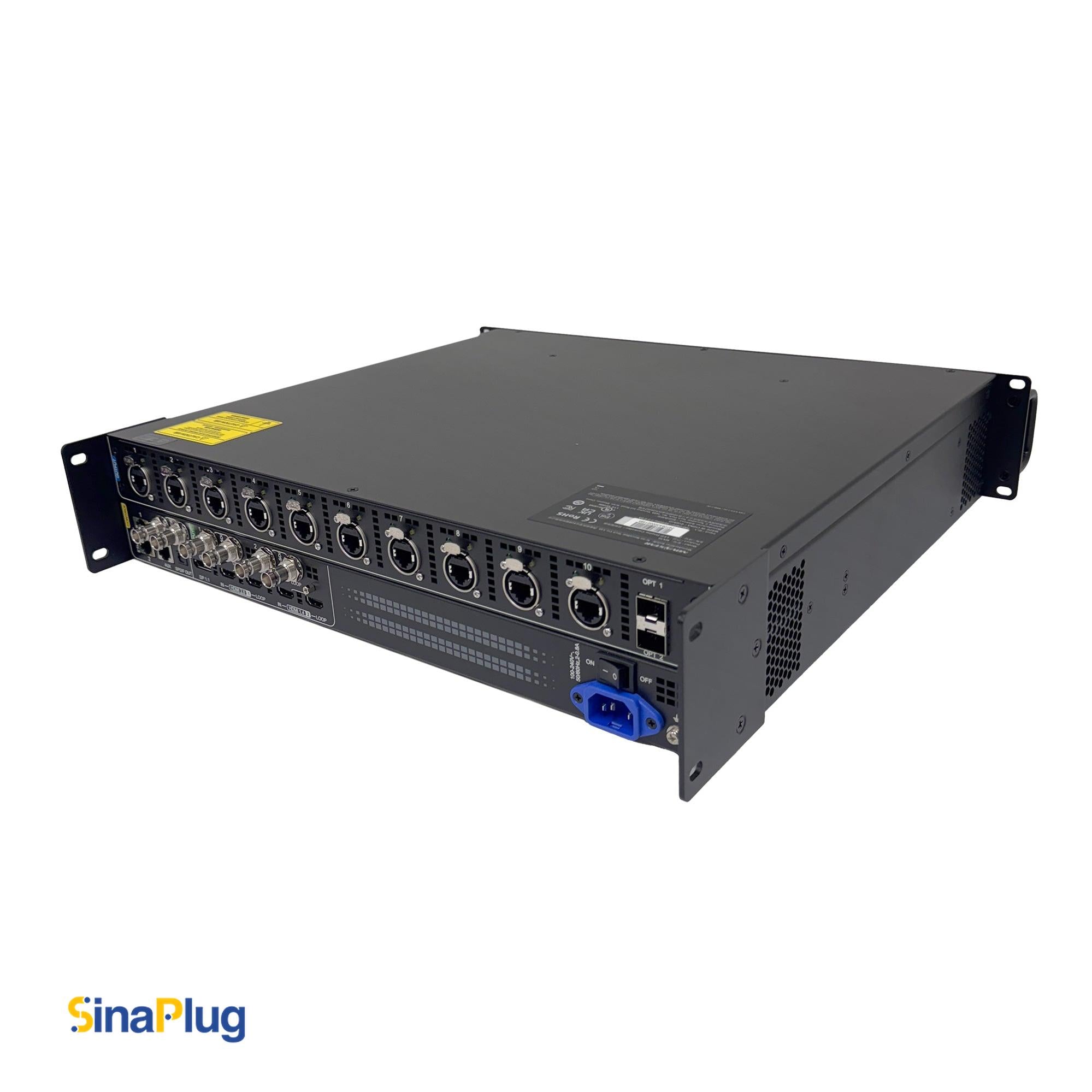

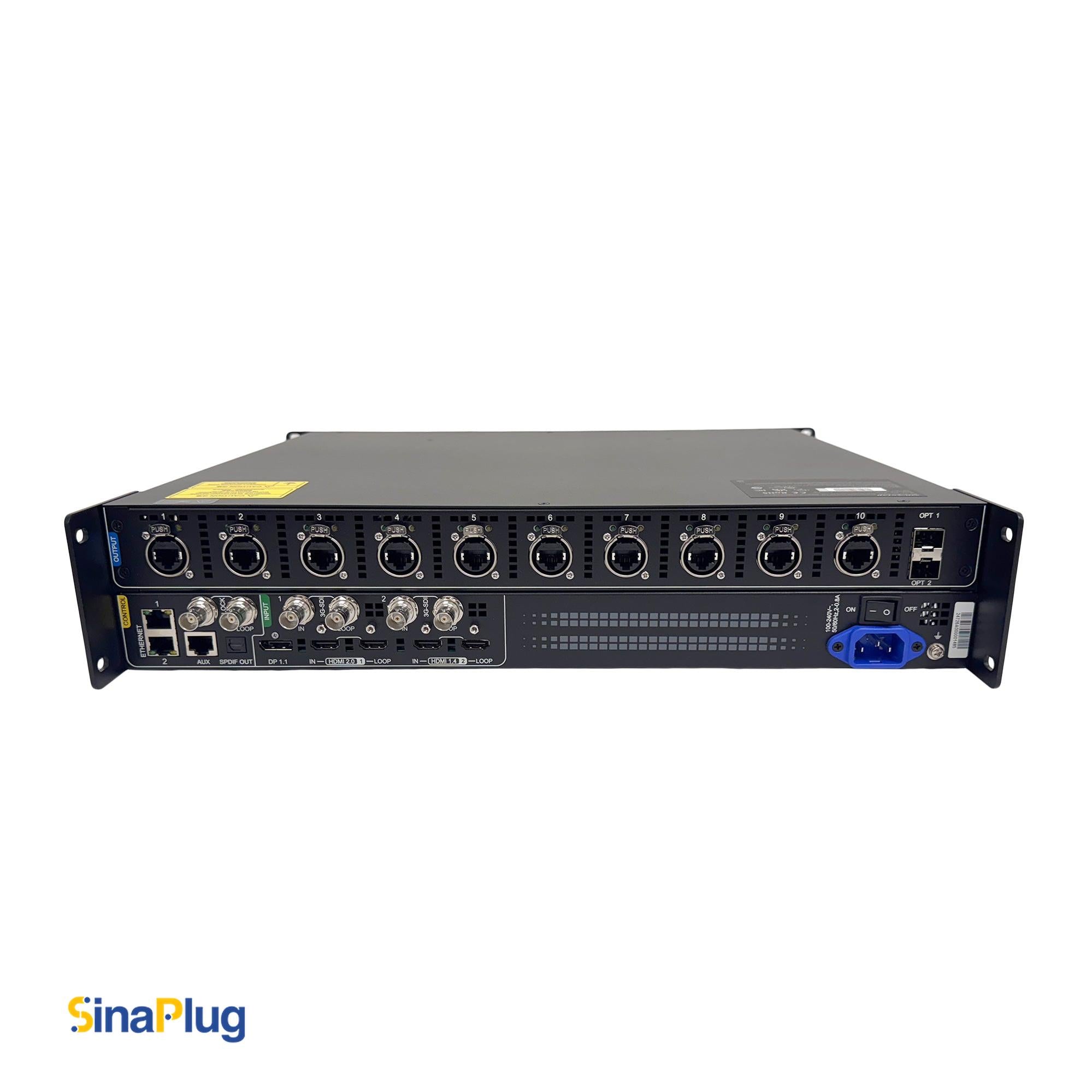

This remarkable controller boasts extensive connectivity, including ten Gigabit Ethernet outputs and two 10G optical ports. It also offers a comprehensive suite of input ports such as, two HDMI (2.0 and 1.4, both with loop-through), a DisplayPort (DP), and two 3G-SDI ports to ensure outstanding clarity and continuous operation for large-scale LED displays

The MX30 supports A10s Pro, A8s, A8s-N, and A5s Plus series receiving cards and may leads the VX1000 in some advanced applications by offering additional advanced features such as HDR support (HDR10 and HLG), full grayscale calibration, and frame rate adaptive functionality (only when paired with A10s Pro receiving cards).

Additionally, while both are well known for their 6,500,000 pixel loading capacity, the MX30 supports input resolutions up to 4K×2K@60Hz and custom resolutions of up to 8192 pixels in width or 7680 pixels in height providing significantly more clear and detailed visuals than VX1000.

It also comes with many modern features such as 14Ch color correction, low latency, High-bit-depth inputs (8bit/10bit), and even can handle and optimize creative, architectural, and irregular LED installations that are not limited to standard rectangle displays.

Thanks to powerful and user-friendly VMP management software support the controller simplifies controlling complex or larger installations by supporting device cascading via HDMI/SDI loop (up to 8 devices) outputs or the Auxiliary interface (connects to the central control device). Additionally, GENLOCK IN-LOOP connectors guaranteeing all devices are precisely synchronized to a single reference.

Cascading (up to 20 devices) is also possible thanks to Ethernet ports with TCP/IP protocol and star topology (without priority and order), without any additional needs to any kinds of network switches or routers.

The MX30's FCC, CE, IC, UKCA, and PSE certifications ensure flawless continuous operation. Additionally, it performs perfectly in extreme ambient temperatures among -20°C and +50°C whenever powered via a 100-240VAC input voltage consuming maximum power of 55W.

This device can be connected to the VMP software to provide easy and convenient operations and smart device management providing stunning image quality, precise color adjustment, and an intuitive software experience. This stands for a new method for managing high-end rental and fixed applications such as, live events, studio broadcasting, Olympic Games, touring, corporate events, virtual production, and E-sports.
