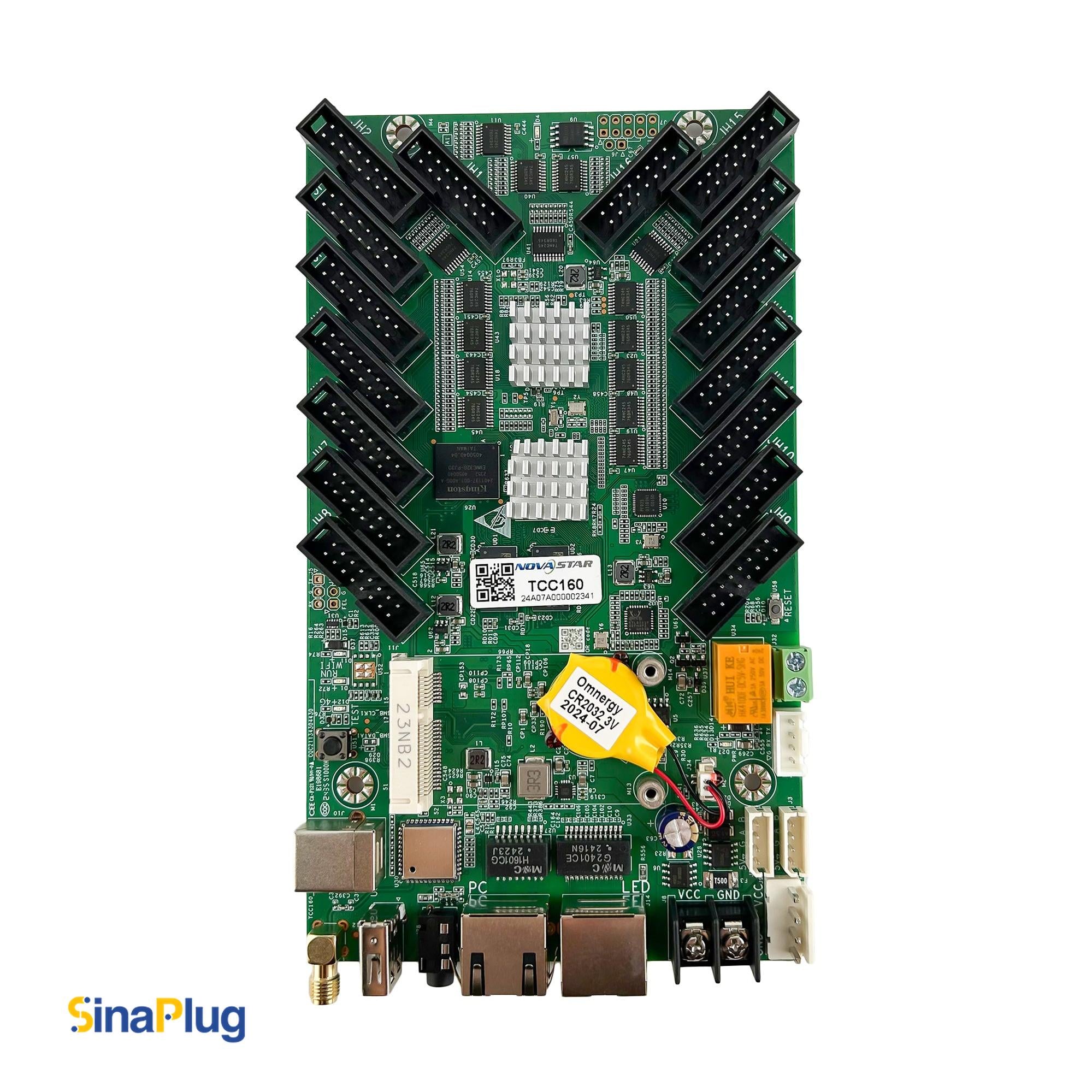

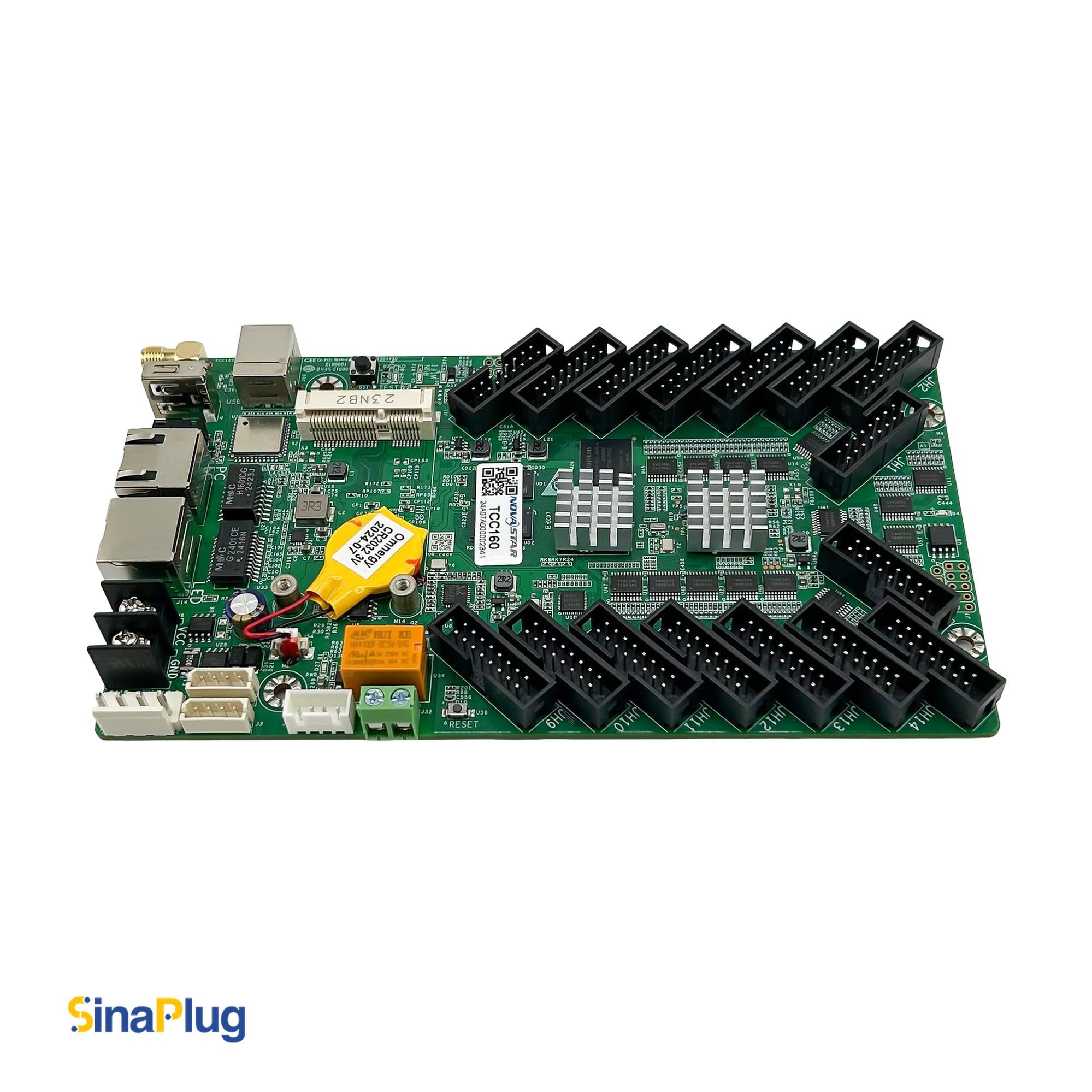

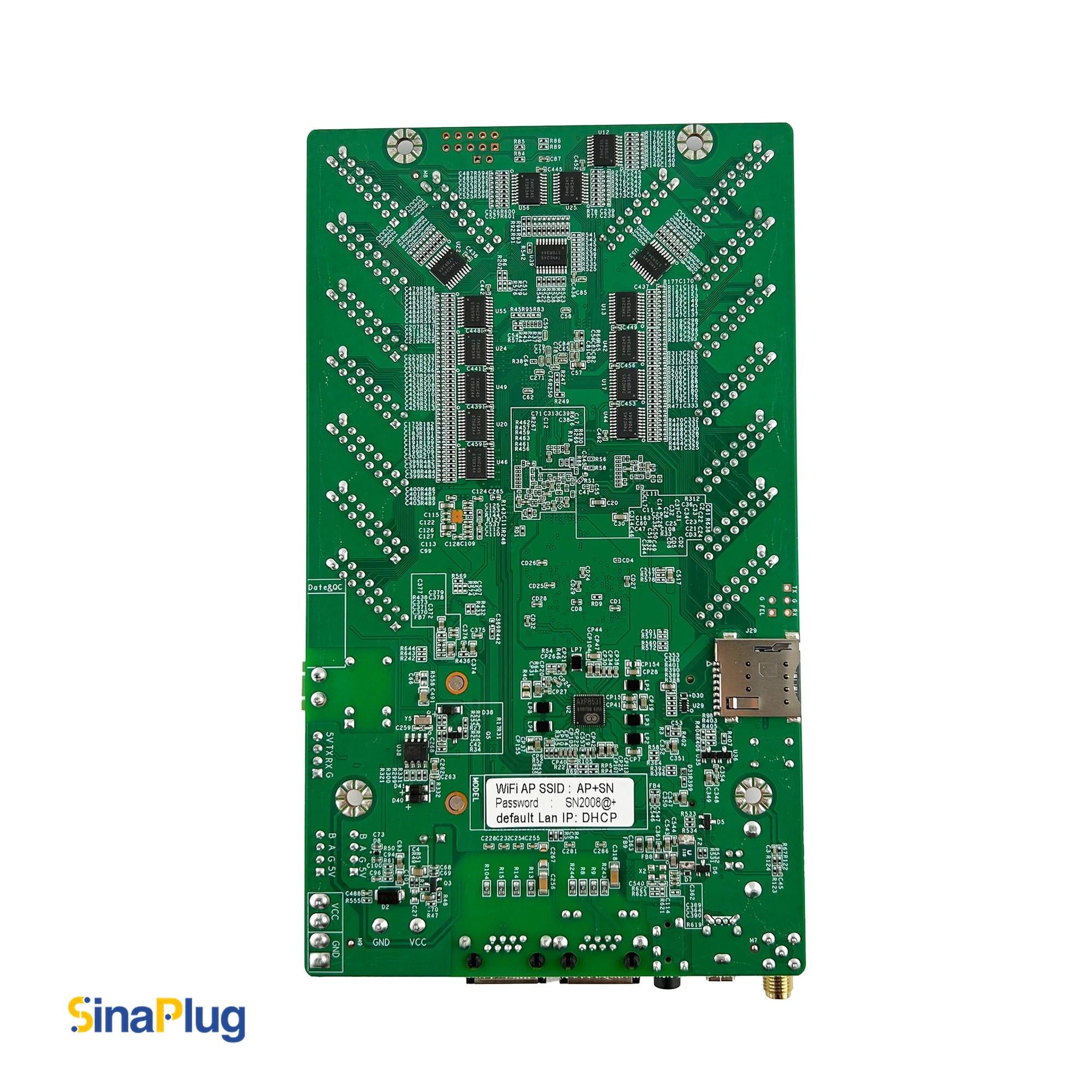

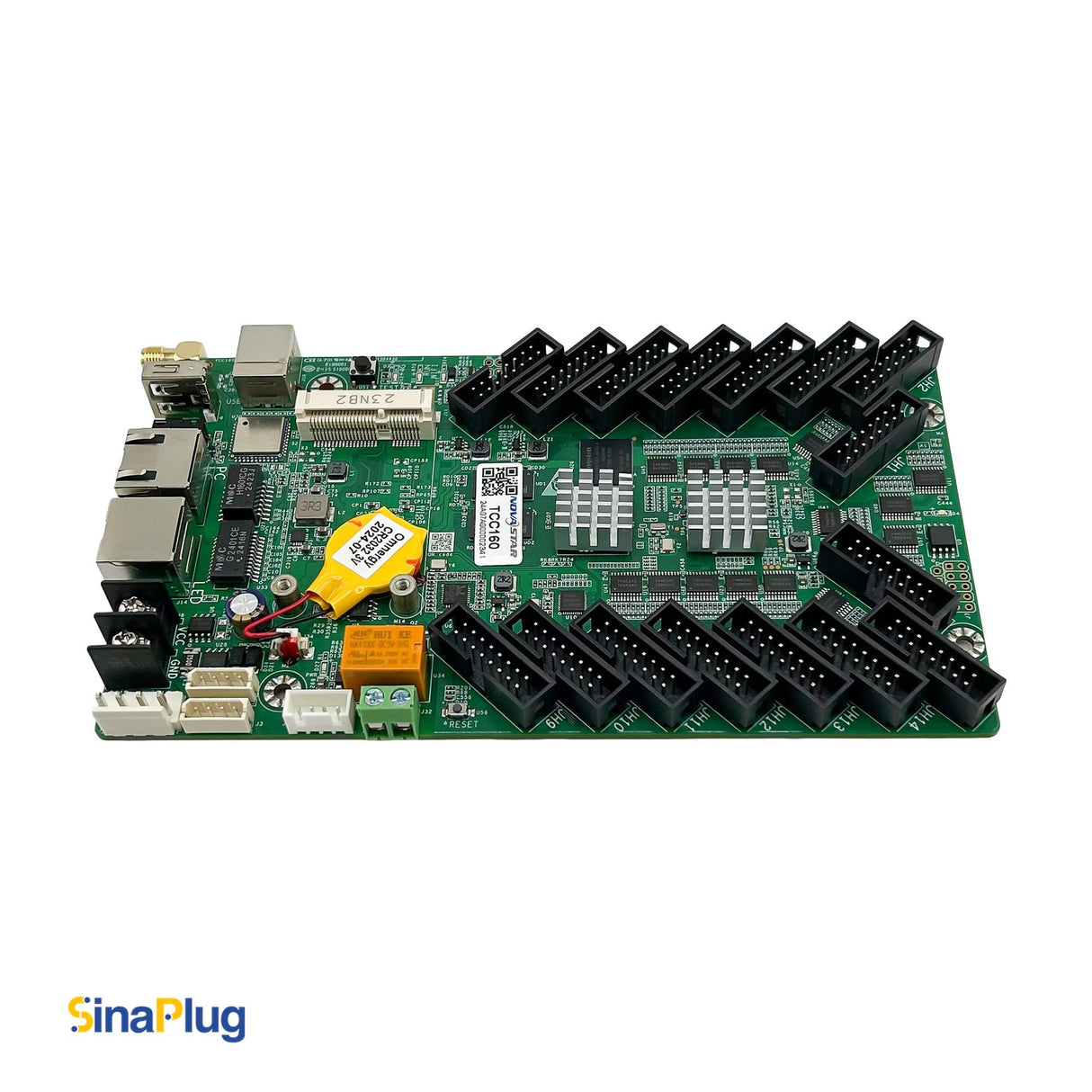

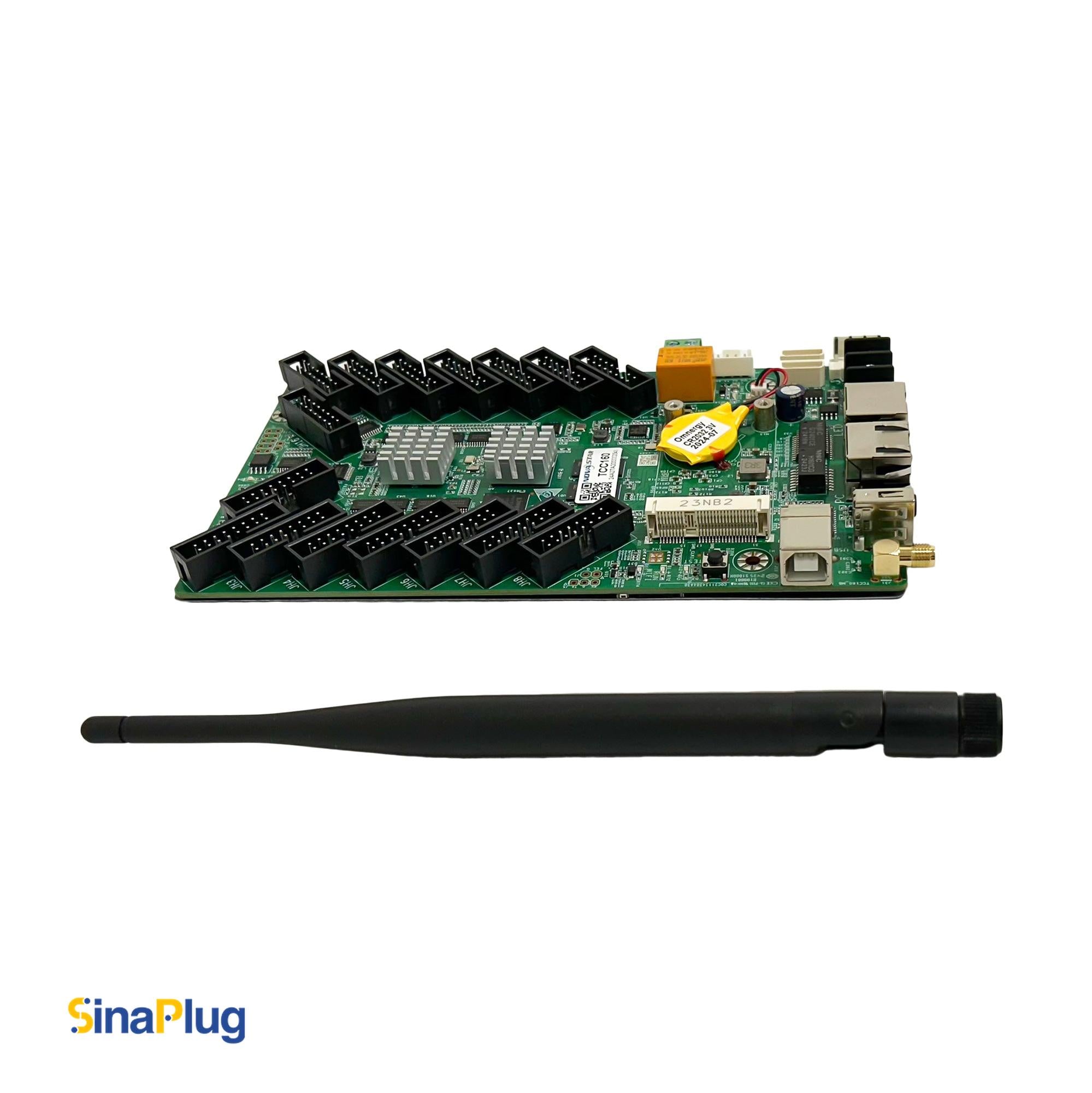

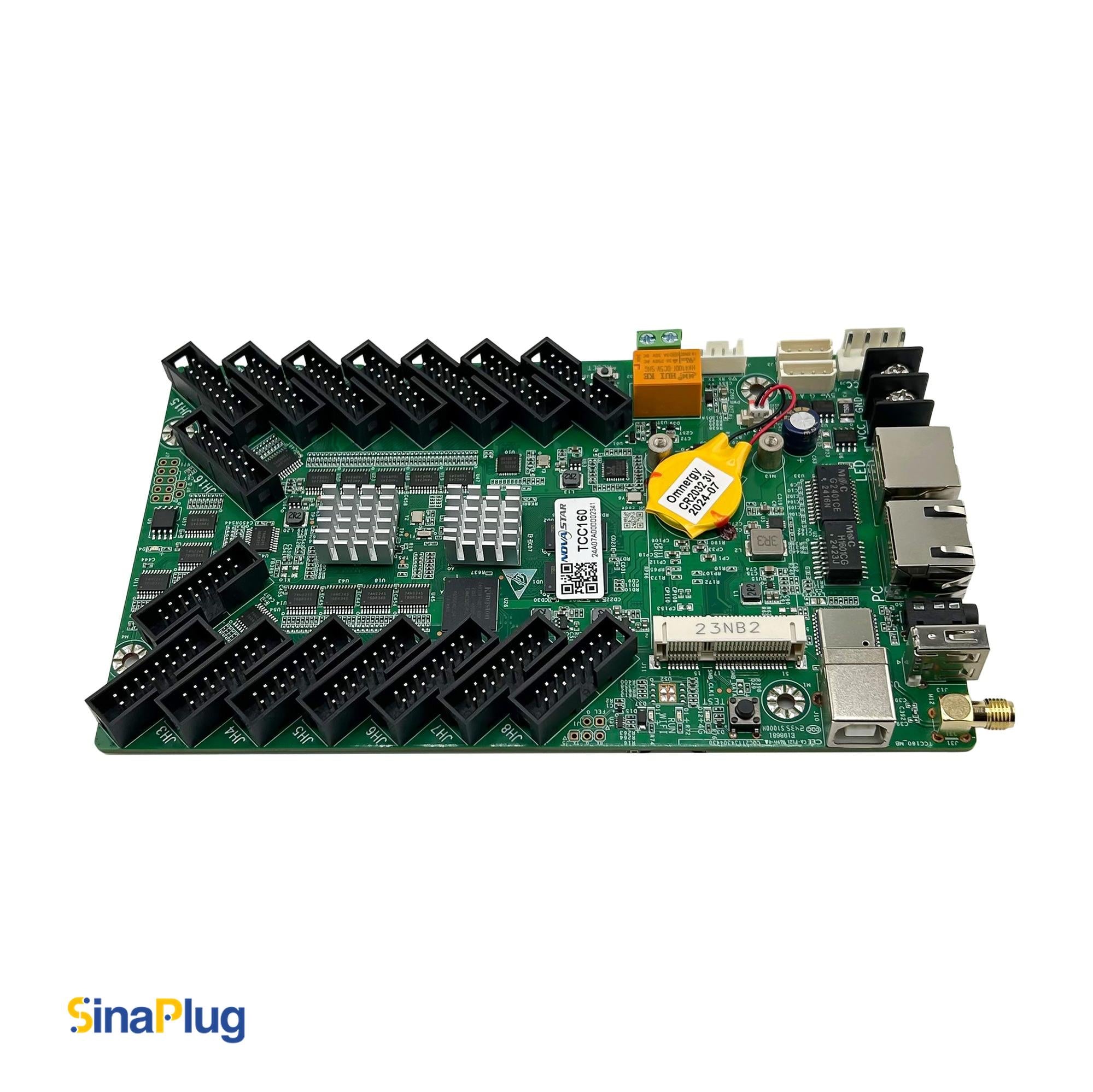

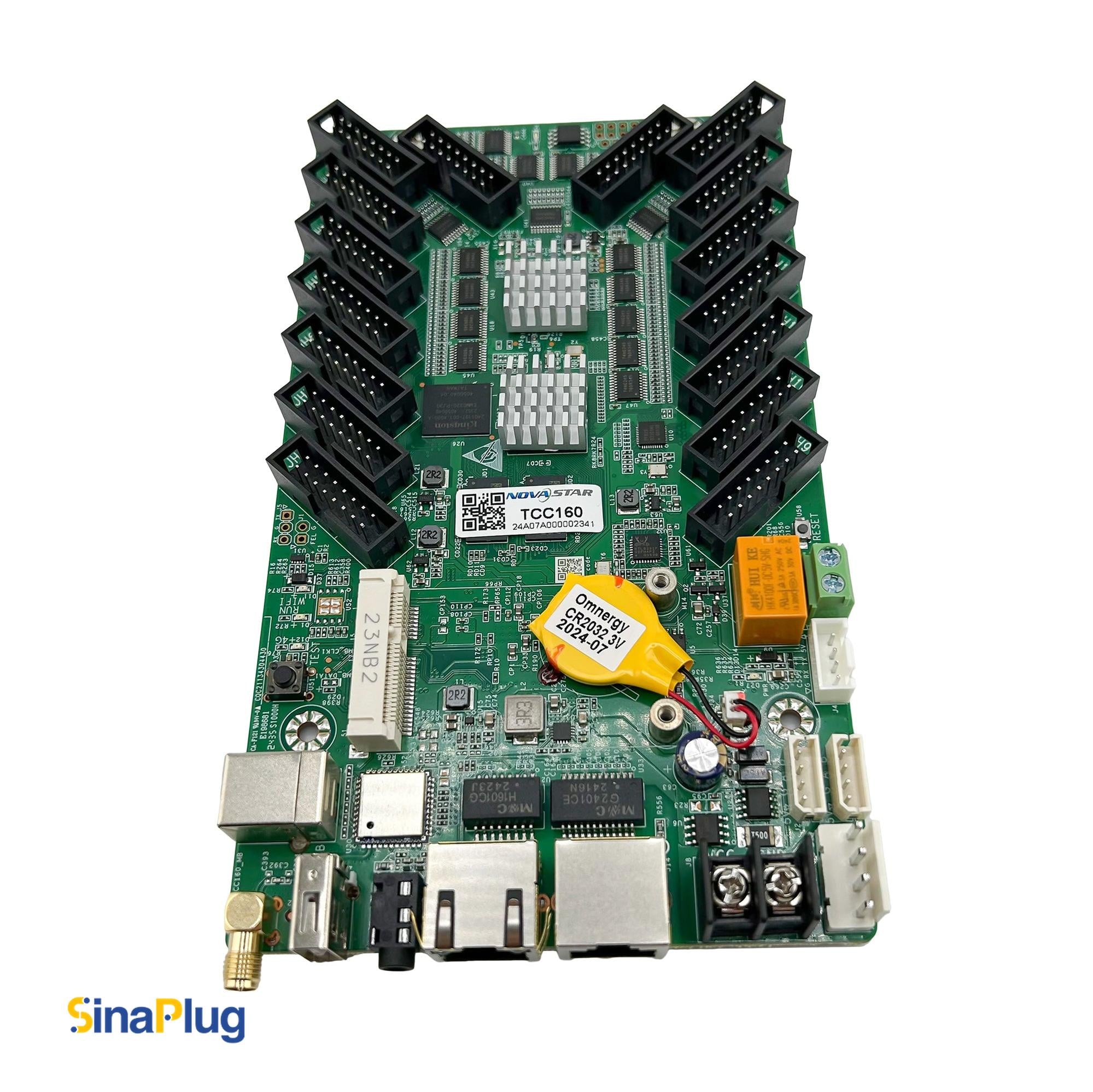

NovaStar TCC160 Asynchronous LED Display Control Card

$110.00

Discover the NovaStar TCC160 now at AzarPixel. This powerful asynchronous full-color LED display control card integrates the functions of sending and receiving content. This card empowers users to publish content and monitor the equipment status via the cloud. Users can control LED displays from computers, mobile phones, or tablets anytime and anywhere as long as these devices are connected to the Internet.

It features 16 HUB75E ports for use with various LED modules. Thanks to the compact and integrated design, this card is suitable for applications that have lower pixel capacity requirements, such as storefronts, vehicle-based, community, and lamp-post displays.

Powered by a quad-core 1.4 GHz industrial-grade processor, it provides hardware decoding support for 4K video, in addition to 2GB of RAM and 32GB of internal storage for more demanding multimedia playback. The TCC160 supports playback of 1x 4K, 3x 1080p, 8x 720p, 10x 480p, or 16x 360p video streams without any issues according to your visual complexity requirements.

Synchronous playback on multiple screens (NTP and GPS time sync methods) and both Wi-Fi AP and STA modes simultaneously for wireless network versatility. Additionally, optional 4G modules can be integrated for cellular connectivity (sold separately). Environmental and operational safeguards are in place, with CE, FCC, RoHS, and TBK certifications ensuring compliance and reliability.

Key Features of TCC160

Loading Capacity

  • Up to 512×512 pixels @60Hz for PWM driver ICs
  • Up to 512×384 pixels @60Hz for common driver ICs
  • Maximum cascaded capacity up to 650,000 pixels
  • Ultra-long screen support with a max width of 8192 pixels or a height of 2560 pixels

Output

  • 16x HUB75E connectors for LED modules (Up to 32 groups of parallel RGB data or 64 groups of serial data, expandable to 128 groups of serial data)
  • 1x Gigabit Ethernet LED output port only for cascading receiving cards
  • 1x Stereo audio connector

Input

  • 2x RS485 ports (for light, temperature/humidity sensors, or other modules)
  • 1x USB 2.0 Type A port (for firmware upgrade, USB playback, and storage expansions up to 128 GB)

Control

  • 1x Fast Ethernet port (for network or control computer connection)
  • 1x USB Type B port (connects to control computer for publishing and display control)

Performance

  • Quad-core industrial-grade processor @1.4 GHz
  • Hardware support for 4K video decoding
  • 2 GB RAM for smooth multitasking
  • 32 GB internal storage for content and system files
  • Ultra-long-screen content playback

Decoding

  • Supports following file formats:
  • Image: JPG/JPEG/BMP/GIF/PNG
  • Audio: MP1/ MP2/ MP3/ WMA/ WAV/ OGG/ OGA/ FLAC/ AAC/M4A/ 3GP/ XMF/ MXMF/ RTTTL/ RTX/ OTA/IMY
  • Video: MKV/MOV/MP4/TS/AVI/3GP/WEBM/MPEG-PS/MPEG-TS/ASF/WMV/FLV

Functionality

  • Simultaneous Wi-Fi AP and STA modes for flexible wireless control and networking
  • Synchronous playback with NTP and GPS time synchronization
  • Optional 4G cellular modules supported (Optional)
  • Supports GPS positioning
  • Individual Gamma adjustment and color management
  • Image rotation in 0°, 90°, 180°, and 270° steps
  • Real-time temperature and voltage monitoring
  • Bit error detection with network communication monitoring
  • Firmware and configuration parameter readback with dual program backup for stability
  • Supports display of 3-color 16 pixels serial input of PWM chips

Dimensions (L*W*H)

  • 181mm * 102mm * 20mm
