LEERS  |  SKU: LAC-LEE-LEERSL1L2x-0

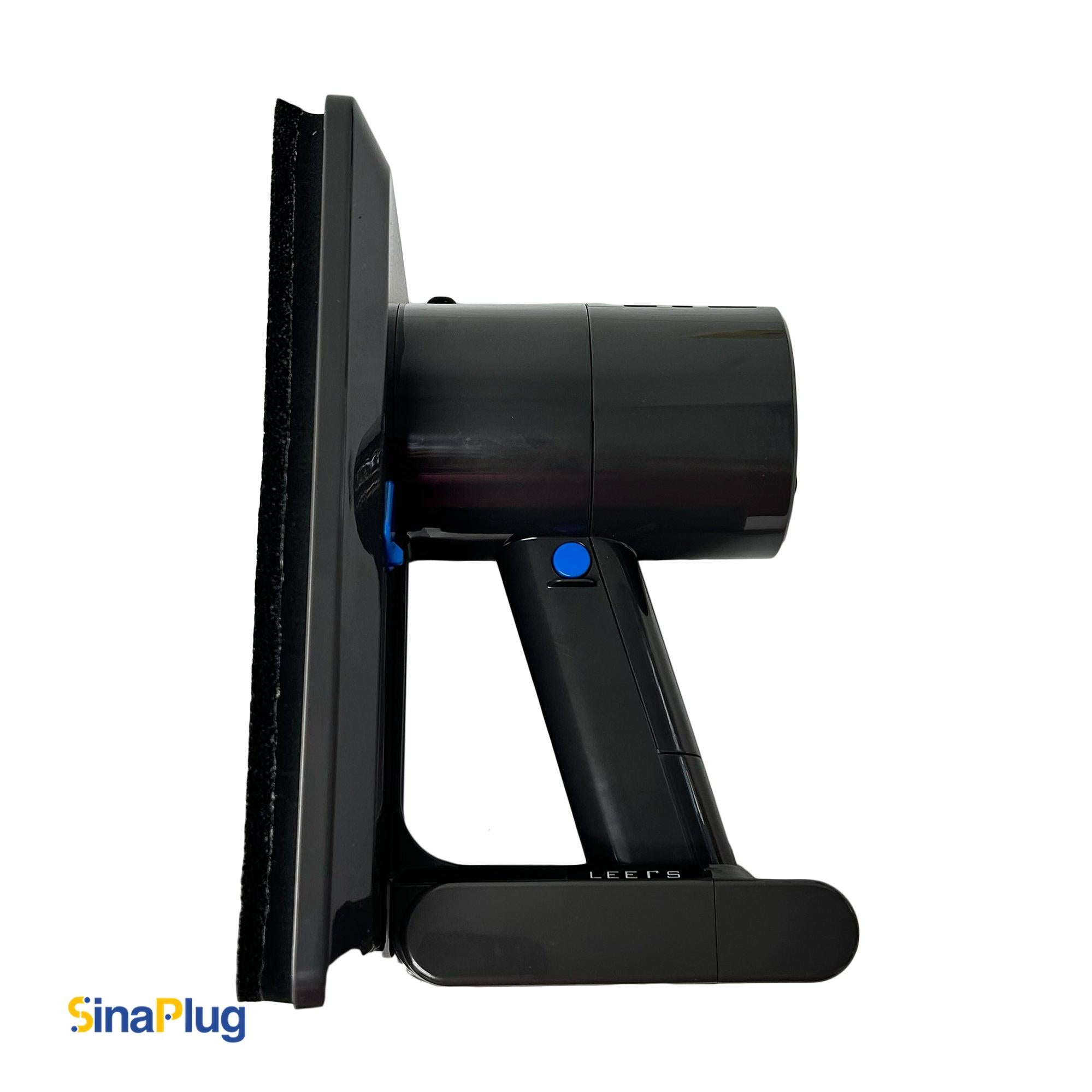

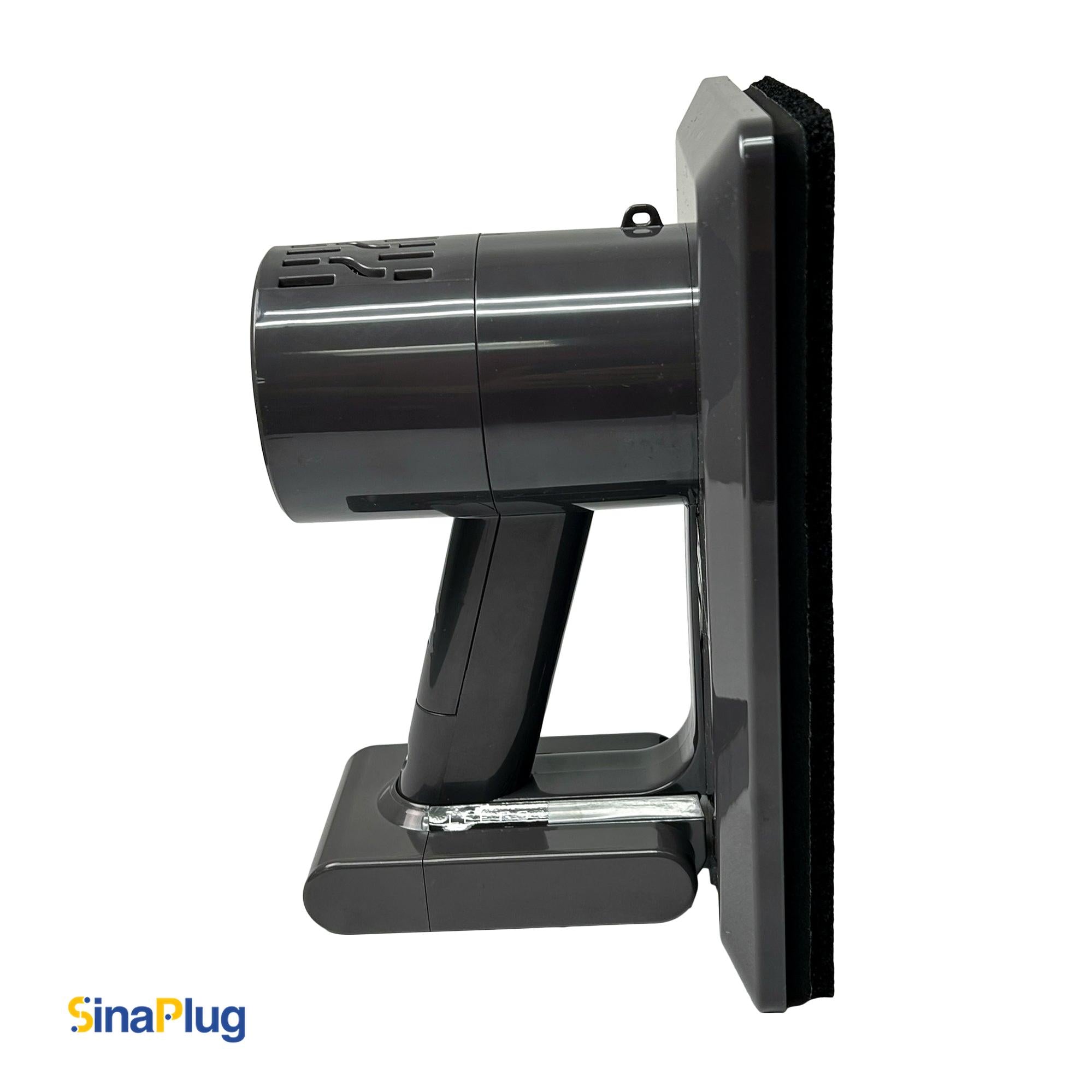

LEERS L1L2 Module Vacuum Suction Maintenance Tool

$244.40
US Stock Same-day shipping or store pickup
Easy Returns 60-day no-questions-asked return
Tech Support Free online technical assistance

The LEERS L1L2 Module Vacuum Suction Maintenance Tool is a versatile and reliable device designed for the safe removal and handling of LED display modules. It uses a vacuum suction pad to create a seal on flat surfaces, making it ideal for lifting and moving LED modules with accuracy and minimum risk of damage. The tool is suitable for a wide range of indoor LED modules and is engineered to support efficient maintenance work in demanding conditions.

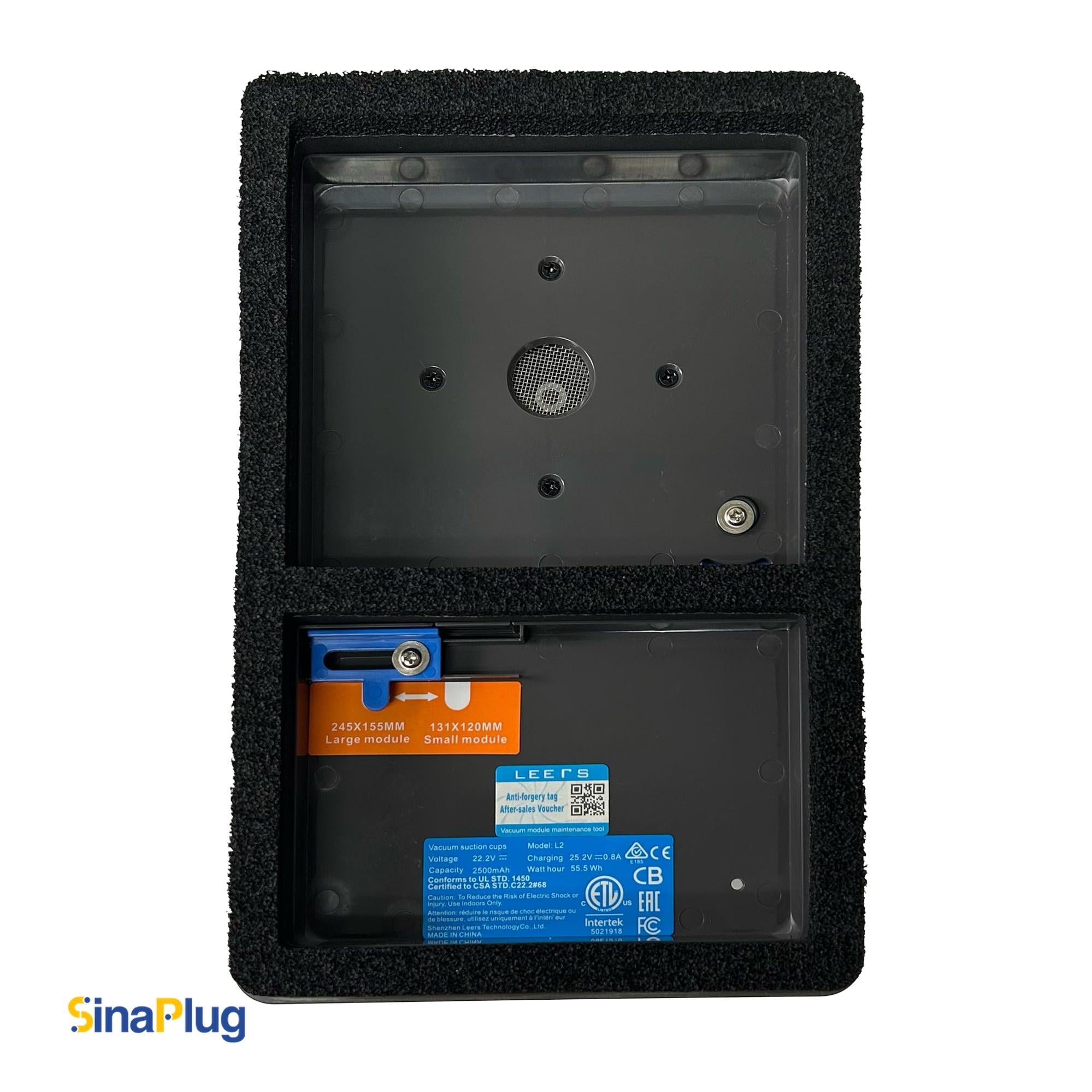

The L1L2 suction cup with 245×155 mm vacuum area, can be used for both large and small LED modules through an adjustable ventilation switch. When it is turned to the left, the surface area increases, and the tool is optimized for larger modules (up to 500×500 mm). When the ventilation switch is closed (in the right position), the suction area is reduced and the tool becomes suitable for smaller modules (131×120 mm), giving technicians one tool that covers most common LED module sizes.

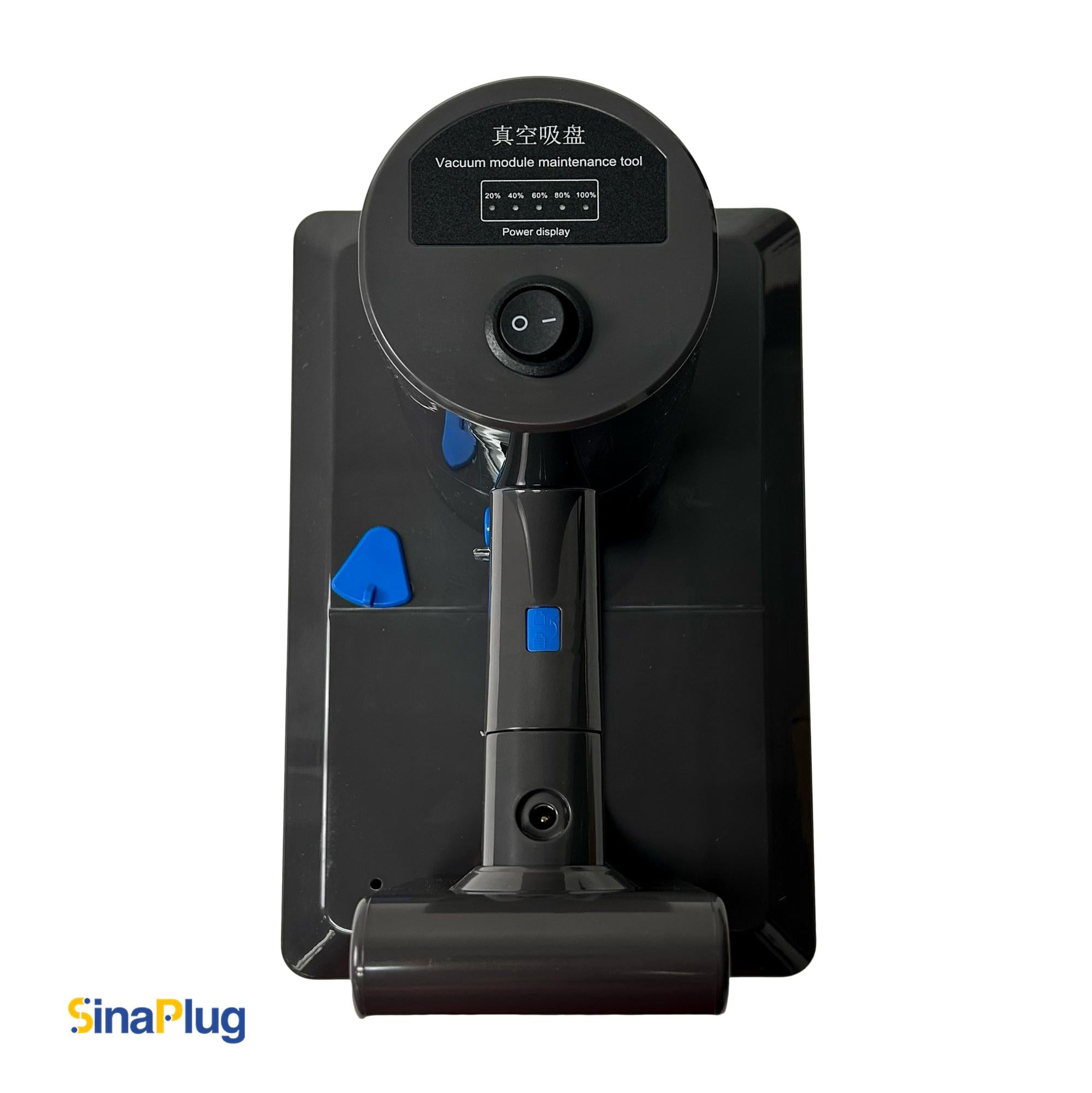

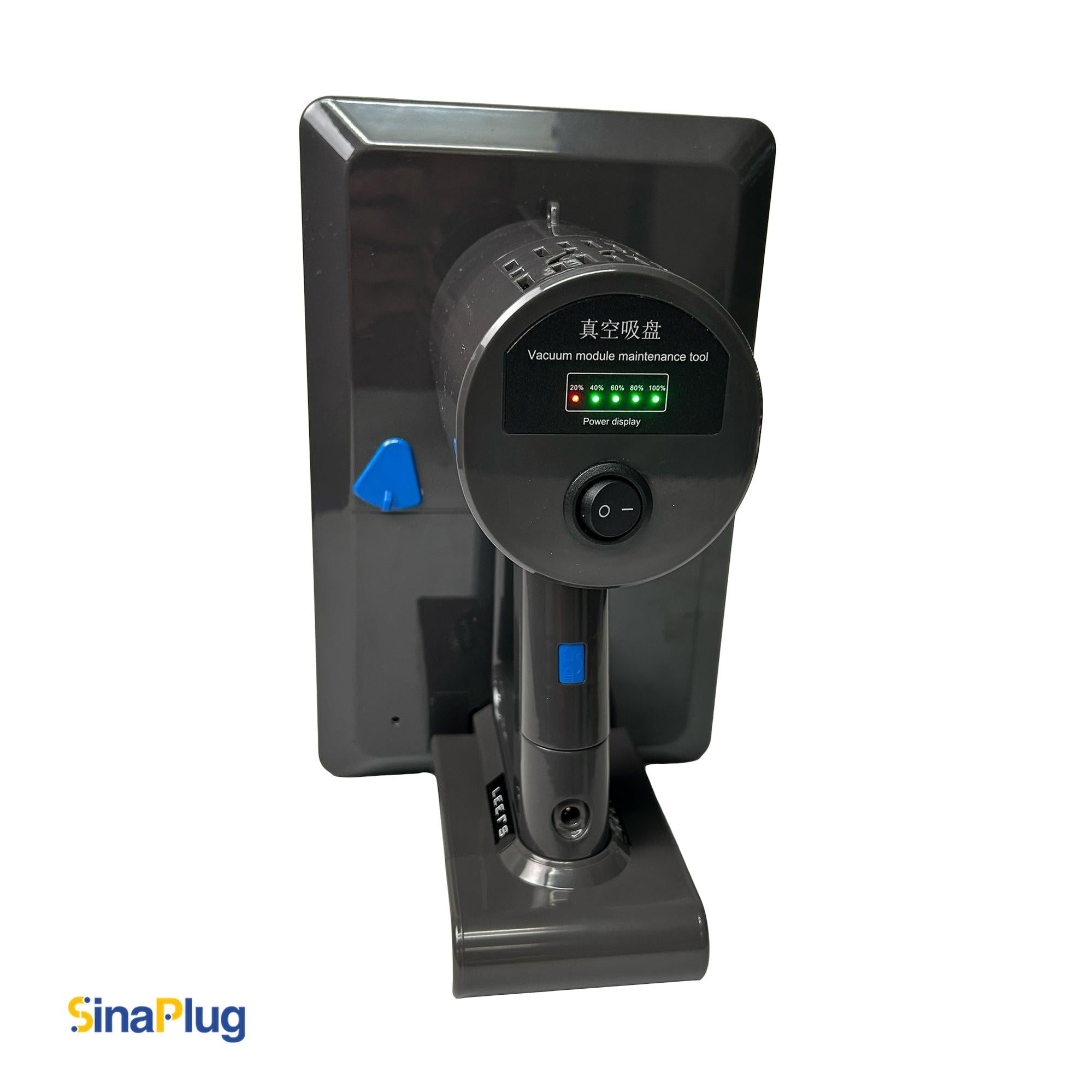

Equipped with a 2500mAh battery and a regulating valve, the L1L2 allows users to fine‑tune suction force according to module type. Its ergonomic structure and light 1.1 kg weight make it comfortable to operate, while EVA contact pads protect LEDs during attachment. The built‑in power indicator displays battery status, and the device works reliably in ambient temperatures from -10°C to +60°C, making it suitable for a variety of installation environments.

Key Features of LEERS L1L2 Vacuum Tool

  • Vacuum Suction Cup Dimension: 245×155mm
  • Available Module Size: Dual‑range suction cup usable for both small and large LED modules via an adjustable ventilation switch (approx. 131×120 mm to 500×500 mm coverage range).

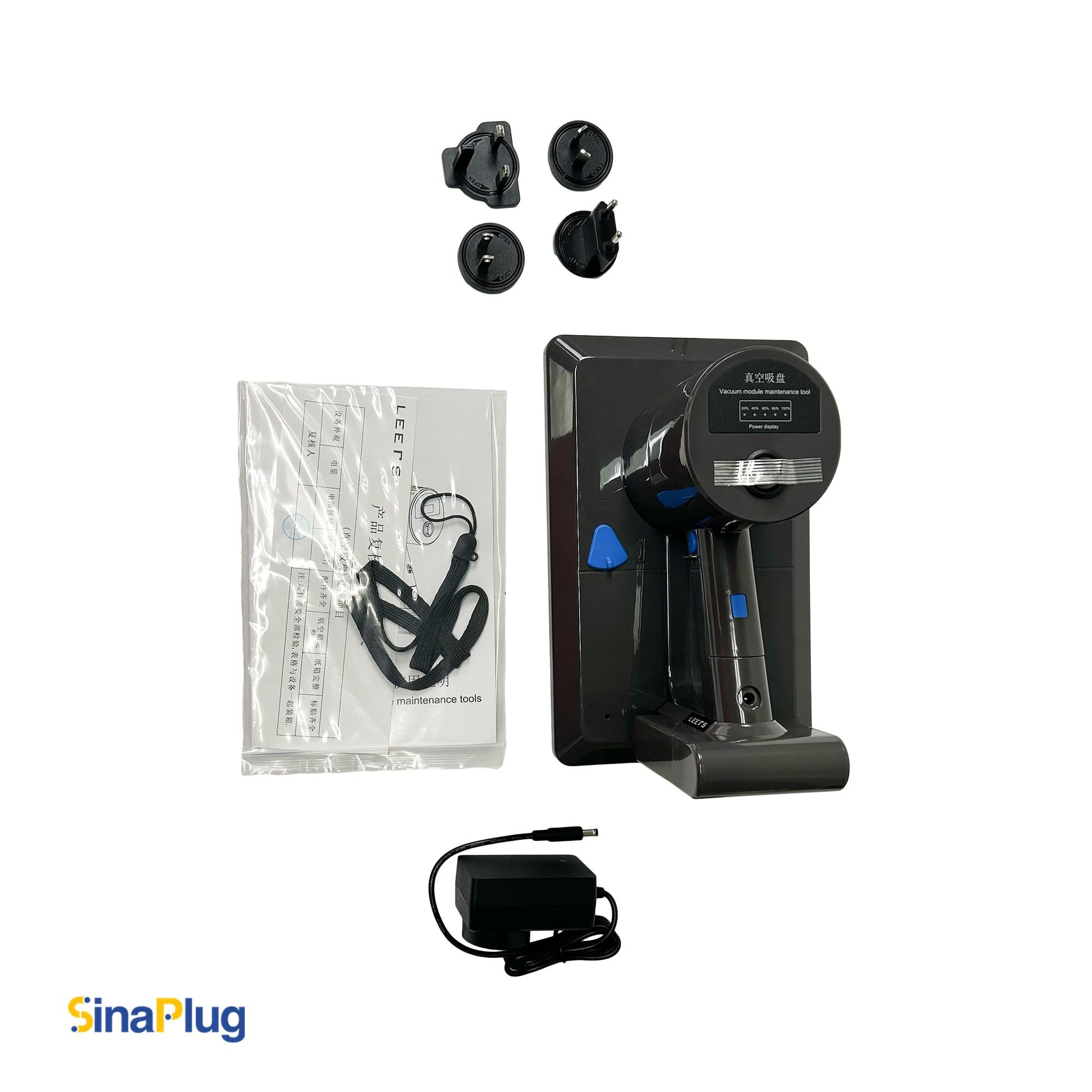

  • Charger Input Voltage Range: 100-240VAC, 50/60Hz, 0.8A
  • Charger Output Voltage Range: 25.2VDC, 0.8A
  • Maximum Power Consumption: 300W (Max:350W)
  • Battery Capacity: 2,500mAh, 55.5Wh
  • Working temperature Range: -10 to 60℃
  • Functionality: Adjustable suction force through a regulating valve to match different module weights and surface conditions, EVA contact surface for lamp protection, Power level display
  • Maintenance & Warning: Optimized operation for COB and fine‑pitch (≤1.5 mm) modules by fully opening the regulating valve, reducing motor load and helping extend the product’s service life, Recommended maintenance practice: allow the tool to idle briefly to cool the motor after long use and always pull LED modules out vertically to avoid damaging the lamps.
  • Certifications: CE, CB, EMC-E185, KC, PSE, UN38.3, IS 16046, ROHS
  • Net Weight: 1.1Kg
  • Gross Weight: 2.8Kg
  • Dimensions (L*W*H): 300mm * 215mm * 245mm
