Huidu  |  SKU: MED-HUD-HDC08Lxxxx-0

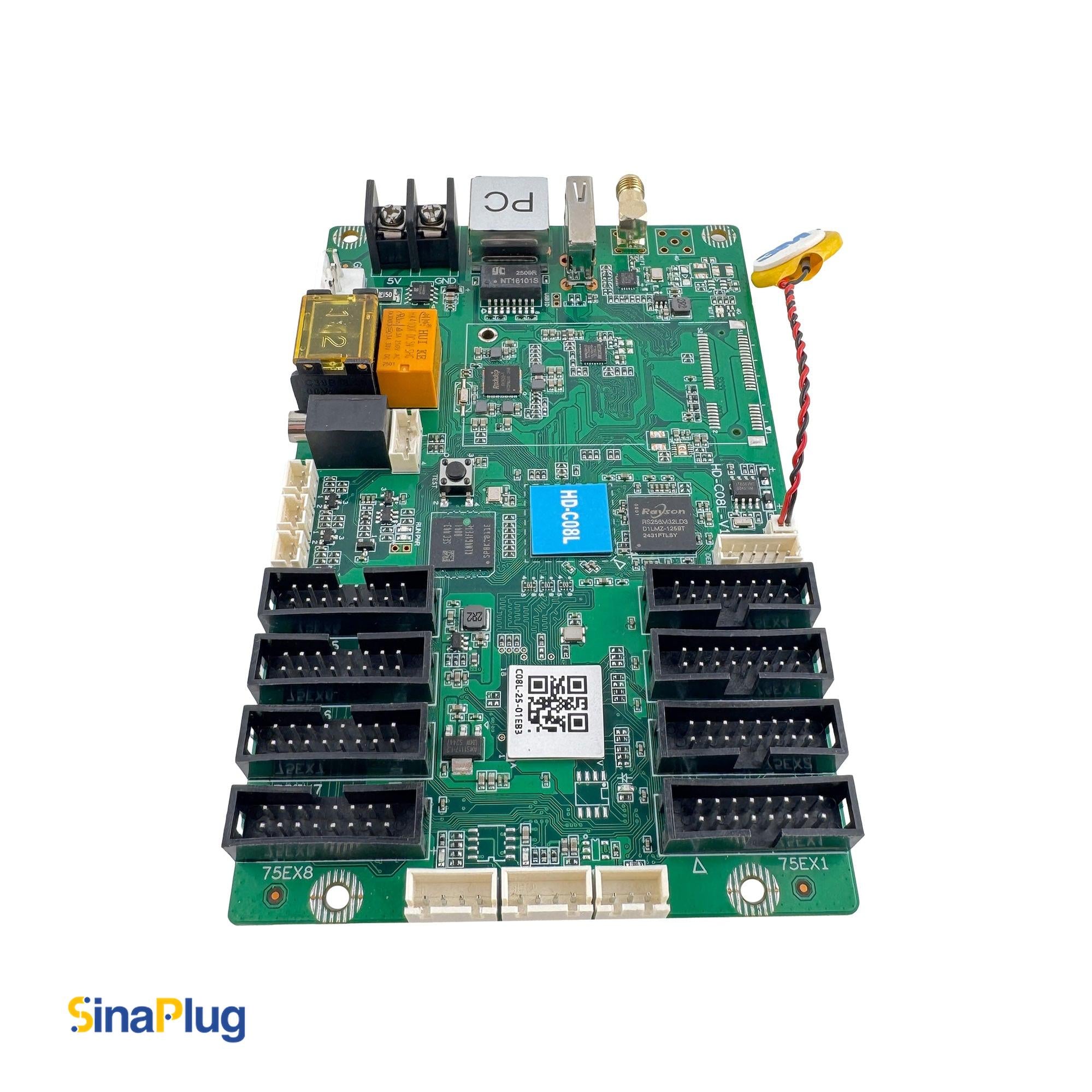

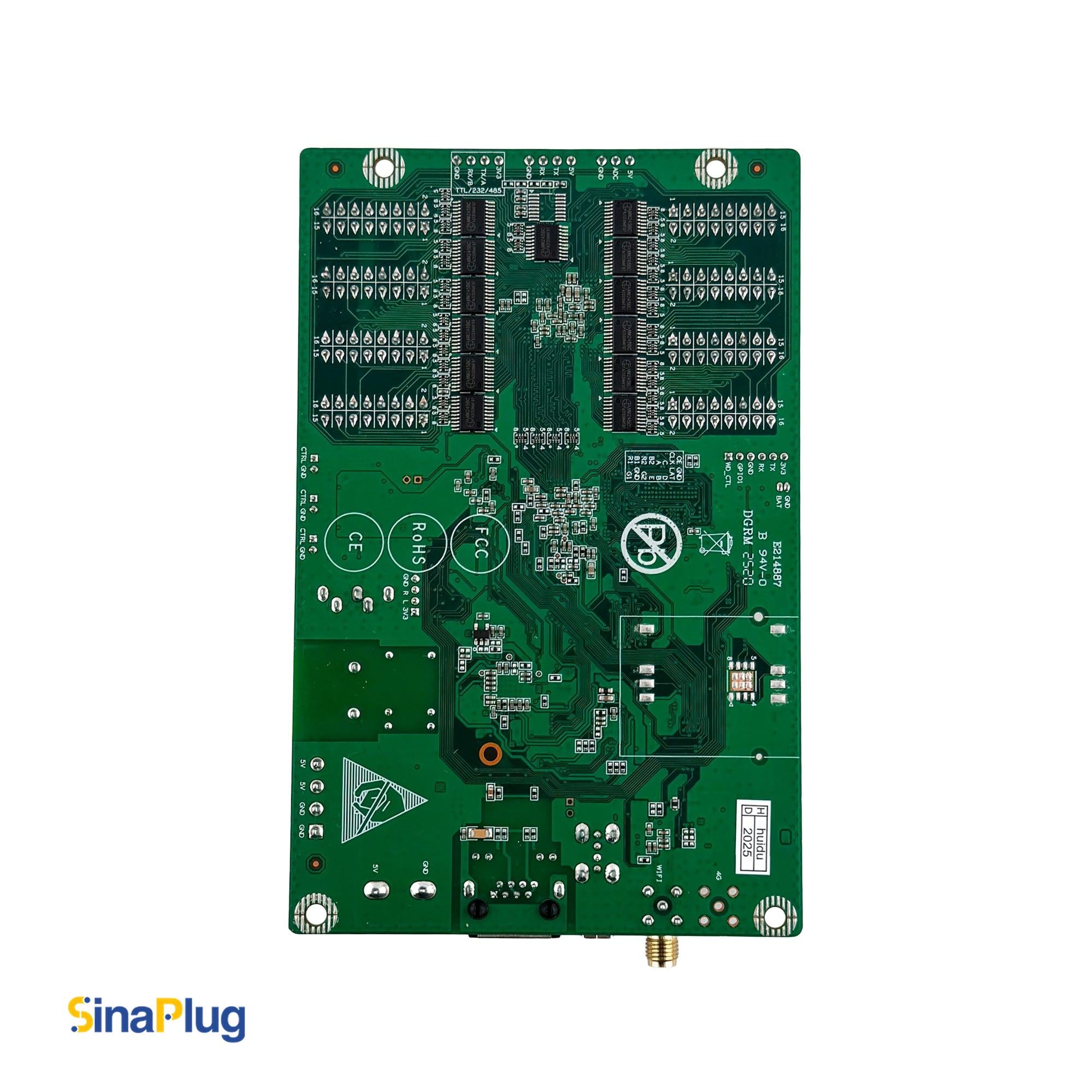

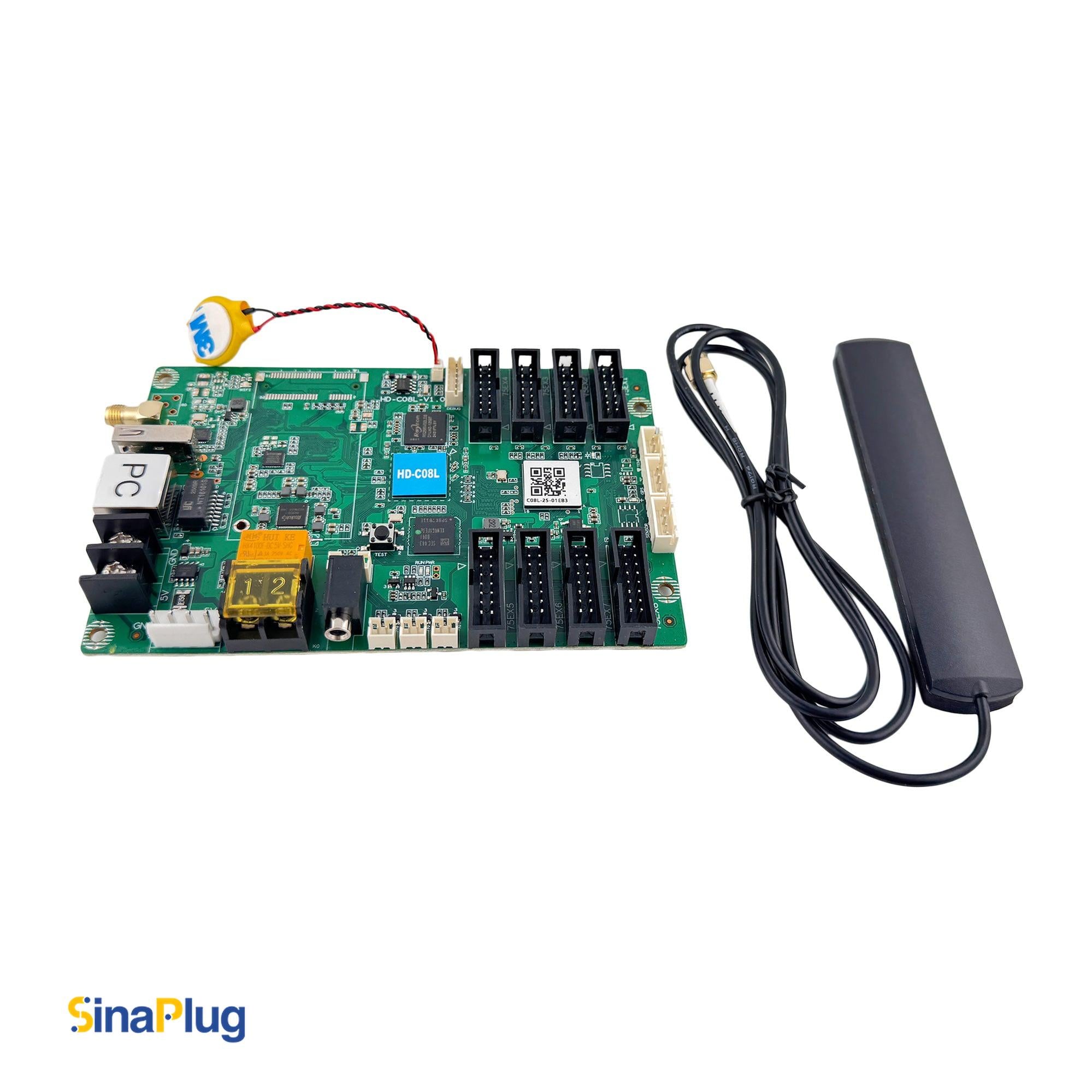

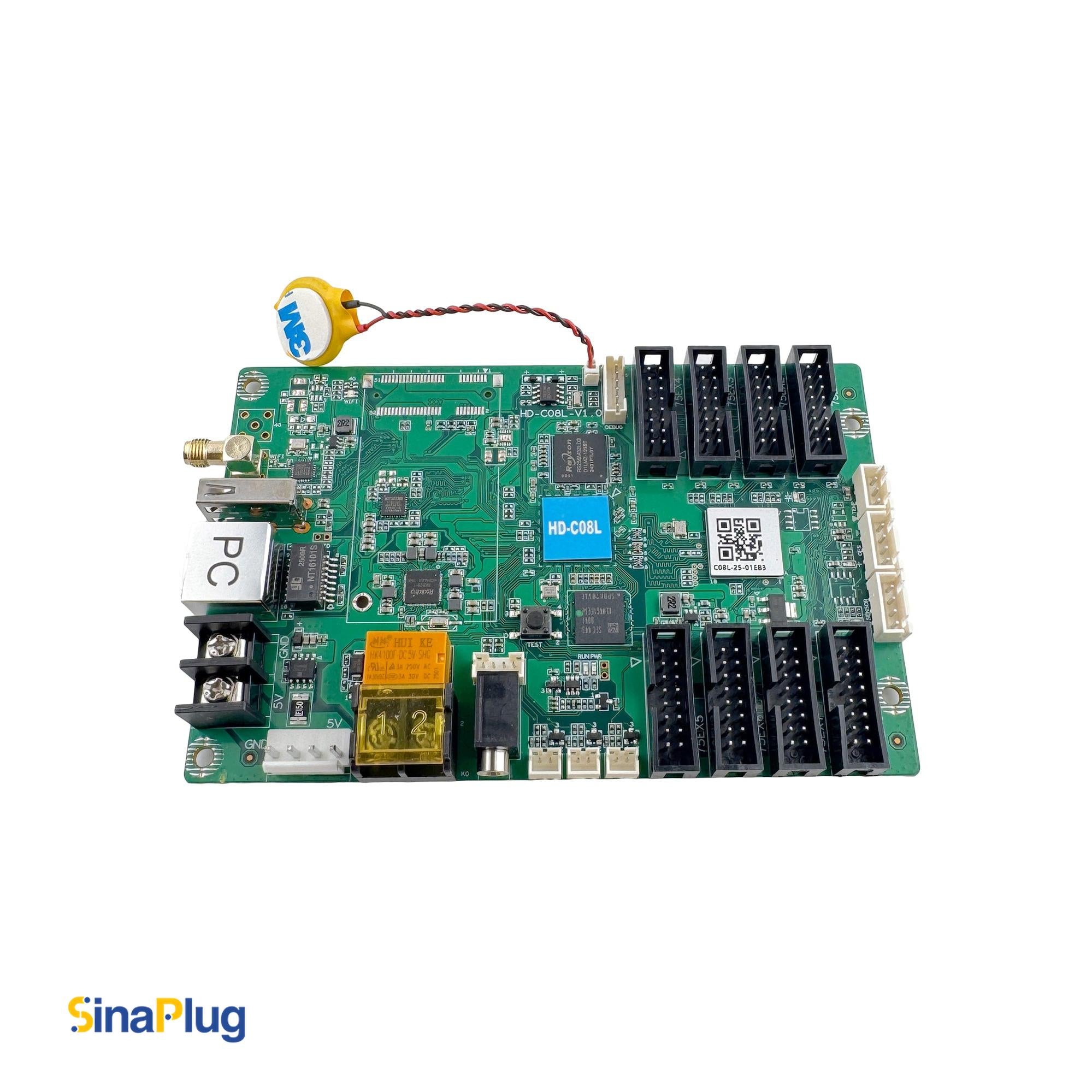

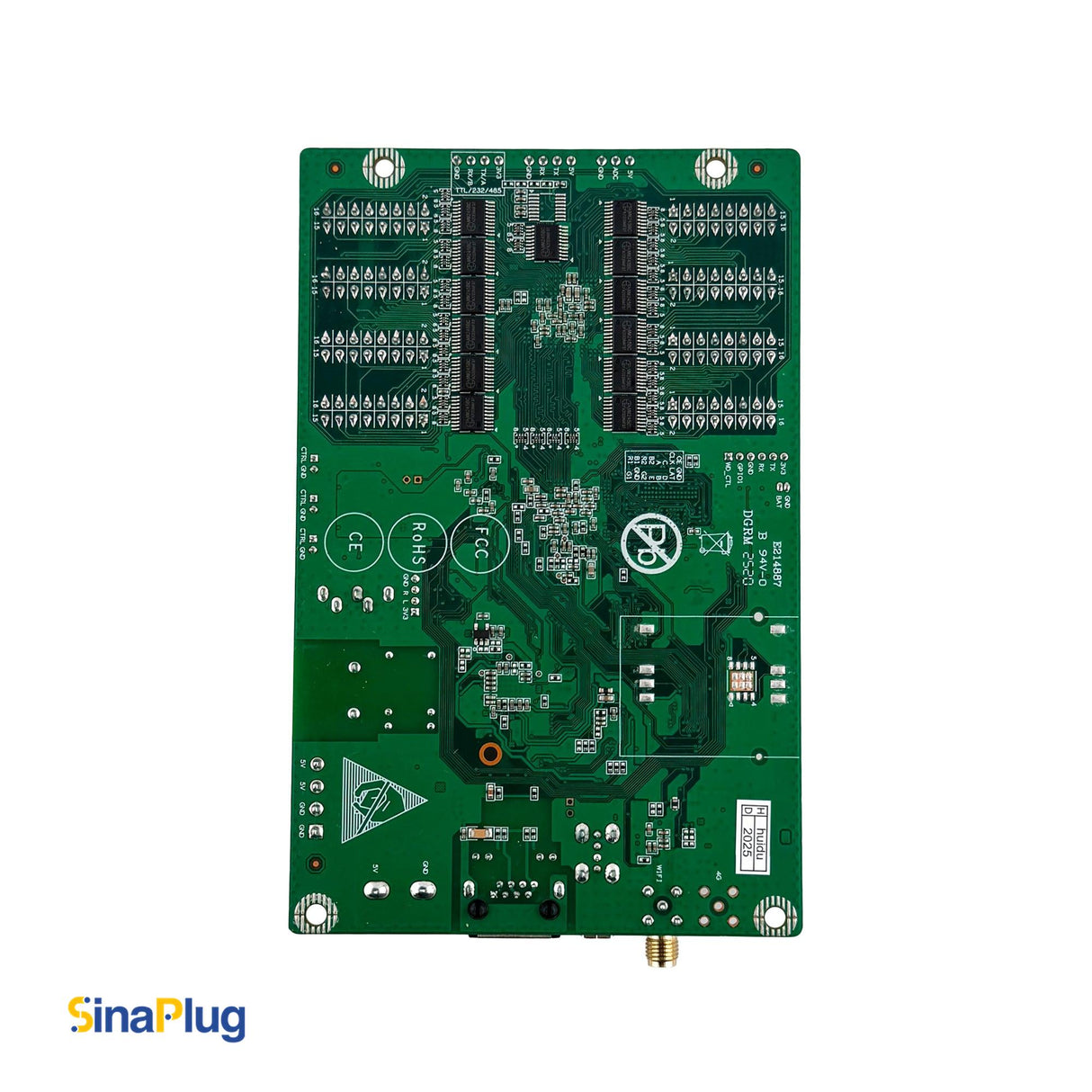

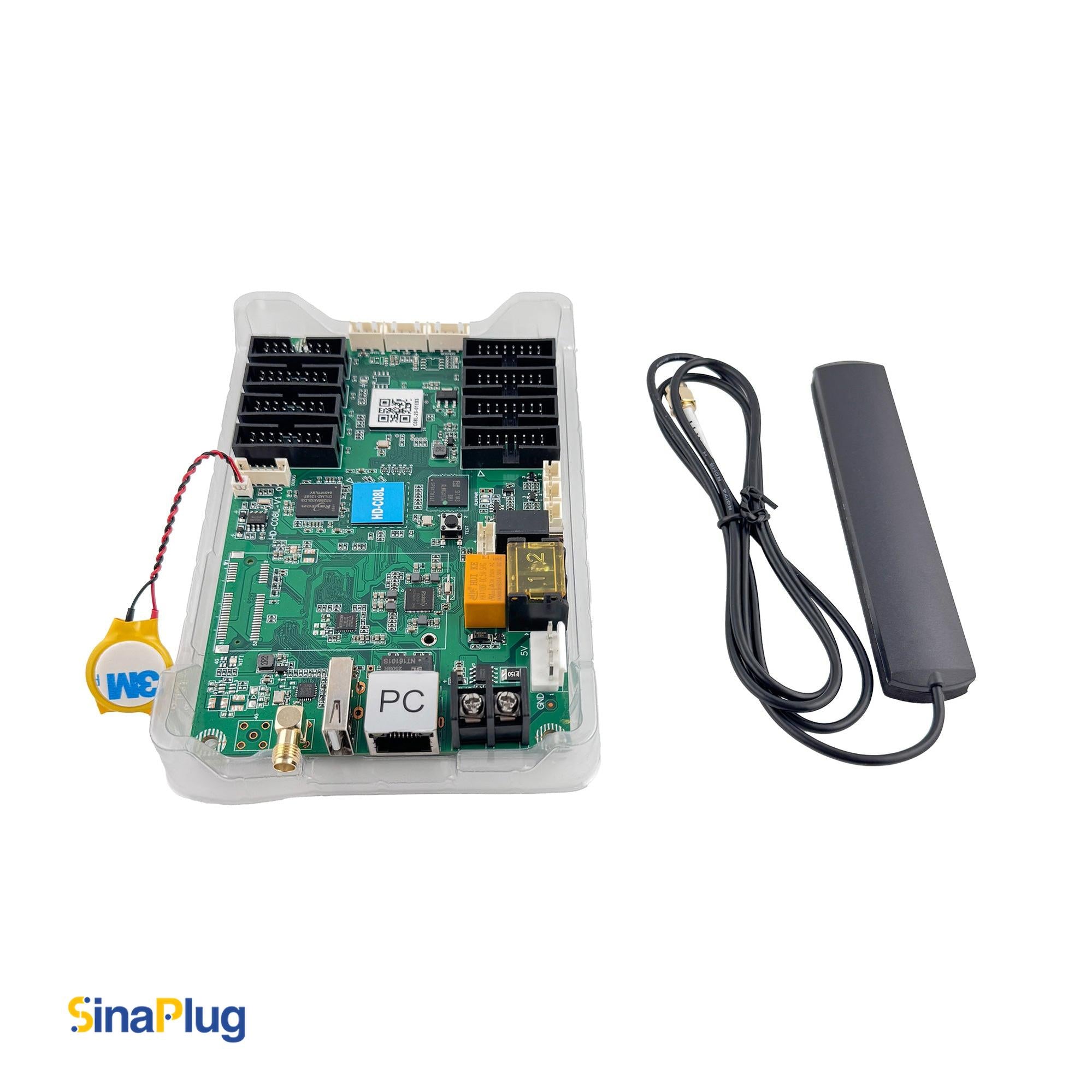

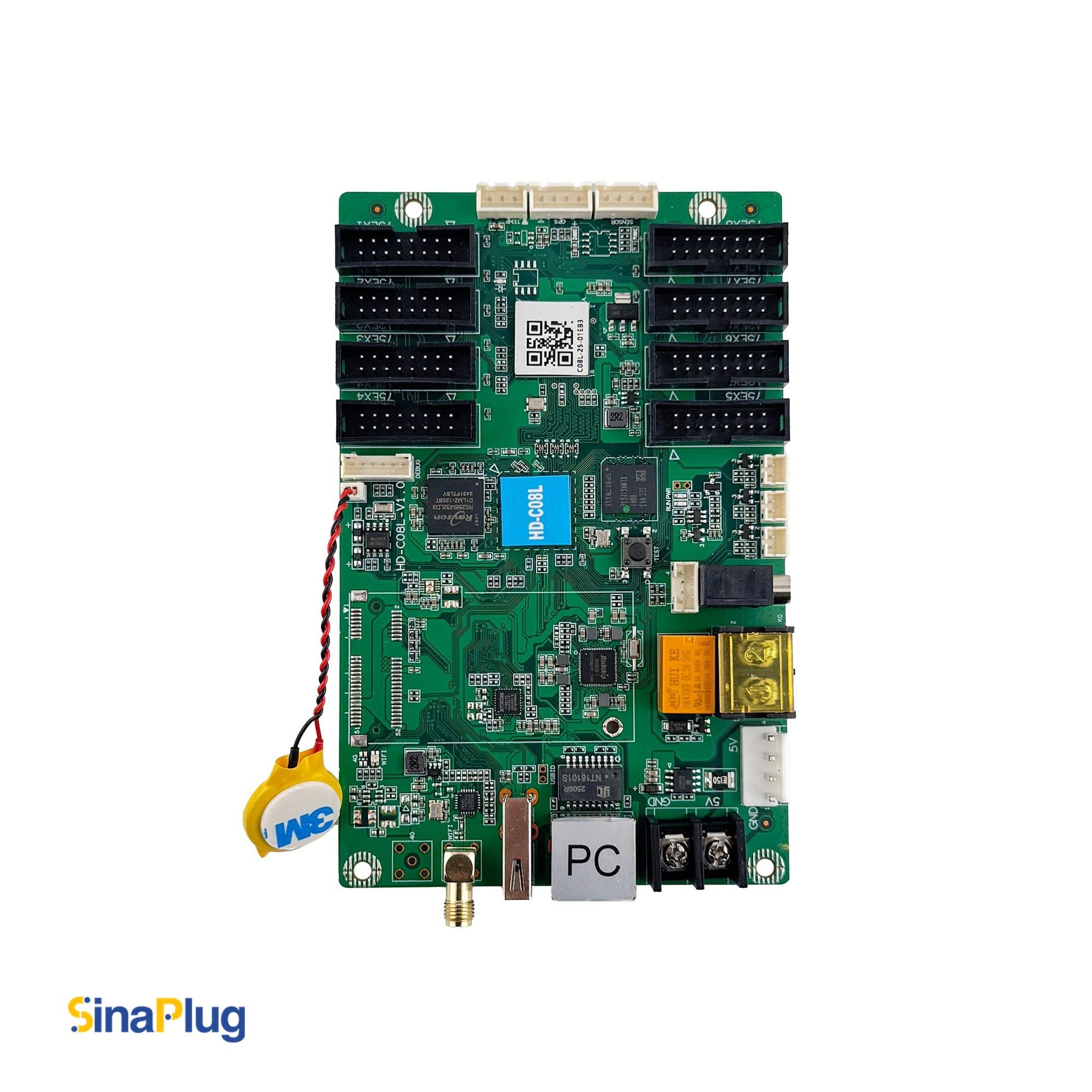

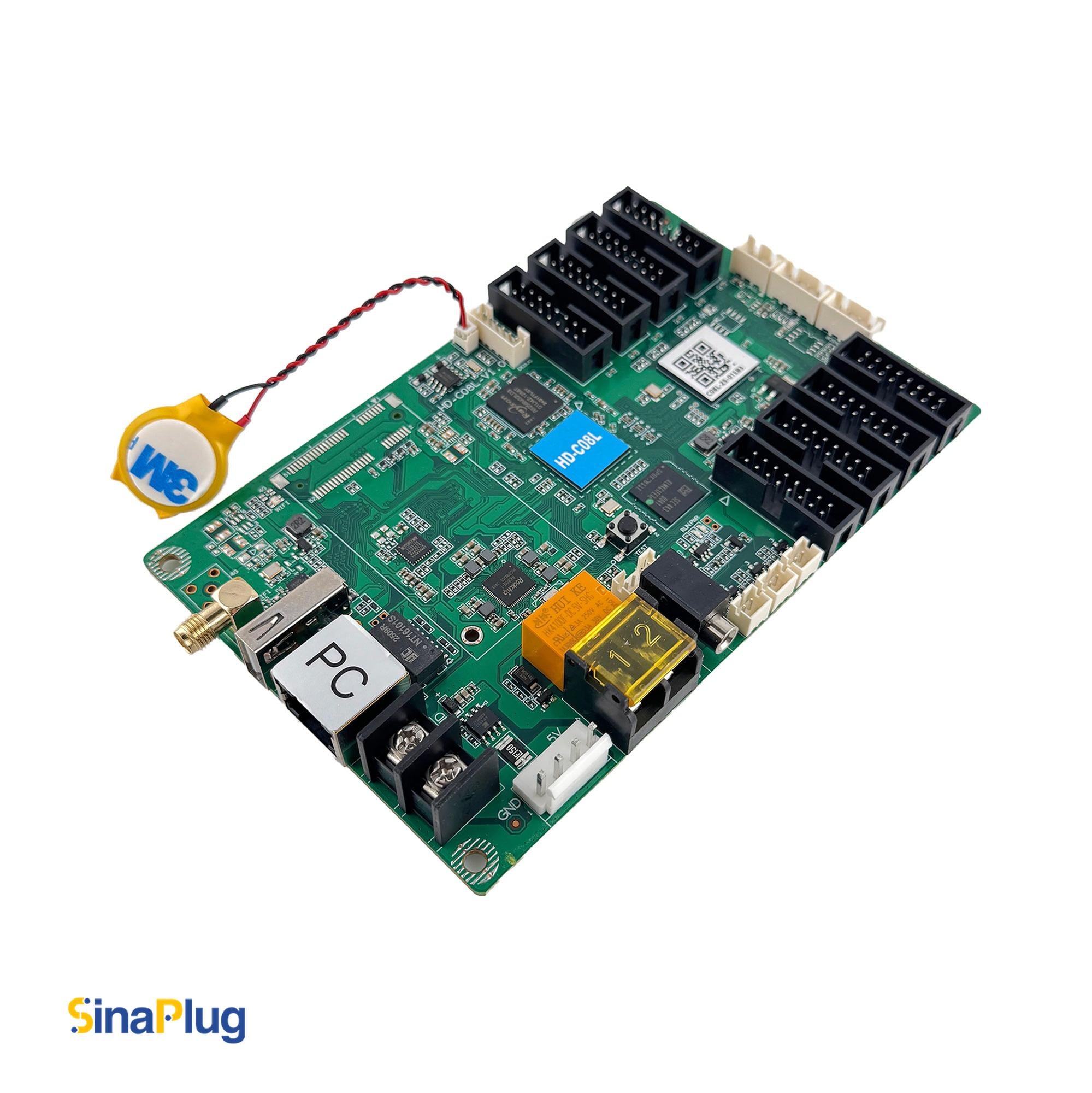

Huidu HD-C08L Asynchronous LED Controller Card

$60.00

Documents

Datasheet_Huidu_HD-C08L_Asynchronous_LED_Controller_Card_V1

The Huidu HD-C08L, provided and introduced by Azar Pixel, is a cutting-edge LED multimedia playback card crafted for smart commercial signage and urban digital applications. Built to support both fixed and portable LED setups, it operates independently without requiring a computer for video input, delivering dependable standalone performance and flexible content control.

The HD-C08L accommodates input resolutions up to 196,000 pixels, with a maximum width of 2048 pixels or height of 1024 pixels, providing smooth 60Hz output for vibrant and clear images. It offers versatile connectivity and effective signal distribution across multiple LED modules thanks to its eight built-in HUB75E interfaces and a standard 100Mbps Ethernet port. It's built-in Wi-Fi and USB ports facilitate easy firmware updates and wireless control through the LedArt mobile app or PC software. Additionally, the controller supports remote cluster management via the XiaoHui Cloud platform, making it well-suited for applications such as distributed advertising, light pole displays, vehicle-mounted screens, and more.

This unit includes sophisticated capabilities like simultaneous dual (up to 1080p) video window playback, support for real-time environmental sensor monitoring, and remote control of switching relays, allowing users to switch the display screen or even the main power on or off (up to 250VAC~3A). Built for durability, it functions dependably in extreme conditions, operating within a temperature range of -40°C to +80°C and consuming up to 8W of power. Its compact and lightweight design makes it ideal for diverse installation environments.

If your project demands greater complexity and scale, we're pleased to offer the Huidu HD-C16L; a significantly more advanced product, featuring a higher loading capacity and four additional HUB75E interfaces. This enhanced configuration enables the HD-C16L to manage more complex and larger-scale LED displays effectively, thanks to its increased pixel handling capability and expanded interface support.

Key Features of Huidu HD-C08L

Loading Capacity

  • Up to 196,000 pixels (max width: 2048 pixels, max height: 1024 pixels)

Input

  • 1× 100Mbps Ethernet port (for debugging, program sending, and Internet access)
  • 1× USB (Type A) interface (for program updates and storage expansion)

Output

  • 8× HUB75E interfaces (connecting to the LED modules)
  • 1× TRS 3.5mm standard two-channel audio output

Control

  • 1× Onboard relay for remote power control management
  • 1× Temperature sensor interface (connecting external temperature sensors)
  • 1× GPS sensor interface (for positioning and time synchronization)
  • 1× Universal sensor input interface (for environmental monitoring: temperature, humidity, brightness, wind speed/direction, noise, PM2.5, PM10, CO₂, etc.).

Communication

  • Wi-Fi (wireless) + LAN (wired) + U-disk (USB)

Performance

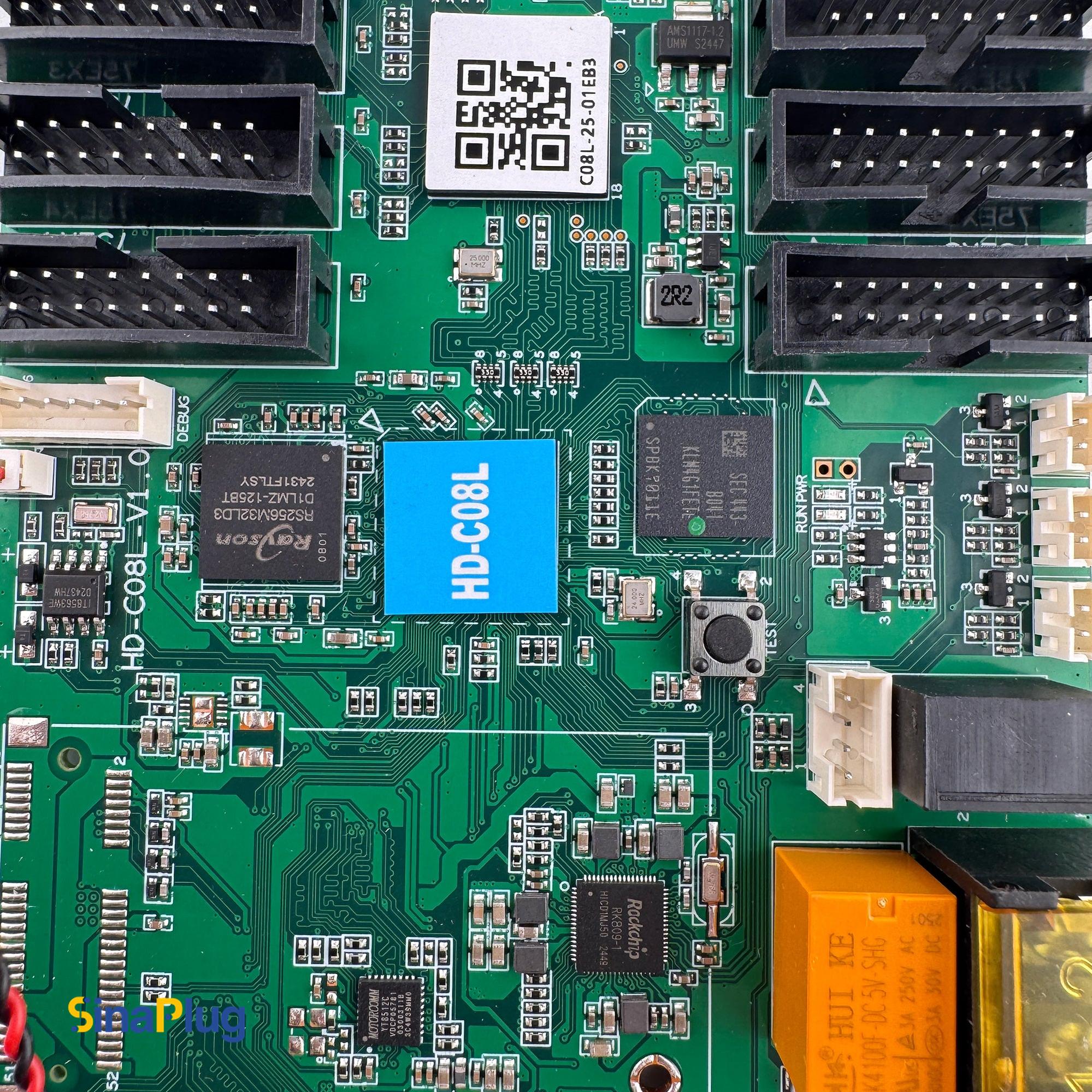

  • 1.5GHz, Quad-Core CPU, Mali-G31 GPU
  • Supporting 60Hz frame rate (for smooth content display)
  • 1080p video decoding
  • 4 GB internal storage (2GB available, expandable by a USB hard disk)

Decoding

  • Supports the following file formats:
  • Image: BMP, JPG, JPEG, PNG, GIF, PBM, PGM, PPM
  • Video: AVI, WMV, MPG, RM/RMVB, VOB, MP4, FLV

Functionality

  • Supports up to 2 channels of 1080p video playback simultaneously
  • 3 sets of CTRL function (switching detection and program control)
  • Multiple program scheduling and partitioning
  • Supports video, image, GIF, text, WPS, tables, clocks, and more
  • Real-time environmental data monitoring
  • Built-in 2.4GHz Wi-Fi (supports Wi-Fi AP and Wi-Fi STA modes)
  • Remote management via XiaoHui Cloud platform (optional 4G support)
  • Mobile app (LedArt) and PC software (HDPlayer) support
  • 4G module socket (optional)
  • Supports UART communication

Power

  • Input voltage: 5VDC (4.6V-5.5V)
  • Power consumption: 8W

Dimensions (L*W*H)

  • 142.0mm × 91.2mm × 20mm
