Huidu  |  SKU: MED-HUD-HDC16Lxxxx-0

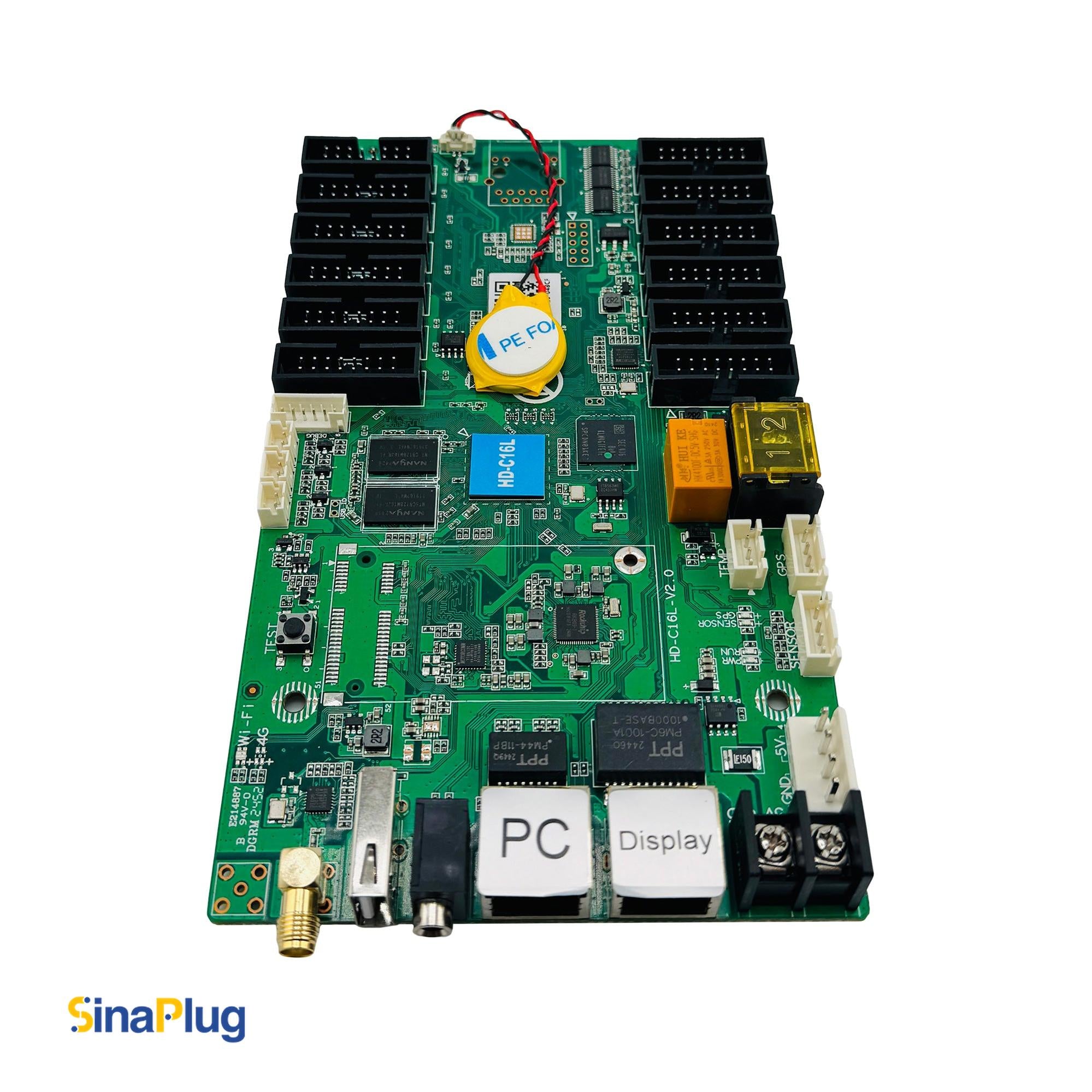

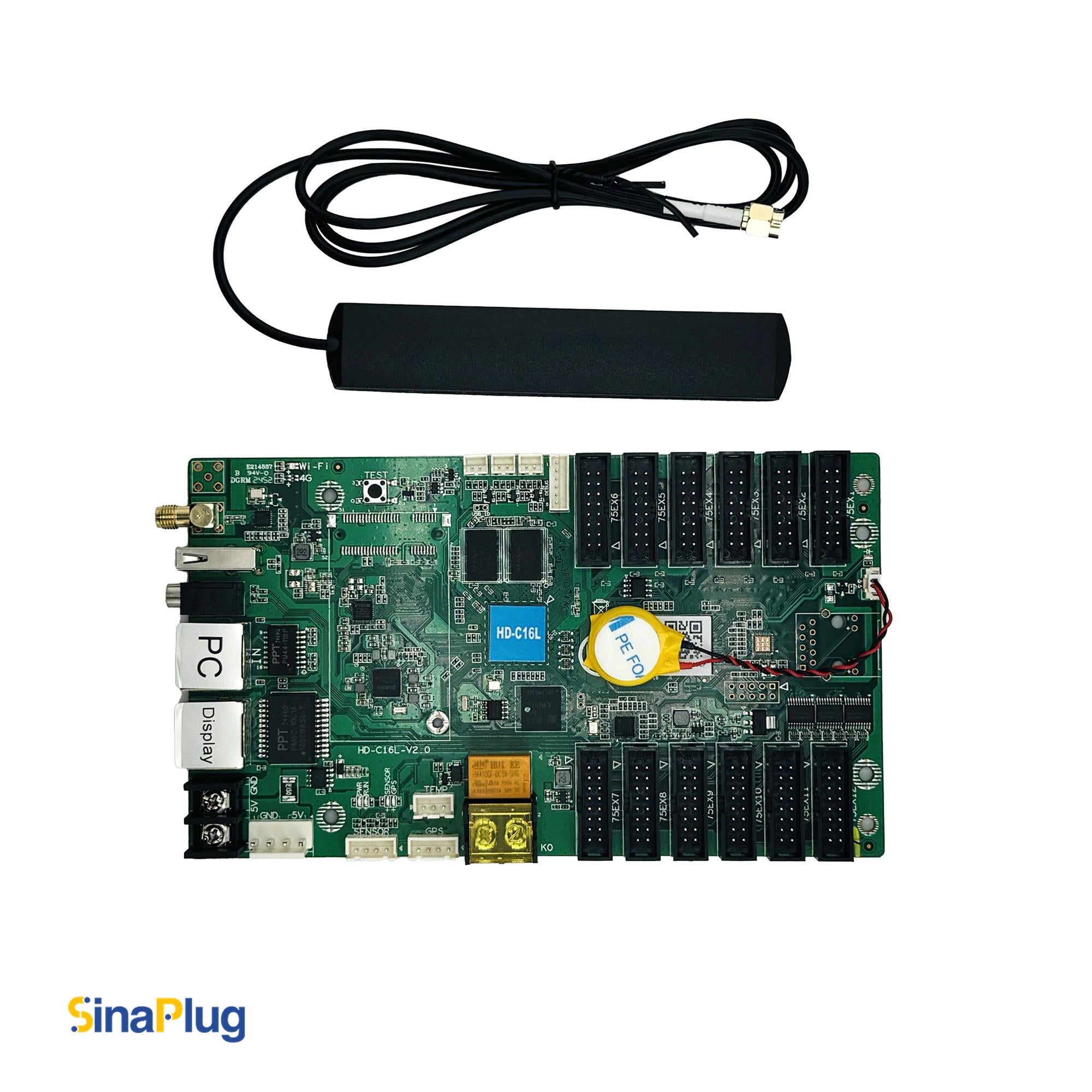

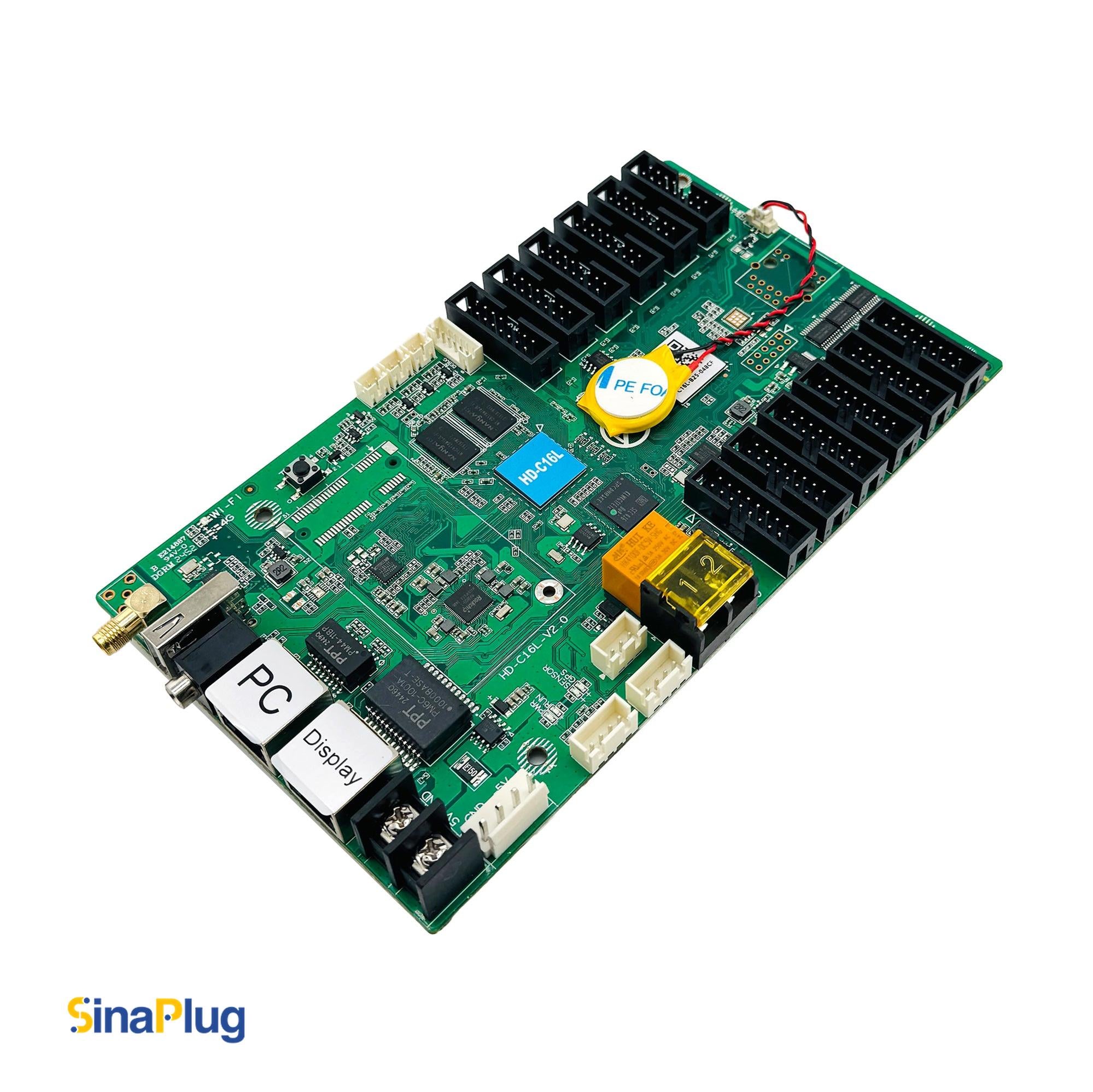

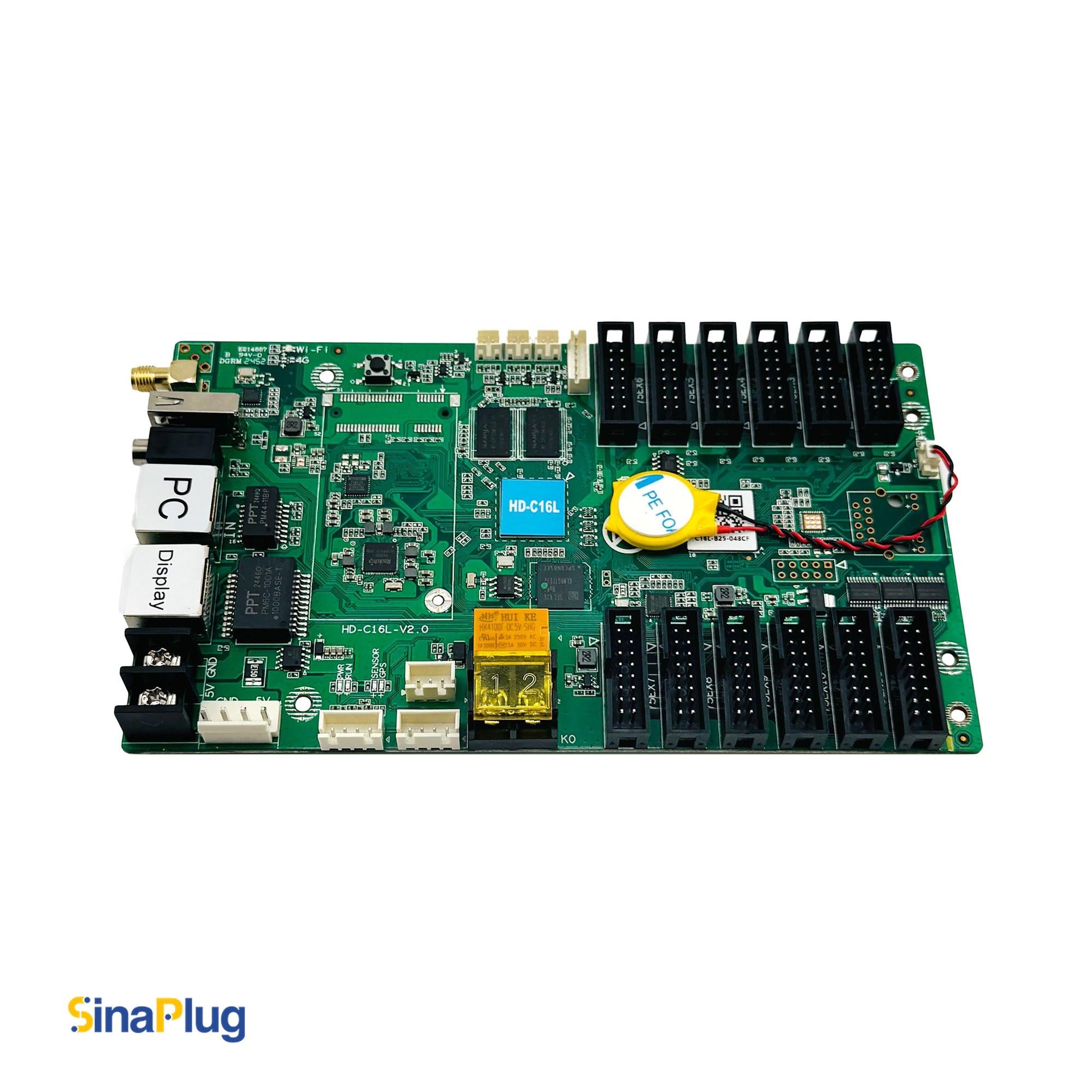

Huidu HD-C16L Asynchronous LED Controller Card (Upgrade version of HD-C08L)

$103.25

Documents

Datasheet_Huidu_HD-C16L_Asynchronous_LED_Controller_Card_V2

The Huidu HD-C16L, supplied and offered by Azar Pixel, is an advanced LED multimedia playback card engineered for smart commercial display and smart city applications. By integrating the functions of a sending card, receiving card, and playback terminal into one compact device, it takes away the need for a dedicated computer, enabling flexible, independent, and cost-effective control for both fixed and mobile LED display setups.

This card supports a control range of up to 650,000 pixels with a maximum width of 8192 pixels or height of 1920 pixels, and smooth 60Hz playback to deliver sharp and vivid visuals. It comes with a standard Gigabit Ethernet output, twelve HUB75E interfaces for direct LED module connection, and a 100Mbps input network port for communication and program updates.

With integrated Wi-Fi, and optional 4G connectivity, with USB connection, users can update content online, using the LedArt mobile app or HDPlayer PC software. It also enables remote cluster management via the XiaoHui Cloud platform, making it an excellent choice for distributed advertising, light pole screens, door displays, and vehicle-mounted LED applications.

The HD-C16L offers advanced functionality such as simultaneous playback of two 1080p video windows, flexible program scheduling, real-time monitoring of environmental sensors, remote power control of switching relays, and optional voice broadcast support (with license). Its durable construction allows for stable performance in extreme conditions, operating reliably in temperatures from -40°C up to +80°C while consuming no more than 8W. Thanks to its compact and lightweight design, it is well-suited for a broad spectrum of installation environments.

Key Featuresof Huidu HD-C16L

Loading Capacity

  • Up to 200,000 pixels for a single card
  • Up to 650,000 pixels, with cascaded receiving cards added (max width: 8192 pixels, max height: 1920 pixels)

Input

  • 1× 100Mbps input network port (TCP/UDP communication)
  • 1× USB interface (for program updates and storage expansion)

Output

  • 1× Gigabit Ethernet output port (cascaded with HD-R series receiving cards)
  • 1× Optional Gigabit Ethernet output port (second RJ45 Gigabit output port)
  • 12× HUB75E interfaces (connecting to the LED modules)
  • 1× TRS 3.5mm standard two-channel audio output

Control

  • 1× Onboard relay for remote power control management
  • 1× Temperature sensor interface (connecting external temperature sensors)
  • 1× GPS sensor interface (for positioning and time synchronization)
  • 1× Universal sensor input interface (for environmental monitoring: temperature, humidity, brightness, wind speed/direction, noise, PM2.5, PM10, CO₂, etc.)

Communication

  • Wi-Fi (wireless) + LAN (wired) + U-disk (USB)

Performance

  • 1.5GHz, Quad-Core CPU, Mali-G31 GPU
  • Supporting 60Hz frame rate (for smooth content display)
  • 1080p video decoding
  • 4 GB internal storage (2GB available, expandable by a USB hard disk)

Decoding

  • Supports the following file formats:
  • Image: BMP, JPG, JPEG, PNG, GIF, PBM, PGM, PPM
  • Video: AVI, WMV, MPG, RM/RMVB, VOB, MP4, FLV

Functionality

  • Supports up to 2 channels of 1080p video playback simultaneously
  • Supports video, image, GIF, text, WPS, tables, clocks, and more
  • Real-time environmental data monitoring and voice broadcasting (License required)
  • Multiple program scheduling and partitioning
  • Built-in 2.4GHz Wi-Fi (supports Wi-Fi AP and Wi-Fi STA modes, up to 15m)
  • Remote management via XiaoHui Cloud platform (optional 4G support)
  • Mobile app (LedArt) and PC software (HDPlayer) support
  • 4G module socket (optional)
  • Supports UART, and two channels of RS-232 or RS-485 communication
  • 3 sets of CTRL function (switching detection and program control)

Power

  • Input voltage: 5VDC (4.6V-5.5V)
  • Power consumption: 8W

Dimensions (L*W*H)

  • 174.9mm × 101.5mm × 20mm
