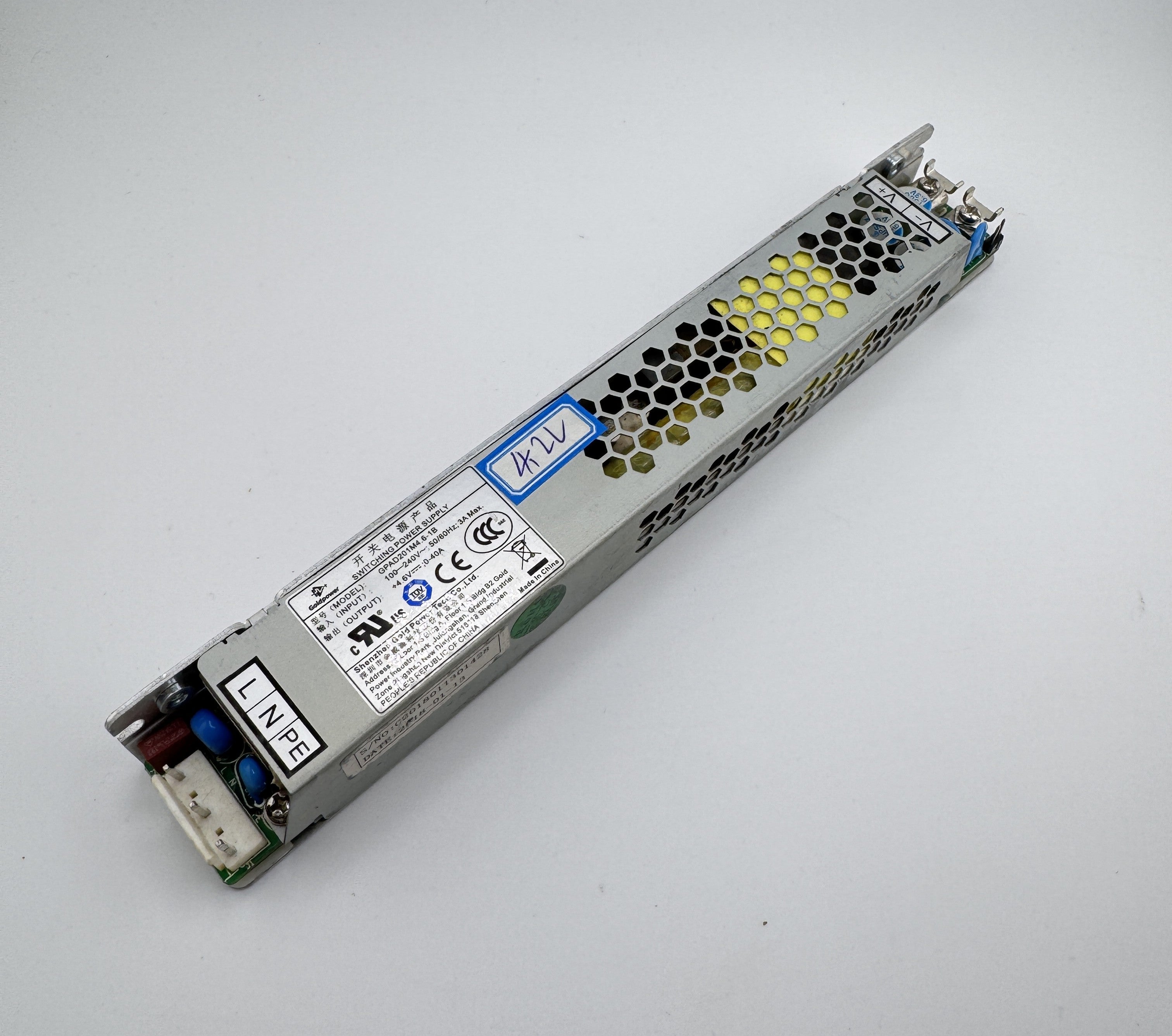

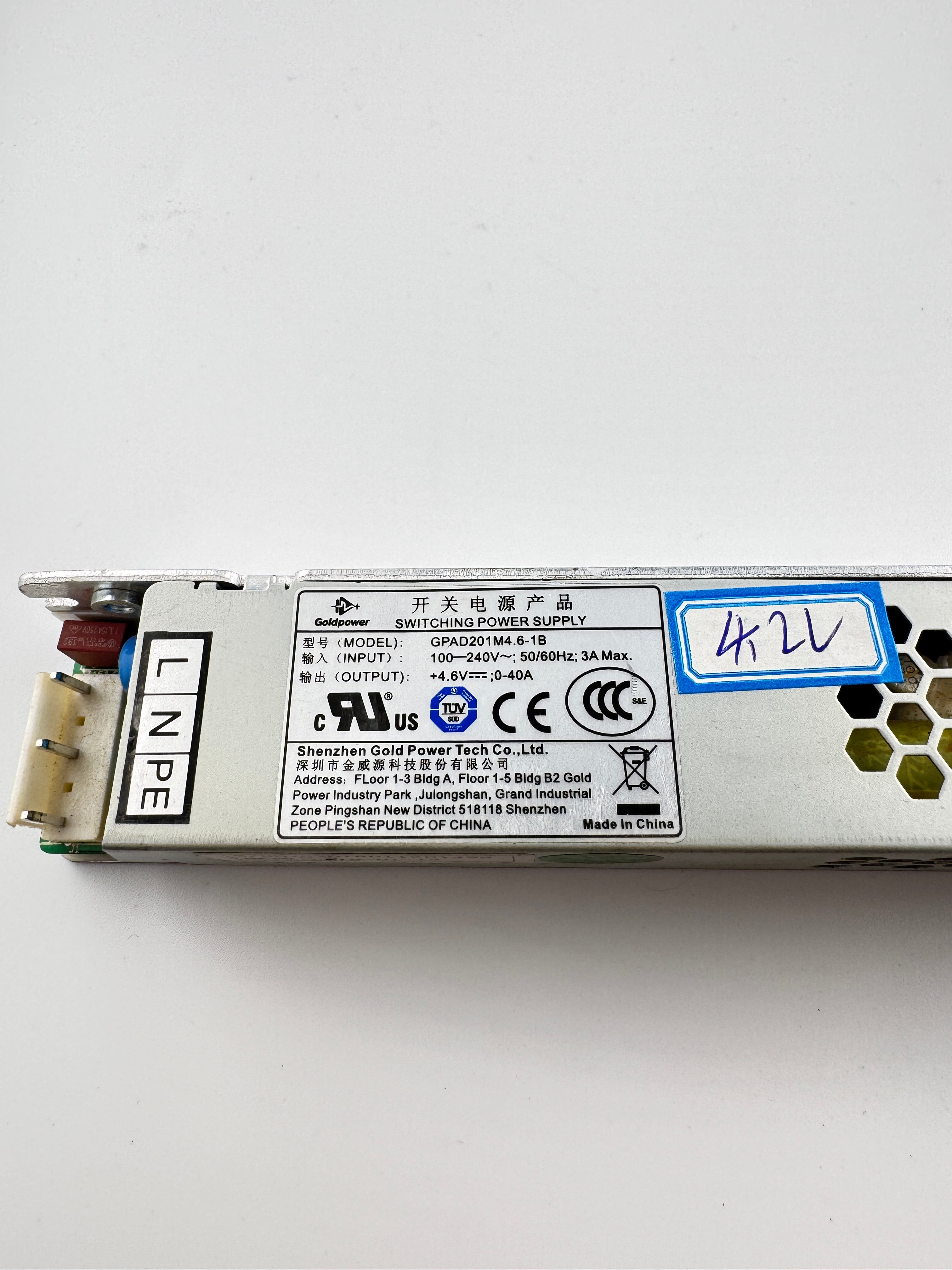

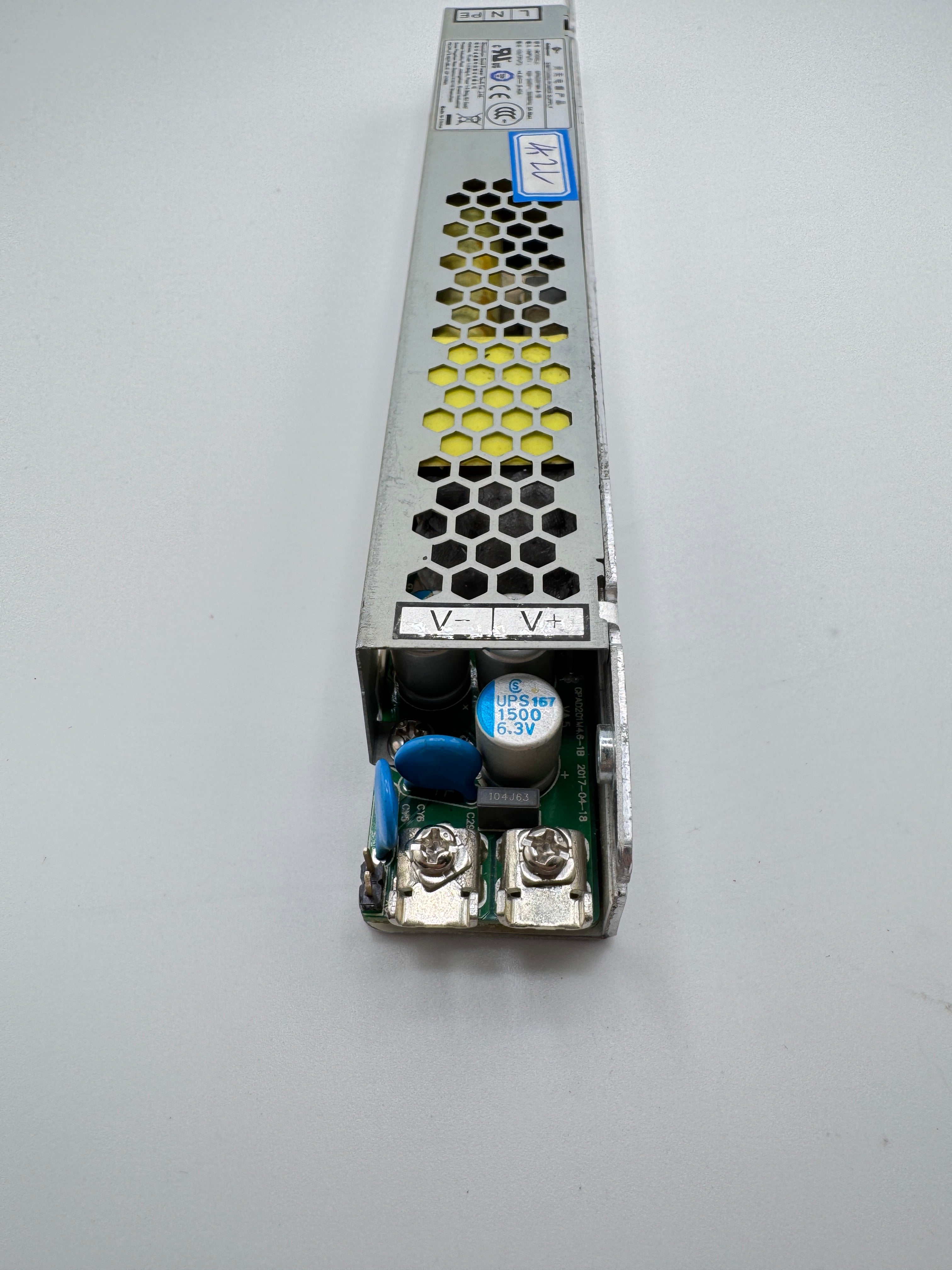

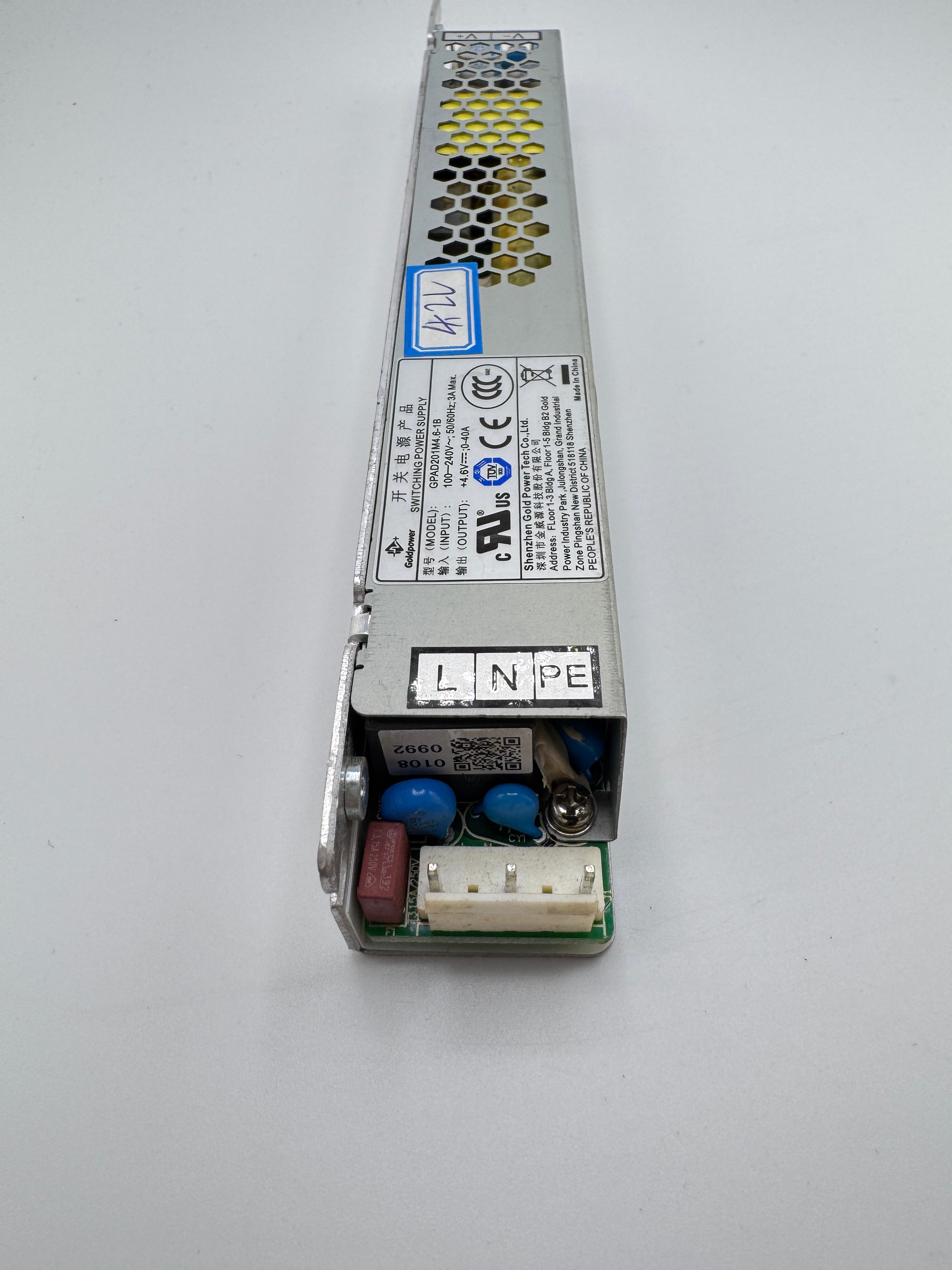

GoldPower GPAD201M4.6-1B power supplies

The GPAD201M4.6-1B Switching Power has a wide input voltage range, 90 ~ 264Vac input can work normally, and is a single output power supply.
The power supply has the functions of output short-circuit protection, overcurrent protection, output overvoltage protection, etc.
The whole power supply is designed in strict accordance with the requirements of safety regulations

Cooling by free air convection
Half encapsulated
Built-in constant current limiting circu
LED indicator for power on
100% full load burn-in test
4.6V 43A 200W
±3.0% Voltage Output
100ms,50ms at full load
Input: 90-264VAC
Size: 215*19.5*25mm
Weight: 0.9KG
