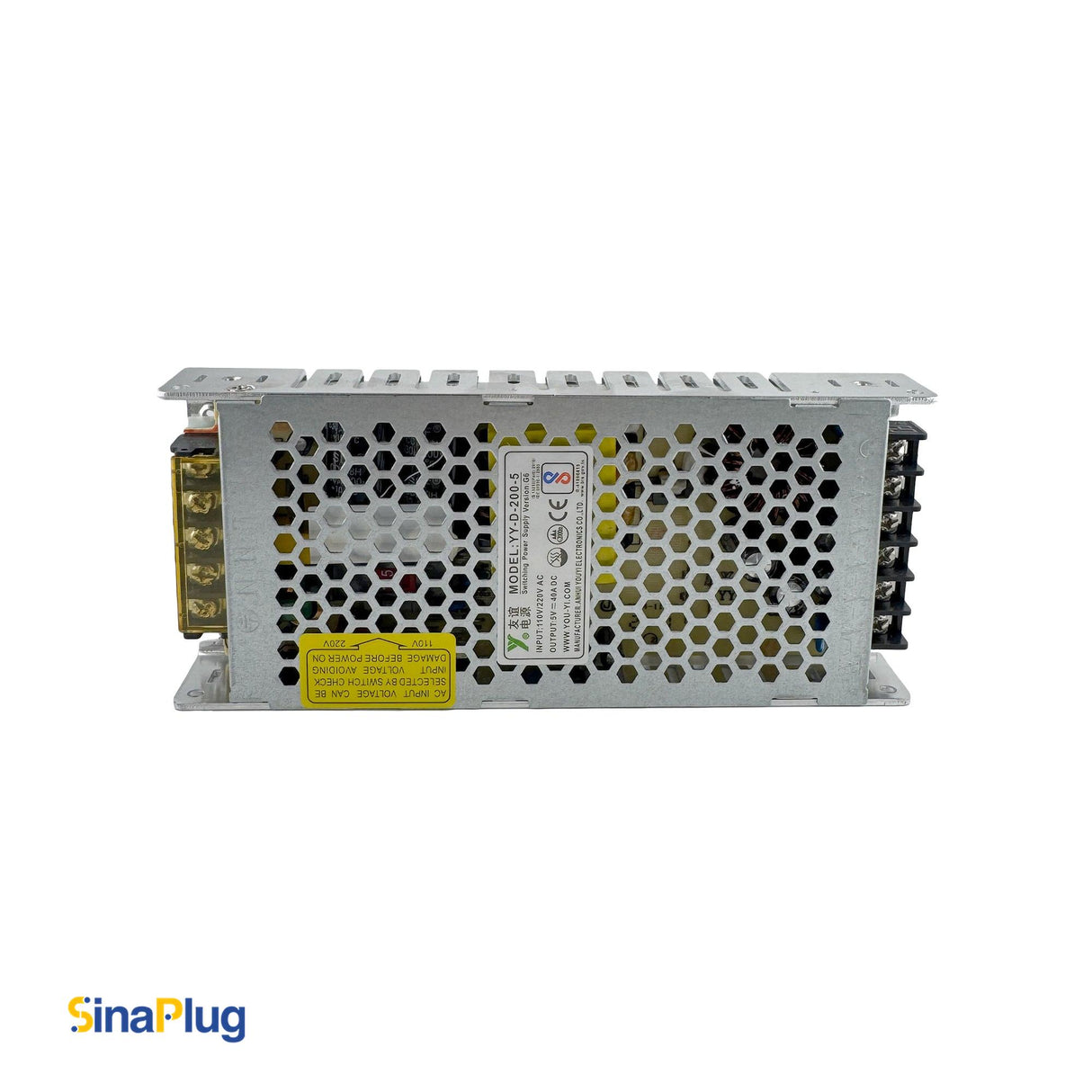

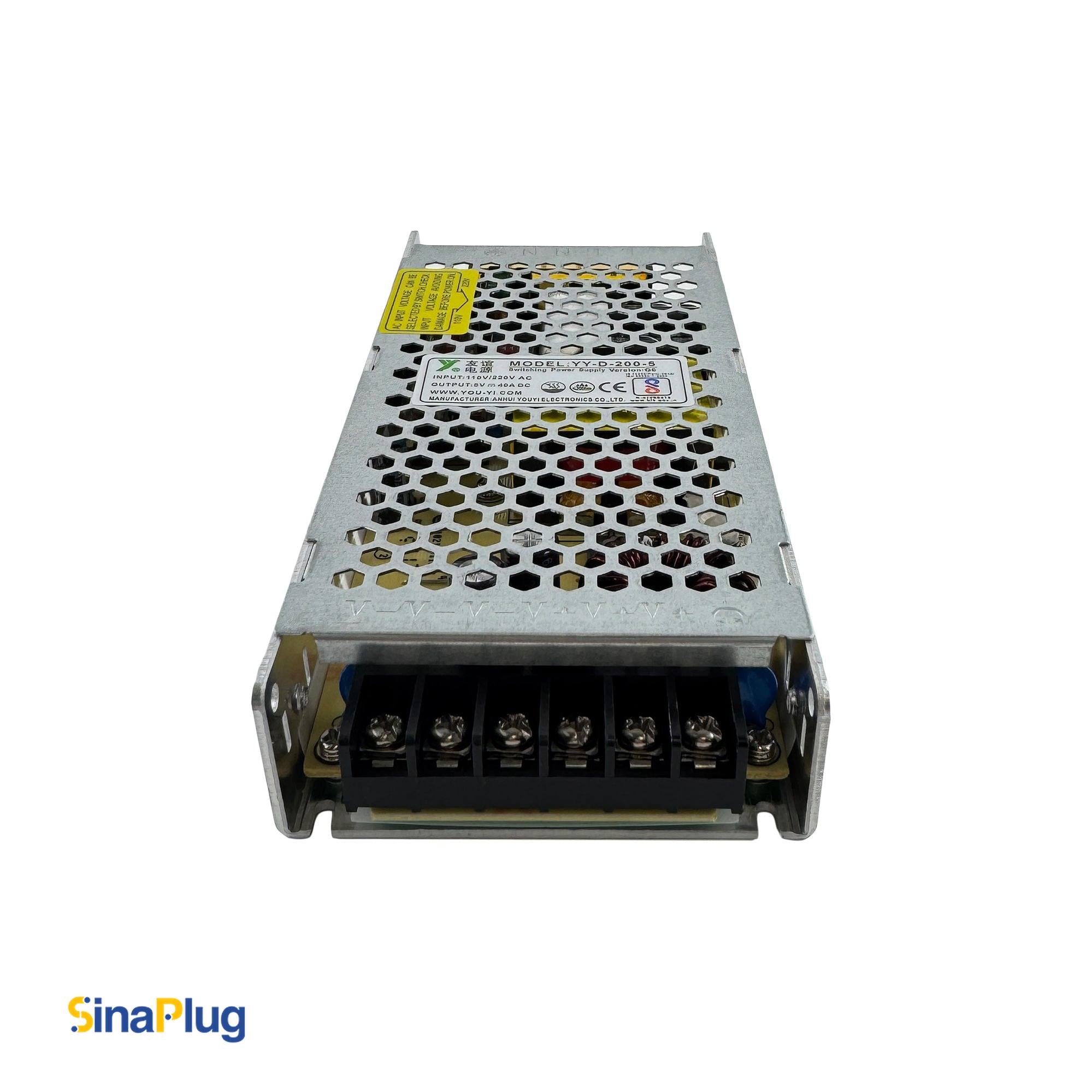

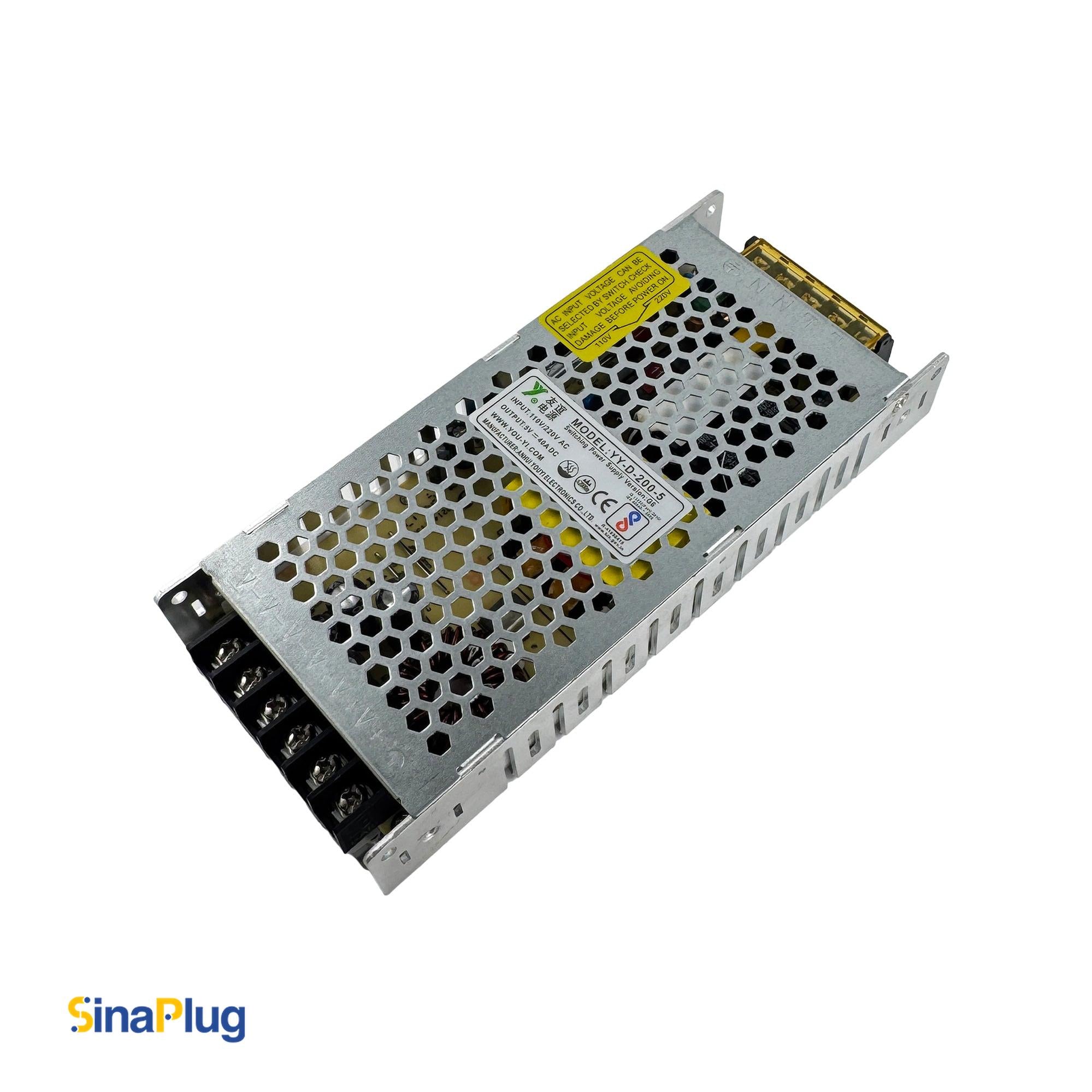

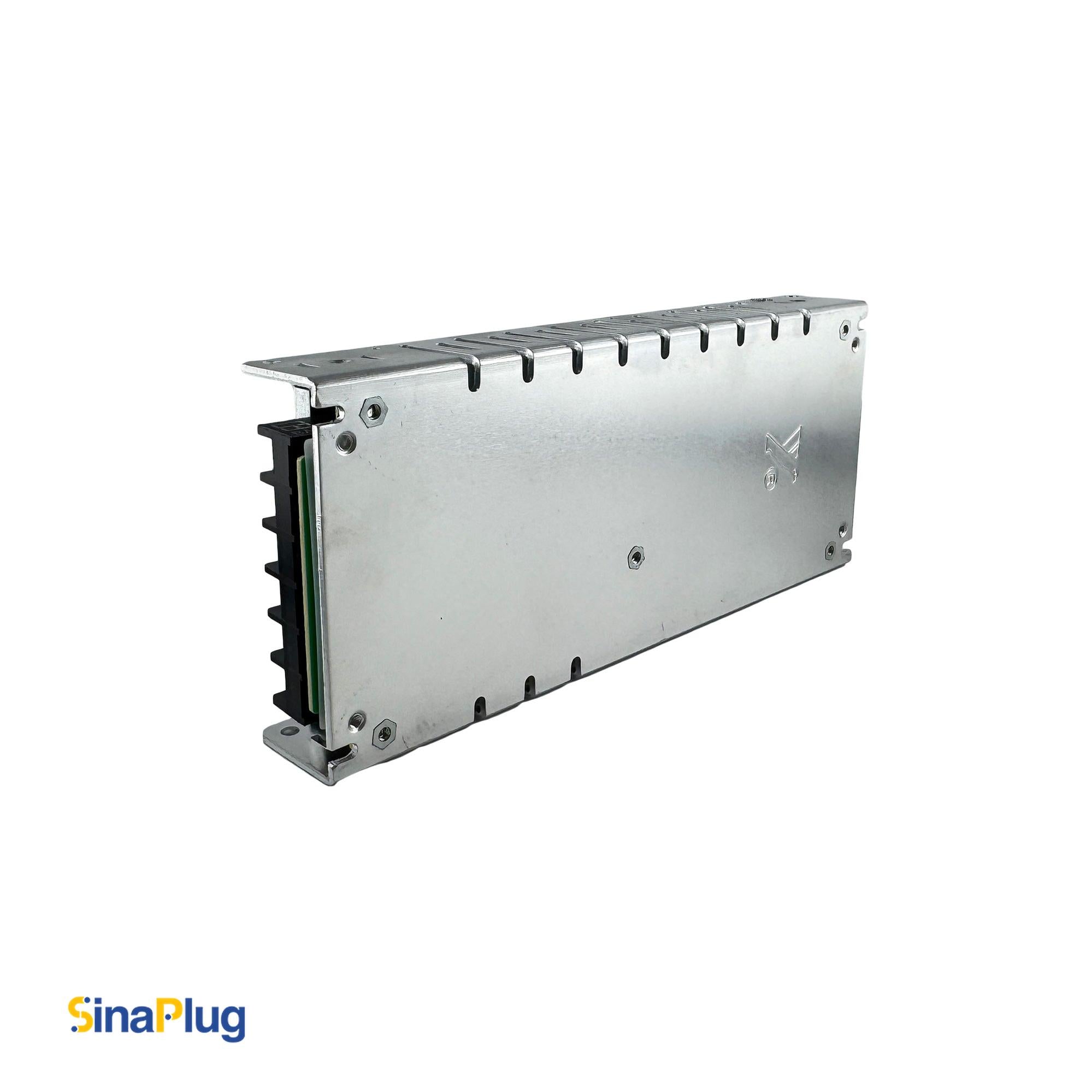

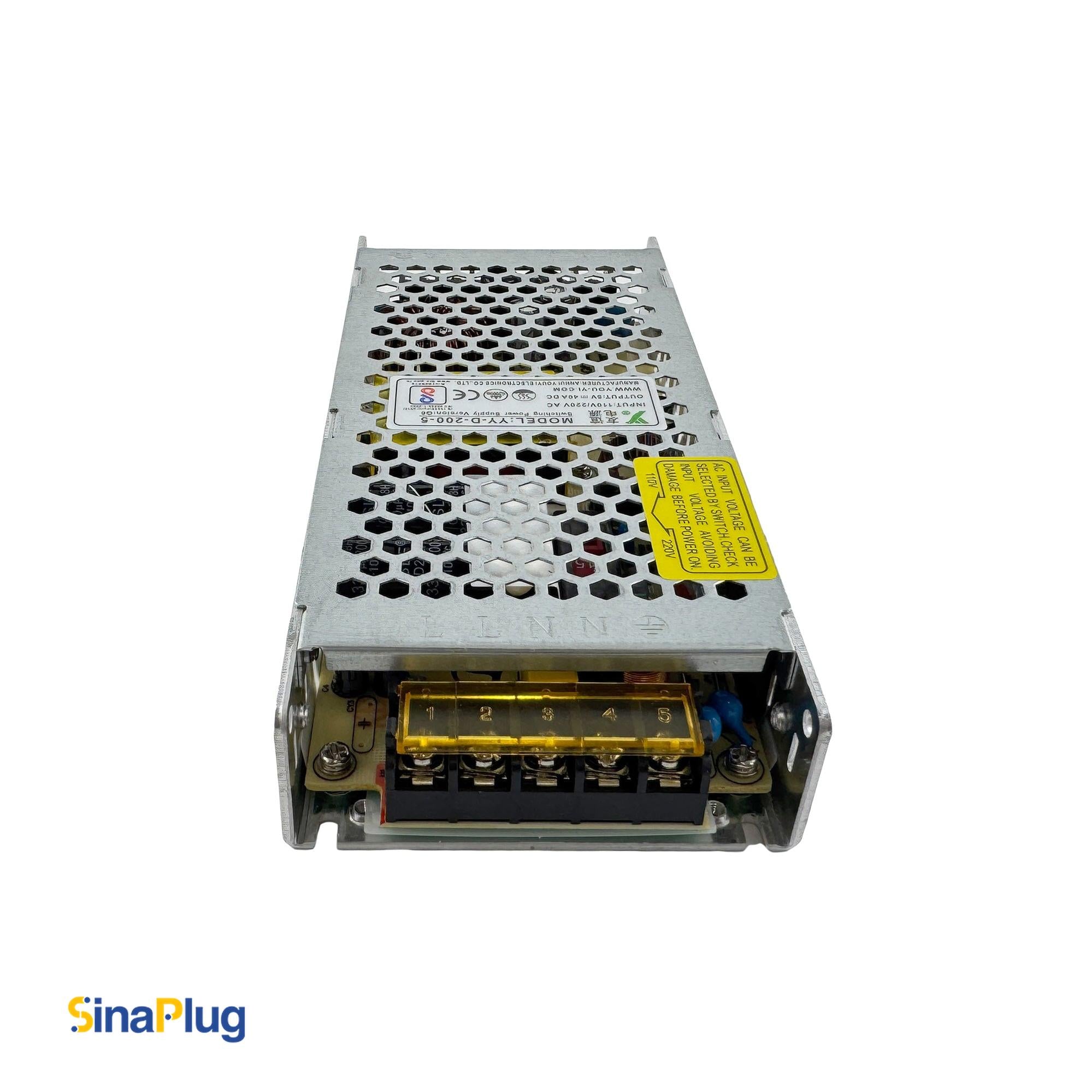

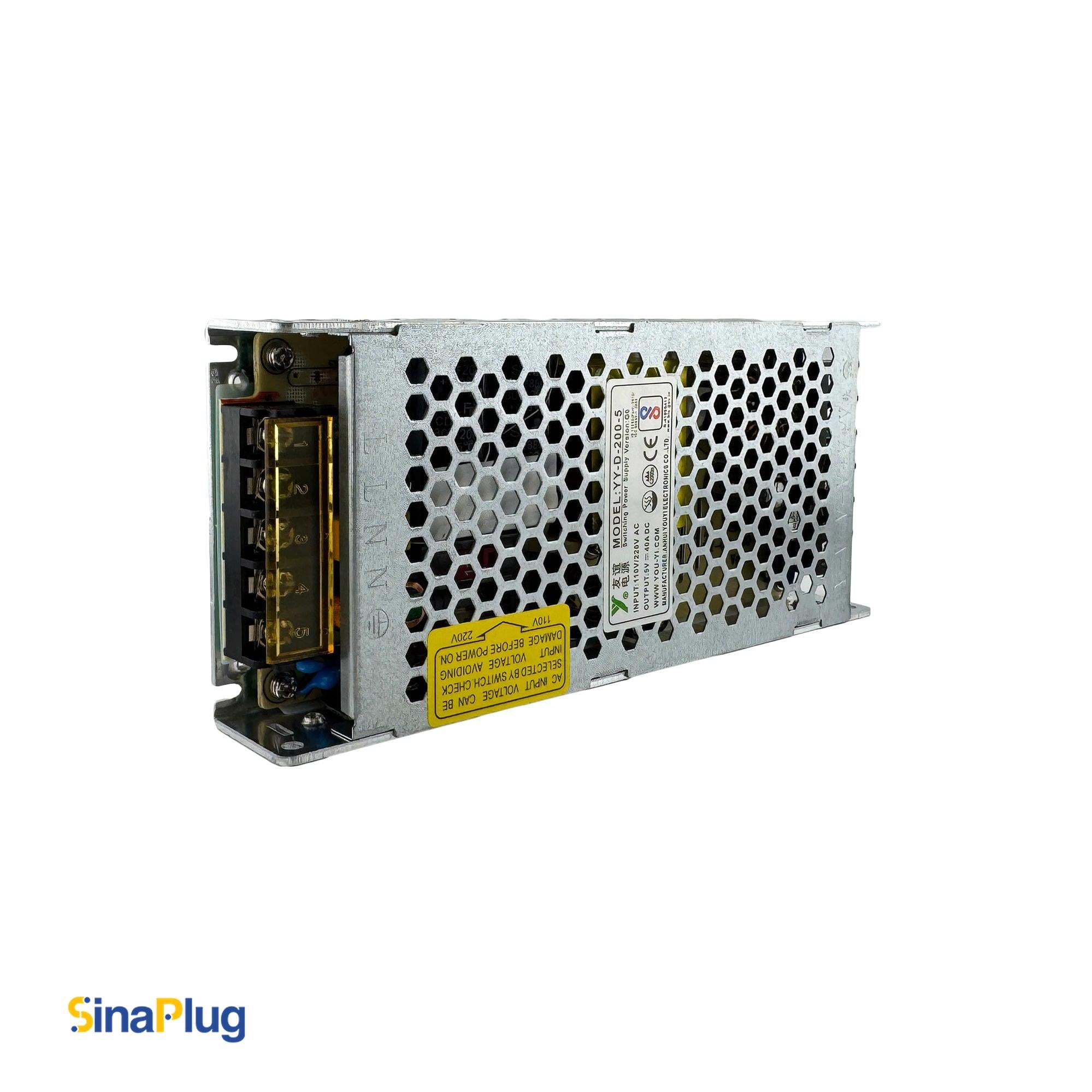

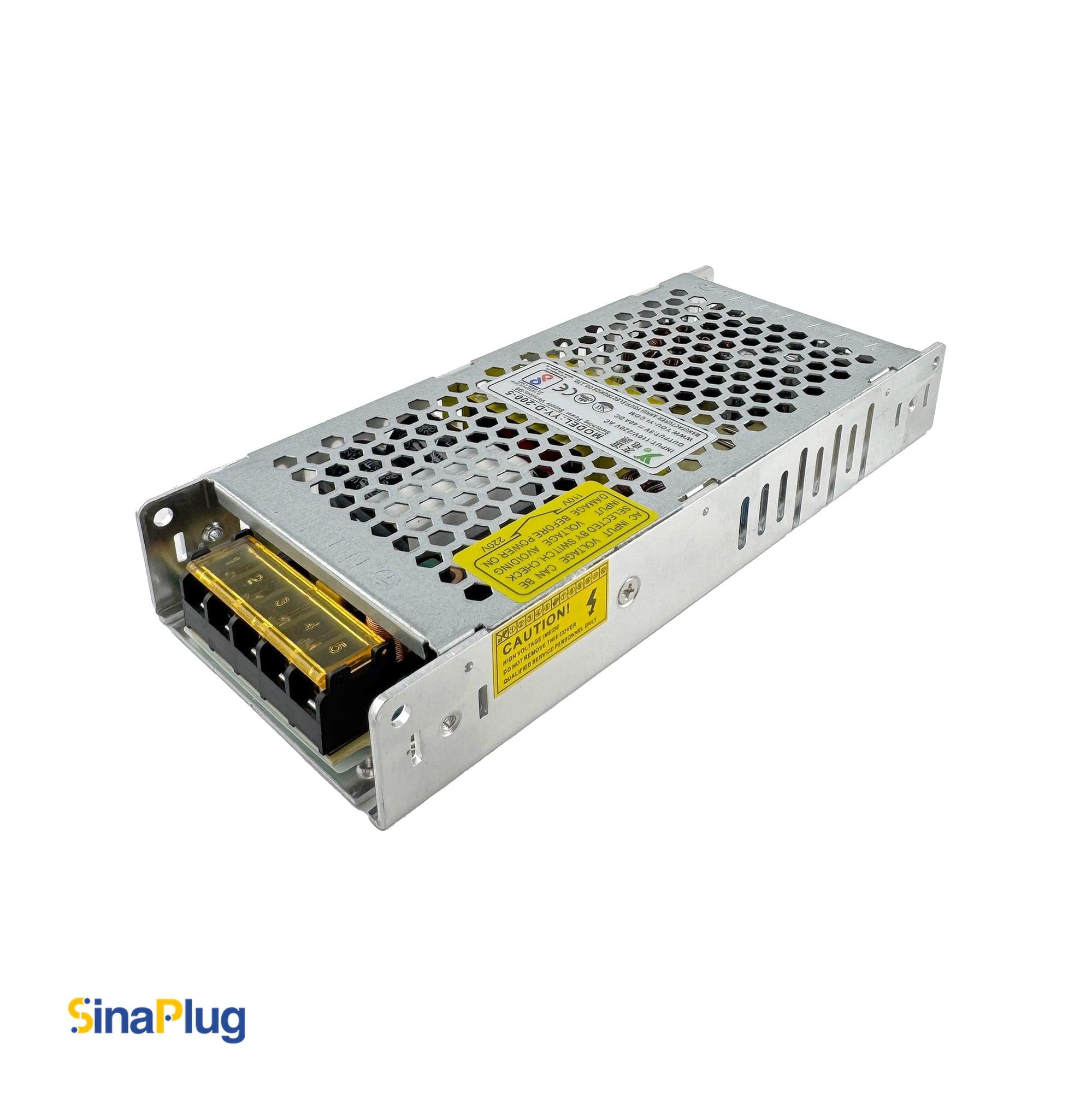

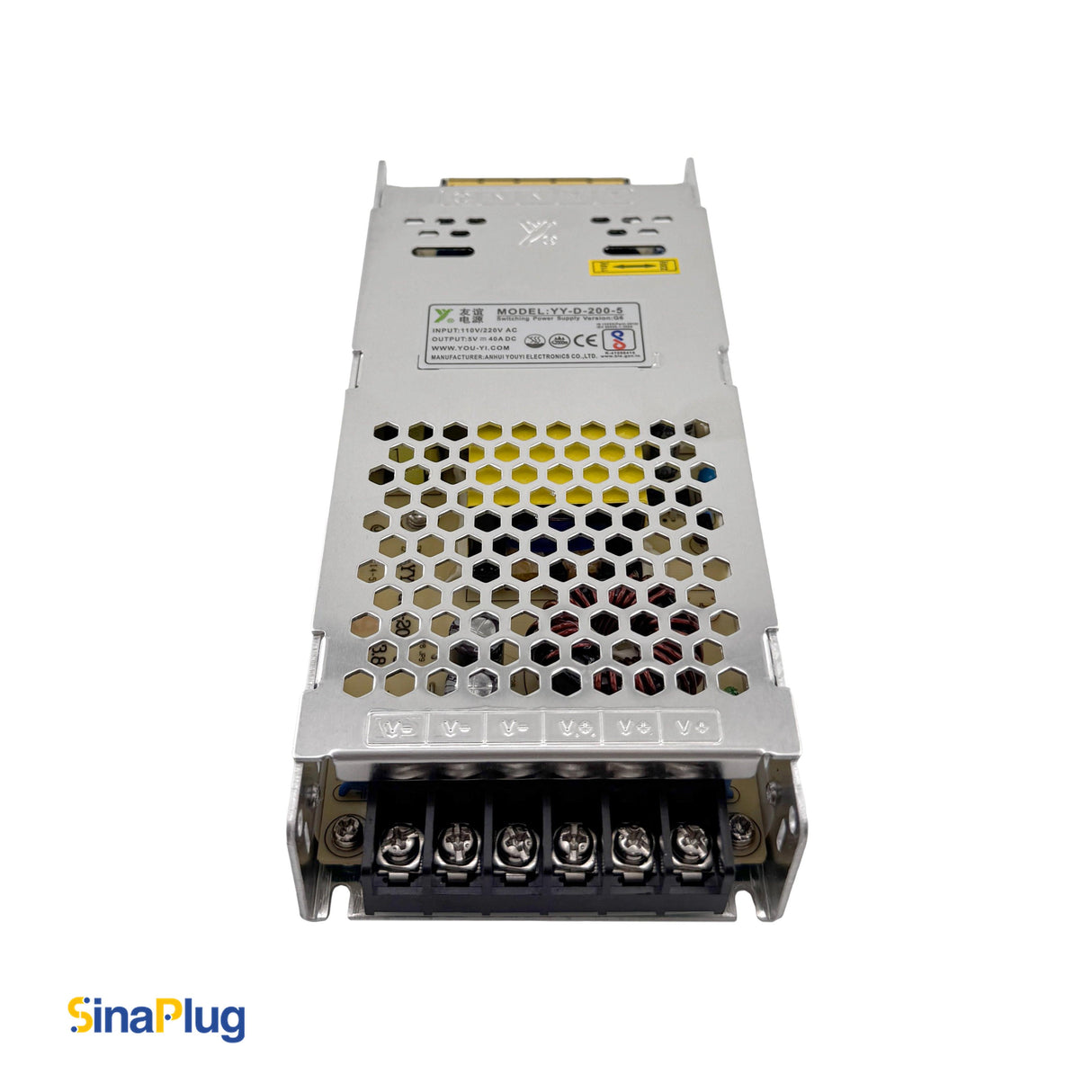

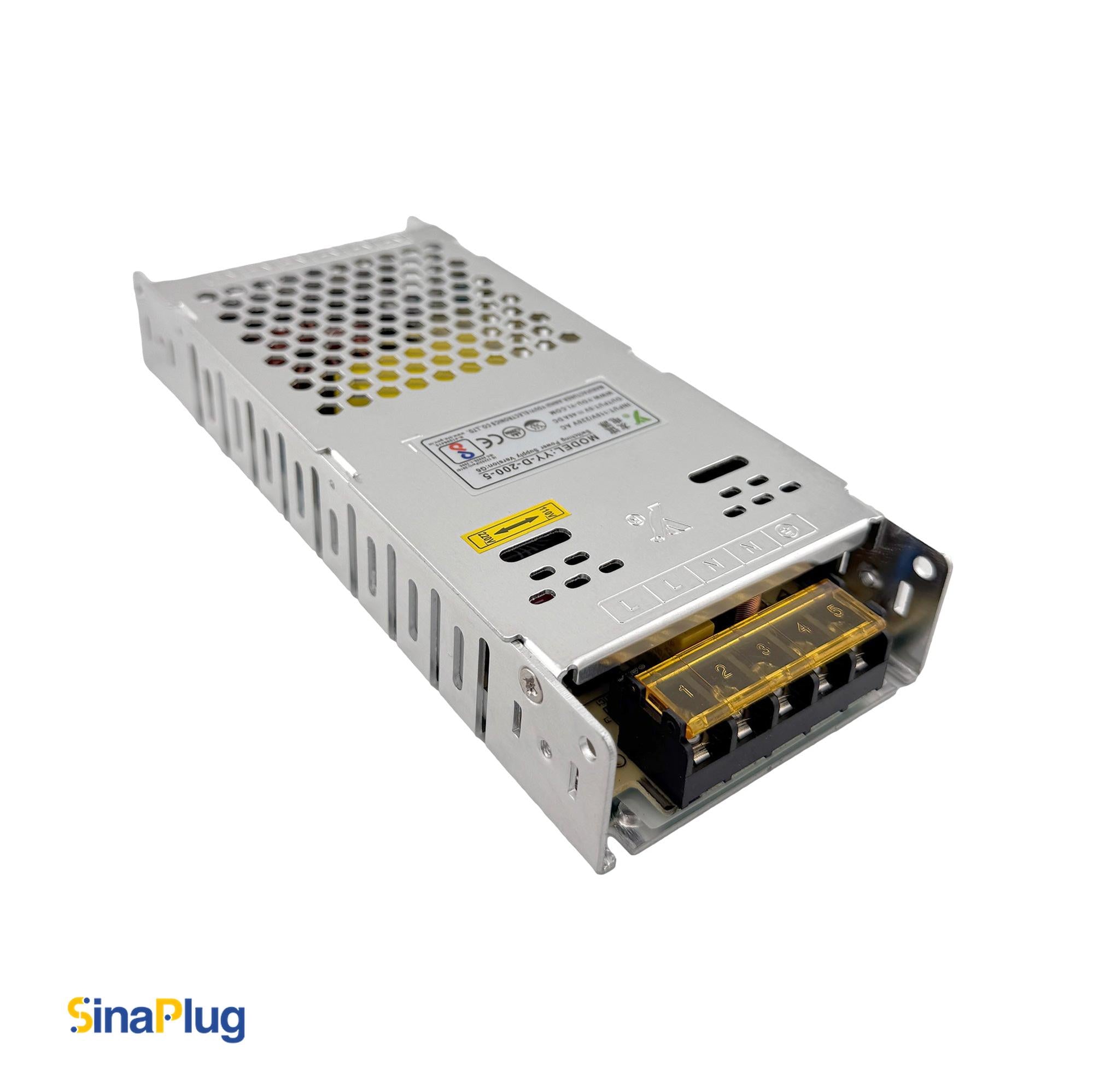

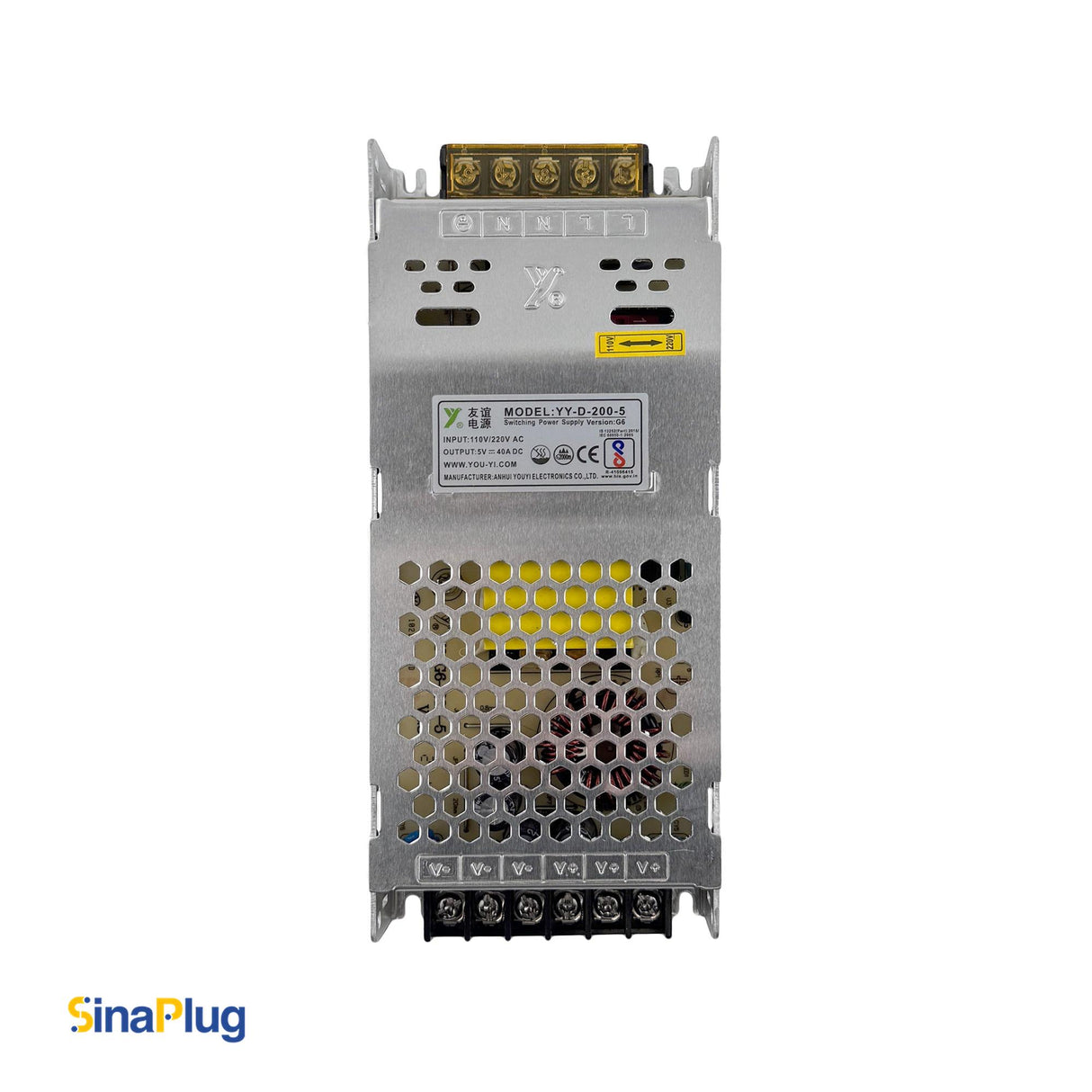

Youyi YY-D-200-5 V-G 110/220V Power Supply (5V, 40A)

The Youyi YY-D-200-5 (110/220V) Version G6 (a G series power supply also known as: YY-D-200-5V-40A V-G, or You-Yi 5V40A) is a remarkable enclosed power supply ideal for A/V and LED equipment, as well as industrial applications requiring consistent and reliable performance. It also has advanced protections such as over temperature, short circuit, and overload (all with automatic recovery).

The Youyi YY-D-200-5 (110/220V) operates with two selectable 110 VAC and 220 VAC inputs to provide 0-40A at 5V in three consistent output channels. It offers rated 200W output power with a high efficiency (over 85%) for optimal performance.

This small-sized AC/DC power supply ensures continuous performance in challenging environments with 2G anti-vibration capability (range of 10-55Hz) along all three axes, excellent 50K hours MTBF, and natural air convection design (it is recommended to mount it on a heatsink or a metallic (conducting heat material) with a minimum space of 5cm around it), and operates properly throughout a wide temperature range of -10°C to +60°C.

Key Features of YY-D-200-5
