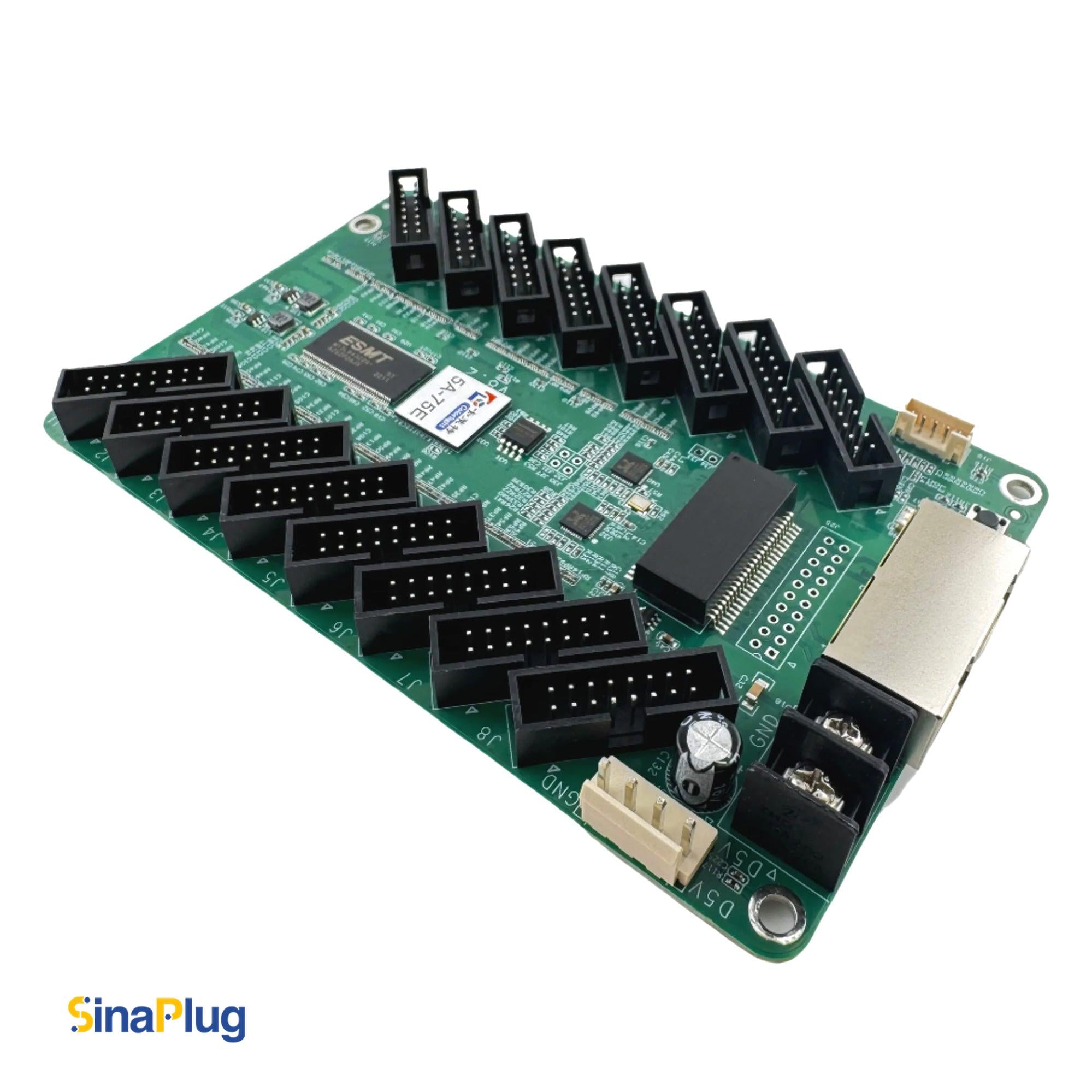

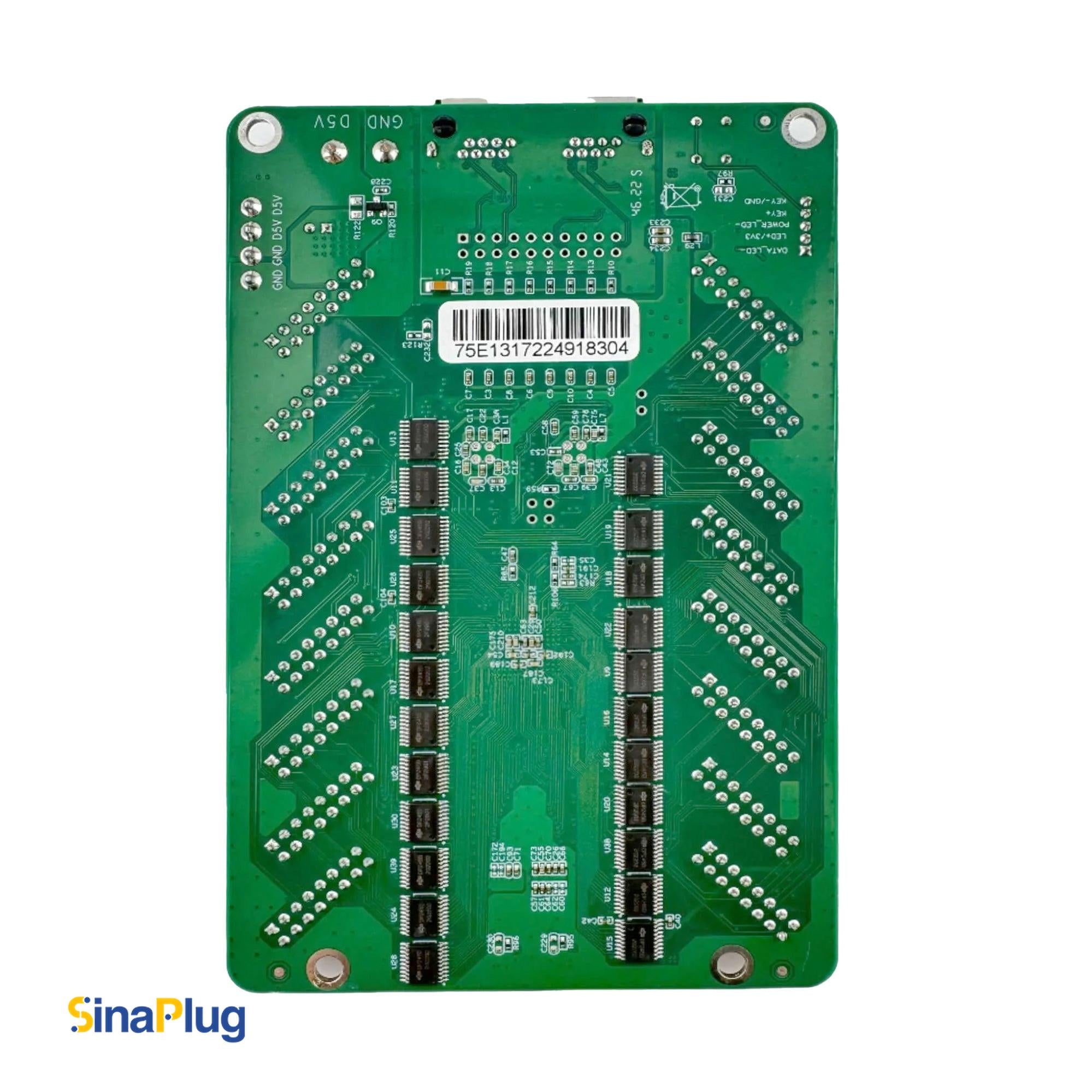

Colorlight 5A-75E Receiving Card (Enhanced version of 5A-75B)

Try the expert picks presented by Azar Pixel; The Colorlight 5A-75E receiving card (upgraded model of 5A-75B) is engineered to deliver robust performance and high-quality visuals for a wide range of LED display applications that demand both flexibility and efficiency. It offers features like a higher maximum loading capacity of 256x1024 pixels and supporting 32 groups of parallel or serial data which makes it ideal for larger, and more demanding display projects compared to the 5A-75B receiving card.

For superior image quality, it features monochrome grayscale, generating 256 shades of gray from an 8-bit color depth source input and delivers stable and reliable communication through its 16 standard HUB75 interfaces.

Additionally, The optimized gamma meter algorithm ensures excellent grayscale performance even at lower brightness settings. it also supports both standard and high frame rates up to 240Hz, thanks to the advanced color temperature adjustment and adaptive frame rate technology, offering smooth, expressive visuals.

Built to withstand challenging environments; while using an input voltage range of 3.8 V to 5.5 V DC and a rated power consumption of 3.0 W, the card operates reliably in temperatures from -25°C to +75°C. It is also RoHS certified, ensuring compliance with environmental standards.

Reliability and ease of maintenance are the main advantages of this fantastic card. The Ethernet cable (recommended to be CAT5e and under 100 meters) status monitoring and its bit error detection feature, assist users to identify any connection failures faster and redundant Ethernet port (supporting loop-line connection) ensures uninterrupted operation even if one of the connections fails. Firmware backup and readback functions make upgrades safe and straightforward, minimizing downtime and risks caused by a cable loss or power failure.

In conclusion, the 5A-75E backed by renowned Colorlight brand, stands out as a versatile and reliable solution for continuous 24/7 use in commercial LED display systems, offering a blend of advanced features in addition to stable performance.

Looking for other popular Colorlight products? You will be interested in: X6, X4s, X3, X2m, S4 controllers and processors or S2 sending box.

Key Features of Colorlight 5A-75E

- 256×1024 pixels (modules with PWM chips)

- 162×1024 pixels (modules with Shixin chips)

- 128×1024 pixels (modules with Normal chips)

1x Gigabit Ethernet Port

16x standard HUB75 interfaces (32x groups of RGB parallel data or 32x groups of serial data (which can be expanded to 128 groups of serial data)

1x Gigabit Ethernet Port

Supports adaptive frame rates

Supports up to 120/240Hz frame rates

8bit color depth video source input and output

Supports up to 1/128 scan

8-bit Pixel Level brightness and chromaticity calibration

Maintainability:

- Image rotation in 90° increments

- Quick firmware upgrade and quick release of correction coefficients

- Data group offset (suitable for simple special-shaped screens)

Reliability:

- Program firmware redundancy and readback

- Bit error detection

- Ethernet cable status monitoring

- Loop (Ethernet) redundancy
