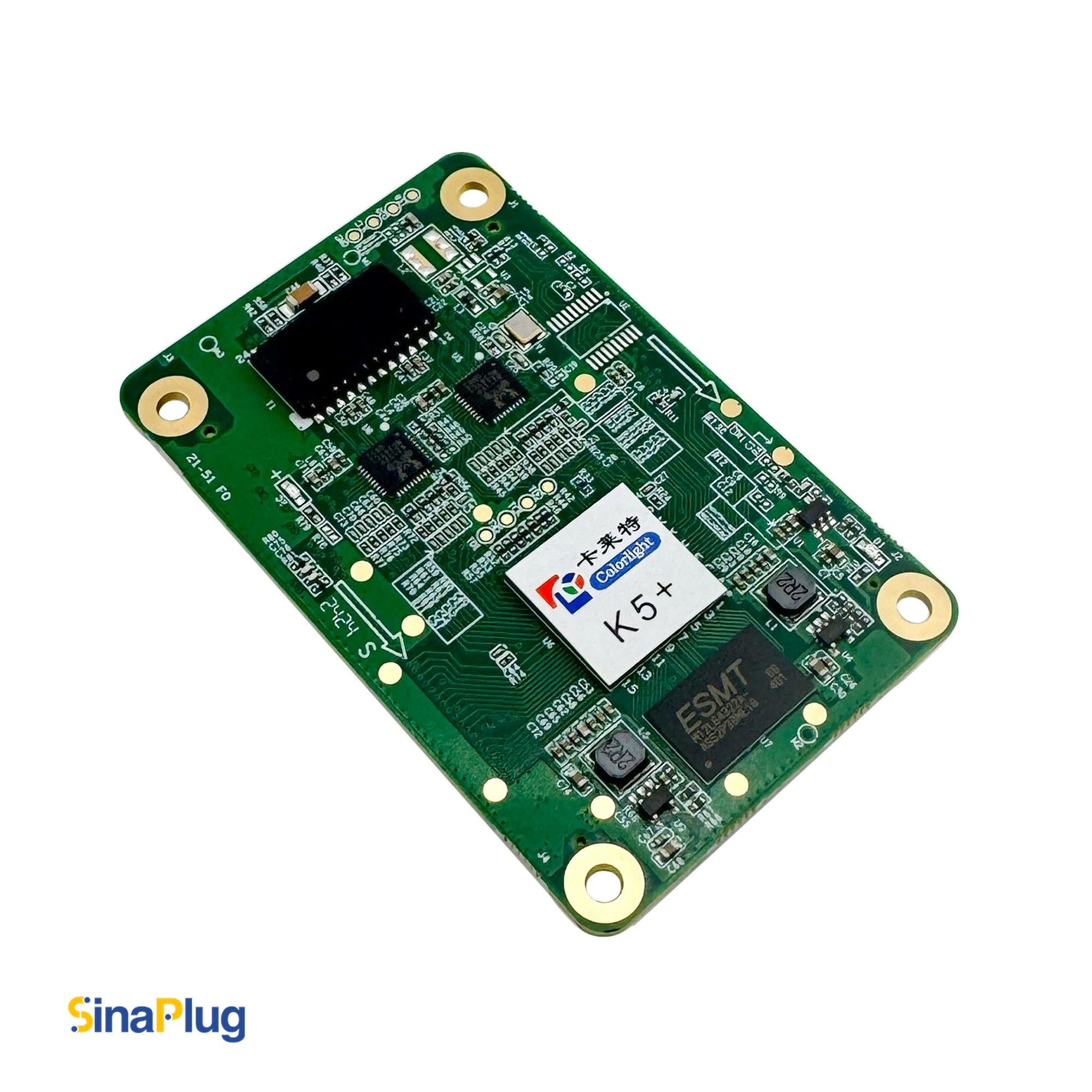

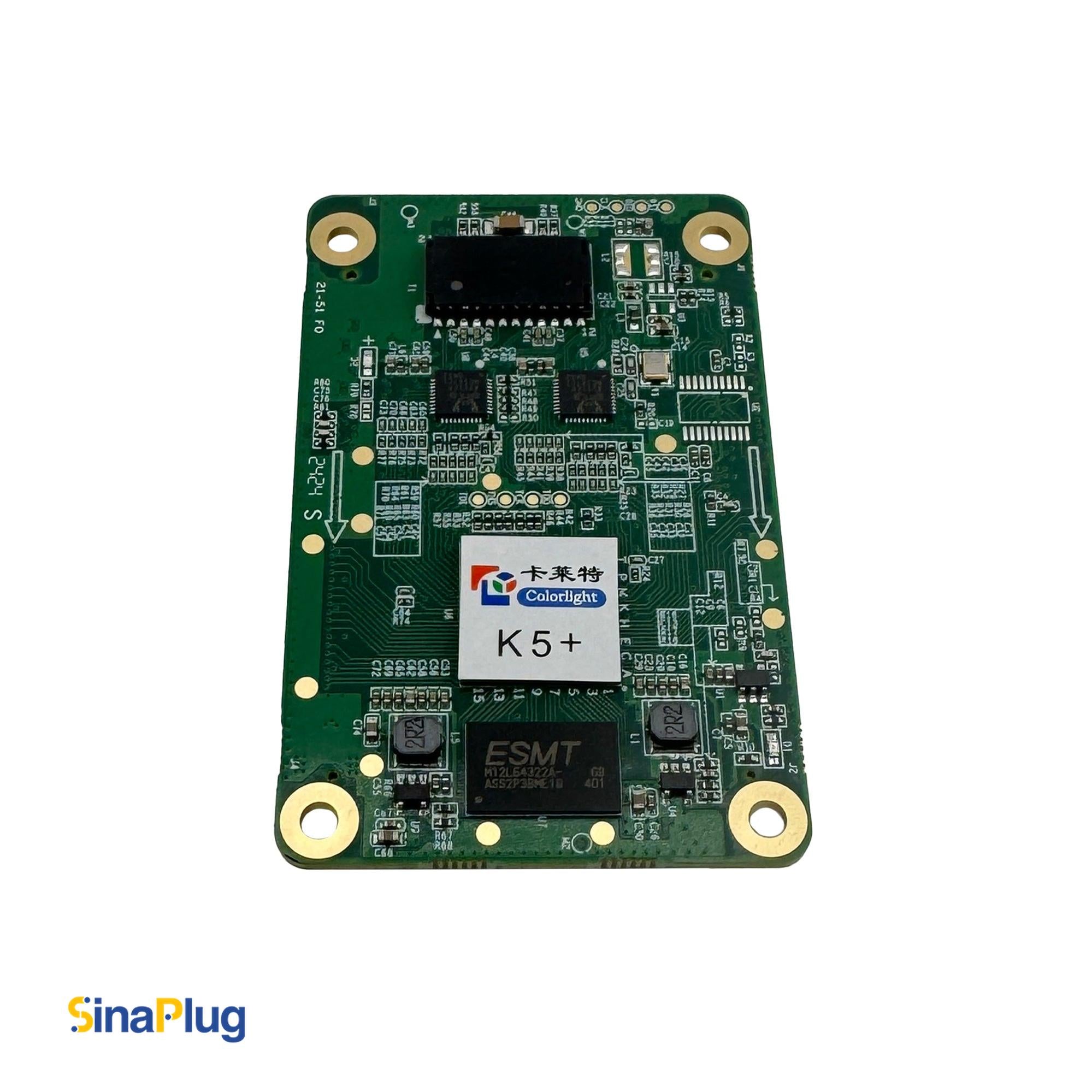

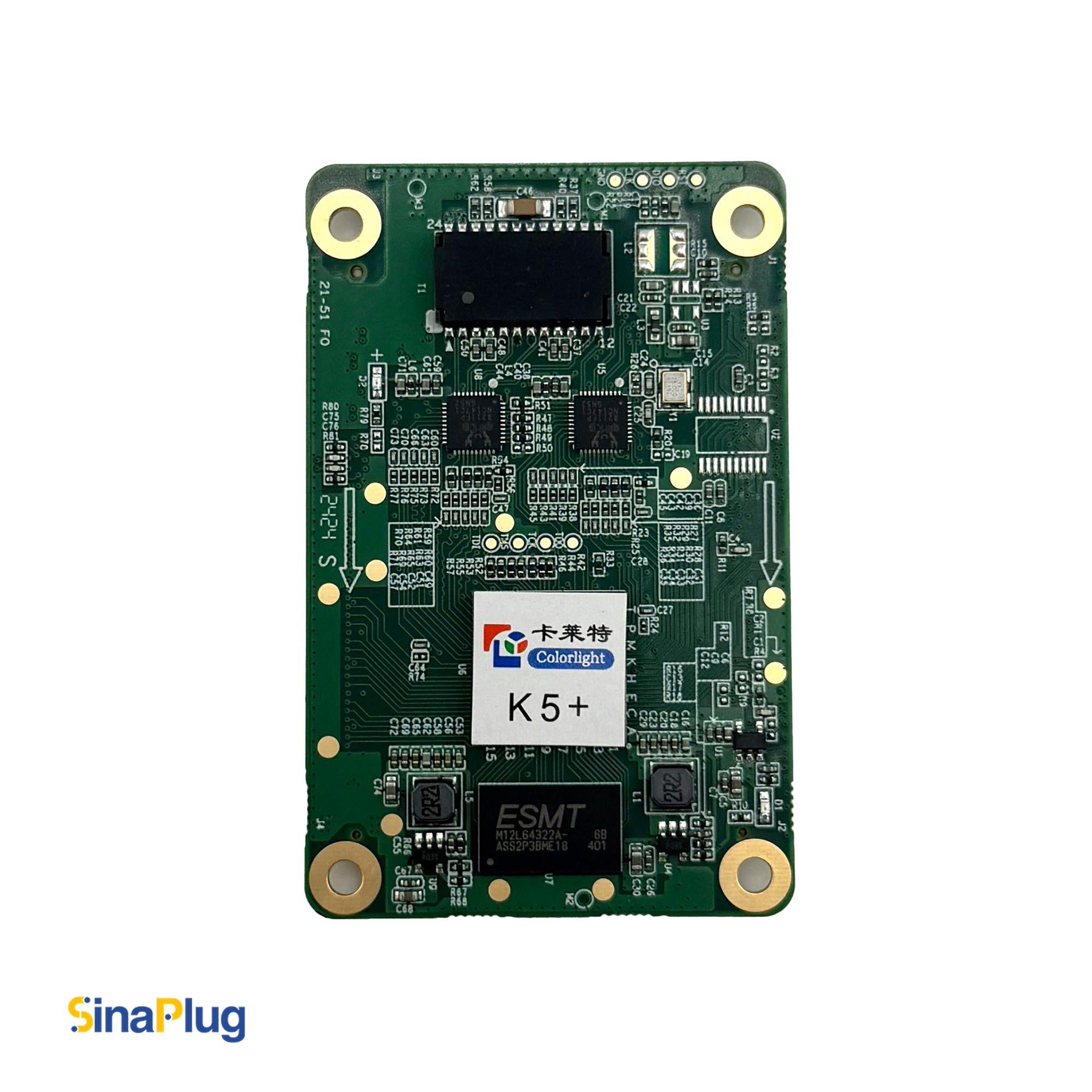

Colorlight K5+ Receiving Card

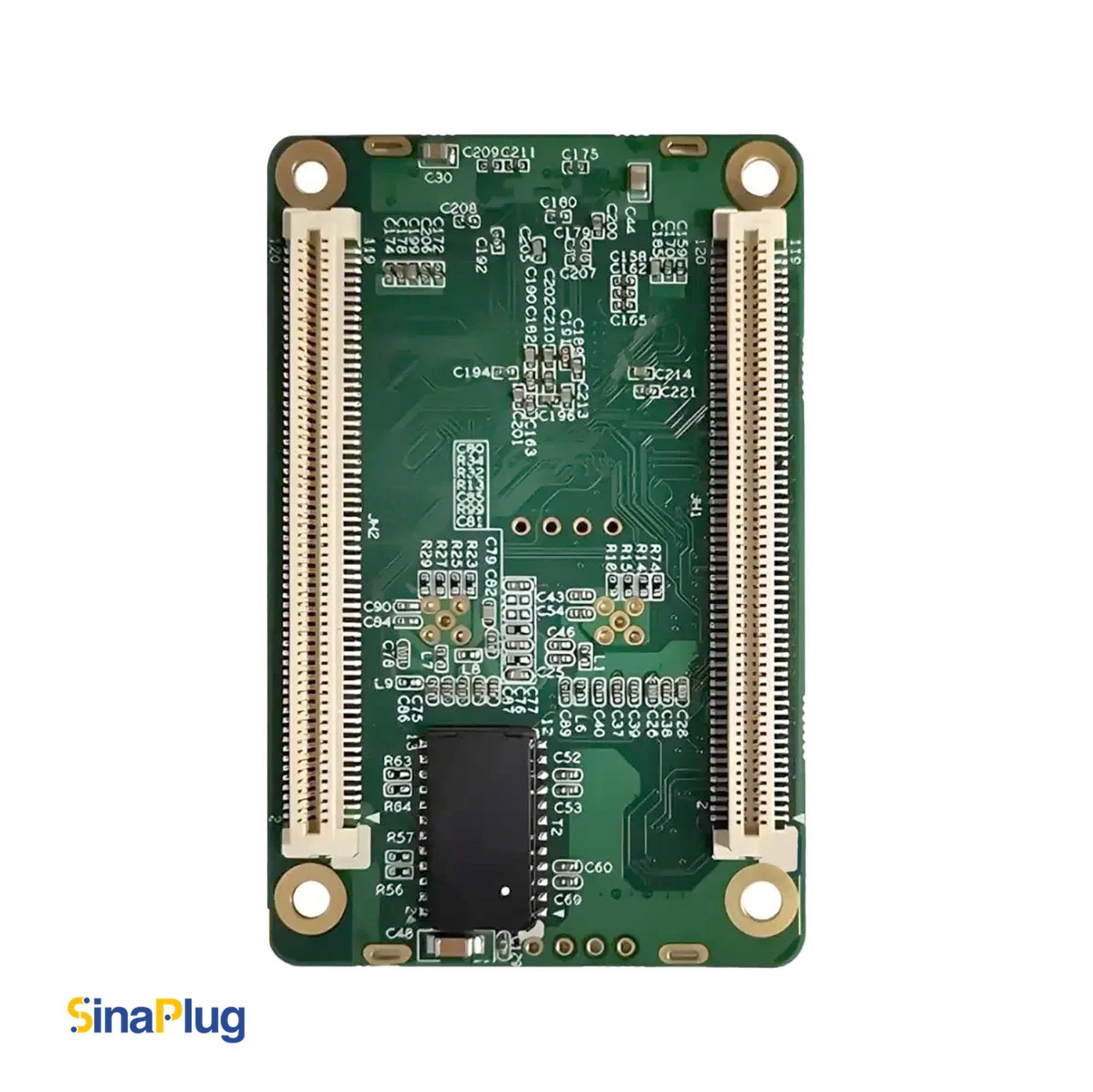

Azar pixel is proud to introduce the Colorlight K5+, a compact, high-performance receiving card designed for fine-pitch LED displays. With its two high-density DDR2 SODIMM interfaces, the K5+ allows for seamless integration into HUB boards. This ensures it fits easily into tight cabinet spaces, making it an ideal choice for both rental and fixed installations.

This card handles up to 32 groups of parallel RGB data and 32 groups of serial data (expandable to 128), Supporting resolutions up to 512×256 pixels for modules with normal chips, 512X384 pixels for modules with PWM chips and 512X324 pixels for Shixin chips. It maintains reliable operation across a wide temperature range, from -25°C to +75°C.

It also accepts 8-bit video input with 16-bit (65536) grayscale levels and 16.7 million kinds of mixed colors, along with color temperature adjustment for smooth, expressive visuals. The card supports both standard and high frame rates up to 240Hz, due to adaptive frame rate technology and ensures uniformity through precise per-pixel brightness and chromaticity calibration, and maintains excellent grayscale at low brightness.

An advanced feature of this product is its comprehensive monitoring capability by displaying temperature, humidity, data transmission quality, voltage, and power supply real-time status directly on the cabinet's LCD screen. This advanced monitoring is available when the product is paired with a compatible module that supports hardware status monitoring.

Features like highlight and OSD marking, screen rotation, data group offset, and smart modules for calibration data further simplify setup and maintenance, ensuring stable 24/7 operation.

Overall, the K5+ supports advanced image processing, flexible integration, and robust reliability, providing an outstanding operation for fine-pitch LED display projects demanding high image quality and dependable performance.

Unlock limitless potential for your displays. Our cutting-edge Colorlight X-series controllers (X6, X4s, X3, X2m) and S4 processors deliver unparalleled performance and clarity. Partner them with the reliable S2 sending box to achieve your most ambitious visual projects.

Key Features of Colorlight K5+

1x Gigabit Ethernet Board-to-Board connector (to Hub/Module board)

DDR2 SODIMM interface: 32x groups of parallel RGB data or 32x groups of serial data (expandable to 128 groups)

1x Gigabit Ethernet Board-to-Board connector (to Hub/Module board)

Maximum Resolution:

- 512×384@60Hz (for PWM driver chips)

- 512×324@60Hz (for Shixin chips)

- 512×256@60Hz (for normal chips)

Image rotation in 90° increments

18bit grayscale compensation

8-bit pixel level brightness and chromaticity calibration

8-bit color depth video source input and output

Supports adaptive frame rates (up to 240Hz)

Maintainability:

- Compatible with: Gigabit switches, Gigabit fiber converters, and Gigabit fiber switches

- Cabinet LCD Screen monitoring: temperature, humidity, network cable, and voltage and power supply monitoring (In conjunction with the monitoring module)

Reliability:

- Bit error detection

- Fan control

- Loop (Ethernet) redundancy

- Dual receiving card hot backup

- Program Firmware redundancy and readback

- PSU redundancy
