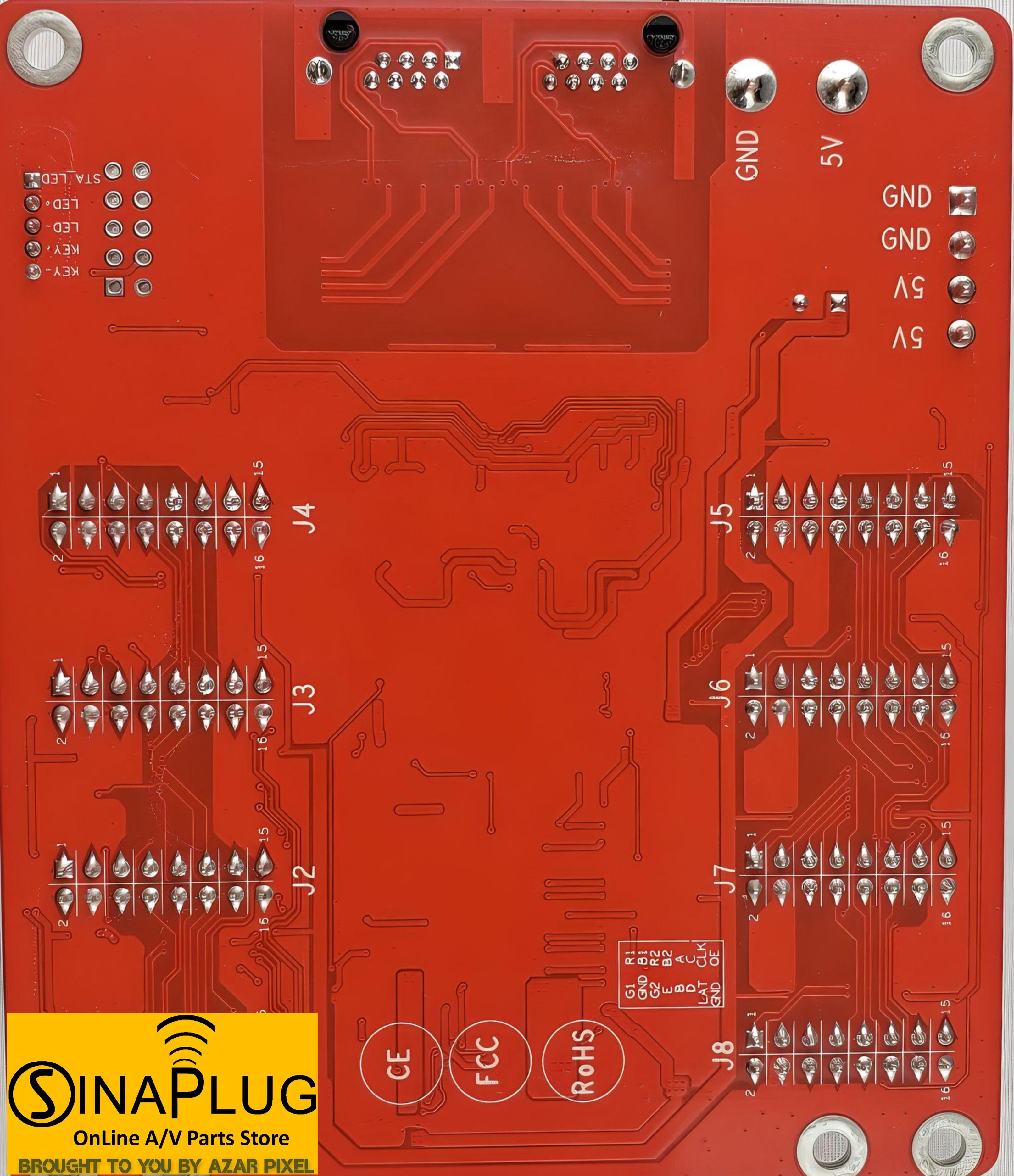

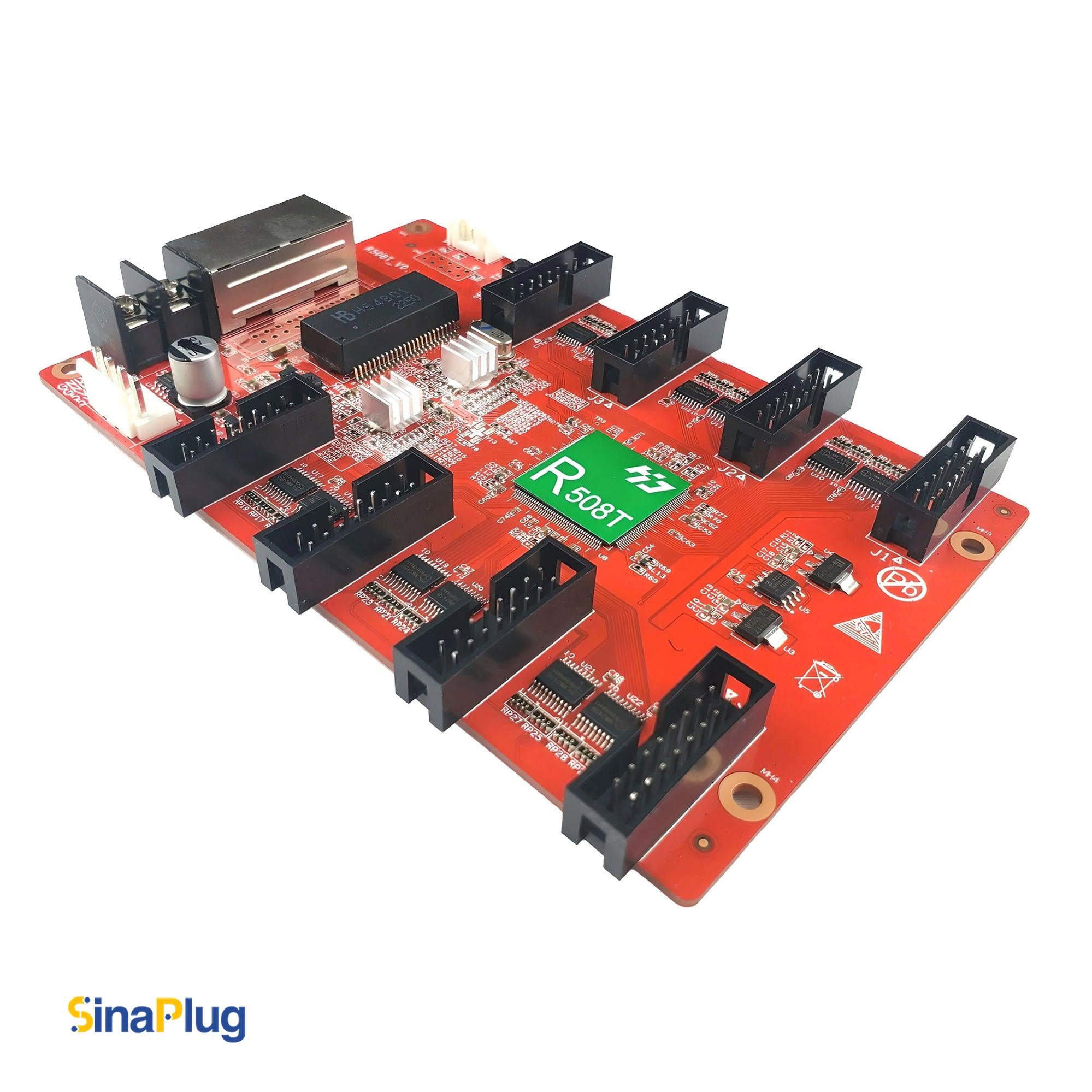

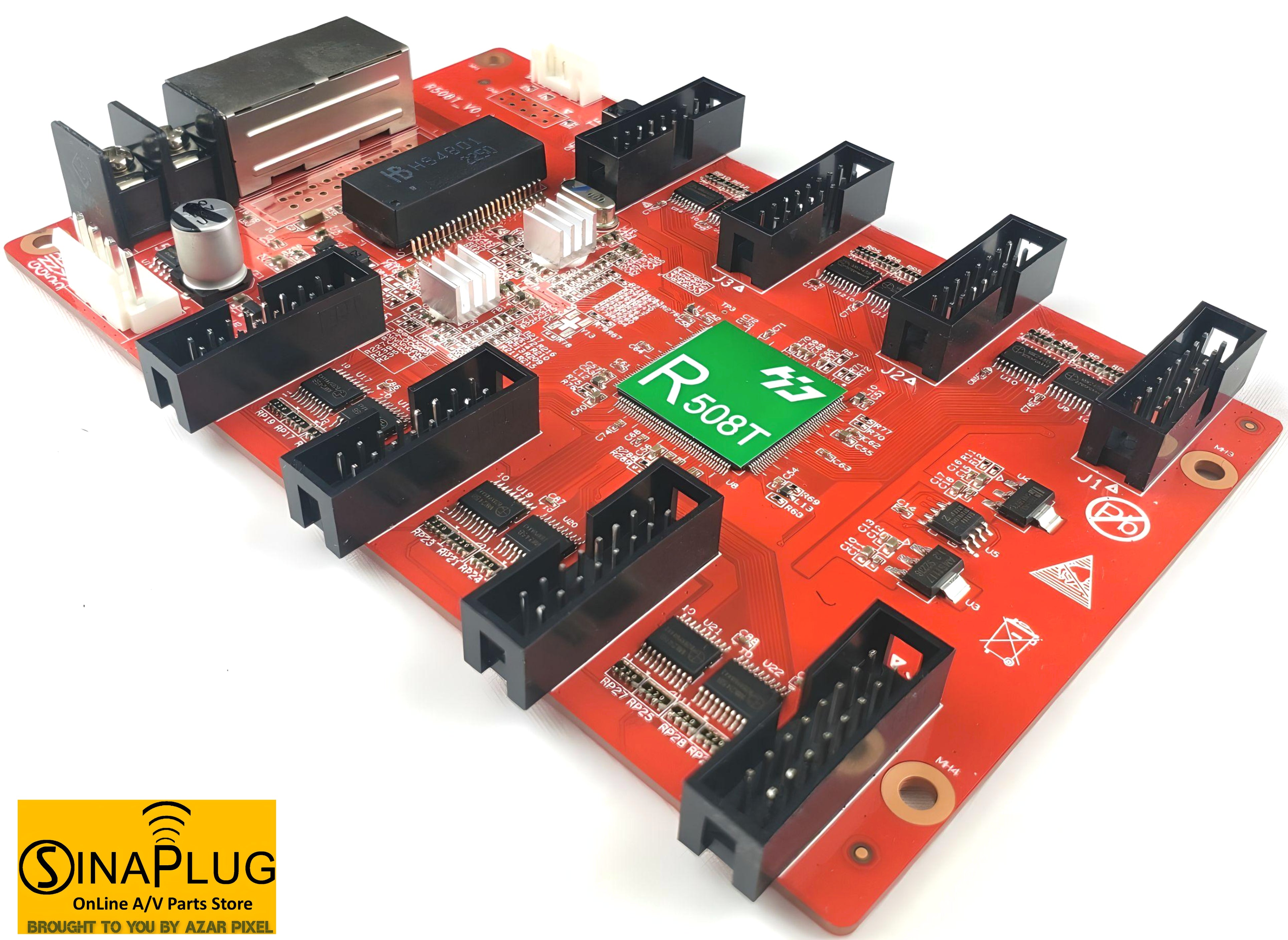

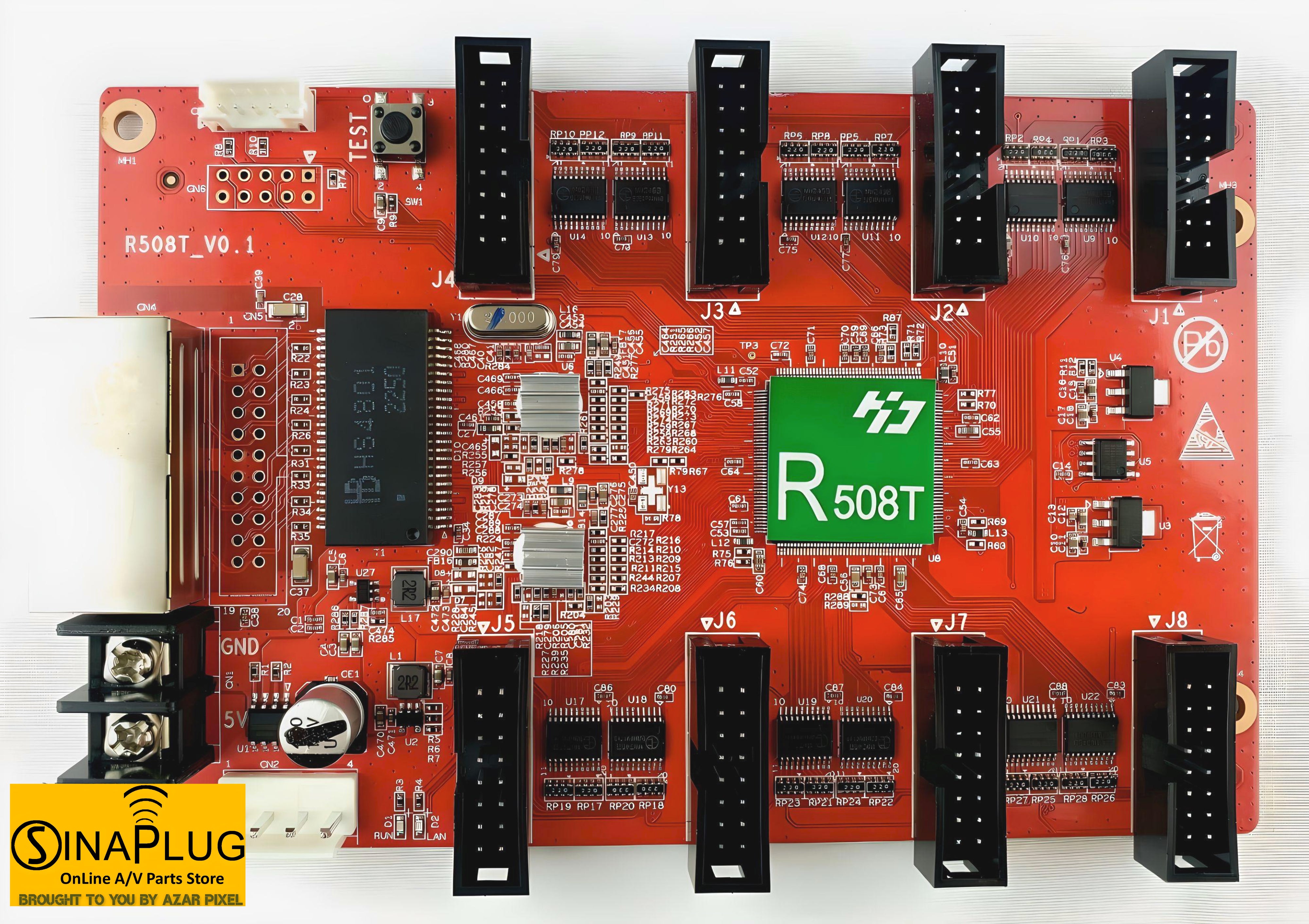

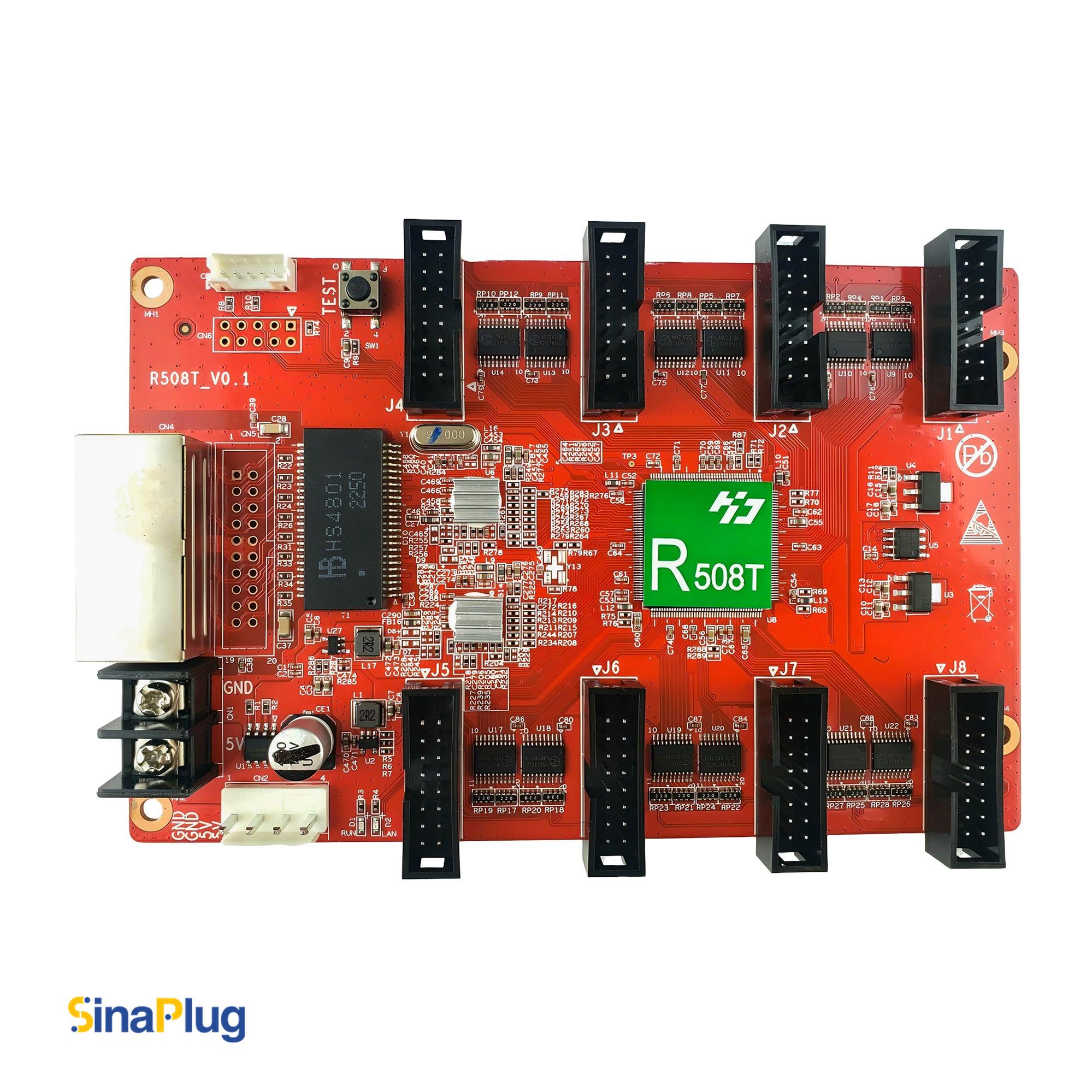

Huidu HD-R508 Receiving Card (HD-R708 is an Excellent Replacement)

At AzarPixel, it is the tough, multifunctional, and compact receiving card designed to control LED displays across applications, the Huidu HD-R508. With 8 standard HUB75E connectors, this card can manage up to 65,536 pixels (256 × 256), driving compatible mainstream driver ICs and PWM chips. It's capable of working with asynchronous or synchronous sending cards and VP series video processors, making it suitable for several applications.

This compact receiving card which is mostly similar to Huidu HD-R508T receiving card, makes setup easier with simple smart configuration, supporting various module types and scan modes (static to 1/64) with ease. Its networking reliability and CE, FCC, and RoHS certifications support professional-grade standards. It operates in the −40°C to +80°C temperature range, accepts DC 4.2V to 5.5V input, and has a 5W rated power consumption.

For users who need more options and better performance, AzarPixel suggests the Huidu HD-R708, Huidu-R712, and Huidu-R716. These models extends R508 capabilities in scan support up to 1/128, a larger recommended loading capacity, and many future-ready specifications for this cost-value investment in tough or scalable LED projects.
