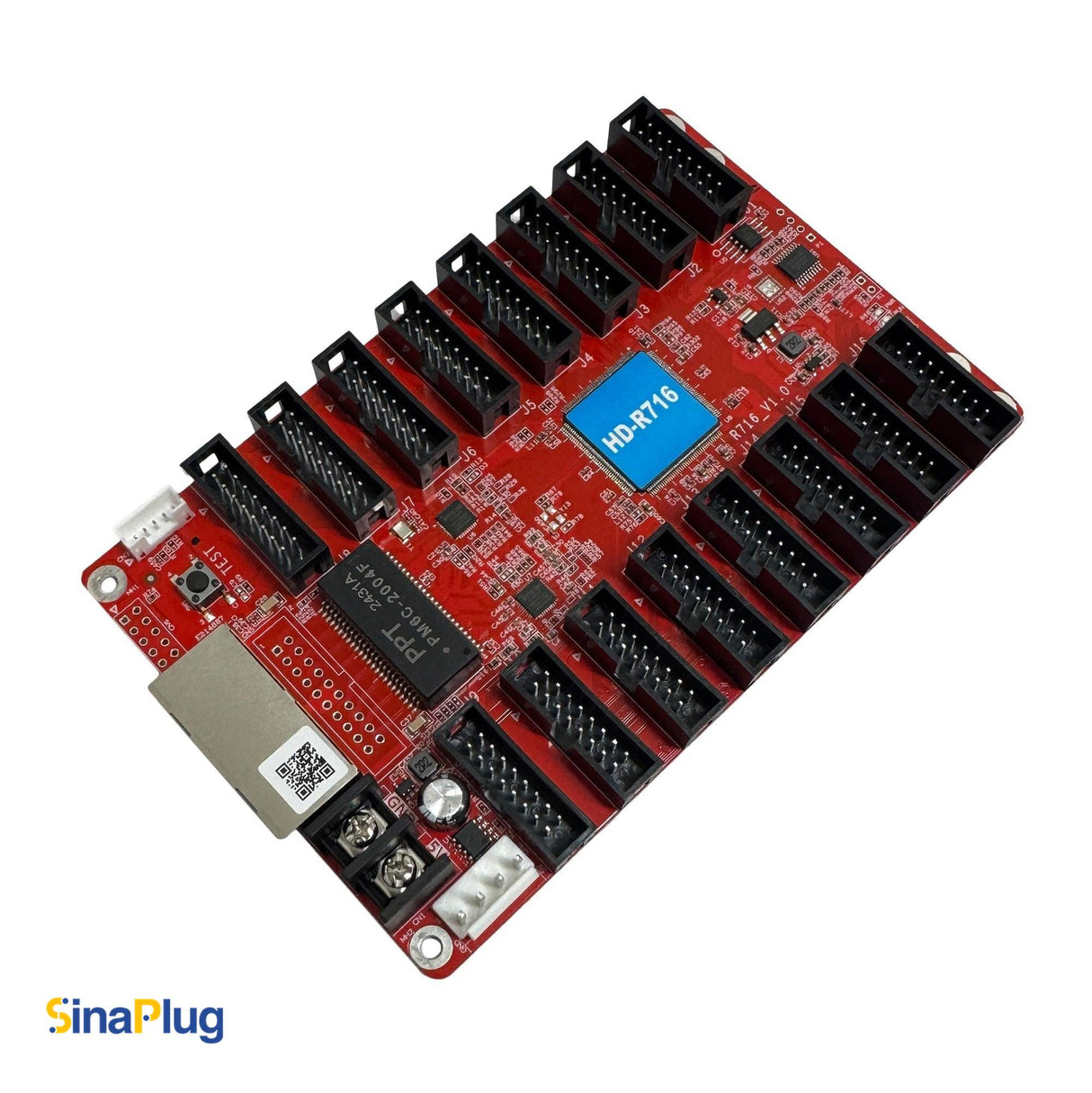

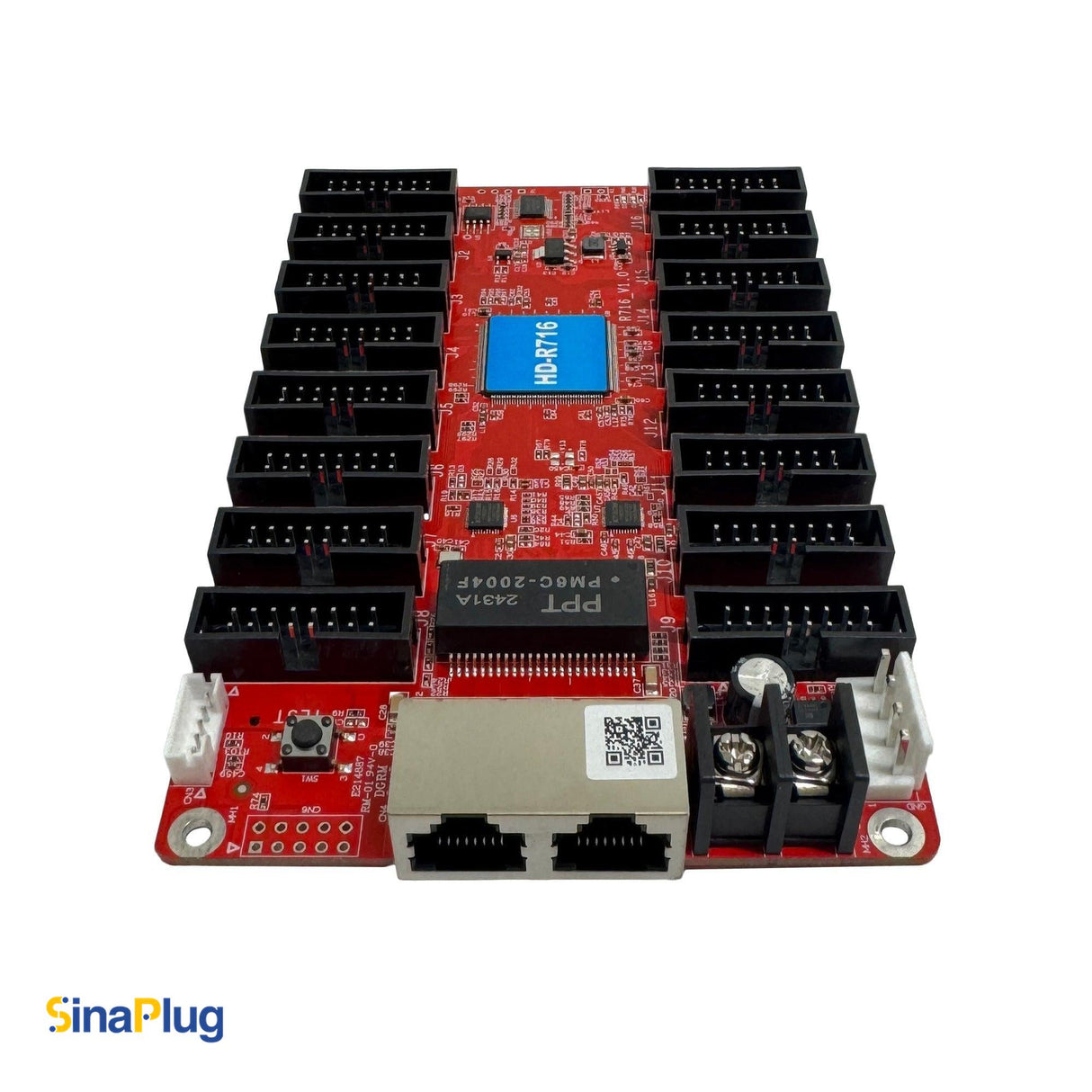

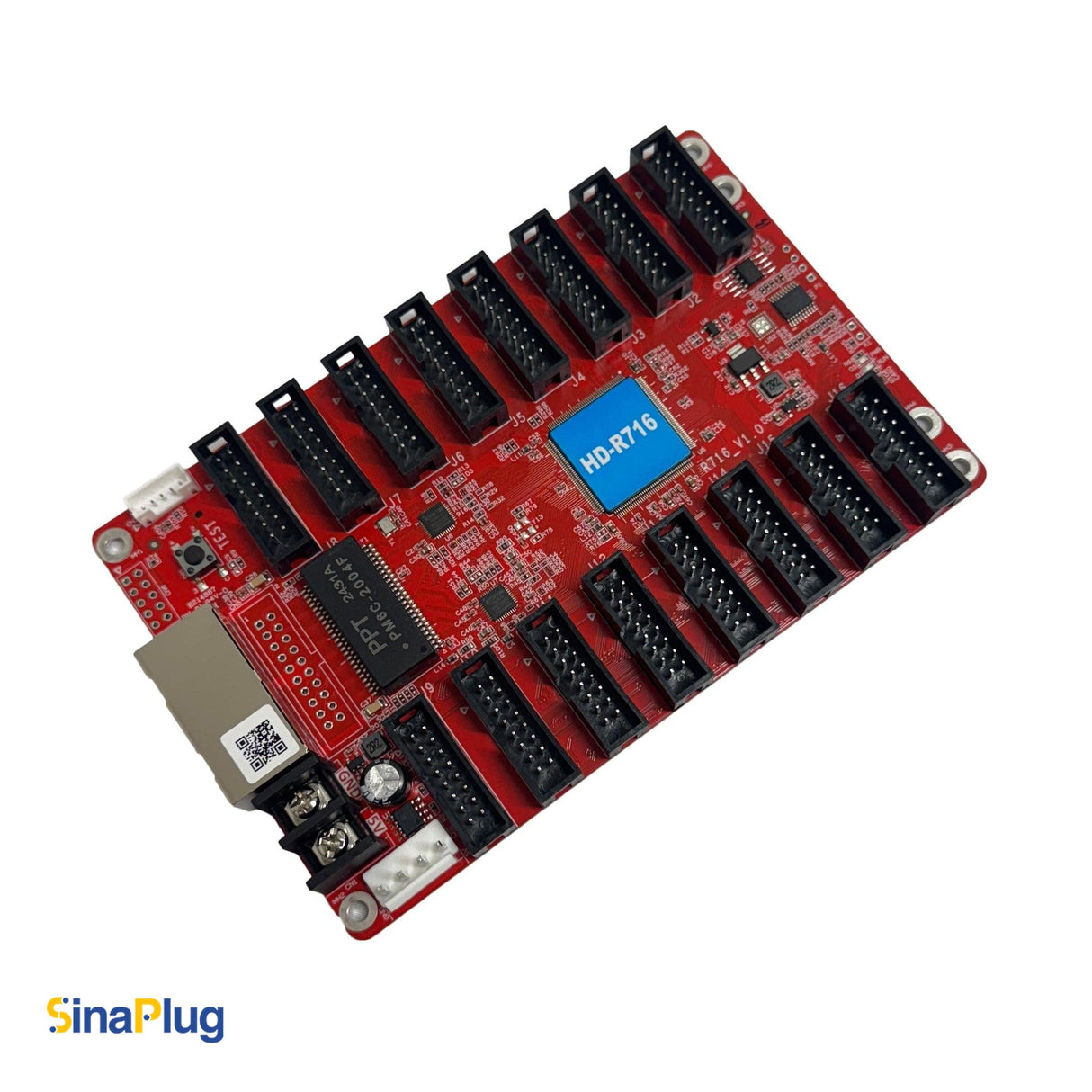

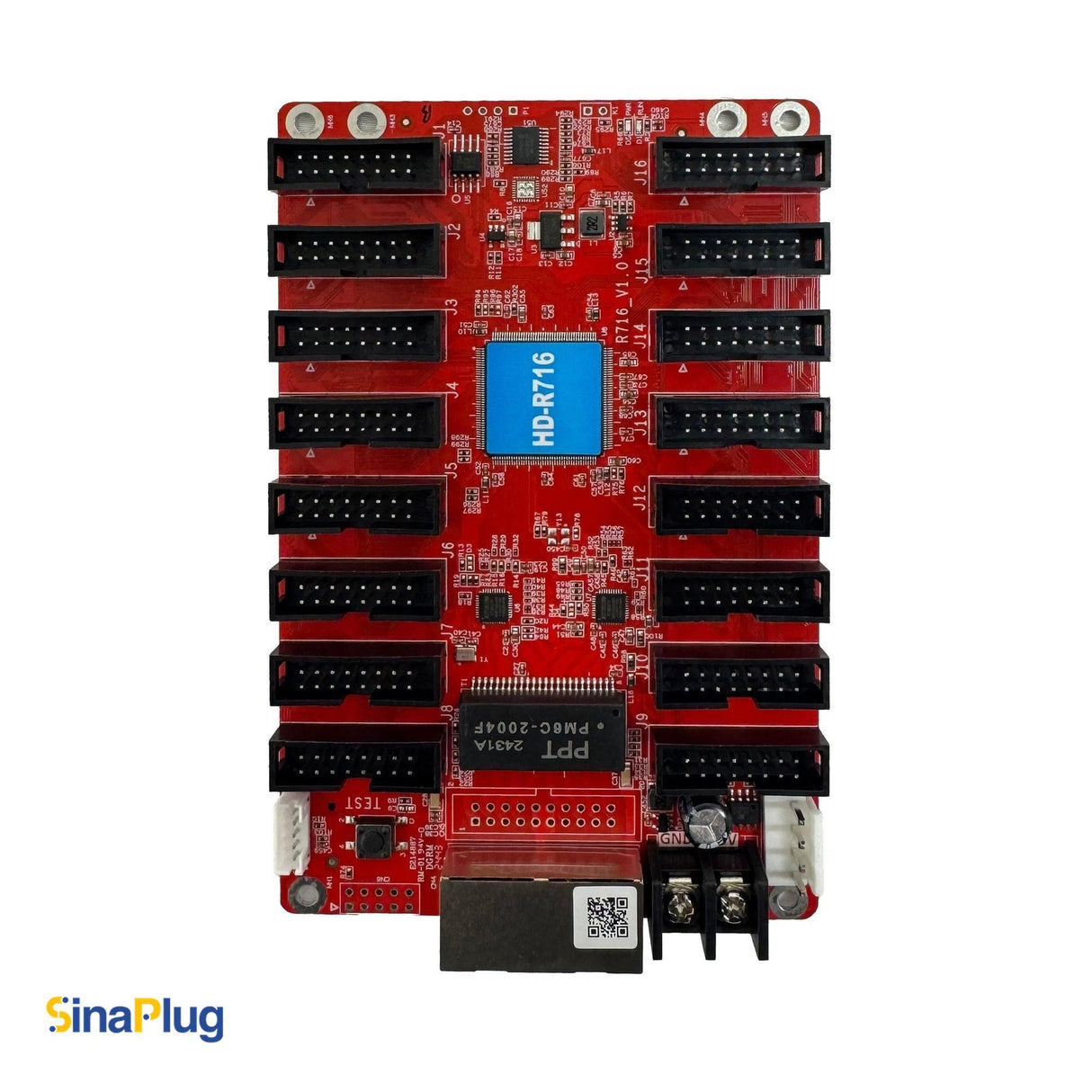

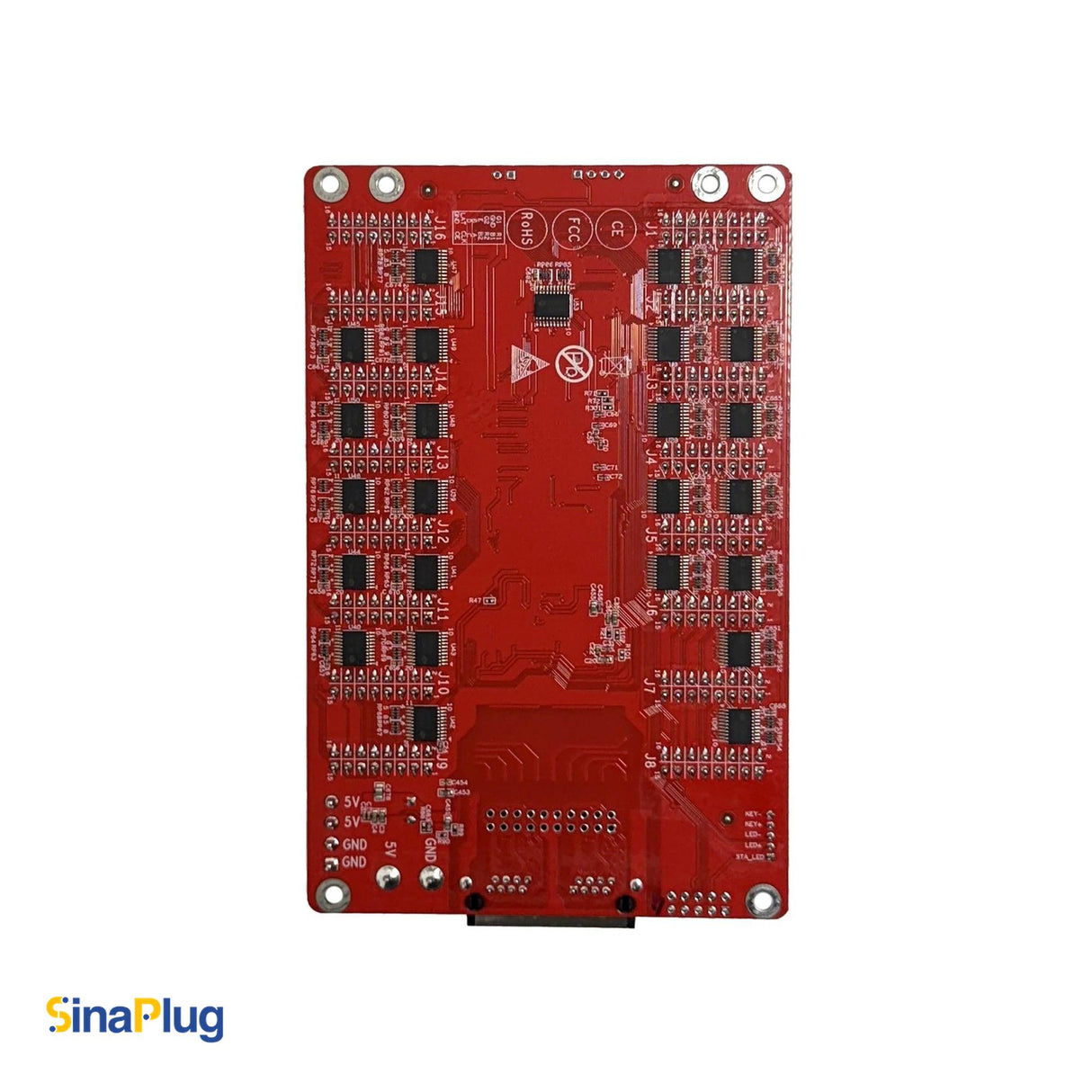

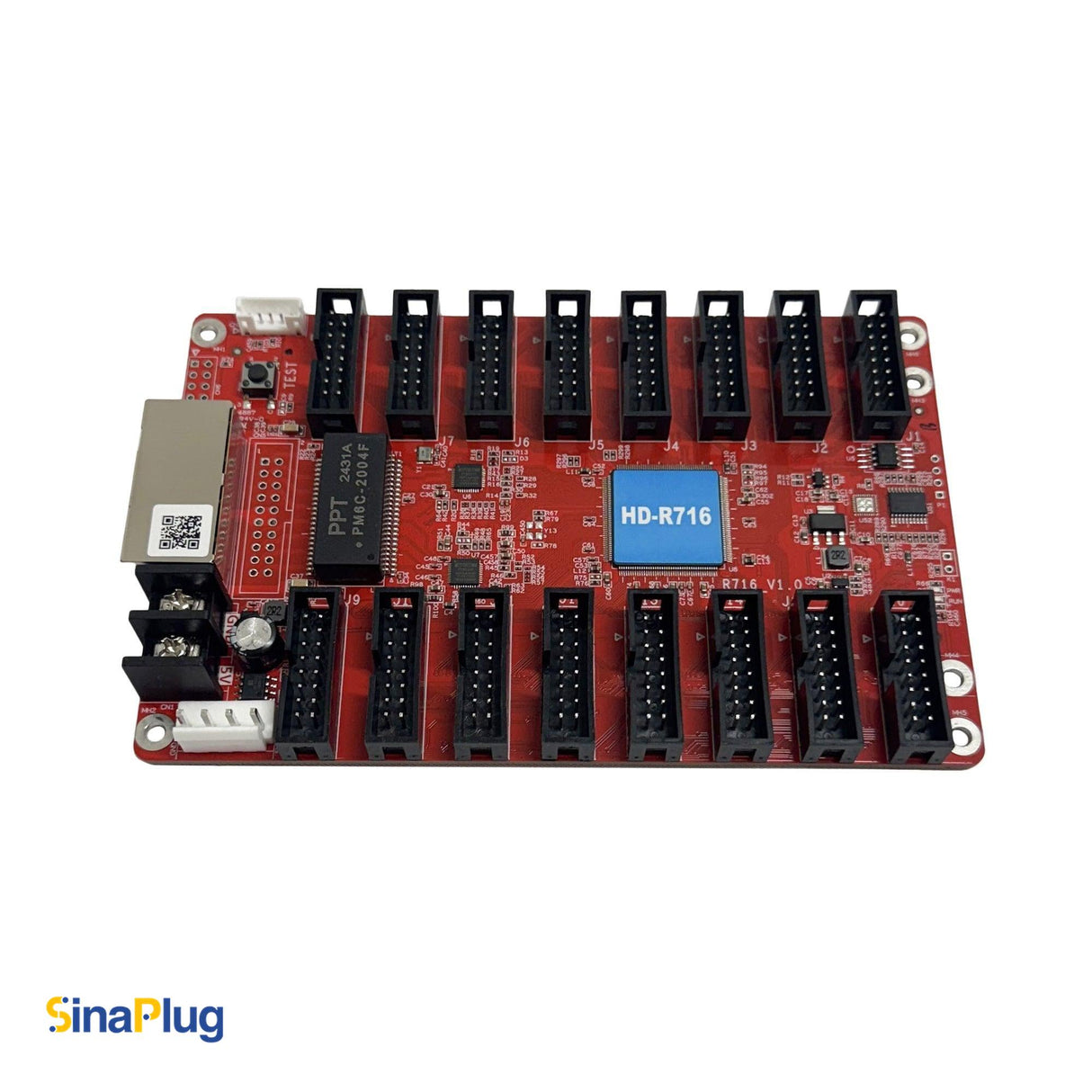

Huidu HD-R716 Receiving Card

Sourced by Azar Pixel, the Huidu HD-R716 is a highly adaptable LED display receiving card, designed for both synchronous and asynchronous control. It offers a wide range of compatibility with receiving card models including R500, R508, R512, R512S, R512T, R516, R516T and R612, dual mode sending boxes, asynchronous and synchronous sending cards, and VP series video processors, in addition to wide variety of IC modules, including most PWM types.

It simplifies setup by eliminating the need for a HUB adapter board. It Features 16x HUB75E interfaces, which ensures stable and secure connections to LED modules via flat IDC cables. Its interchangeable two Gigabit Ethernet ports provide easy and flexible connectivity to sending cards or other cascaded receiving cards.

It supports a wide variety of IC modules, including most PWM types, a range of 256 - 65536 grayscale, and accommodates any scanning method up to 1/128 scan.

With a maximum control capacity reaching 327,680 pixels (320*1024,256*1280 and 512*640) for PWM chip modules. R716 recommends loading configurations of 160*1024 or 256*640 for conventional chips.

This superior card benefits smart settings for streamlined setup and an integrated test function for ensuring display uniformity while supporting a gray scale range from 256 to 65536. It also facilitates communication over distances up to 80 meters using standard network cables (Cat5 and Cat6).

Designed for dependable performance in various applications, the Huidu HD R716 operates on a DC voltage of 4V to 5.5V with a typical power consumption of 5W in ambient temperature of -40℃~80℃. Its blend of user-friendly settings, extensive compatibility, and stable operation makes it an excellent choice for a wide range of LED display applications.

Key Features of Huidu R716
