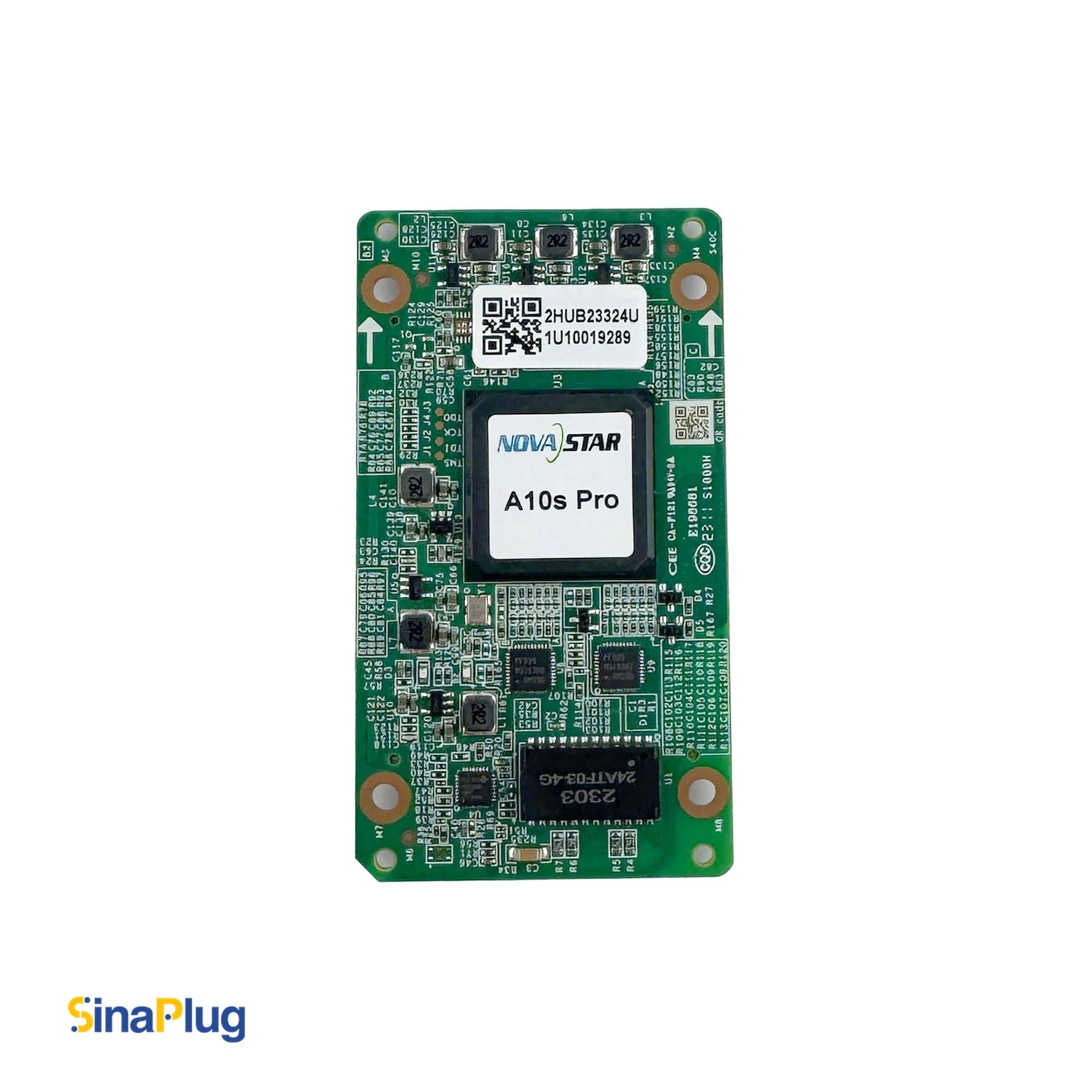

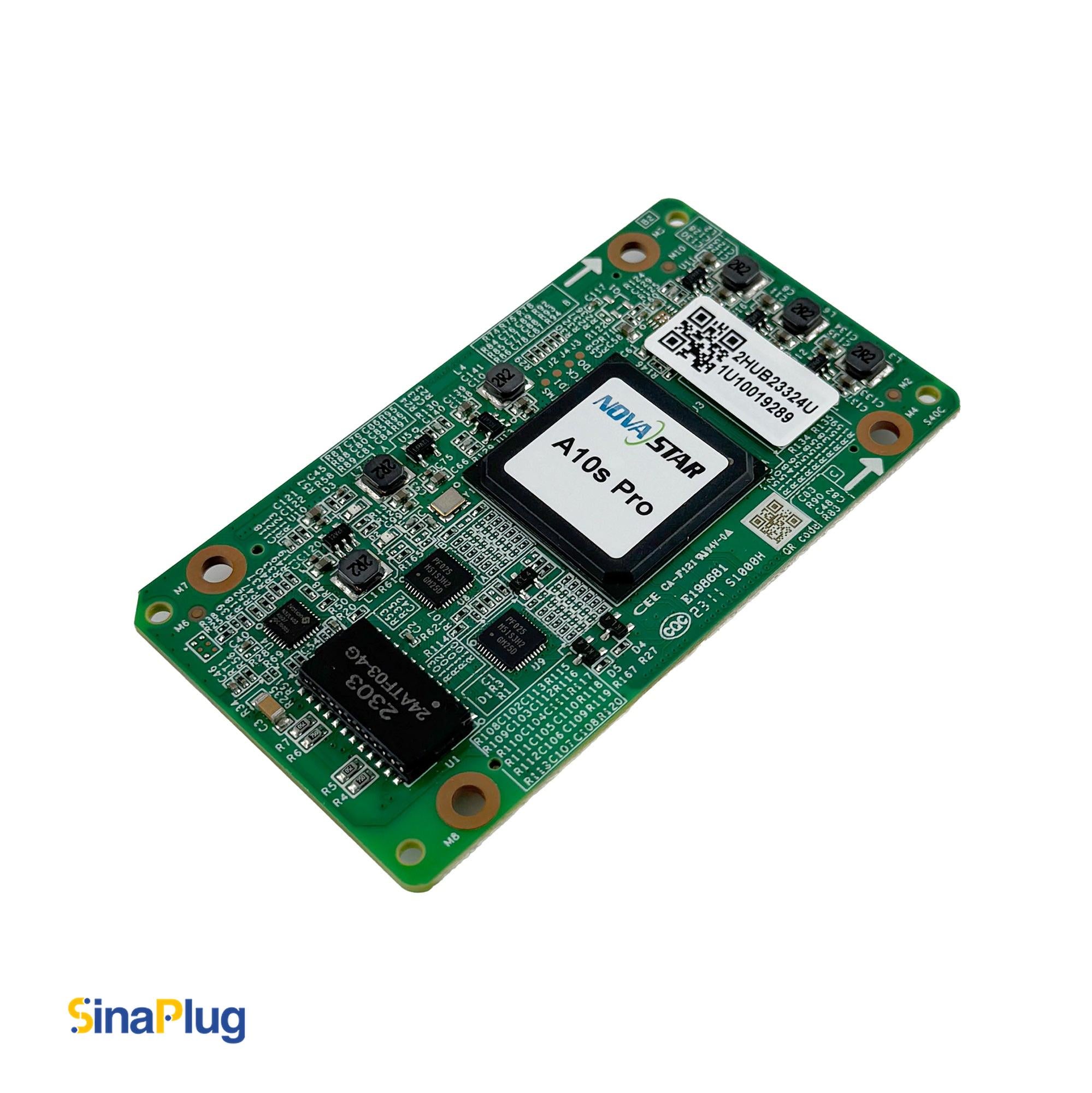

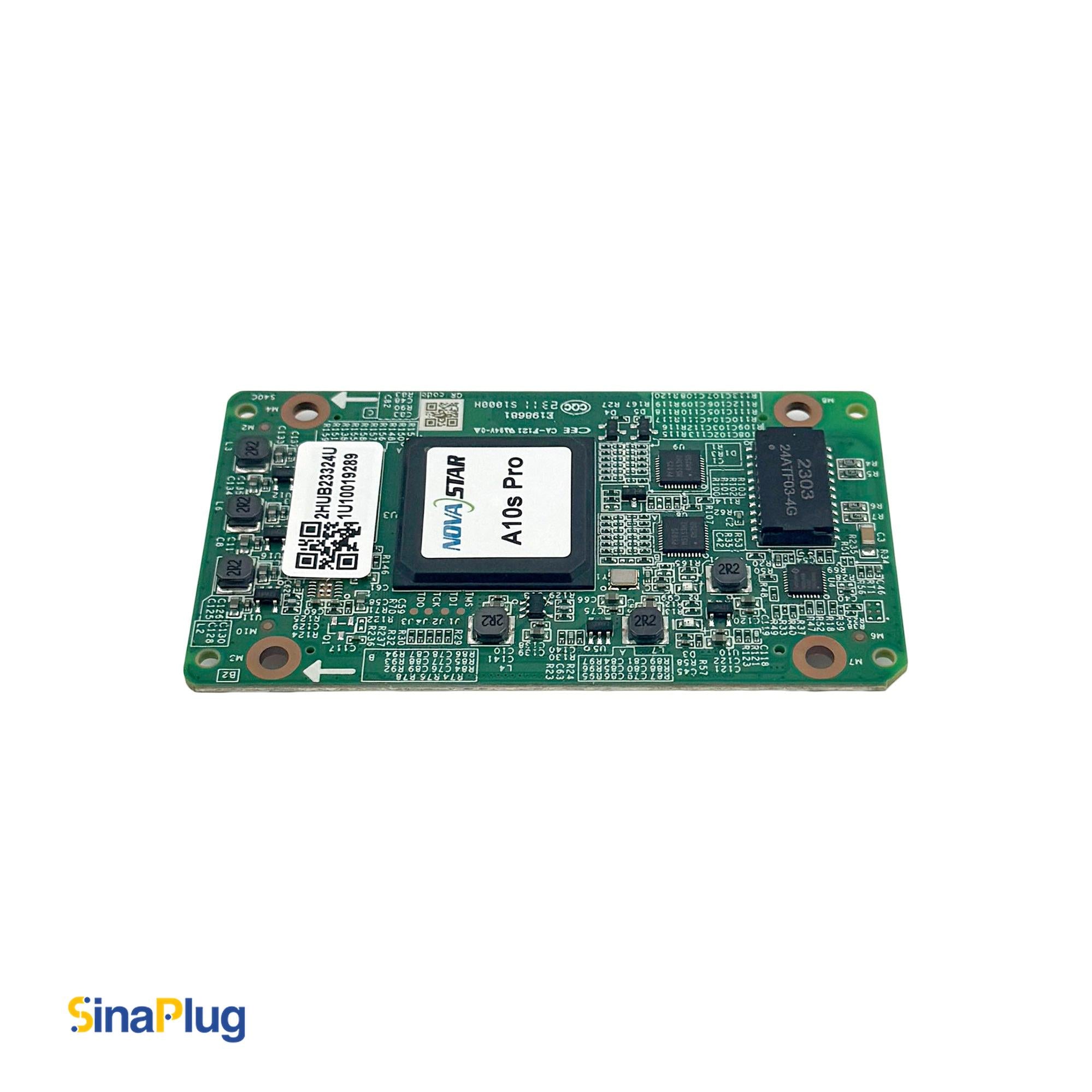

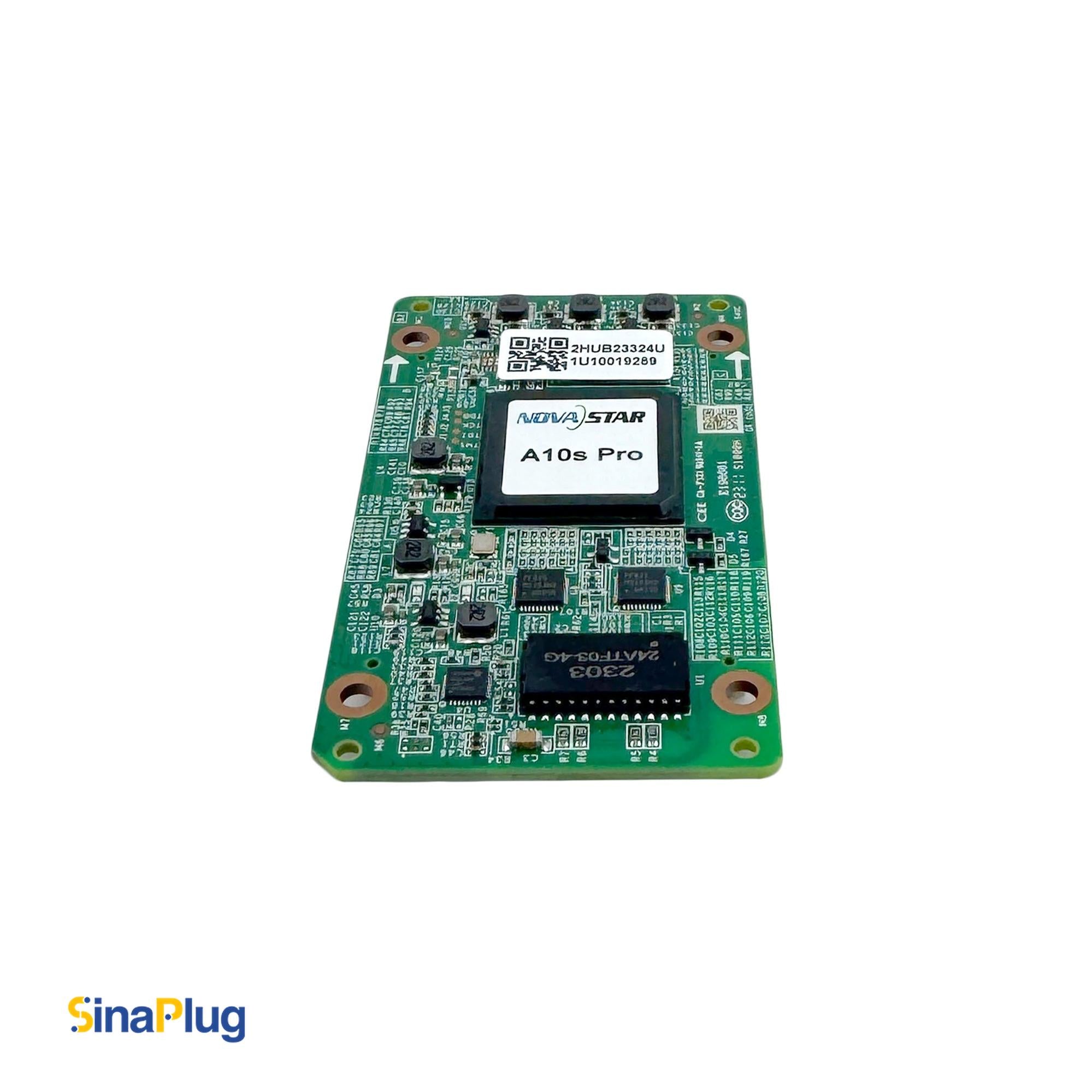

NovaStar A10s Pro Receiving Card

Listed and offered by Azar Pixel, the NovaStar A10s Pro Receiving Card, is a compact size high-end solution (from A-series likeA10s Plus and A10s Plus-N) designed to improve LED display performance through several innovative features and the stable operation. It is an engineer-specified board compatible with 8-bit and 10-bit video sources for modules with PWM driver ICs up to 512x512@60Hz resolution. Additionally, a single card can handle 512x256@60Hz resolution for 12-bit video sources as well.

This card is the preferred option to attain the highest visual output for any LED screen application. The receiving card highlights some special NovaStar’s features, such as: Adaptive Thermal Compensation, Dynamic Booster, Full-Grayscale Calibration, and Image Booster for overall visual fidelity to deliver a consistently high-quality viewing experience.

This receiving card is compatible with MX20, MX30, MCTRL4K, MCTRL600, and so many other powerful NovaStar controllers.

Additionally, combining with features like HDR (just supported in A8s, A8s-N and A10s series), Multi-Mode, Brightness Overdrive, Frame Rate Adaptive 3.0, HDR, Pixel Level Brightness and Chroma Calibration, quick adjustment of dark or bright lines, Low Latency, 3D, and 90° Image Rotation, the A10s Pro provides users the most magnificent images across diverse applications.

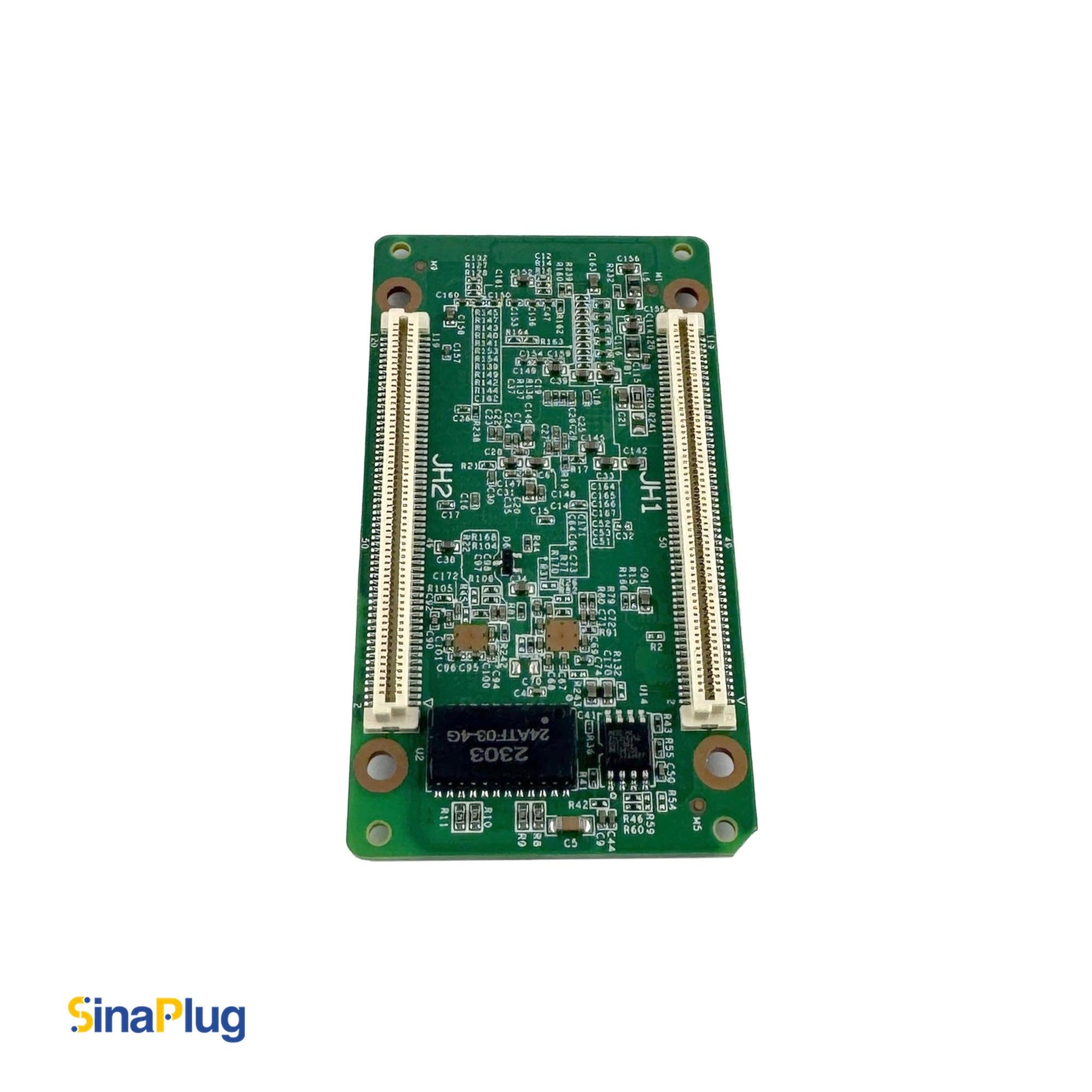

This product has been engineered for robust, convenient use, and reliable communication. It extends up to 32 groups of parallel RGB data or 64 groups of serial data, expandable to 128 groups for custom applications. Its reliance on high-density board-to-board connectors (instead of RJ45 Ethernet ports and IDC connectors) contributes significantly to this reliability. Complementing this, the card's spare pins provide flexibility for assigning customized commands as needed by the user.
