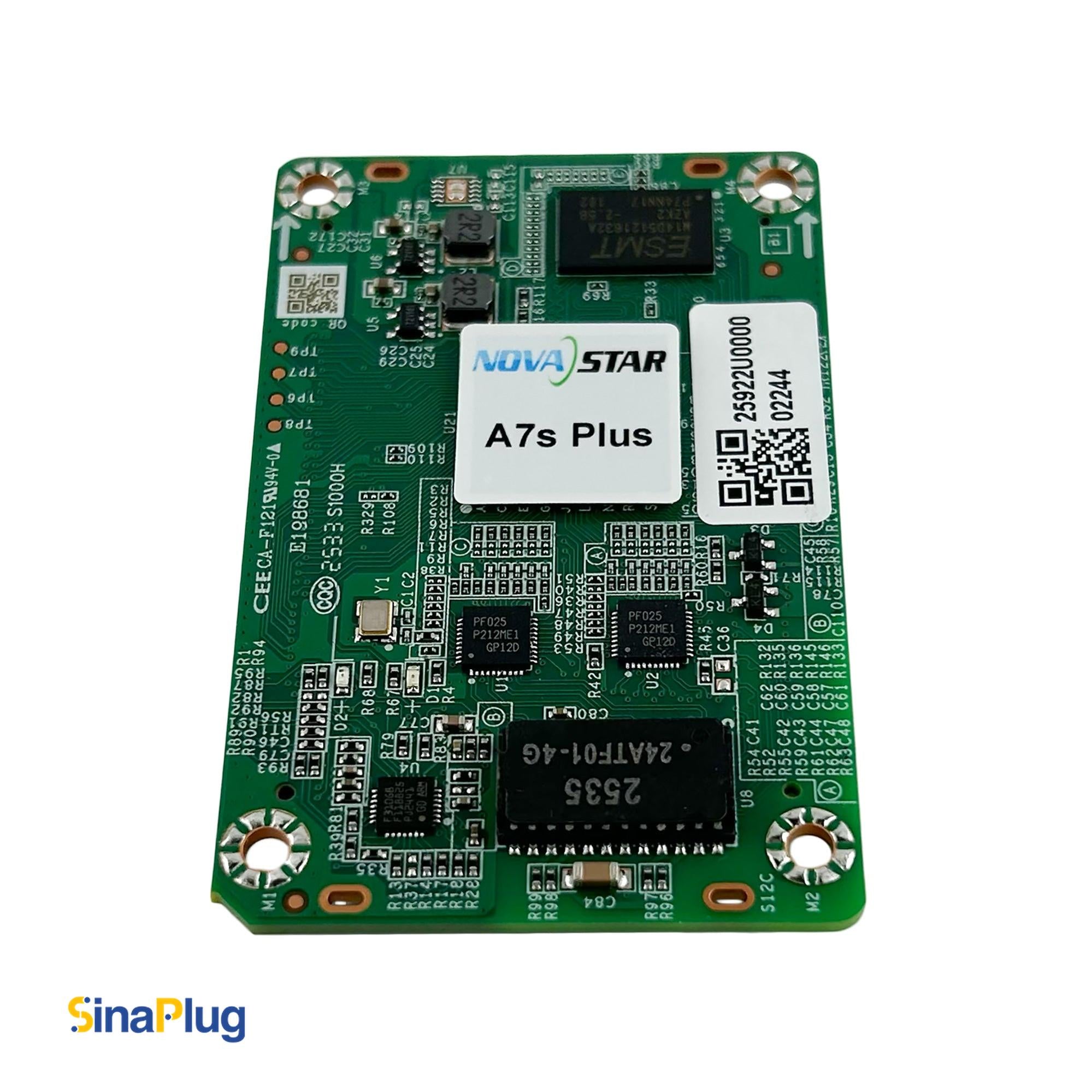

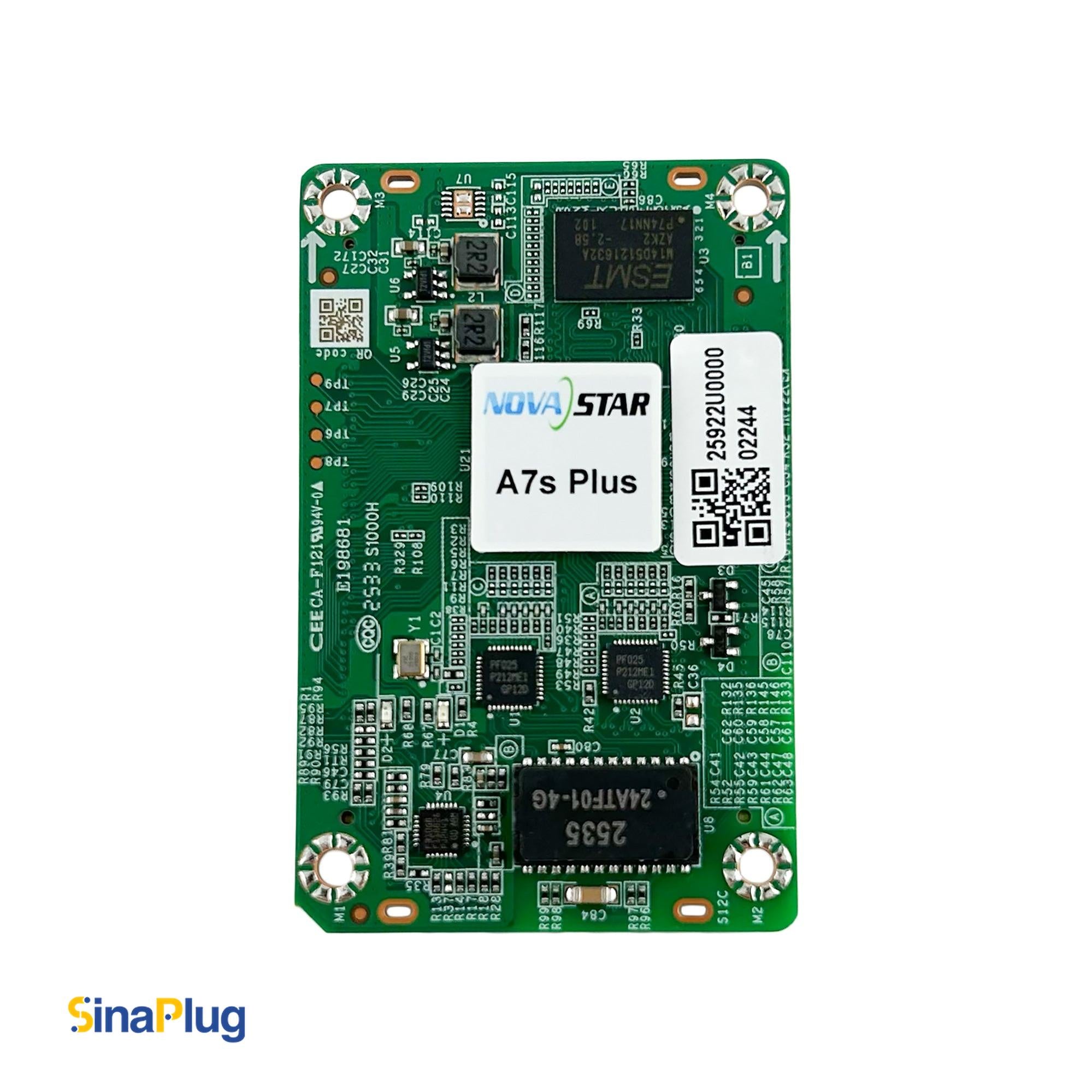

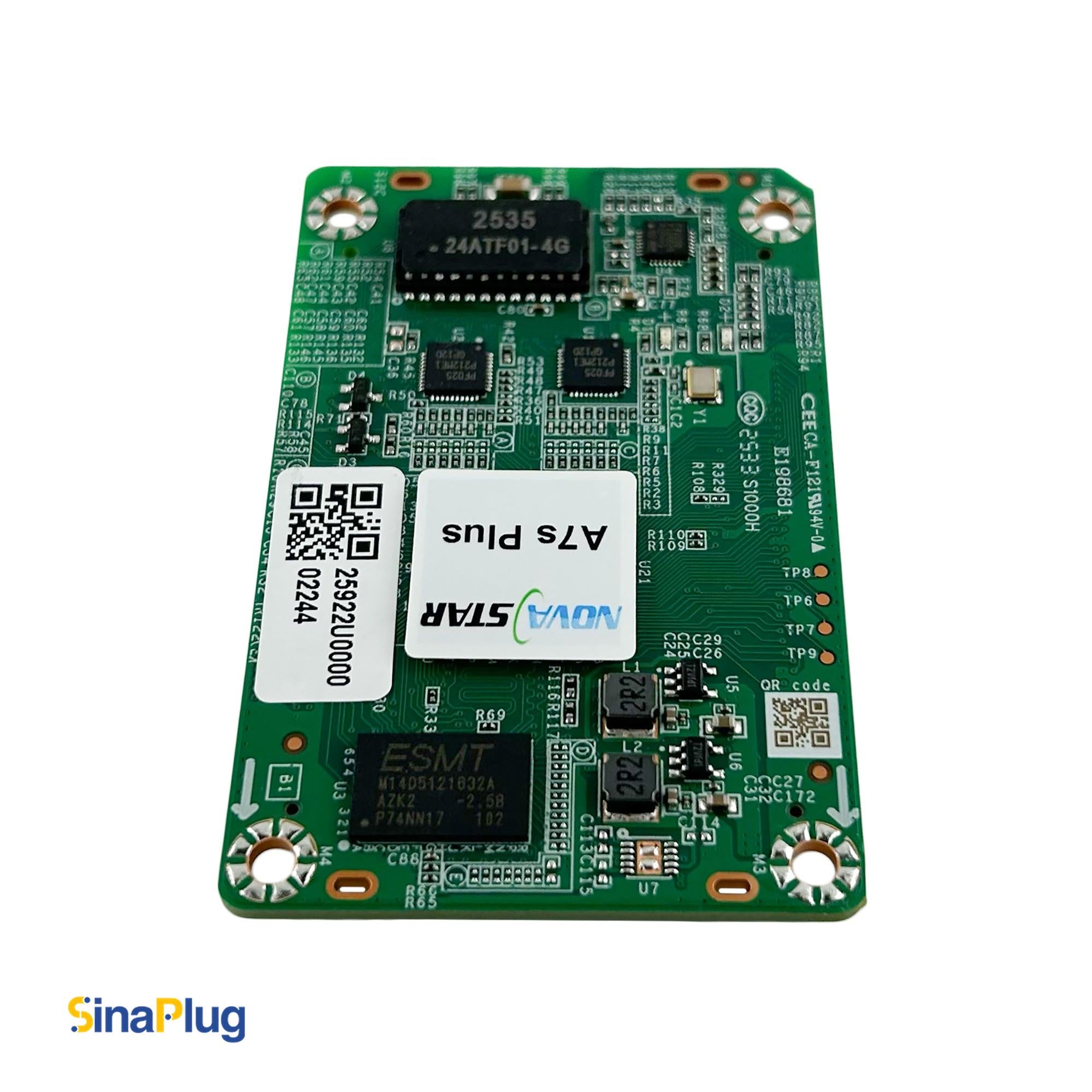

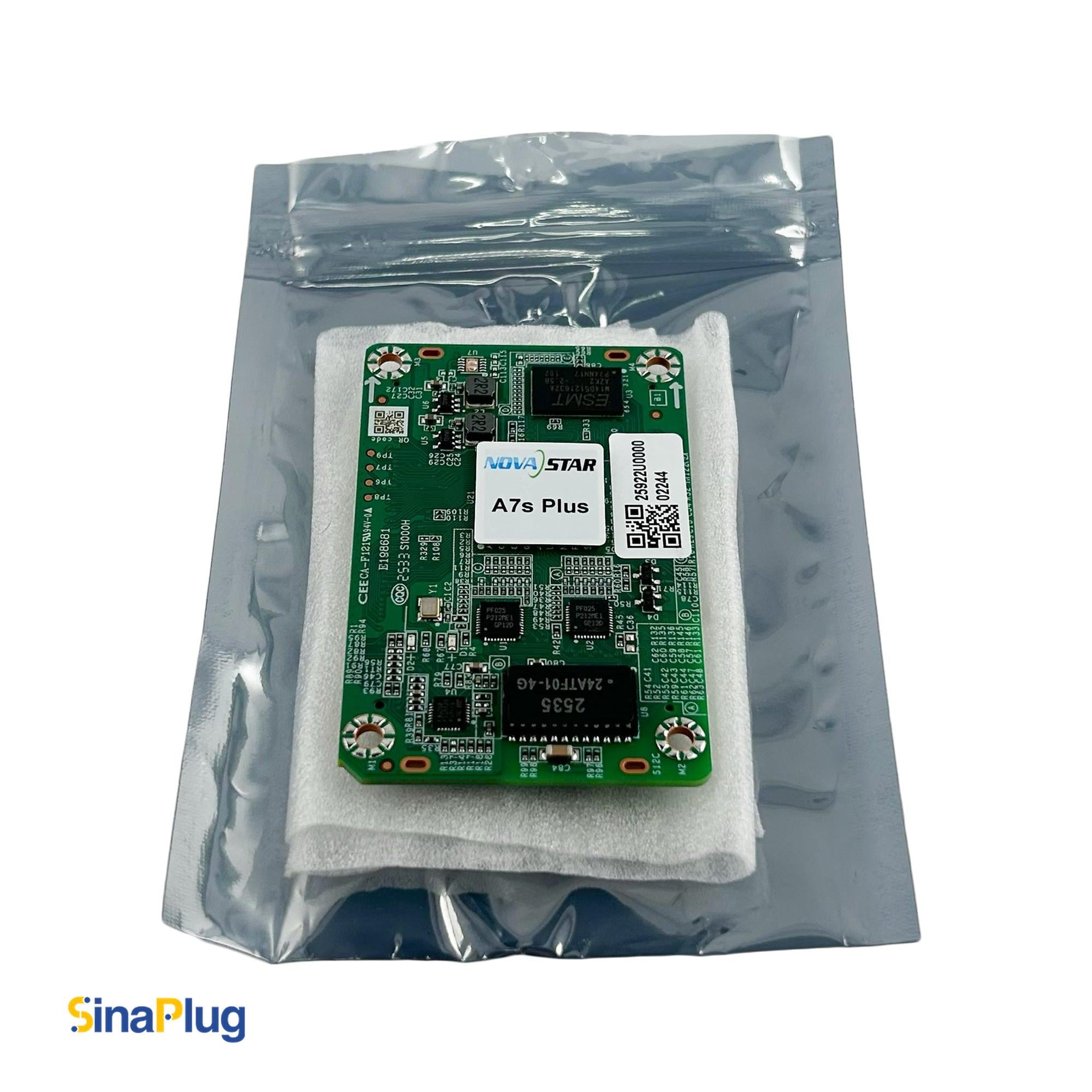

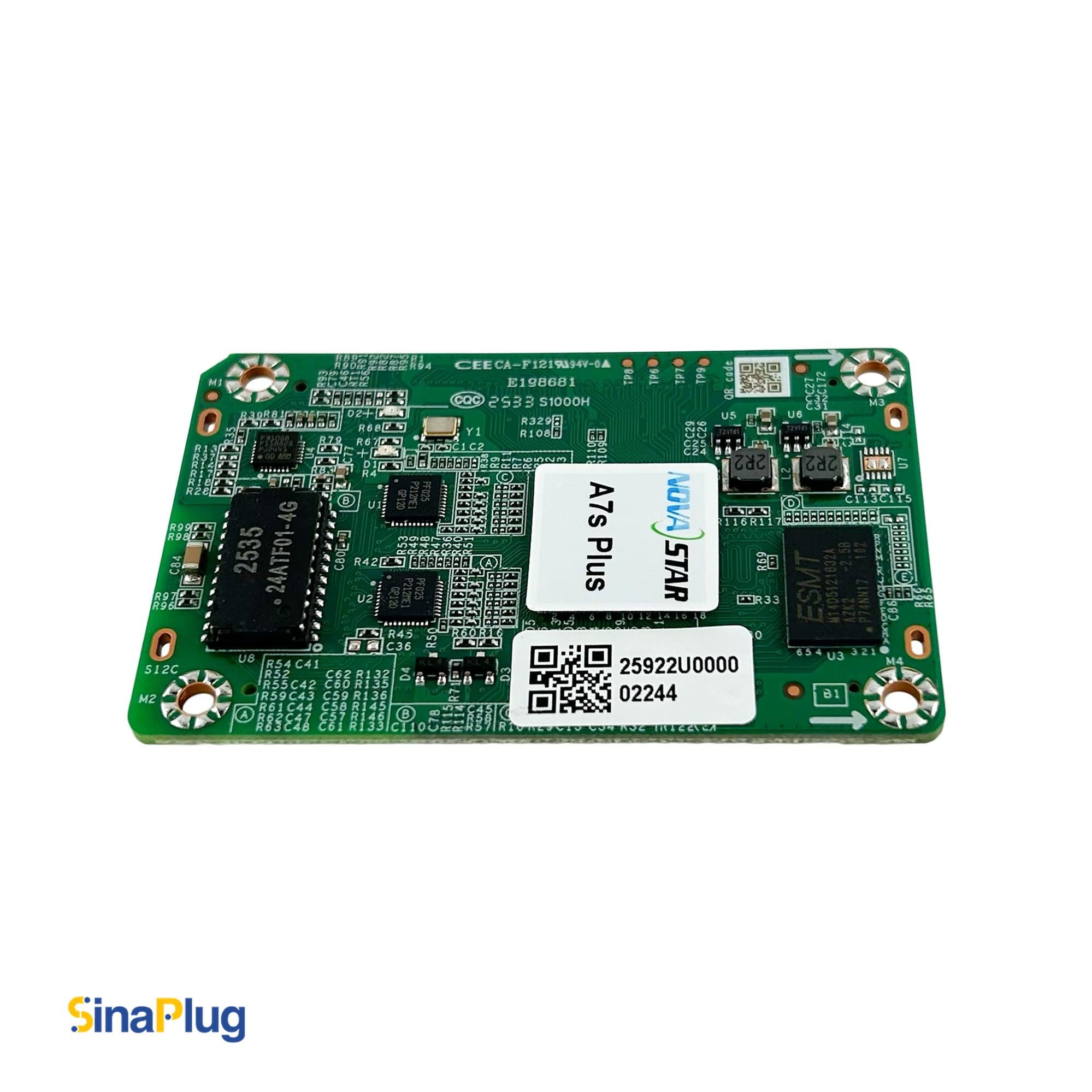

NovaStar A7s Plus Receiving Card

Here at AzarPixel, we are honored to introduce NovaStar A7s Plus which is indeed a compact and high-performance receiving card that delivers sharp and brilliant images for LED screen applications. With a resolution of up to 512×512 pixels @60Hz (for modules driven by PWM ICs) or 512×384 pixels @60Hz (with conventional driver ICs), this cutting-edge receiving card offers bright and clear images ideal for a broad range of LED display settings.

The A7s Plus offers experts superior control over visual quality and users will enjoy a stunning experience with features that enable color management, pixel-level brightness and chroma calibration, quick adjustments to dark/bright lines, individual gamma adjustment, 90° image rotation, and 3D function.

Additionally, system maintenance and reliability are significantly enhanced by features including module flash management, bit error detection, temperature and voltage monitoring, loop backup, and dual backups of cards, programs, and configuration parameters.

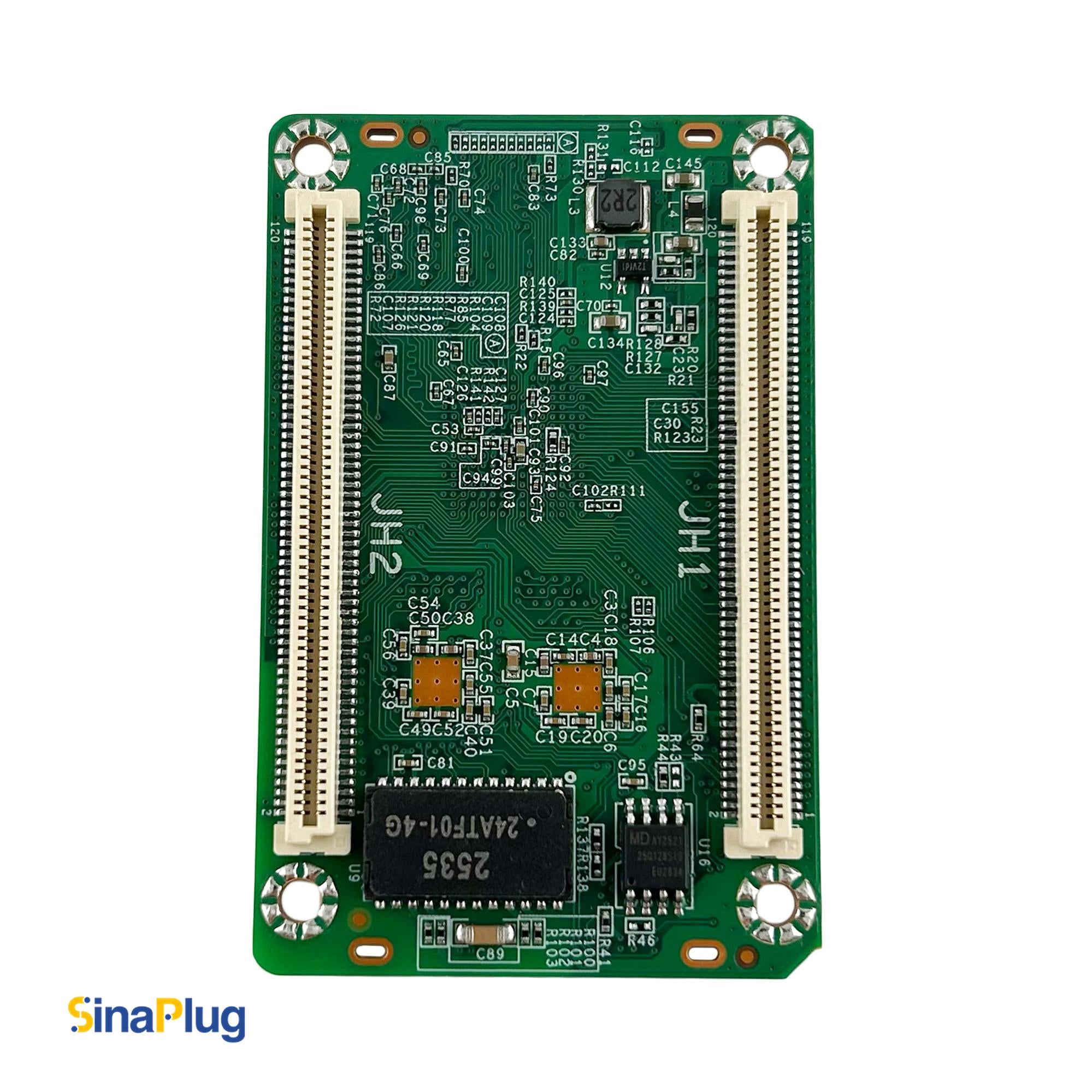

This card supports up to 32 parallel RGB data groups or 64 groups of serial data (extendable to 128 groups) thanks to its high-density connectors that minimize dust and vibration impacts.

In addition to its RoHS and EMC Class B compliance, it can operate between -20 degrees to +70 degrees Celsius under extreme atmospheric conditions. The A7s Plus is a perfect fit for high-critical applications like outdoor digital billboards or public information networks, retail signage, and other commercial requirements for LED displays where dependability is the key performance and high image quality expectations.
