NovaStar  |  SKU: RCC-NOV-MRV328xxxx-0

NovaStar MRV328 Receiving Card

$27.80

Buy at discounted prices

Minimum Qty Discount
5 + 3% off
10 + 6% off
20 + 9% off

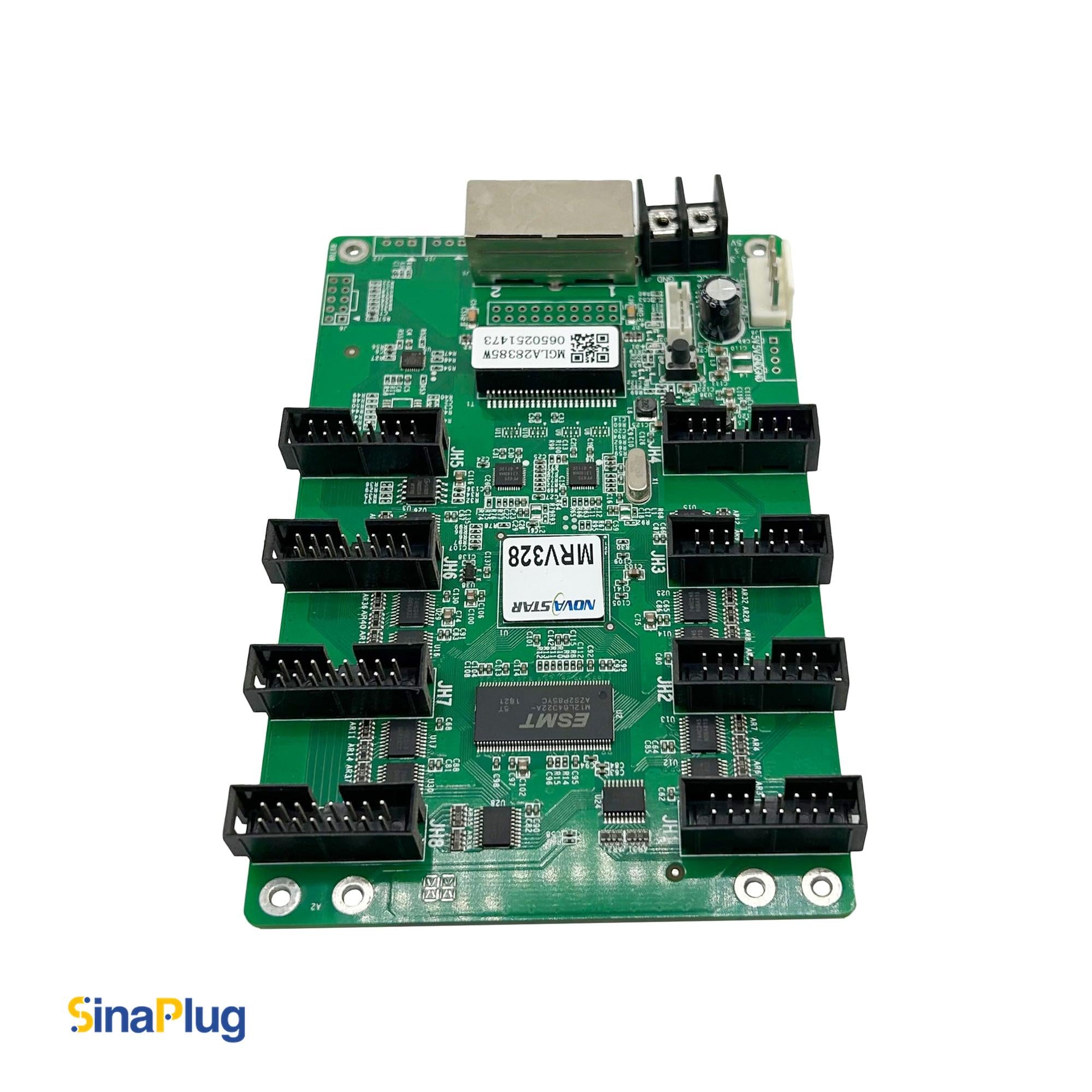

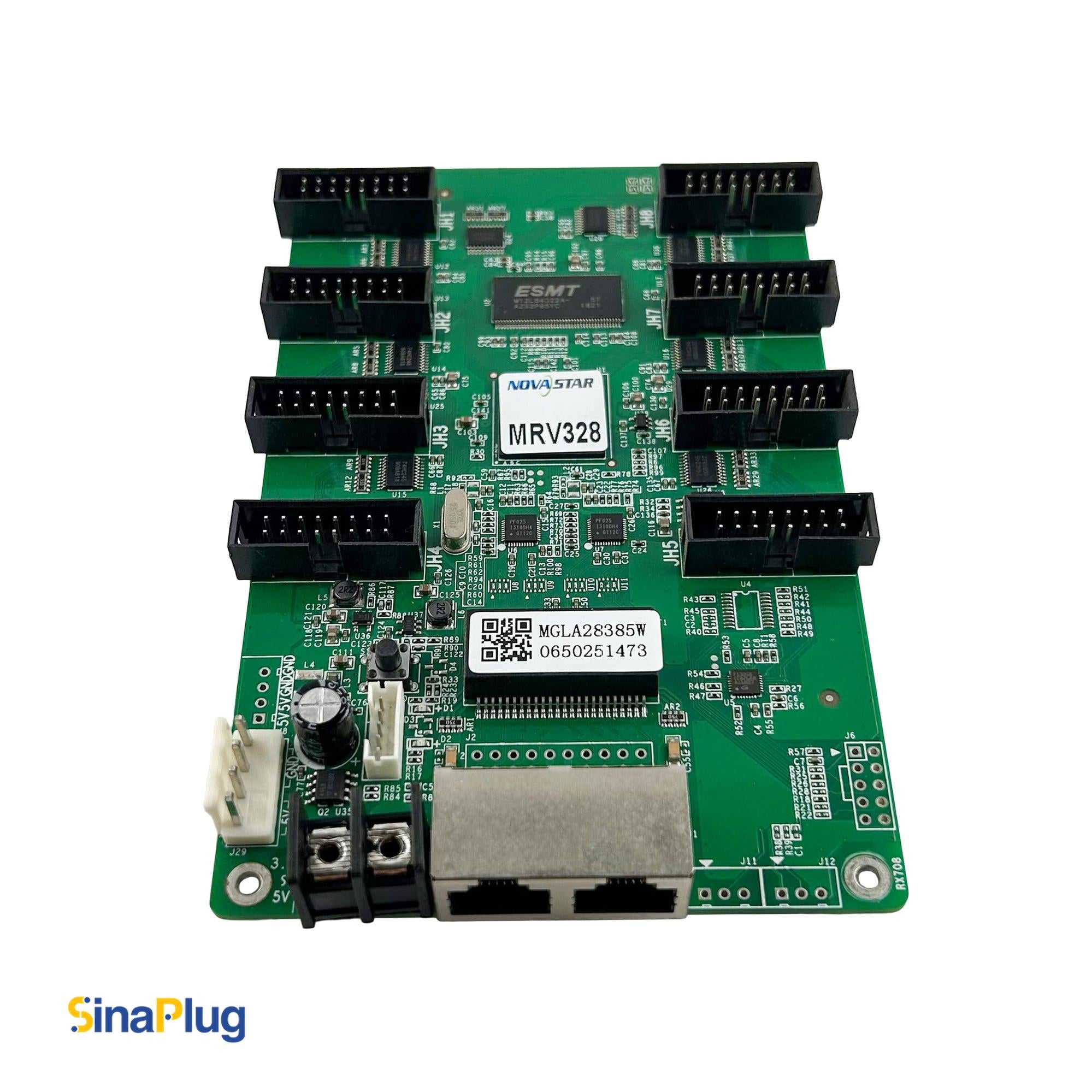

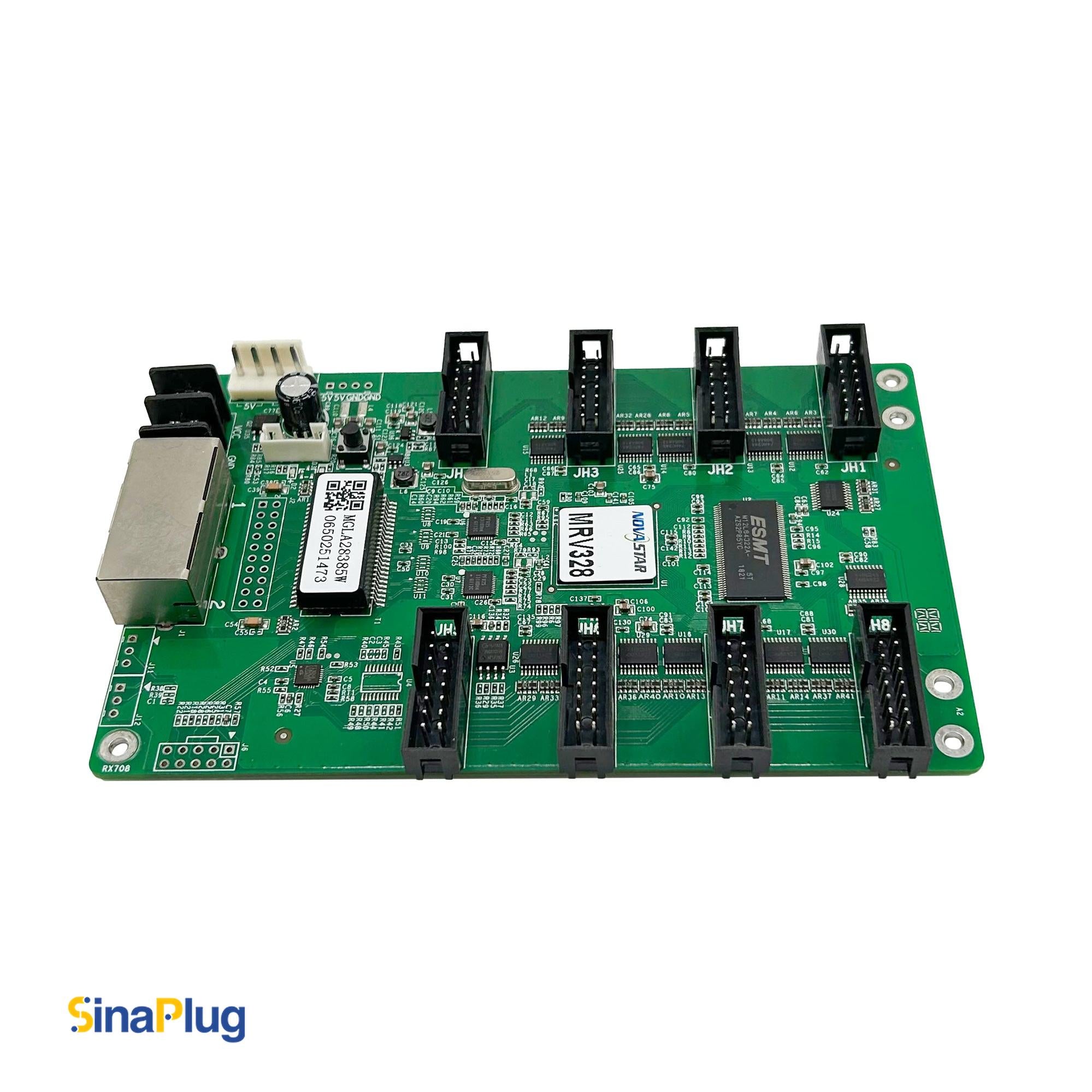

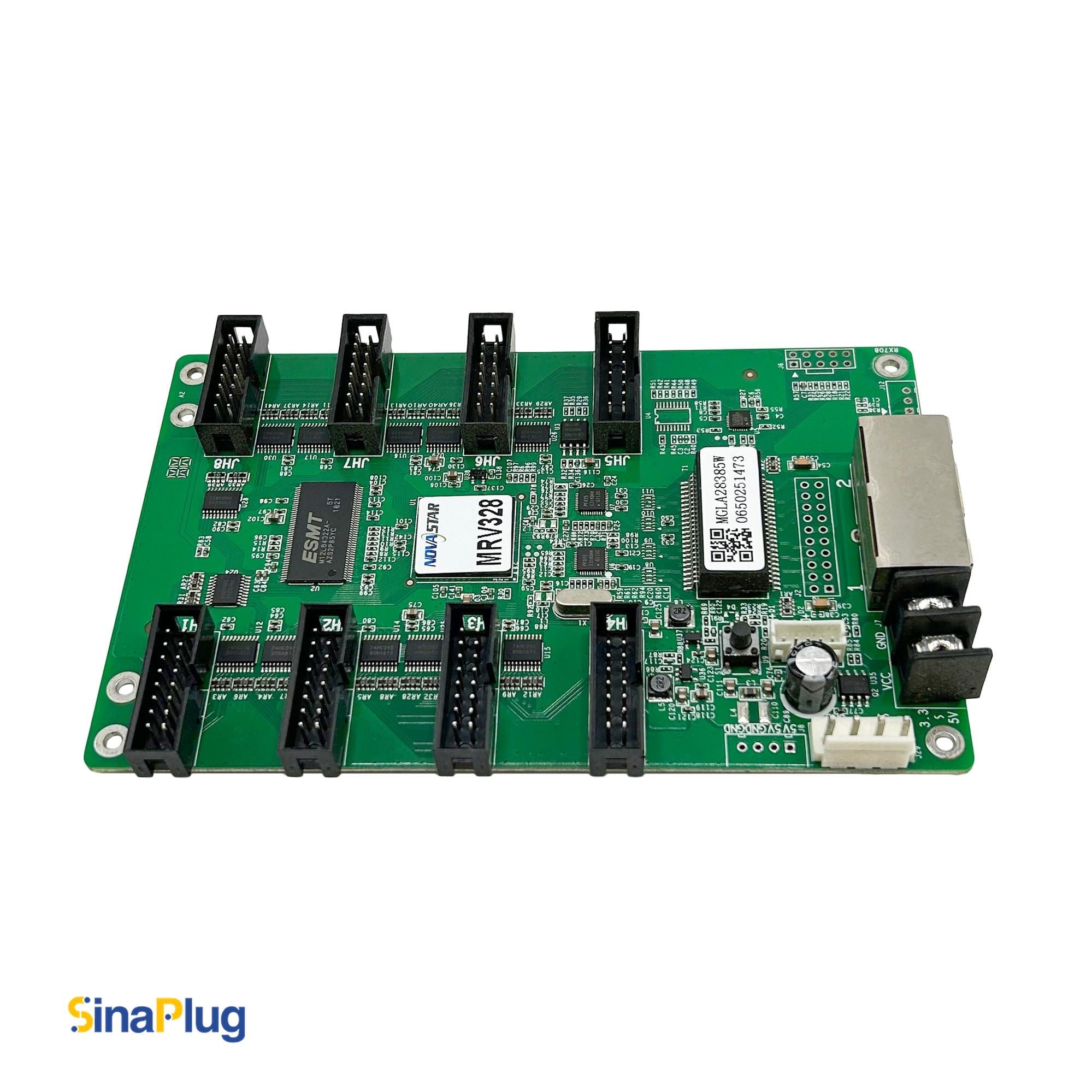

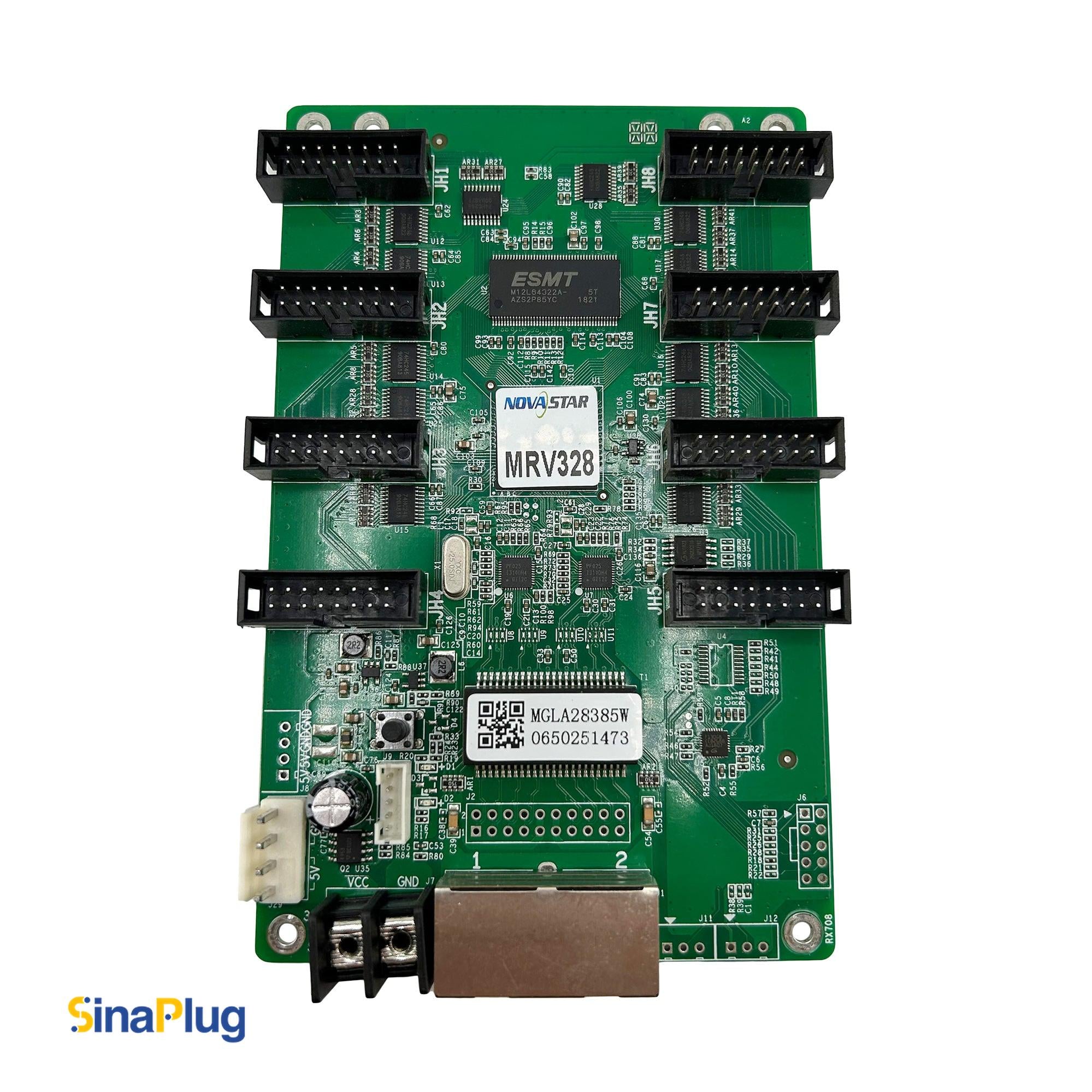

The NovaStar MRV328, offered by Azar Pixel, is a compact and dependable receiving card that handles maximum resolutions of up to 256×256@60Hz for PWM driver ICs up to 1/32 scan. This cost-effective card also supports 3D function, temperature and voltage monitoring, and enhances image quality through precise pixel-level brightness and color calibration.

Operating on a 3.8–5.5V DC power supply with a consumption of 2.5W, this card delivers consistent performance across a temperature range of -20°C to +70°C. It meets RoHS and EMC Class B standards, ensuring compliance with environmental and electromagnetic regulations.

The receiving card equipped with eight standard HUB75E interfaces (supports up to 16 sets of RGB parallel data) and also two Gigabit Ethernet ports (one as Input & one as Output) for simple cascading of multiple units that guarantees reliable data transmission.

The MRV328 is perfect for commercial LED applications including outdoor advertising and public information displays. Its loop backup and dual program backup ensure steady and dependable performance in a variety of situations.

Key Features of MRV328

Input

  • 1x Gigabit Ethernet Port

Output

  • 8x standard HUB75E interfaces (16x groups of parallel RGB data)
  • 1x Gigabit Ethernet Port

Performance

  • Maximum resolution: 256×256 pixels @ 60Hz (PWM driver IC’s)
  • Supports 3D function
  • Pixel level brightness and chroma calibration
  • Visual Adjustment: dark or bright splicing lines adjustment
  • Support for 1/32 scan

Other Features



Maintainability:

  • Quick upload of calibration coefficients
  • Customized pre-saved image on screen
  • Temperature and voltage monitoring
  • Cabinet LCD display for real-time status monitoring
  • Voltage and temperature monitoring
  • Bit error detection
  • Firmware program readback
  • Configuration parameter readback

Reliability:

  • Loop backup (ensures uninterrupted operation in case of line faults)
  • Dual backup of application program (two copies of firmware stored at the factory)

Dimensions (L*W*H)

  • 146mm * 96mm * 18mm
