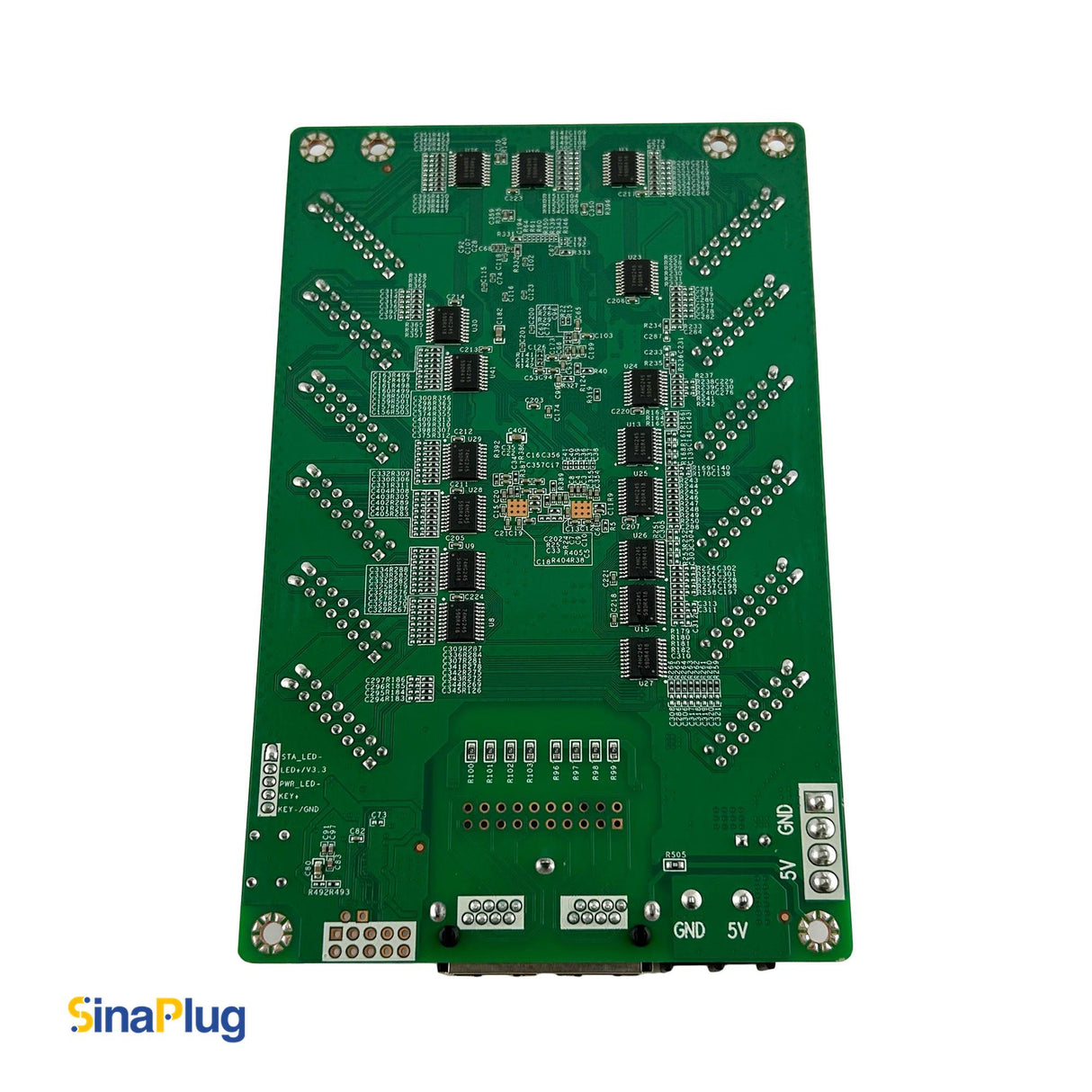

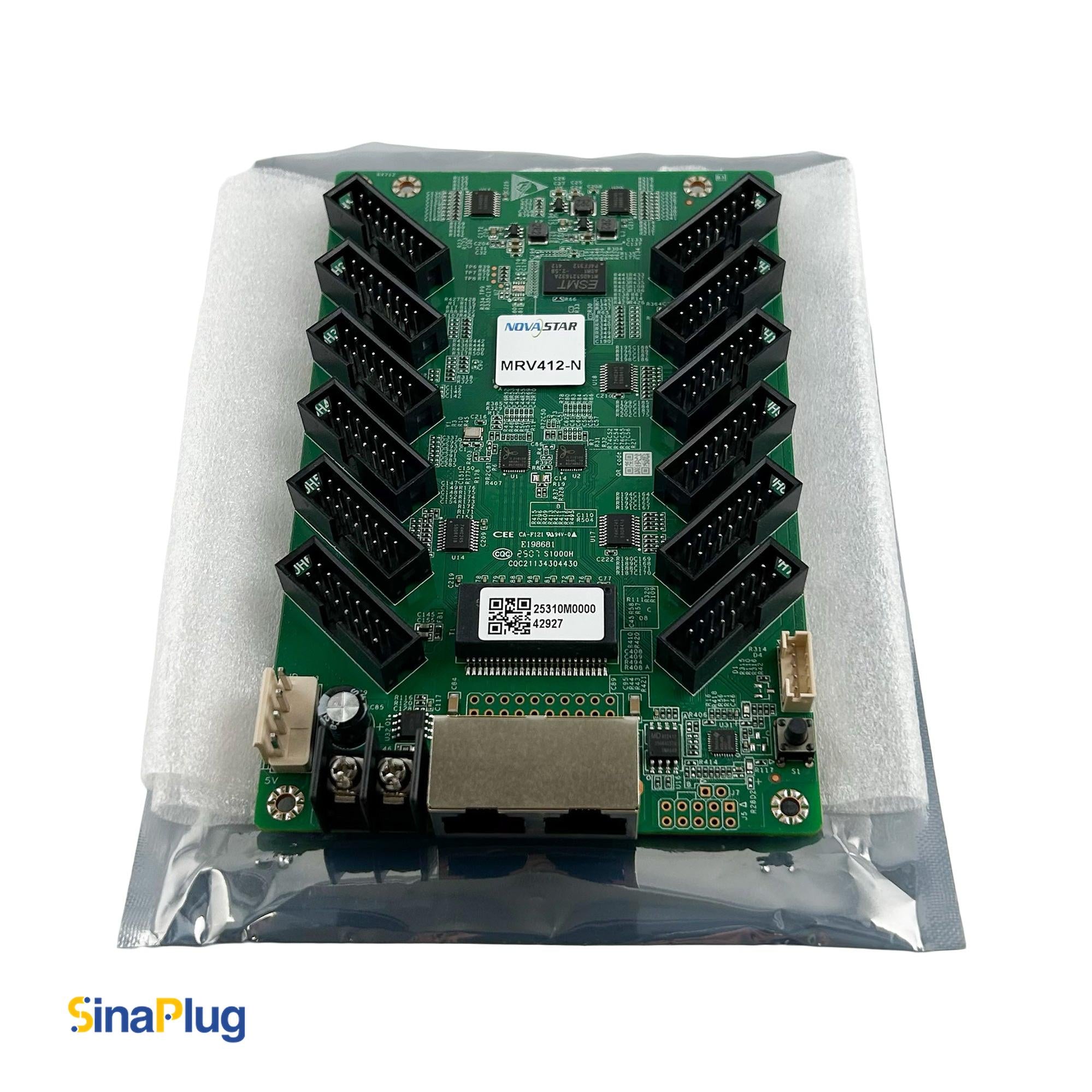

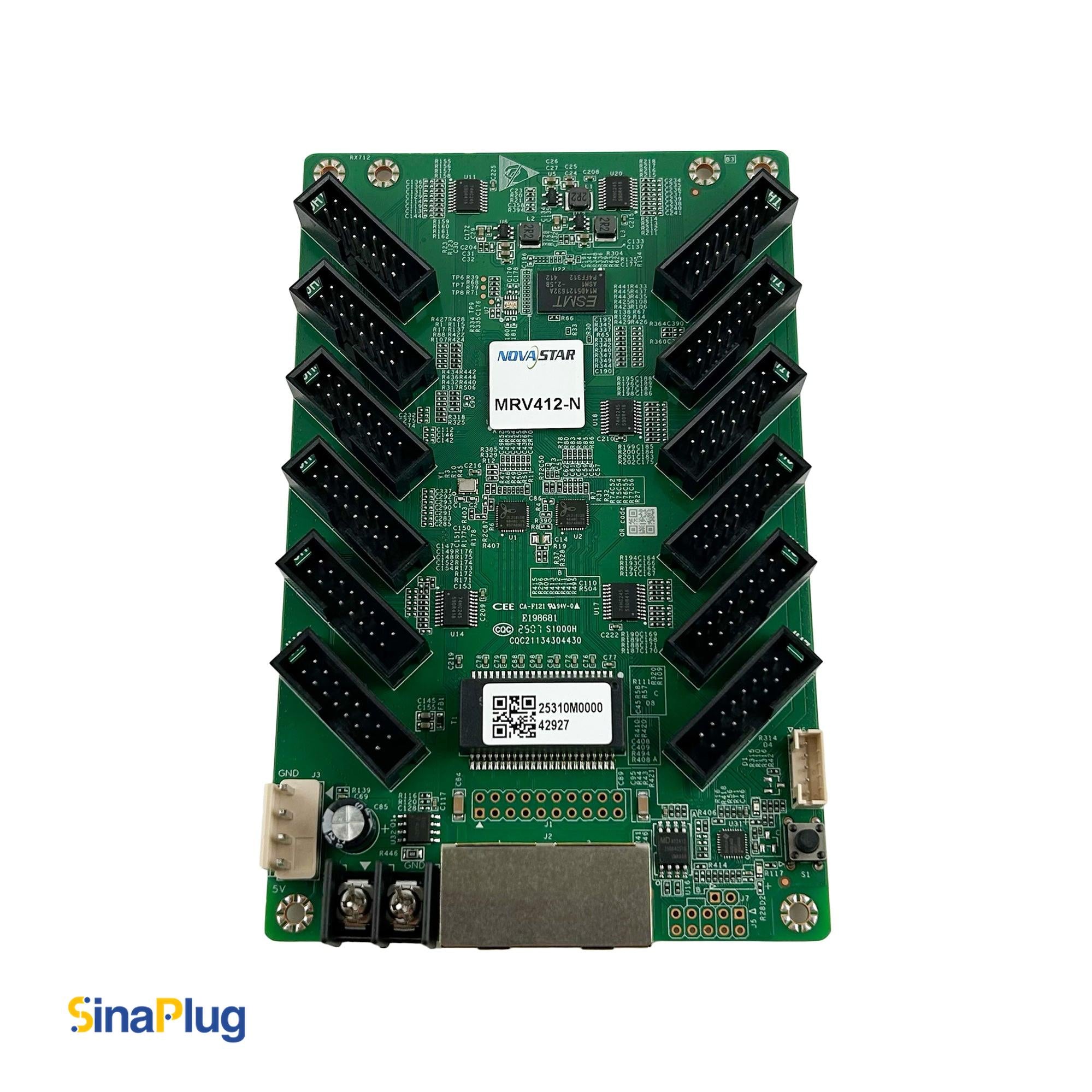

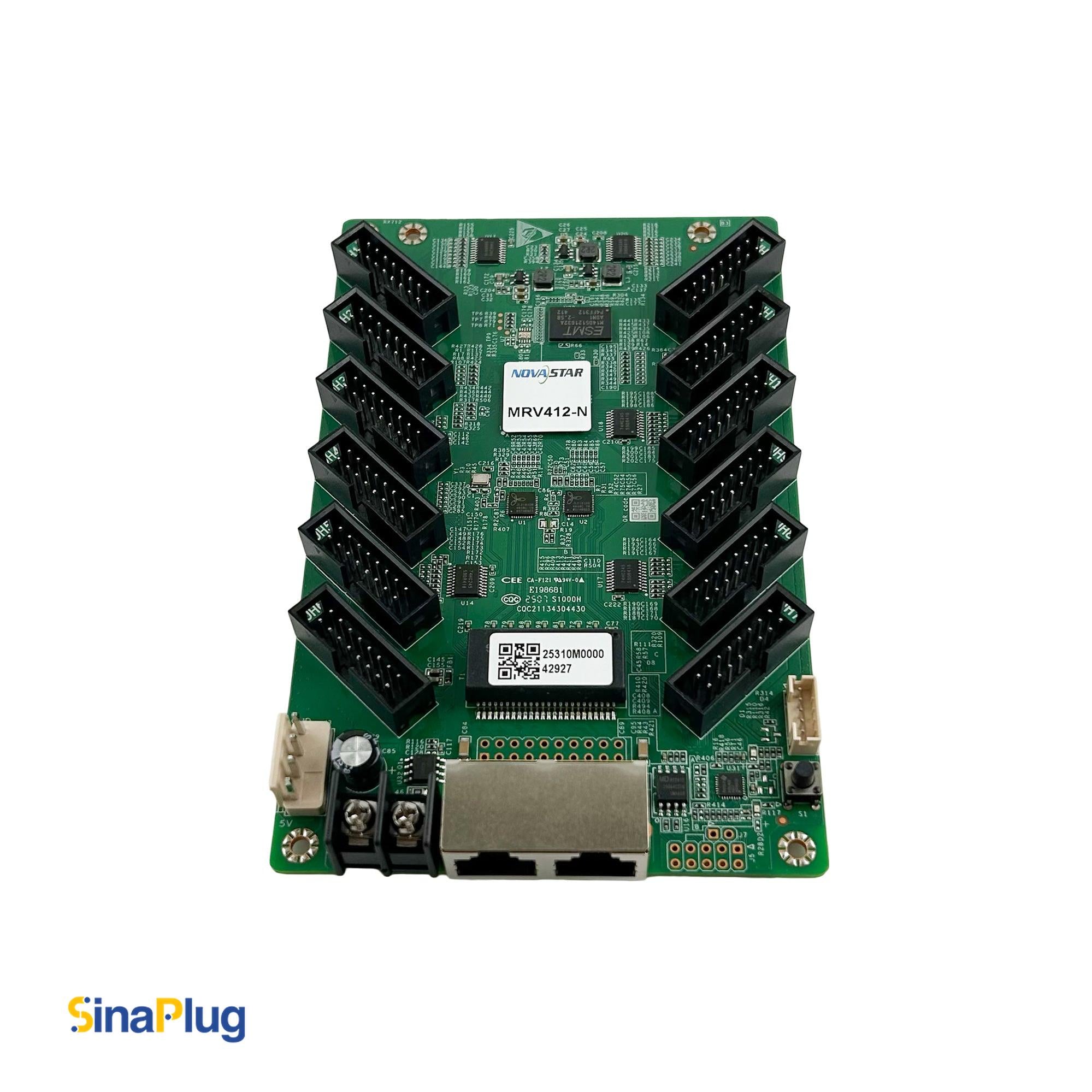

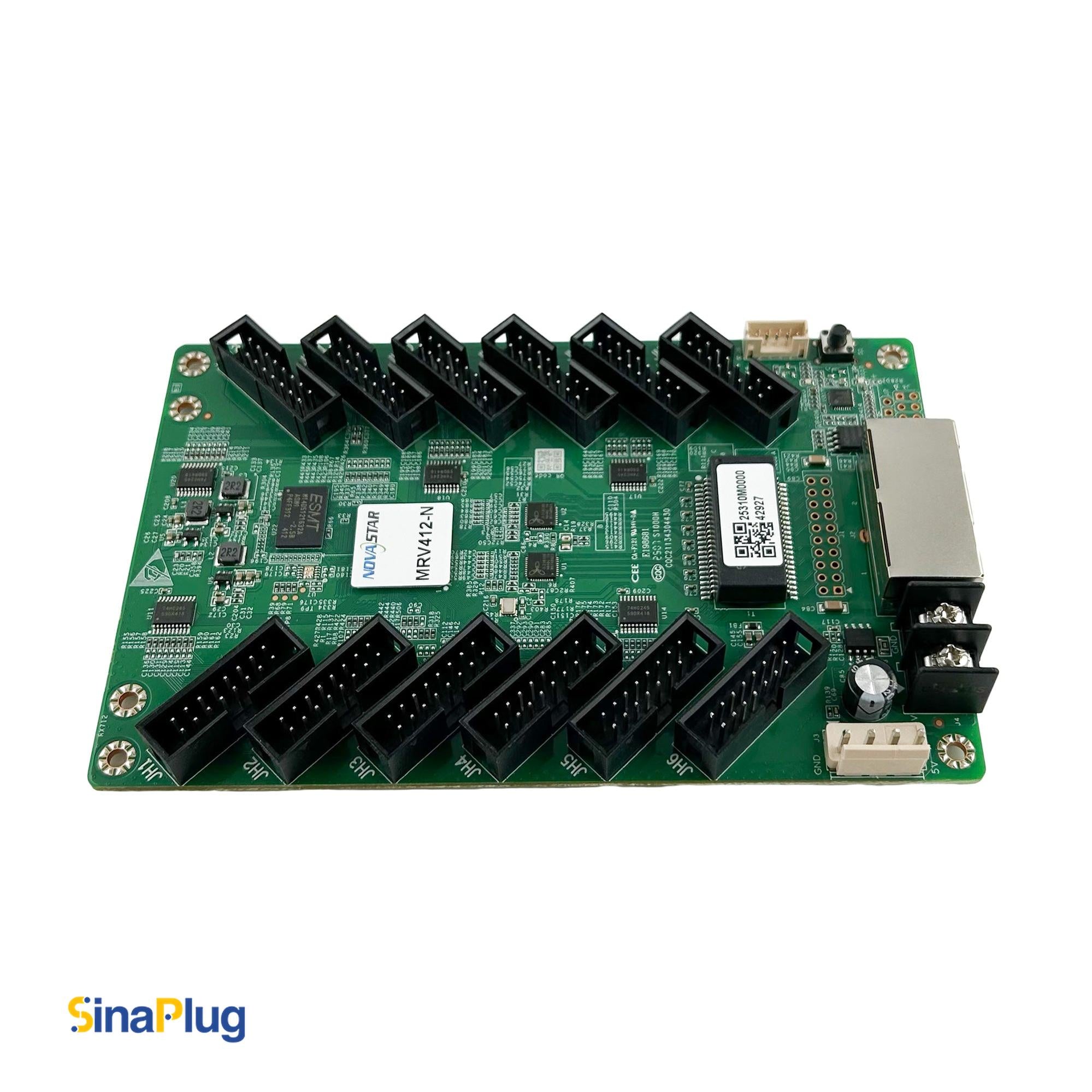

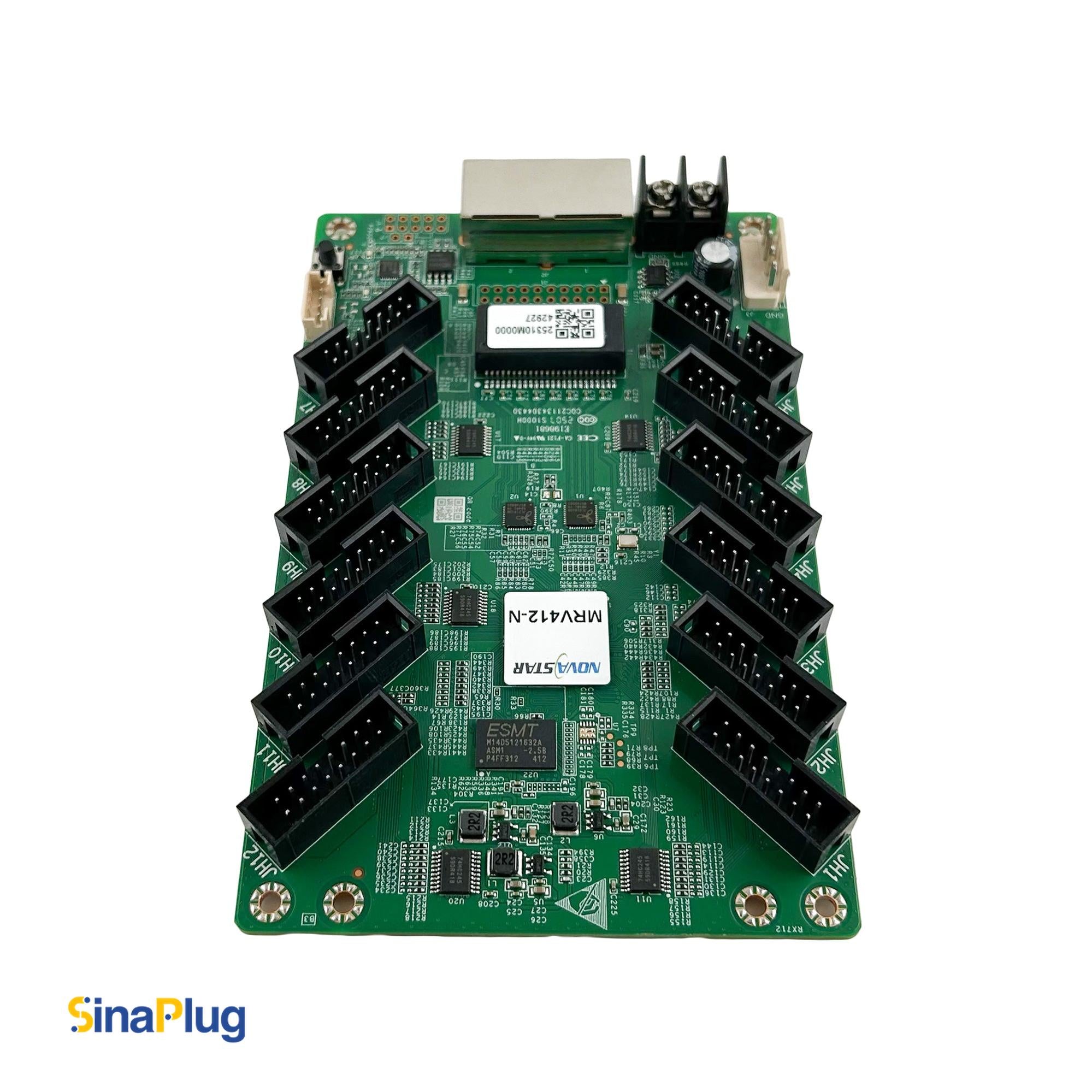

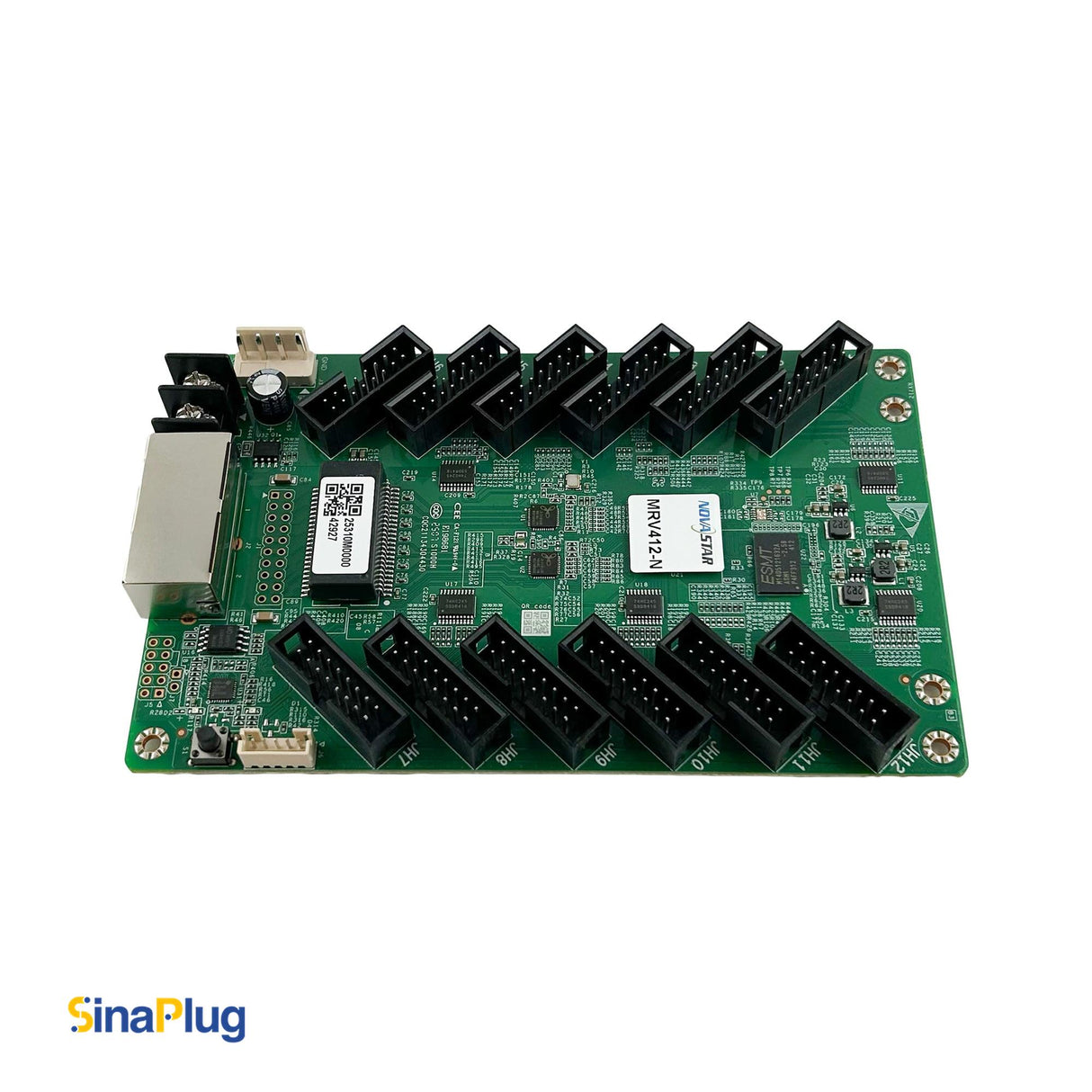

NovaStar MRV412-N Receiving Card

AzarPixel proudly presents the NovaStar MRV412-N Receiving Card, specifically crafted to deliver dependable stability and vibrant visual performance for LED display systems. This compact card supports a maximum resolution of up to 512×512@60Hz for PWM ICs and up to 512×384@60Hz for conventional ICs. It supports up to 24 groups of parallel RGB data with a standard 12 HUB75E connectors, making it suitable for diverse LED setups.

This high-demand product comes with brightness and chromaticity calibration and Independent 3-color (Red/Green/Blue) gamma adjustment, which is possible to control by NovaLCT and a controller that supports this function. Image flexibility is supported with 90° rotation and 3D function support. Fast dark and light line adjustment at module and cabinet edges enhances output uniformity in displays.

Constructed to withstand unbearable surroundings, the MRV412-N is indeed reliable and capable of withstanding temperatures from -20ºC ~ +70ºC without fail. In addition, it also supports RoHS and EMC Class A practices. Thanks to its mapping functions, as well as real-time temperature monitoring and voltage sweeping or Bit Error Detection, your experiment will work at its best. Loop back-up protection and dual feeding status detection enhance system reliability, and the functions of bit error detection and Ethernet status monitoring ensure steady operation.
