NovaStar  |  SKU: SNC-NOV-MSD3001xxx-0

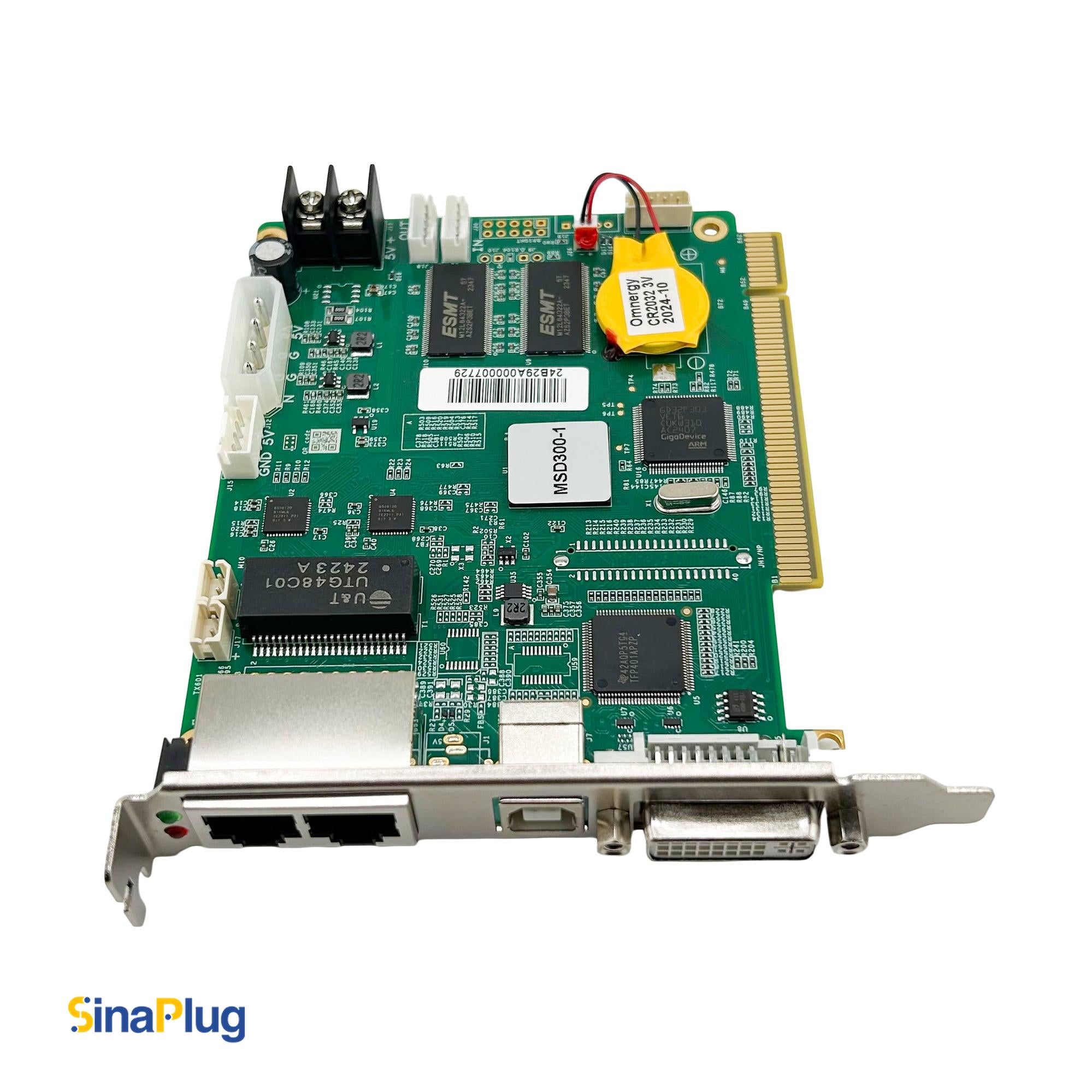

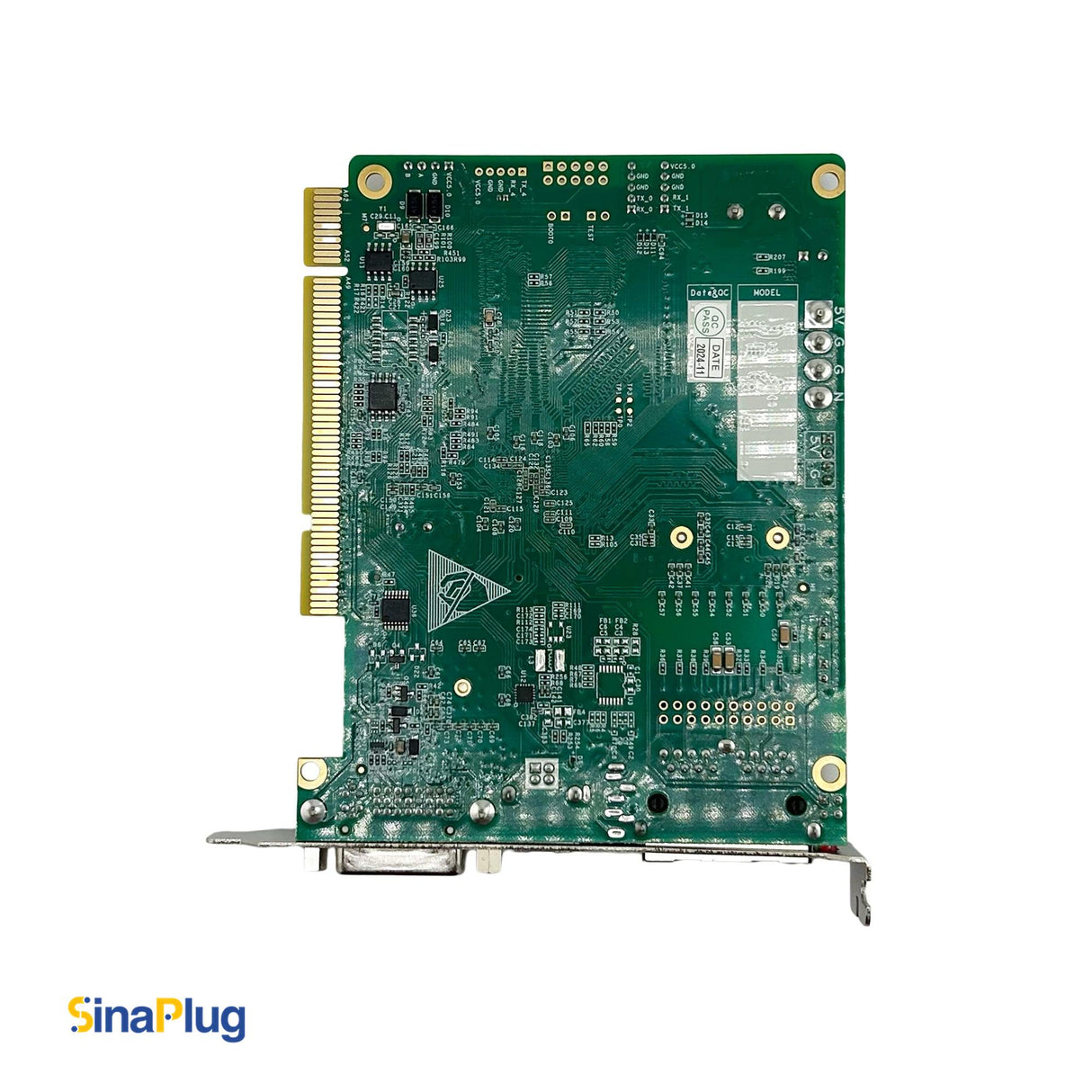

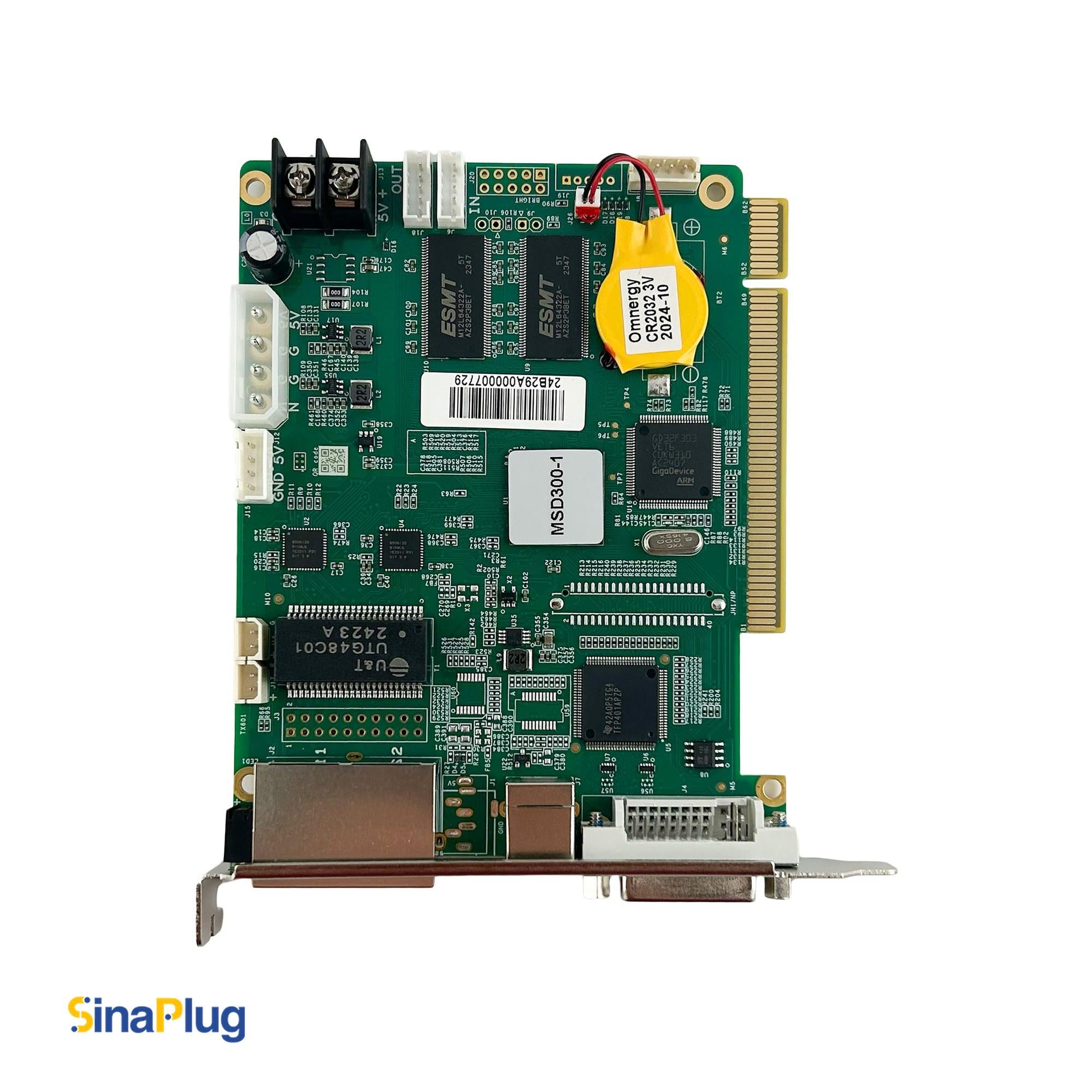

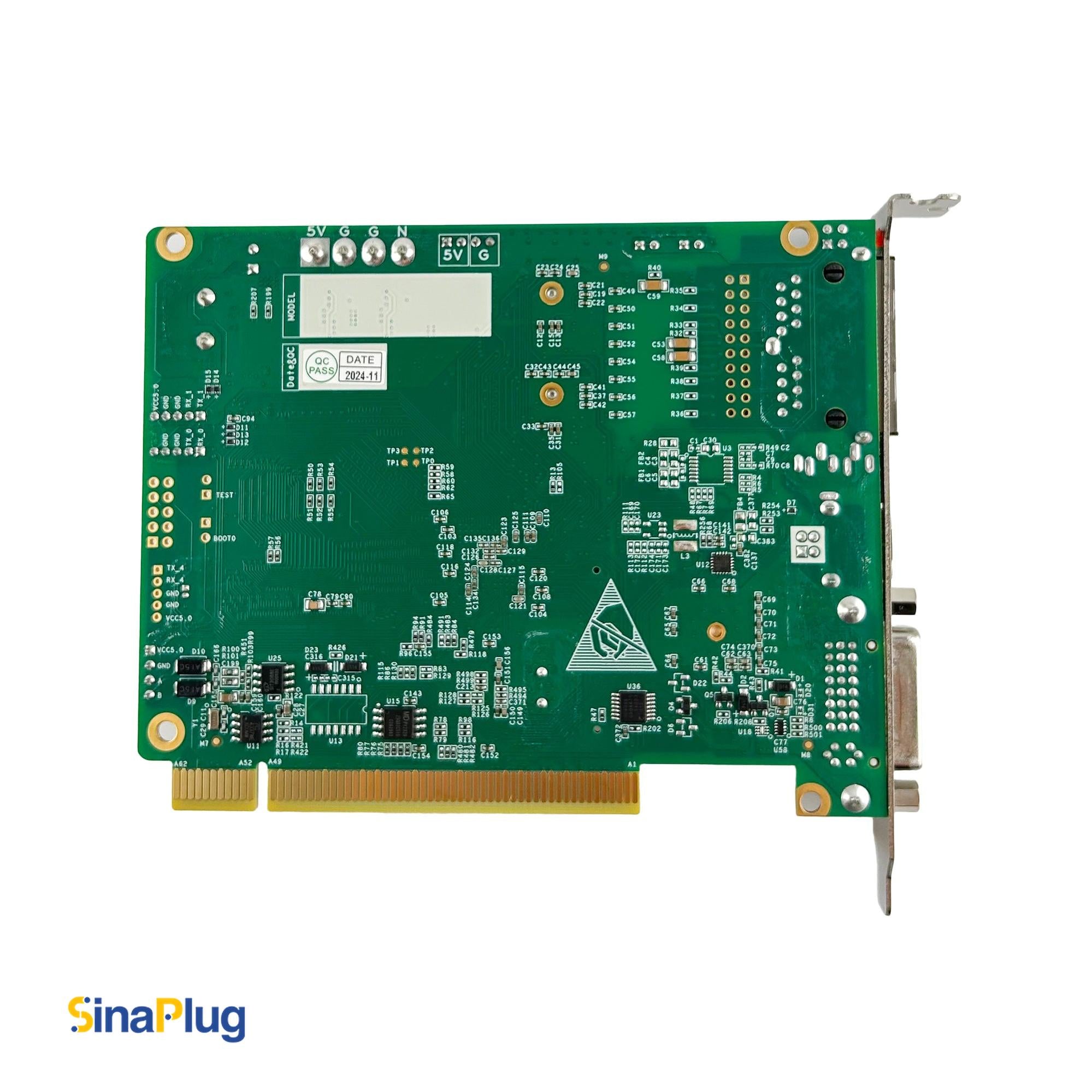

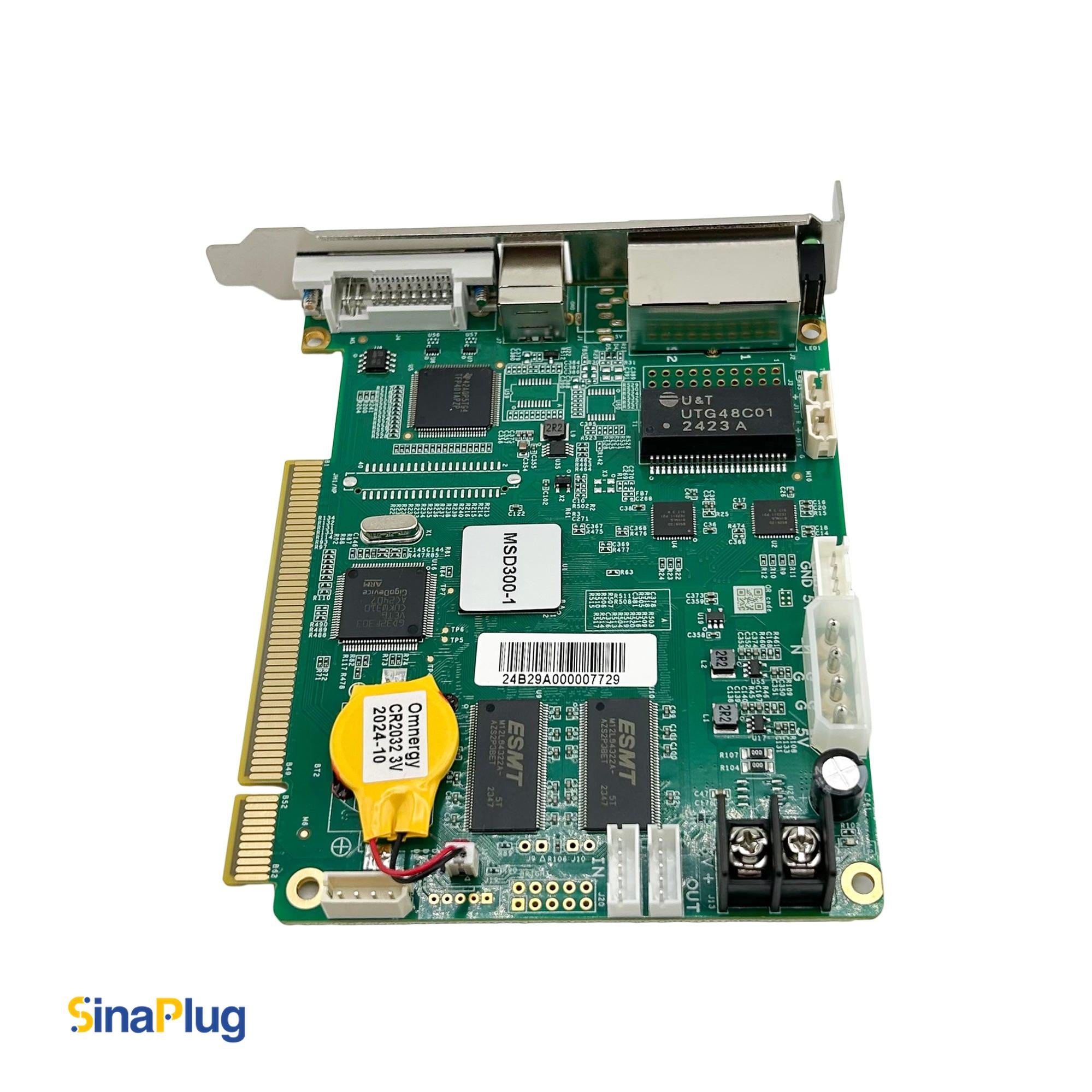

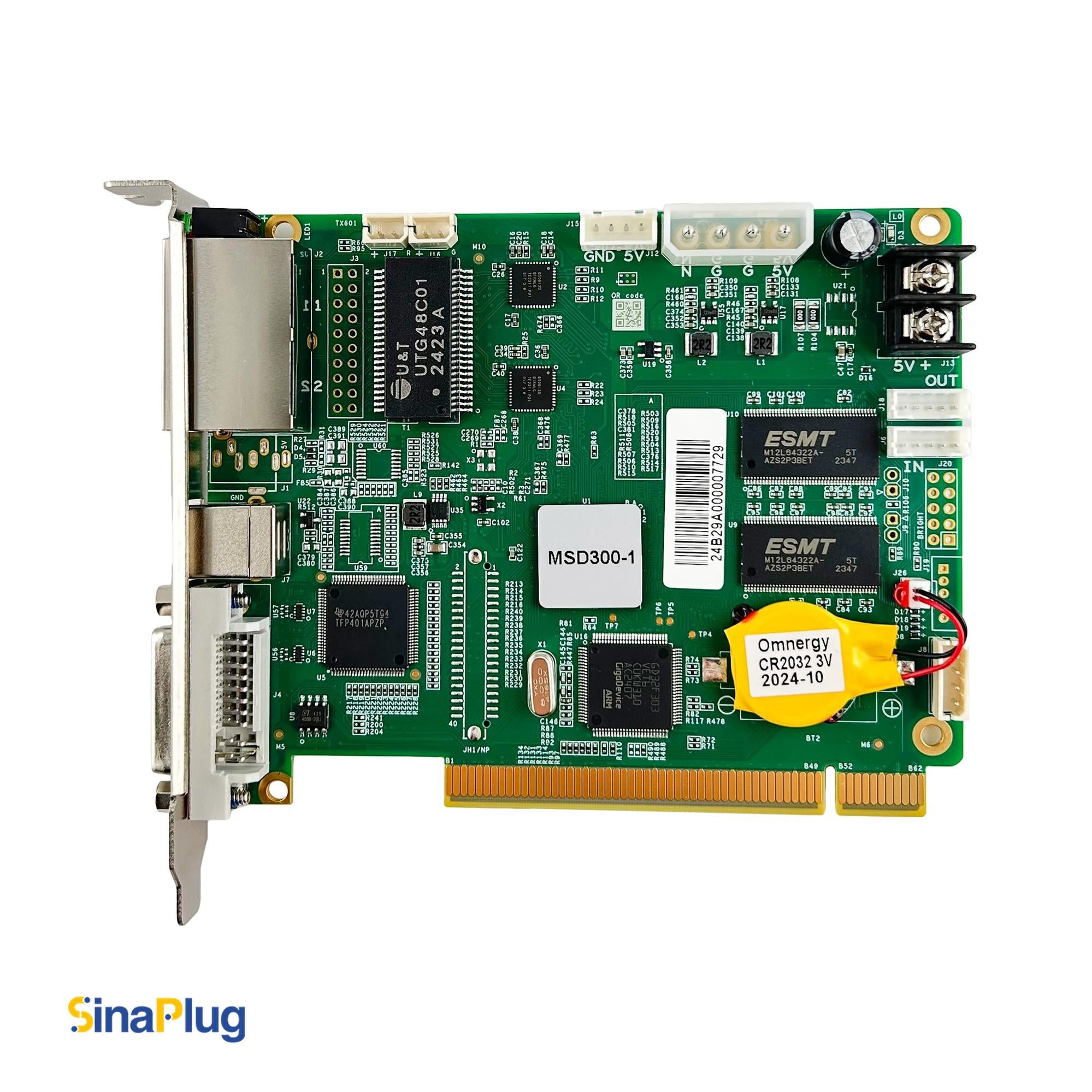

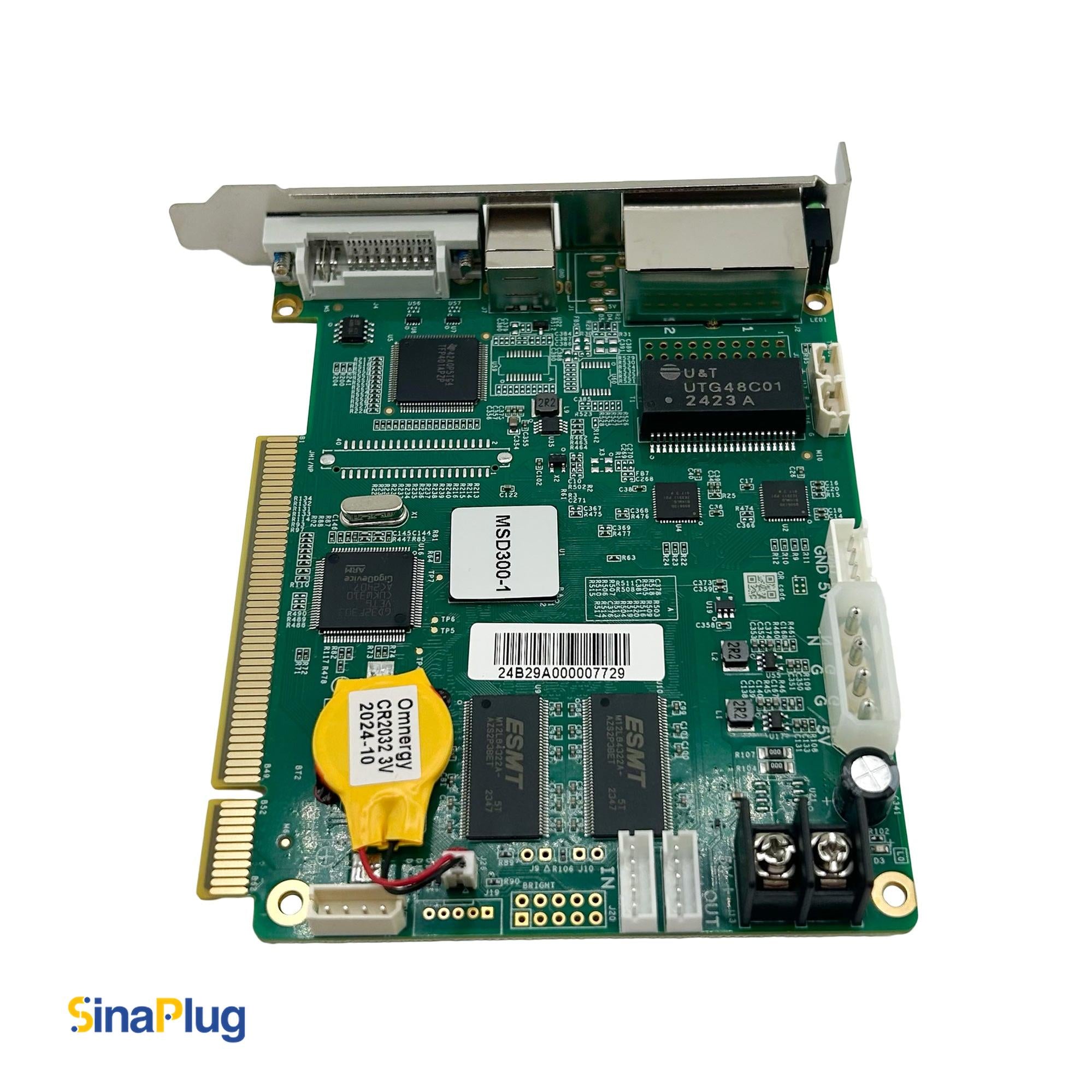

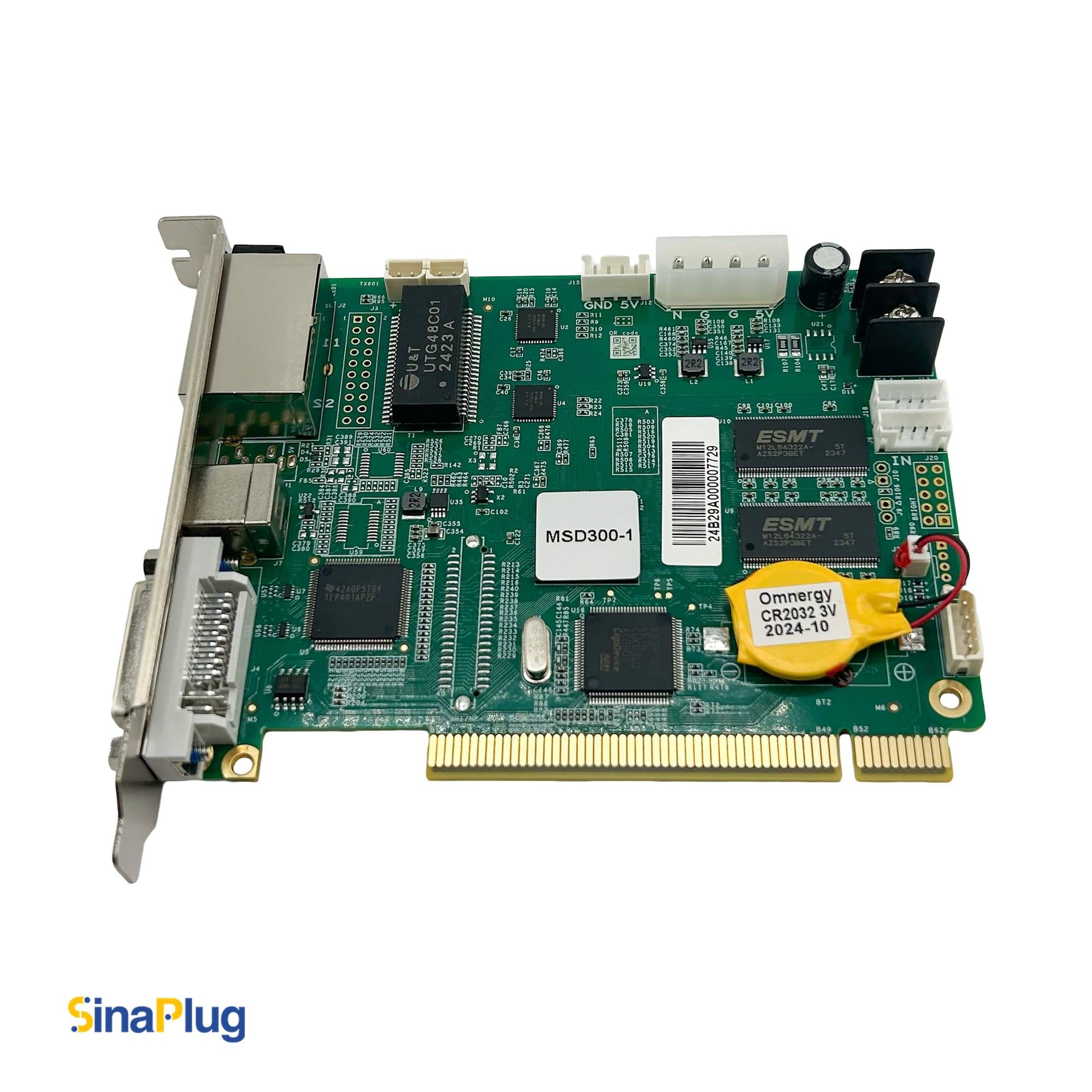

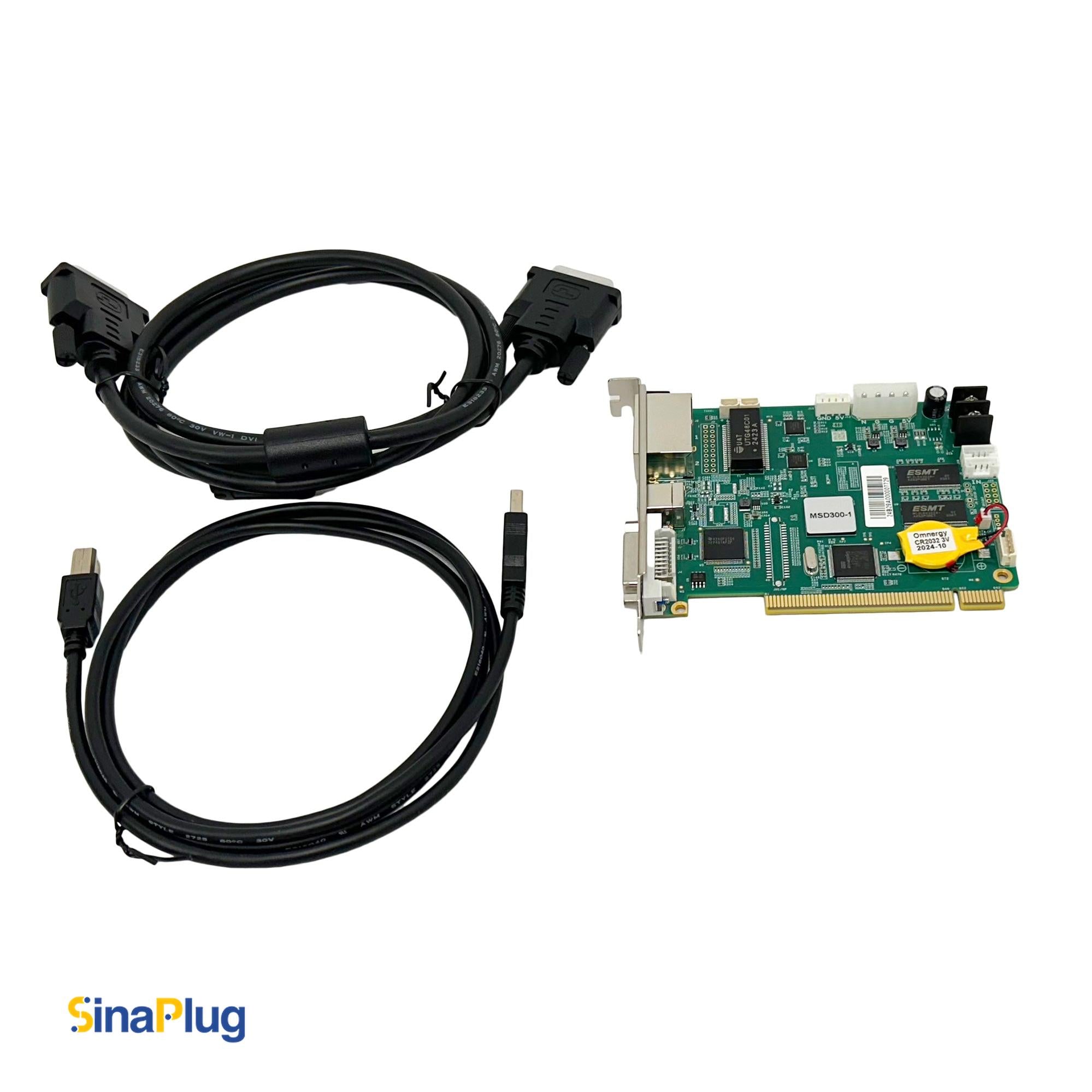

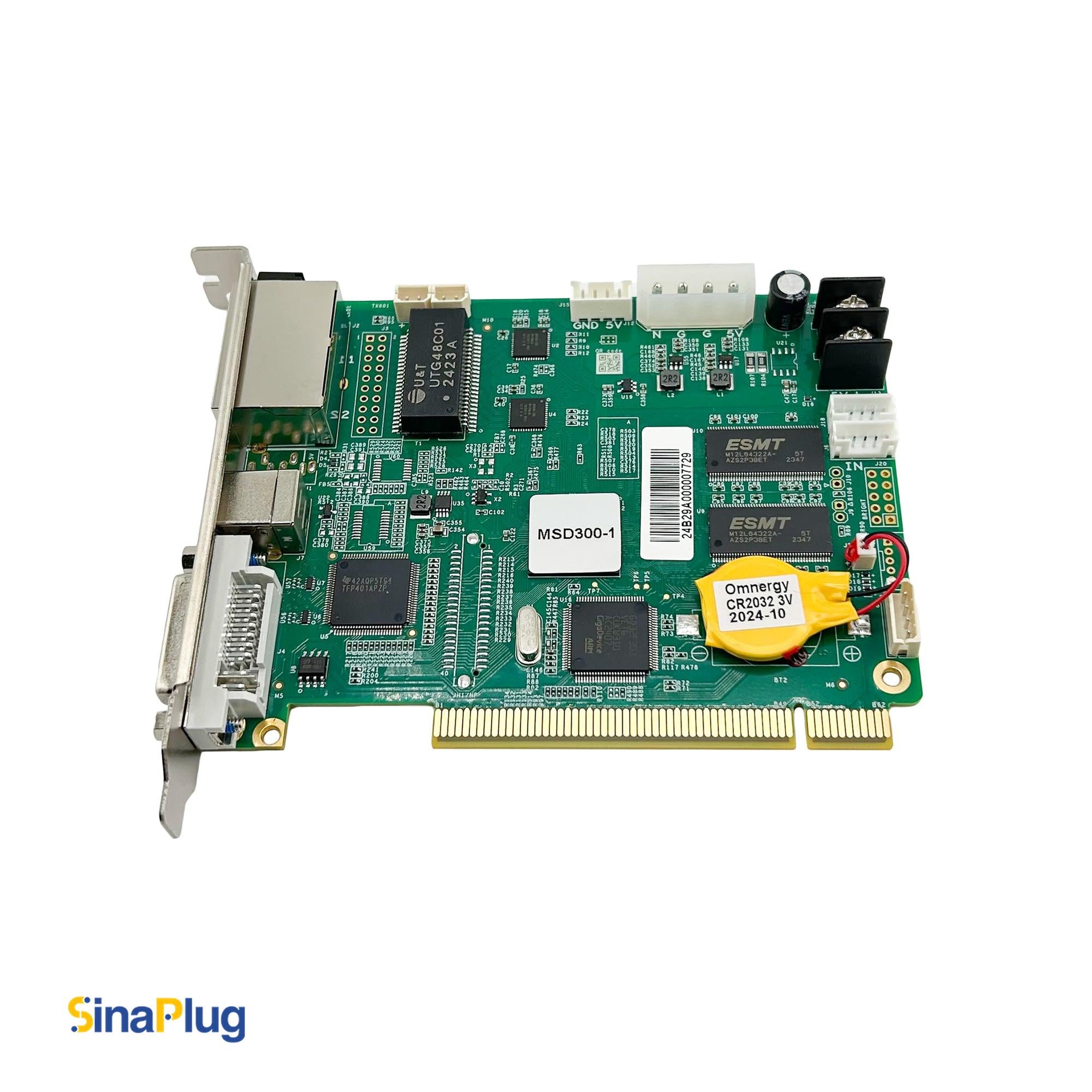

NovaStar MSD300-1 Sending Card

$107.00
US Stock Same-day shipping or store pickup
Easy Returns 60-day no-questions-asked return
Tech Support Free online technical assistance

Azarpixel is honored to introduce Novastar MSD300-1 sending card, a compact and reliable solution to ensure flawless operation over running of any LED displays installation. The card provides accurate images and effective control to a wide application area, whether it is used in stable installations or dynamic event conditions.

Supporting input resolution up to 1920 × 1200 pixels at 60Hz, this card enables high-language image transmission in your display. It provides a single-link DVI input and two Gigabit Ethernet output and can be cascaded with other Novastar MSD300-1 cards (Up to 20 units) through UART interfaces for expanded content publishing.

Designed for use in a rigid environment, the card provides reliable images and color through advanced pixel-level brightness calibration, providing the display performance to look balanced and rich.

Installation and setup are easy, aided by USB Type-B control port as much as custom resolution support with a width or height of 3840 pixels. Redundancy across Ethernet ports allows seamless operation, while compatibility with NovaLCT and NovaCLB enables precise calibration. The MSD300-1 always supports your screens in concerts, monitoring centers, sports stadiums, and beyond.

Key Features of NovaStar MSD300-1

Loading Capacity

  • Up to 1,300,000 pixels
  • Maximum width: 3840 pixels (3840×600@60Hz)
  • Maximum height: 3840 pixels (548×3840@60Hz)

Input

  • 1x Single-link DVI connector (up to 1920×1200@60Hz)
  • 1x Light sensor connector (for automatic brightness adjustment)

Output

  • 4x Gigabit Ethernet ports

Control

  • 1x Type-B USB port (connect to the control computer)
  • 2x UART IN/OUT ports (for cascading up to 20 units)

Features

  • Pixel-level brightness and chroma calibration (compatible with NovaLCT and NovaCLB software)
  • Redundancy between Ethernet ports for uninterrupted data transmission

Dimensions (L*W*H)

  • 139mm * 121mm * 22mm
