Mooncell  |  SKU: PRO-MNC-MVB2Sxxxxx-0

Mooncell MVB2S 2 in 1 Video Processor

$197.40 $225.70

AzarPixel is proud to present the Mooncell MVB2S, a highly cost-effective, advanced LED controller that ensures reliable performance for continuous use by combining professional display control technology with robust video processing capabilities. It consumes a maximum power of 11W and ensures a reliable performance in extreme ambient temperatures between -20°C and +70°C.

The MVB2S is an excellent solution for professional LED display control, combining robust video processing, versatile connectivity, and user-friendly operation for a wide range of applications.

This controller utilizes a high-performance image processing chip with advanced interlaced image adaptive technology and an ultra-clear noise reduction engine. It offers quick screen configuration, seamless switching between input sources, and 3 different zoom modes to make the display more dynamic. Additionally, users can also adjust the positions and sizes of display windows, with window capture functionality supported.

It's ideal for various small to medium LED display setups, as it supports a comprehensive range of input sources handling resolutions up to 1920×1080@60Hz via HDMI, VGA, DVI, CVBS, and USB plug-and-play, and loads up to 1.3 million pixels from its dual Ethernet outputs to your display, with a maximum output width of 3840 pixels or 1920 pixels in height.

The audio input allows audio signals to be integrated into an LED display system and the 3.5mm audio out interface enables sending audio signals from the controller to external audio systems, such as speakers or amplifiers, ensuring that the audio is amplified and delivered with high quality

The MVB2S offers an RS232 and a USB Type-B that connects to the control PC for configuration. With its robust video processing and transmission capabilities and other exceptional features of this controller, it may be widely employed in applications such as small rental and fixed installation applications, conferences and workshops, and fine-pitch LED panels.

Key Features of MVB2S

Loading Capacity

  • Up to 1,300,000 pixels

Input

  • 1x USB flash drive Plug-and-Play (For video playback)
  • 1x HDMI 1.3 (maximum resolution: 1920×1080@60Hz)
  • 1x DVI (maximum resolution: 1920×1080@60Hz)
  • 1x VGA (maximum resolution: 1920×1080@60Hz)
  • 1x CVBS supporting PAL/NTSC video input
  • 1x 3.5mm Audio input

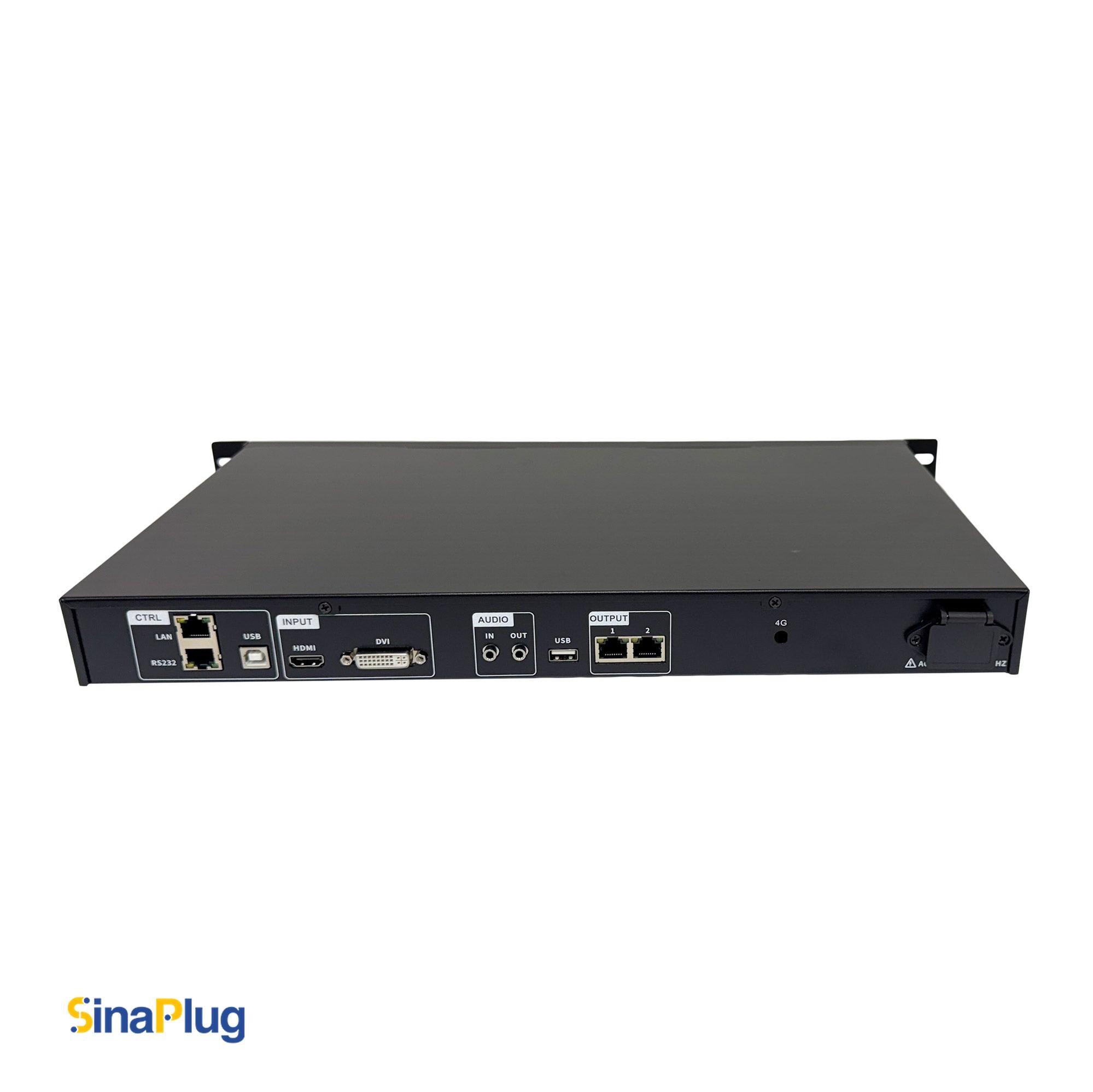

Output

  • 2x Gigabit Ethernet ports (with redundancy support)
  • 1x 3.5mm Audio output

Control

  • 1x RS232 port (for debugging series connection port)
  • 1x USB 2.0 IN Type-B port (for PC configuration)

Decoding

  • Supports Image formats: JPG, JPEG, BMP, PNG
  • Video formats: MPEG1/2, MPEG4, Sorenson H.263, H.263, H.264(AVC1), H.265(HEVC), RV30/40, Divx, Xvid
  • Audio formats: MPEG1/2 Layer I, MPEG1/2 Layer II, MPEG1/2 Layer III, AACLC, VORBIS, PCM, FLAC

Advanced Features

  • Instant switching or FadeIN/FadeOUT between input channels
  • synchronous switching of audio or video
  • Supports 3 zoom modes (Full Screen Zoom, Point-to-Point Display and Custom Zoom)
  • Supports window capture function and size/position adjustment
  • Play back pictures and videos from U-disk
  • 8 scene presets to save and recall easily
  • Independent Audio input and output

Dimensions (L*W*H)

  • 480mm * 274.5mm * 44mm
