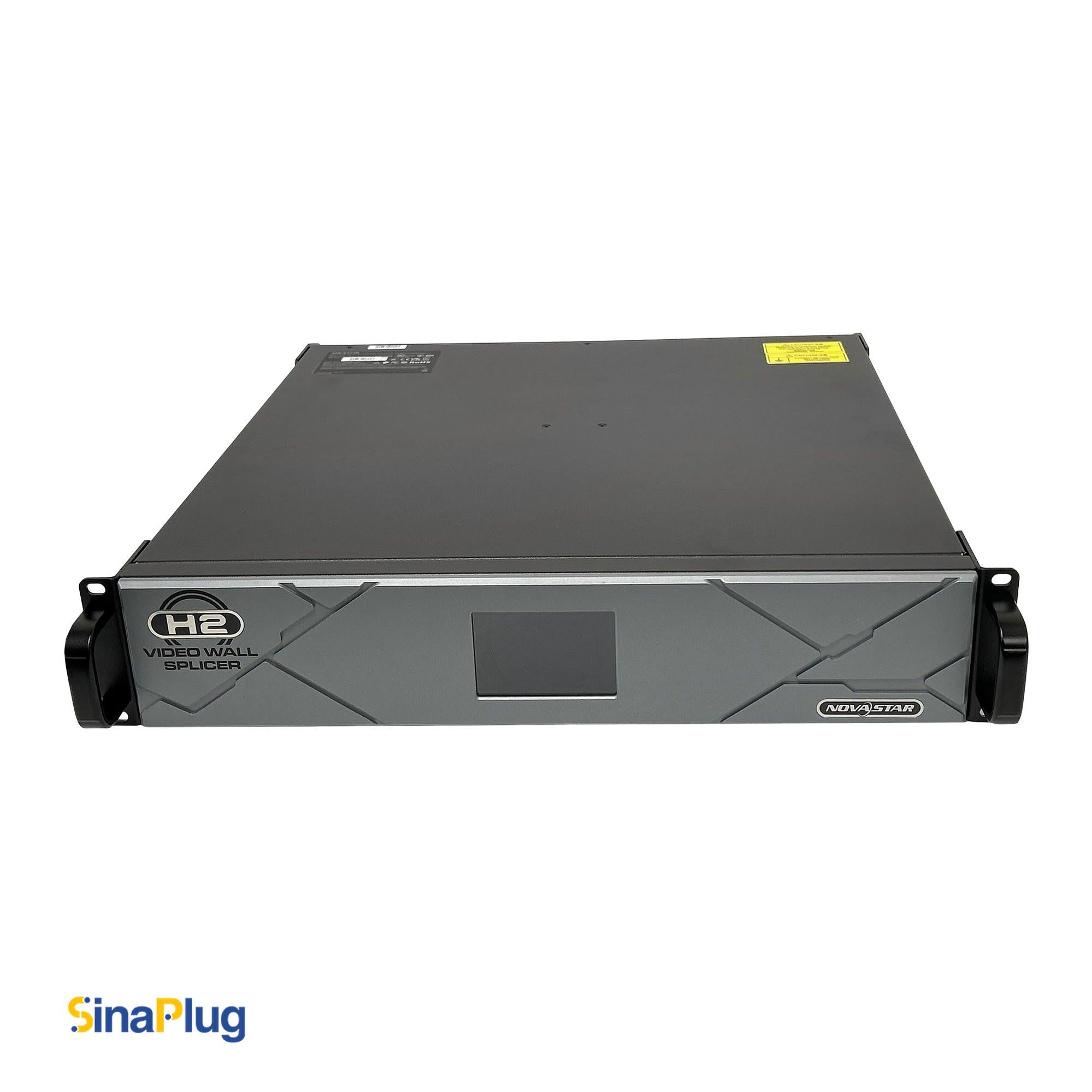

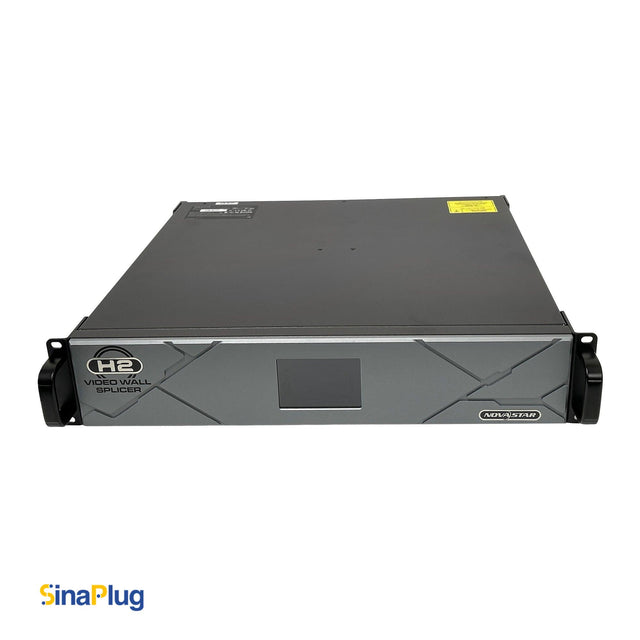

NovaStar H2 Video Wall Splicer/Processor (Main Frame)

The NovaStar H2 Video Wall Splicer, presented and US stocked by AzarPixel, is a user configurable professional video wall processor, controller and splicer. By providing different and reconfigurable I/O cards, it has been designed and released to the market for high-demand LED display applications such as large-scale control rooms, broadcasting studios, command centers, exhibitions, and high-end rental installations with diverse requirements and hardware.

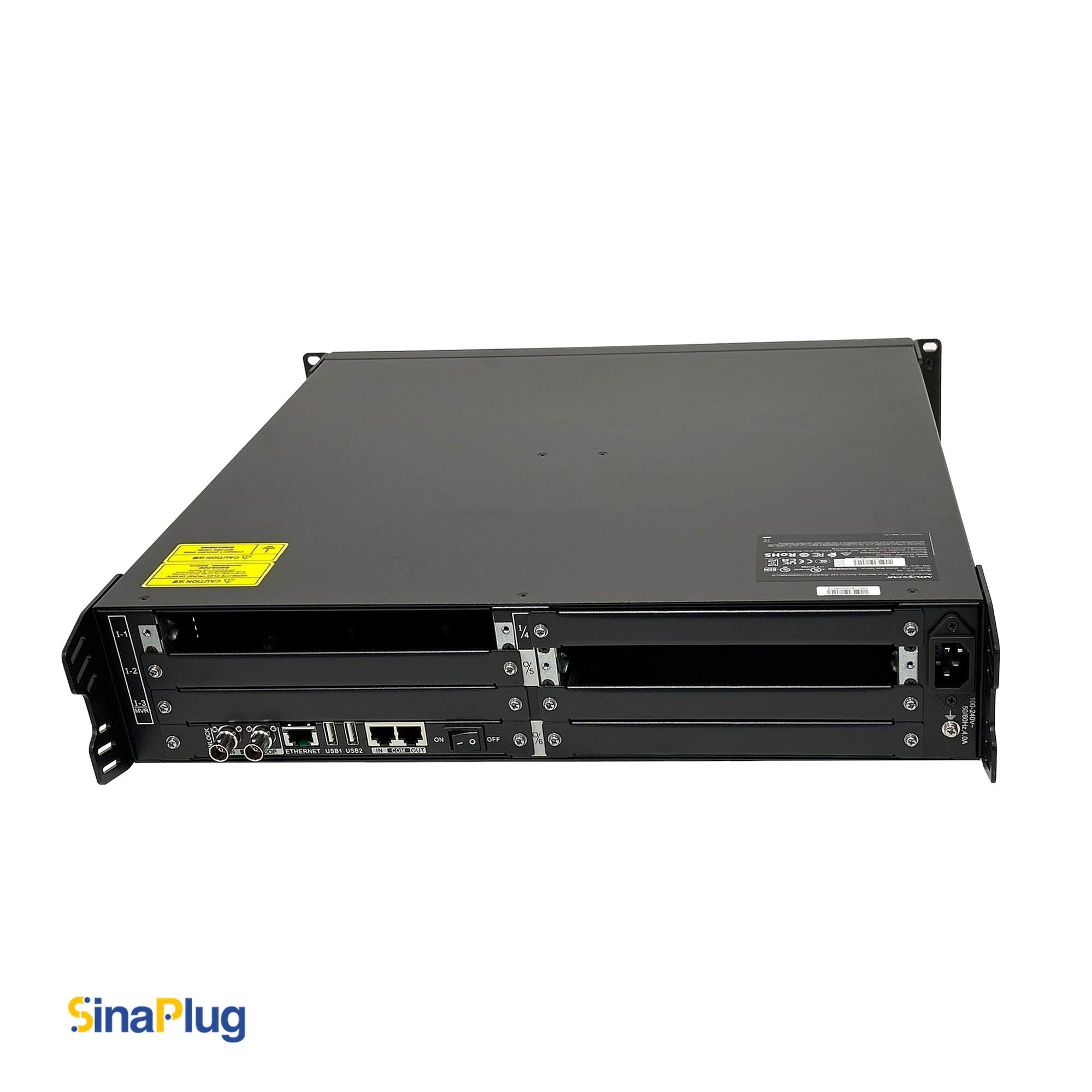

Due to its powerful processing technology, it has extremely fine pitch LED display friendly. The splicer provides excellent image processing capability and control flexibility, with modular, plug-in, hot swappable input and output card slots and capable high-performance hardware (Please note: I/O cards are optional, and clients need to place orders for their required input/output cards separately – this product is just an empty H2 frame included with the H_Control Card only).

To enhance versatility, it can be configured and operate with a combination of 4K and Full HD input/output cards, preview cards and LED sending cards (up to 41.6 million pixels loading capacity per unit: it offers three types of LED sending cards that not only support backup functionality between optical and Ethernet ports, but also suggests ultra-long distance data transmission).

This All-in-One unit supports both synchronous and asynchronous video wall management adapted to several applications. Powered by a robust FPGA architecture, it gives seamless integration and flexible signal routing across a broad range of input and output formats, including HDMI (up to version 2.0), DisplayPort, DVI, VGA, CVBS, SDI (up to 12G).

The H2 accommodates up to 4 input cards (16 channels) and 2 output cards (8 channels). With thoughtful design, each screen can be configured independently including multi-screen management with multi-layer overlays, one of multiple EDID management, and up to 2,000 preset switching. The unit is also certified under the following: CCC, CE, FCC, IC, RCM, UKCA, KC, CMIM, CB, and UL.

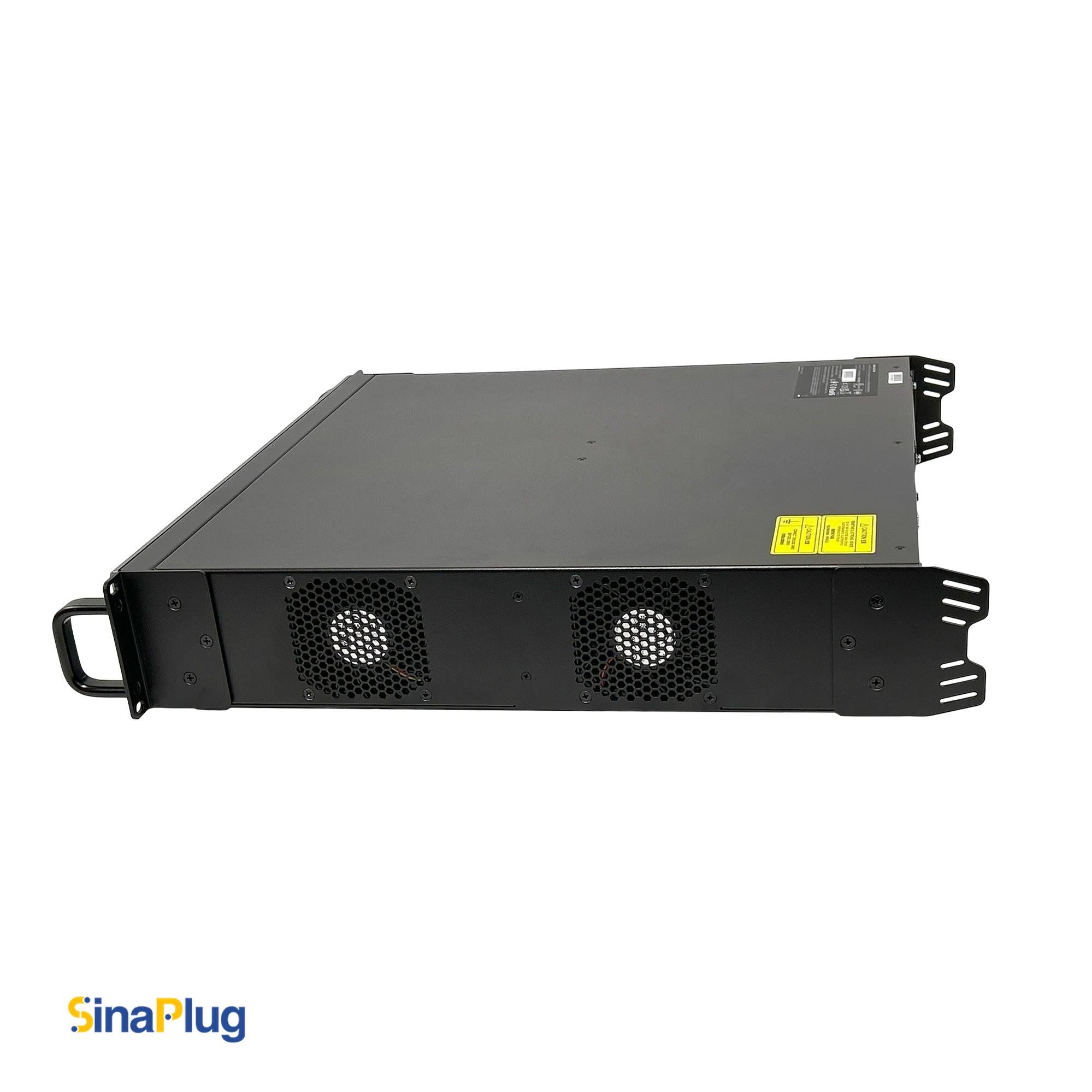

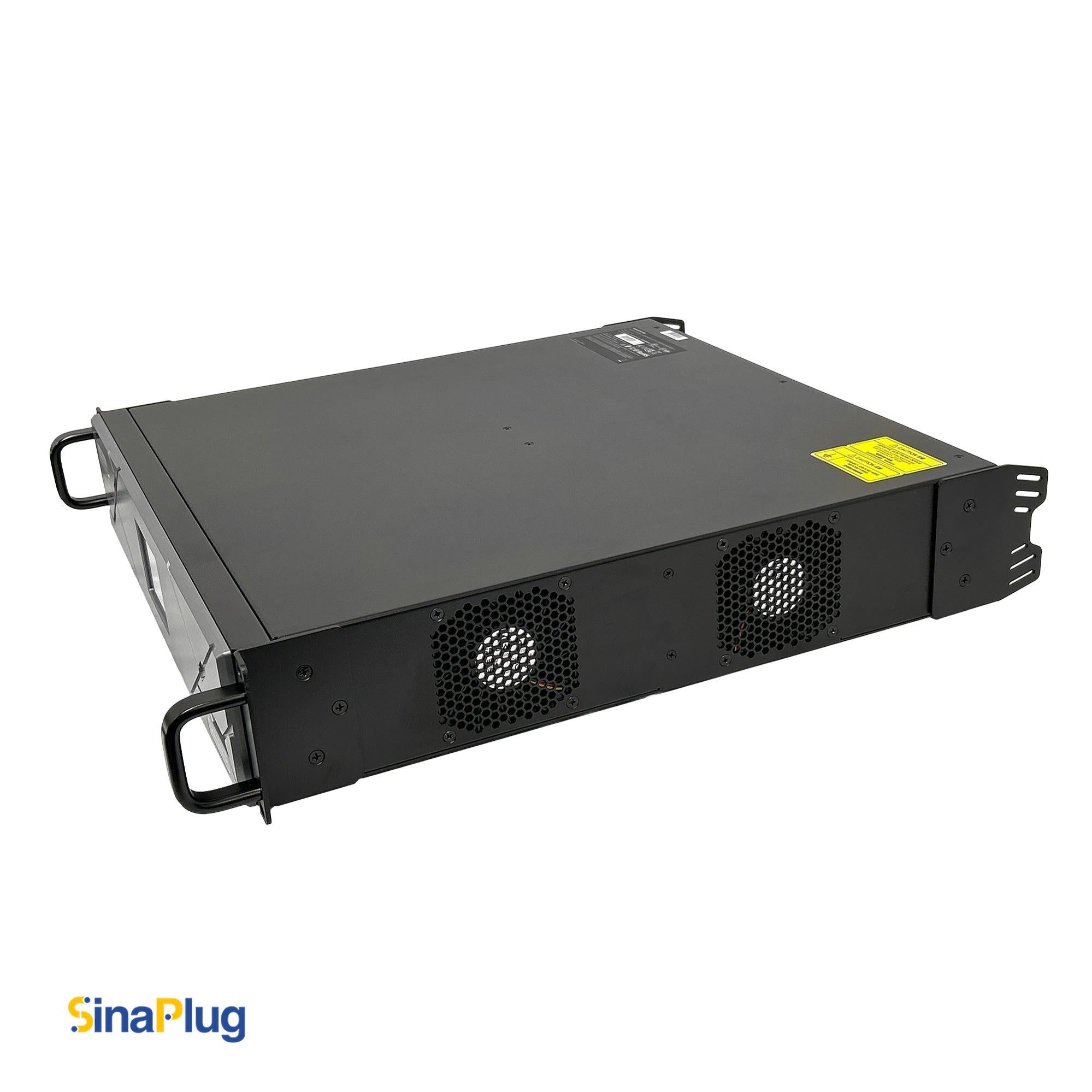

A rugged 2U chassis in addition to large operating condition range means it can be utilized in difficult environments where total uptime and image performance are important.

Here is the list of optional H-series I/O cards compatible with H2 unit:

• H_4xHDMI input card
• H_1xHDMI2.0 input card
• H_4xHDMI output card
• H_16xRJ45+2xfiber sending card
• H_4xDVI input card
• H_1xHDMI2.0+1xDP1.2 input card
• H_1xHDMI2.0 output card
• H_20xRJ45 sending card
• H_4xfiber sending card
• H_2xRJ45 IP input card
• H_4x3G SDI input card
• H_2xCVBS+2xVGA input card
• H_4xVGA input card
• H_2xDP1.1 input card
• H_1xDP1.2 input card
• H_1x12G SDI input card
• H_STD I/O card
• H_4xDVI output card
• H_2xRJ45+1xHDMI1.3 preview card
• H_control card (Included)
