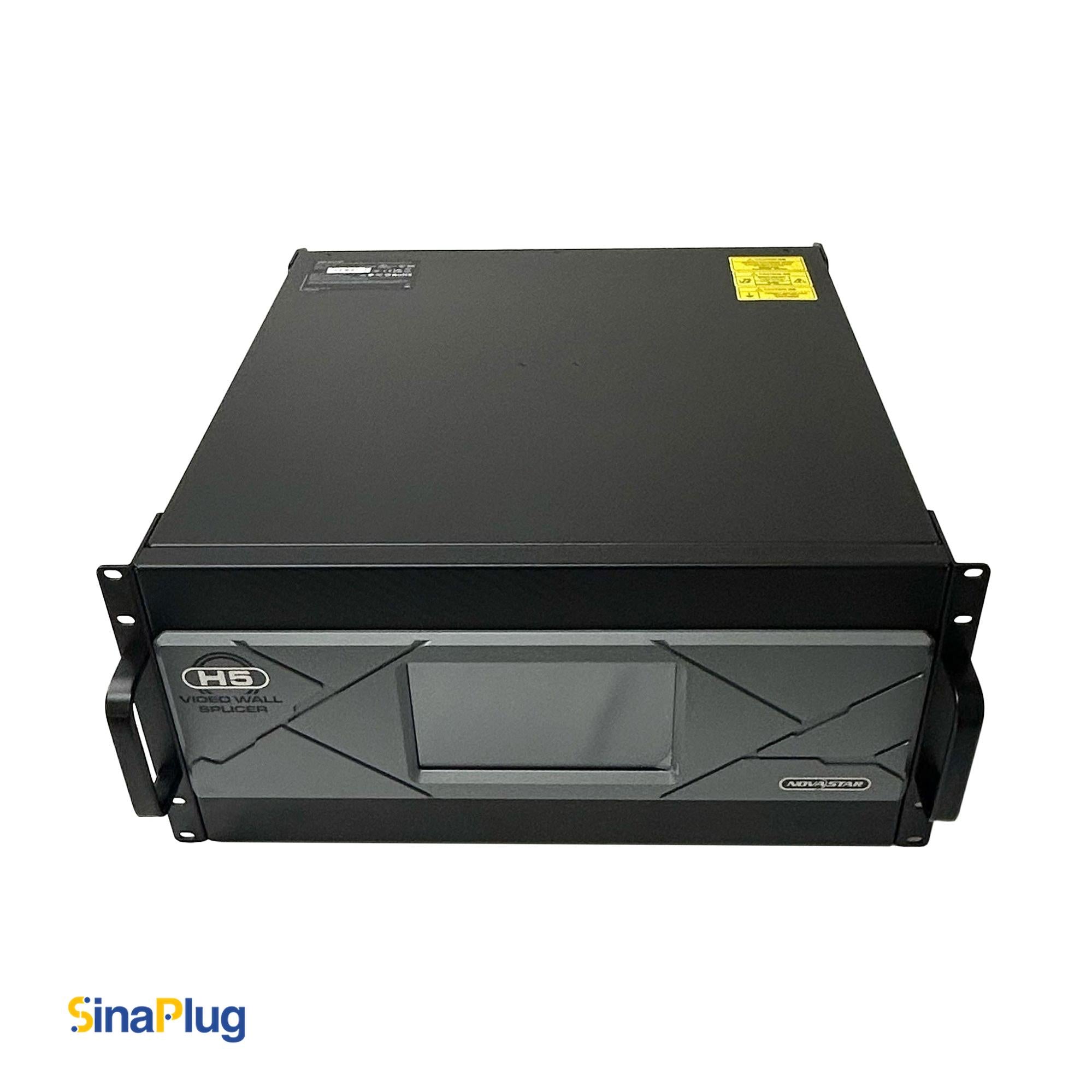

NovaStar H5 Video Wall Splicer/Processor (Main Frame)

AzarPixel is pleased to exclusively offer the H5 Video Wall Splicer, NovaStar's leading all-in-one splicing processor that seamlessly integrates video processing and display control capabilities. Its modular and plug-in mainframe design allows it to adapt to any size or complexity of LED video wall, while its robust 4K processing and extensive layering tools provide the artistic freedom required for a wide range of fine-pitch LED applications, including large scale exhibitions, concerts, live events, security monitoring, as well as various sports centers.

Its advanced processing features including HDR, 4K and 10-bit video processing, high-precision color adjustment, 3D function support, and low latency, guarantee exceptional visual quality for a crystal-clear image, ensuring stable performance and detailed sharp content display. Outputs can be freely designed and arranged for uneven or irregularly shaped splicing, supporting fade and seamless switching effects.

All functionality and control capabilities are managed by a Cross-Platform web control that supports cross-system access (Windows, Mac, iOS, Android, Linux) via a web page, eliminating the need for a dedicated application to be installed. Additionally, it offers up to 2000 custom presents, supports online firmware updates, and provides real-time monitoring of all inputs and outputs, making it simpler and providing worry-free operation for users.

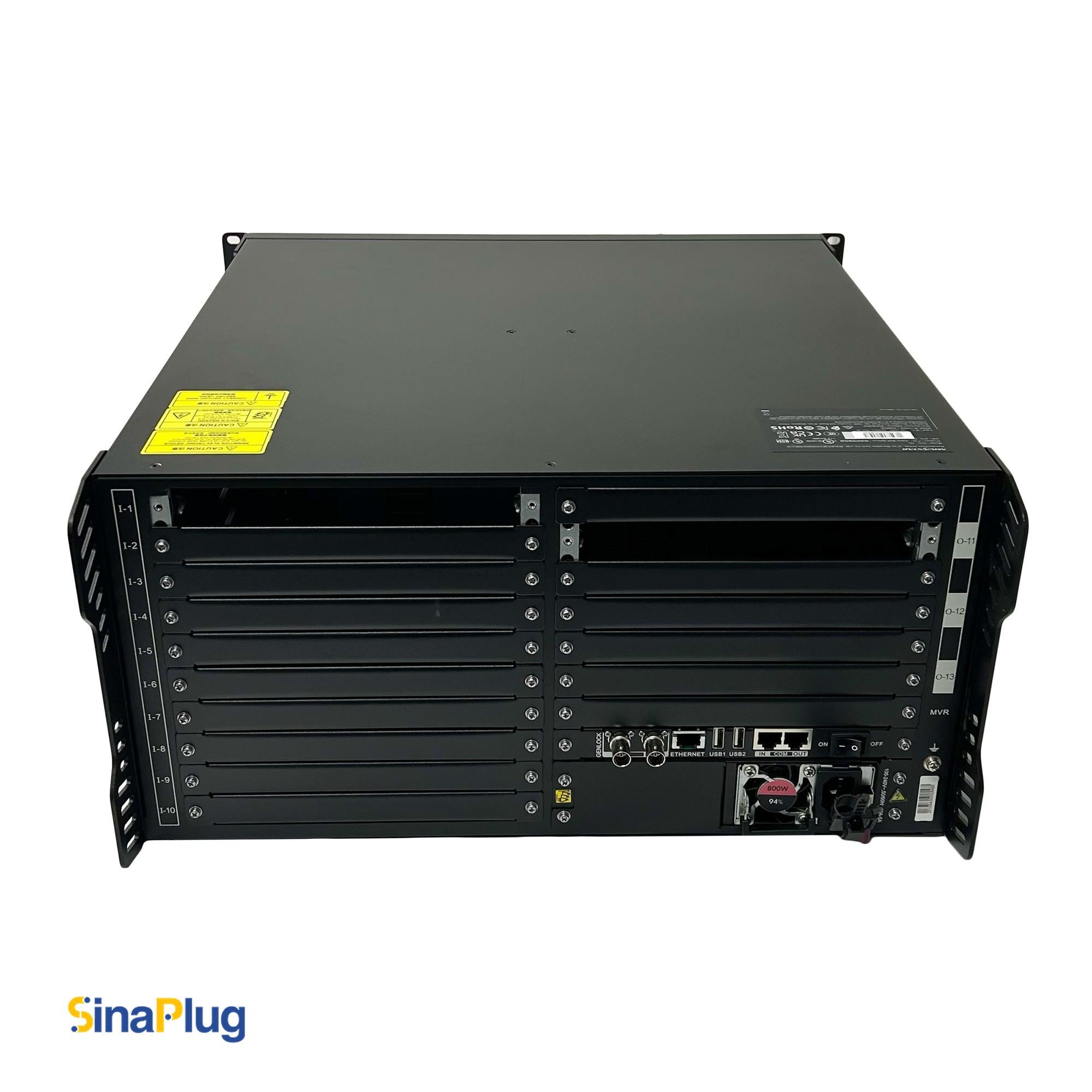

NovaStar’s H Series models share a similar modular design, which allows for flexible configuration, simplified maintenance, and hot swapping of I/O cards. (Please note I/O cards are optional, and clients need to place orders for their required input/output cards separately – this product is just an empty H5 frame included with the H_Control Card only). The major difference between the models is the variety of input and output cards.

 In this case, the H5 provides greater numbers of input and output cards than the H2 Video Wall Splicer which in turn delivers larger loading capacity and expanded connectivity, making it an ideal choice for more complicated large-scale projects, allowing you to choose the best fit based on your specific requirements.

Users can benefit from a variety of 4K and 2K input and output cards. The H5 supports up to 10 input cards, offering a wide range of input formats and channels (up to 40), including HDMI (2.0/1.4/1.3), DP (1.1/1.2/1.4), DVI (SL/DL), VGA, CVBS, SDI (12G/3G), and IP. Additionally, 3 output cards (up to 12 channels) can deliver a maximum of 39 million pixels through Ethernet outputs or up to 62.4 million pixels when using fiber sending cards.

Layers can be managed and modified without limitations. Each output daughterboard provides up to 16 layers (16x 2K, 8x DL, 4x 4K, 2x 8K). Layers can freely cross different output areas, maintaining layer size and may be positioned, overlapped, or scaled without restriction. This all helps in realizing your creative vision and delivering truly captivating visual effects.

This powerful unit supports both synchronous and asynchronous video management and by offering Genlock interfaces the video between various output ports and output cards remains perfectly synchronized.
