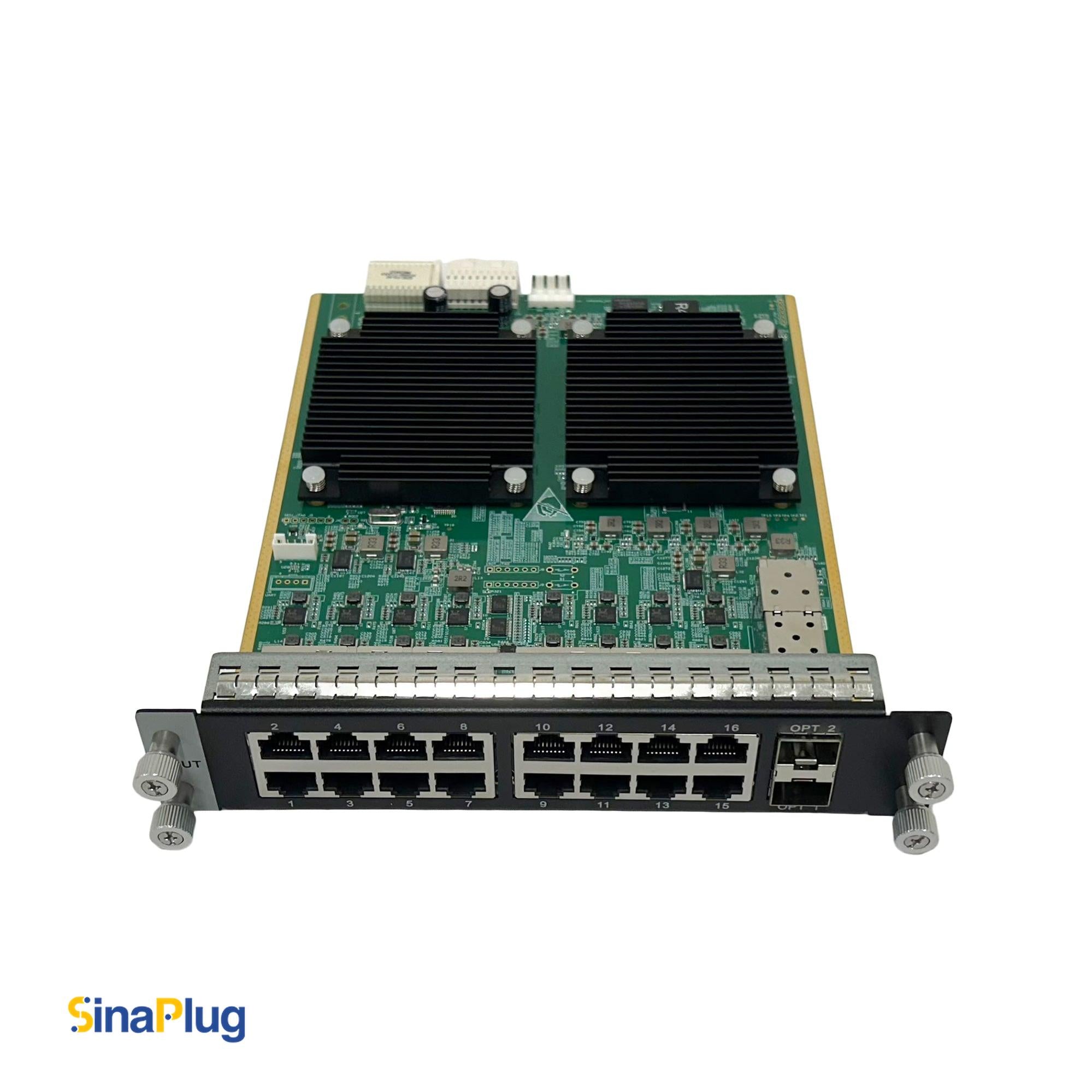

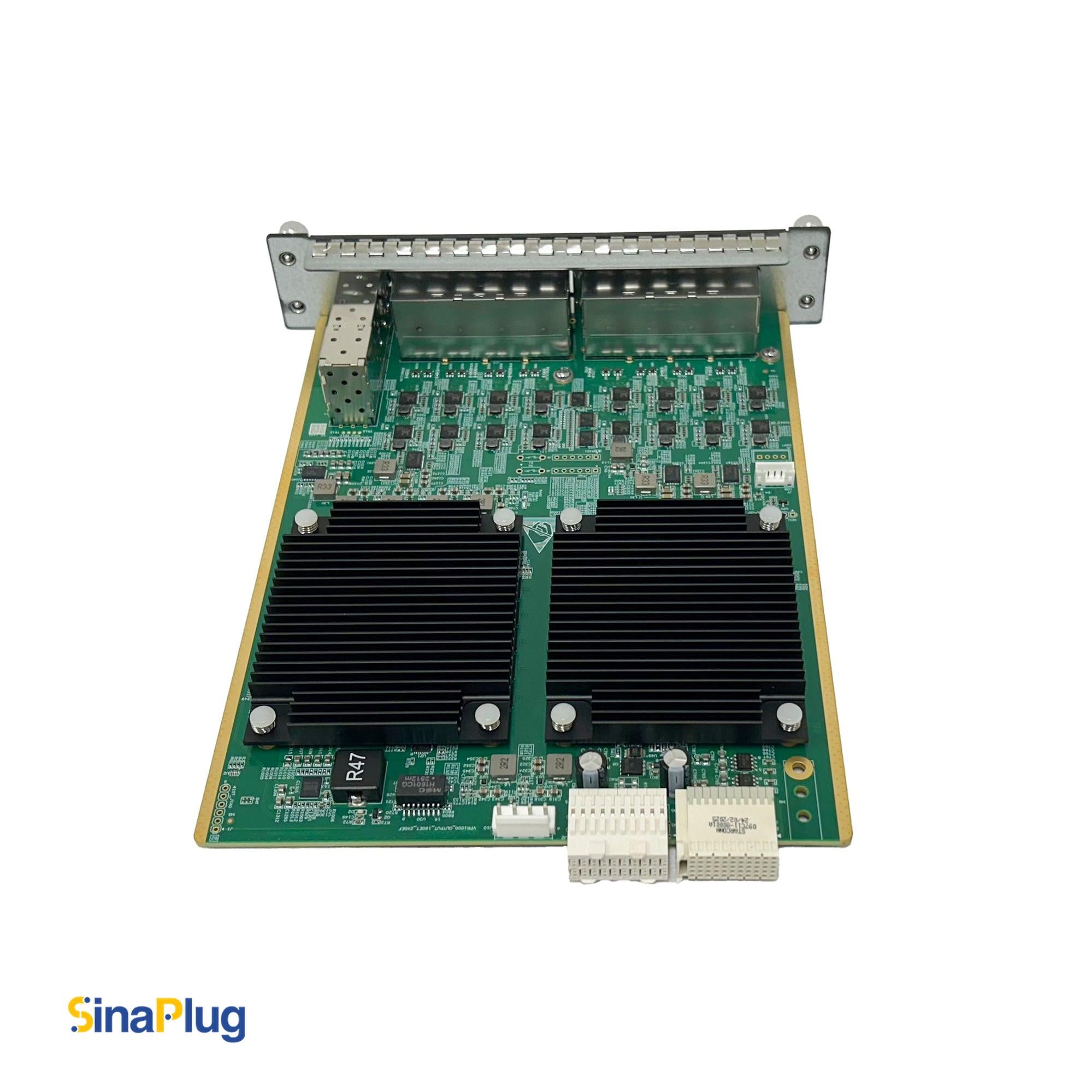

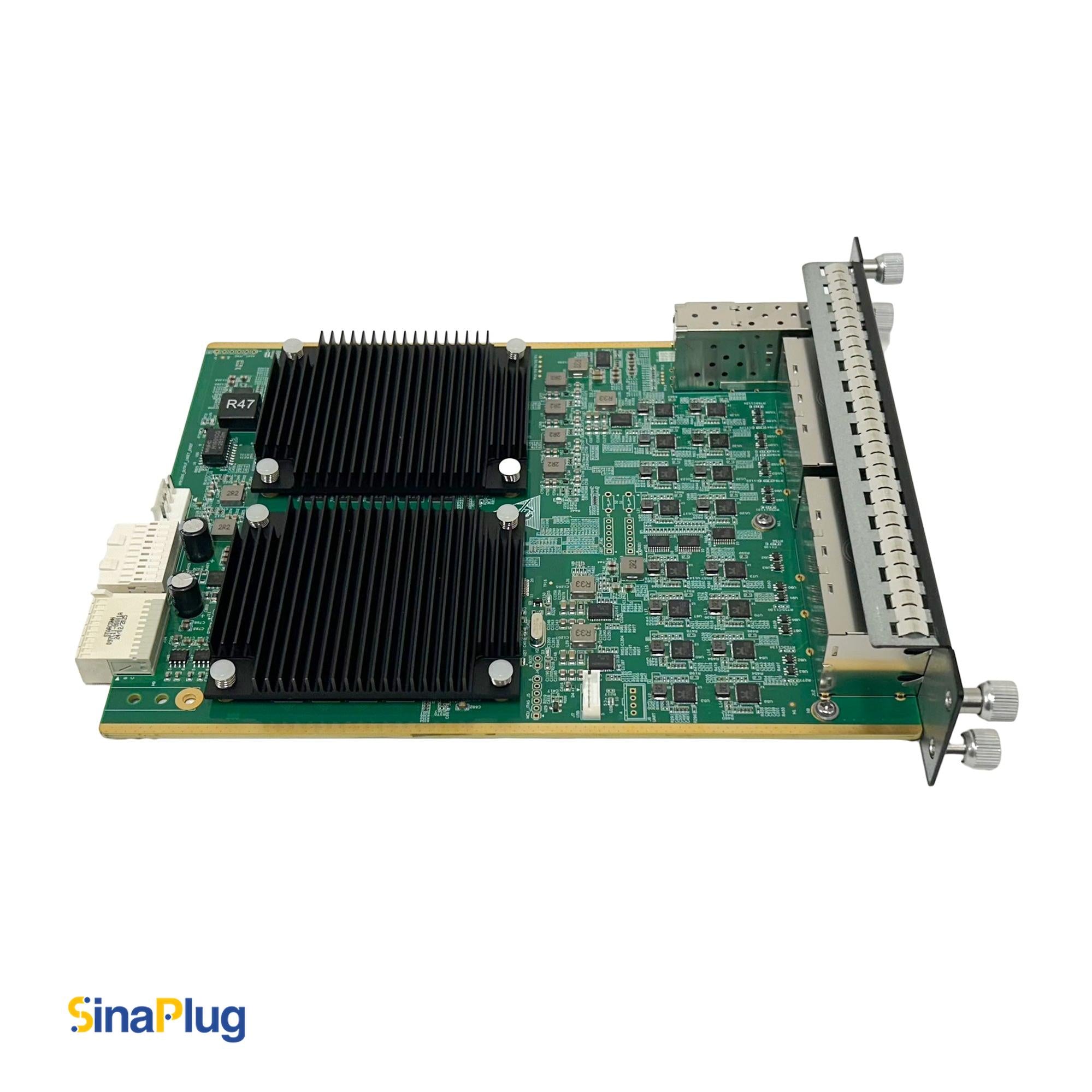

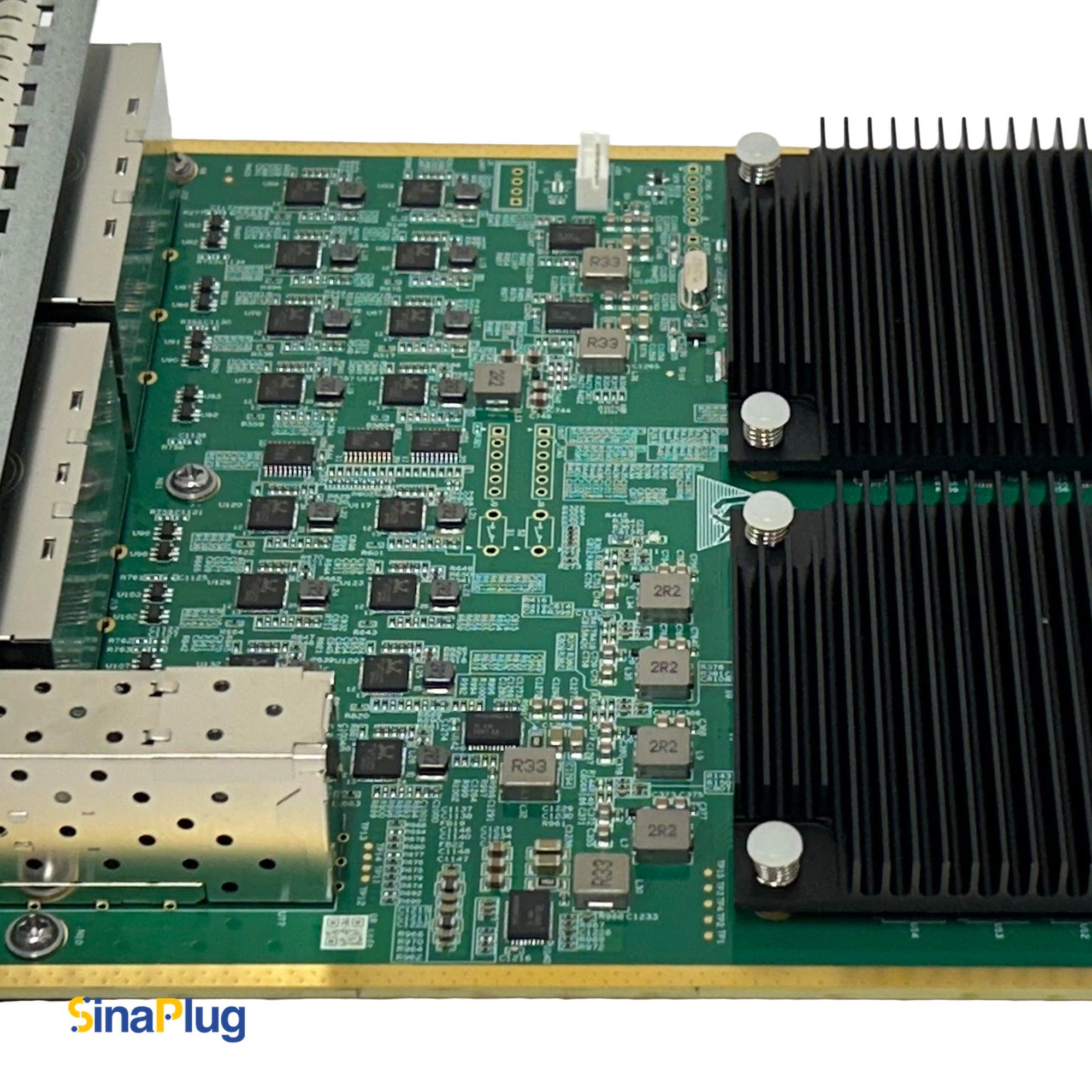

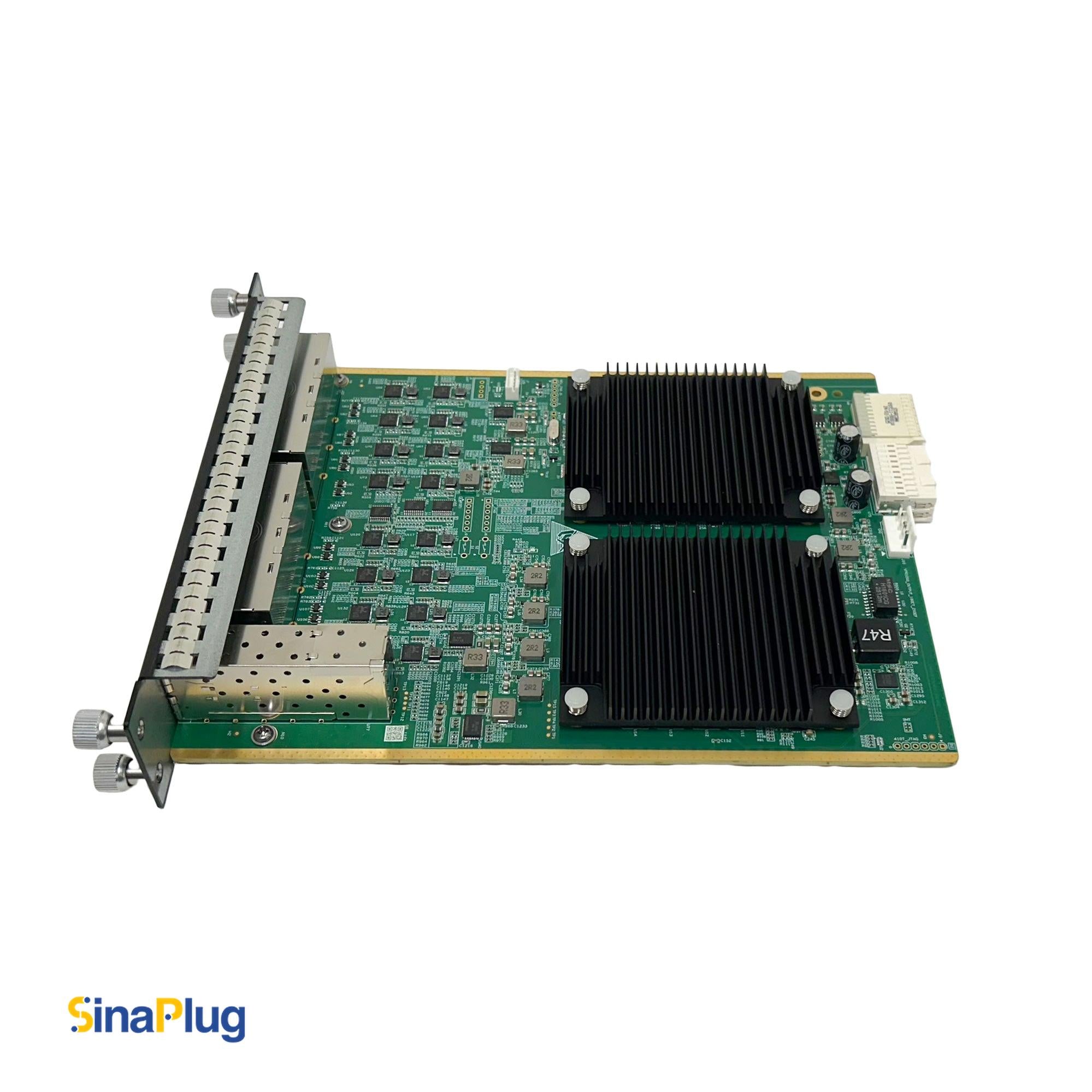

NovaStar H_16xRJ45+2xFiber LED 4K Sending Card for H2 Main Frame

The NovaStar H_16xRJ45+2xFiber Sending Card, available at AzarPixel, is a professional-grade, high-capacity LED sending card to be utilized on the H2 Video Wall Splicer units.

It is Built to solve the demanding needs of large-scale LED display applications. This sending card integrates 16 Gigabit Ethernet outputs (Supporting backup between Ethernet ports) and 2 optical fiber ports, capable of copying outputs on Ethernet ports for enhanced data transmission backup and reliability.

The card supports a maximum loading capacity of up to 10.4 million pixels, with an absolutely impressive maximum width and height of 10,240 pixels. This means the card is well-suited for extensive video wall installations and ultra-long LED screens (up to 10,240 pixels in width and 10,240 pixels in height). The optical outputs copy data on Ethernet ports. They support both single-mode and multi-mode fiber, enabling ultra-long-distance data transmission that maintains signal integrity.

The H_16xRJ45+2xFiber Sending Card supports 144 Hz refresh rates, ensuring smooth video playback with minimal latency. Its innovative backup between Ethernet ports guarantees continuous operation even if one transmission path fails. The card design is modular to allow maintenance and upgrades and is compatible with the H2 chassis. The H2 Chassis allows the sending card to be hot swapped in critical environments for operations within the video wall design without causing interruptions.
