NovaStar  |  SKU: PRO-NOV-4XHDMIINxx-0

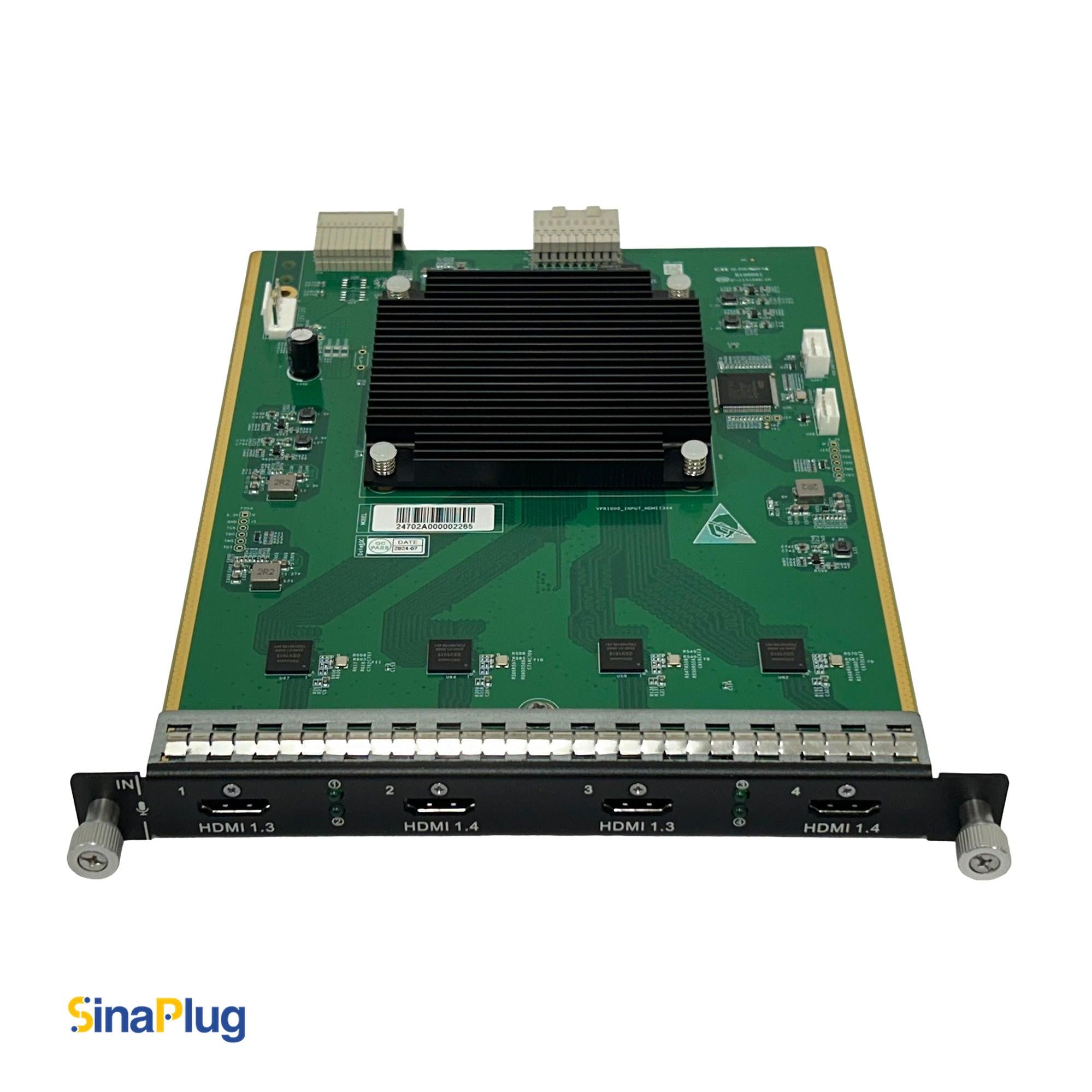

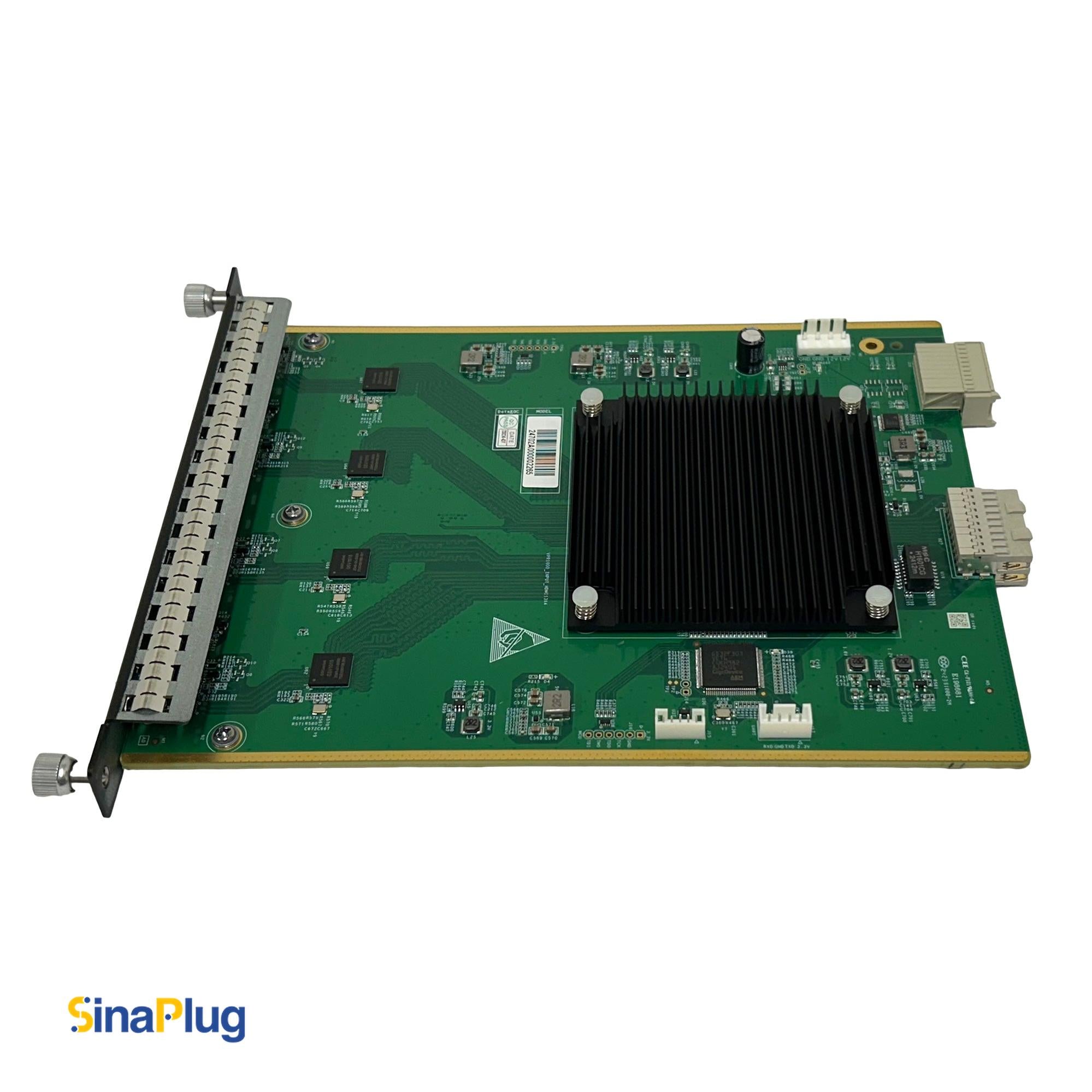

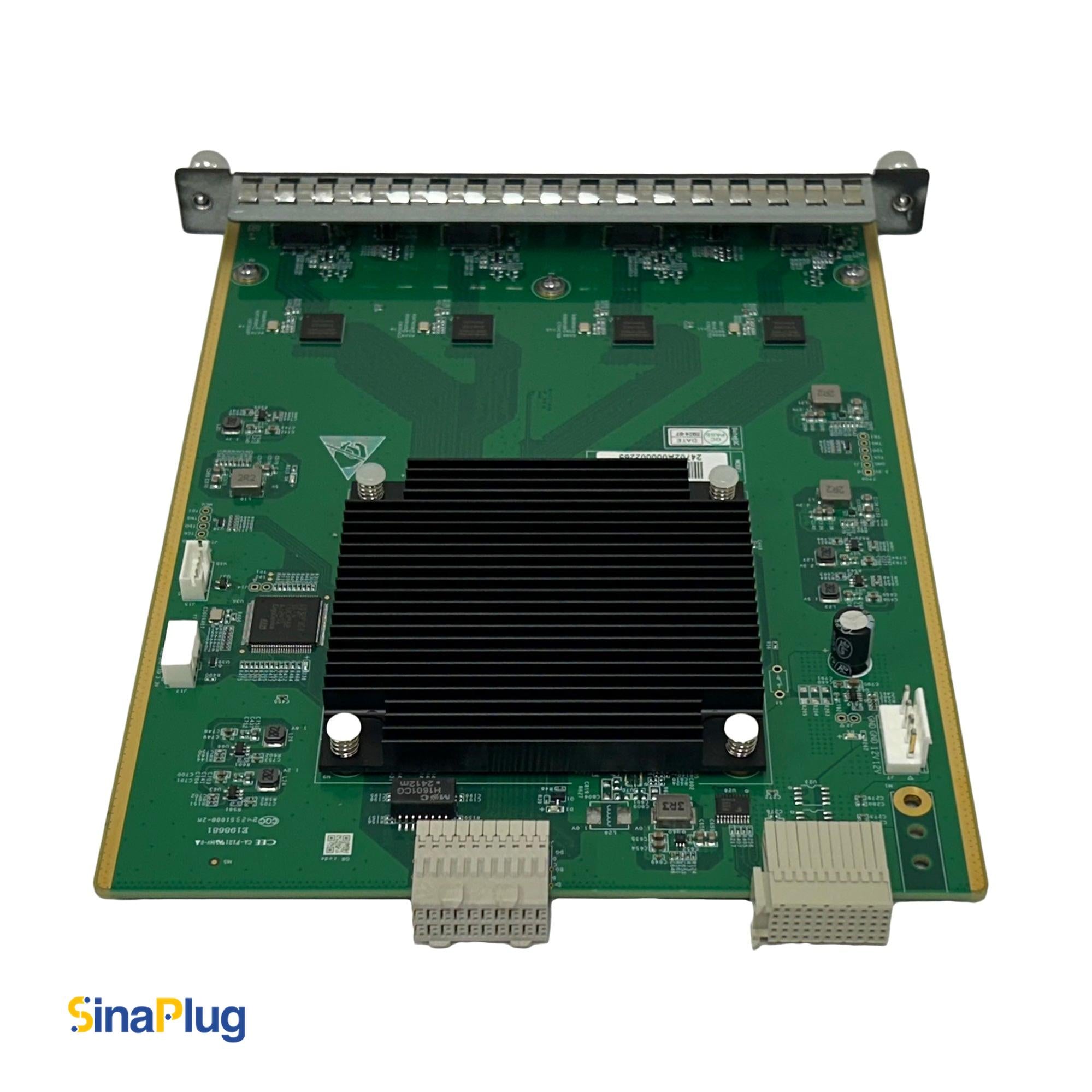

NovaStar H_4xHDMI Input Card for H2 Main Frame

$850.00

AzarPixel offers the NovaStar H_4xHDMI Input Card, a commercial multi-port HDMI input card solution that offers a way to expand the functionality of the modular H2 Video Wall Splicer. With four HDMI inputs supported, this card provides high-quality, multi-channel video input, ideal for advanced LED display systems needing multiple simultaneous HDMI sources.

The card supports 10-bit input from video sources and optional accompanying audio. It delivers a peak refresh rate of 144Hz to ensure smooth and flicker-free graphics which is essential for high-end gameplay. All four HDMI inputs (HDMI1.3 and HDMI1.4) can be used simultaneously for resolutions up to 2048×1152@60Hz. However, for higher resolutions up to 3840×1080@60Hz, only the two HDMI 1.4 connectors will be available.

The H_4xHDMI Input Card is plug-and-play compatible and designed for hot-swapped mounting into the H2 main frame that ensures simple installation and maintenance even in real-time dynamic situations. The status LEDs allow us to understand indicators of every input channel's status and activity for easy real-time monitoring.

Key Features of H_4xHDMI Input Card

Loading Capacity

  • For each HDMI 1.3 input port: Maximum resolution of 2048×1152@60Hz
  • Up to 2560 pixels in width (2560×983@60Hz for custom resolutions)
  • Up to 2560 pixels in height (884×2560@60Hz for custom resolutions)
  • For each HDMI 1.4 input port: Maximum resolution of 3840×1080@60Hz
  • Up to 3840 pixels in width (3840×1202@60Hz for custom resolutions)
  • Up to 3840 pixels in height (1092×3840@60Hz for custom resolutions)

Input Interfaces

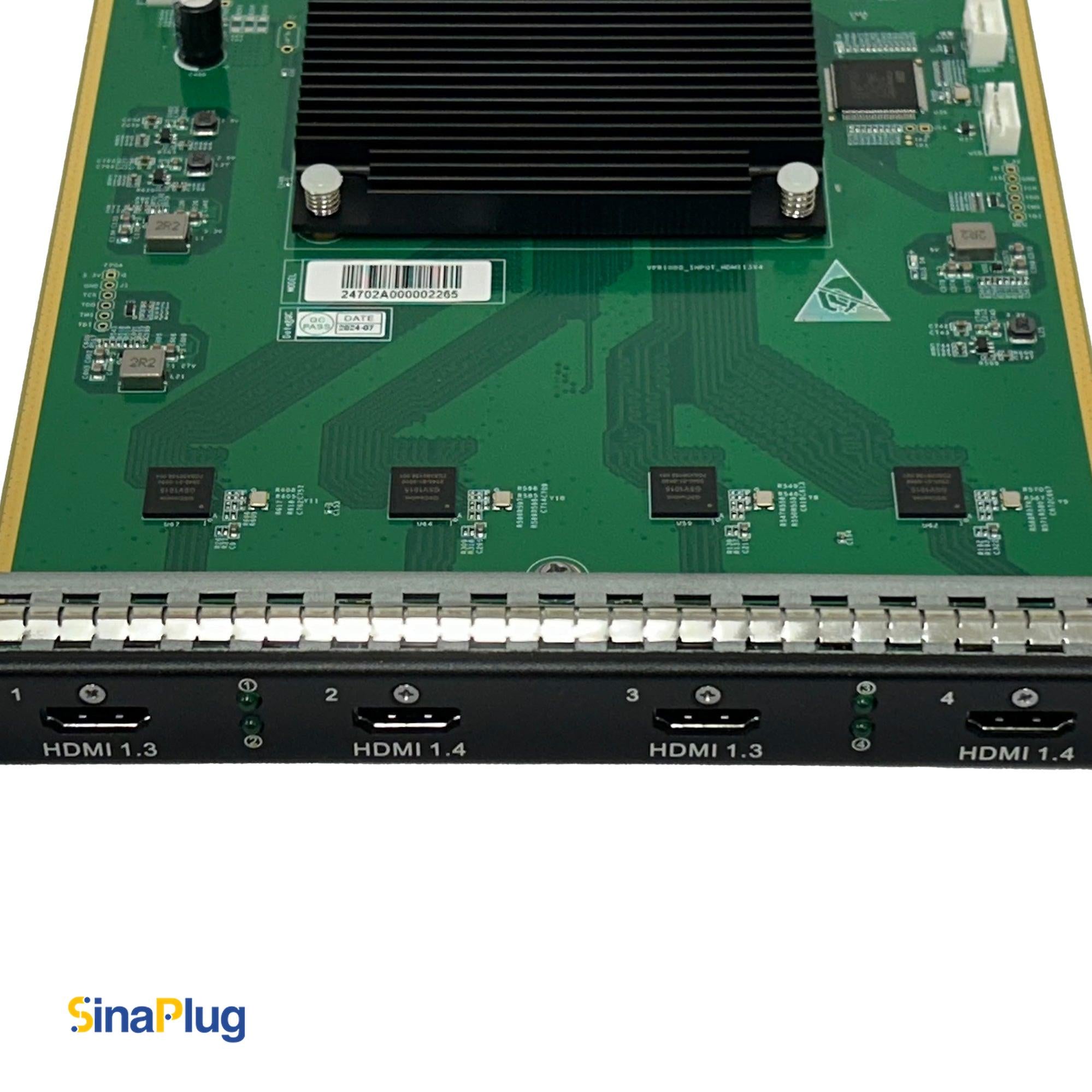

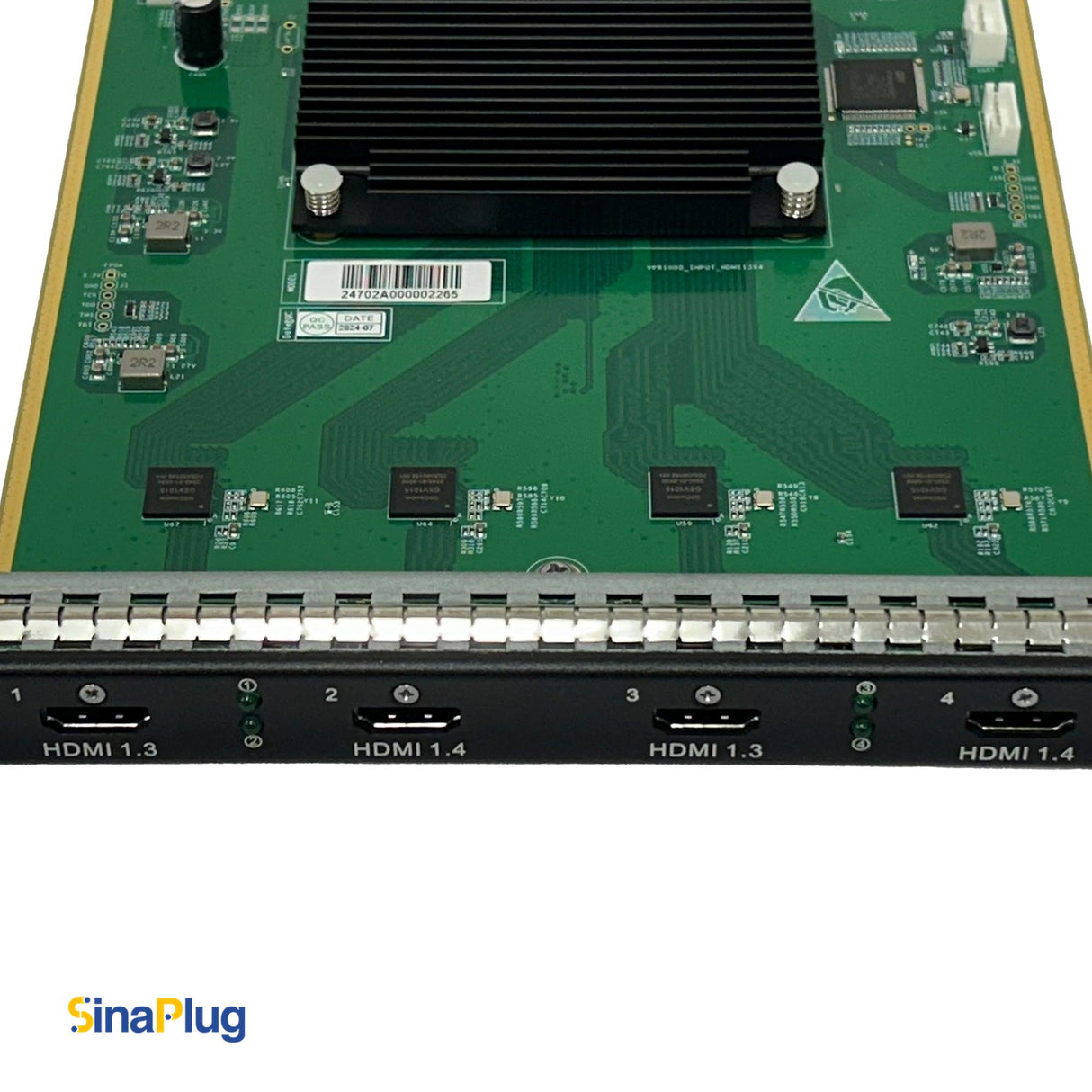

  • 4x HDMI connectors (2x HDMI 1.4, 2x HDMI 1.3)

Performance

  • Supports 10-bit input sources with accompanied audio
  • Compatible with 144Hz input refresh rate for smooth video rendering

Compatibility and Installation

  • HDCP 1.4 compliant
  • Occupies one card slot in the H2 chassis (or main frame)
  • Hot-swappable design for effortless installation and maintenance
  • Fully compatible with NovaStar’s H2 Video Wall Splicer system

Power consumption

  • 9.3W

Weight

  • 550 g

Dimensions (L*W*H)

  • 247mm × 193mm × 21mm
