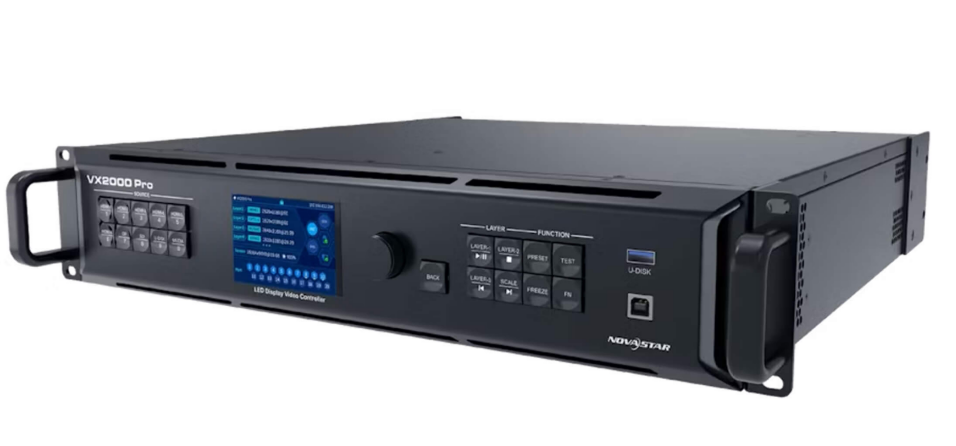

NovaStar VX2000 Pro All-in-One Controller

The VX2000 Pro is an all-in-one controller combining video processing and video control
functionalities into a single device. Equipped with 20 Ethernet ports, it supports three working
modes: video controller, fiber converter, and ByPass. Capable of managing up to 13 million
pixels, the VX2000 Pro can output at a maximum width of 16,384 pixels and a height of 8,192
pixels, making it perfectly suited for controlling ultra-wide and ultra-high LED screens on-site.
The VX2000 Pro boasts powerful video signal reception and processing capabilities, supporting
a maximum resolution of 4K×2K@60Hz for video input. It can handle multiple video signal
inputs and includes features like 12 layers, output scaling, low latency and pixel-level brightness
and chroma calibration. These functions combine to deliver outstanding image display quality.
With various control options available, the VX2000 Pro can be operated via the front panel
knob, NovaLCT, Unico web page and VICP app, providing you with a convenient and effortless
control experience.
The VX2000 Pro is housed in an industrial-grade casing, which, combined with its powerful
video processing and transmission capabilities, makes it robust and well-suited for complex
operational environments. The VX2000 Pro is a perfect fit for medium and high-end rental,
stage control systems and fine-pitch LED screens.

Features

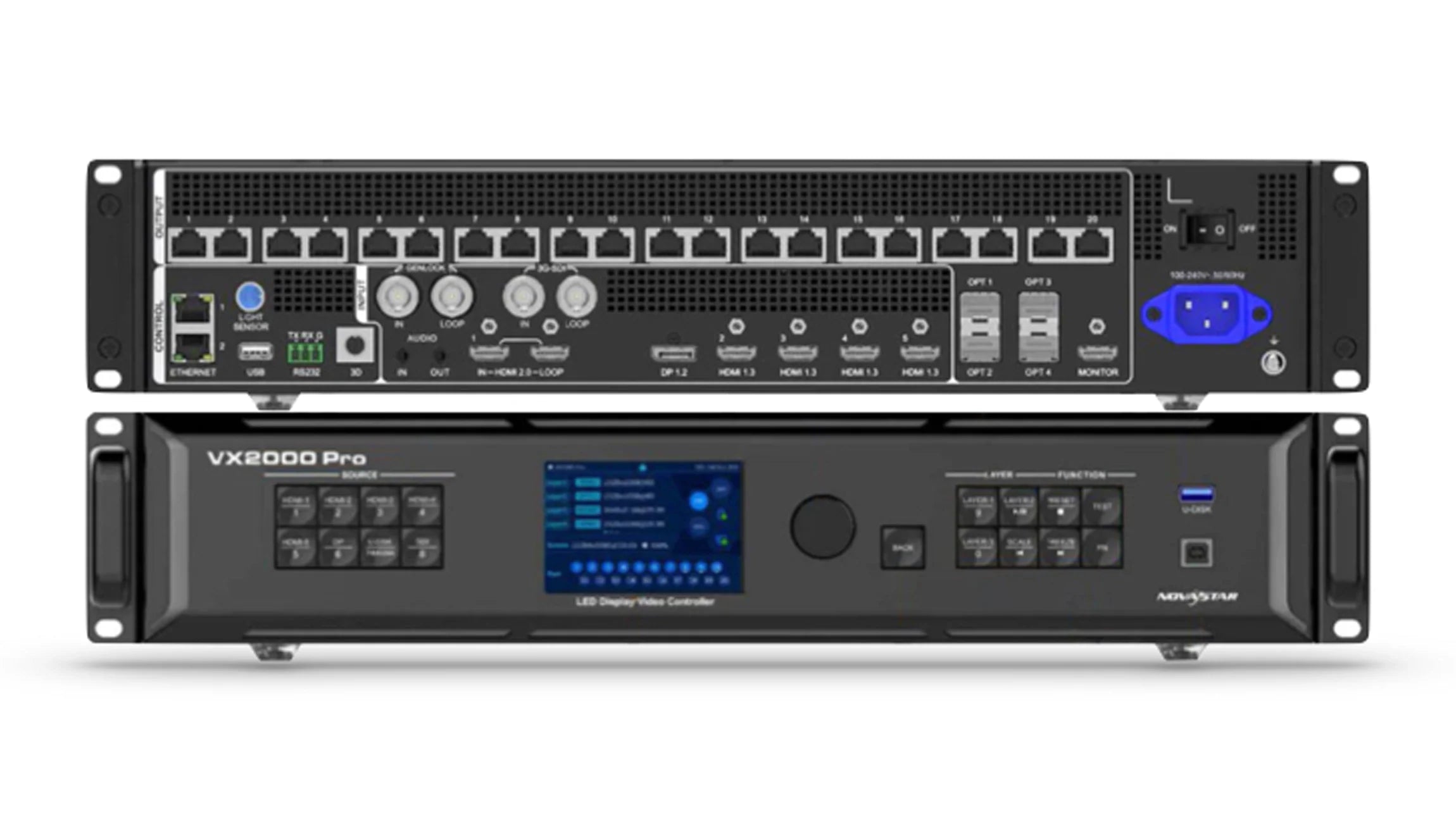

Multiple Connectors for Versatile Input and Output

• Comprehensive Range of Input Connectors:
  • 1x DP 1.2
  • 2x HDMI 2.0
  • 4x HDMI 1.3
  • 1x 12G-SDI (IN & LOOP)
  • 2x 10G optical fiber ports (OPT 1/2)
  • 1x USB 3.0
  • 1x Genlock (IN & LOOP)
• Output Connectors:
  • 20x Gigabit Ethernet ports
    • Supports up to 13 million pixels, with a maximum width of 16,384 pixels and a maximum height of 8,192 pixels.
  • 2x Fiber outputs
    • Each optical port supports the transmission of data from 10 Ethernet ports.
  • 1x HDMI 1.3
    • For monitoring display, with a fixed output resolution of 1920×1080@60Hz.
  • 1x 3D connector
    • Directly connect a third-party 3D emitter.

Advanced Features

• Self-Adaptive OPT 1/2:
  • These ports can function as either video input or sending card output, depending on the connected device.
• HDMI Mosaic:
  • Create an input source from up to 4 HDMI input sources.
• Fiber Input Mosaic:
  • Use the input source connected through OPT 1/2 either independently or combined for a mosaic input source.
• Audio Input and Output:
  • Audio input with HDMI and DP sources.
  • 3.5 mm independent audio input and output.
  • Adjustable output volume.
• Image Mosaic:
  • Connect up to 4x VX2000 Pro units through cascading.
• Free Layout:
  • Maximum resolution up to 13 million pixels, excluding blank spaces not loaded by receiving cards for optimal network port bandwidth utilization.
  • Contact technical support for the list of compatible receiving card models.
• Low Latency Output:
  • Enable low latency feature and ByPass mode to reduce delay to less than 1ms.
• Output Synchronization:
  • Sync output images of all cascaded units using an internal input source or external Genlock.
• EDID Management:
  • Import and export EDID files for flexible configuration.
• Easy Preset Saving and Loading:
  • Supports up to 256 user-defined presets.
  • Load a preset with a single button press.
  • Save, overwrite, and delete presets.
  • Preview the layer layout saved in presets.
  • Synchronize presets to Unico.
• Multiple Layer Display:
  • Supports 12x SL layer resources.
  • Create layers in three specifications (4K, DL, SL) using 4, 2, or 1 layer resources respectively.
  • Adjustable layer size, position, priority, and aspect ratio.
• OSD Settings:
  • Supports one OSD display.
  • Import and save up to 6 OSDs.
  • Supported OSD types: text, image, digital clock, weather, and table.
• BKG Settings:
  • Supports pure color or image backgrounds.
• 3D Function:
  • Connect EMT200 3D emitter to the Ethernet port and use compatible 3D glasses.
  • Connect third-party 3D emitter to the 3D connector for a 3D visual experience.
  • Note: Enabling 3D function will halve the device output capacity.
• Personalized Image Scaling:
  • Supports full screen, pixel to pixel, and custom scaling modes.
• Powerful Video Processing:
  • Utilizes SuperView III image quality processing technologies for seamless output scaling.
  • One-click full screen display.
