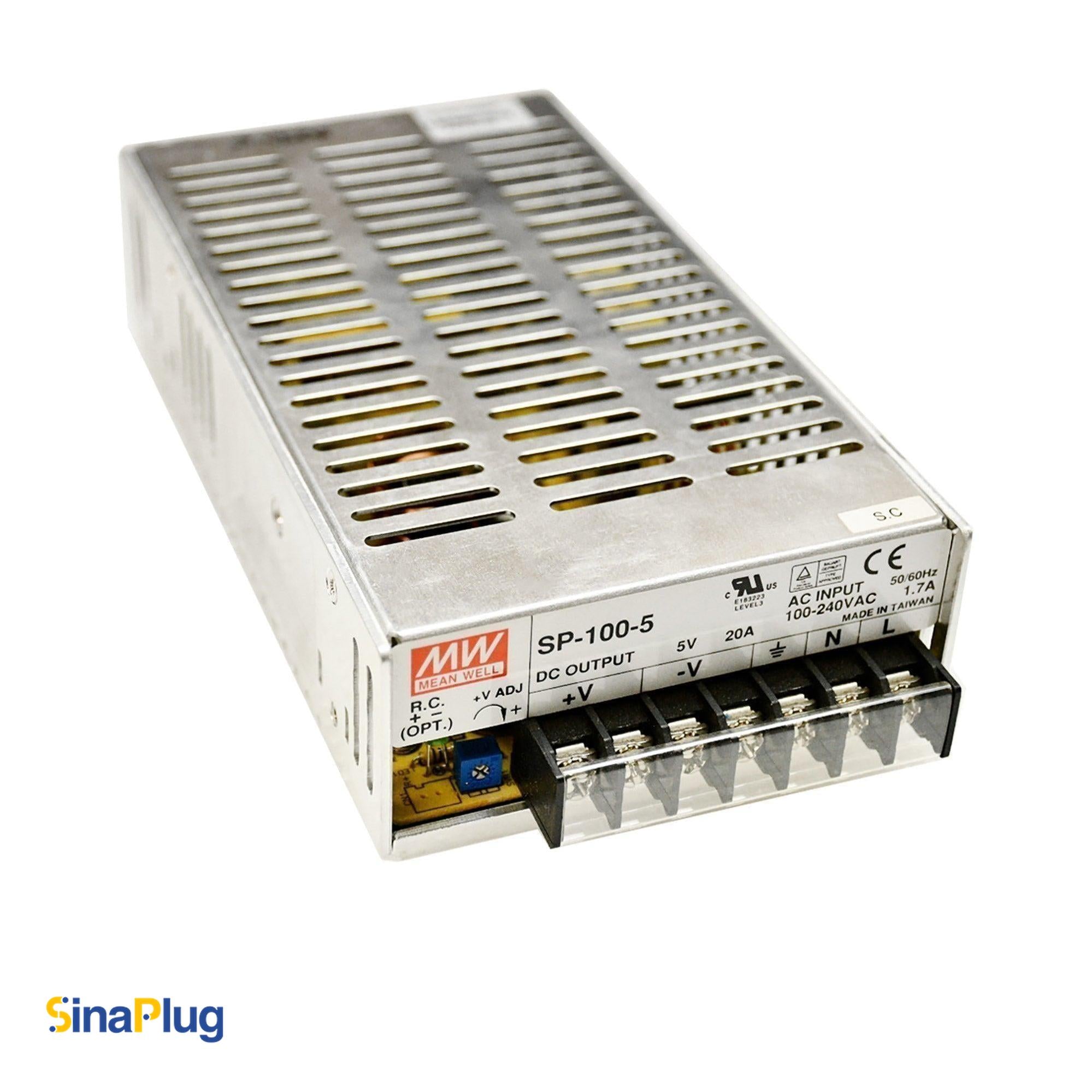

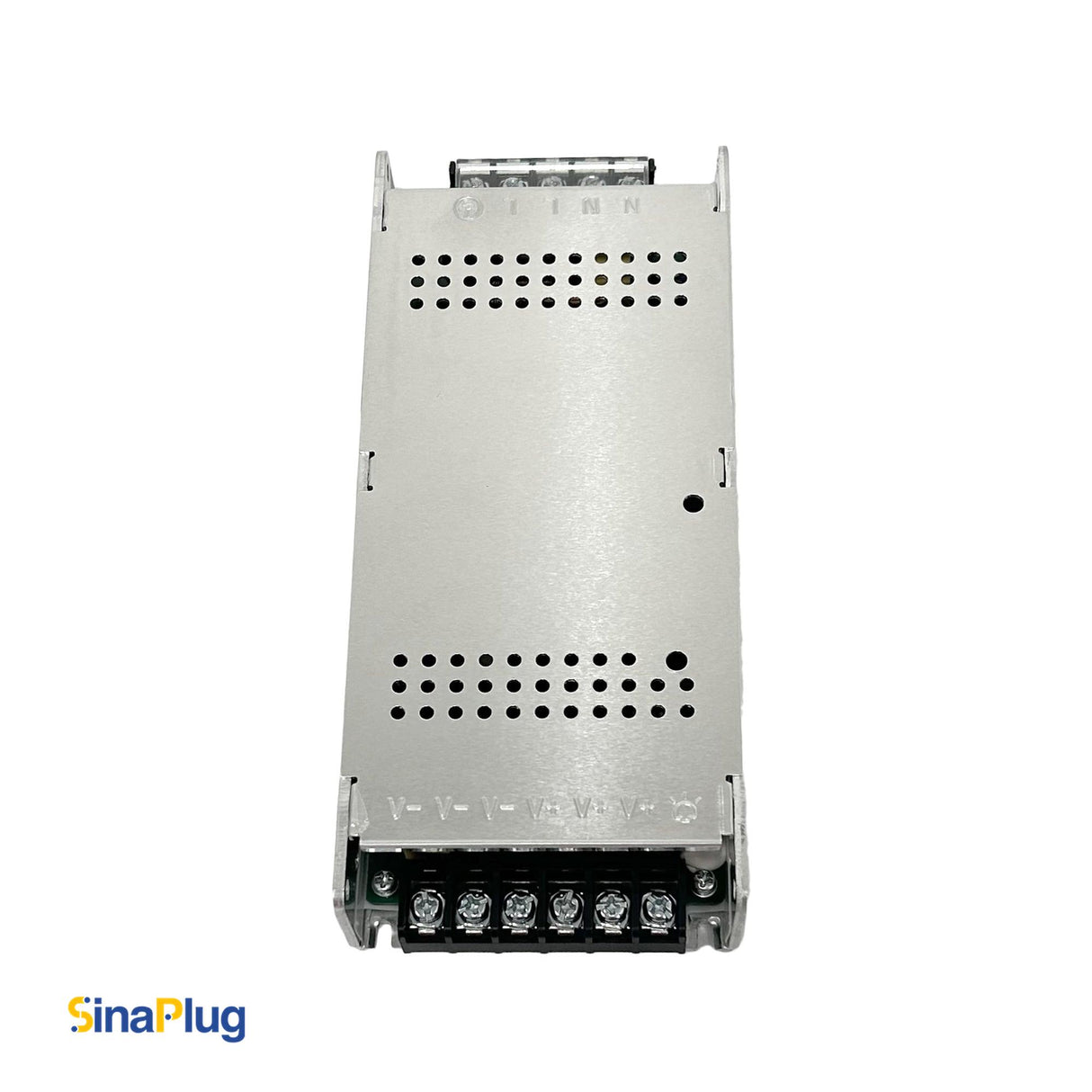

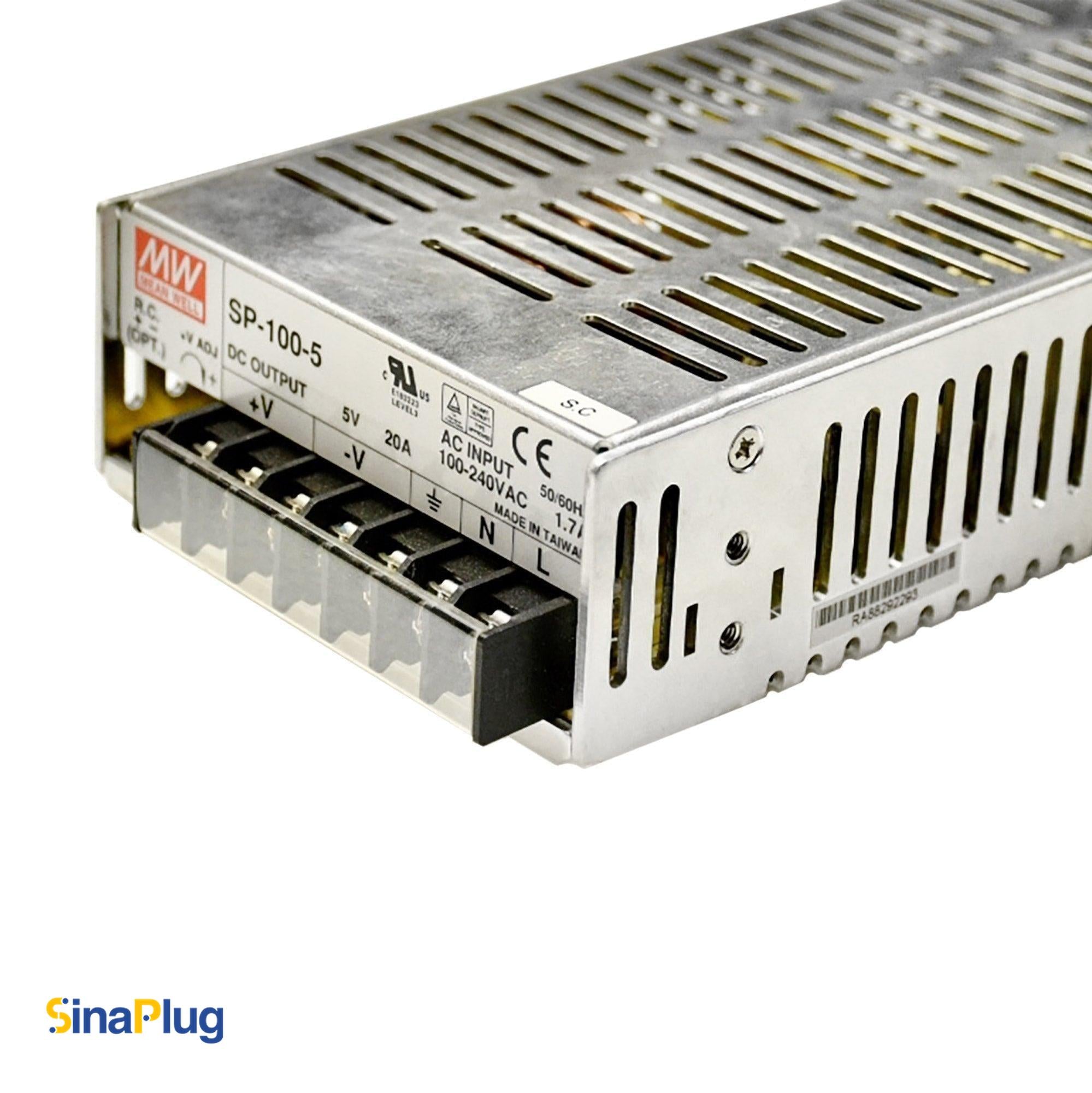

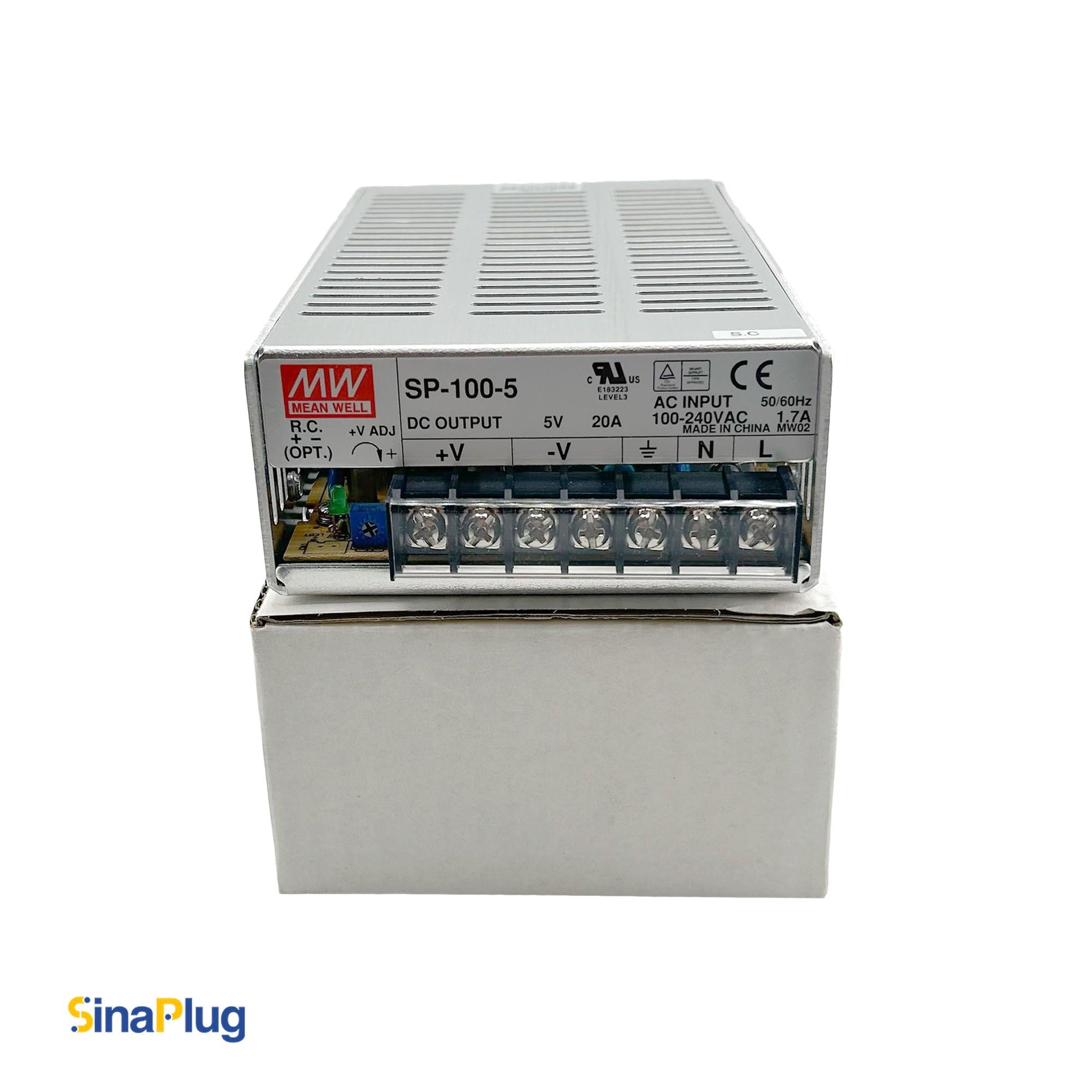

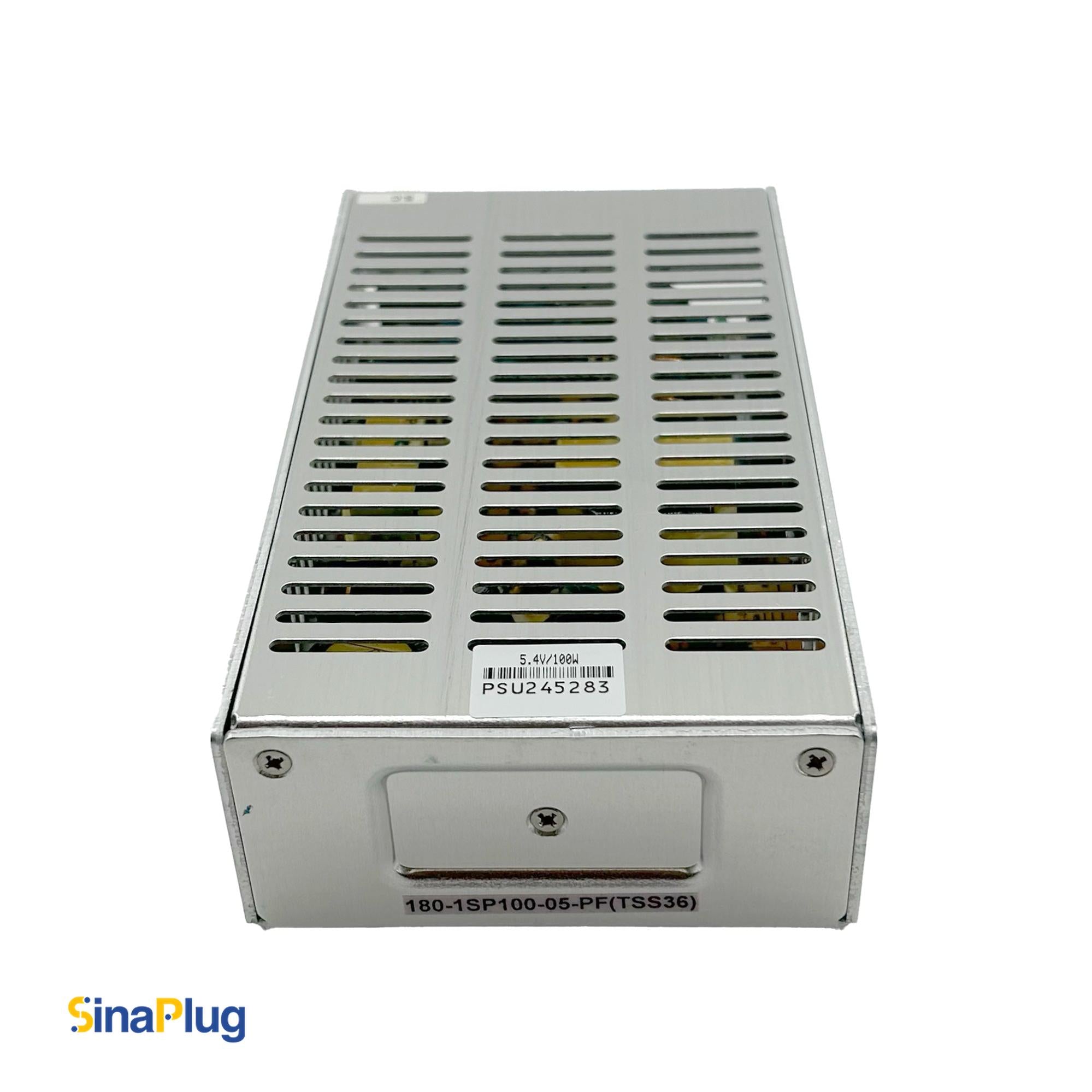

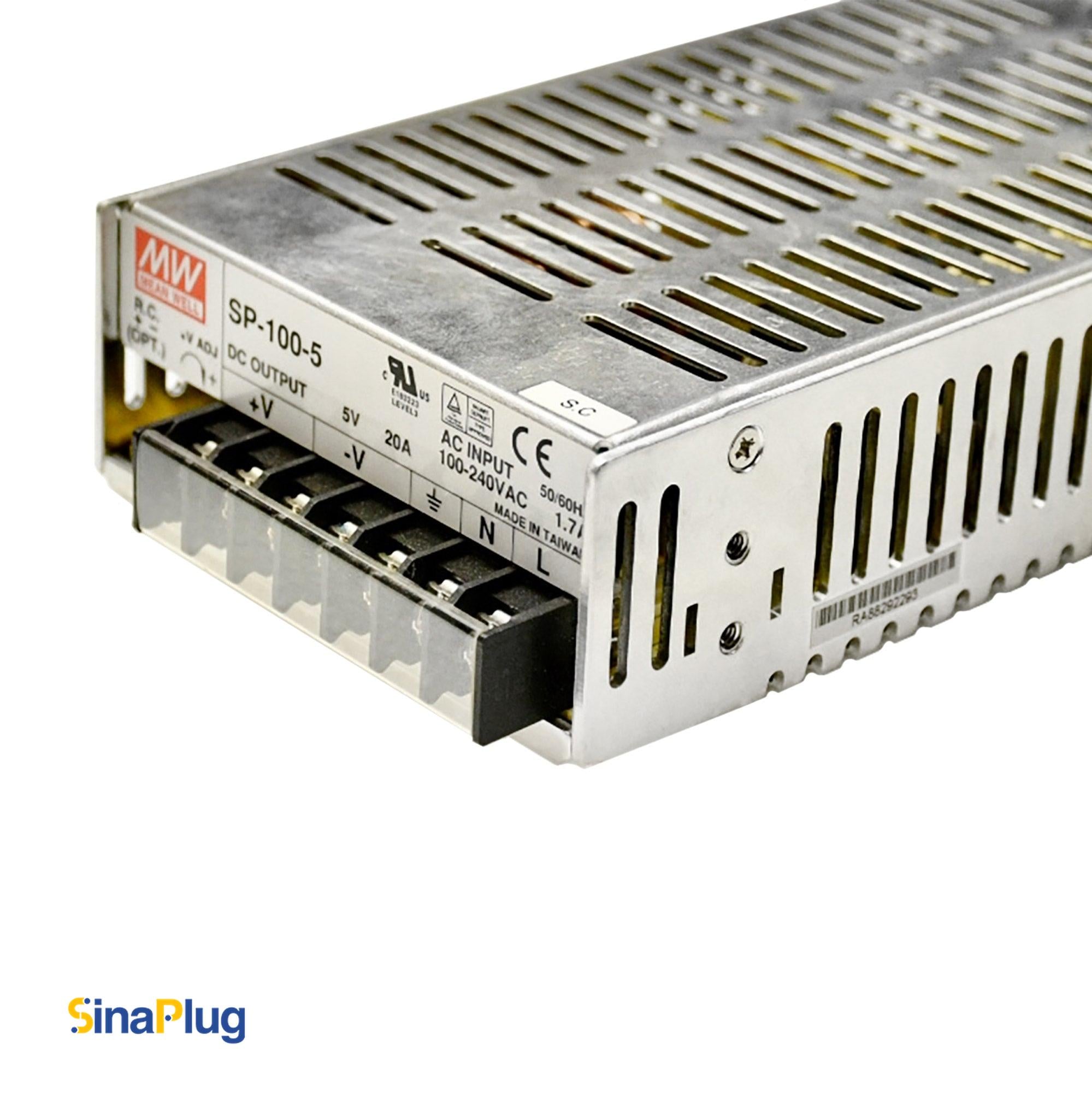

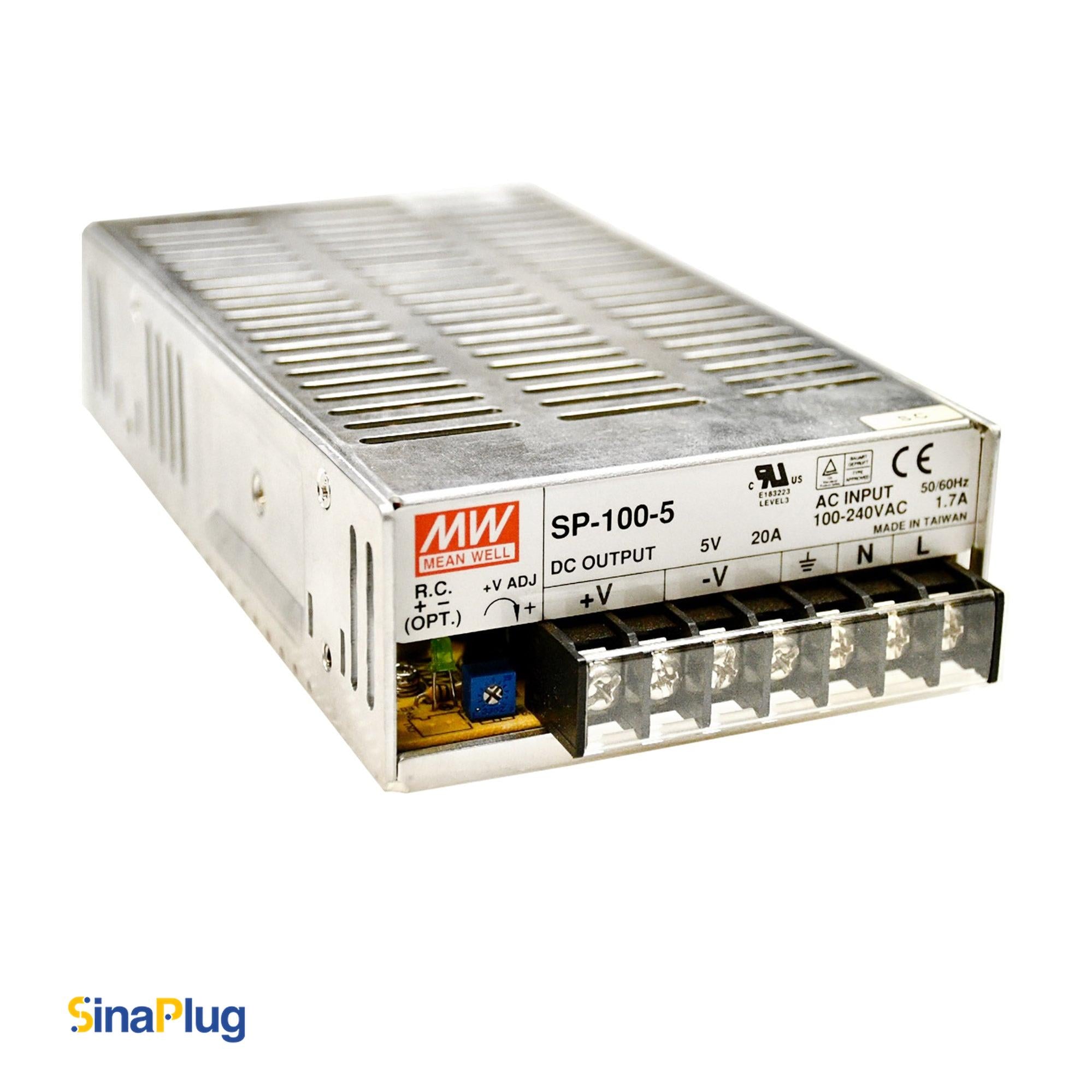

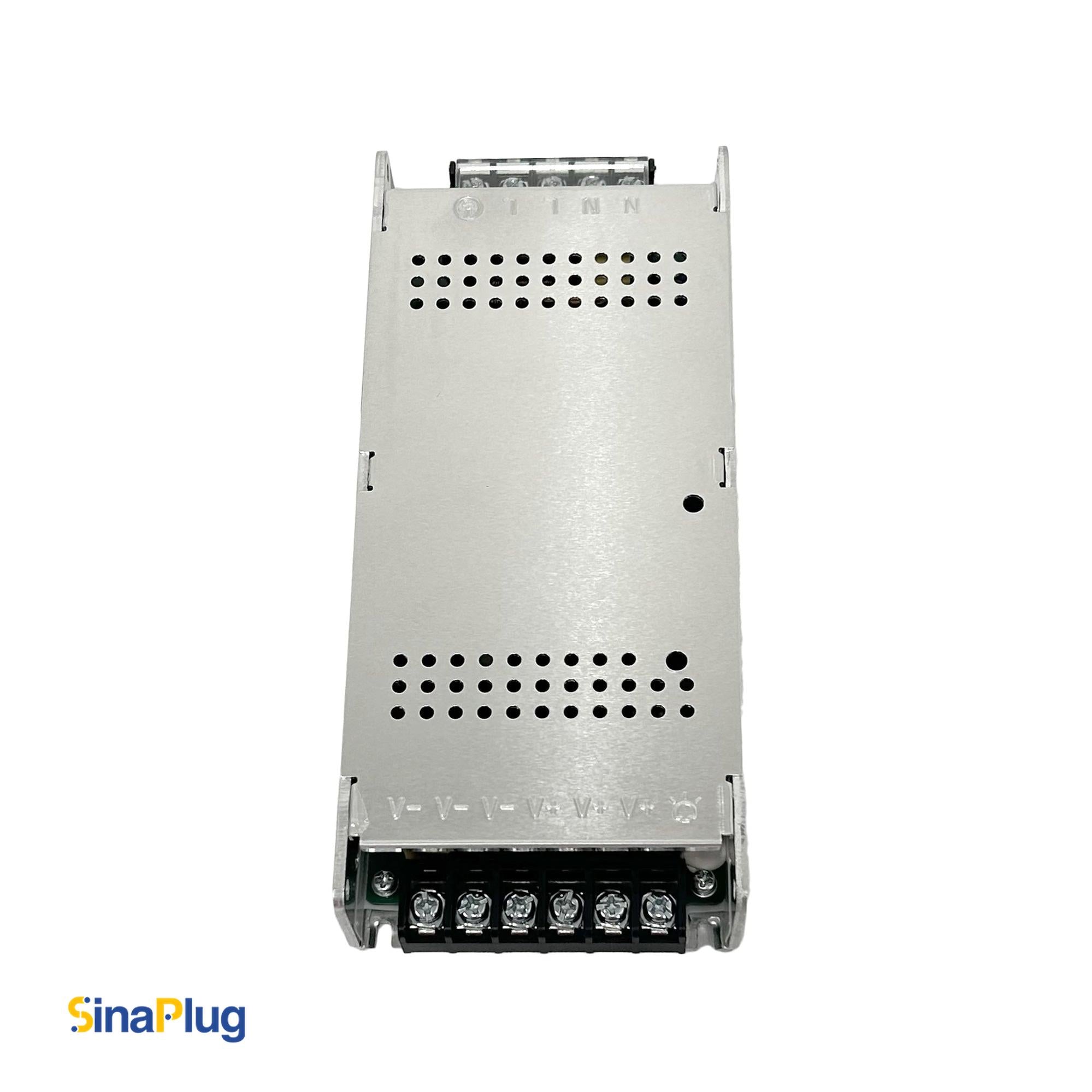

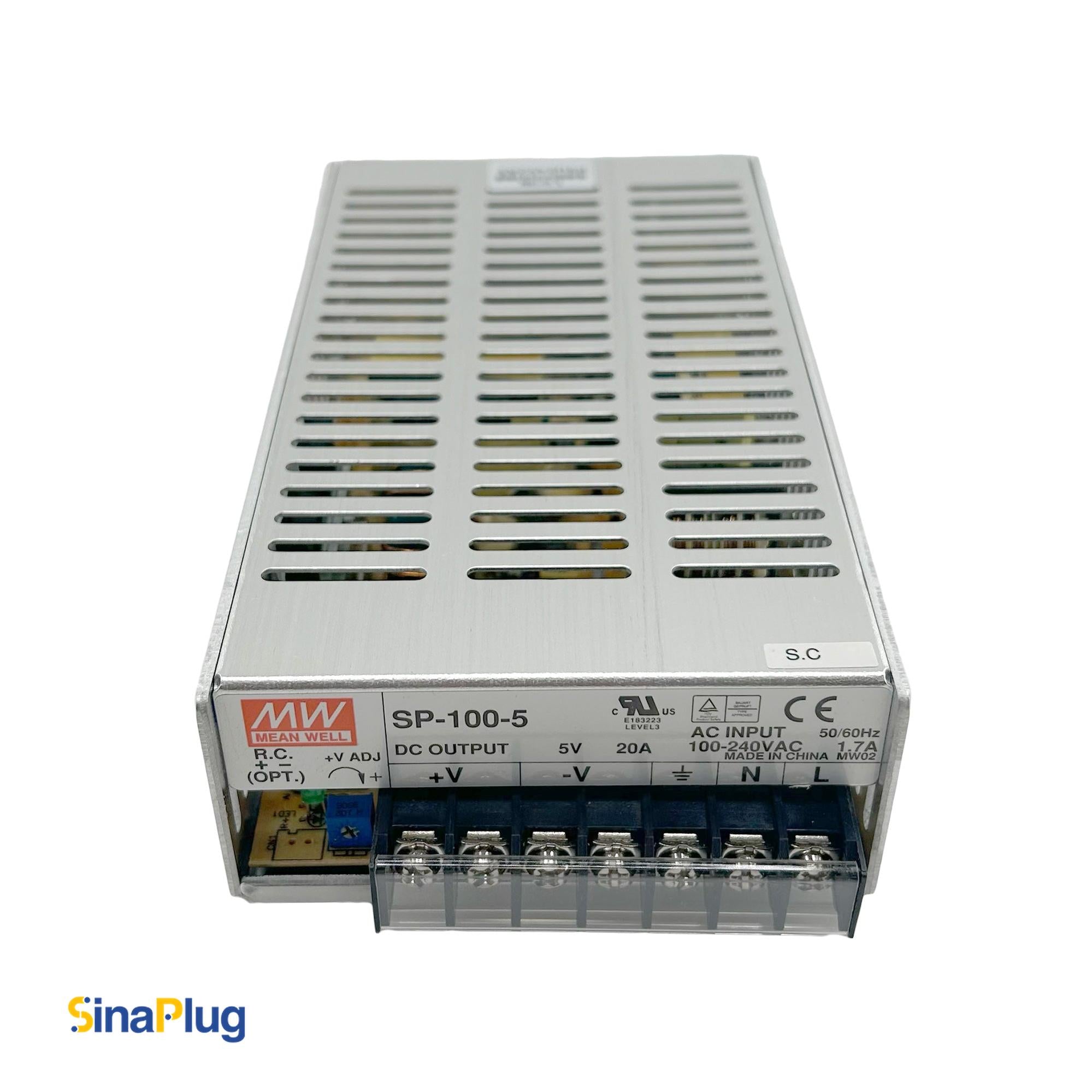

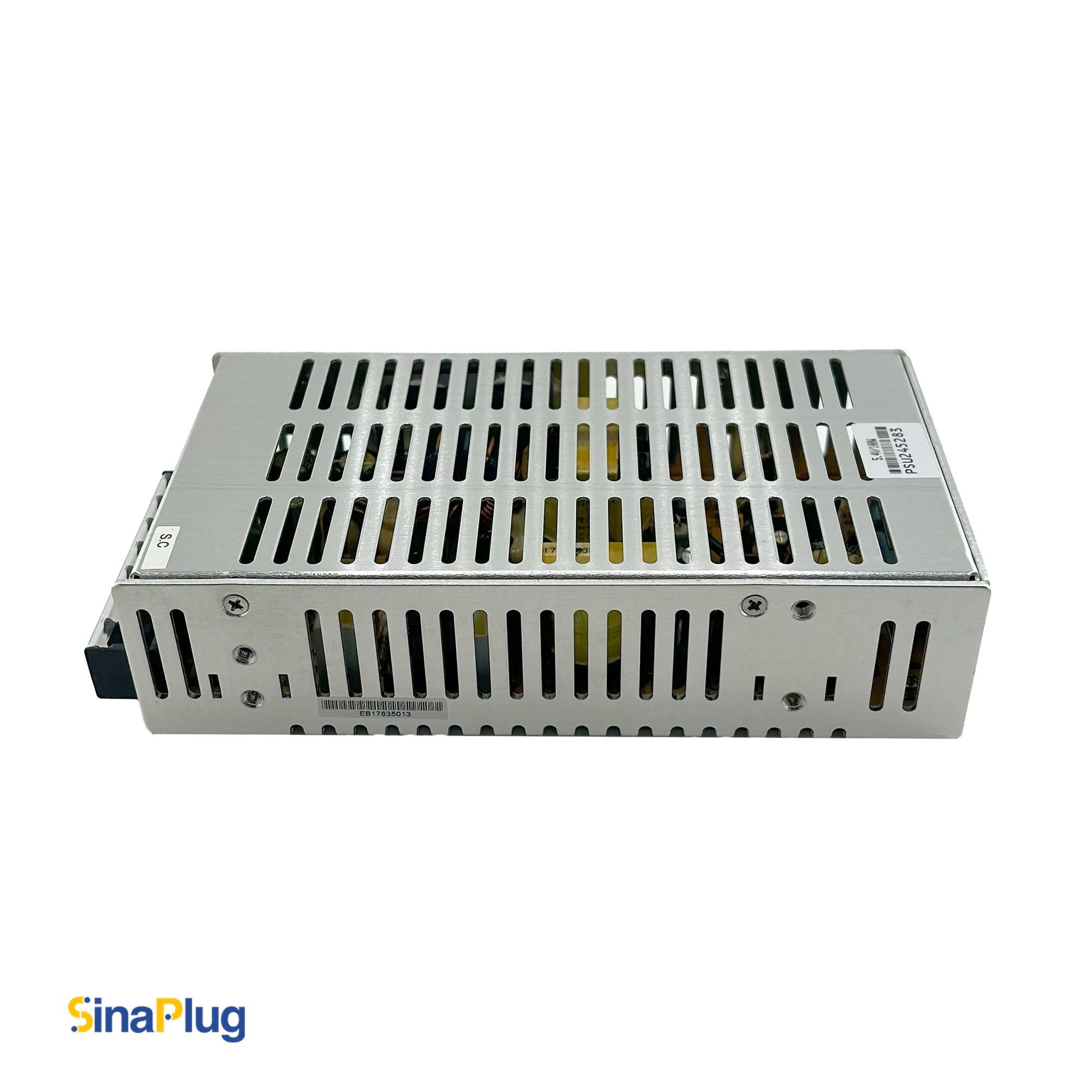

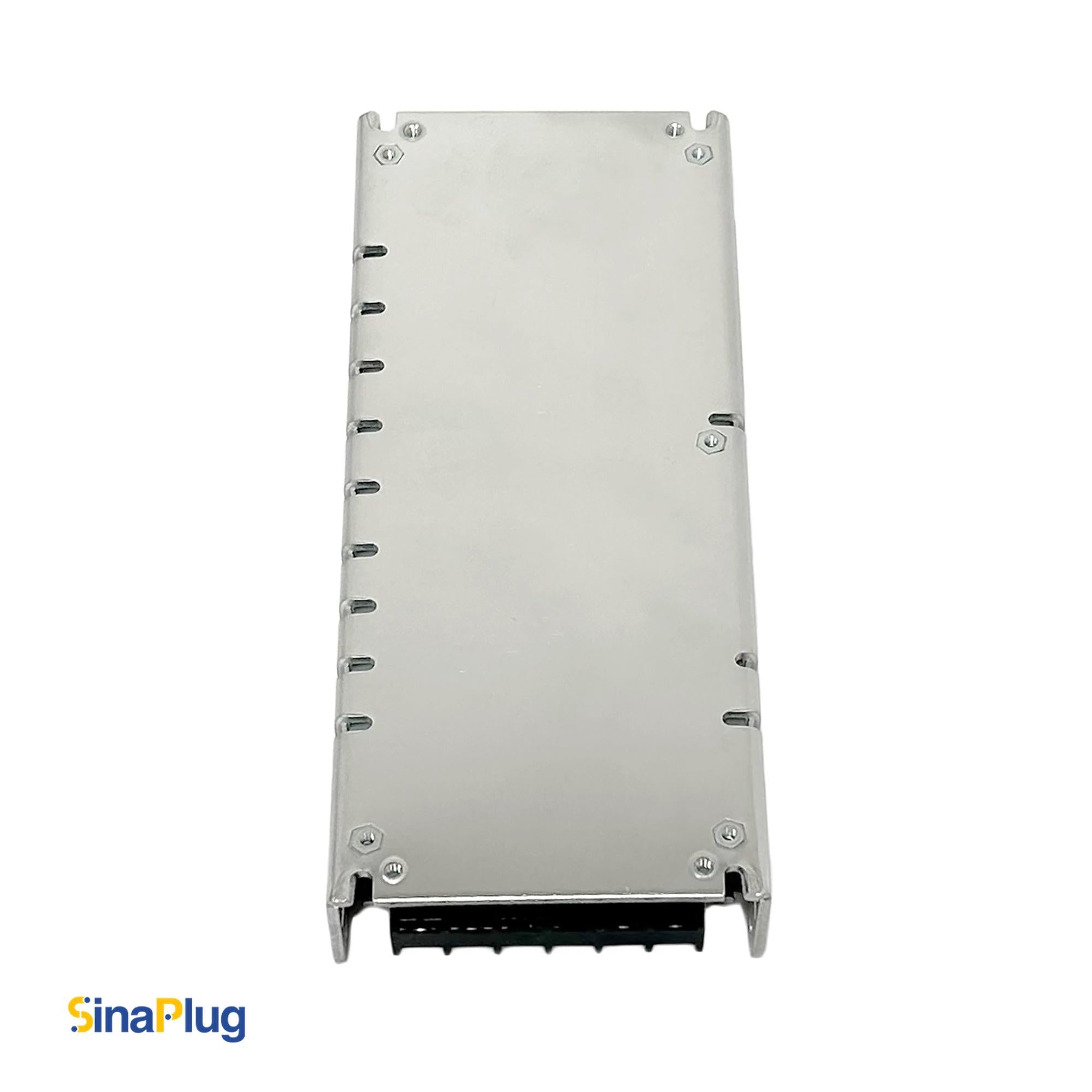

MEAN WELL SP-100-5 Switching Power Supply (Output 5Volts, 20Amps)

The MEAN WELL SP-100-5 is a leading-manufactured, enclosed power supply that can be utilized in A/V and LED equipment, industrial applications, and electronics instruments demanding a stable dependable performance, thanks to its great ±1% load regulation.

The SP-100-5 converts full-range 100-240 VAC inputs, to output channels at 5V with an adjustable 4.75-5.5V range, delivering up to 20A. It provides a rated 100W output power with 79% efficiency. This small-sized SP-100 5 ensures sustained operation by natural convection for cooling in various ambient temperatures ranging from -10°C to +55°C.

Meanwell AC/DC power supplies are commonly used due to their great reliability and consistent performance. Their long lifespan, compact and space-saving design, and 2G anti-vibration capability (ranging from 10-500Hz) throughout all three axes provide constant performance in a variety of situations, all at a low price.

The SP-100 series is certified by UL60950-1, EN55032, EN61000-3-2, EN61000-4-2, and EN55024 standards, in addition to its complete protections like over-voltage, and short circuit protections, and overload (with automatic recovery) protection which promote it to meet international energy standards.
