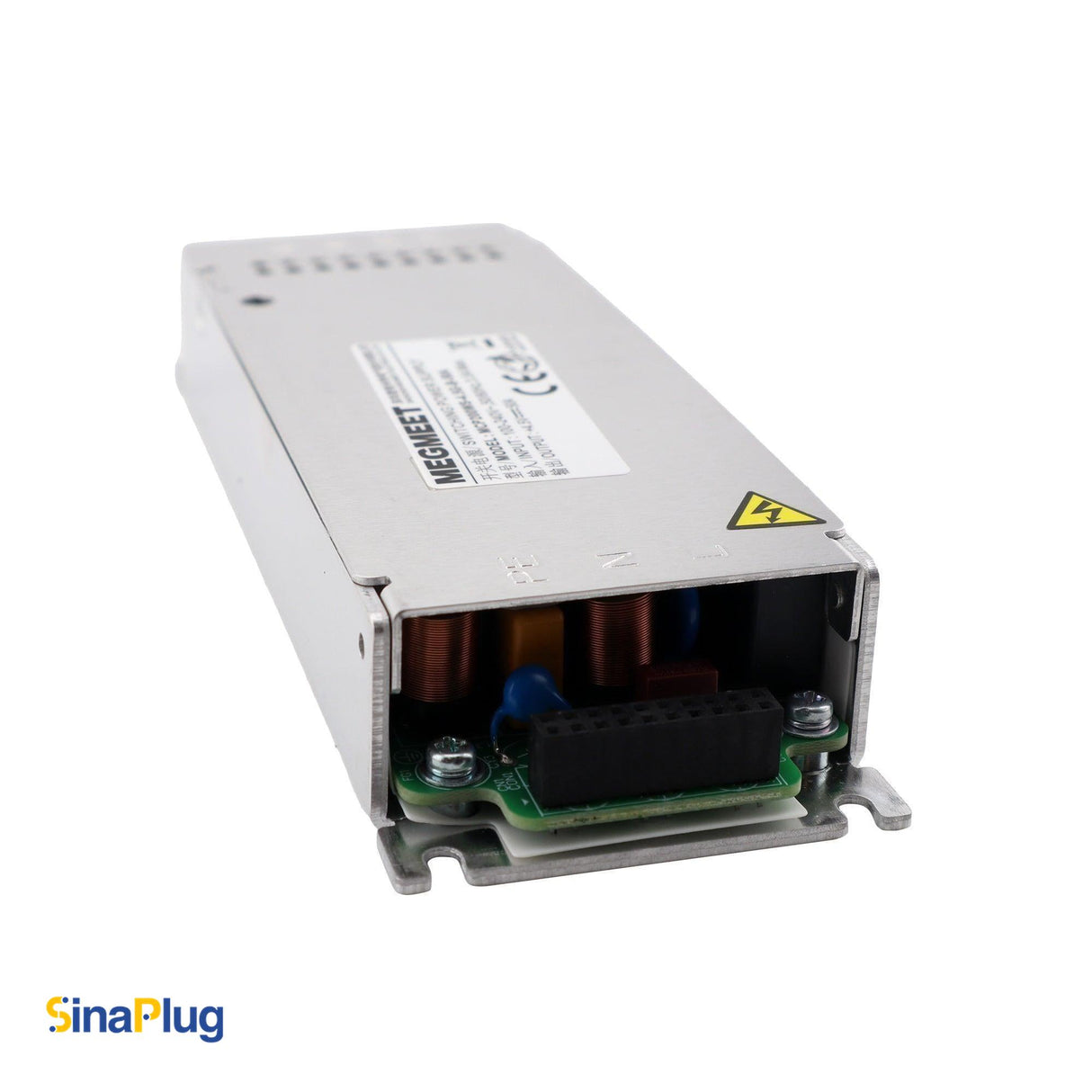

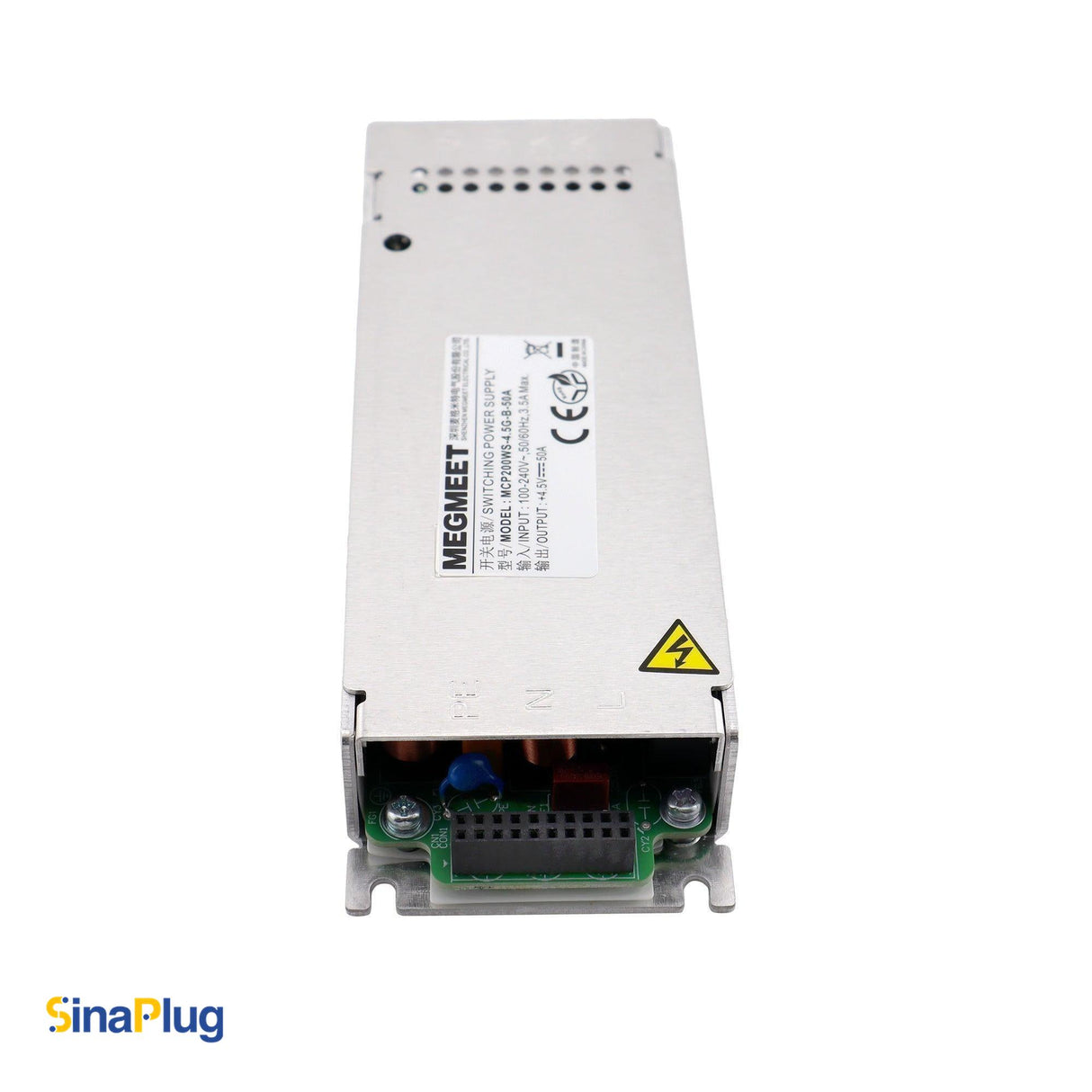

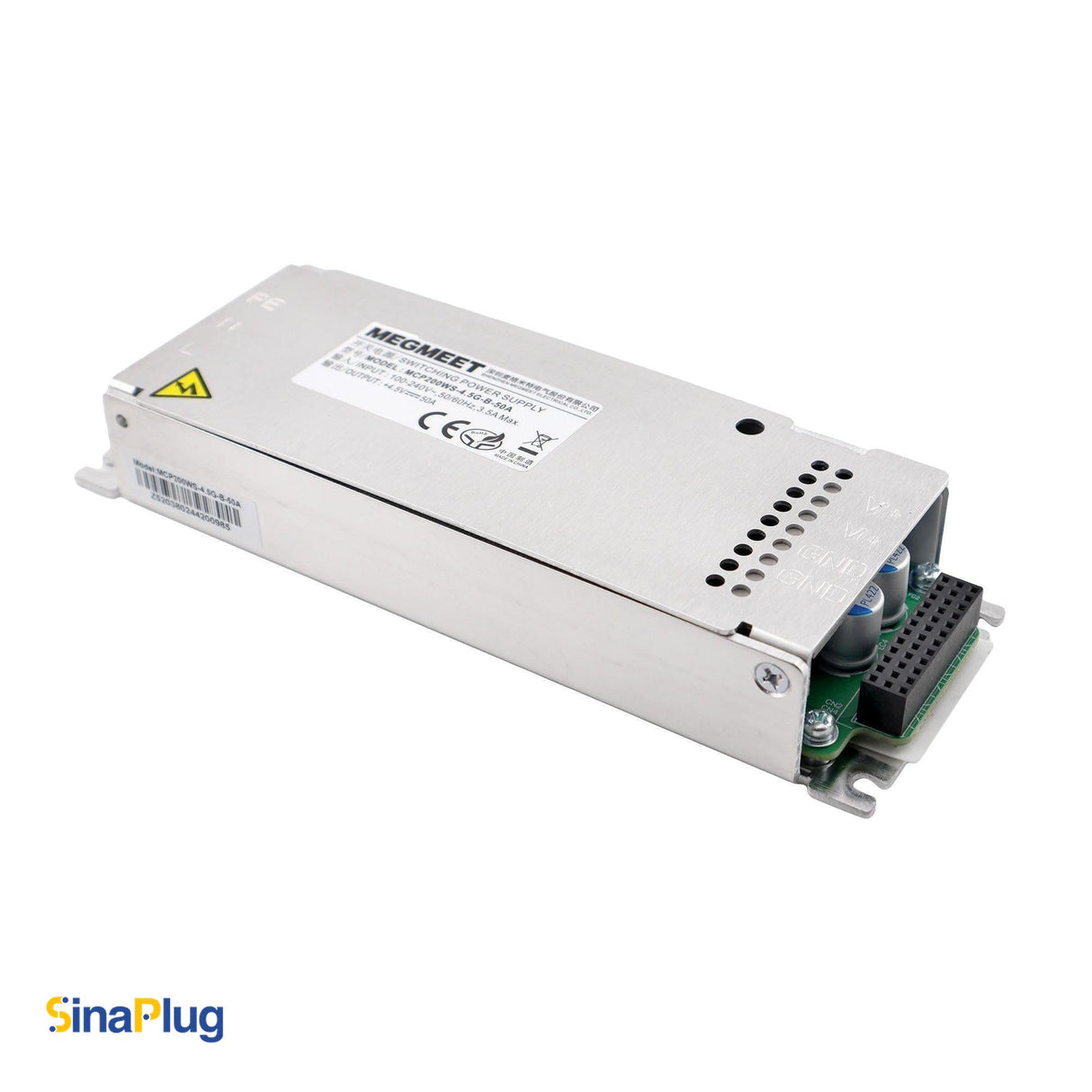

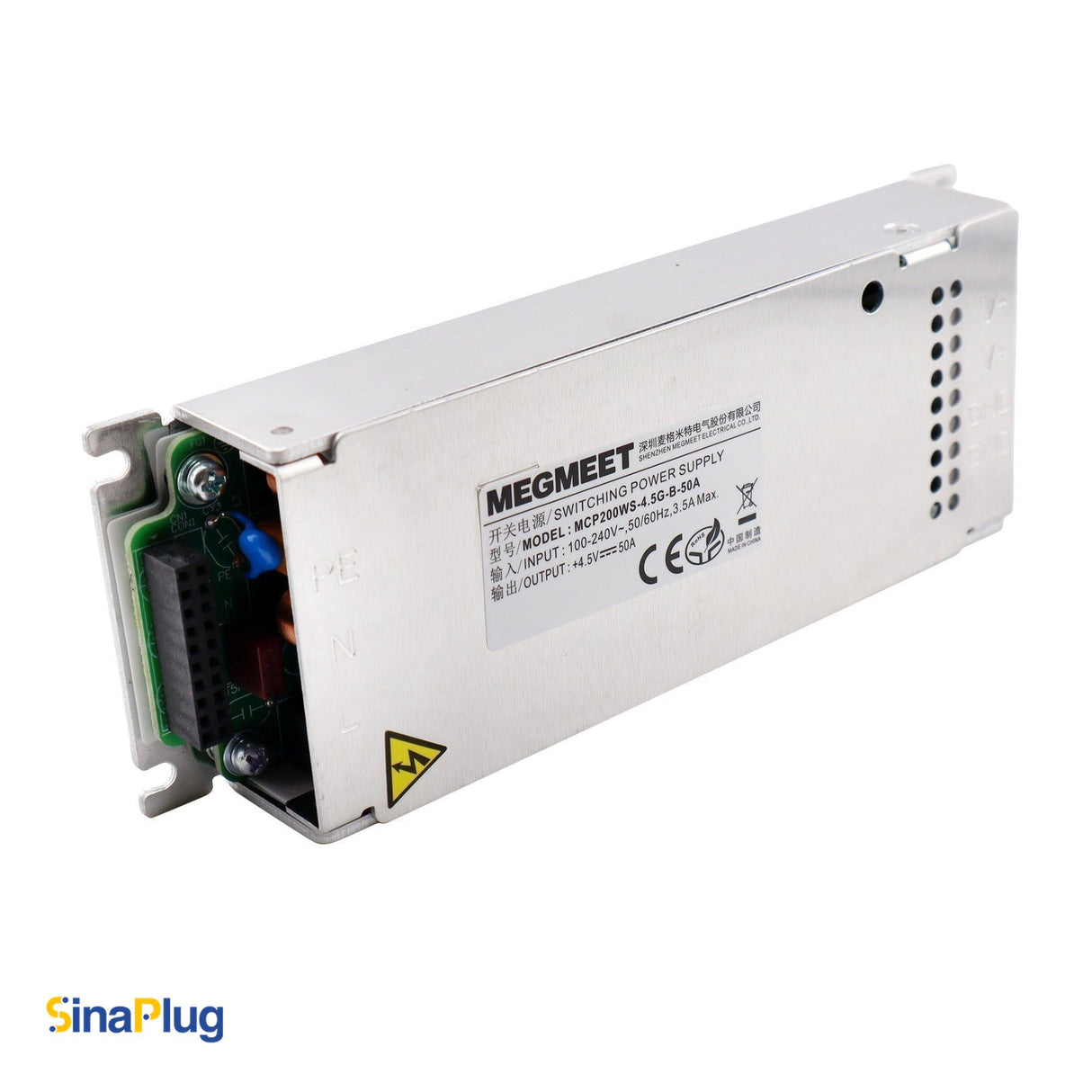

MEGMEET MCP200WS-4.5G-B-50A Switching Power Supply (4.5V, 40A)

The MEGMEET MCP200WS-4.5G-B-50A in the family of MEGMEET MCP200 series (similar but updated and more powerful version of MCP200WS-4.5G-B or MCP200WS-4.5)is a renowned, enclosed power supply perfect for industrial applications, Audio/Visual and LED equipment that requires consistent and dependable performance.

This series includes major features like an EMC circuit, a PFC circuit, and 2G anti-vibration. It is certified by UL60950, GB4943, EN55032, EC61000-4-2/4/5/11, and GB17626.2/4/5/11, in addition to its advanced protections like overload, over-voltage, and short circuit (automatic recovery), permits it to comply with international energy requirements.

The small, AC/DC MCP200WS-4.5G-B-50A converts a wide range of 100-240 VAC inputs into two steady output channels that generate up to 50A at 4.5V. It offers a 225W rated power with a 0.95 power factor and PFC feature, which decreases the strain on the electrical grid and increases efficiency by up to 88% for optimal performance.

The small-sized MCP200WS-4.5G-B-50A ensures long-term operation in demanding situations using natural air convection (recommended to be mounted on a heatsink), across a wide range of ambient temperatures from -40°C to +70°C with no whistling noise.
