AzarPixel  |  SKU: PCB-AZP-SAC3FCAFCB-0

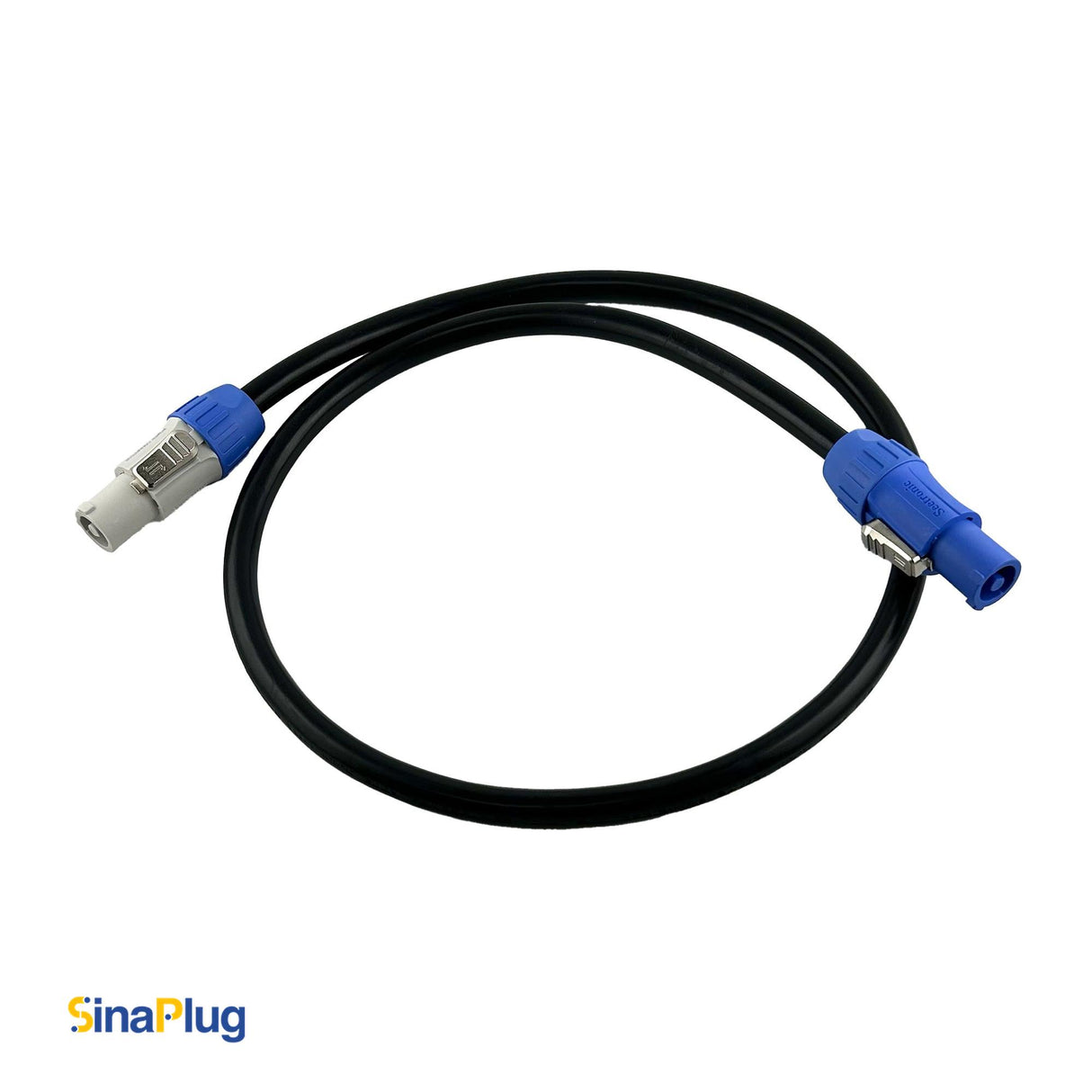

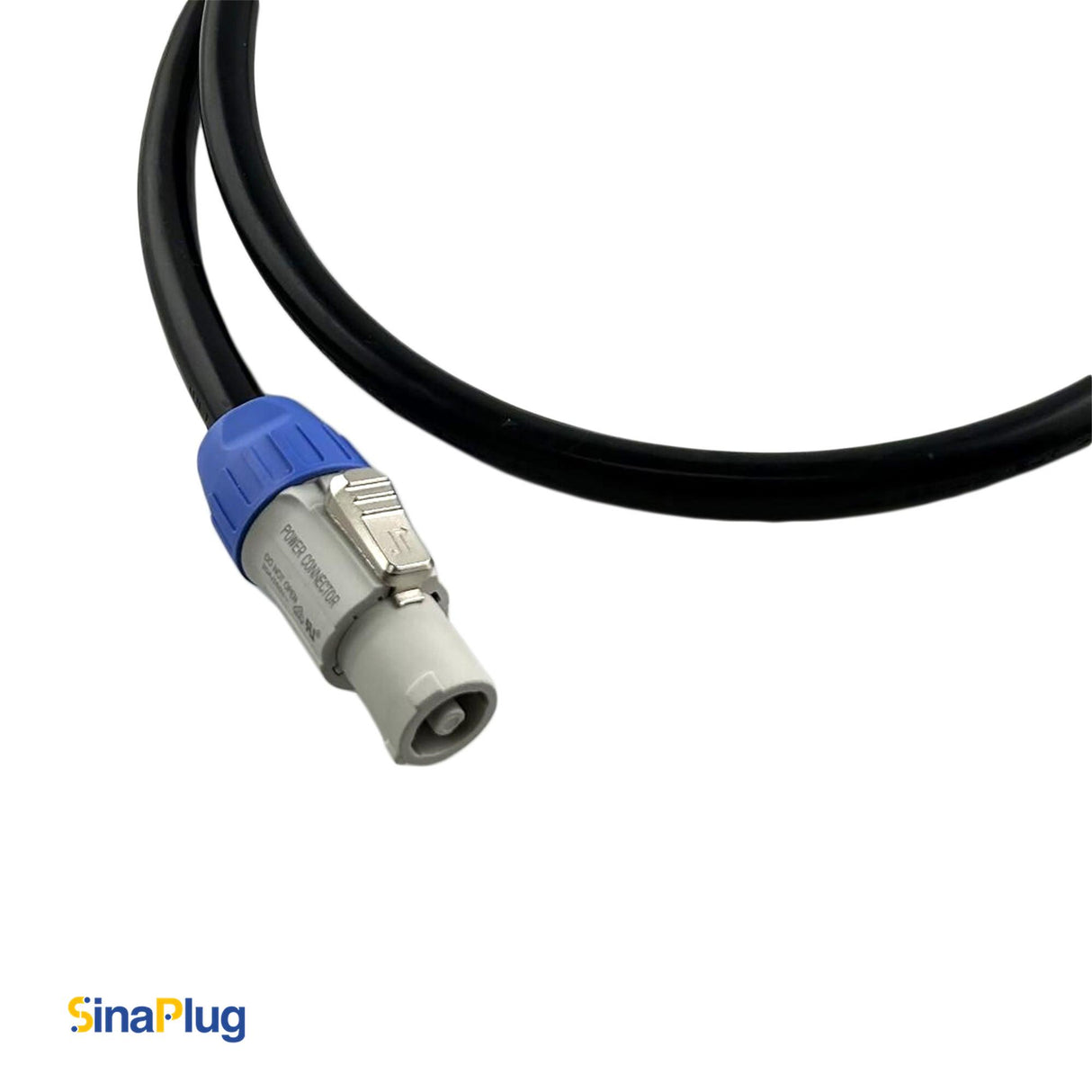

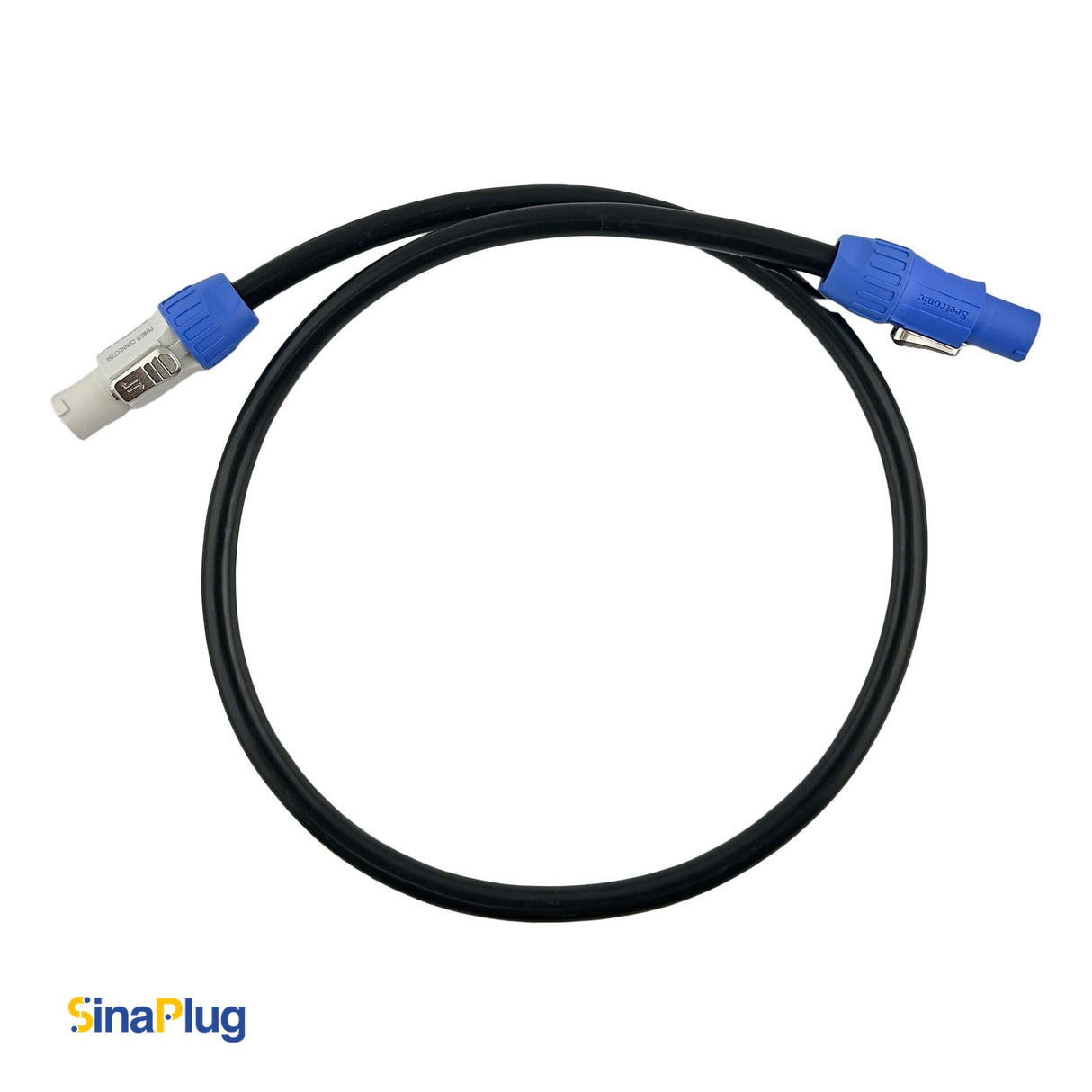

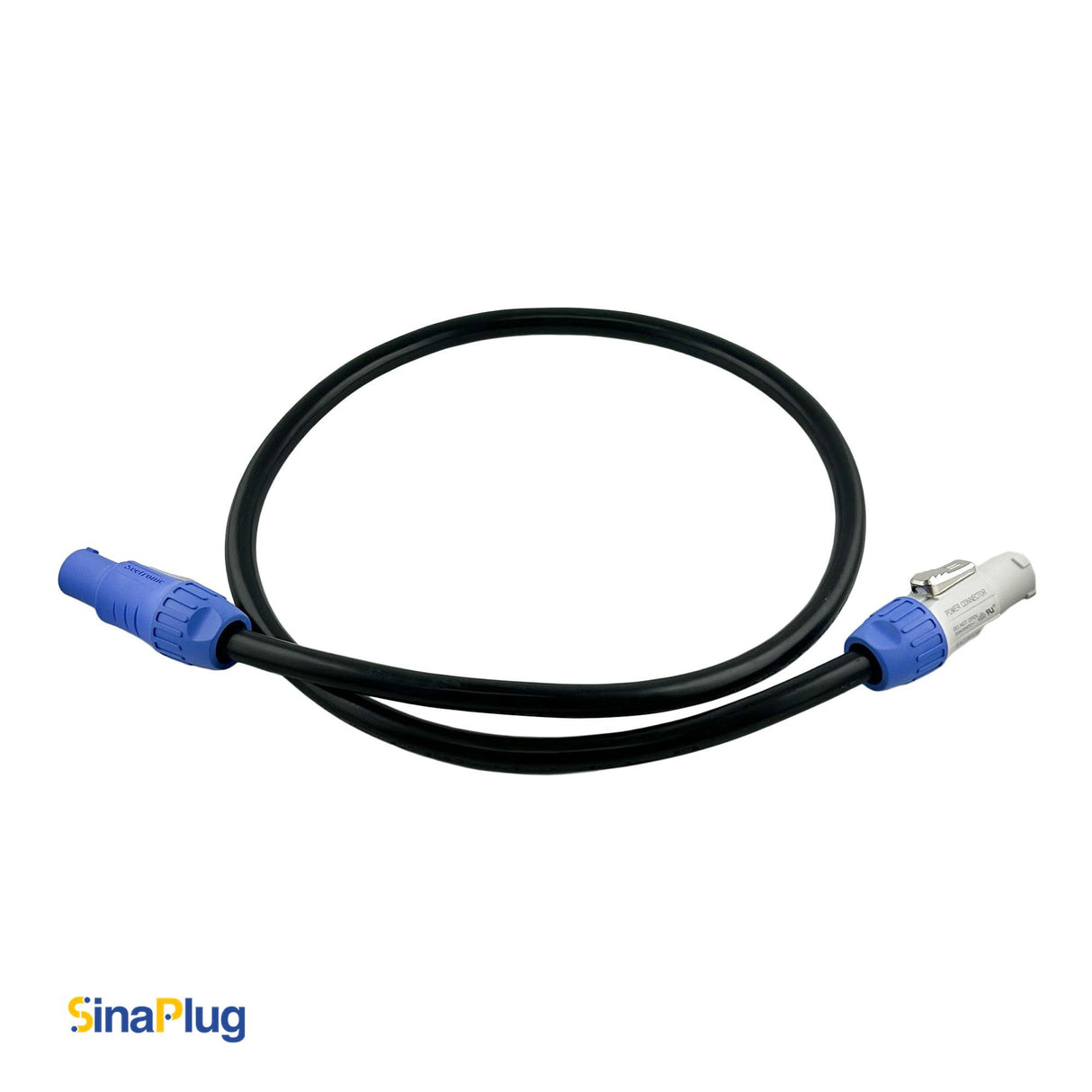

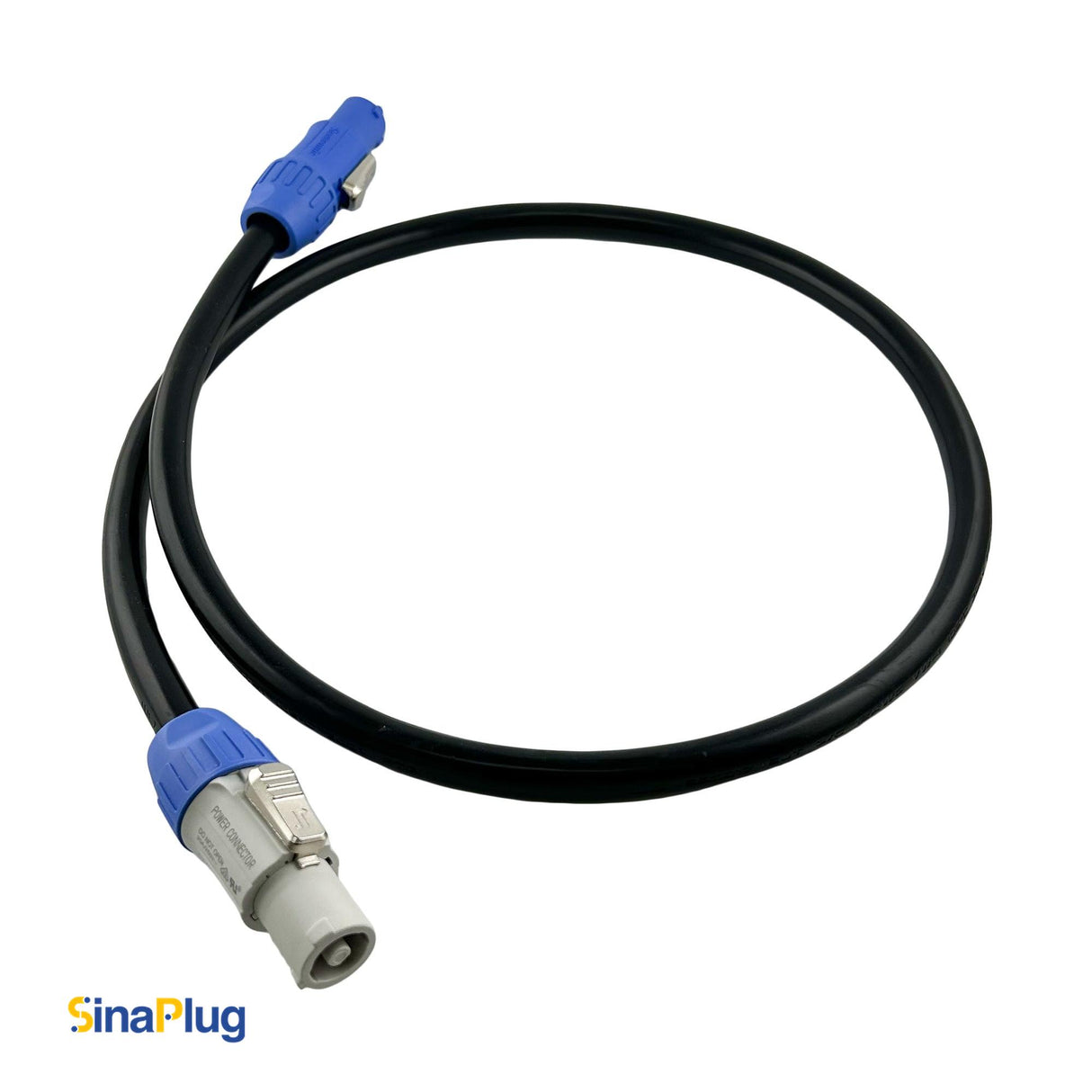

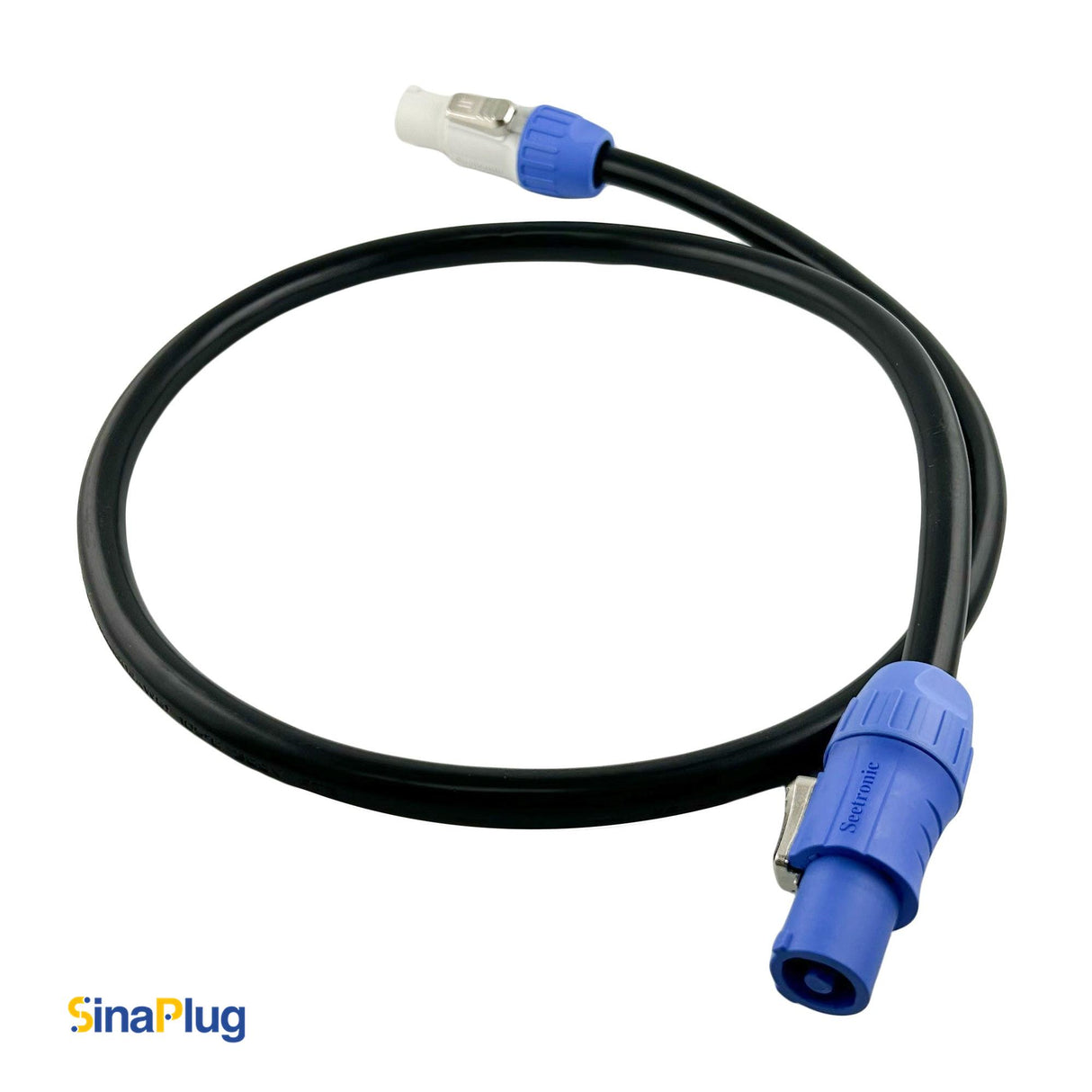

3 feet, Power Cable Seetronic SAC3FCA Connector to Seetronic SAC3FCB Connector

$12.60
US Stock Same-day shipping or store pickup
Easy Returns 60-day no-questions-asked return
Tech Support Free online technical assistance

AzarPixel offers a heavy‑duty 3‑conductor power jumper cable with a Seetronic SAC3FCA power‑in connector on one end and a Seetronic SAC3FCB power‑out connector on the other. This cable assembly is designed for safe and reliable indoor power distribution between LED cabinets, LED controllers, lighting fixtures, and other professional A/V equipment where secure locking and high current capacity are required.

Both SAC3FCA and SAC3FCB are lockable three‑core connectors rated up to 20A at 250VAC with PA housings and silver‑plated copper‑alloy contacts, offering low contact resistance, high dielectric strength, and excellent insulation performance for over 1000 mating cycles.

Complying with UL1977, IEC61984, IEC60320‑1, and GB/T 34989, and offering a wide operating temperature range from −30°C to +80°C, this jumper cable provides dependable Line, Neutral, and Protective Earth connections in demanding stage, studio, and commercial installations.

Both connectors use latch mechanisms to help avoid accidents from disconnection during operation or handling. The 3‑foot length is ideal for neat cabinet‑to‑cabinet or rack‑to‑device power links, making it easier to reduce clutter in racks, trusses, and support structures.

Key Features of Power Cable Seetronic SAC3FCA Connector to Seetronic SAC3FCB Connector

Electrical Specifications

  • Cable Type: 12AWG (SJT 3×3.31mm², 300V)
  • Length: 3ft (1m)
  • Number of Conductors: 3 (Line, Neutral, Ground)
  • Max Current Rating: 20A
  • Max Voltage Rating: 250VAC

SAC3FCA Connector Parameters (Female, cable end)

  • Number of Contacts: 3 (Line, Neutral, Ground)
  • Max Current Rating: 20A
  • Max Voltage Rating: 250VAC
  • Max Contact Resistance: 5 mΩ
  • Supported Cable Size: Up to 2.5 mm²
  • Terminal Type: Screw terminals
  • Operating Temperature: -30°C to +80°C
  • Flame Retardant Rating: UL94-V0
  • Standards: UL1977, IEC61984, IEC60320‑1, GB/T 34989; UL E359036, VDE 40044166, TUV N8A1083360006, CQC CQC23003410678
  • General Specifications: Lockable three‑core power‑in male connector compatible with SAC3MCA plugs and SAC3MPA/SAC3MPA‑M sockets

SAC3FCB Connector Parameters (Male, cable end)

  • Number of Contacts: 3 (Line, Neutral, Ground)
  • Max Current Rating: 20A
  • Max Voltage Rating: 250VAC
  • Max Contact Resistance: 5 mΩ
  • Supported Cable Size: Up to 2.5 mm²
  • Terminal Type: Screw terminals
  • Operating Temperature: -30°C to +80°C
  • Flame Retardant Rating: UL94-V0
  • Standards: UL1977, IEC61984, IEC60320‑1, GB/T 34989; UL E359036, VDE 40044166, TUV N8A1083360006, CQC CQC23003410678
  • General Specifications: Lockable three‑core power‑out male connector compatible with SAC3MCB plugs and SAC3MPB/SAC3MPB‑M sockets
