Seetronic SE8FDYH-62-B-NS RJ45 Chassis-Mount Connector With Waterproof Cover (Anti-Leakage Version of SE8FDY-02-DC)

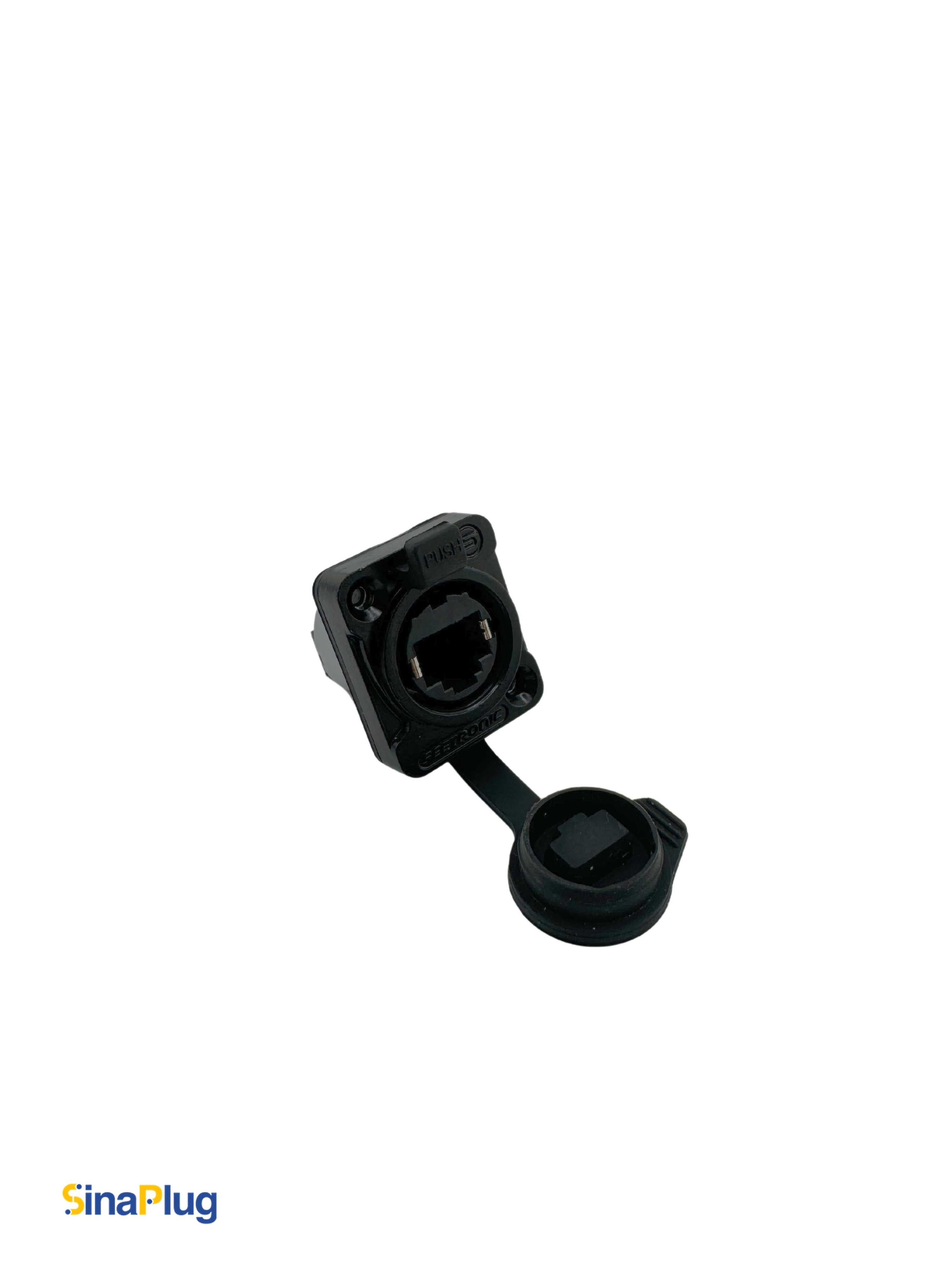

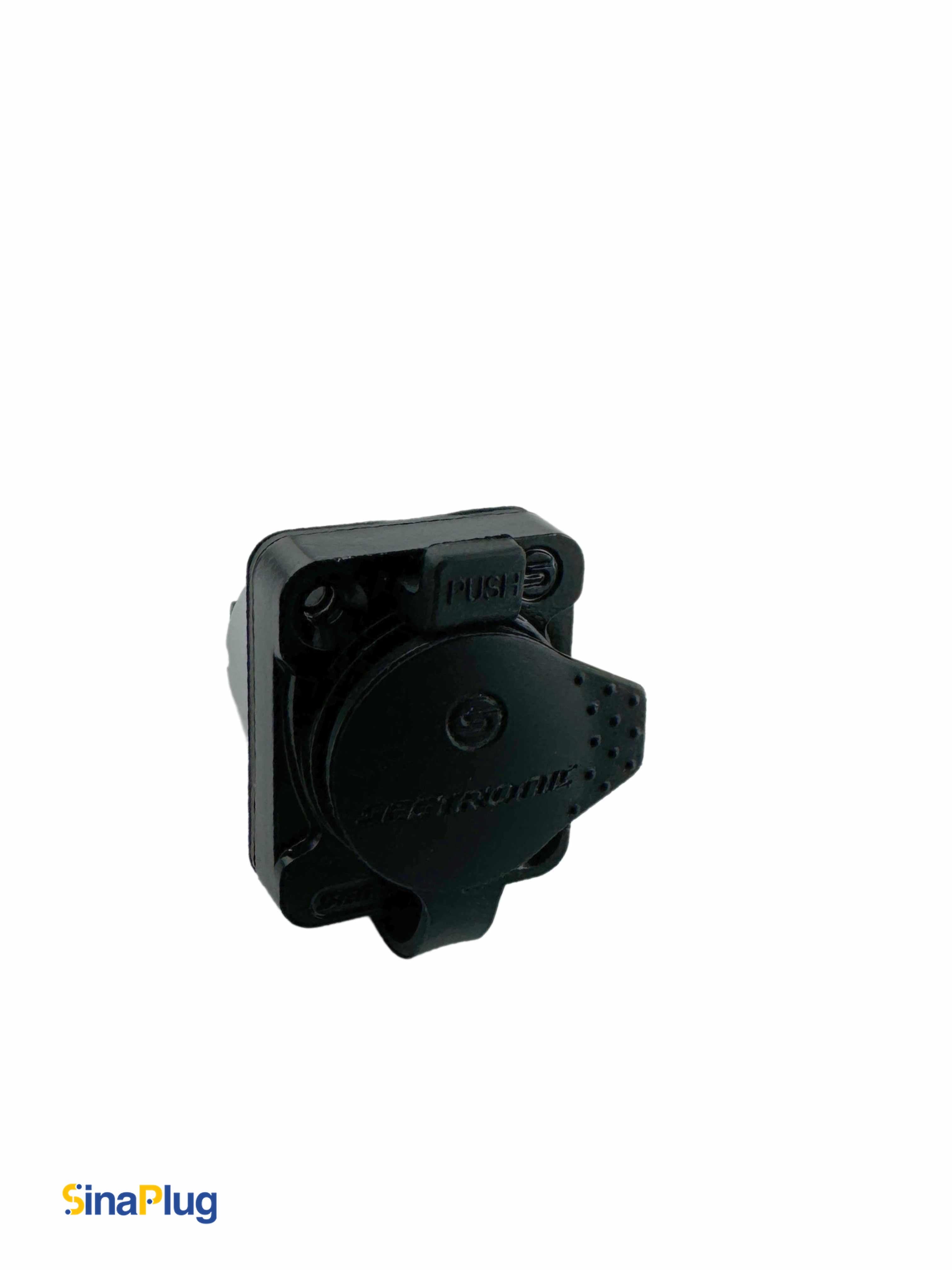

The SinaPlug (powered by Azar Pixel) recently offers Seetronic SE8FDYH-62-B-NS female RJ45 connectors (upgrade anti-leakage version of SE8FDY-02-DC) which ensures superior performance and delivers exceptional reliability and robust protection against harsh environmental conditions thanks to its included sealing cap (protection cover) and anti-leakage design.

This IP65-rated waterproof connector withstands air pressures of 0.2 MPa without leakage, even without the protection cover. This makes it ideal for applications where protection from environmental elements is critical.

This connector, with its appealing D-shaped design and high-quality black metal flange, matches to a standard D-style installation size for easy front-panel mounting. It meets TIA/EIA 568B and ISO/IEC 11801 standards, extending the operational lifespan of connected equipment.

A fast locking and unlocking mechanism and a 180° 8-pin horn configuration at the rear ensure seamless connectivity, efficient cable management, and reliable high-speed data transmission. It supports Data transmission, even in demanding environments with movement, making it a preferred choice for industrial, outdoor, and network applications.

Seetronic is a reputable company that specializes in high-quality electronic connectors. It is renowned for its emphasis on precision engineering, durability, and dependability, with a particular attention on performance and safety.

Key Features of SE8FDYH-62-B-NS

• Electrical Specifications:

Front: D-shape RJ45 connector (female)

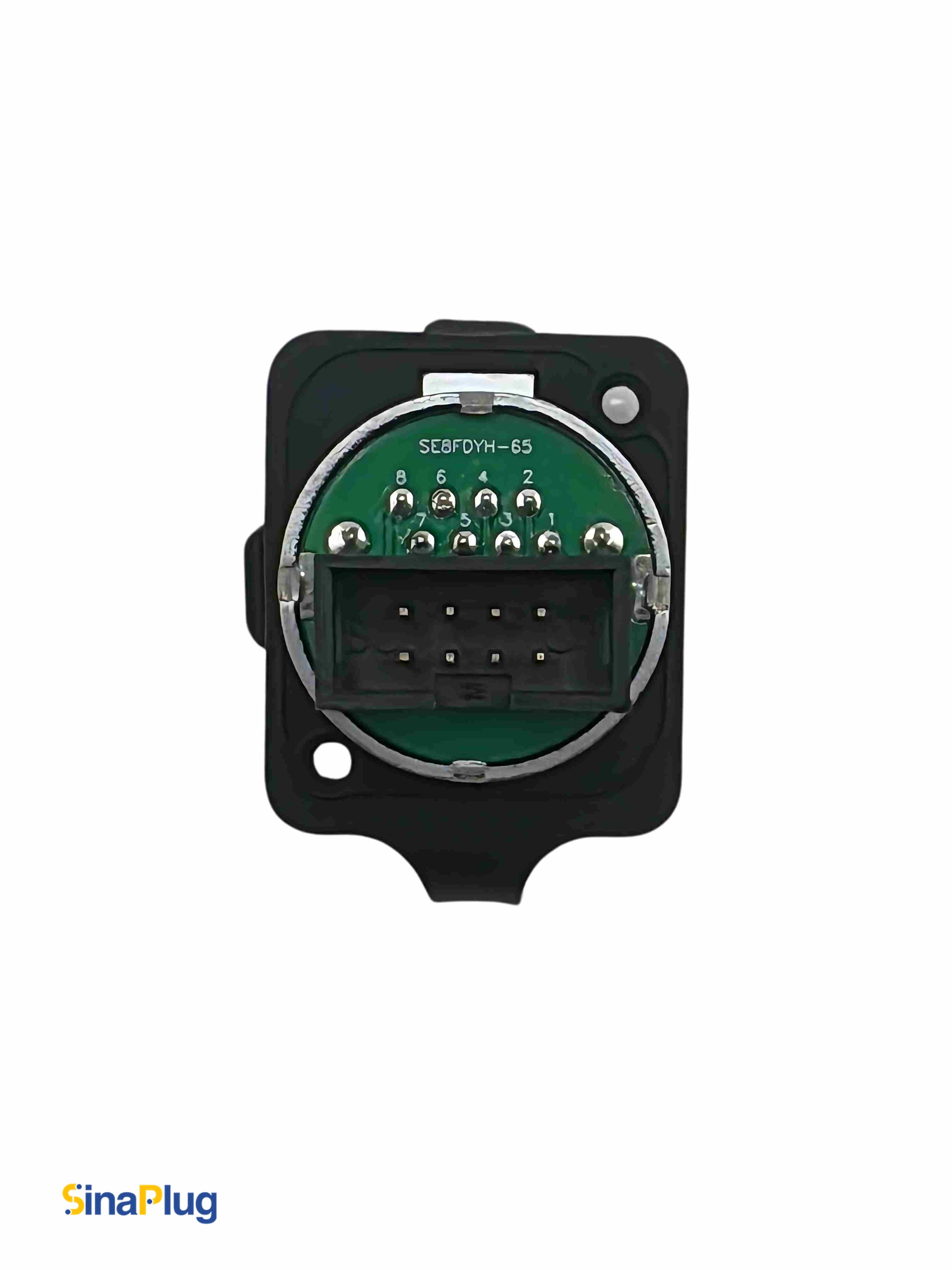

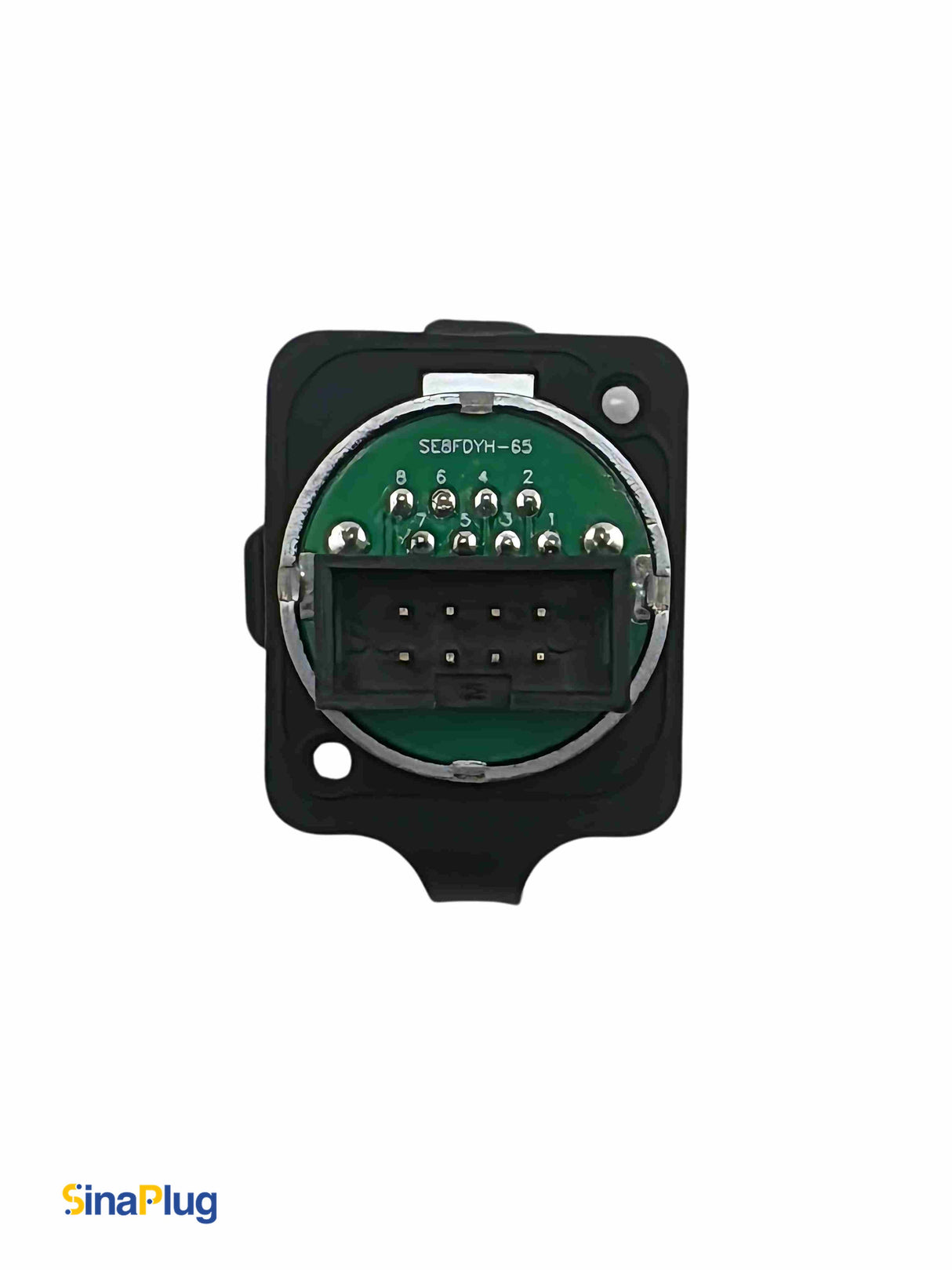

Rear: 180° 8-pin horn

Rated Current: 1.5A

Rated Voltage: 50V

• Mechanical Specifications:

Casing: Black metal flange

Installation: From the front (with screws)

Safety: Fast Locking and Unlocking

• Environmental Parameters:

Protection Level: IP65

• Advanced Features:

Black metal housing that withstands tough conditions and ensures a long service life

Designed with a standard D-style installation size, providing a secure and stable fit for a wide range of applications

Quick and easy locking and unlocking system to prevent accidental disconnections

Standards: TIA/EIA 568B and ISO/IEC 11801 Class D

• Dimensions (L*W*H): 26mm * 31mm * 32mm
