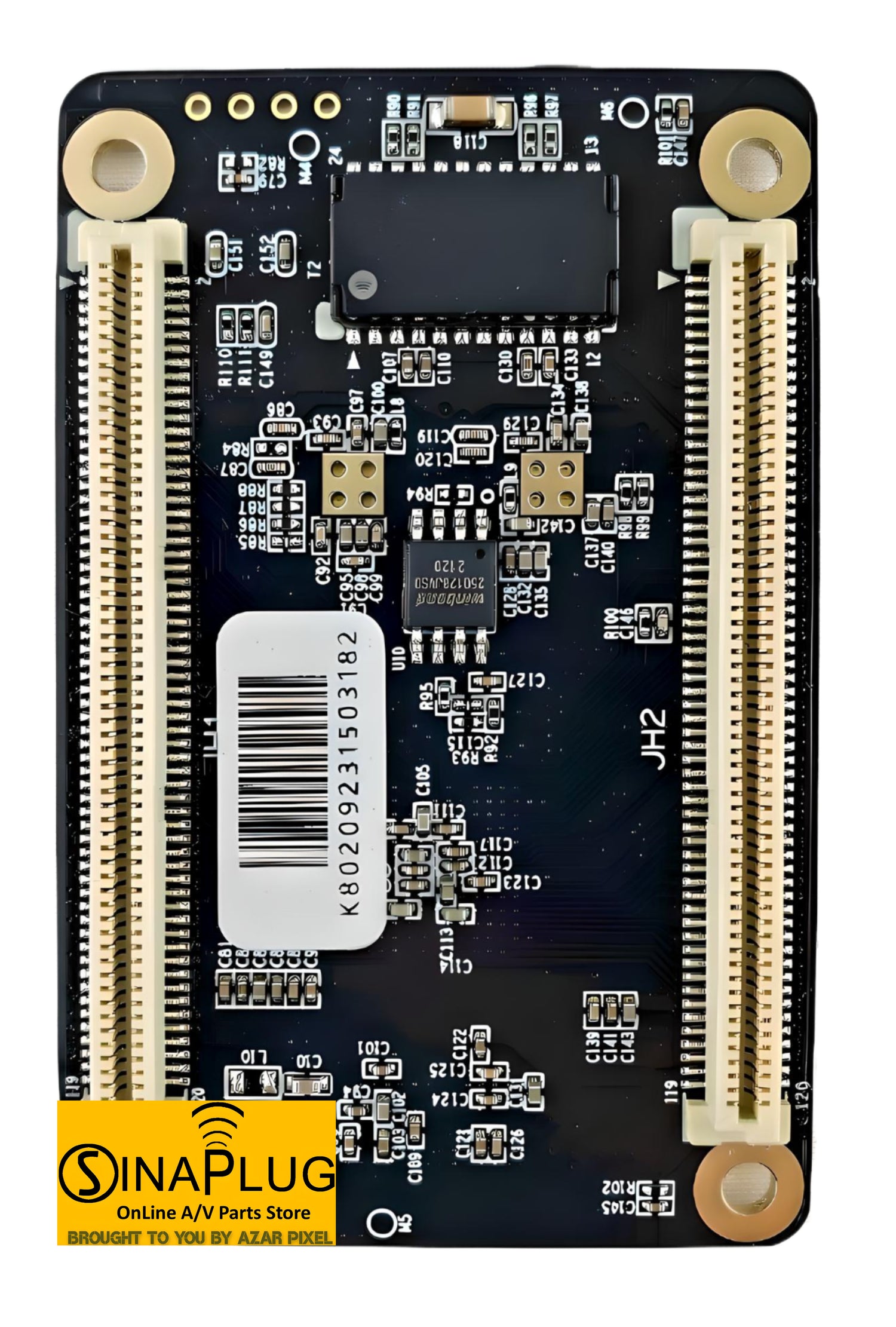

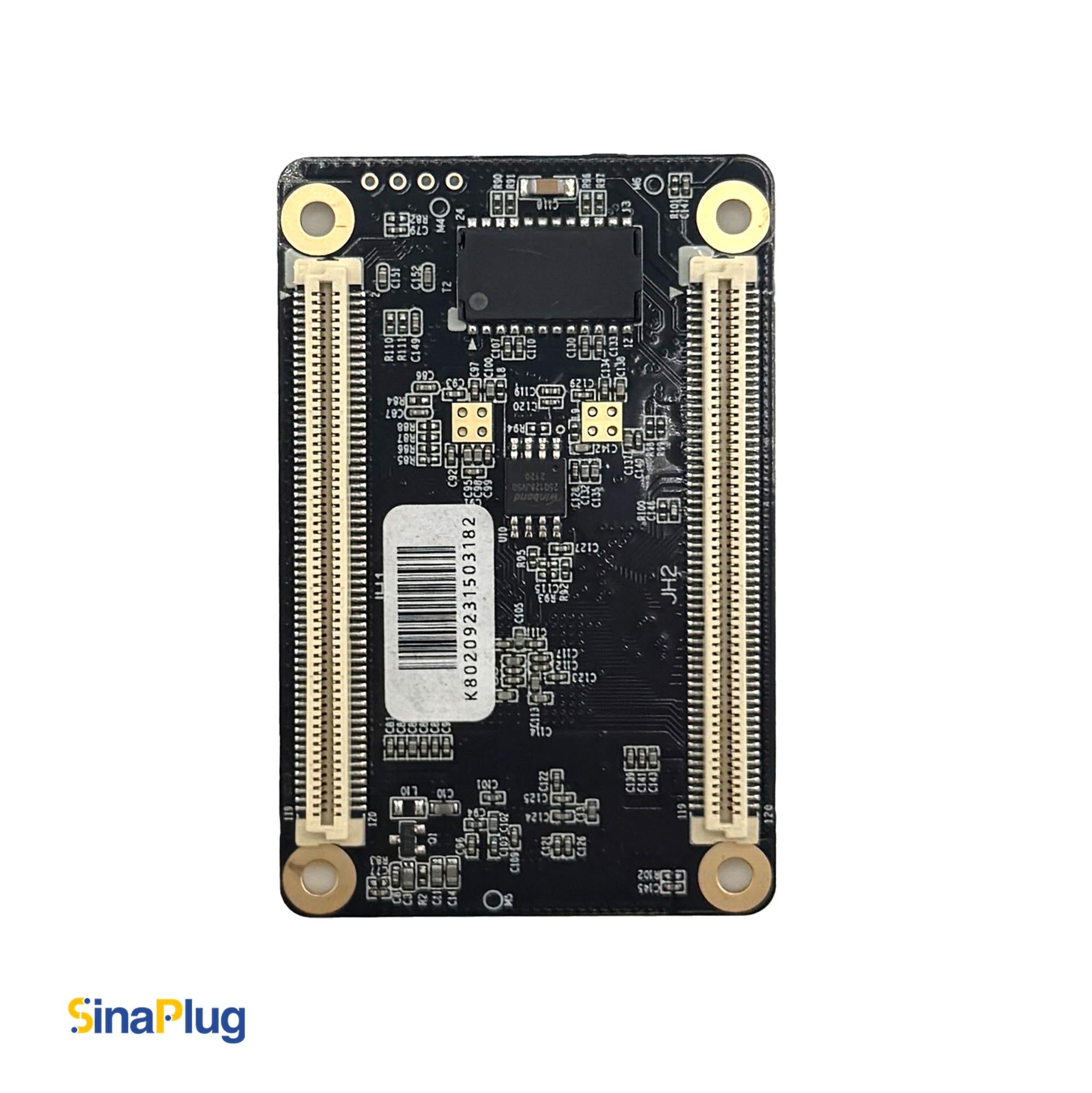

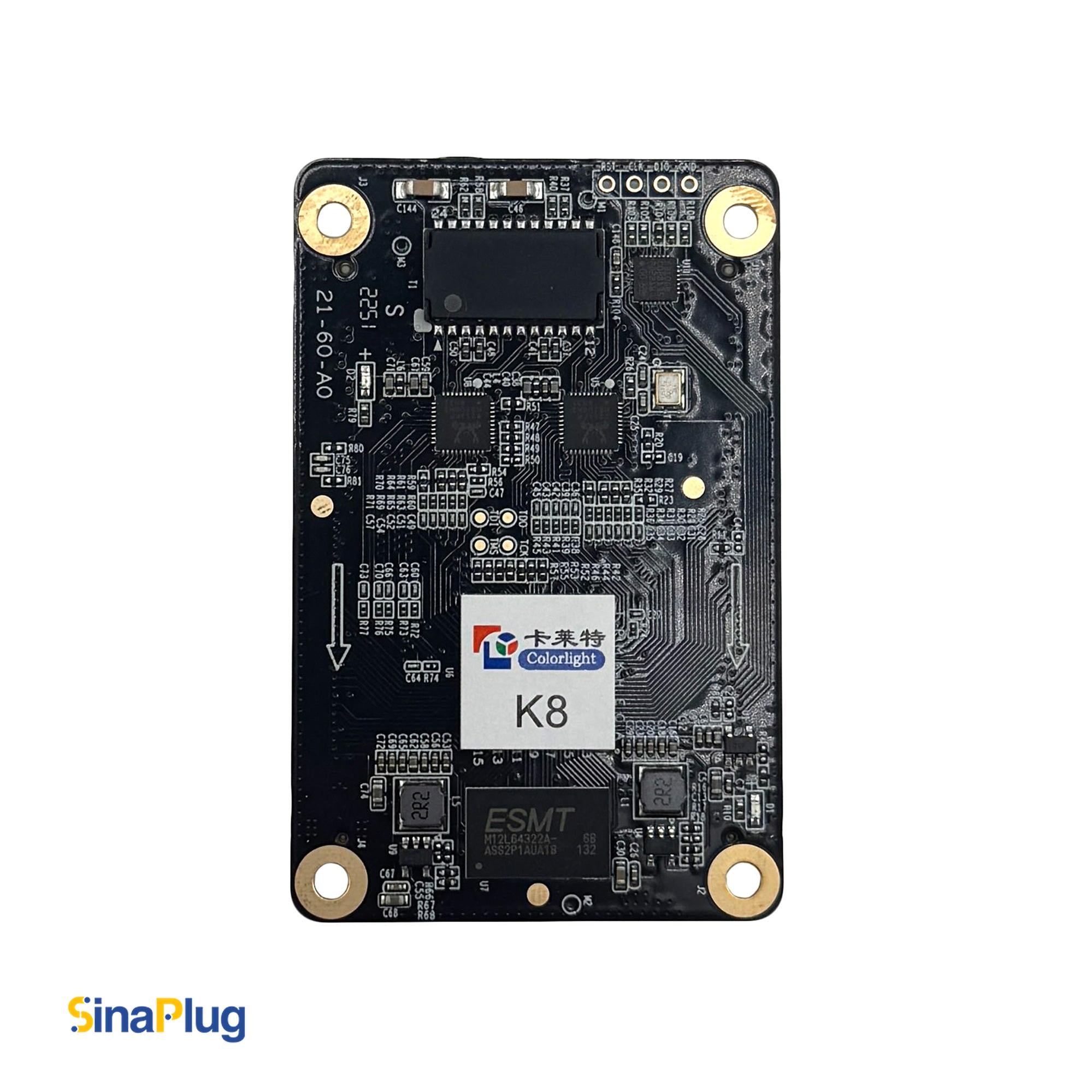

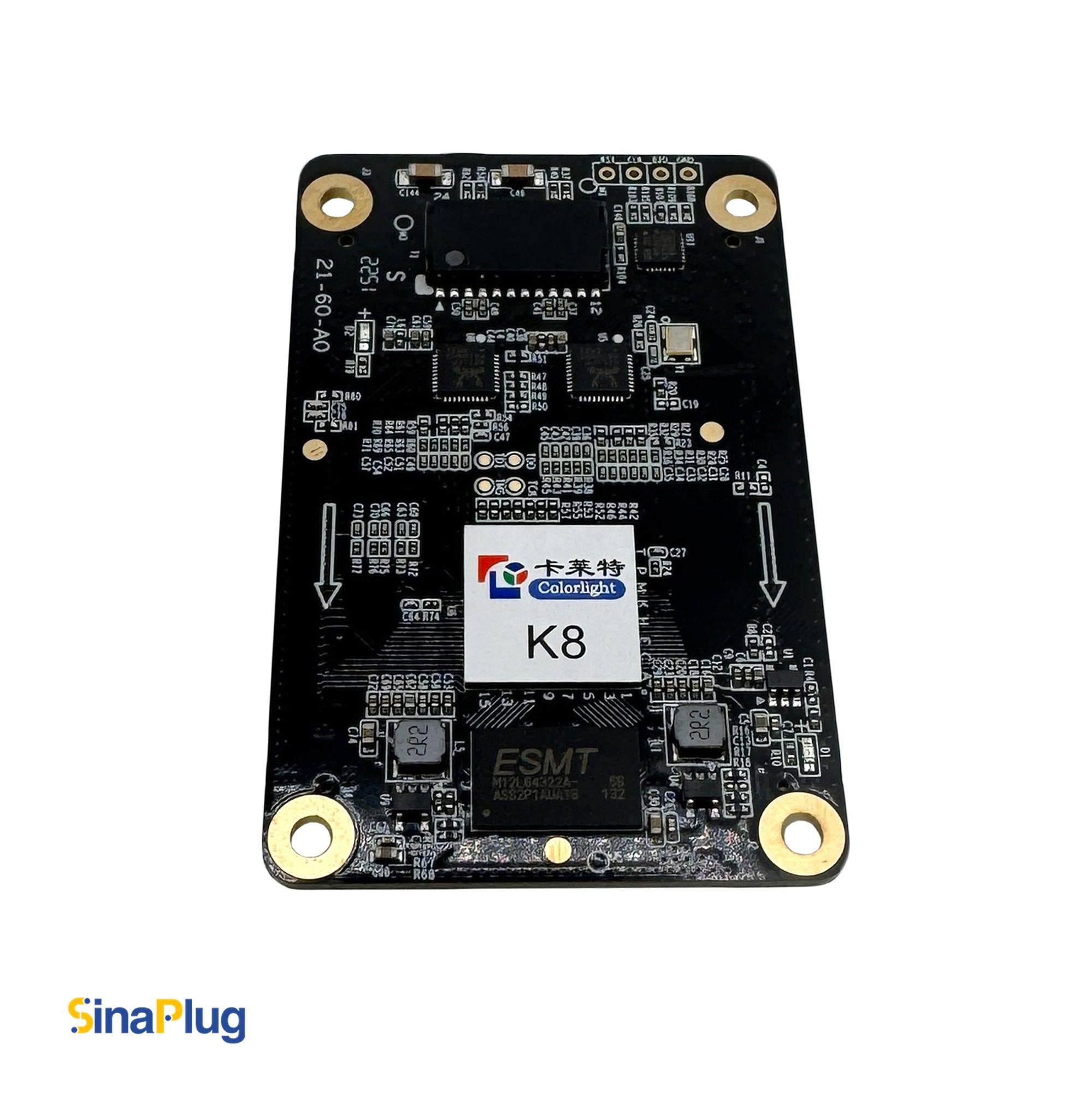

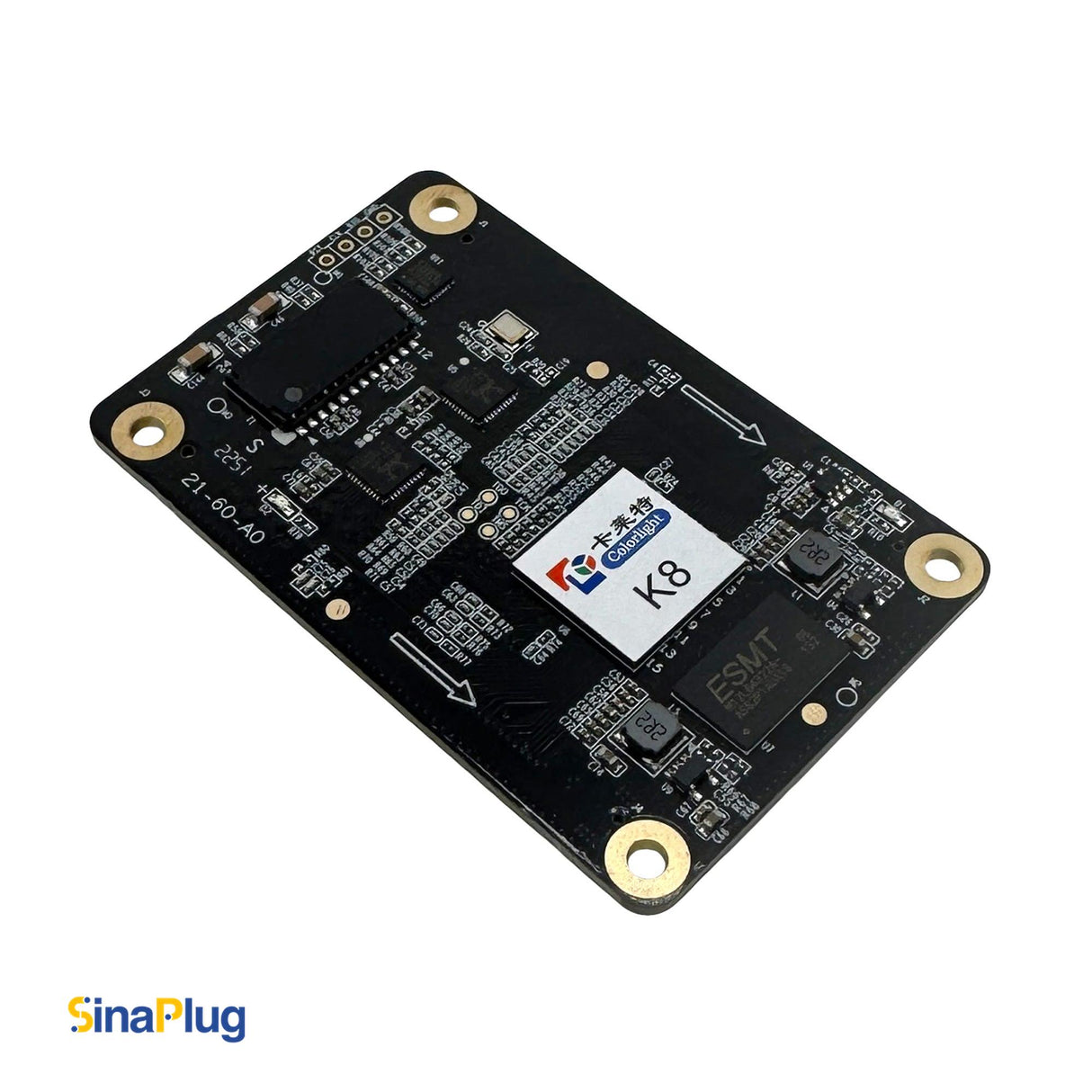

Colorlight K8 LED receiving card

Colorlight K8 is a high-end receiving card developed by Colorlight. It supports up to 512X384 pixels and can load up to 32 groups of parallel data or 128groups of serial data. K8 adopts high-density connectors, which is dustproof and shockproof, resulting in its high stability and reliability. It not only has the functions of mainstream receiving cards, but also a series of practical and powerful features developed for high-end displays. K8 can be perfectly used in high-end rental as well as fine pitch LED screens, which brings value-added points for customers and enhances the added value of the products.

Hardware interface：High-density connectors
Ethernet port transmissionation Rate: 1Gb/S
Communication Distance: Distance Recommended : Cat5e cables<100m
Compatible with Transmission Equipment: Gigabit switch , Gigabit fiber switch
Voltage:DC3 8-5 . 5V, 0.5A
Rated Power: 2.5W
Body Static Resistance: 2KV
Size: 70*45*7.8mm
Weight: 29g/0.05lbs
