Colorlight  |  SKU: PRO-CLL-X2Mxxxxxxx-0

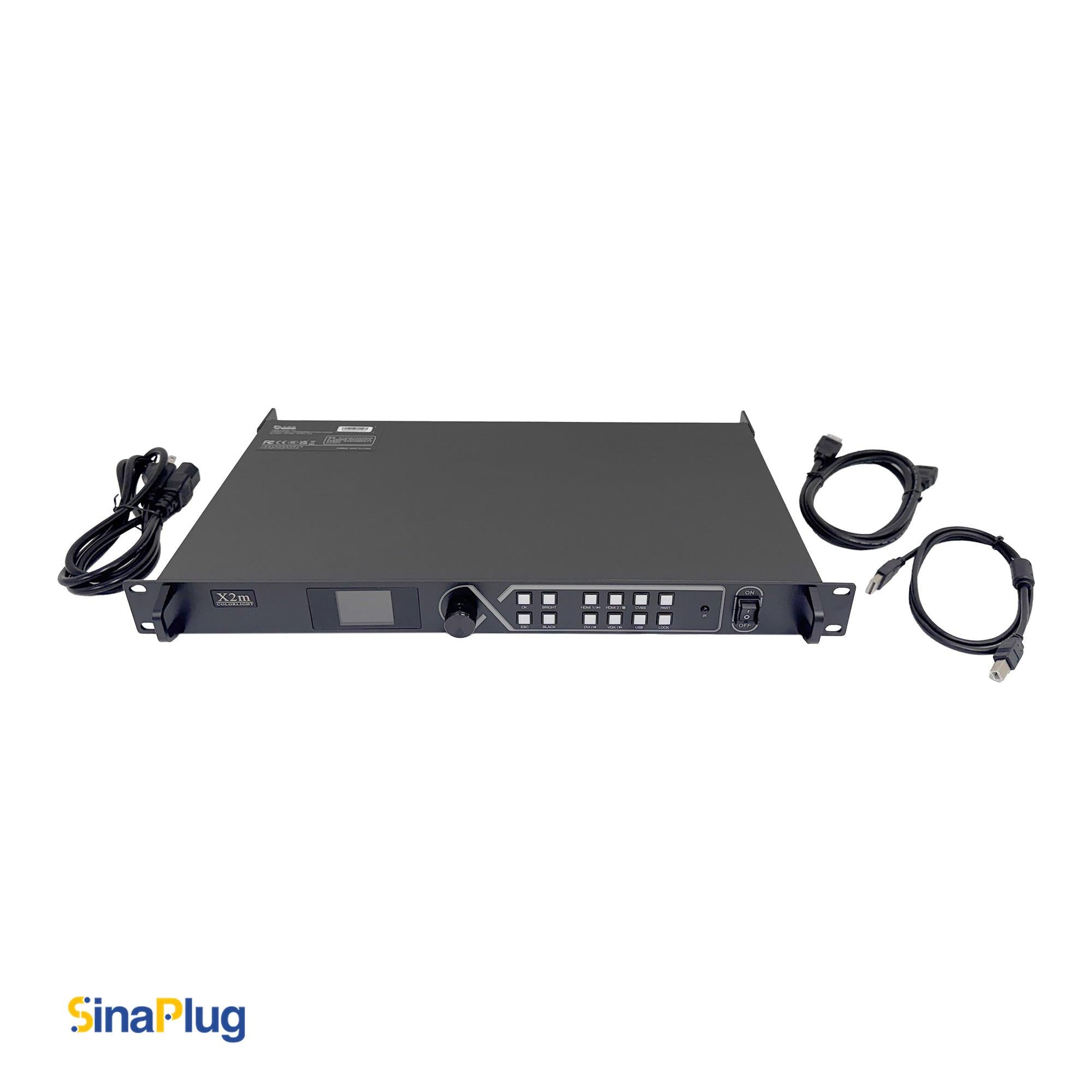

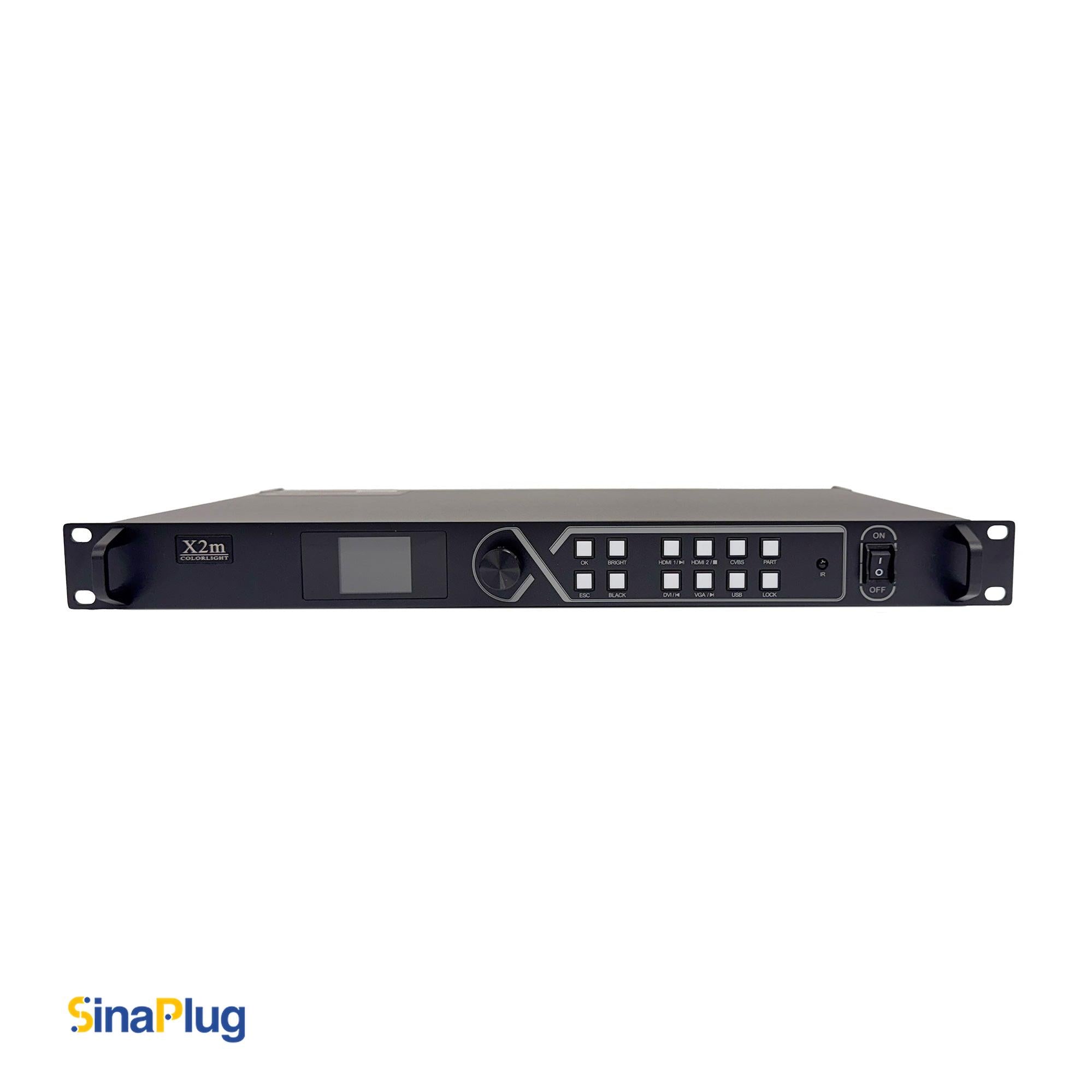

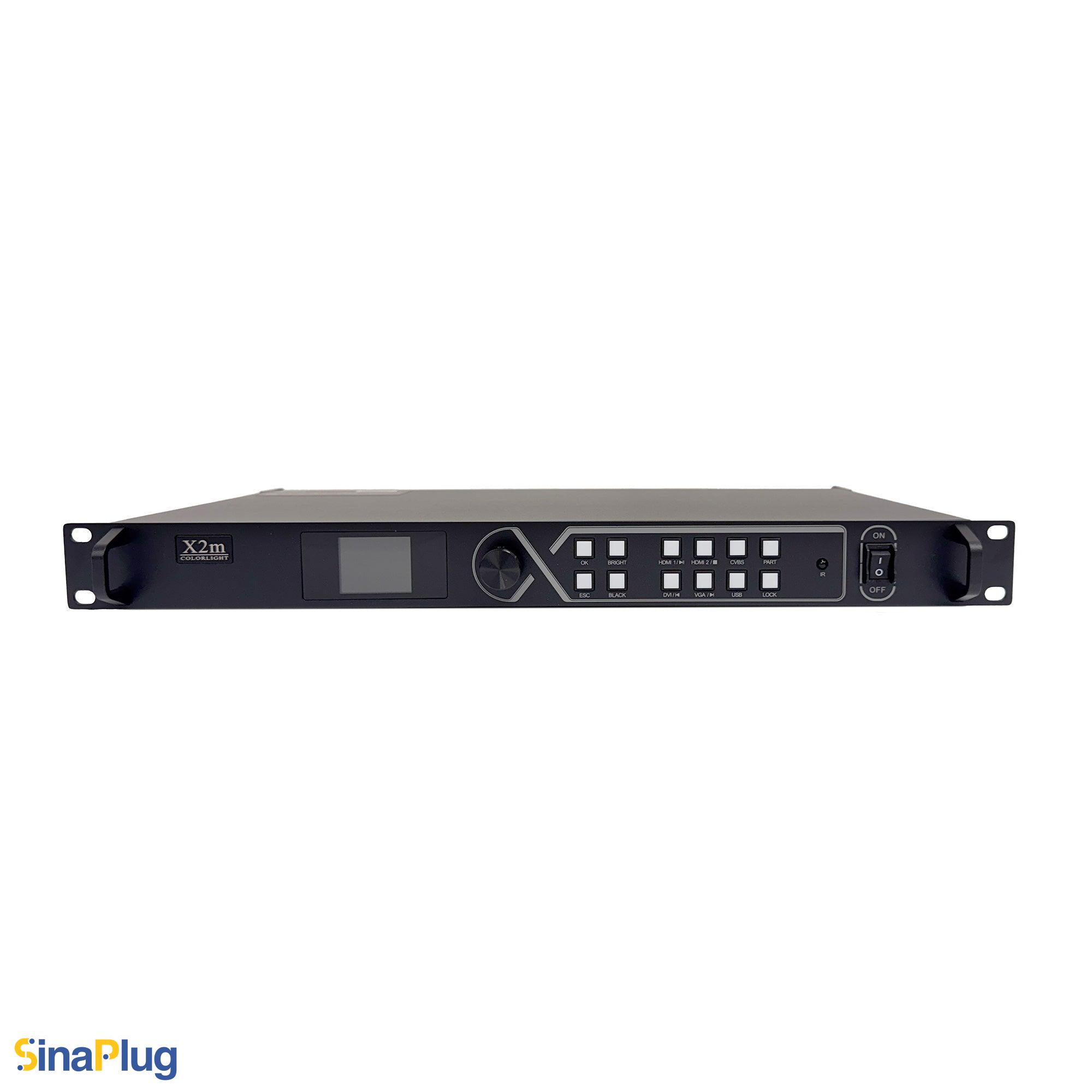

Colorlight X2m LED Video Controller (New version of X2)

$240.00 $317.63
US Stock Same-day shipping or store pickup
Easy Returns 60-day no-questions-asked return
Tech Support Free online technical assistance

As a trusted provider, Azar Pixel is proud to offer the Colorlight X2m, a professional LED display controller designed for small to mid-sized LED screens that require flexible signal management and dependable performance. It integrates video processing and control in a single compact unit, supporting screen adjustments (such as sharpness, brightness, chroma, saturation and contrast customization) screen offset, seamless switching, scaling, and clipping across multiple input sources.

With a maximum loading capacity of 1.3 million pixels and support for up to 3840 pixels in width or 2000 pixels in height, it delivers crisp live visuals and smooth playback for creative and standard LED configurations.

The controller features multiple HD (1980x1080) inputs (2xHDMI 1.4, 1xDVI, 1xVGA, 1xCVBS), USB playback (for videos and images), and audio input/output, making it ideal for live events, digital signage, and conference settings.

Its advanced features include precise color management, improved gray levels at low brightness, 16 scene presets, and redundant Ethernet output for reliable operation.

Certified for CCC, CE, FCC, and UKCA, the X2m operates reliably in temperatures from -20°C to 65°C, making it a dependable choice for a variety of professional LED applications.

Key Features of X2m

Loading Capacity

  • up to 1,300,000 pixels

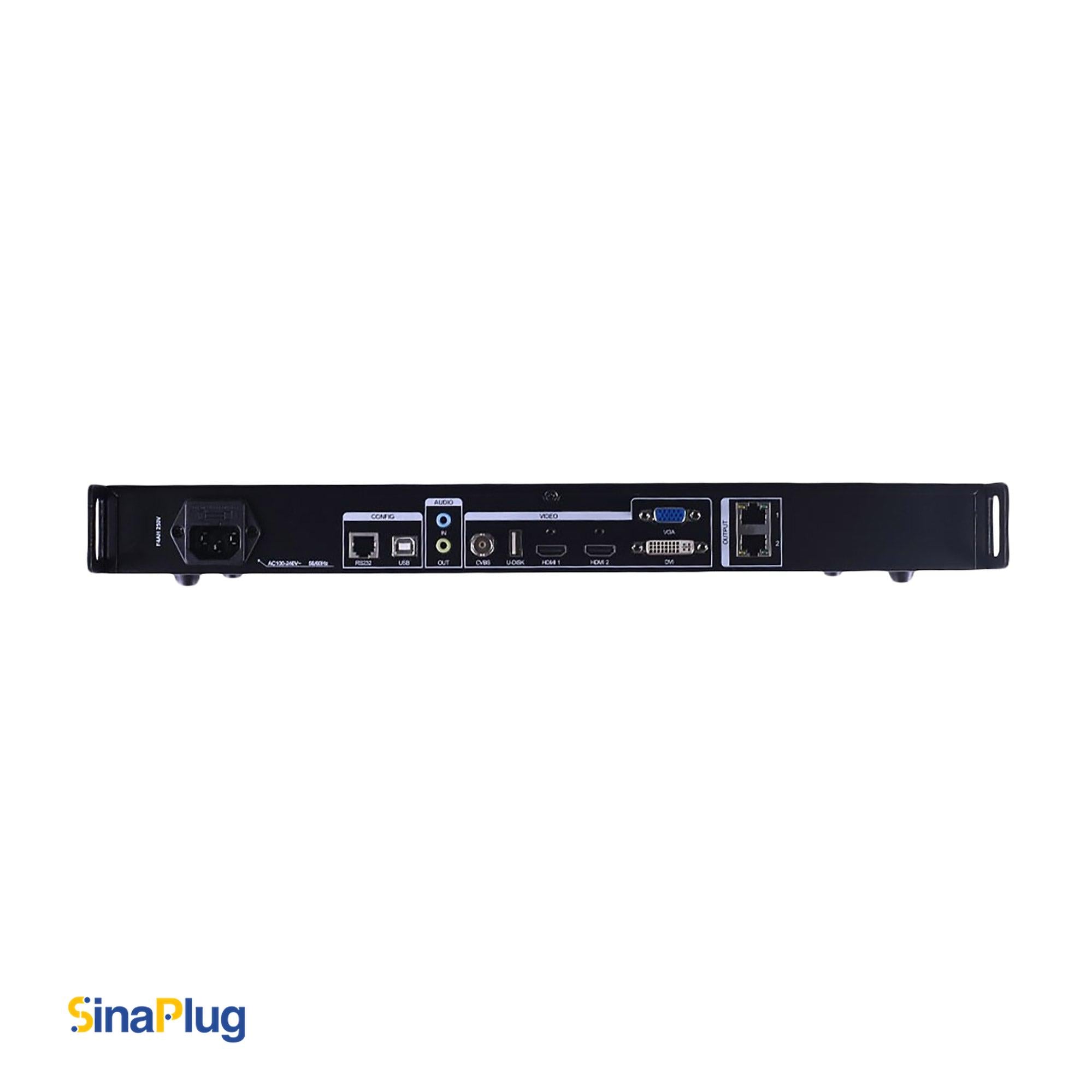

Input

  • 2× HDMI 1.4 (up to 1920×1080@60Hz)
  • 1× DVI (up to 1920×1080@60Hz)
  • 1× VGA (up to 1920×1080@60Hz)
  • 1× CVBS (PAL/NTSC)
  • 1× USB (U-disk playback, up to 1920×1080@30Hz)
  • 1× 3.5mm Audio input

Output

  • 2x Gigabit Ethernet ports (redundancy supported)
  • 1x 3.5mm Audio output (supports HDMI and U-Disk audio)

Control

  • 1x RS232 port (RJ11, central control)
  • 1x USB 2.0 Type-B port (connecting to a PC)

Preset Resolutions

  • HDMI 1.4/DVI: 1920×1080 @ (23.98, 24, 25, 29.97, 30, 50, 59.94, 60, 100, 120) Hz
  • VGA: 1920×1080@60Hz

Advanced Features

  • Redundant Ethernet output supported
  • Free switching, clipping and zooming
  • Supports screen offset
  • Converts Limit Range to Full Range input color space
  • Supports send and read back screen correction factor, advanced stitching
  • Precise Color Management
  • 16 scene presets
  • improved gray level at low brightness
  • Independent Audio input and HDMI audio decoding
  • Adaptive to decimal frame frequencies
  • U-disk playback

Dimensions (L*W*H)

  • 483mm * 292mm * 44mm
