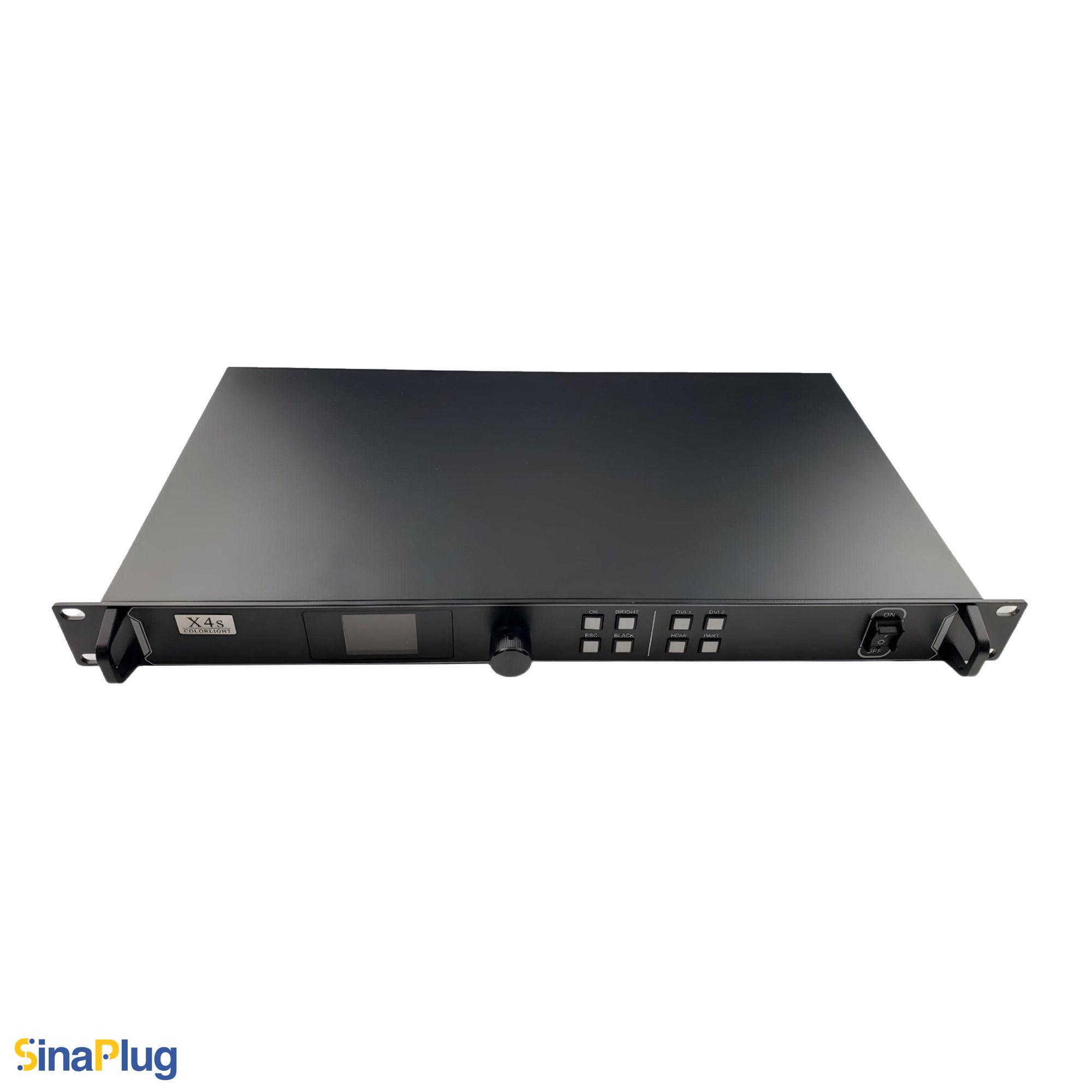

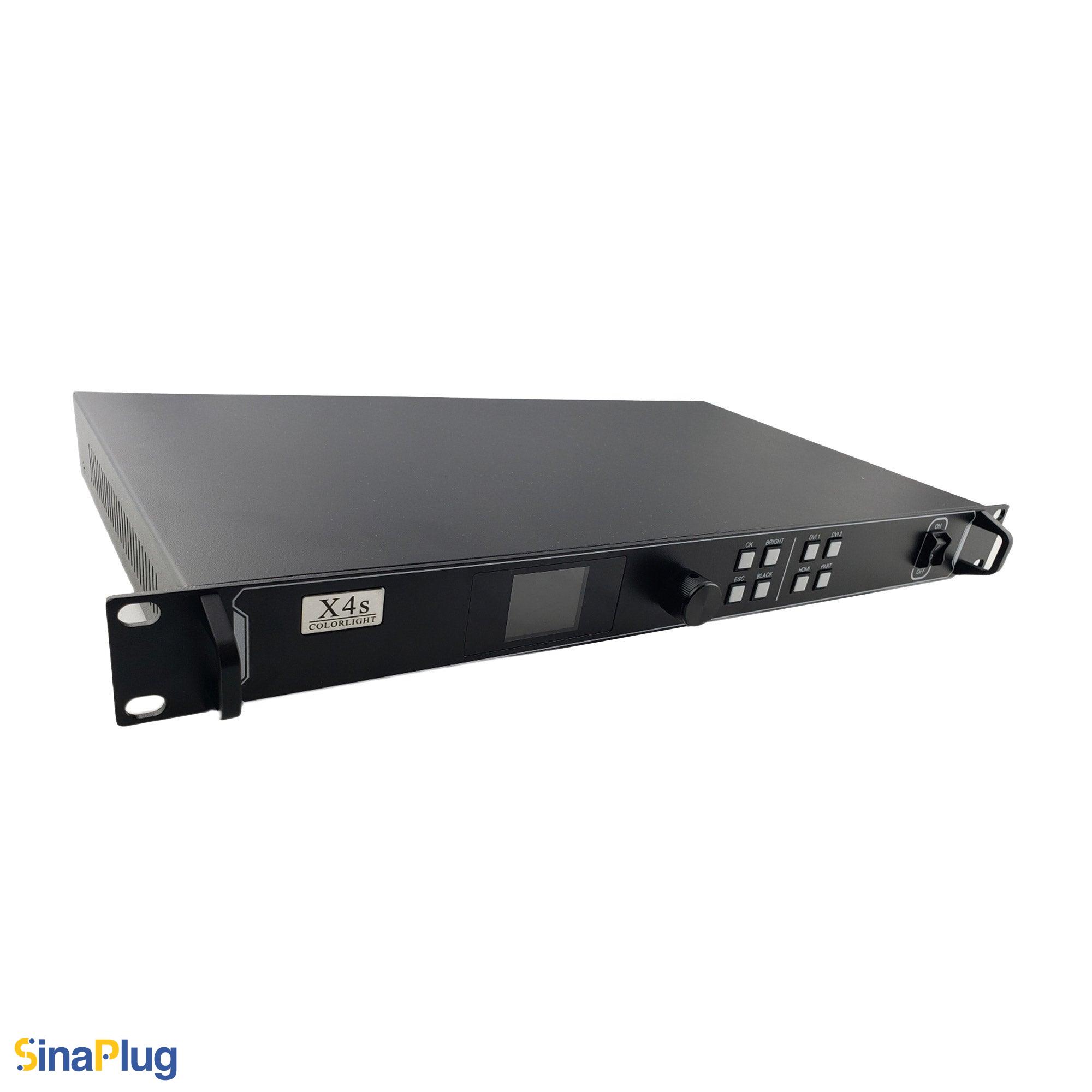

Colorlight X4s LED Video Controller
$365.55
2 in stock
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
AzarPixel proudly presents the Colorlight X4S; a professional LED display controller with a 2.6 million pixel loading capacity for digital signage environments. It has four Gigabit Ethernet ports and will accept custom resolutions of up to 4096 pixels in width and 2560 pixels in height.
It is an efficient solution for small LED display applications due to its exceptional video transmission and processing capabilities, which include support for multiple signal inputs and complex control options. It supports an HDMI 1.4 and two DVI inputs and handles maximum resolutions of up to 1920×1200@60Hz.
Additionally, the audio input integrates audio signals into an LED display system while using a multi-functional card, synchronizing audio and visual content and improving the overall experience.
This controller is engineered for demanding applications, thanks to advanced features including image scaling and cropping, better gray level at low brightness, brightness and color temperature adjustments, supporting decimal frame rates, and arbitrary video source switching. It operates efficiently across a wide temperature range with a maximum power consumption of 10W and an input voltage of 100-240VAC.
It’s USB IN (Type-B) and USB OUT (Type-A) ports enable high-speed configuration to the control computer and device cascading of up to 64 controllers, making it perfect for setting up a large-scale display installation.
The Colorlight X4s LED Video Controller is dependable, strong, robust, and committed to giving users the best possible visual experience. It is mostly suitable for small-scale installation applications, including traffic and parking assistance systems, store window displays, conference and seminar backgrounds, and a variety of sports facilities.
We are an independent reseller of genuine Colorlight products. We are not affiliated with, endorsed by, or sponsored by Colorlight Cloud Tech Ltd. The Colorlight name and logo are trademarks of their respective owner and are used solely to identify the genuine products offered for sale.
Key Features of Colorlight X4s LED Video Controller
Loading Capacity
- Up to 2,600,000 pixels

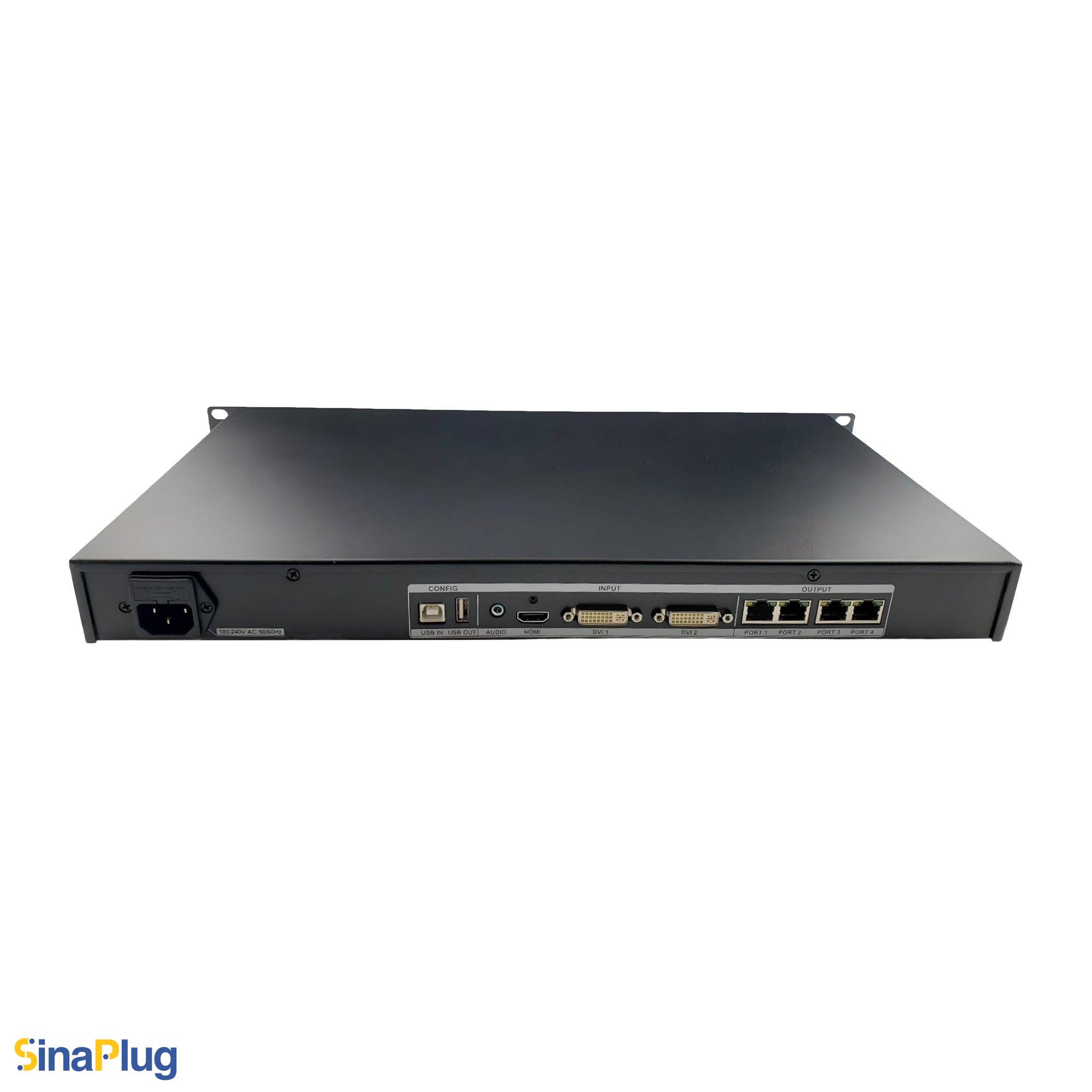

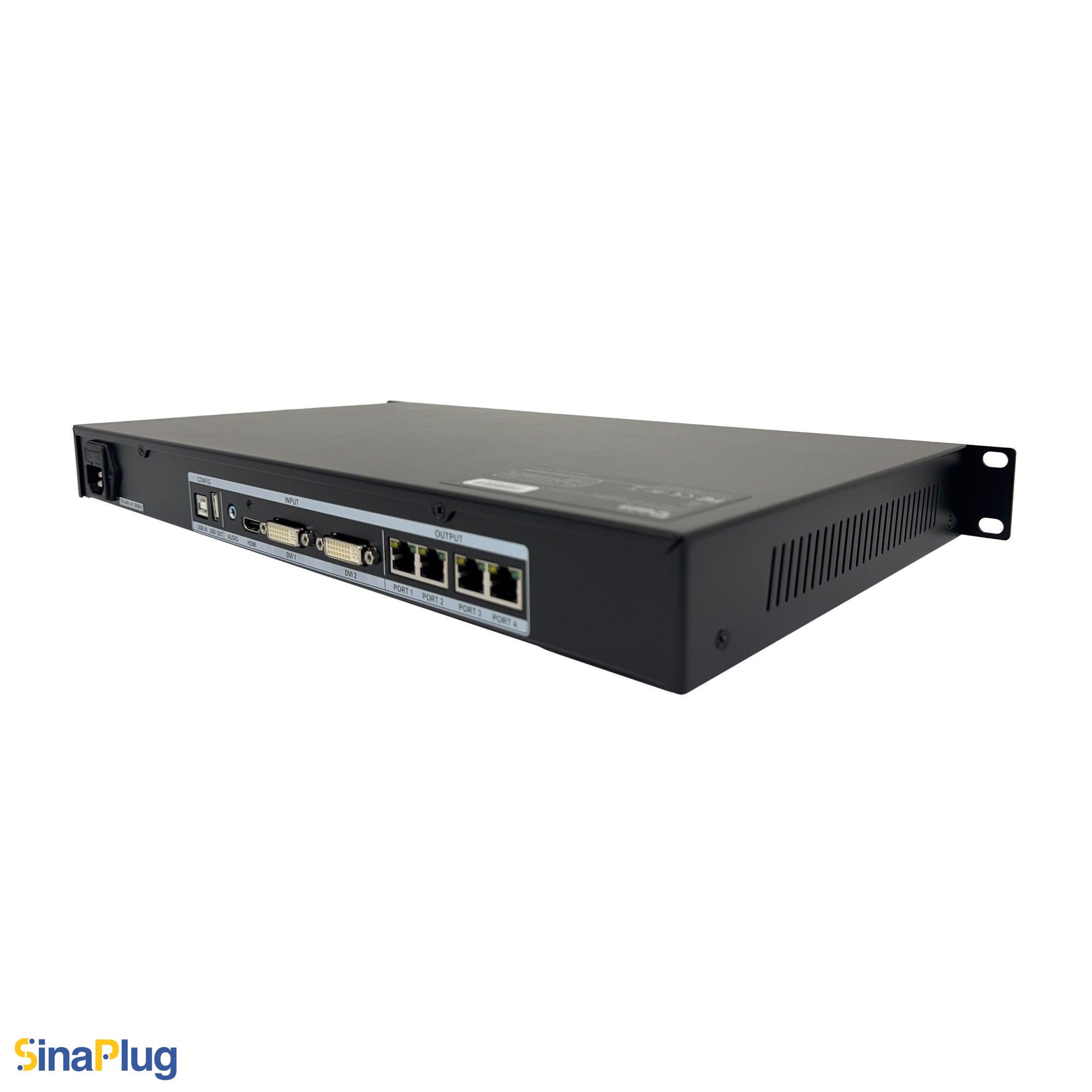

Input
- 1x HDMI 1.4 (maximum resolution: 1920×1200@60Hz)
- 2x DVI (maximum resolution: 1920×1200@60Hz)
- 1x Audio input (used with multi-function card)
Output
- 4x Gigabit Ethernet ports
Control
- 1x USB 2.0 IN Type-B port (connecting to a PC for configuration)
- 1x USB 2.0 OUT Type-A port (for cascading)
Advanced Features
- Single device or dual devices redundant backup
- Supports for screen offset adjustment
- Free switching, and scaling and cropping of video sources
- User-defined presets can be saved and loaded
- Adaptive to inputs with decimal frame frequencies
- Brightness and color temperature adjustment
- improved gray-scale performance at low brightness
- Cascading (up to 64 units via USB interfaces)
Dimensions (L*W*H)
- 483mm * 262mm * 44mm
| Weight | 8.82 lbs |
|---|---|
| Dimensions | 20.67 × 13.98 × 3.74 in |
| Max Input Resolution | 1920×1200@60Hz |
| Supported Resolutions For Input | 1920×1200@(23.98/24/25/29.97/30/50/59.94/60)Hz |
| Pixel Capacity | 2.600.000 |
| Max Width Resolution | 4096 |
| Max Height Resolution | 2560 |
| DVI In | 2 |
| HDMI In | 1 |
| Ethernet LED Out | 4 |
| Control USB Port | 2 |
| Audio In | 1 |
| Cascading | Supported |
| Net Weight Kg | 2 |
| Gross Weight Kg | 4 |
| Input Voltage Range | 100-240VAC |
| Max Power Consumption | 10W |
| Working Temperature Range | -20 to +60 °C |
| USB Playback | NO |
| Others | Backup Support (Ethernet Ports), Frame Rate Adaptive, Improved Gray Level at Low Brightness, Screen Offset |
