POWERLD VAT-UP200S-4.5-A / VAT-UP200S-4.5-AIV Power Supply (4.5V, 36A)

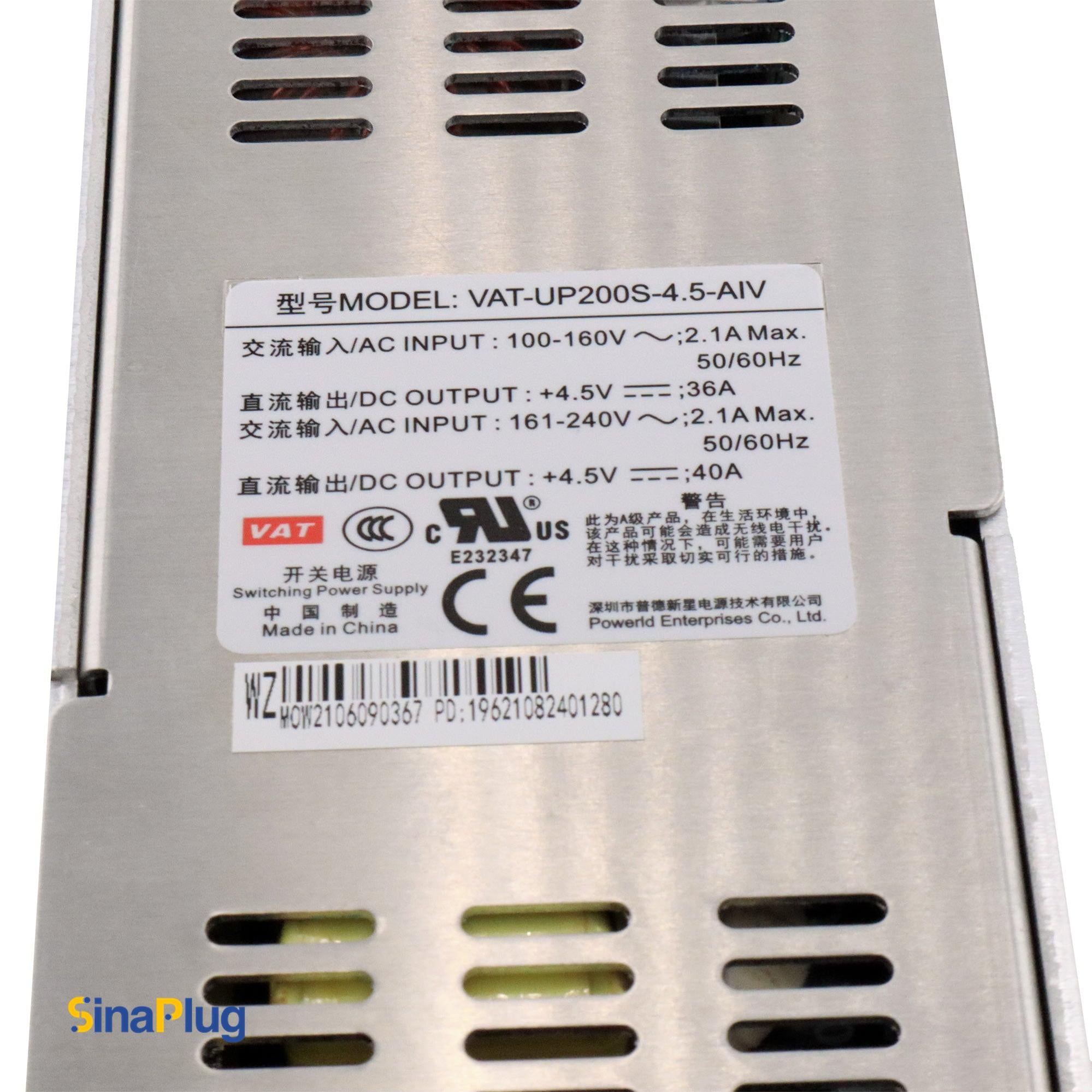

AzarPixel proudly introduces the PowerLD VAT-UP200S-4.5-A and VAT-UP200S-4.5-AIV (also known as VAT 4.5V 200W from the UP200S series), reliable enclosed power supplies designed to deliver steady and efficient power for demanding applications, such as LED displays. They switch on with 100-160 VAC and 161-240 VAC input ranges to provide 4.5V at 36A for 100-160VAC (0-40A at 161-240VAC).

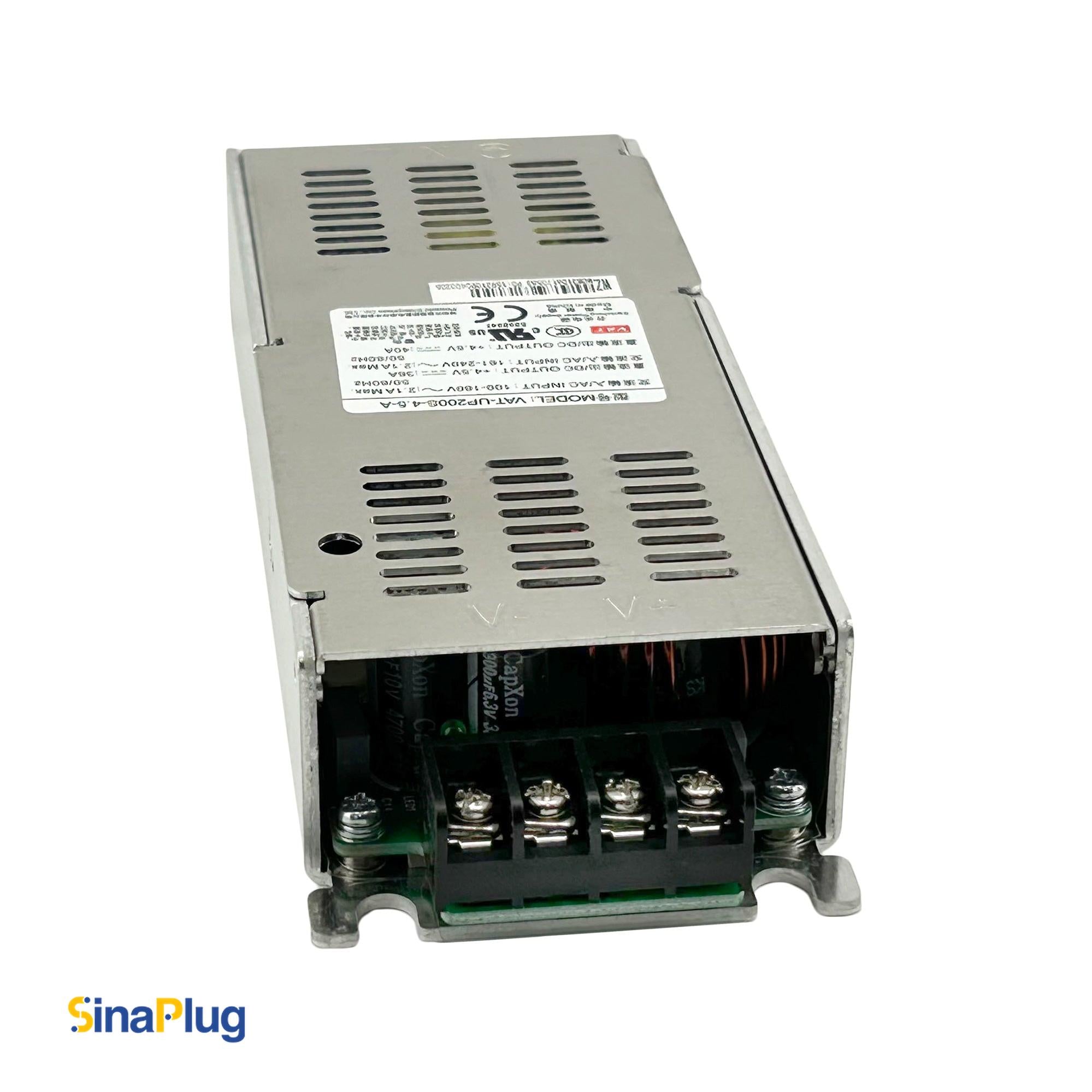

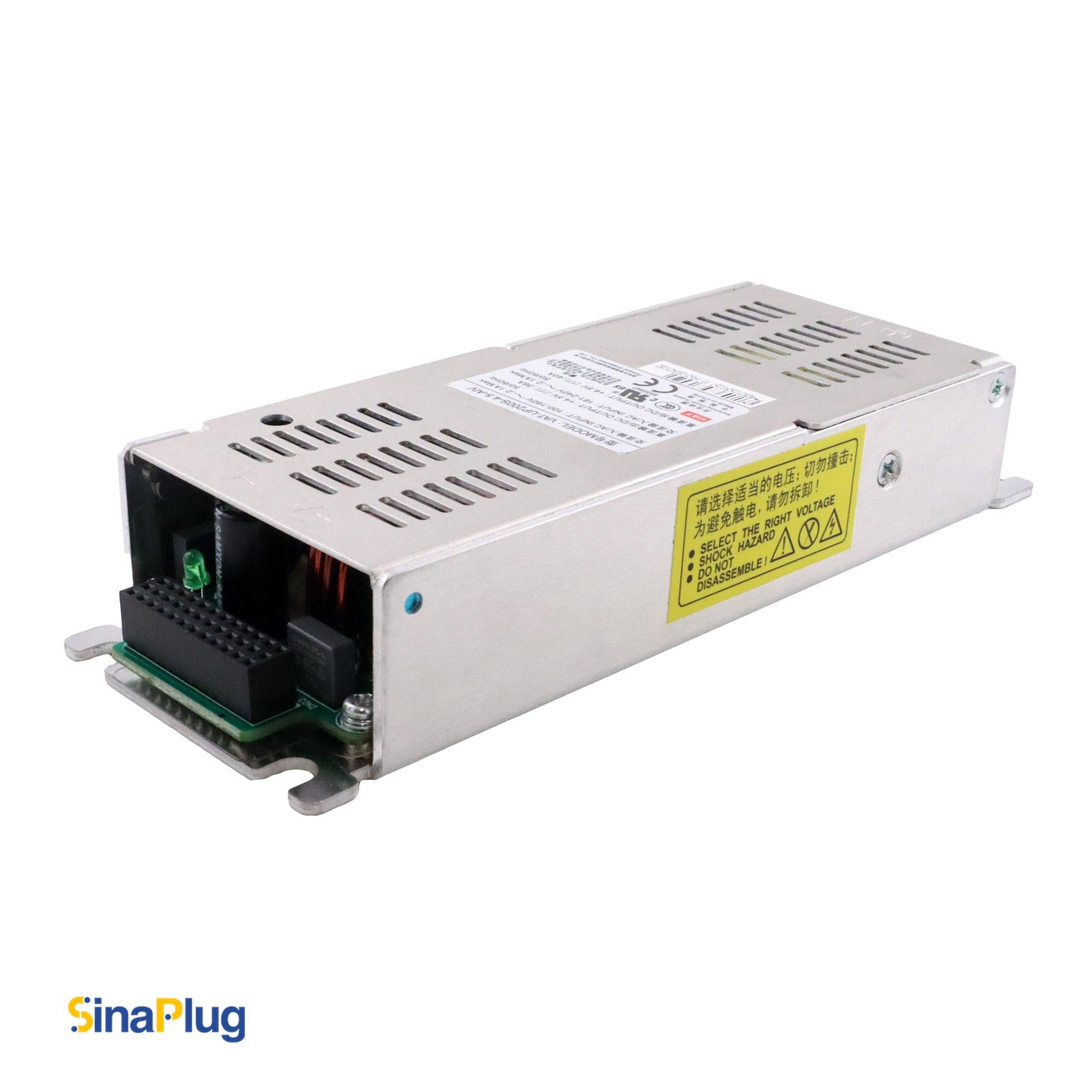

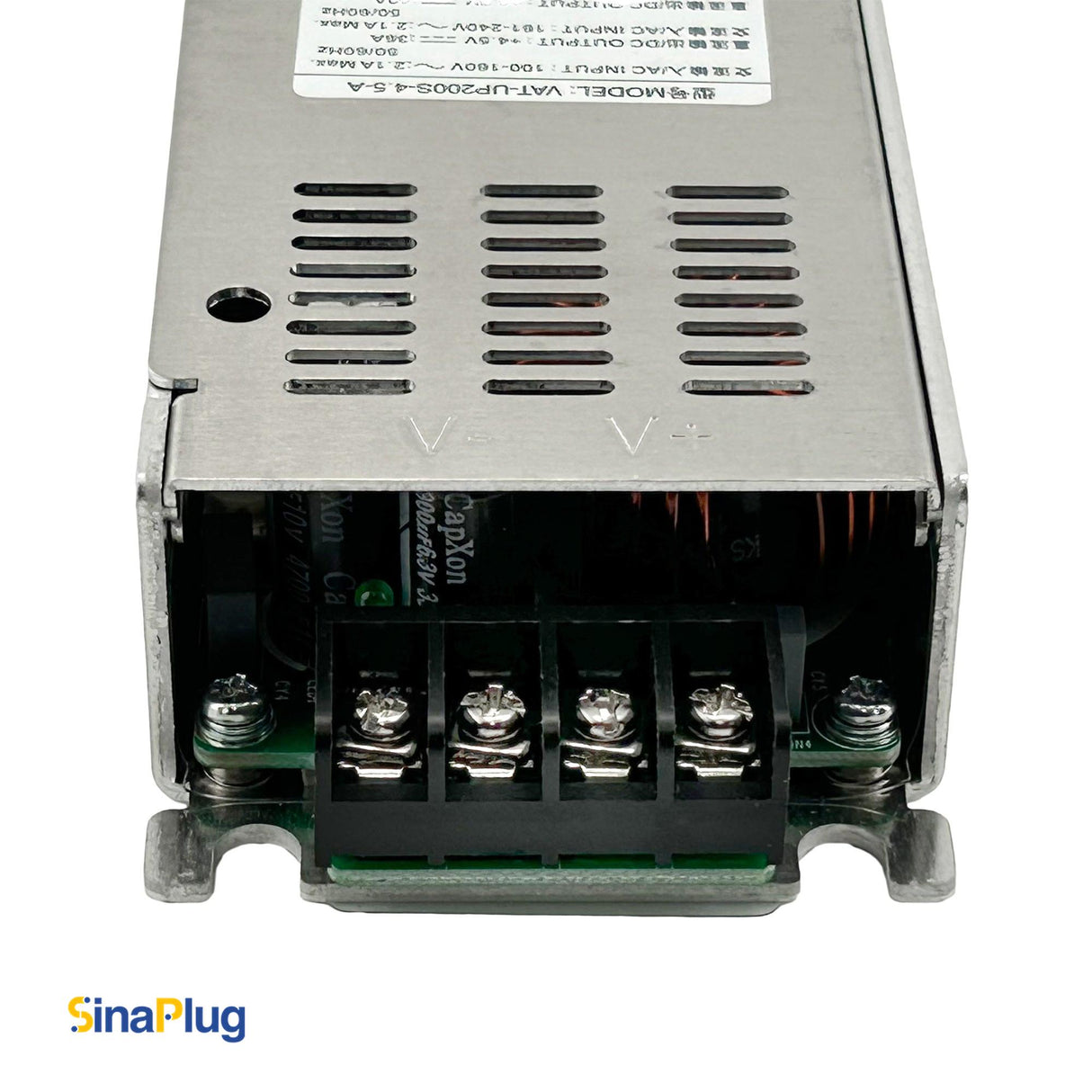

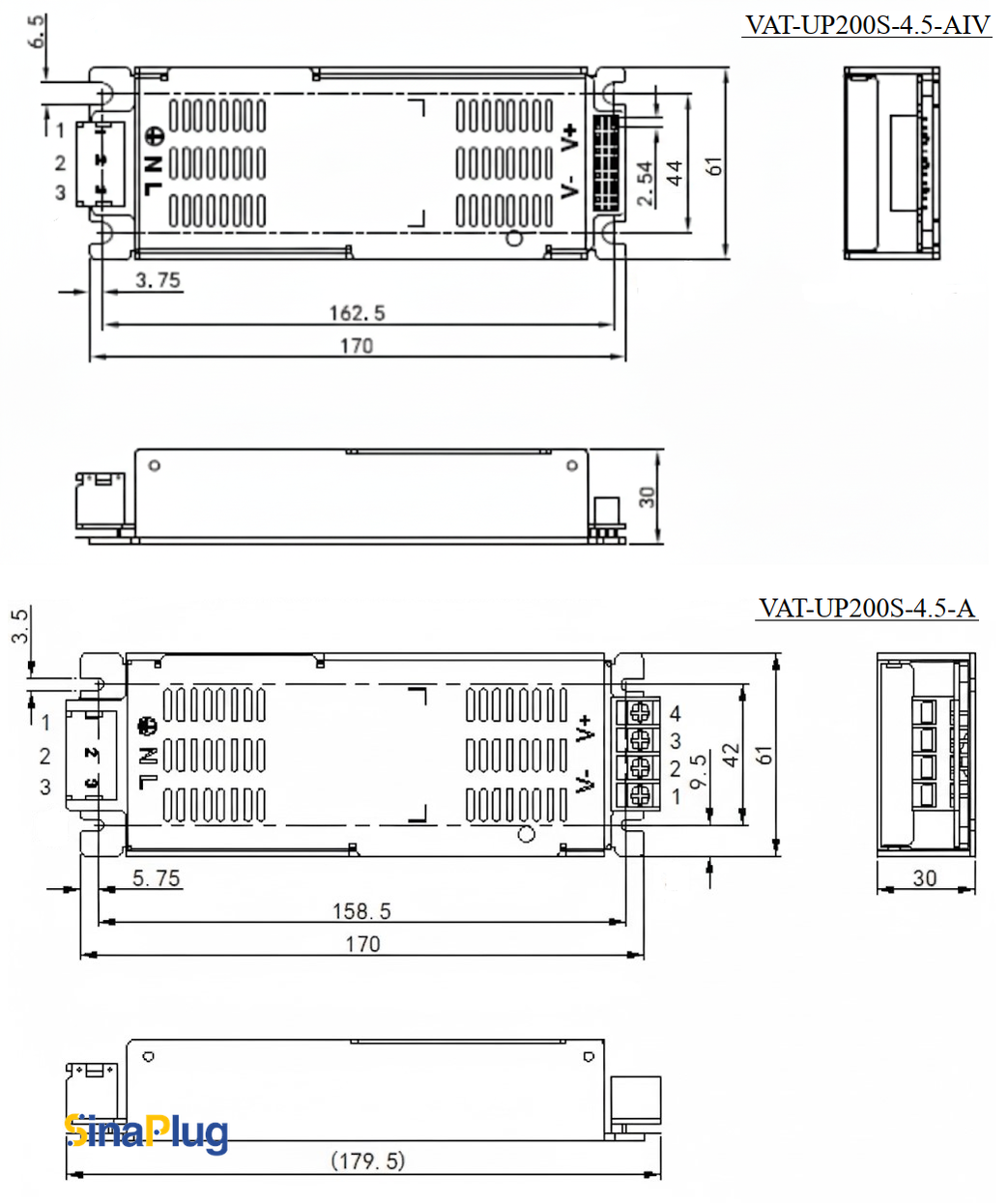

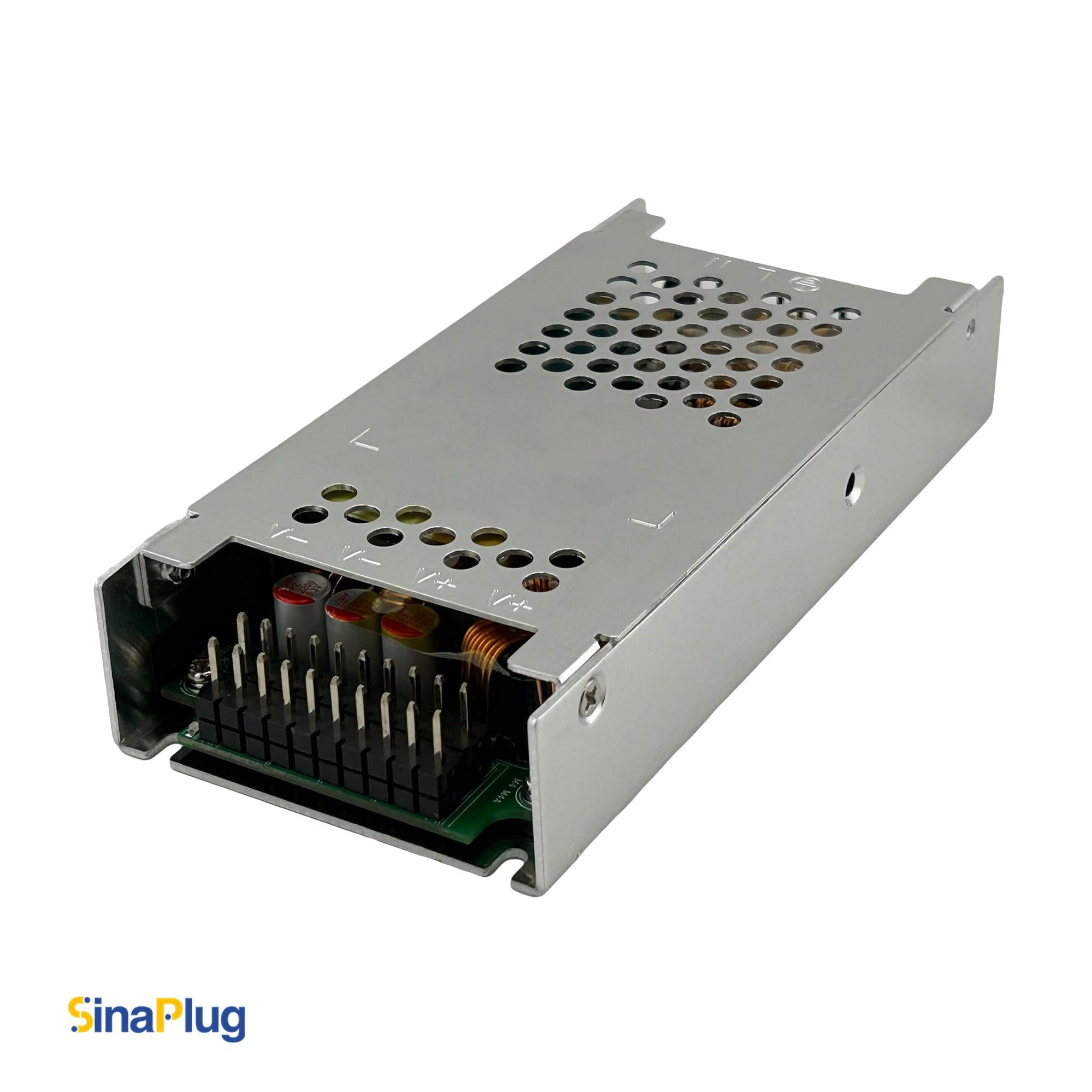

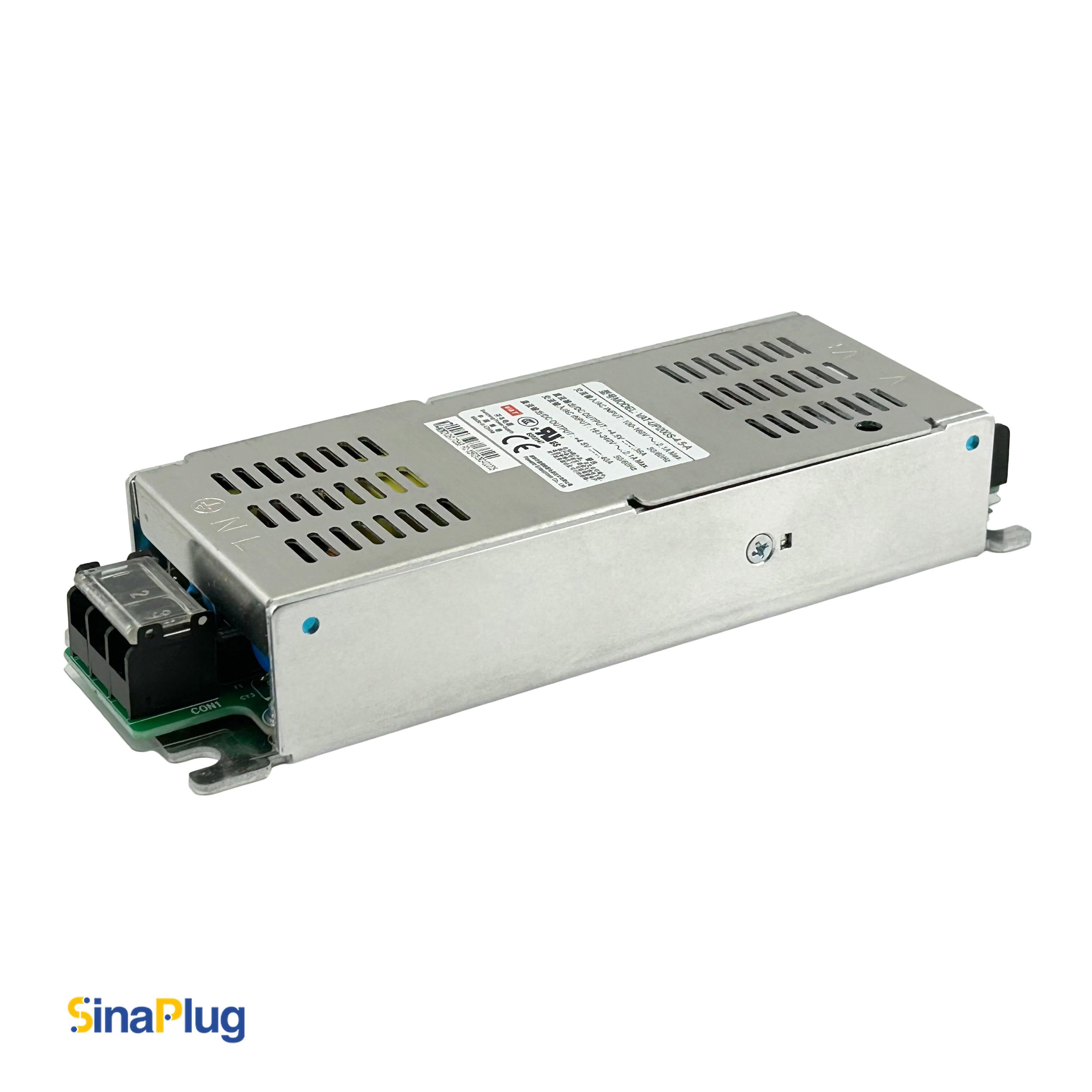

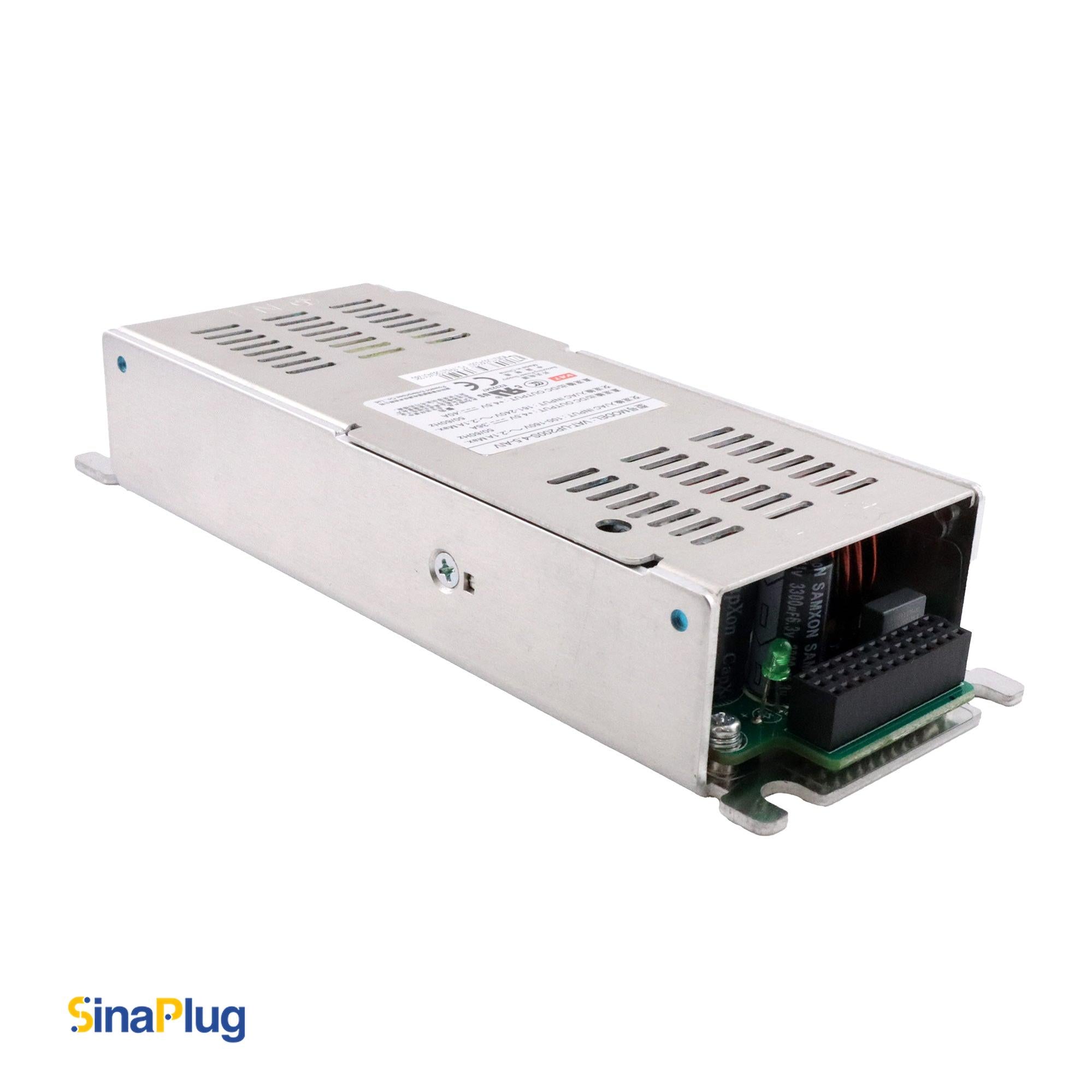

The VAT-UP200S-4.5-AIV deliver its output power through a 3x12-pin female socket and features larger 6.5mm installation holes. On the other hand, the VAT-UP200S-4.5-A model uses standard connection terminals and has smaller installation holes with a diameter of 3.5mm.

These power supplies have a rated output power of 180W with a high efficiency of up to 88%. They include Power Factor Correction (PFC) and advanced regulation technologies to ensure precise voltage delivery and energy-efficient performance. They also support peak power up to 225W to accommodate startup current surges safely.

Comprehensive protection features such as overcurrent, overpower, and short circuit protections, all with auto-recovery capabilities, are available to promote durability and system safety. Its robust design features natural convection cooling and anti-vibration measures, allowing reliable operation within a wide temperature range from -40°C to +60°C.

Certified to meet multiple international standards including GB4943, EN55022, and IEC61000 series, this power supply combines compactness and sturdiness for flexible integration into various electronics and LED systems.
